JVC TM-1051DG
September 22, 2024, 1:09 am
August 16, 2025, 9:20 am
Summary

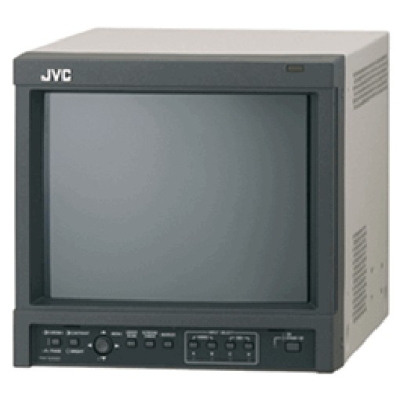

Portable 9" broadcast monitor with a low TVL slot mask tube, dual composite inputs, and a built in SDI input card.
This monitor is very similar to the DT-V100CG, and is nearly identical internally. The main difference is that the SDI adapter does not have multiformat capability and only accepts 480i.
Manuals
Media & Promo Materials
Notes

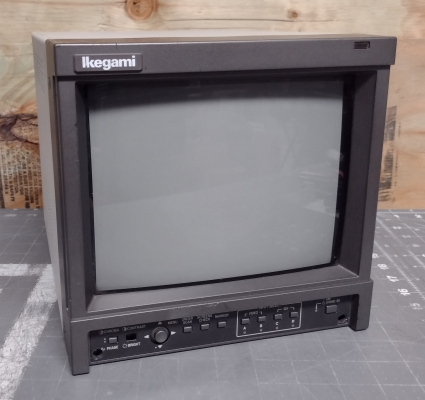

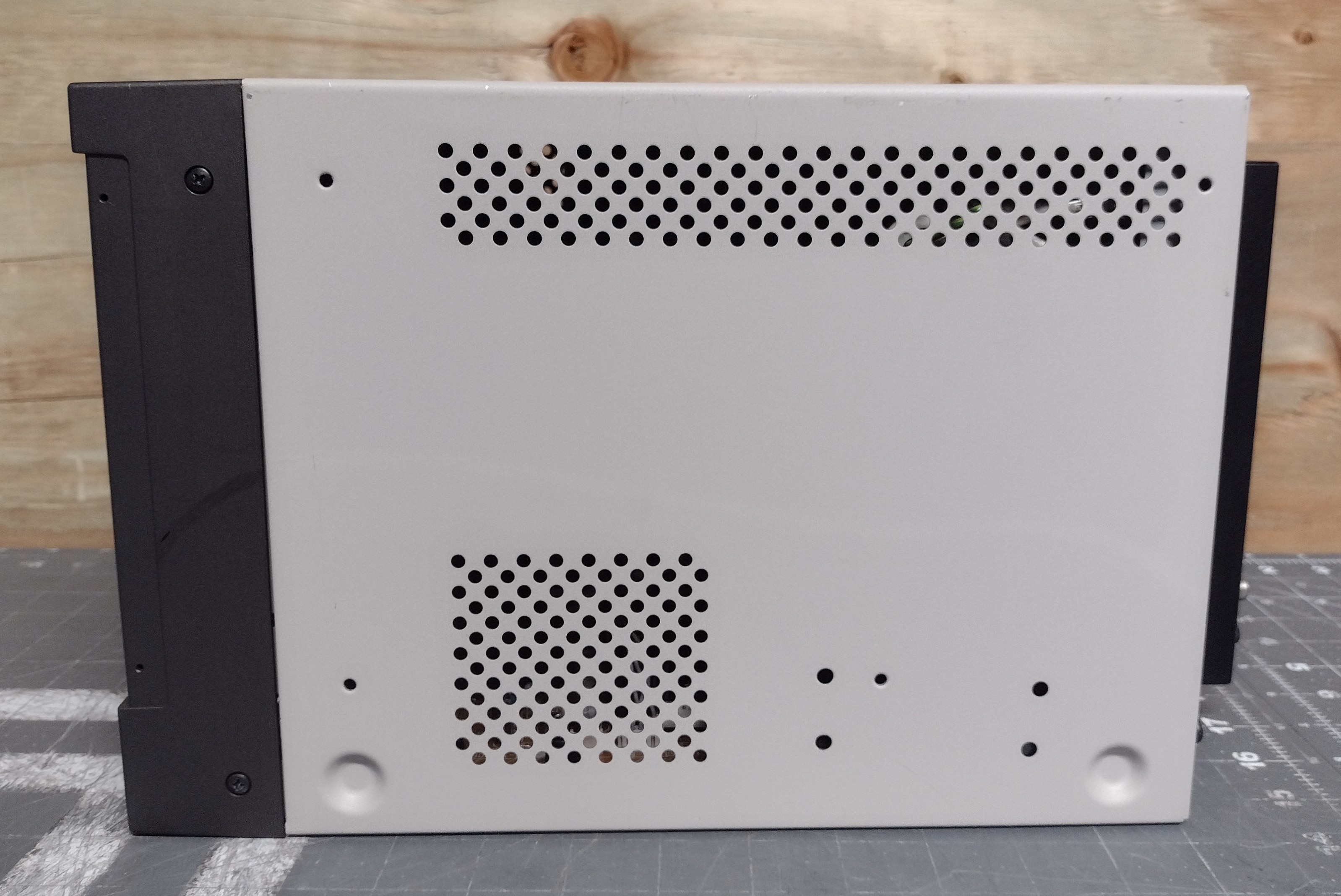

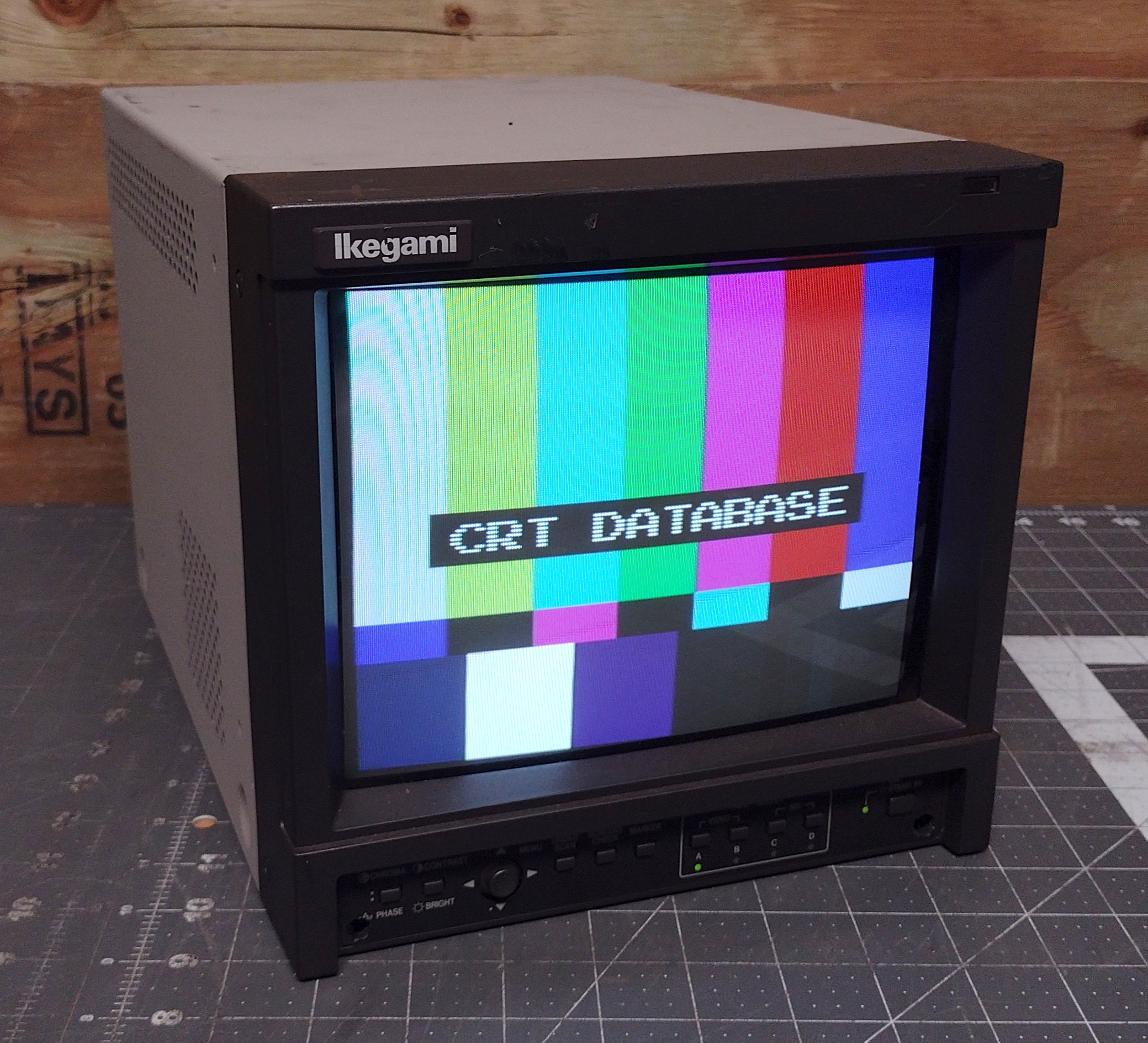

This monitor was also sold by Ikegami as the TM9-3D. The monitor in these pictures is an Ikegami rebrand rather than the JVC model, although otherwise it is identical.

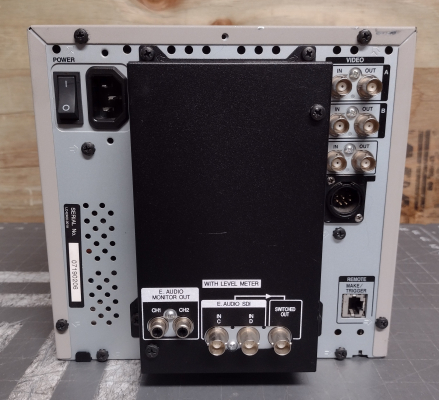

The metal enclosure on the back of the monitor contains an SDI to YPbPr converter, which provides its SDI input capability. It will function perfectly well without the SDI module; when this is removed it will give an error message when attempting to switch to SDI but will otherwise operate as normal.
Like many other JVC pro monitors, this model uses a Toshiba TA1276AN jungle chip. It should be possible to modify it for RGB input in the same way as the TM-1011G. This method was developed by Martin Hejnfelt and uses an Arduino to set brightness levels for the RGB input. Instructions can be found on the Immerhax.com website.
Gallery




Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | TM-1051DG |
Series: | TM |
Viewable Size: | 9" |
Inputs: | Composite, SDI |
Sync: | CSYNC |
Native Resolutions: | 240p, 480i |
Linecount: | 280 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 50 Hz, 60 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu, Front Mounted Buttons |
Horz. Output Transistor: | 2SC5902-AL |
Vertical Output IC: | LA7845N |
Jungle: | TA1276AN |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | TC90A49AP |
Flyback: | QQH0193-001 |
Focus Type: | Single |
Tube: | Chunghwa , A22AKQ13X17 , A22AKQ13X |
Heater Voltage: | 6v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | 0.5 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | XPY10021 |
Yoke Horz. Inductance: | 4.175 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 24.87 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 5.6 ohm |
Yoke Vert. Resistance: | 15.2 ohm |
Speakers: | None |
Chassis: | TM45 |
Weight: | 17.4 lbs (7.9 kg) |
Dimensions (W/H/D): |
222 x 220 x 360 mm
(8.7 x 8.6 x 14.1") |
Application: | Professional |
Cabinet Material: | Metal |
Launched: | 2006 |
MSRP: | 1247 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v, 100v, 240v, Universal |
Mounting: | Rackable |
Mods: | RGB via Direct |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual, Needs Pictures |
