Insignia IS-TV040917
Matt Ross
August 31, 2024, 2:29 am
October 2, 2024, 5:49 pm
August 31, 2024, 2:29 am
October 2, 2024, 5:49 pm
Summary

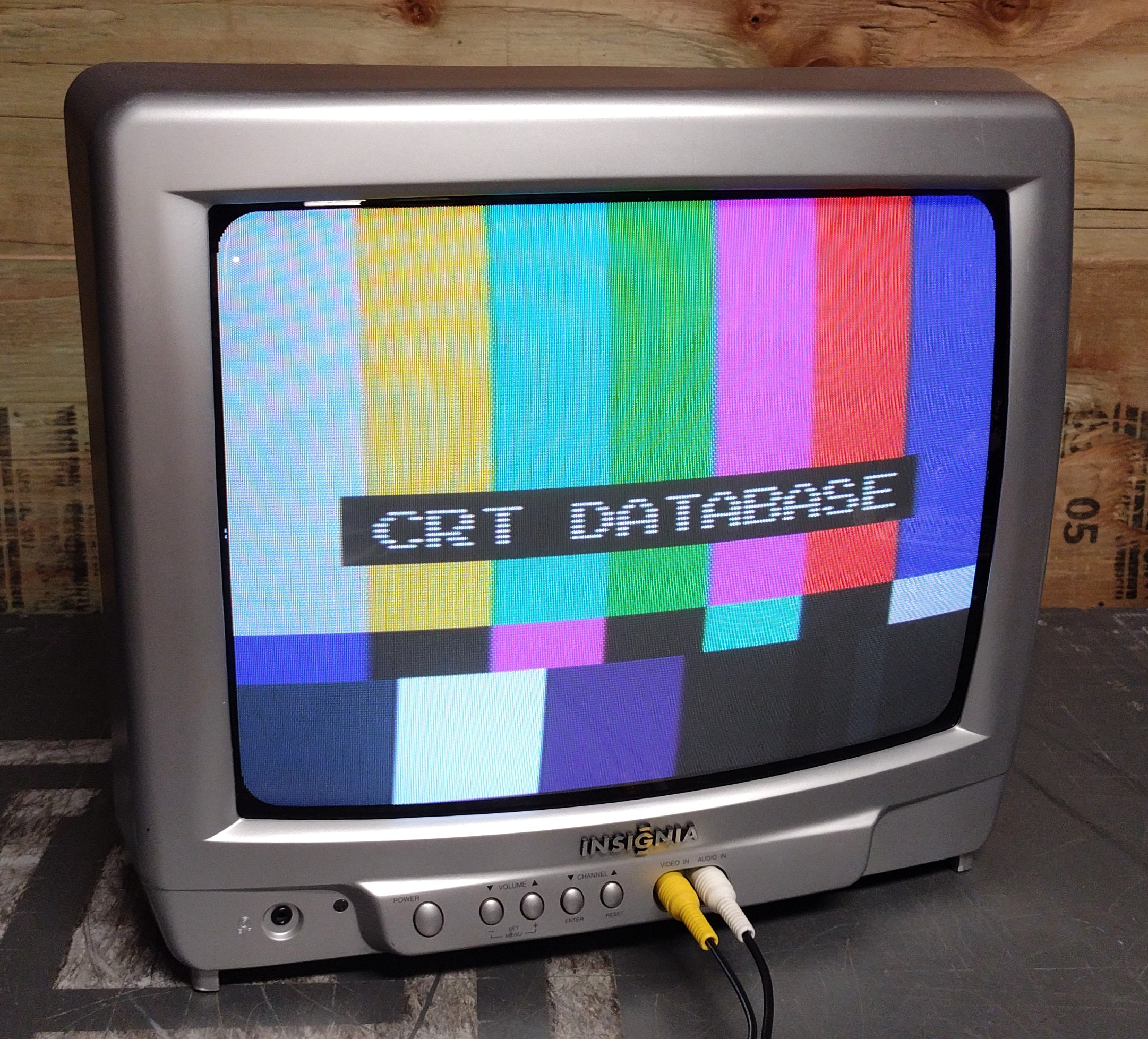

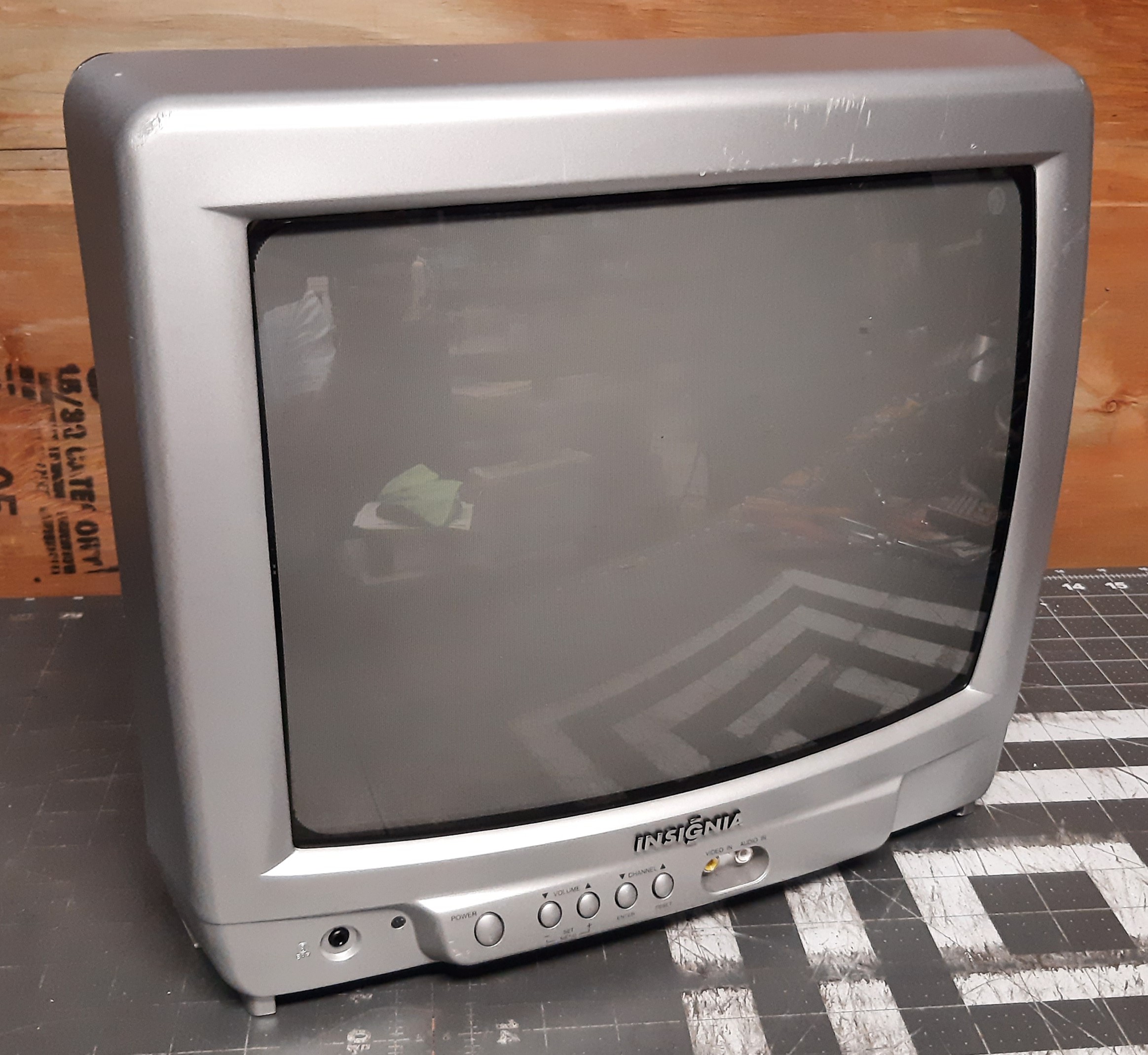

Basic consumer TV manufactured by Orion and sold by Best Buy under the Insignia label. It has a composite input and a single 1 amp speaker that's mounted on the bottom of the TV. This TV was sold under several different brands, such as the Durabrand DU1301A and the Toshiba 13A26.
Literature
Notes
Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.

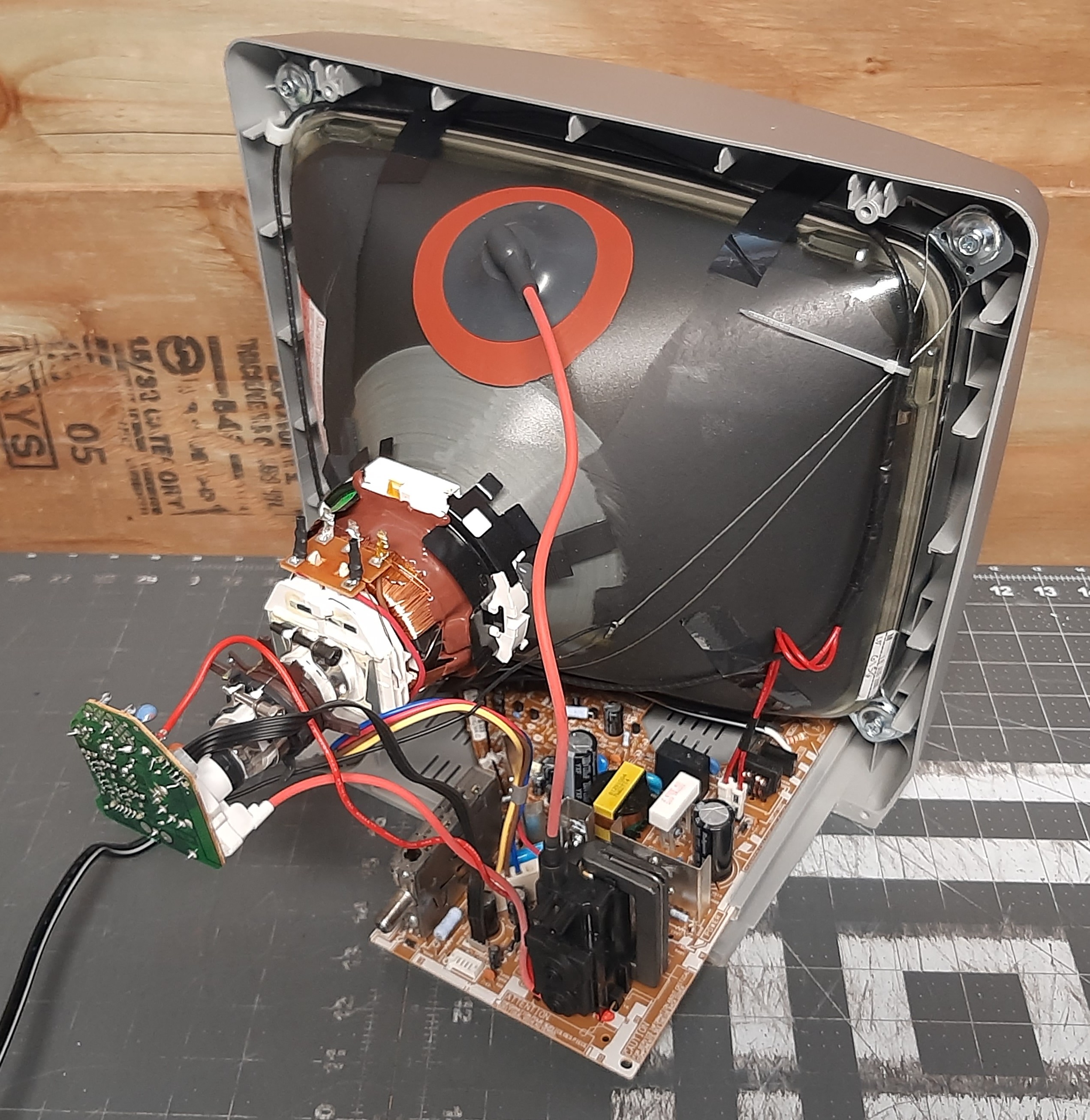

Unlike some previous 13" Orion TVs, this model uses a simplified chassis with a 1-chip jungle design. It cannot be modified for RGB.

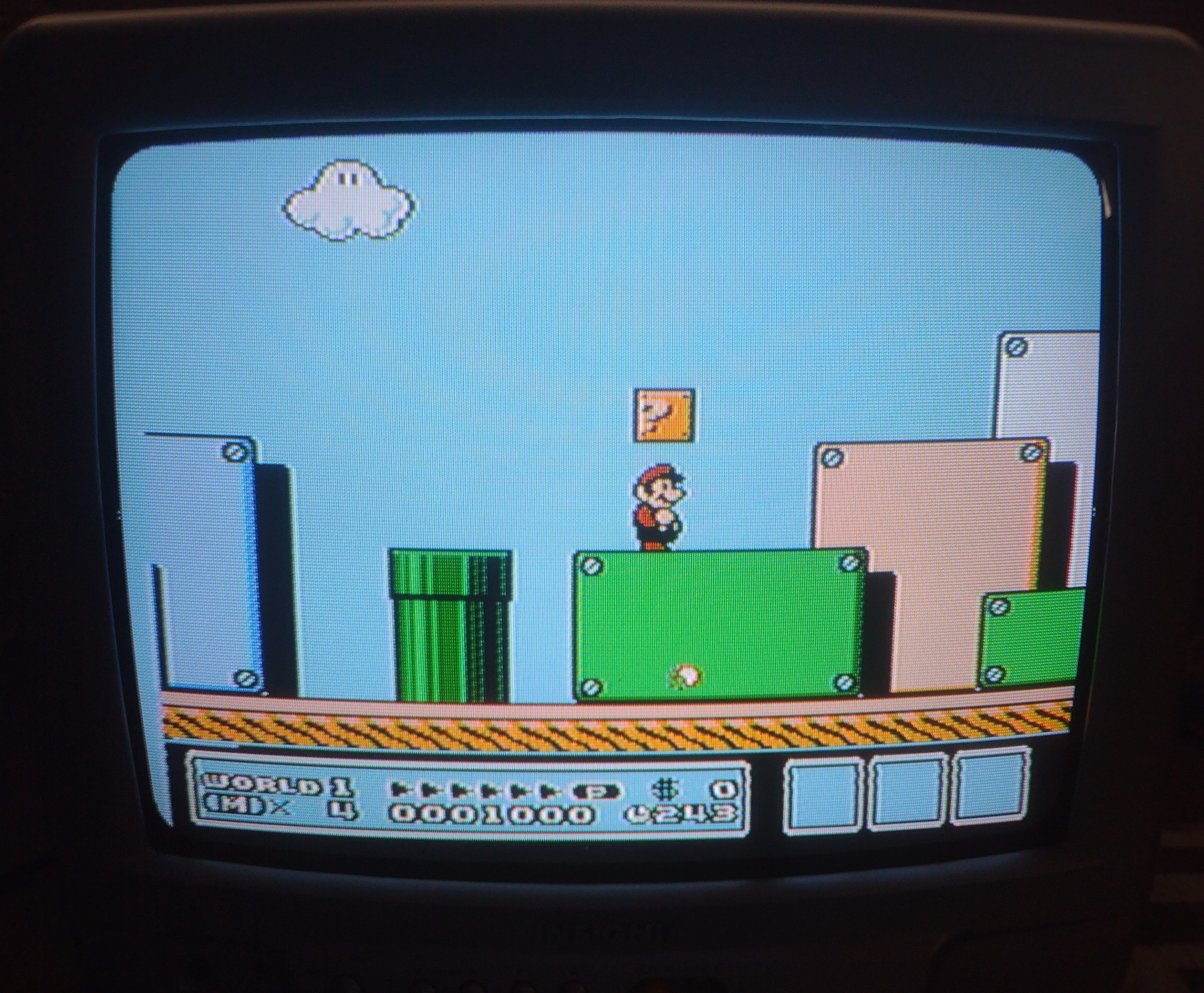

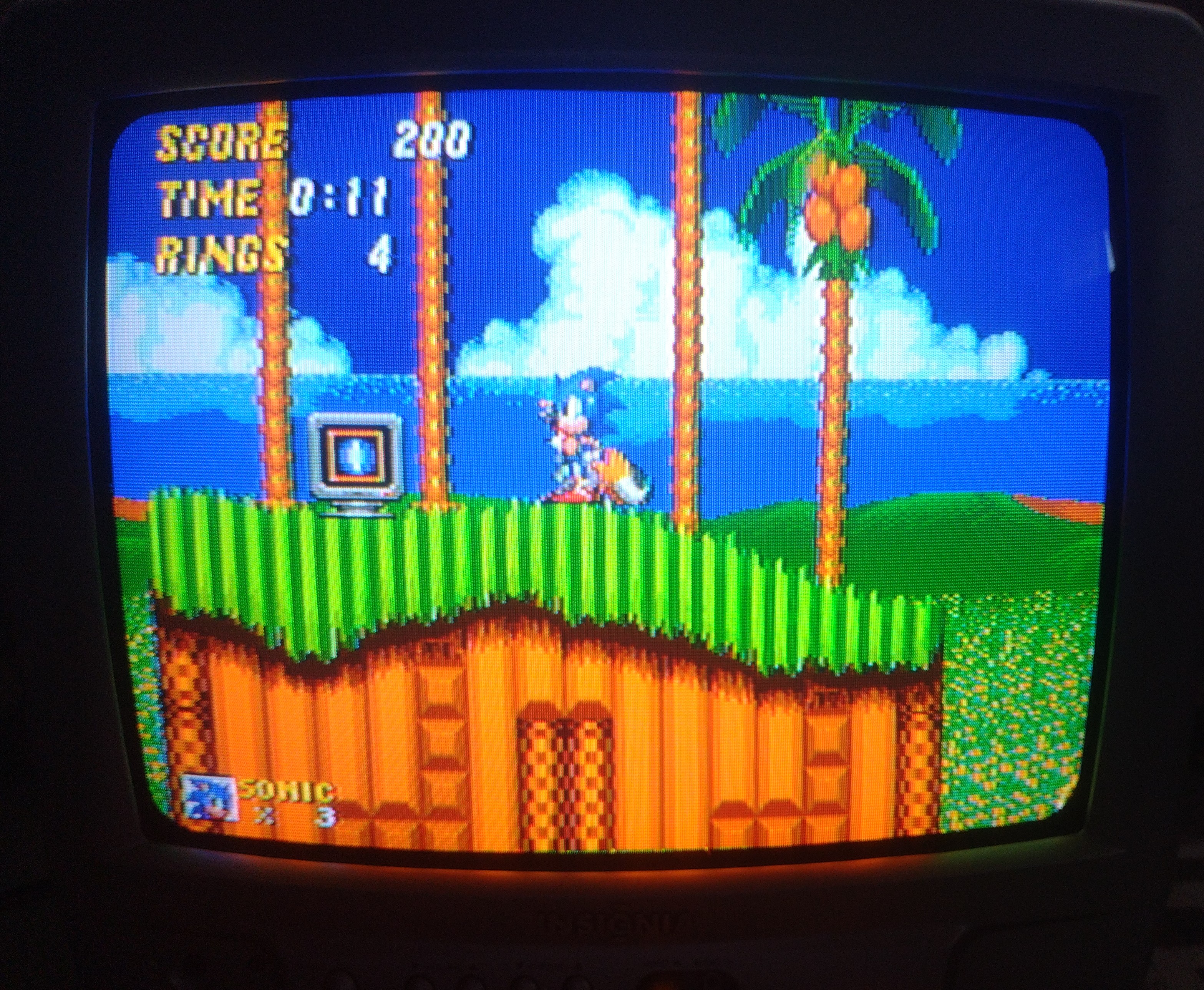

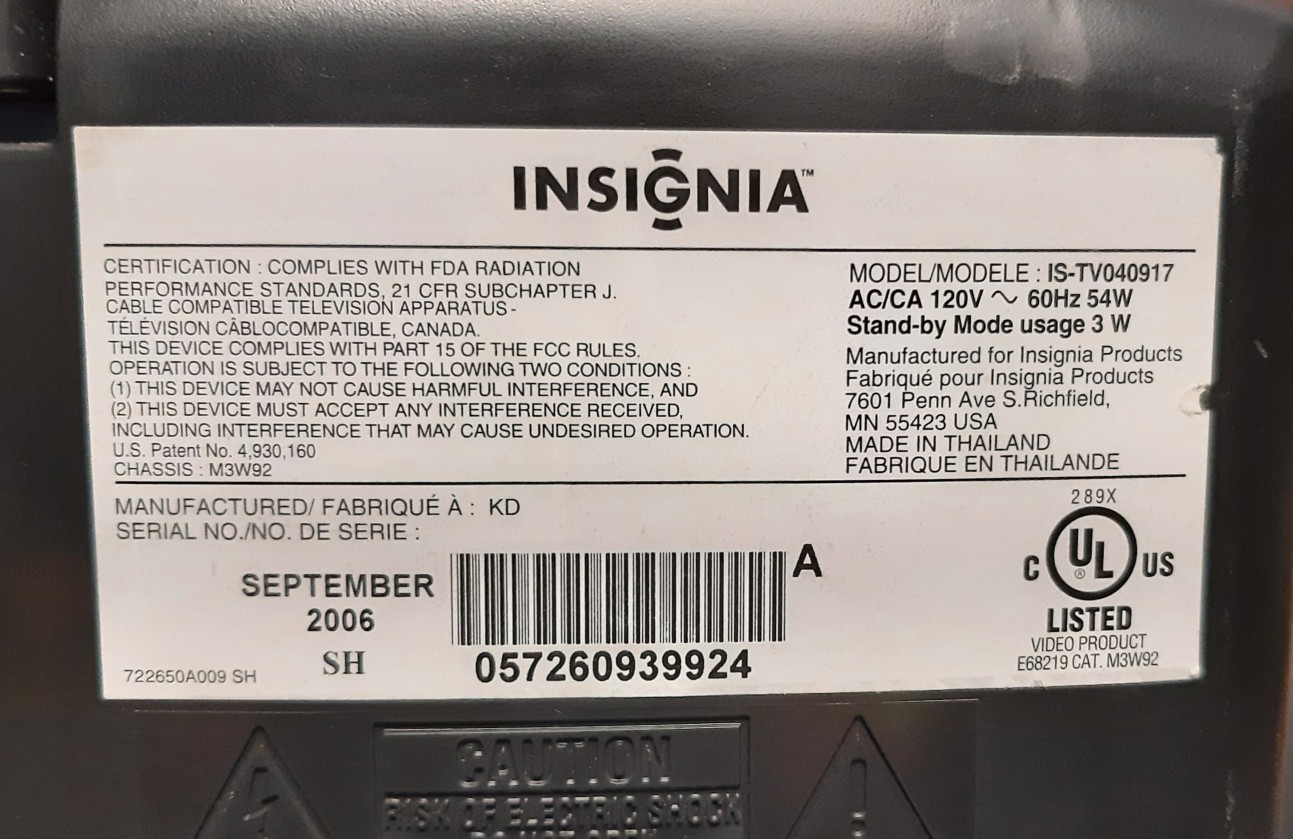

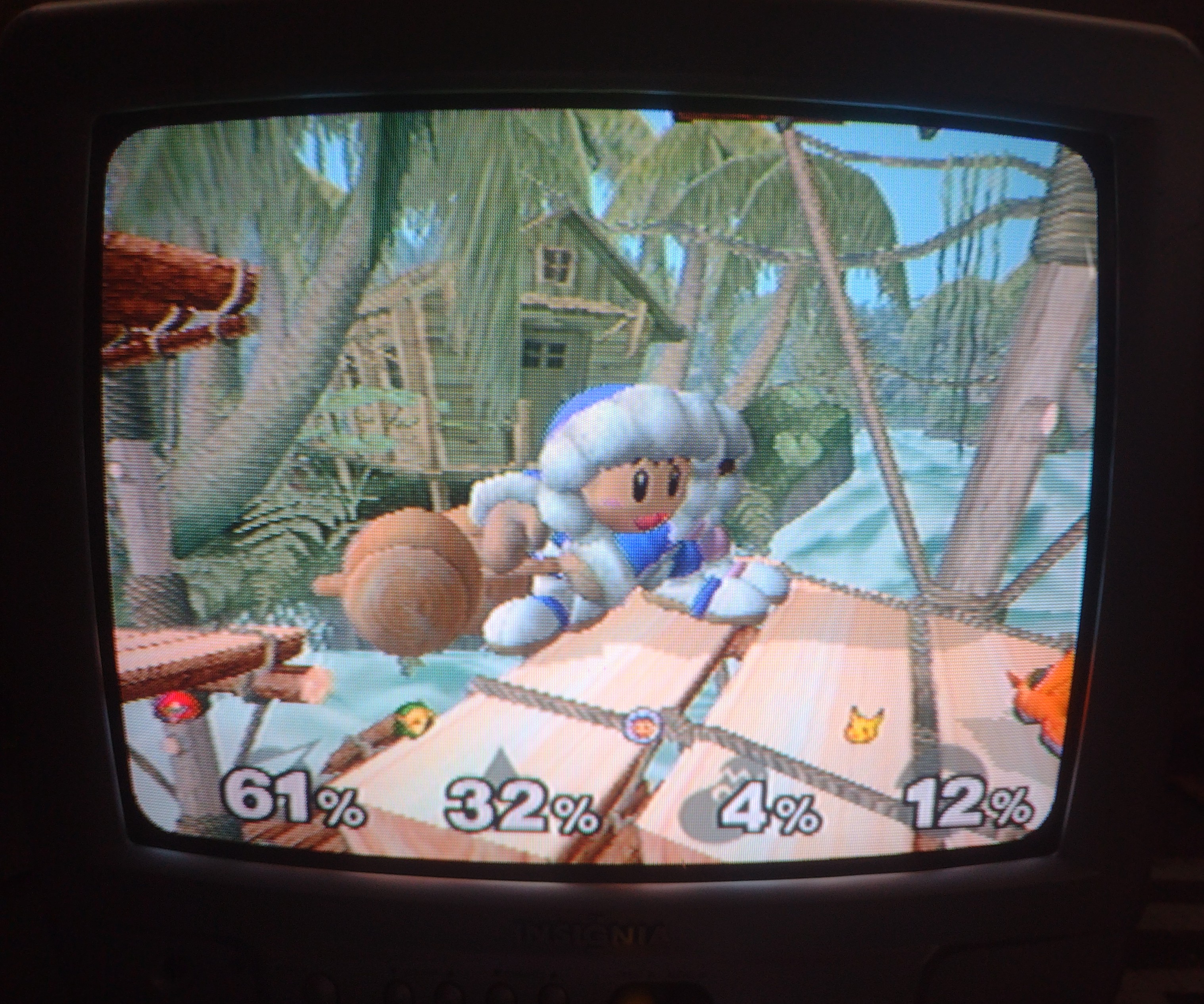

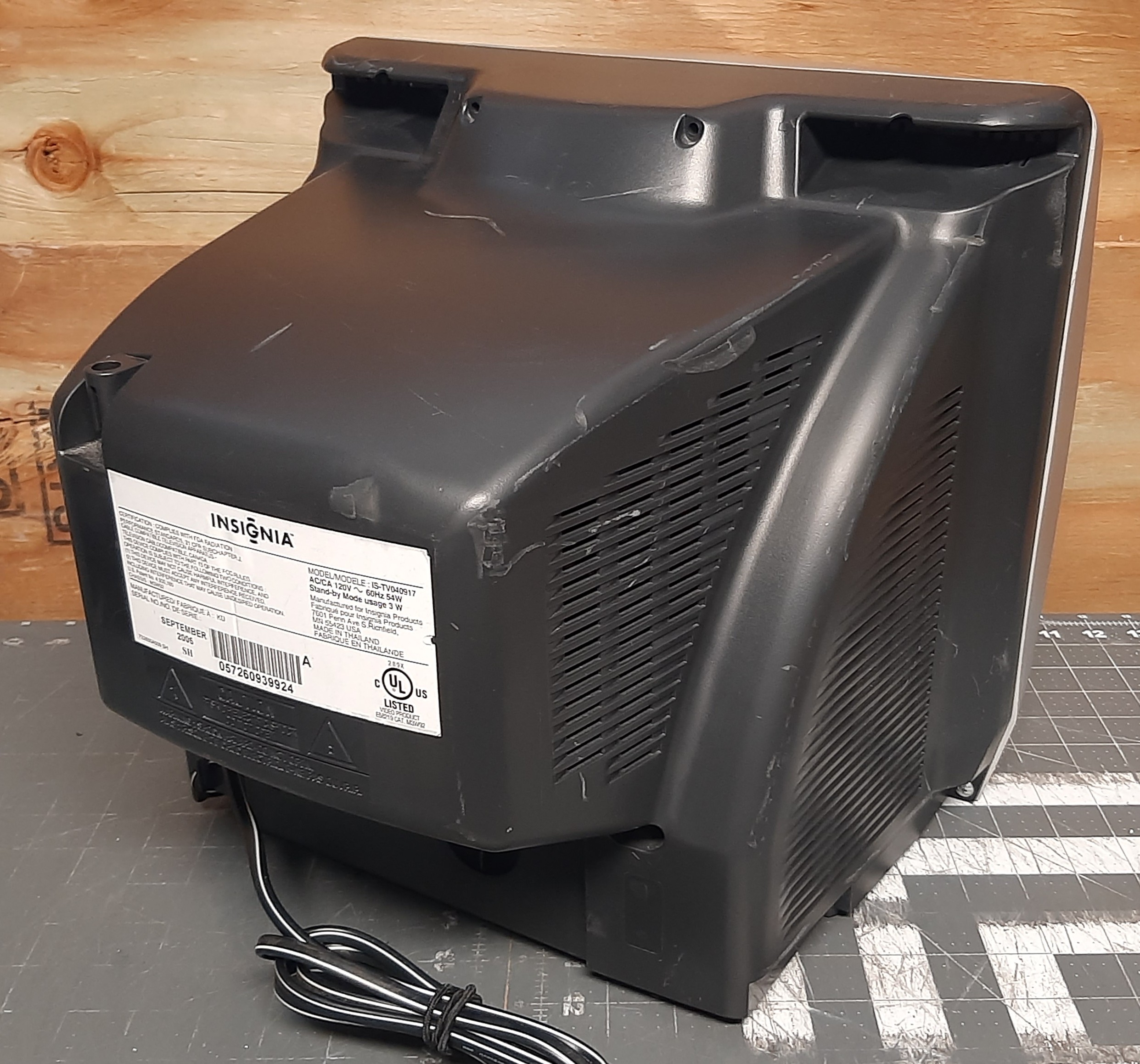

Gallery
Specifications | |
---|---|
Brand: | Insignia |
Manufacturer: | Orion |
Model: | IS-TV040917 |
Series: | TV |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SC5885 |
Vertical Output IC: | STV9302B |
Jungle: | OEC7091C |
Flyback: | BSC23-N0147 |
Tube: | Orion , A34AGT13X98 , A34AGT13X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | XY-14003AL6 |
Yoke Horz. Inductance: | 3.920 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 29.58 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 6.600 ohm |
Yoke Vert. Resistance: | 14.57 ohm |
Speakers: | Mono |
Weight: | 20.9 lbs (9 kg) |
Application: | Consumer |
Launched: | 2006 |
Country of Manufacture: | Thailand |
Degaussing: | Automatic on Power-on |
