Summary

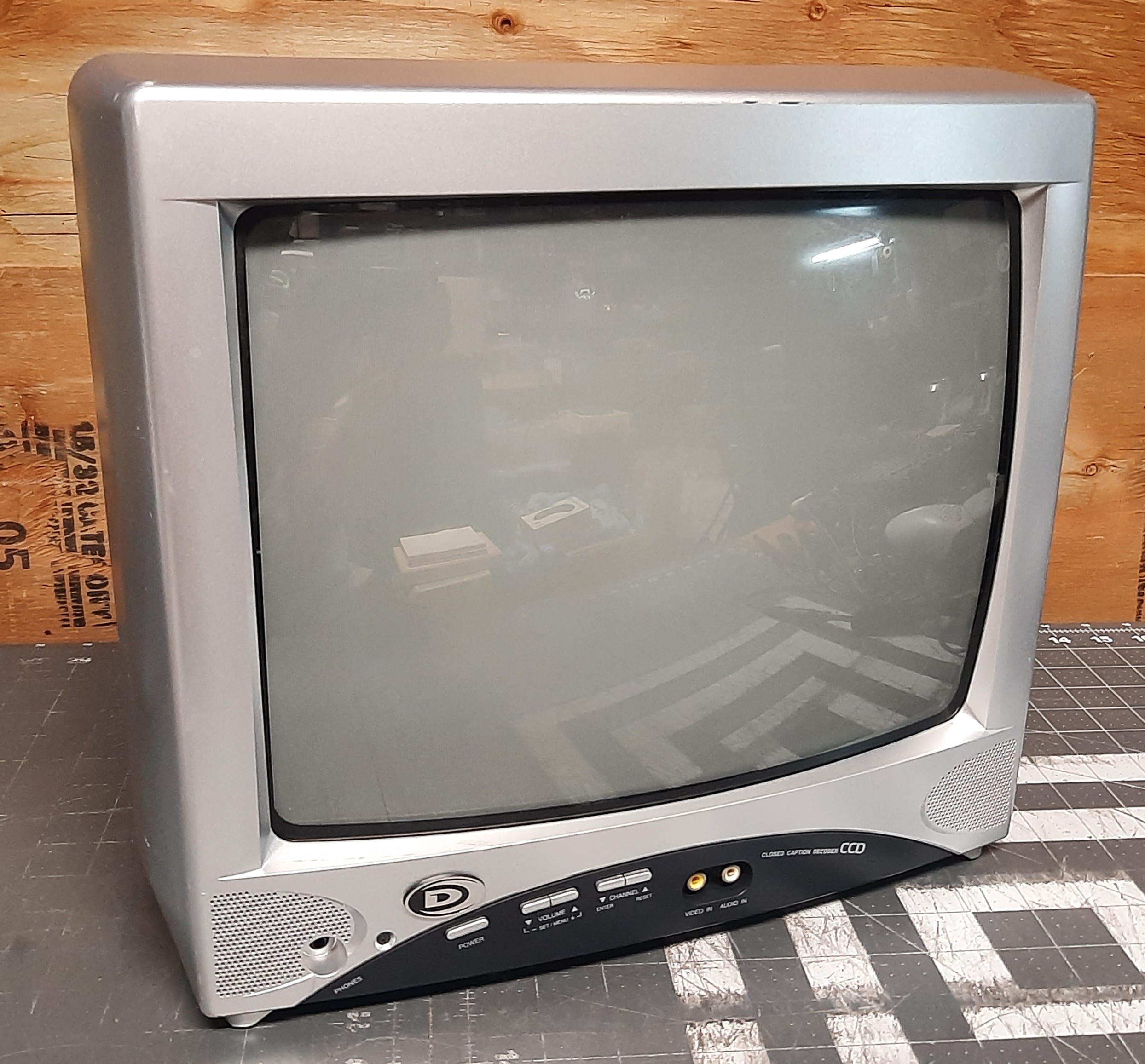

Basic consumer TV manufactured by Orion and sold by Walmart under the Durabrand label. It has a composite input and a single 1 amp speaker that's mounted on the bottom of the TV. This TV was sold under several different brands, such as the Insignia IS-TV040917 and the Toshiba 13A26.
Manuals
Notes
Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.

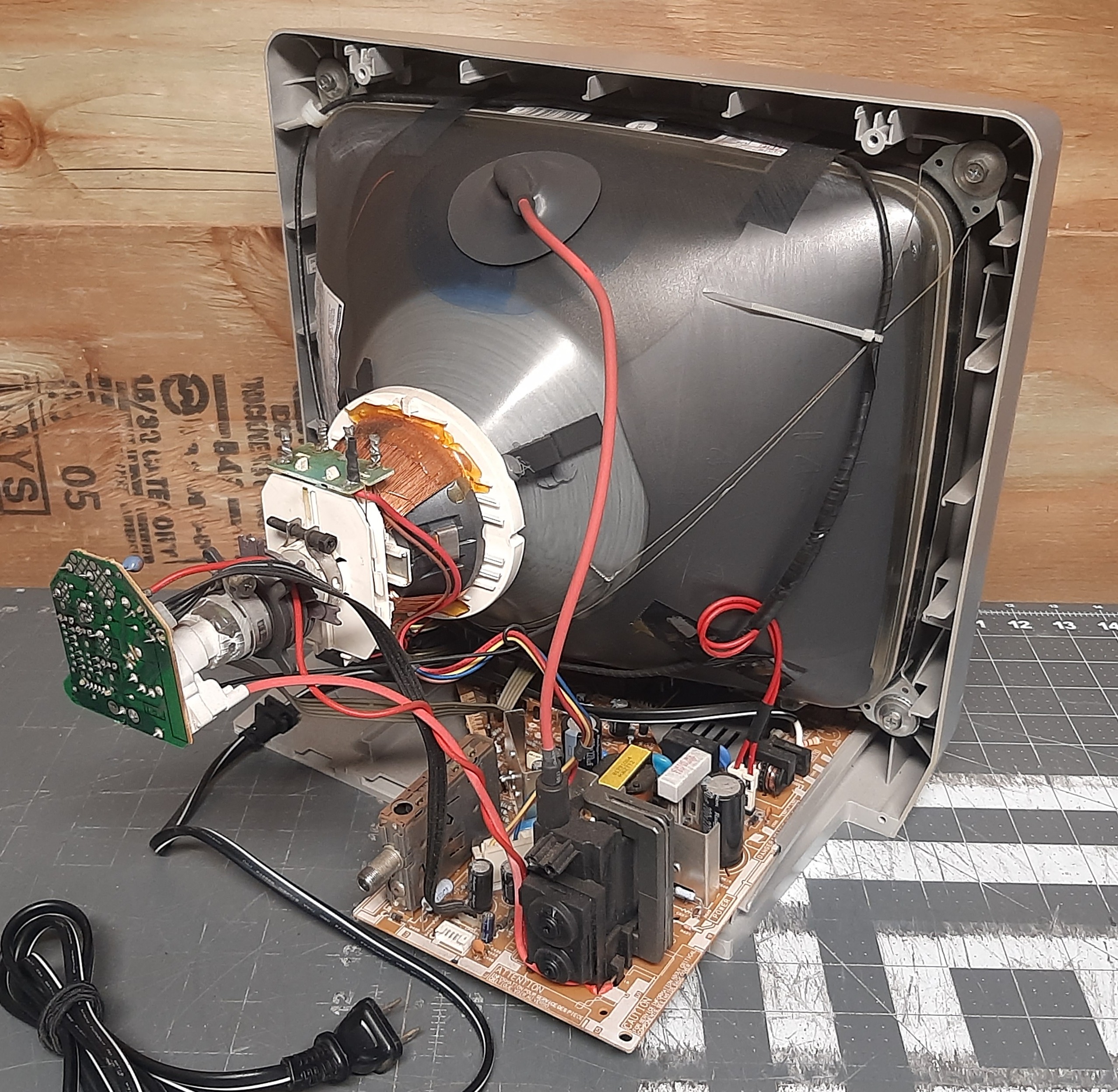

Unlike some previous 13" Orion TVs, this model uses a simplified chassis with a 1-chip jungle design. It cannot be modified for RGB.

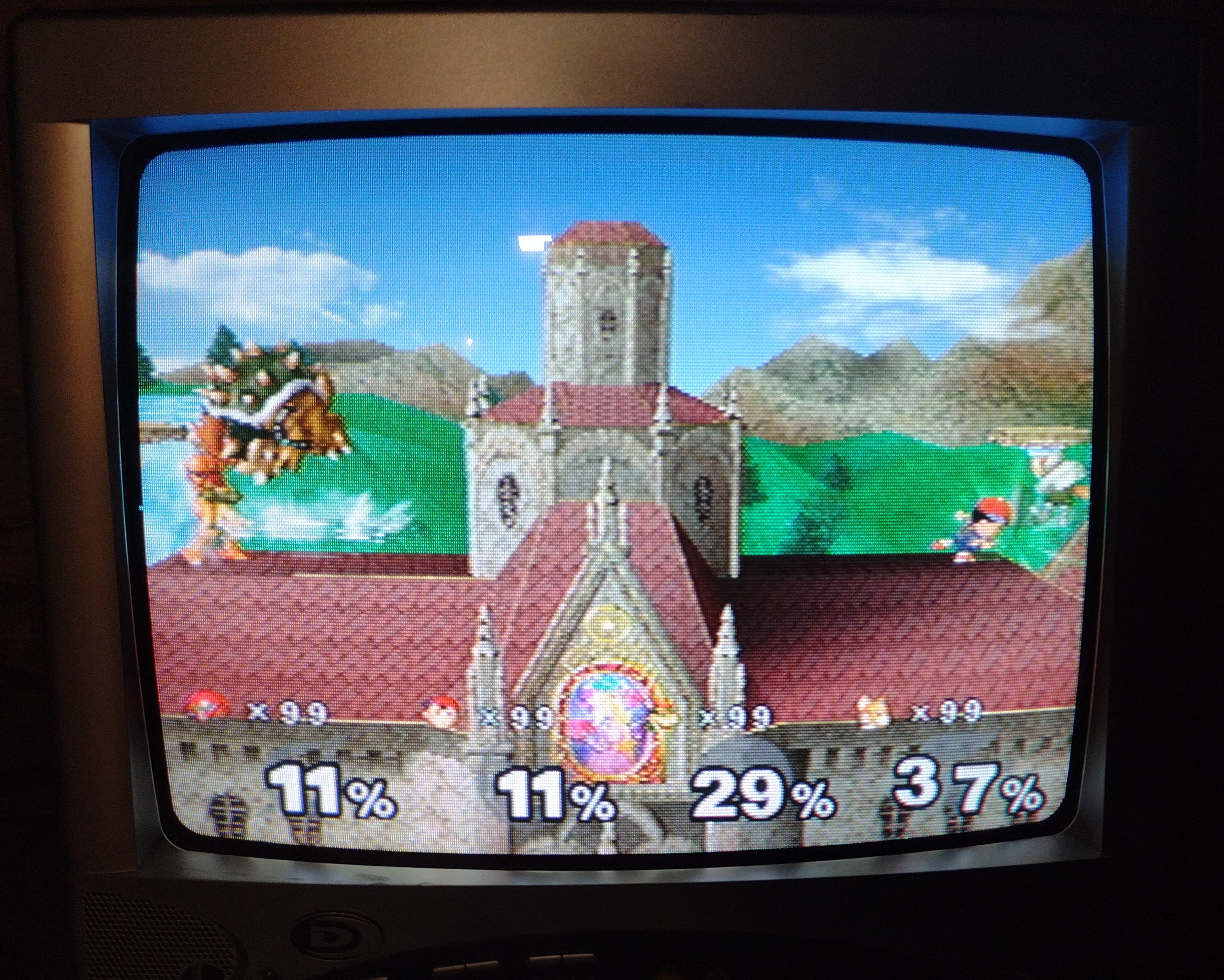

Gallery
| Specifications | |
|---|---|
| Brand: | Durabrand |
| Manufacturer: | Orion |
| Model: | DU1301A |
| Series: | Durabrand |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5885 |
| Vertical Output IC: | STV9302B |
| Jungle IC: | OEC7091C |
| Flyback: | BSC23-N0147 |
| Tube: | Orion , A34JXV70X53 , A34JXV70X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 6E057 |
| Yoke Horz. Inductance: | 4.102 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.46 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 6.29 ohm |
| Yoke Vert. Resistance: | 15.71 ohm |
| Speakers: | Mono |
| Weight: | 20.9 lbs (9.5 kg) |
| Dimensions (W/H/D): |
362 x 360 x 320 mm
(14.2 x 14.1 x 12.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
