Summary

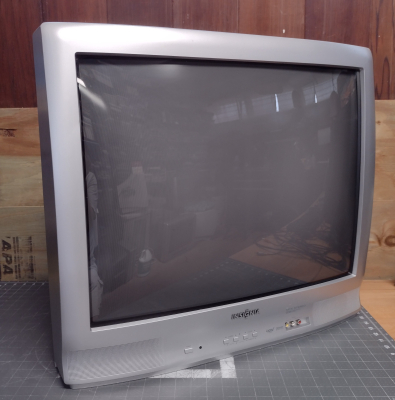

Late model 27" SDTV, manufactured by Orion and sold by Best Buy under their "Insignia" brand. Features a full set of inputs, including Component and S-Video.

Literature

User Manual

Notes

The NS-27RTV uses the same chassis as the Toshiba 27D46 and Zenith C28J28B.

Like most TVs made by Orion, it is not possible to change video inputs using the front panel, and a remote must be used. Most universal remotes will work.

Unlike many 27" TVs sold in the US, this model uses a 110 degree tube and has a full set of horizontal geometry controls in the service menu.

Component video has a significant amount of red push and some edge enhancement effects, some of which can be minimized by adjusting the picture settings in the user menu. These effects are less pronounced with S-Video and composite, however, and in some cases S-Video can give a cleaner picture than component.

This TV includes an ATSC digital tuner, and can still receive modern broadcast television through an antenna.

While previous Orion TVs used Mitsubishi/Renesas jungle chips, this generation uses Sanyo LA series chips instead. While it does use a separate Micon/Jungle design, it appears to be configured for digital RGB and most likely cannot be modified.
