Summary

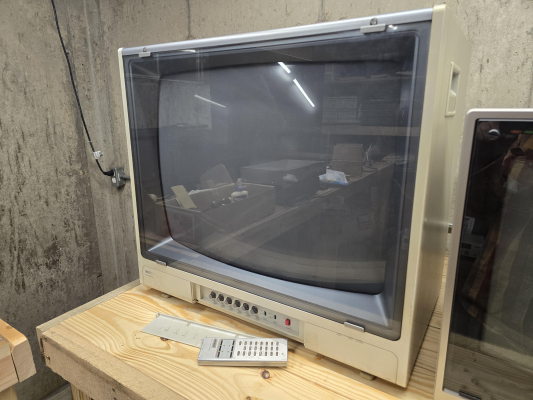

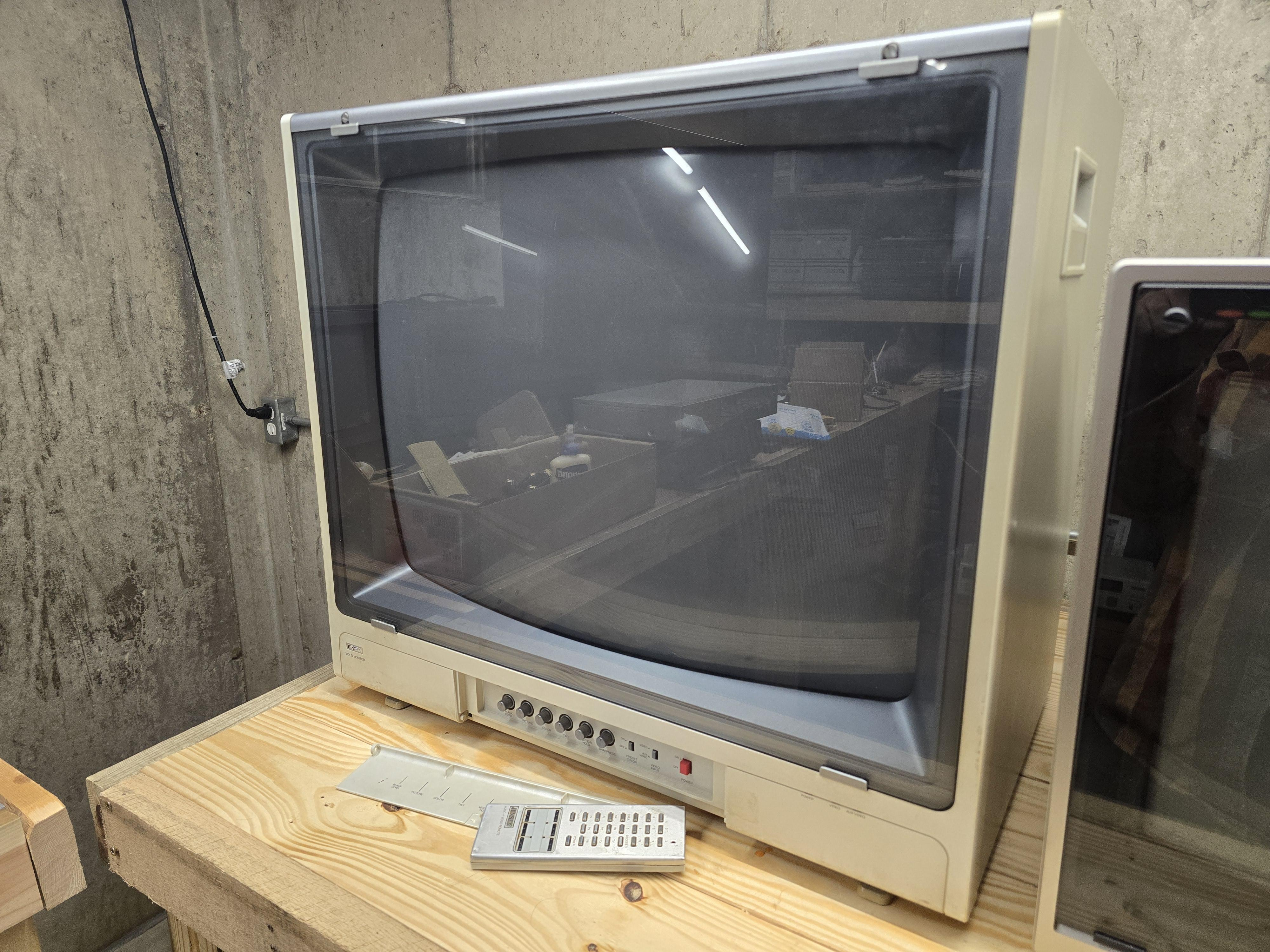

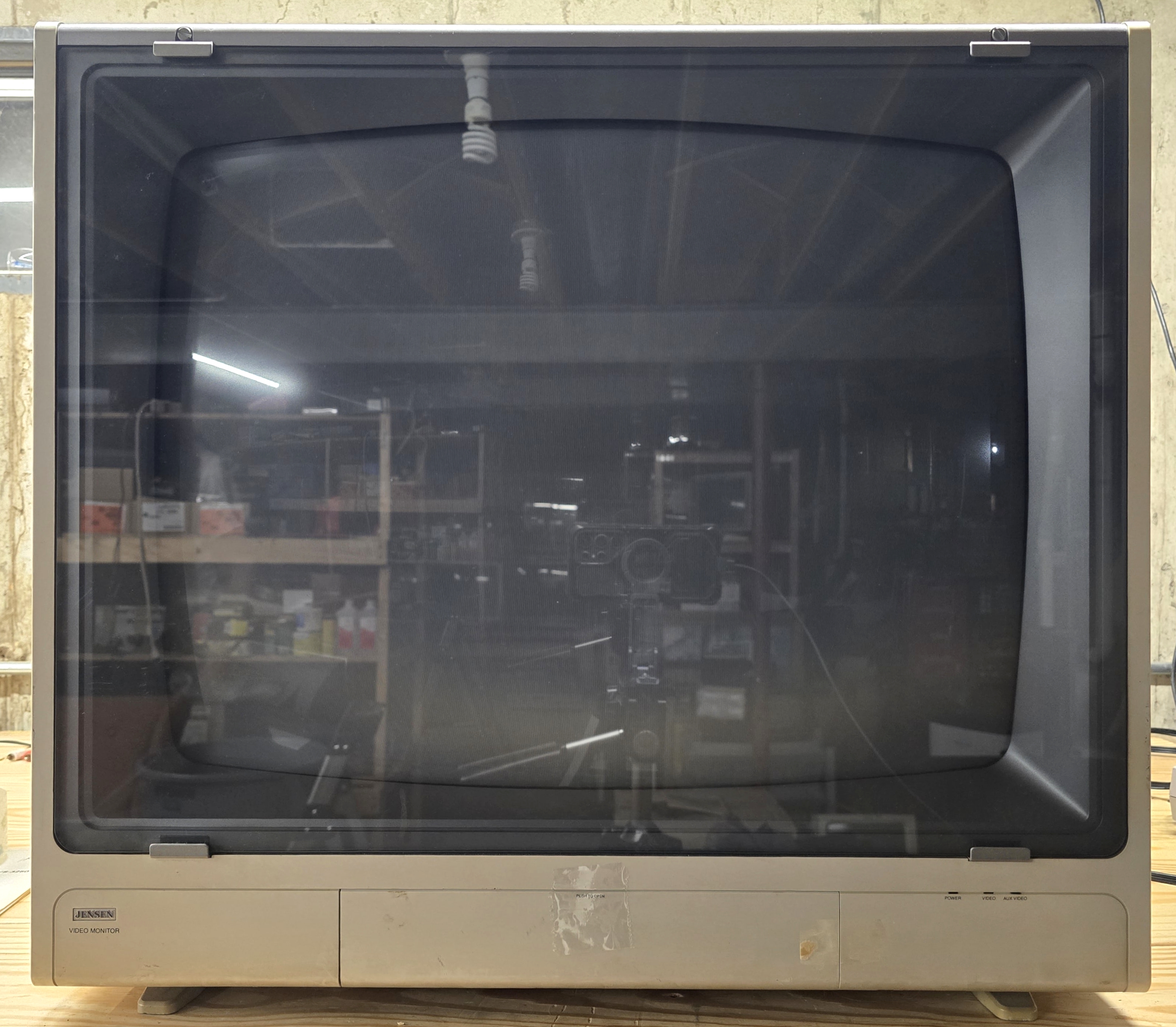

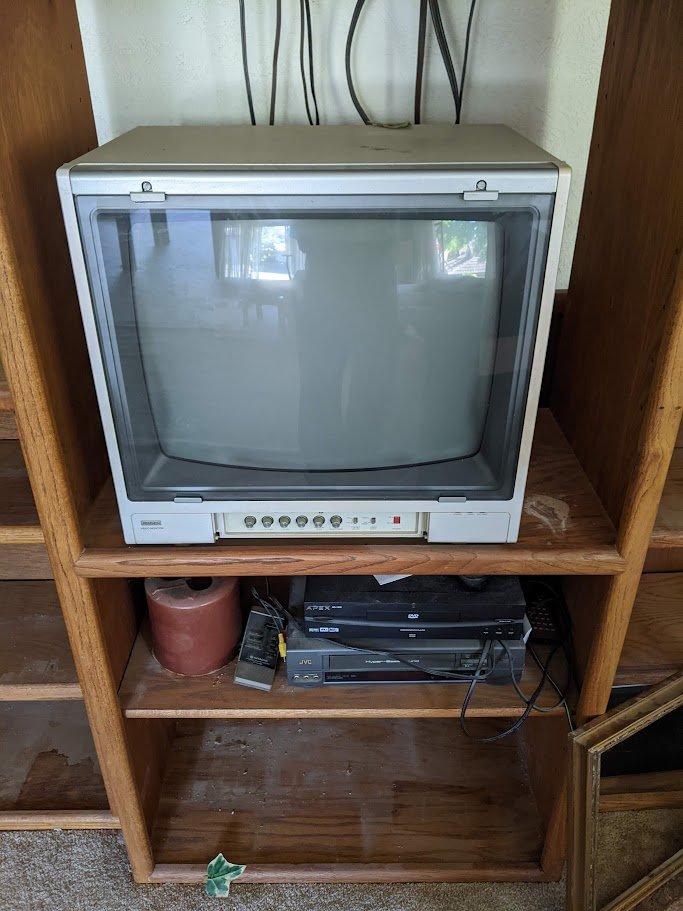

High-end 25" color TV-monitor by Jensen, originally manufactured by NEC in Japan. Has composite video input and output. Intended for use with other Jensen-branded equipment such as a VCR, broadcast TV decoder, AV receiver and speakers.
(A very special thanks to Levi Visger for the pics of the TV and manuals!)
Manuals
Notes

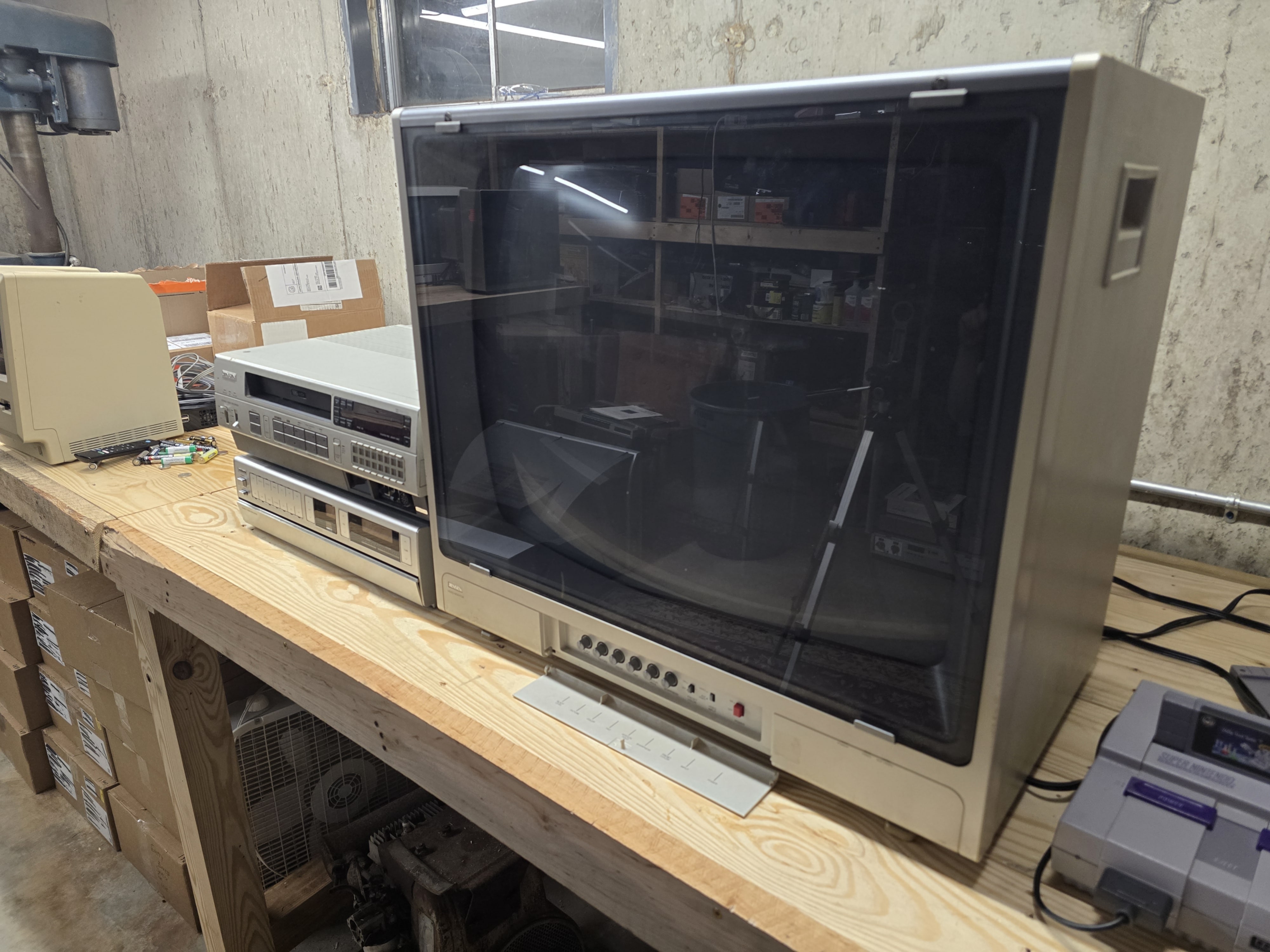

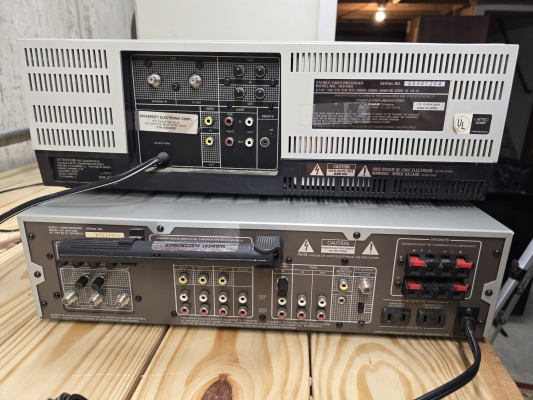

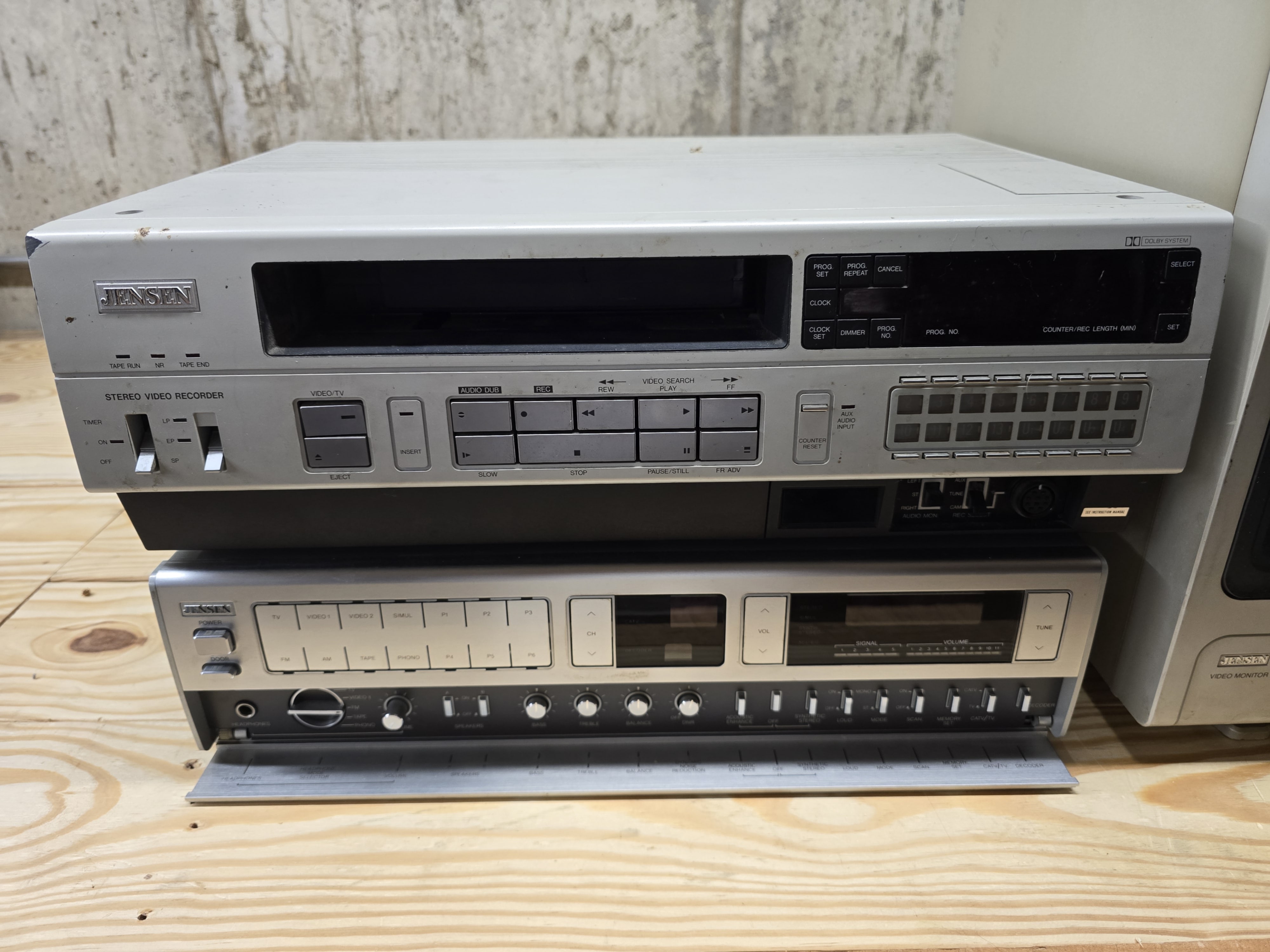

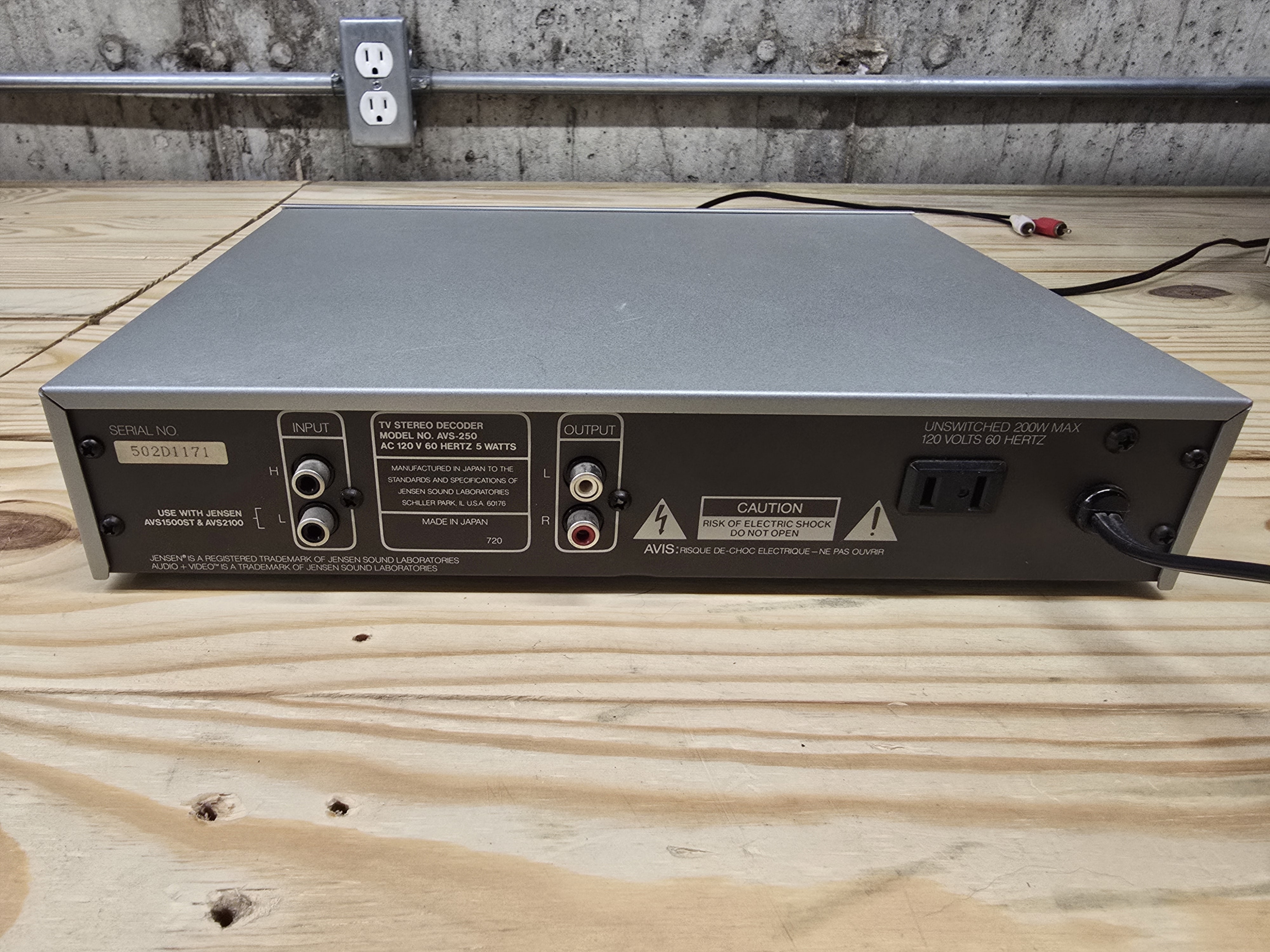

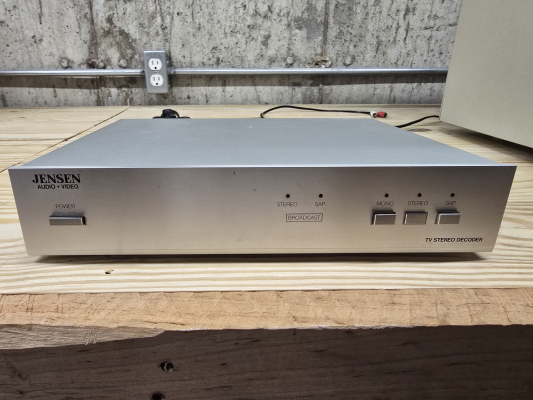

Accompanying equipment:
- AVS-5250 Speaker
- AVS-4400 VCR
- AVS-1500 Receiver

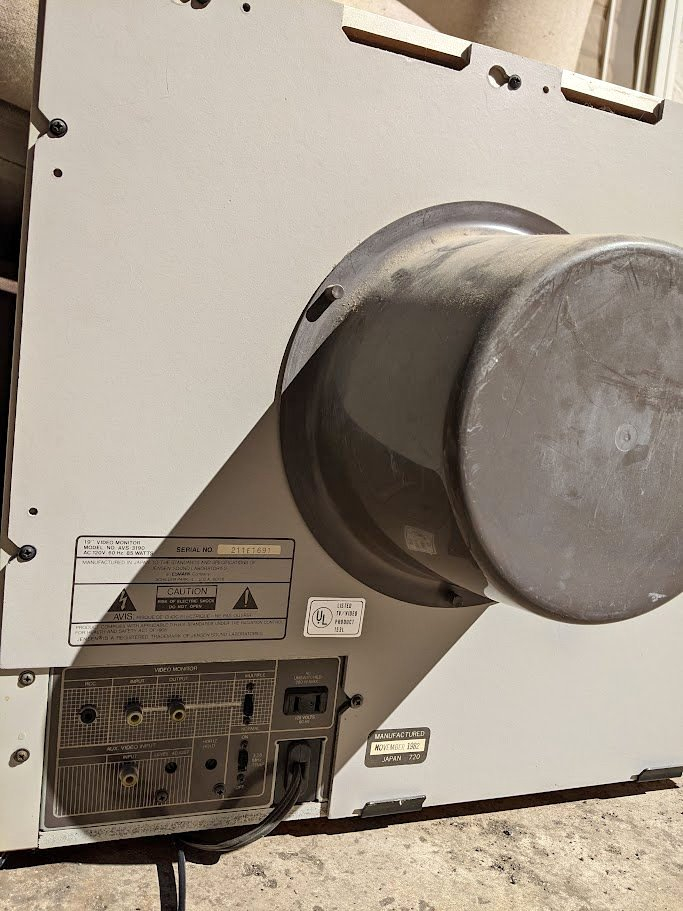

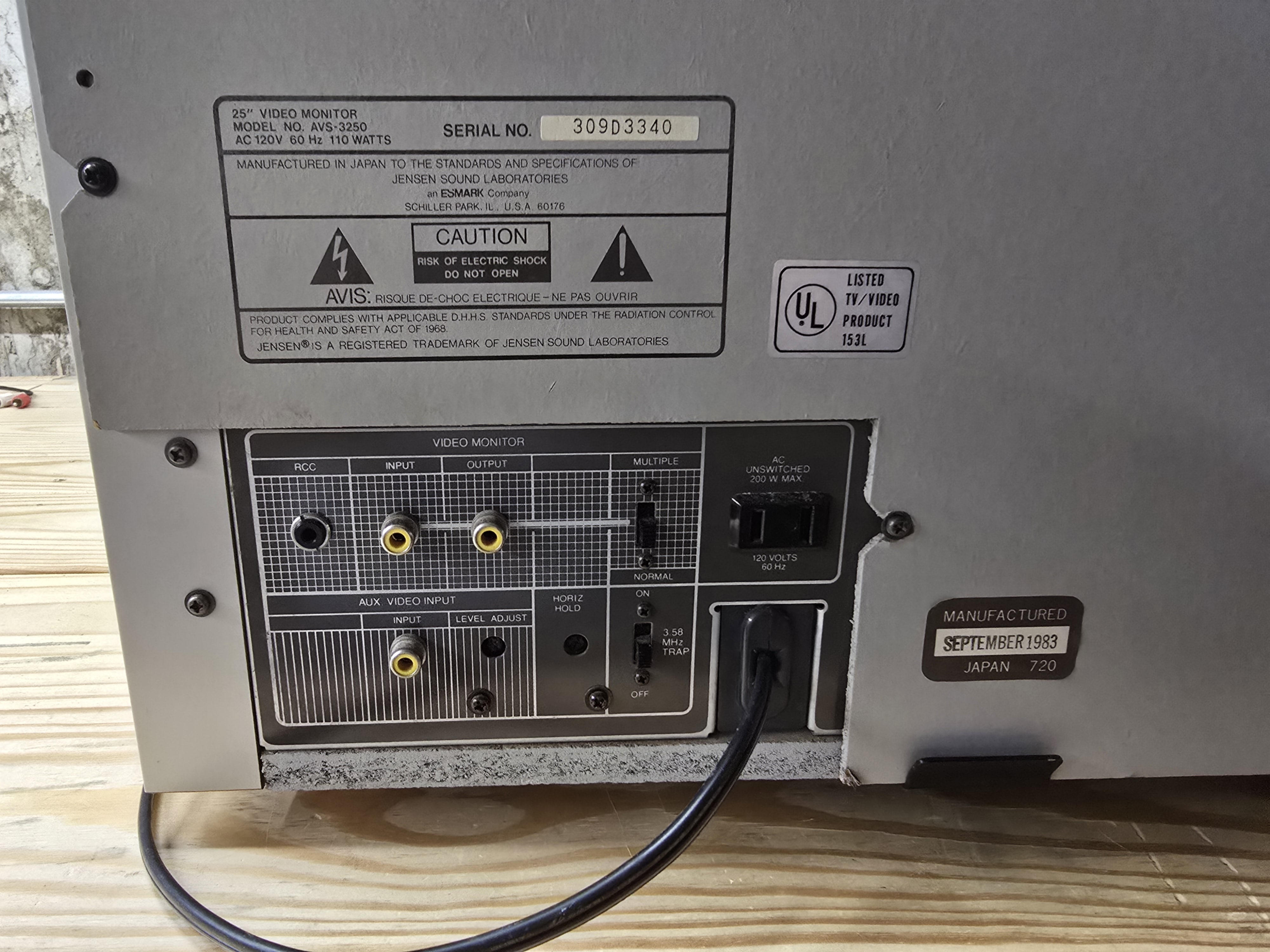

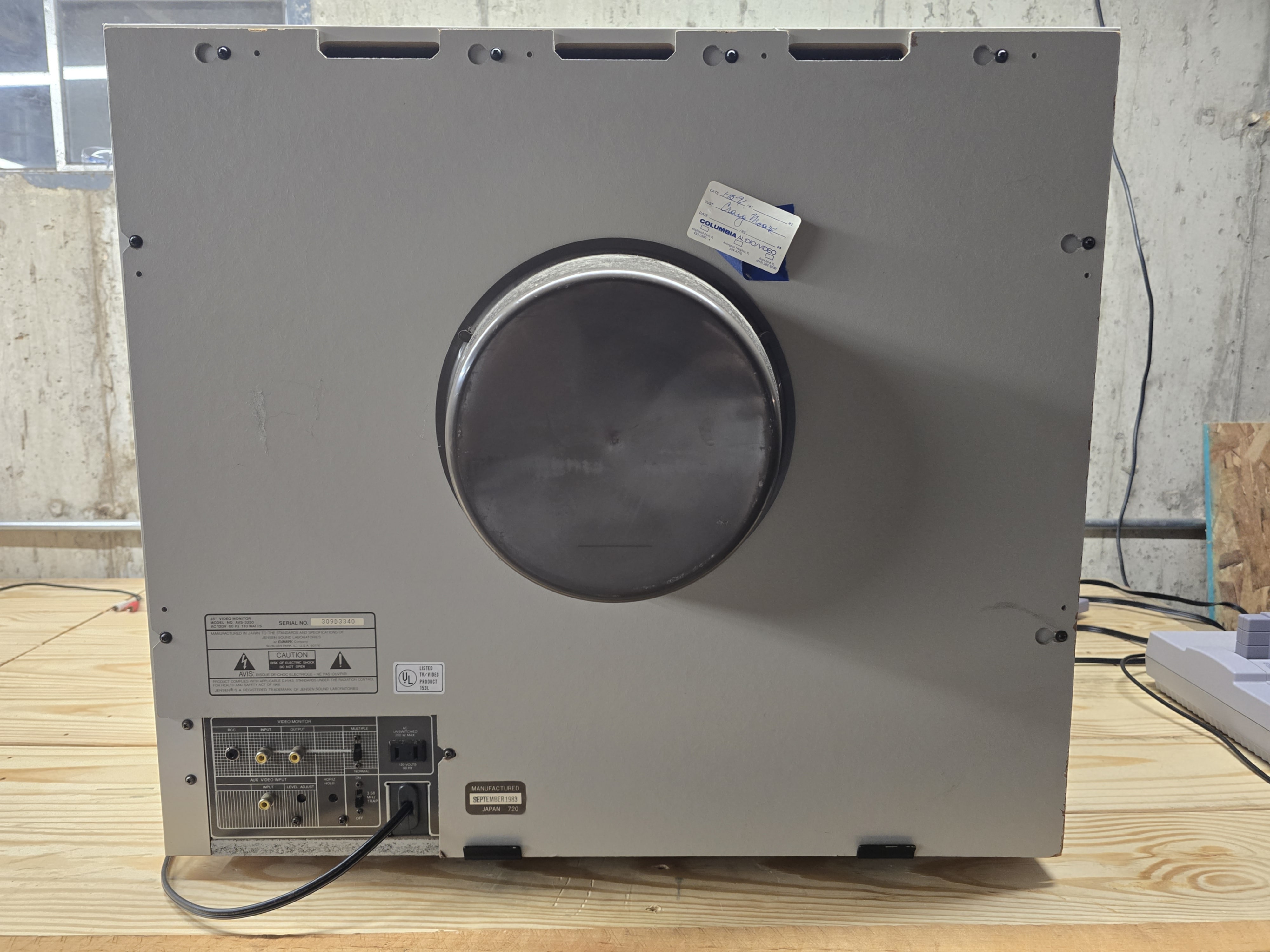

Can toggle a 3.58MHz Trap (notch filter) switch on the back of the set.
There was also a 19" model, AVS-3190:
Gallery
| Specifications | |
|---|---|
| Brand: | Jensen |
| Manufacturer: | NEC |
| Model: | AVS-3250 |
| Series: | AVS |
| Viewable Size: | 25" |
| Inputs: | Composite |

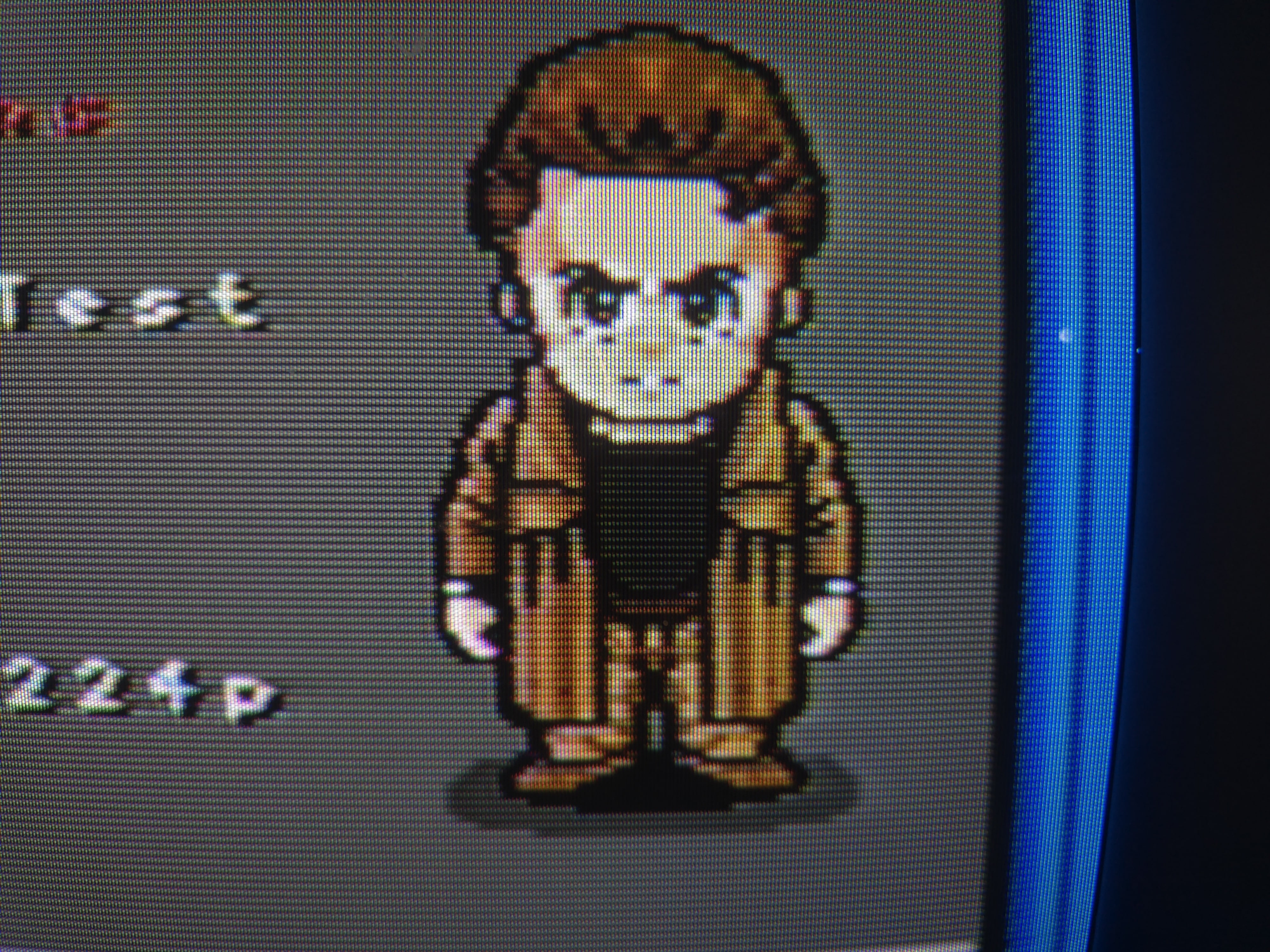

| Native Resolutions: | 240p, 480i |
| Linecount: | 350 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

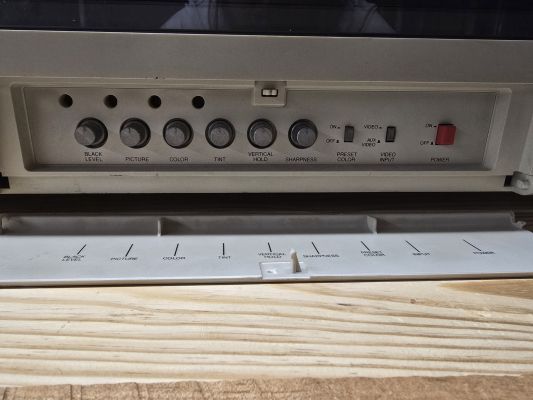

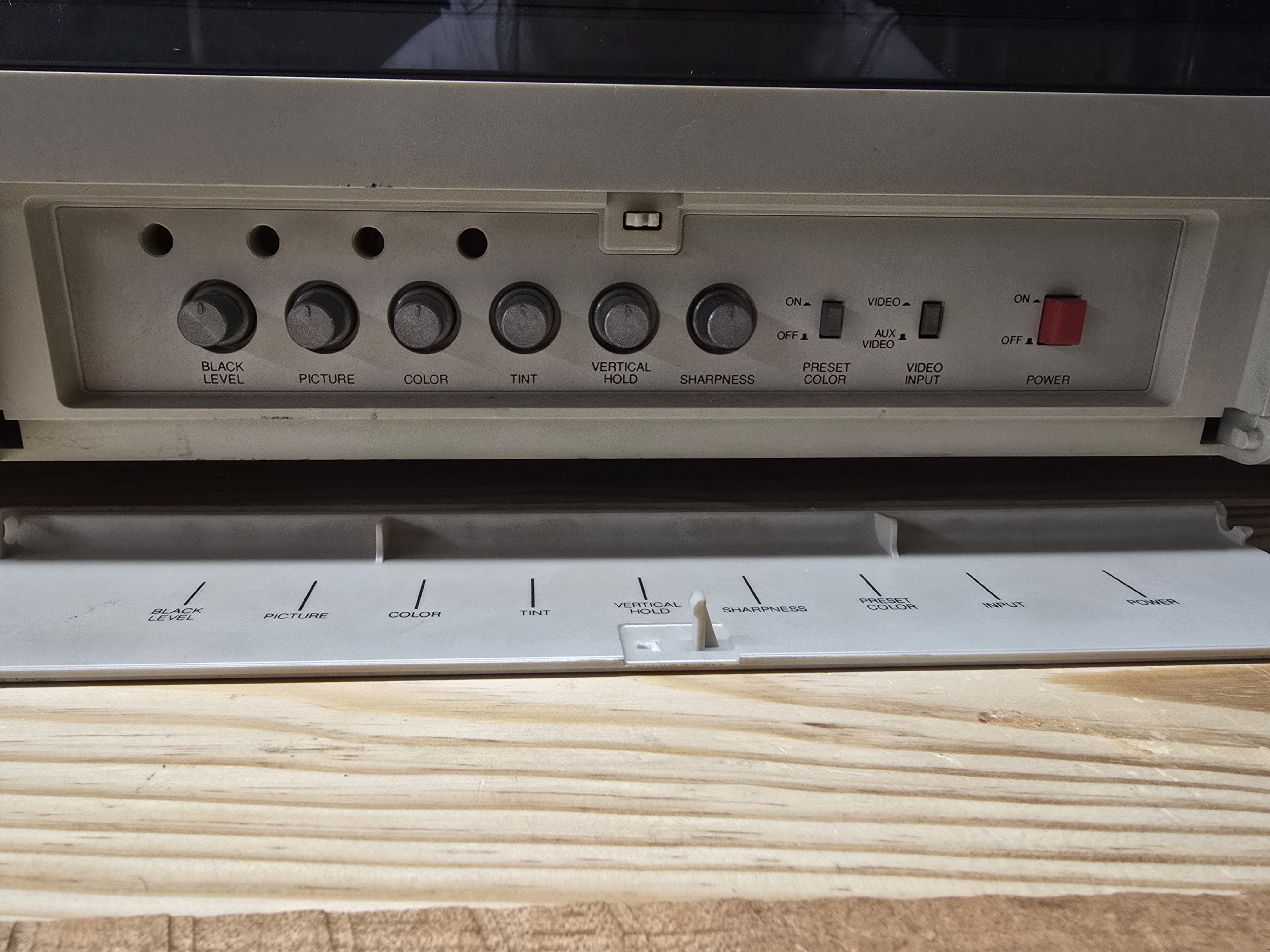

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Vertical Output IC: | Sanyo, LA7800 |

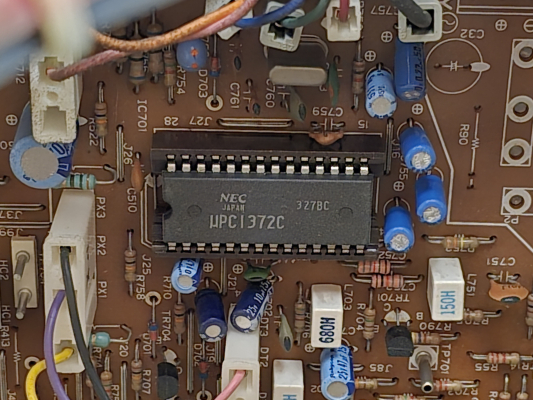

| Jungle IC: | NEC, uPC1372C |
| Comb Filtering: | Notch |
| Flyback: | 47105145 |
| Focus Type: | Single |

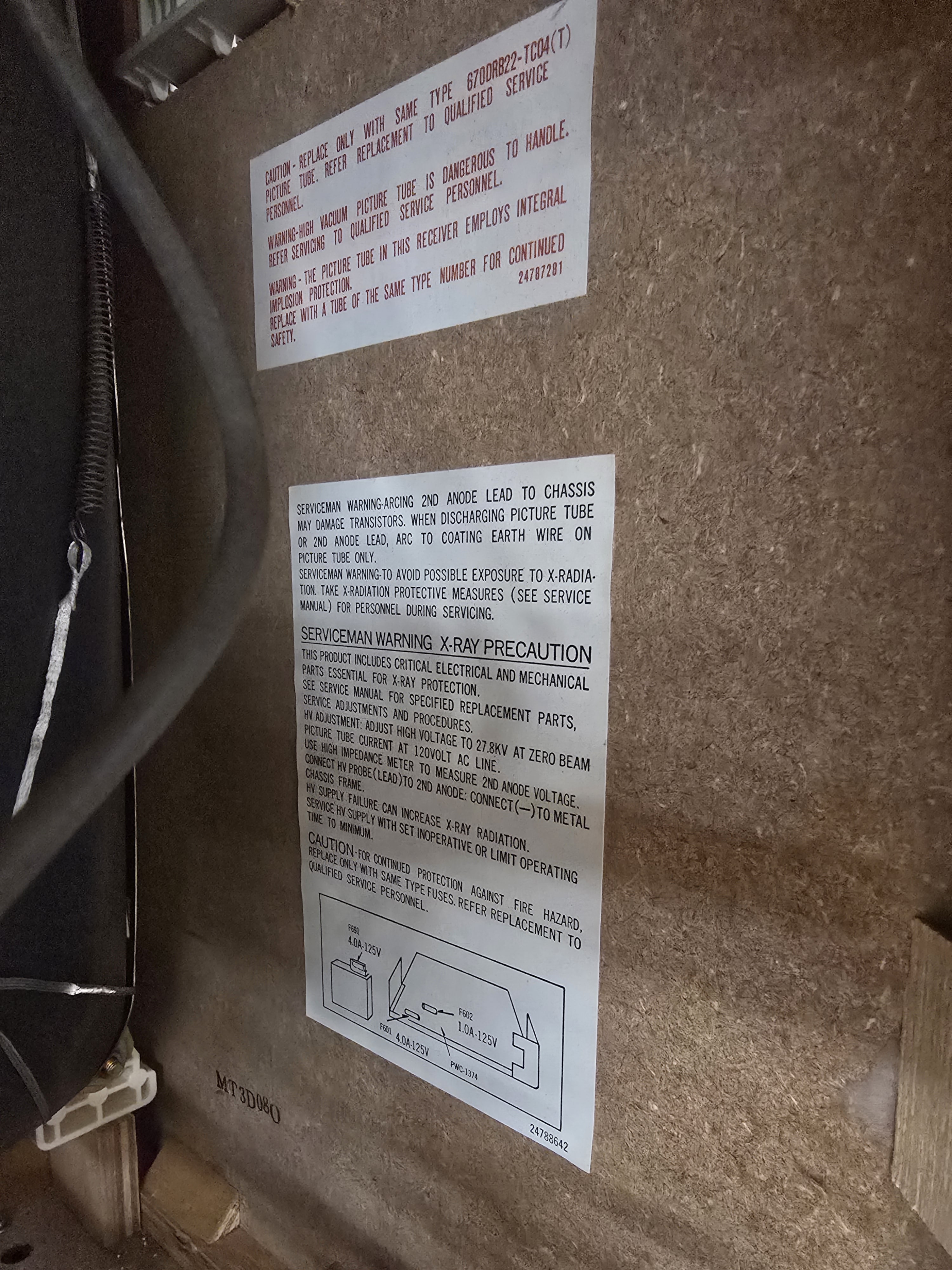

| Tube: | Toshiba , 670DRB22 , 670DRB22-TC04 |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |
| Speakers: | None |
| Weight: | 97 lbs (44 kg) |
| Dimensions (W/H/D): |
632 x 572 x 519 mm
(24.8 x 22.5 x 20.4") |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1982 |
| MSRP: | 899 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
