Summary

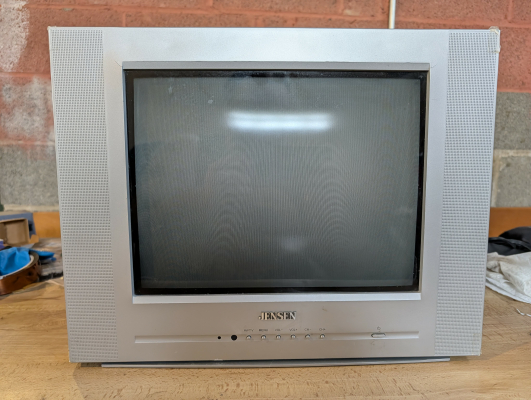

Basic 14" flatscreen CRT by Jensen, launched in 2006. Has RF and composite inputs with stereo sound. Originally manufactured by Prima in China.

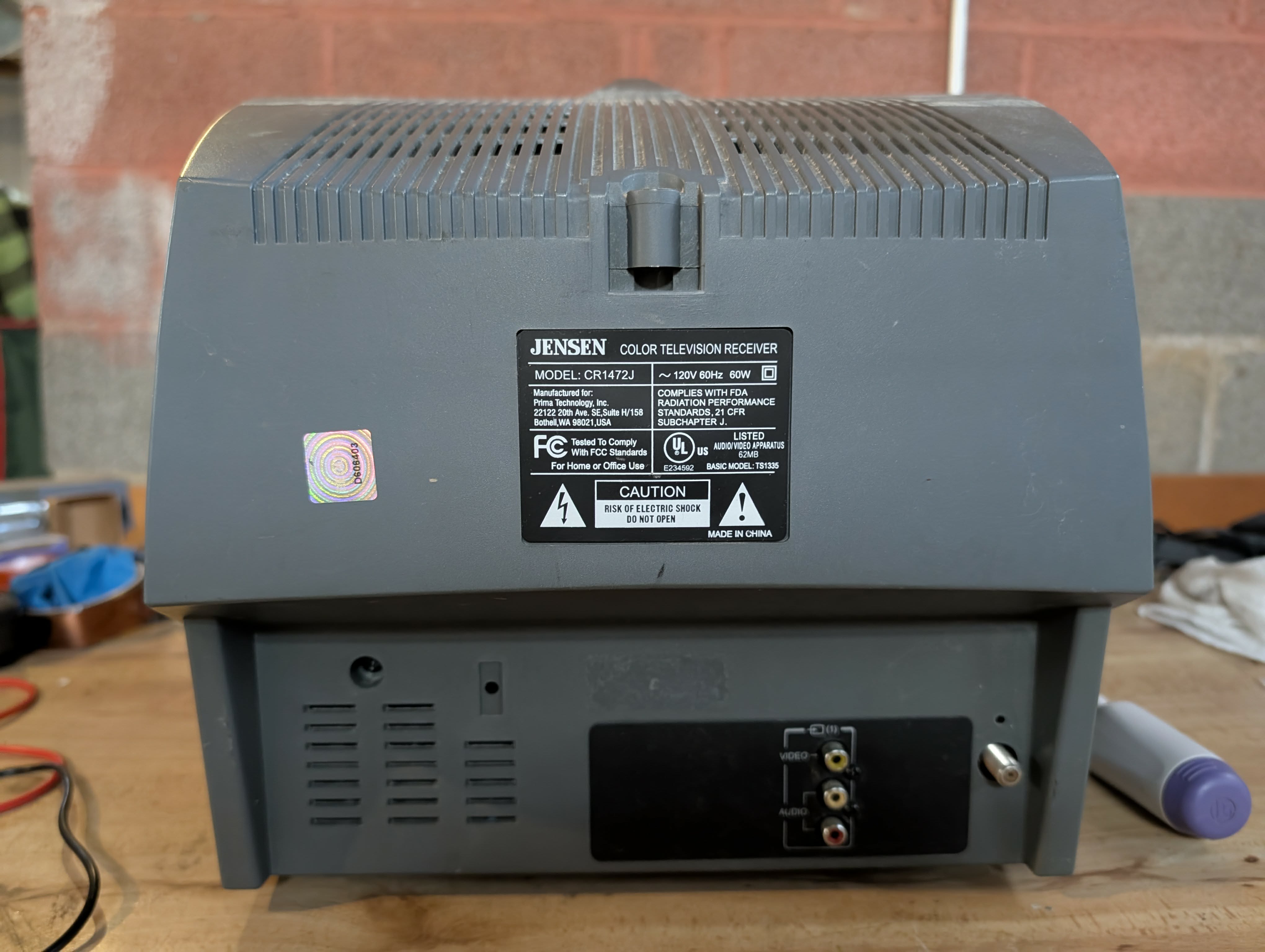

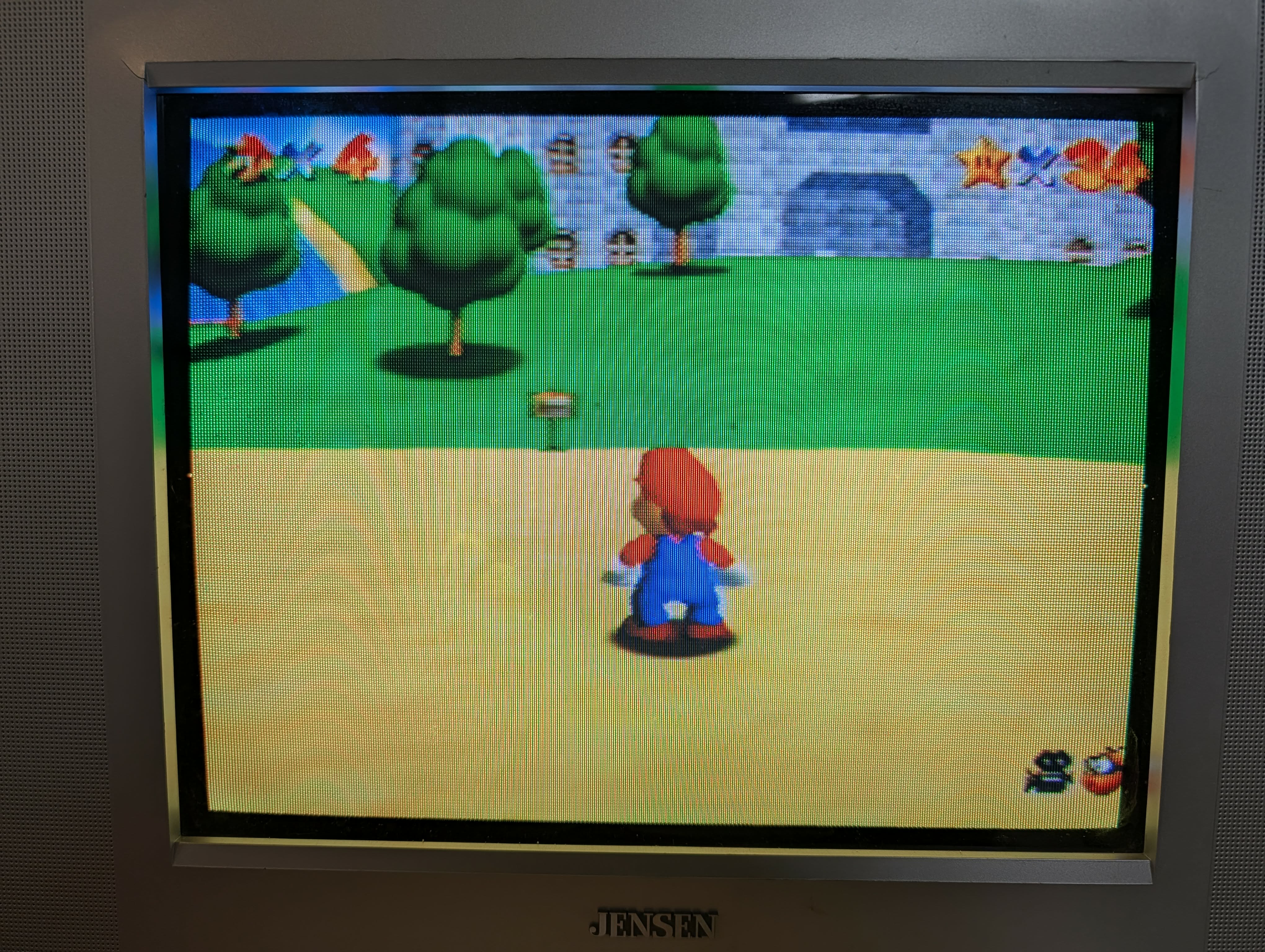

(Special thanks to Jason Tryon for the pics!)
Manuals
(None at this time.)
Notes
Apparently this set uses the same Sanyo jungle chip as the Shrek TV. Go figure. It may be possible to mod this set for s-video and maybe even YPbPr.
You can switch between video standards in the menu: NTSC, NTSC 4.43, and PAL.

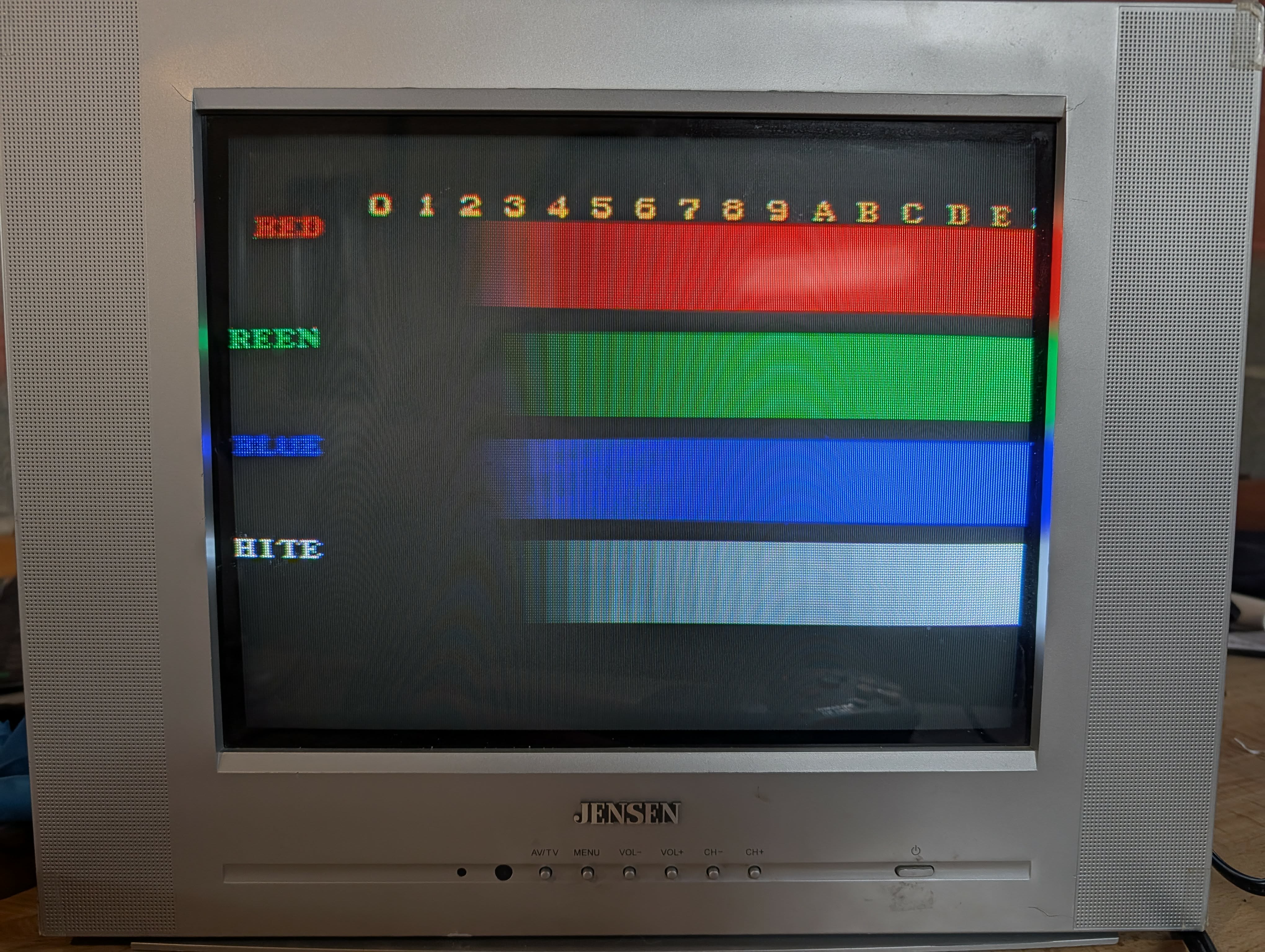

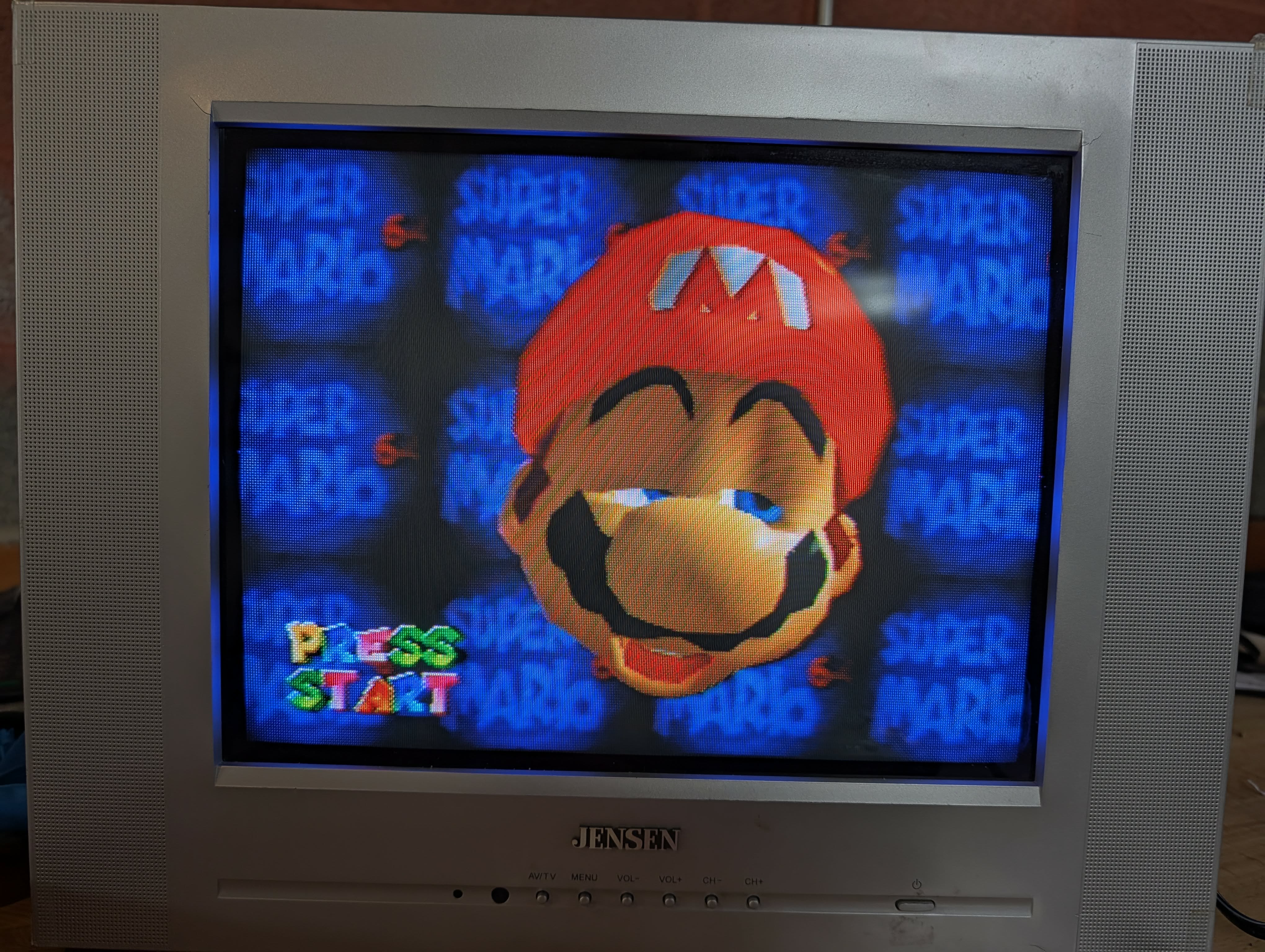

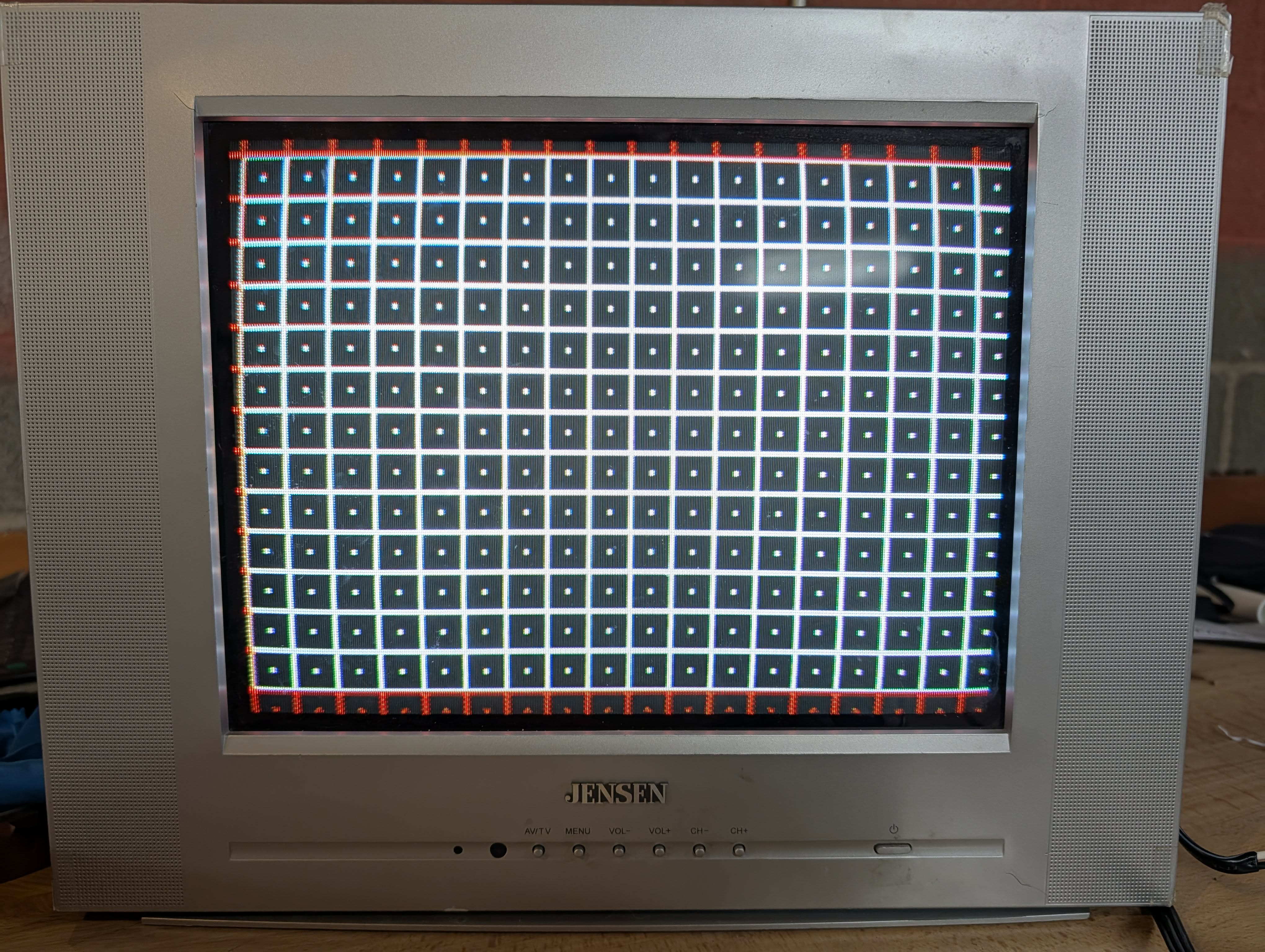

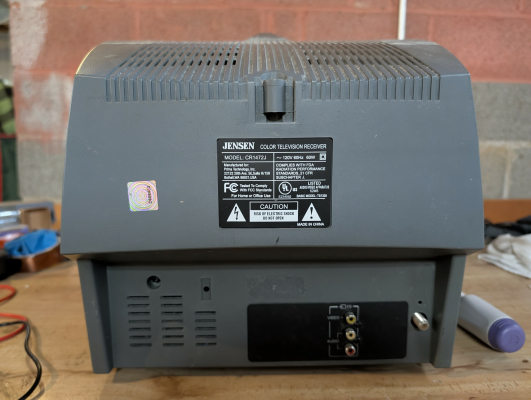

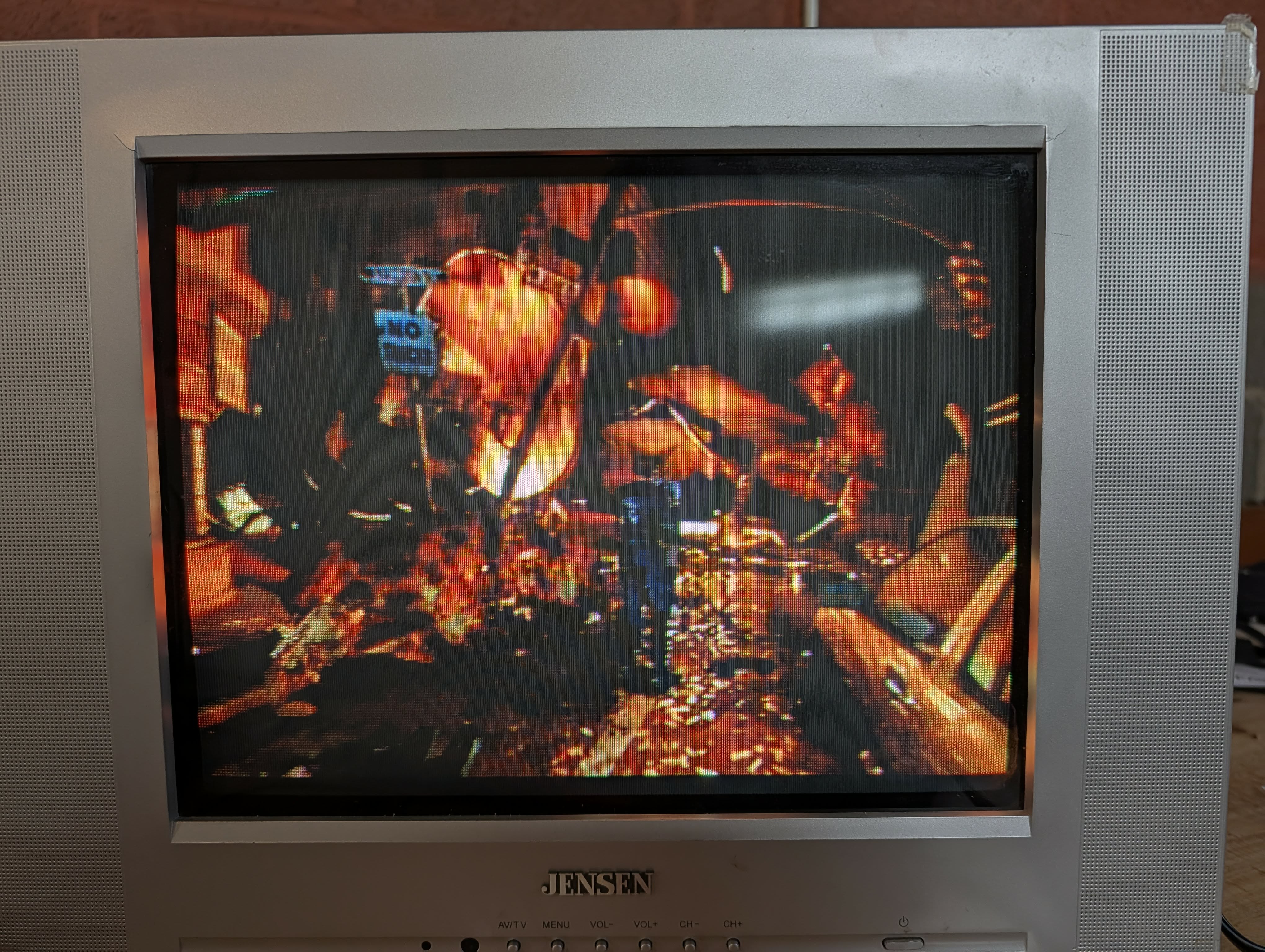

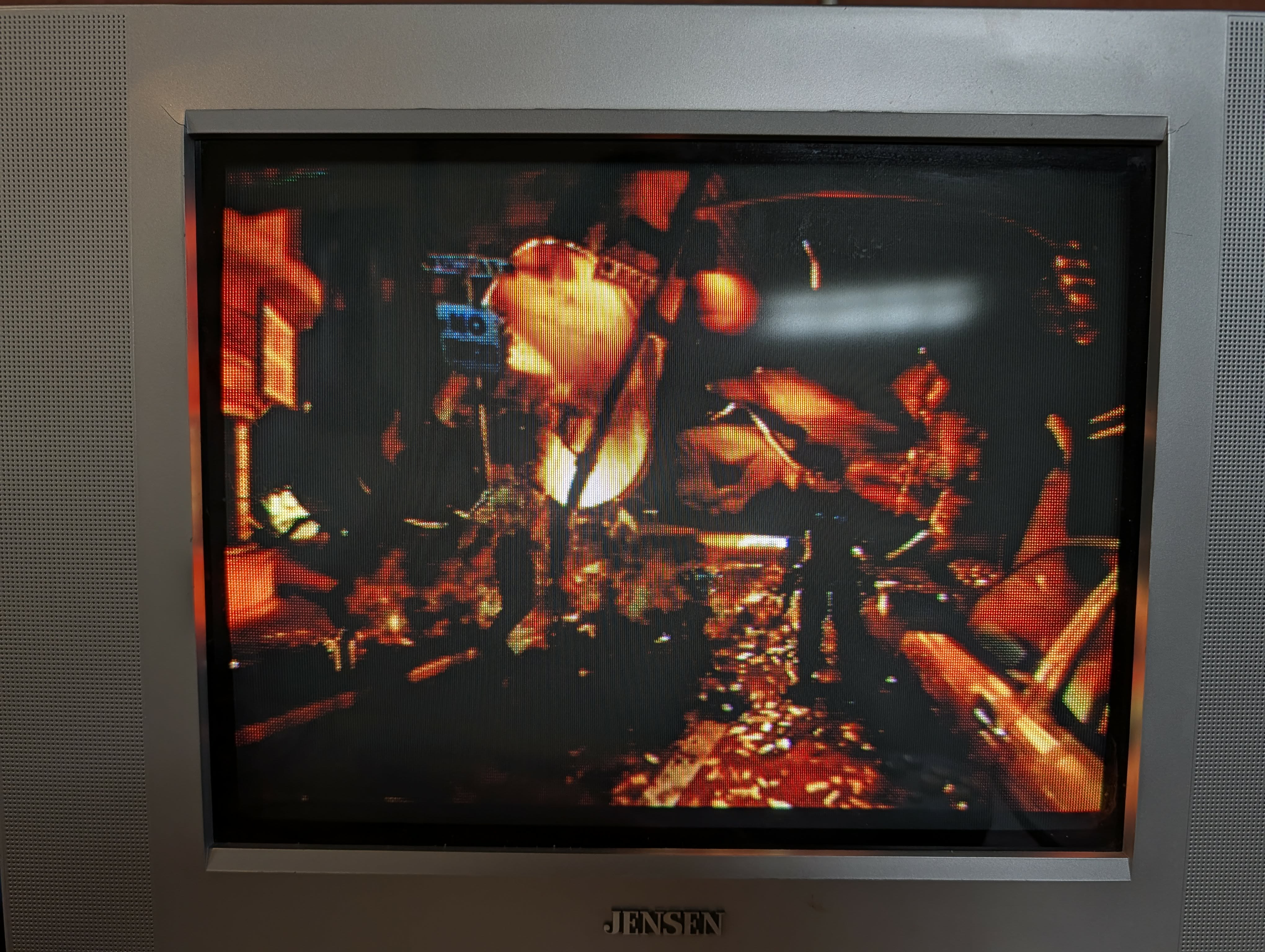

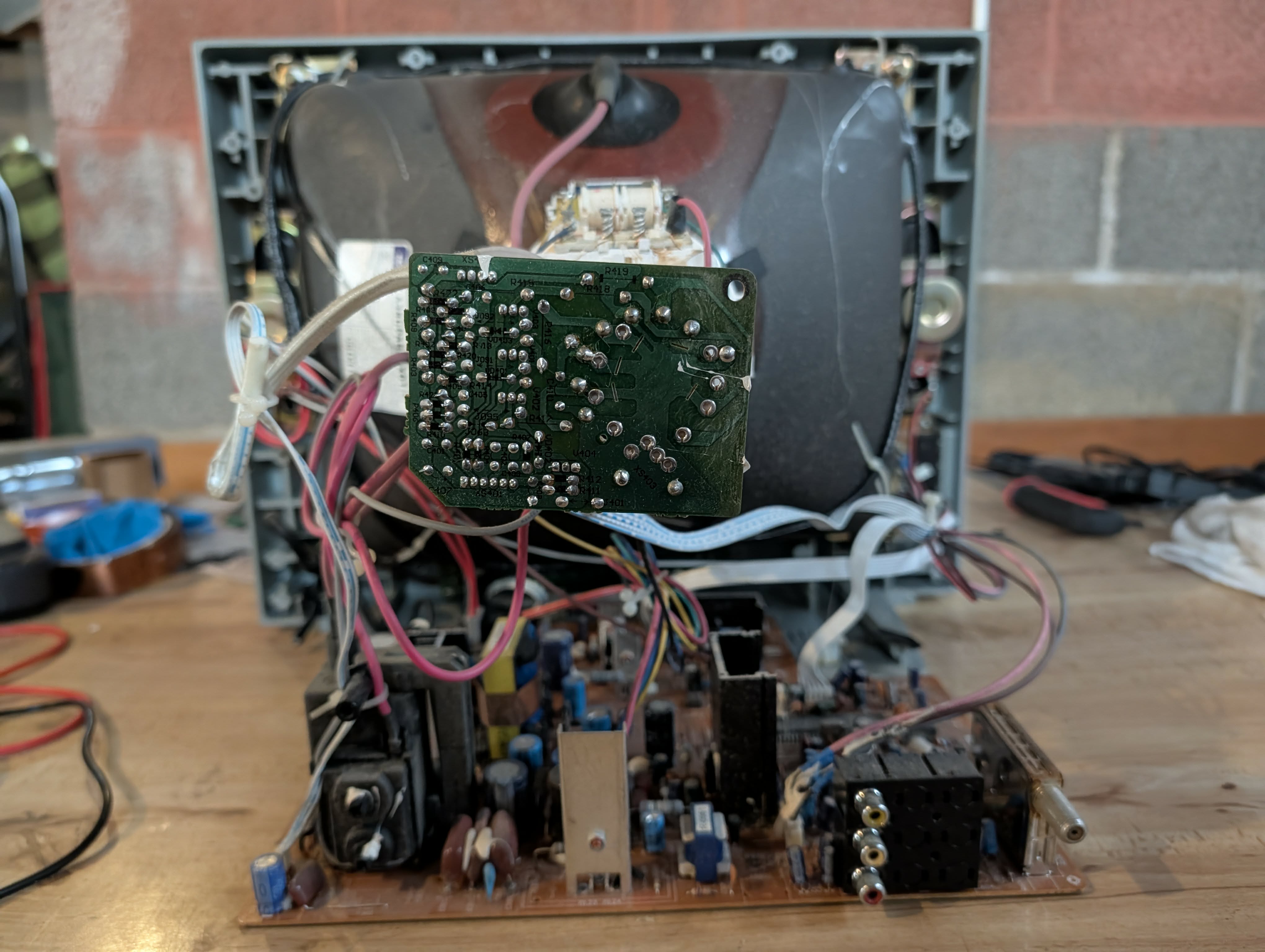

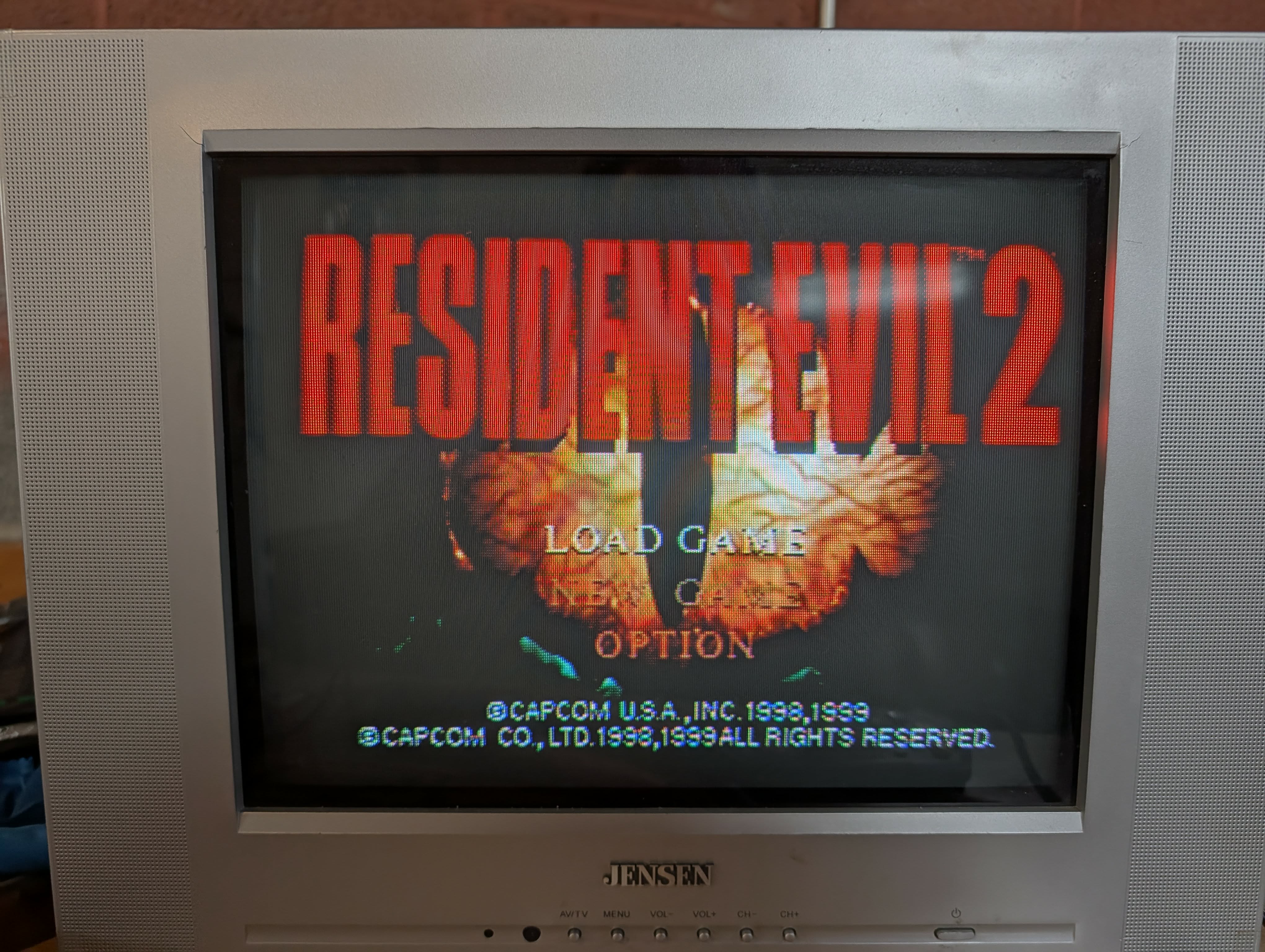

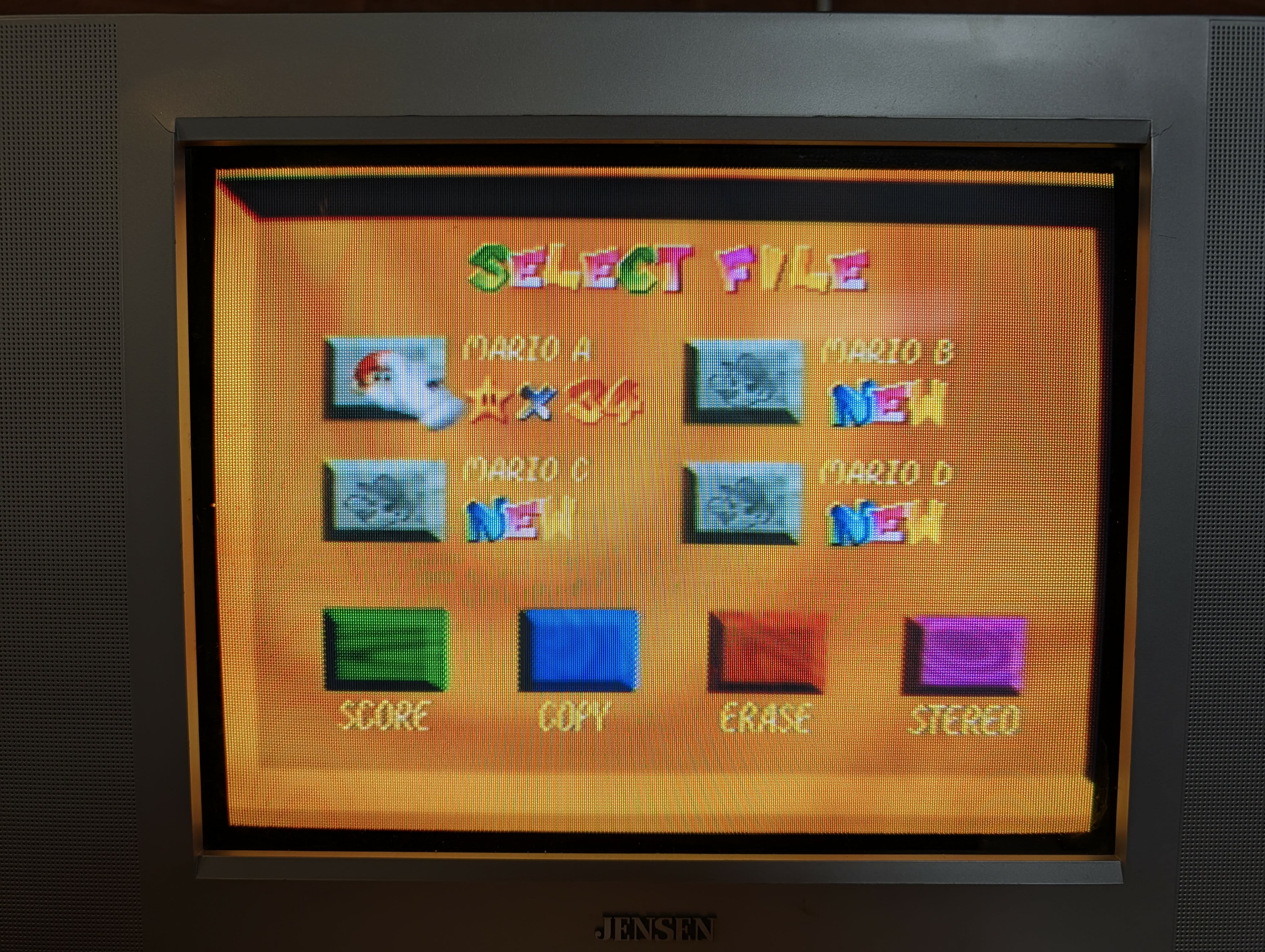

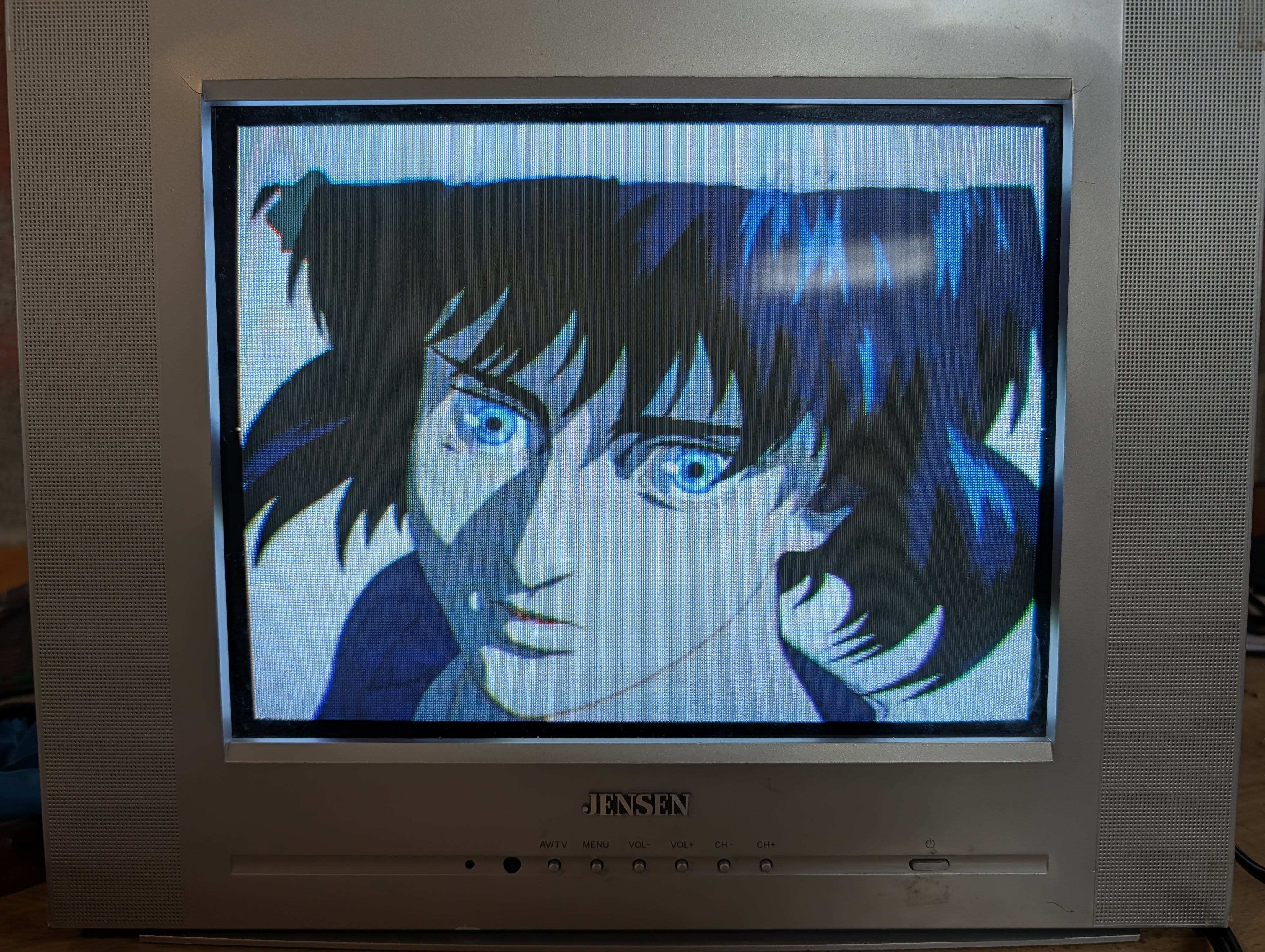

Gallery
| Specifications | |
|---|---|
| Brand: | Jensen |
| Manufacturer: | Prima |
| Model: | CR1472J |
| Series: | CR |
| Viewable Size: | 14" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz, 50 Hz |
| Formats: | NTSC, PAL, NTSC4.43 |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

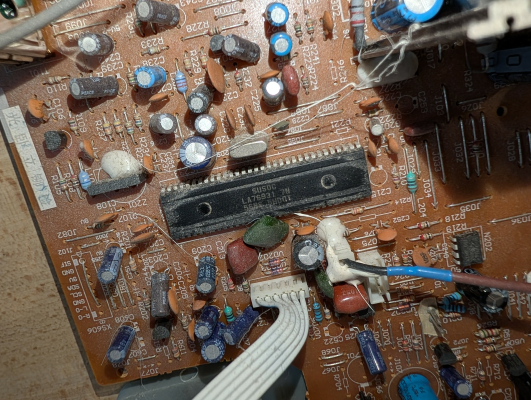

| Jungle IC: | Sanyo, LA76931 |

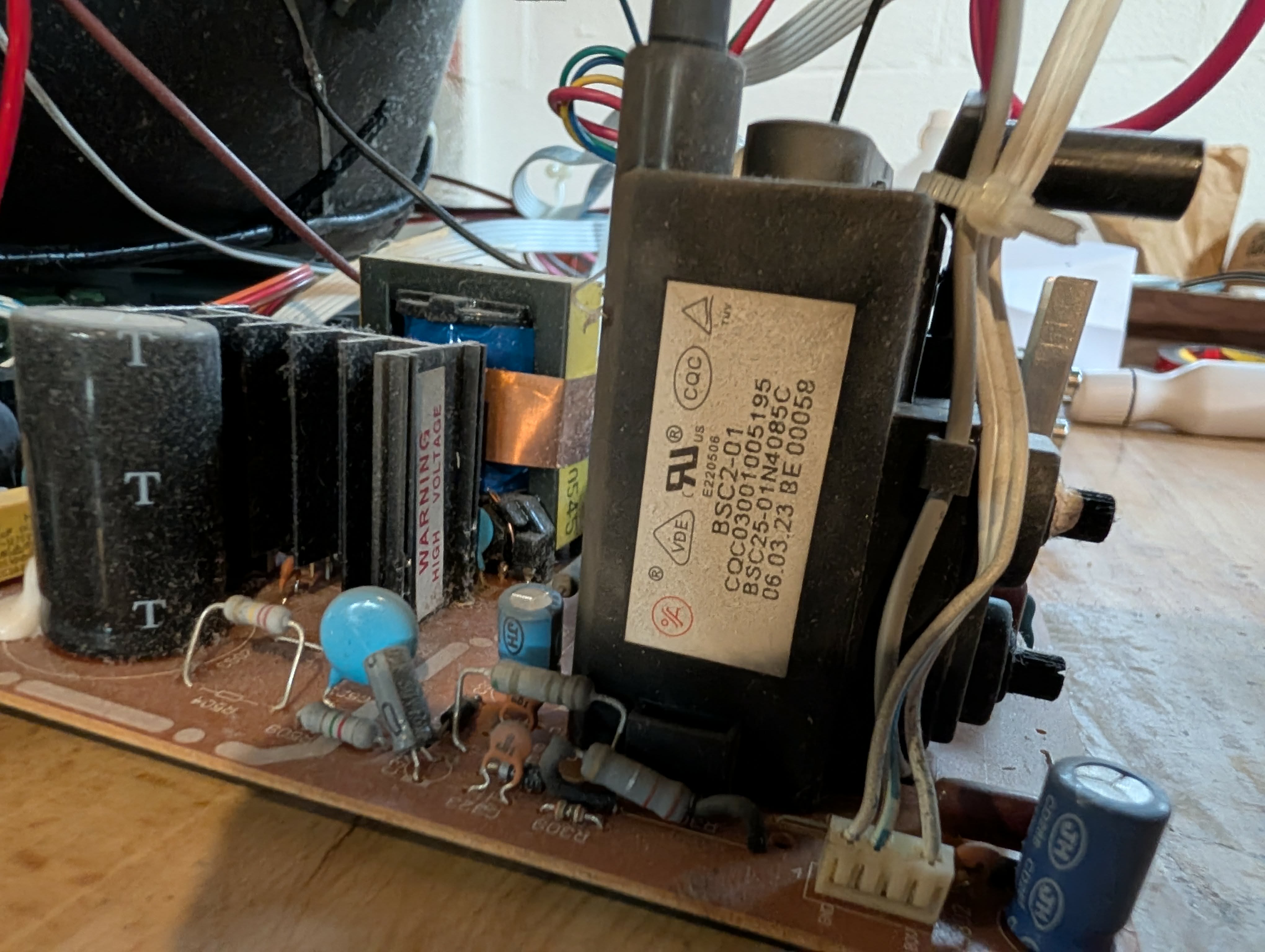

| Flyback: | BSC2-01 |
| Focus Type: | Single |

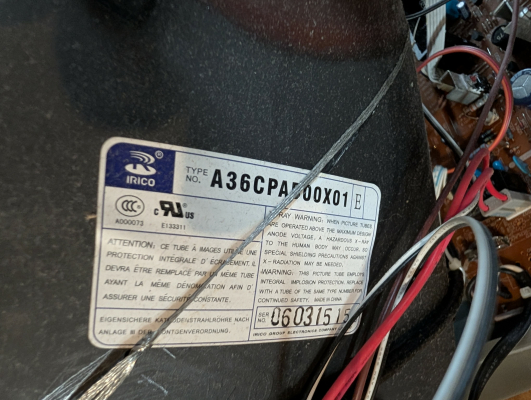

| Tube: | Irico , A36CPAB00X , A36CPAB00X01 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

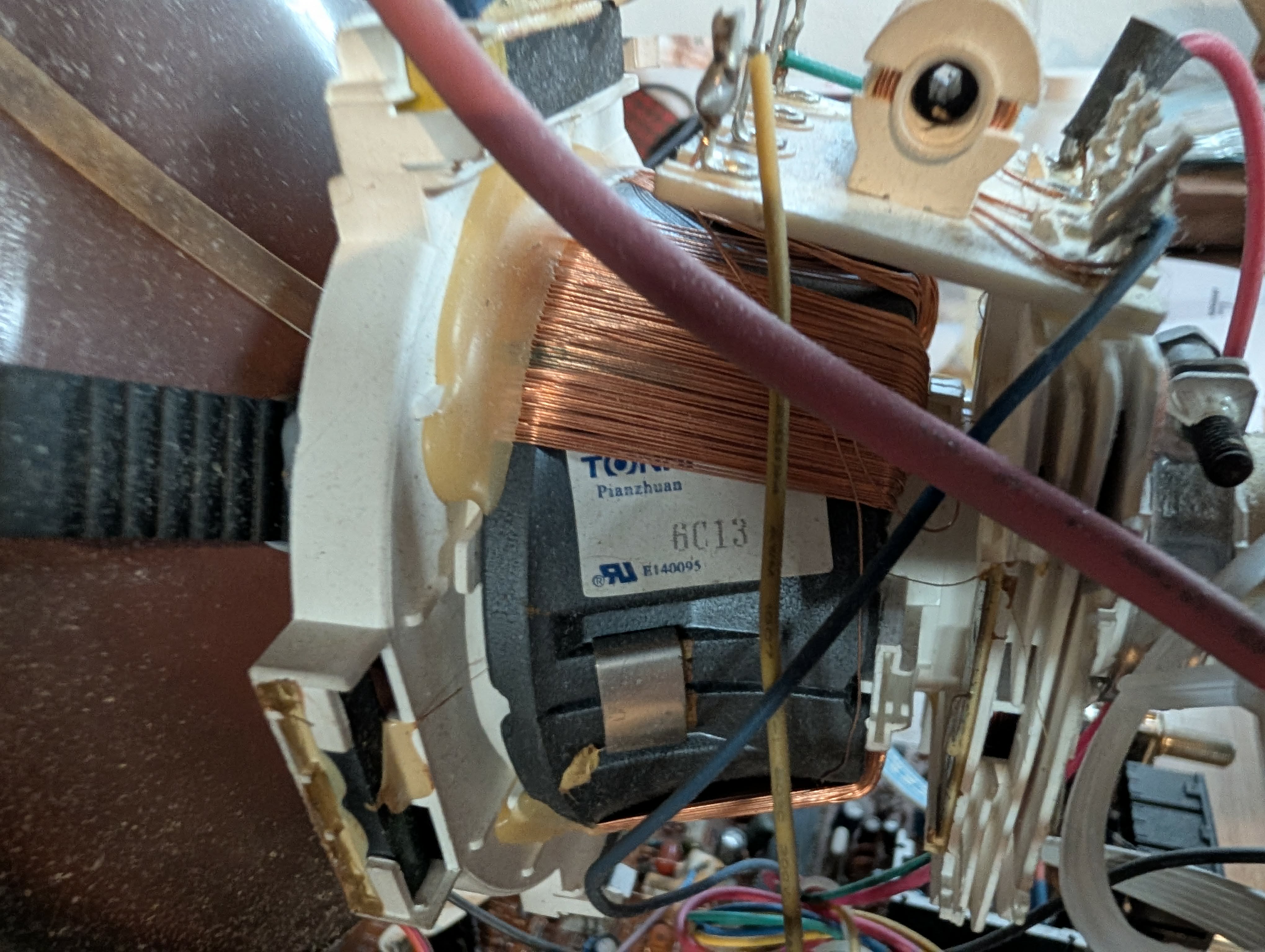

| Yoke: | 6C13 |
| Speakers: | Stereo |
| Chassis: | 62MB |
| Weight: | 27 lbs (12.2 kg) |
| Dimensions (W/H/D): |
437 x 340 x 381 mm
(17.2 x 13.4 x 15") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| MSRP: | 78 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
