Summary
S-Video set with the same tube as many later 27" D-Series.
Manuals
Media & Promo Materials
Notes
While this was one of JVC's cheaper 27" sets in 1999, the exclusion of a comb filter makes for less dot artifacting overall in composite for 240p computer graphics than the more expensive models with a comb filter included.
The default sharpness level causes noticeable ringing, and to be mitigated must be reduced significantly. Like other JVC sets that year, changes to picture settings in the user menu will not be retained unless saved as Choice (see p. 15 of owner's manual for instructions).

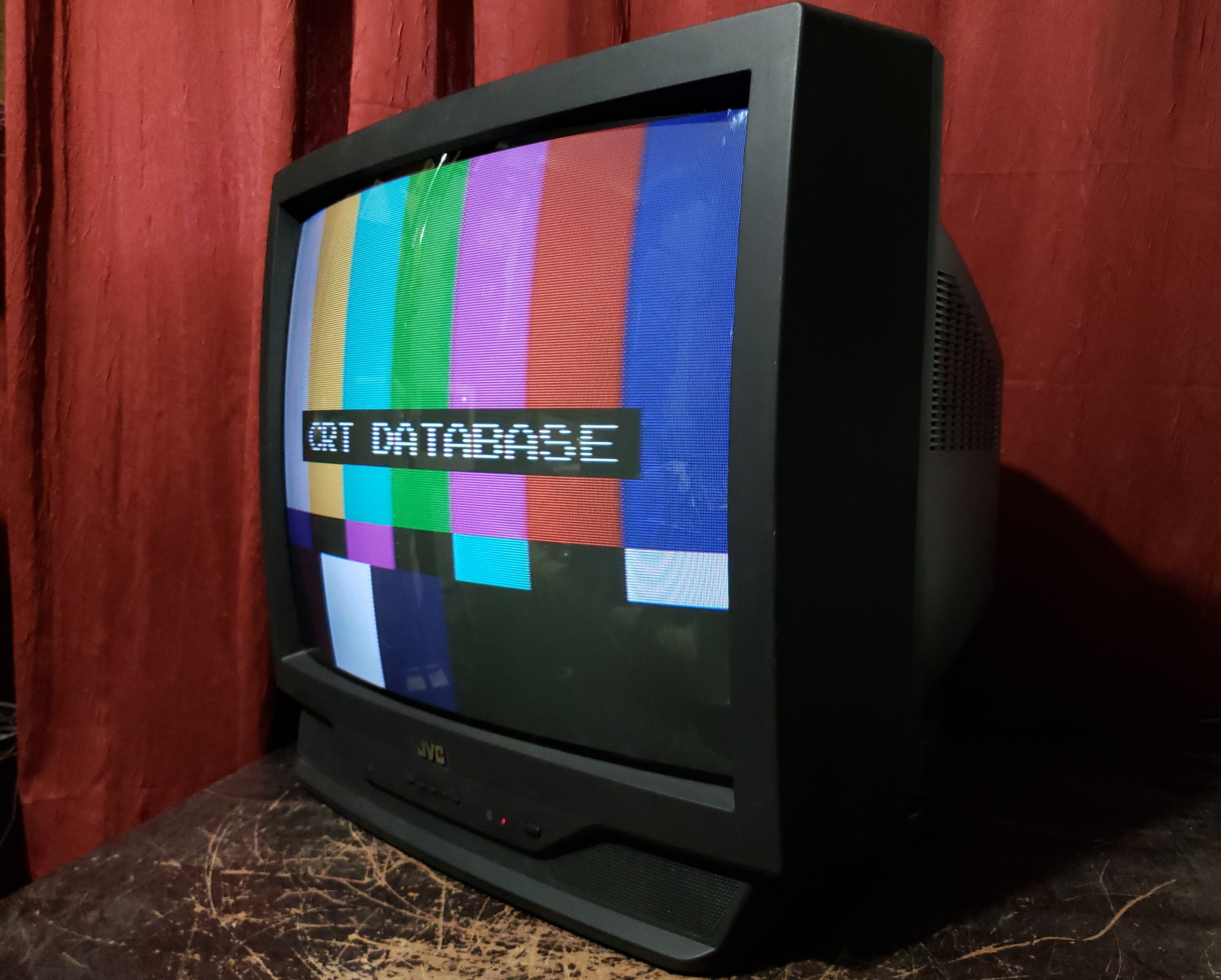

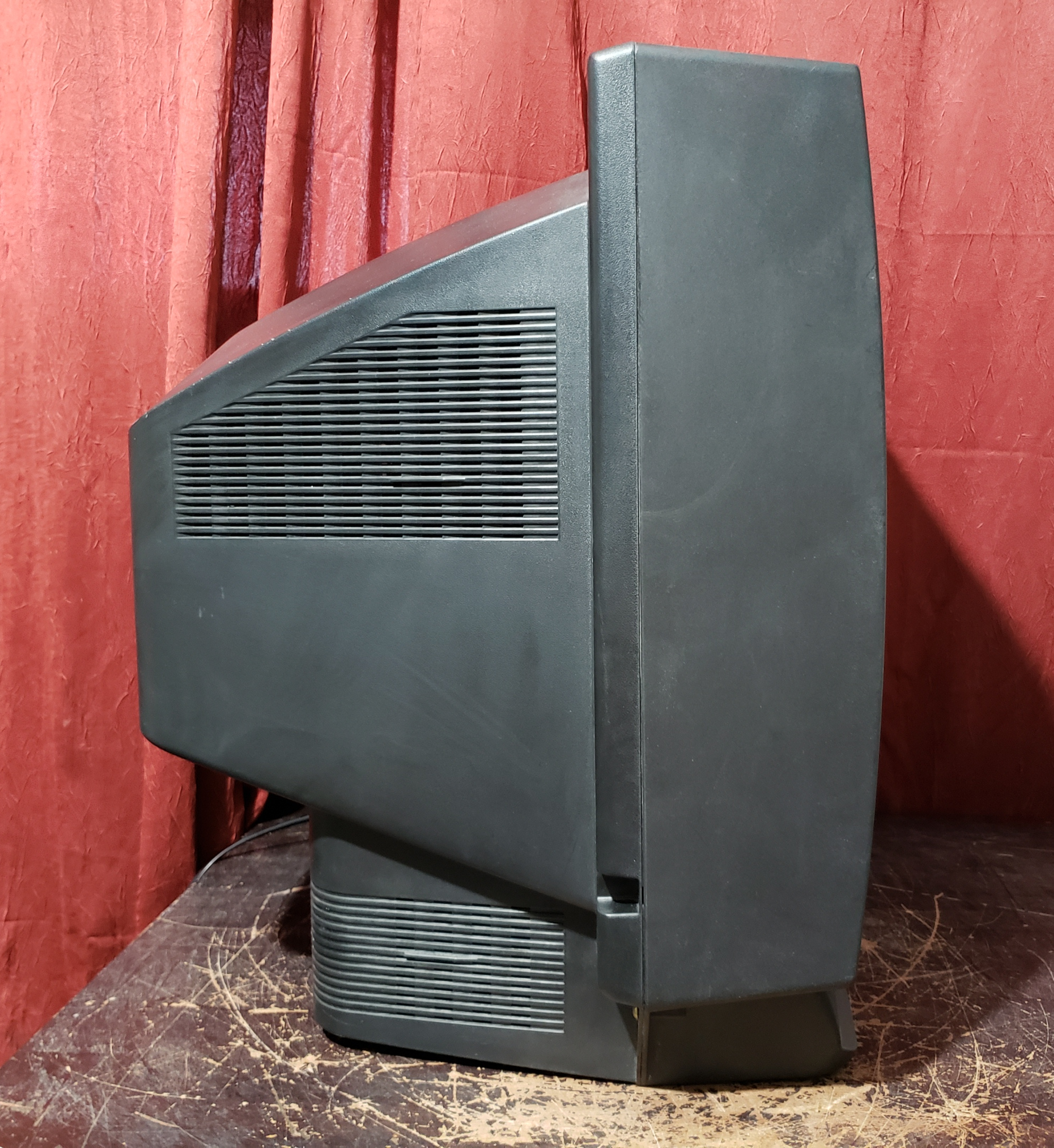

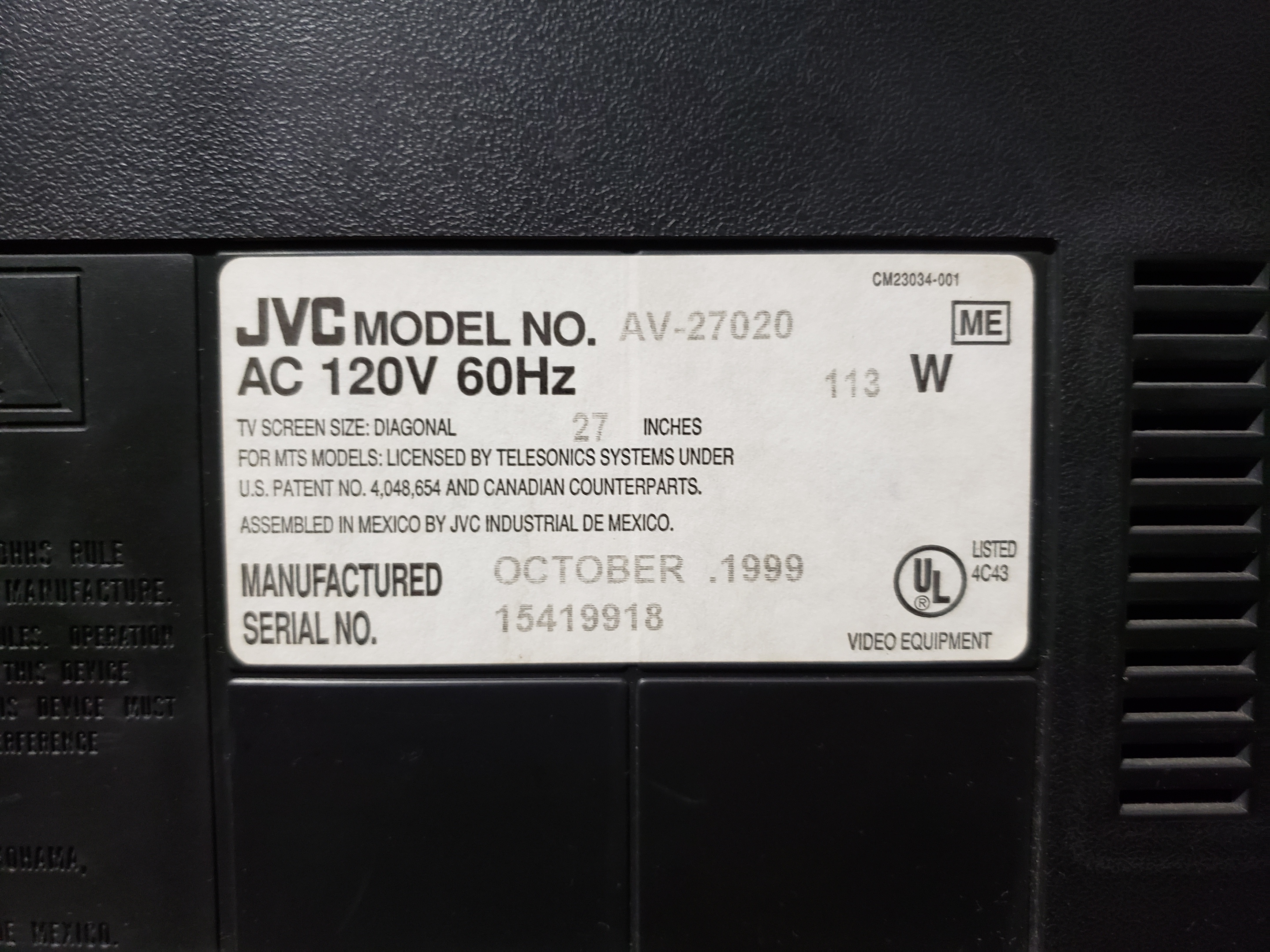

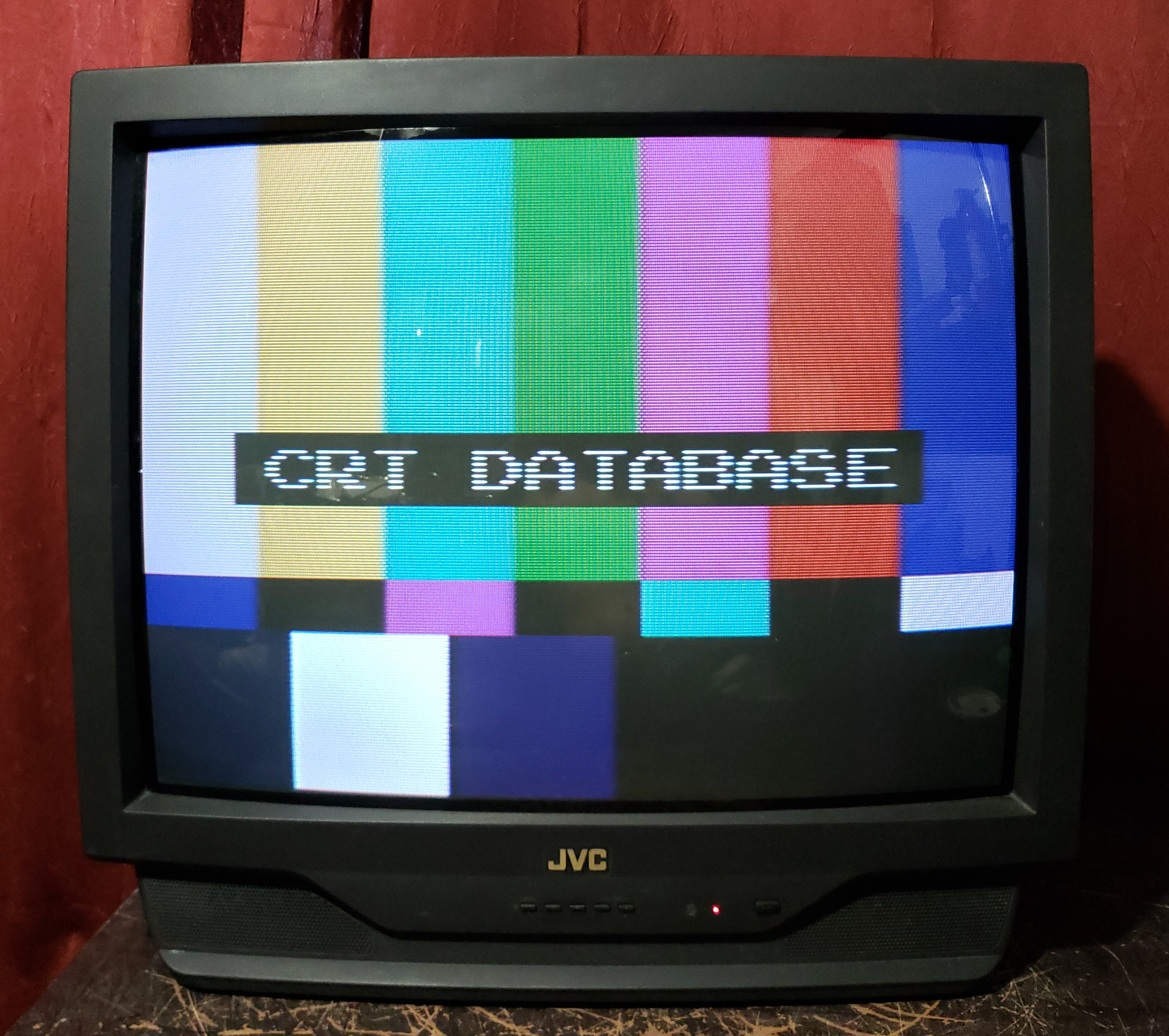

Gallery









Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-27020 |
Series: | AV |
Viewable Size: | 27" |

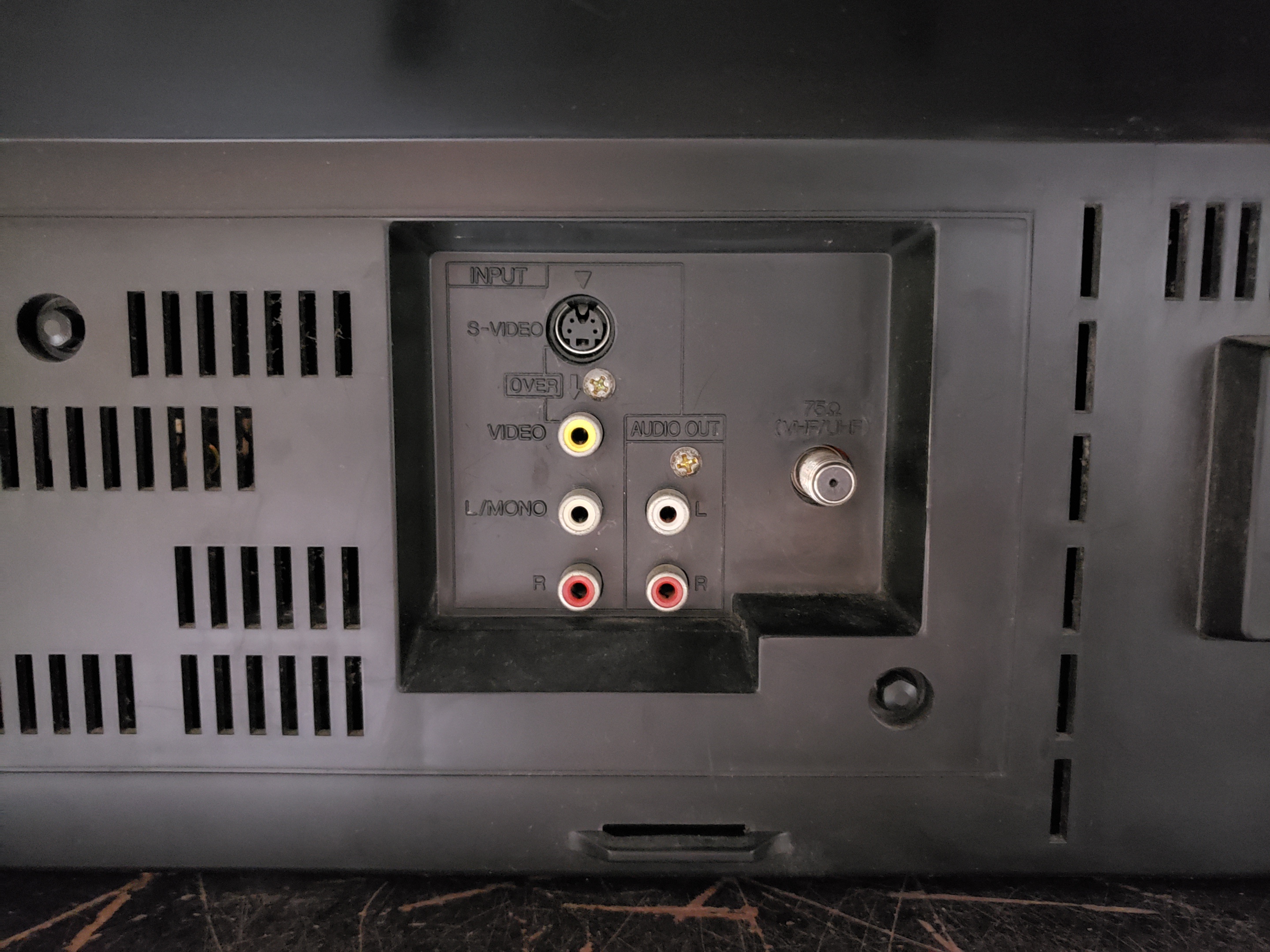

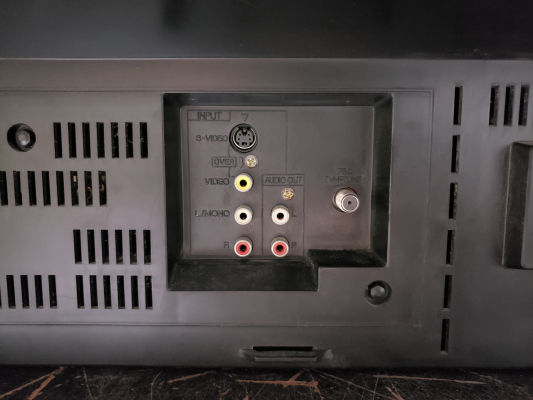

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2499, 2SD2499-LB |
Vertical Output IC: | LA7832 |
Jungle: | TA1242N |
Comb Filtering: | None |
Flyback: | QQH0032-001 |
Focus Type: | Single |
Tube: | Thomson , A68ADT25X01 , A68ADT25X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | .83 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke Horz. Resistance: | 2.3 ohm |
Yoke Vert. Resistance: | 6.4 ohm |
Speakers: | Stereo, 1.2W x 2 |
Remote: | RM-C345 |
Chassis: | FV2 |
Weight: | 68.5 lbs (31.1 kg) |
Dimensions (W/H/D): |
654 x 593 x 494 mm
(25.7 x 23.3 x 19.4") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1999 |
MSRP: | 419 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
