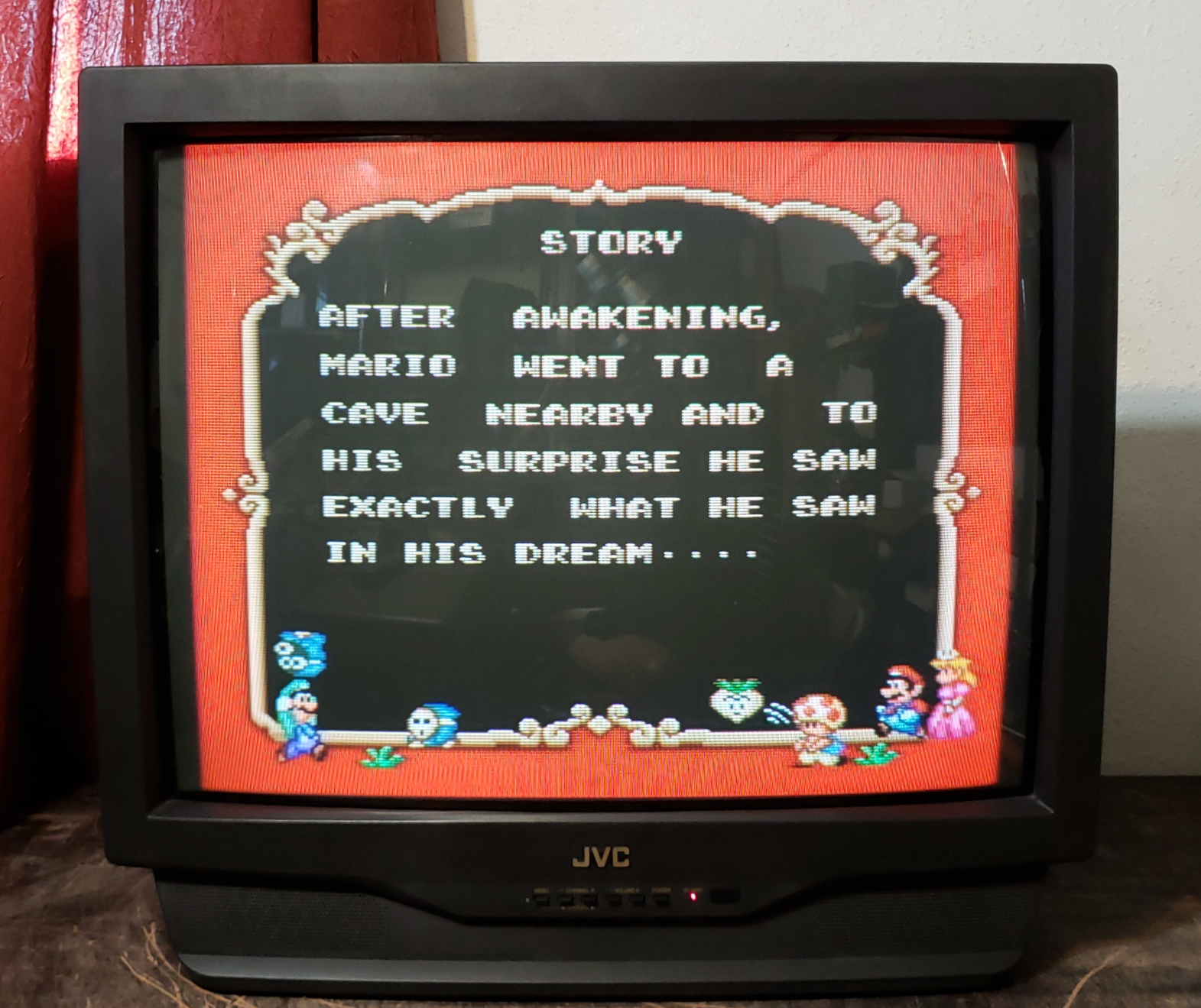

JVC AV-27050
March 1, 2024, 2:43 am
October 3, 2025, 7:13 pm
Summary
JVC's 50 Series offers high performance and simple operation. The key feature of the 50 Series is Dual Tuner PIP which simplifies picture in picture for the customer. 50 Series models also come equipped with V-Chip technology to make parental control easy.
S-Video set with the same tube as many later 27" D-Series.
Manuals
Media & Promo Materials
Notes
Composite 240p is riddled with horizontal dot artifacts from the 2-line comb filter. An external notch-based composite decoder would avoid those artifacts, guide here.
The default sharpness level causes noticeable ringing, and to be mitigated must be reduced significantly. Like other JVC sets that year, changes to picture settings in the user menu will not be retained unless saved as Choice (see p. 22 of owner's manual for instructions).
In addition to the vertical position setting in the service menu, there is also an internal three-position switch.

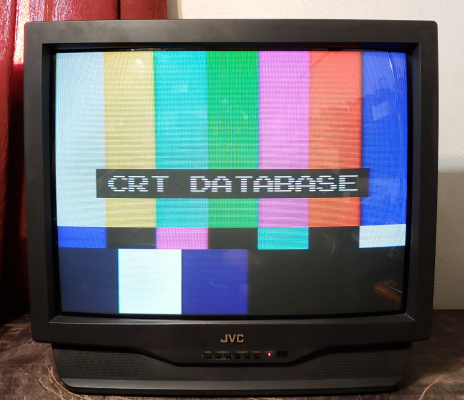

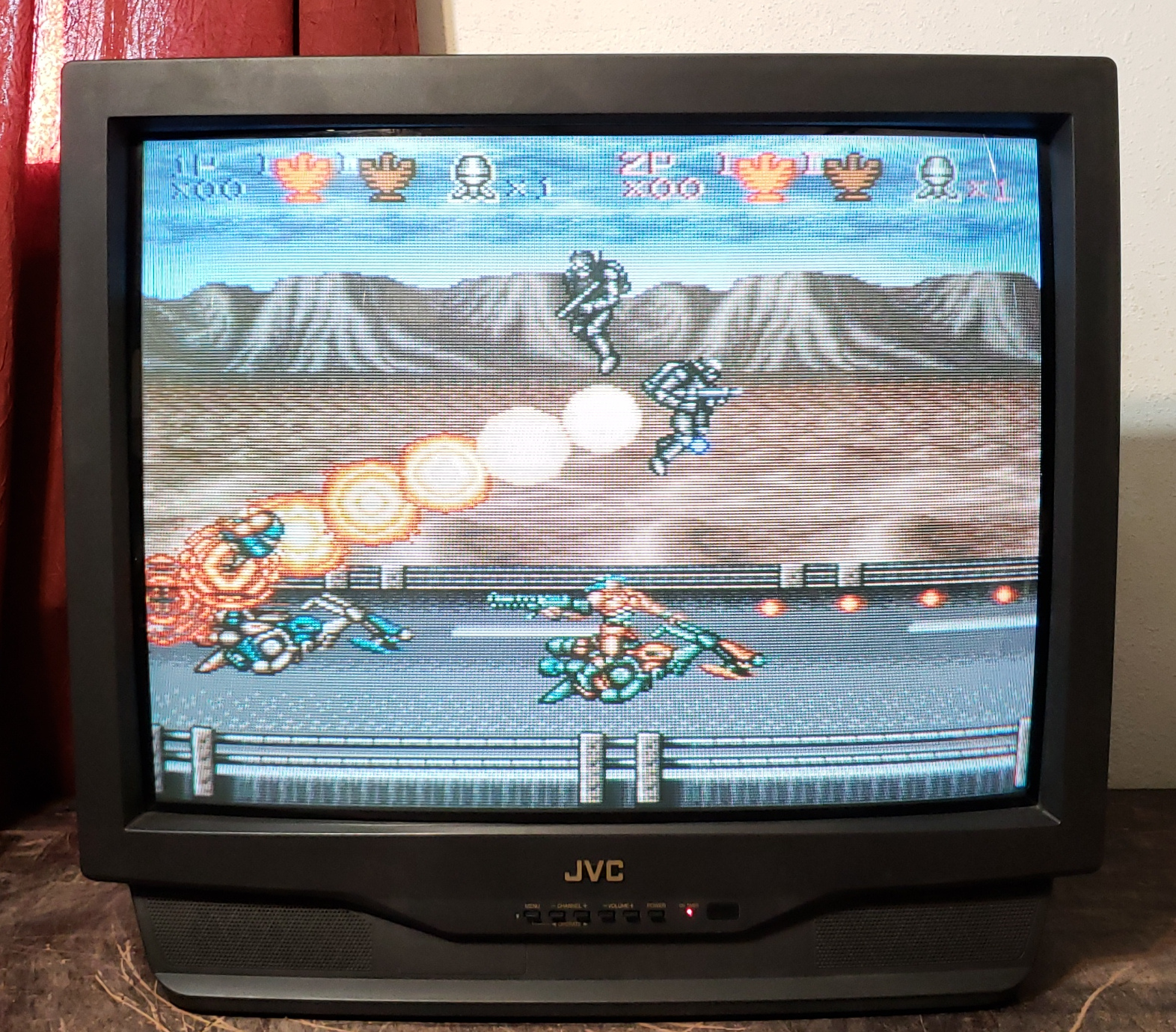

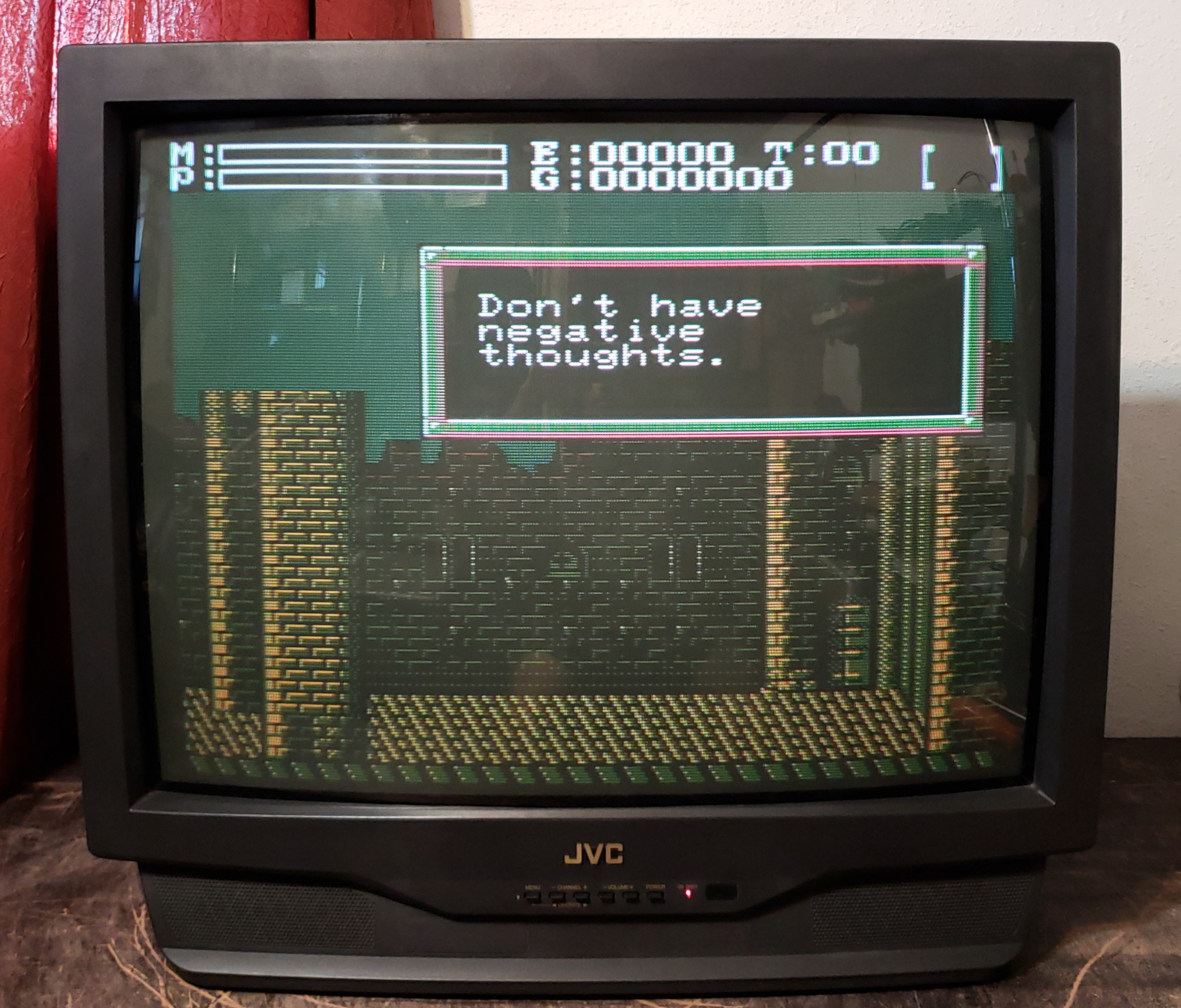

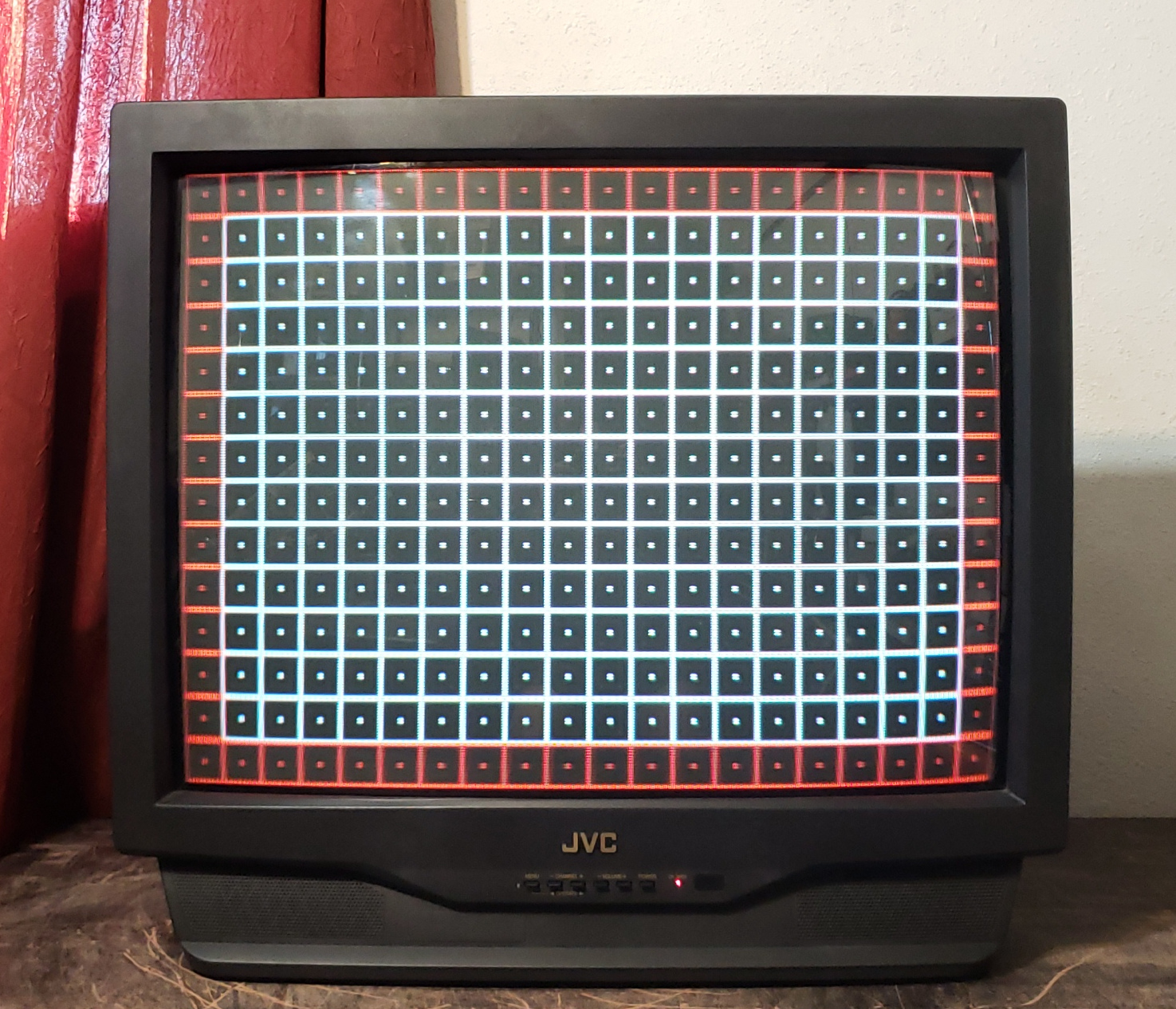

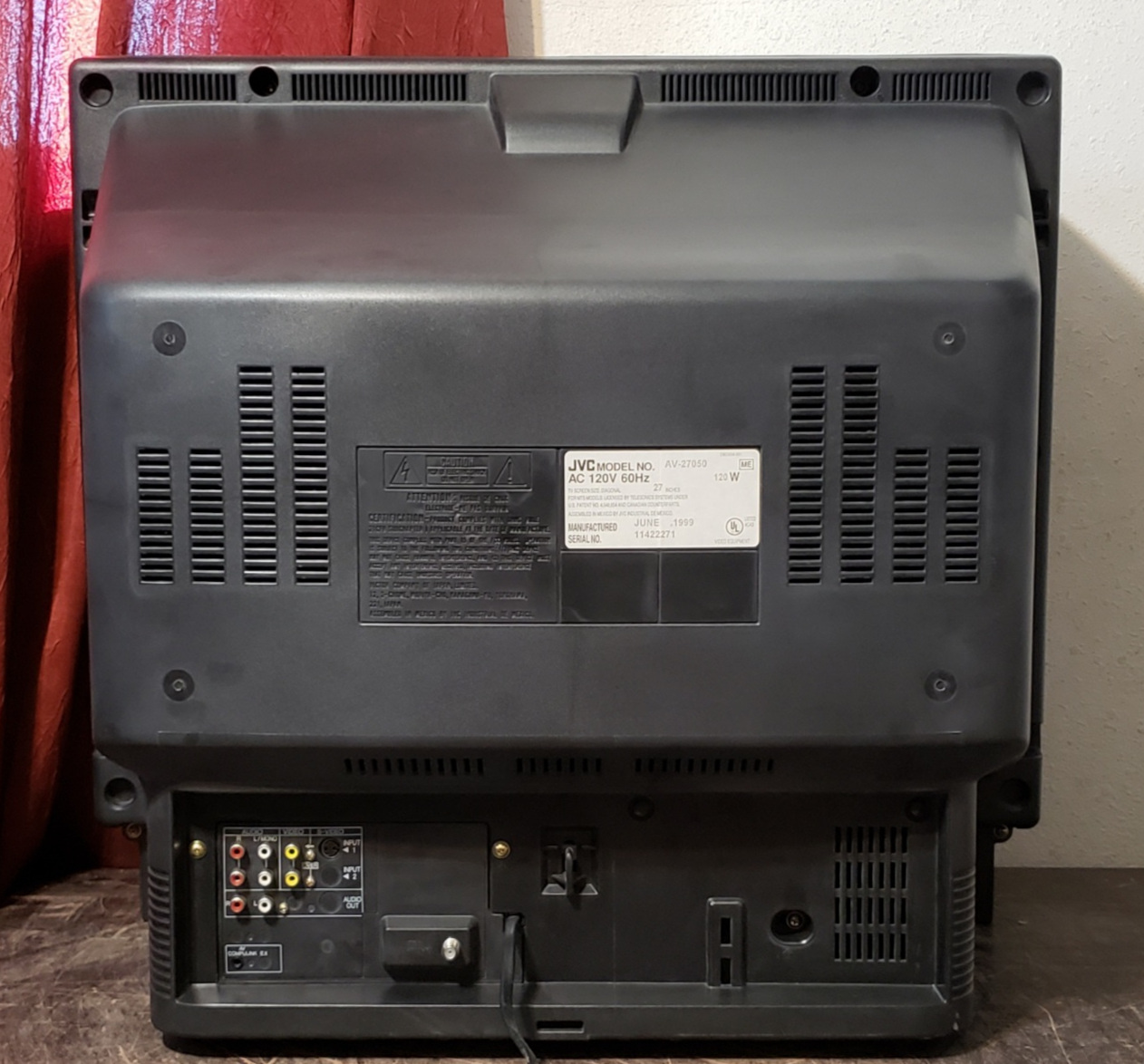

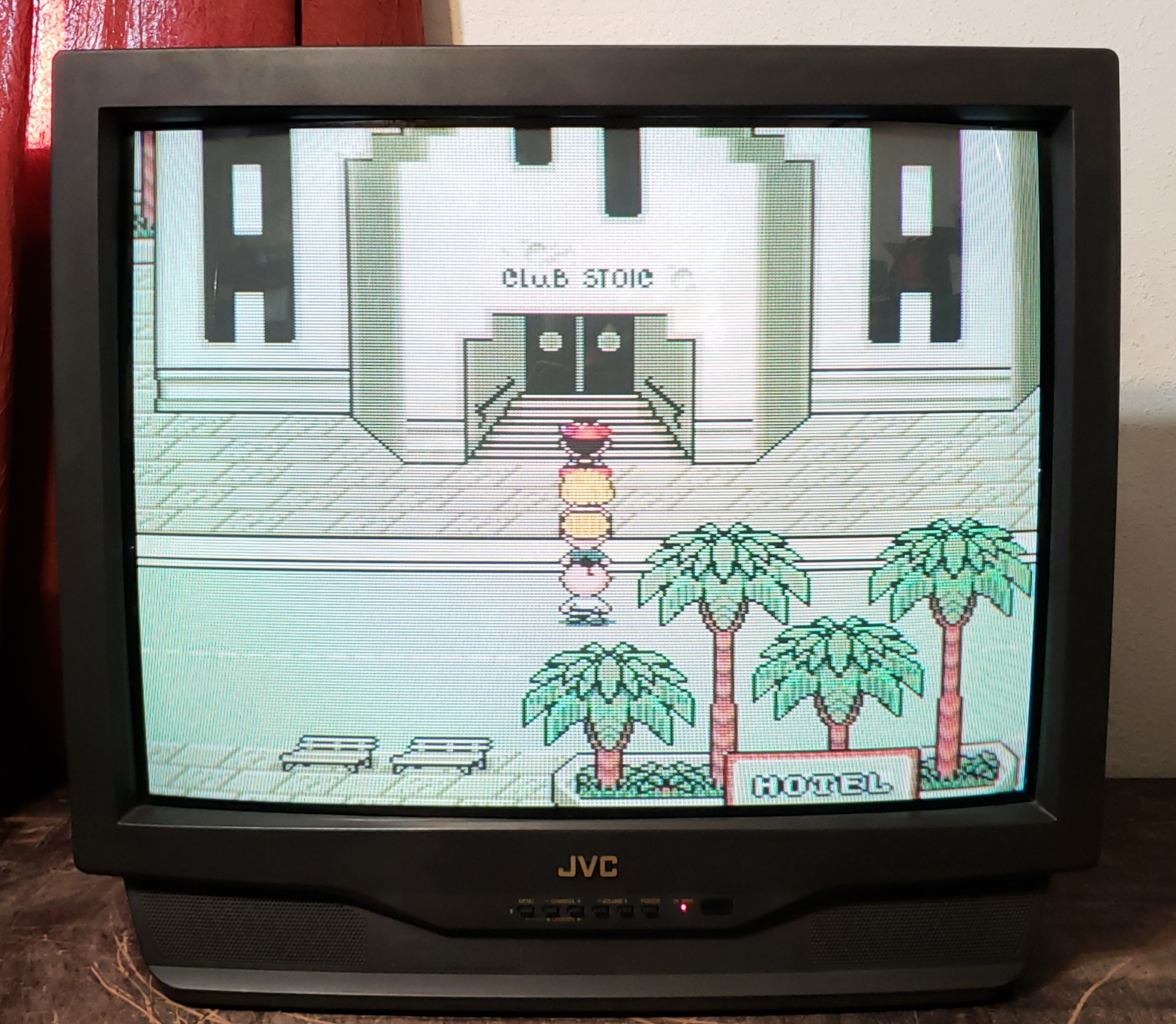

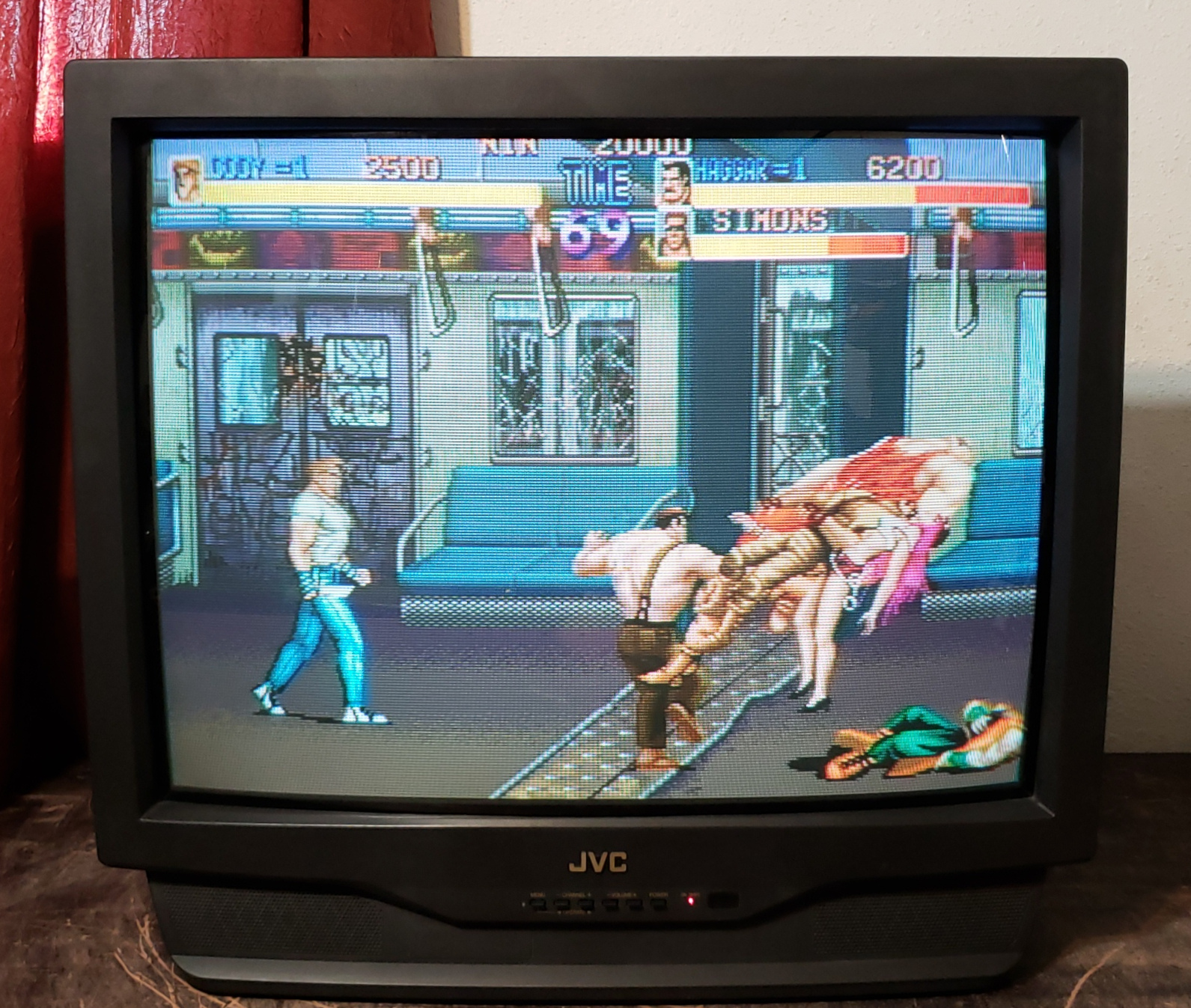

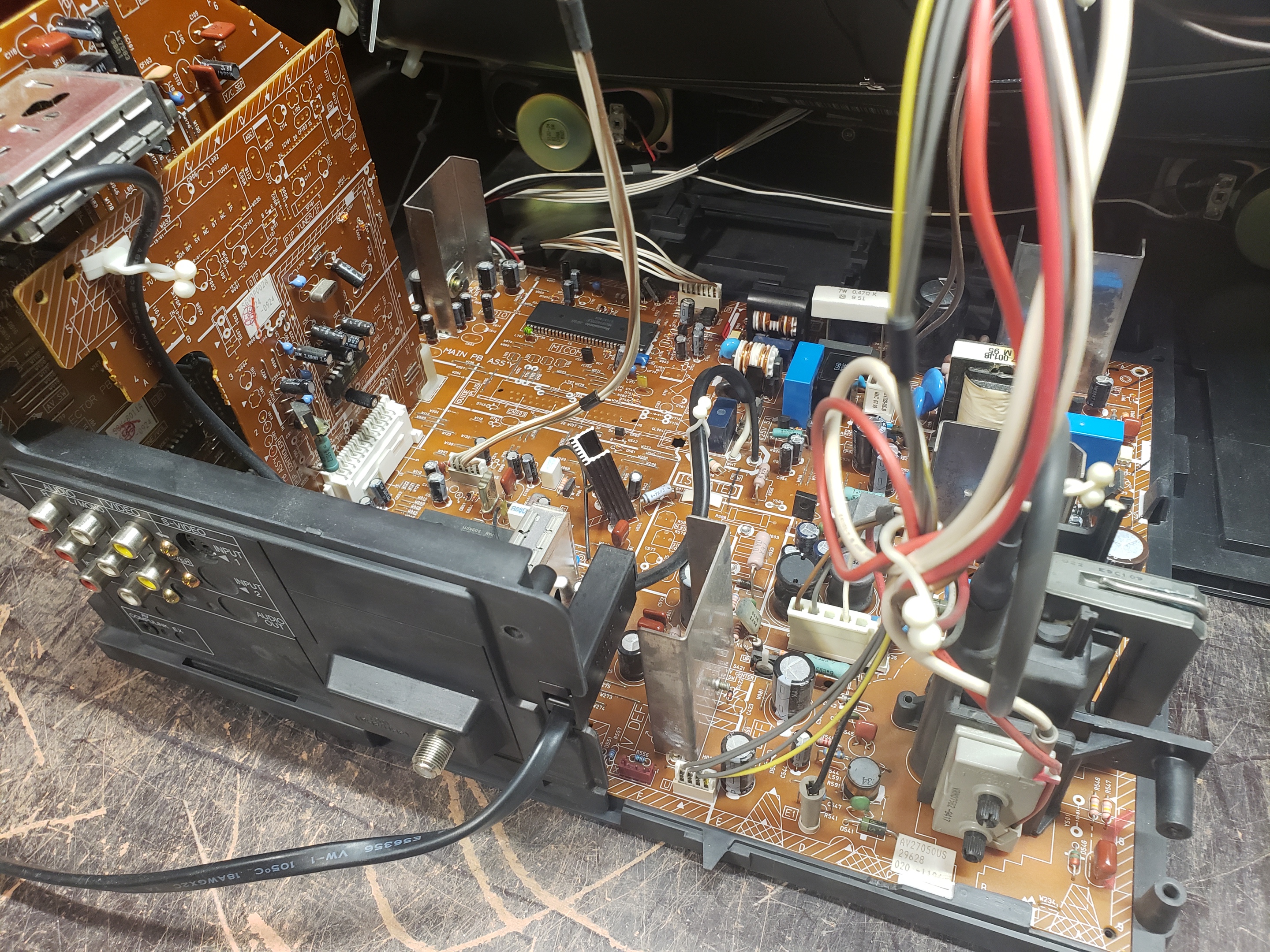

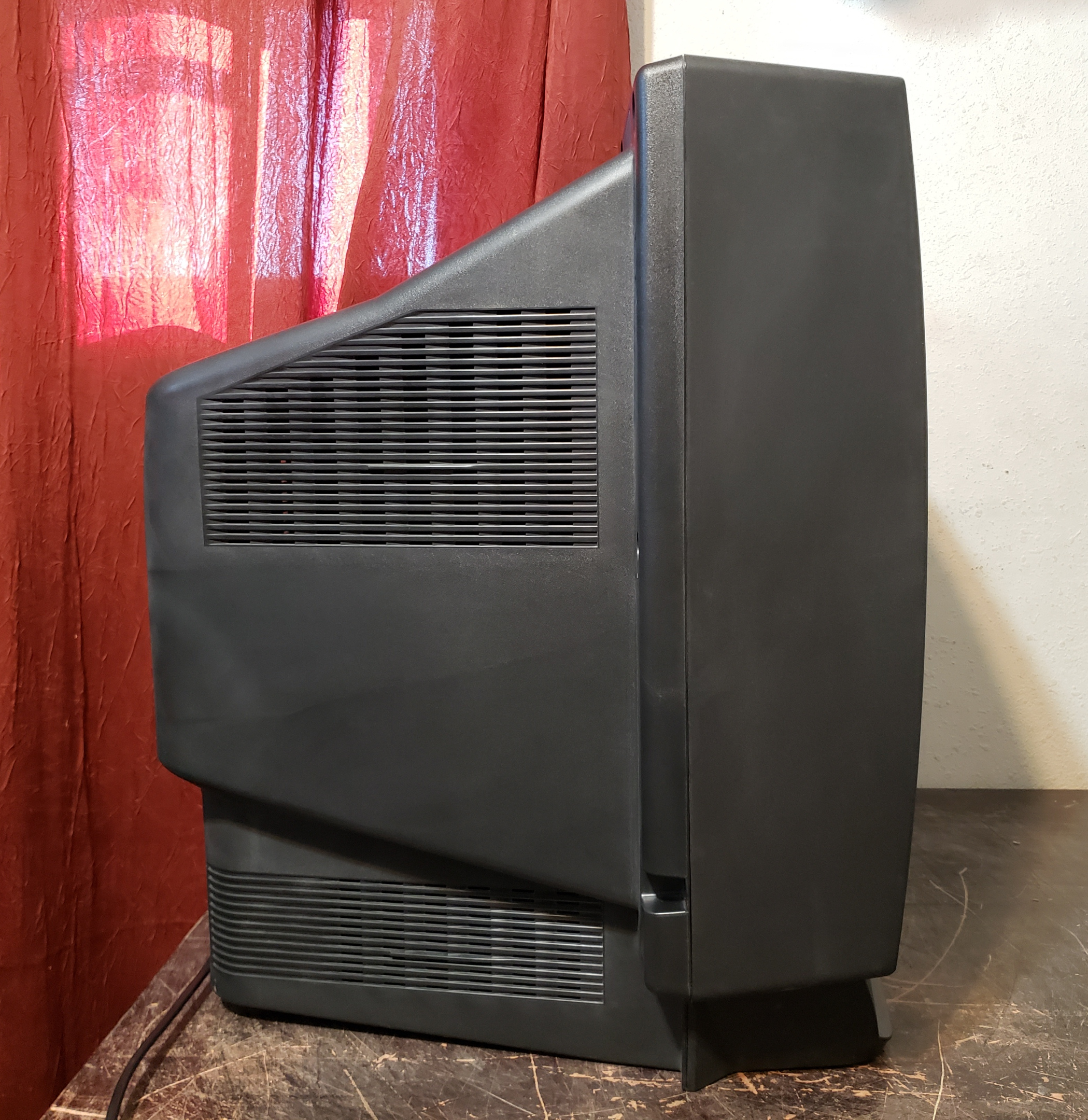

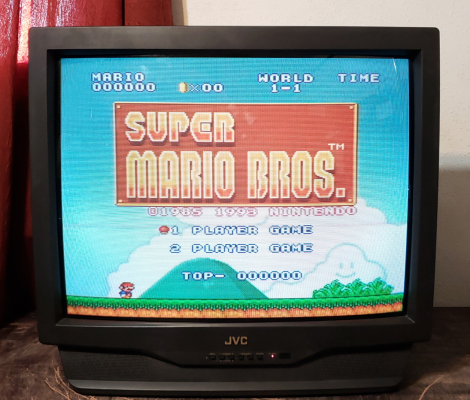

Gallery

















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-27050 |
Series: | AV |
Viewable Size: | 27" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2499 |
Vertical Output IC: | LA7832 |

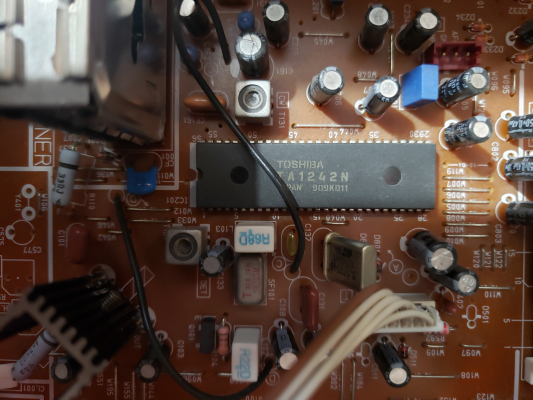

Jungle IC: | TA1242N |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | TC90A45P |
Flyback: | QQH0032-001 |
Focus Type: | Single |

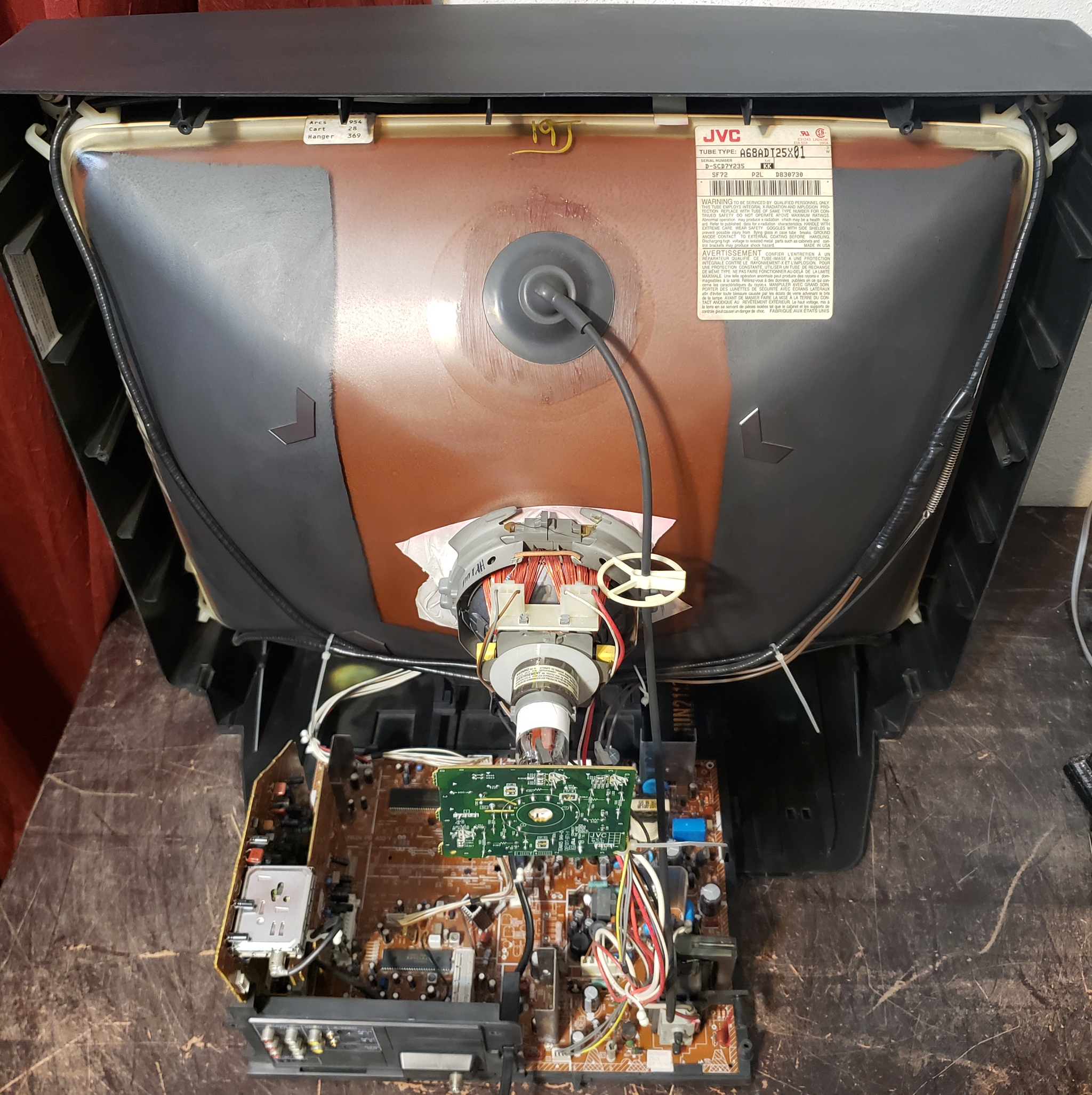

Tube: | Thomson , A68ADT25X01 , A68ADT25X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | .83 mm, 0.83 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke Horz. Resistance: | 2.3 ohm |
Yoke Vert. Resistance: | 6.4 ohm |
Speakers: | Stereo |
Remote: | RM-C341 |
Weight: | 67.8 lbs (30.8 kg) |
Dimensions (W/H/D): |
654 x 591 x 518 mm
(25.7 x 23.2 x 20.4") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1999 |
MSRP: | 519 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
