Summary

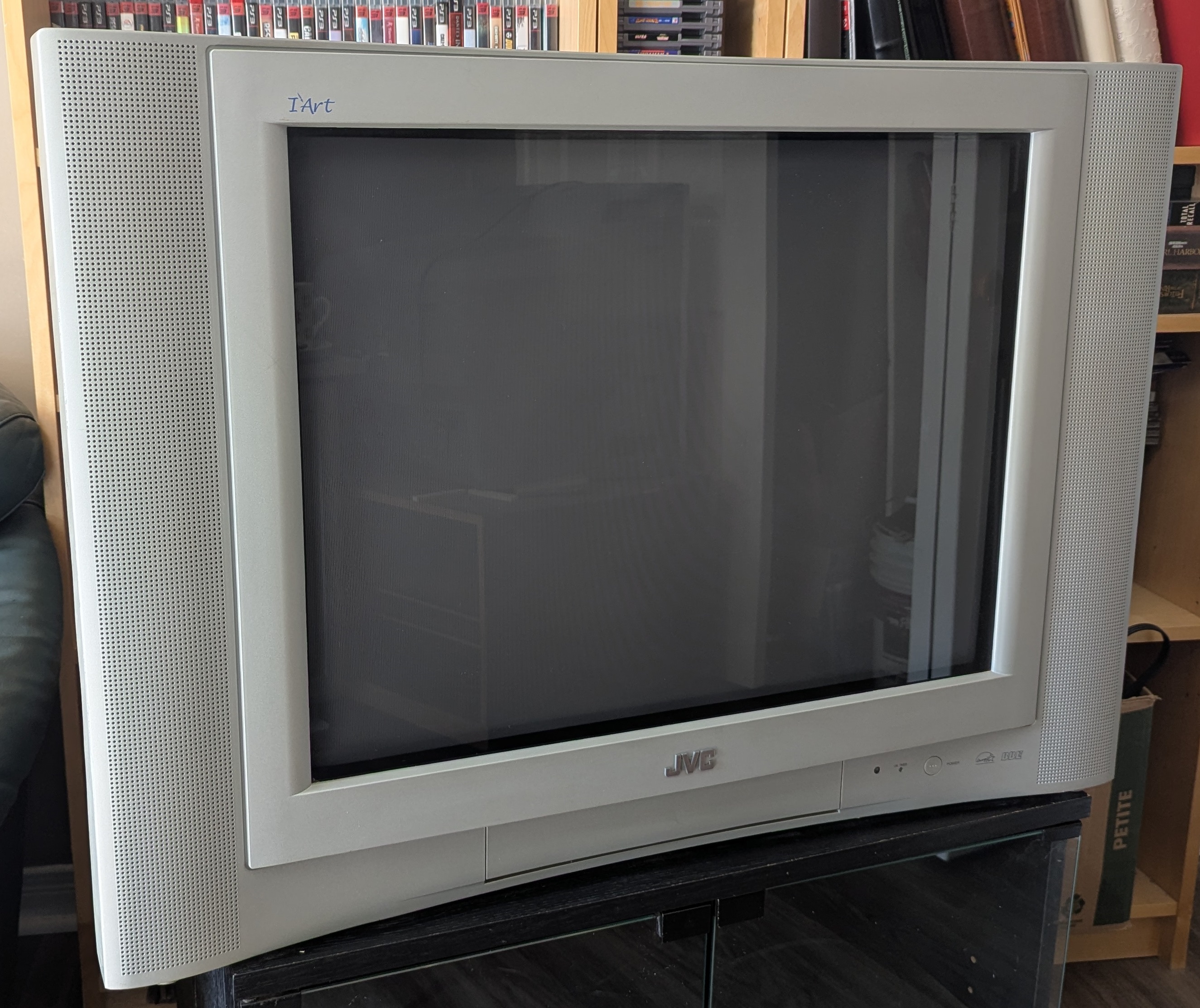

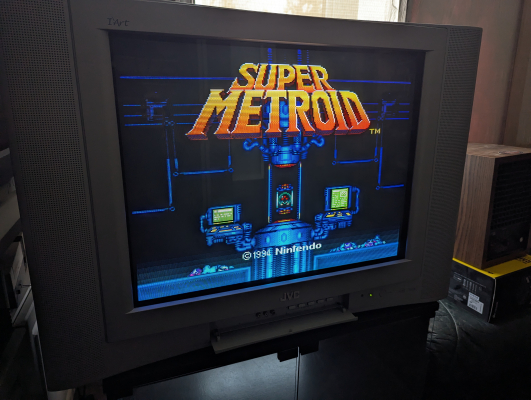

27" flat CRT by JVC. Has a full set of inputs. Originally manufactured in Mexico in 2003.
Manuals
Notes
This set is is very similar and uses the same jungle as the AV-27F7040 and may also require the same adjustments.
This set uses a Toshiba jungle that cannot be tapped for RGB.

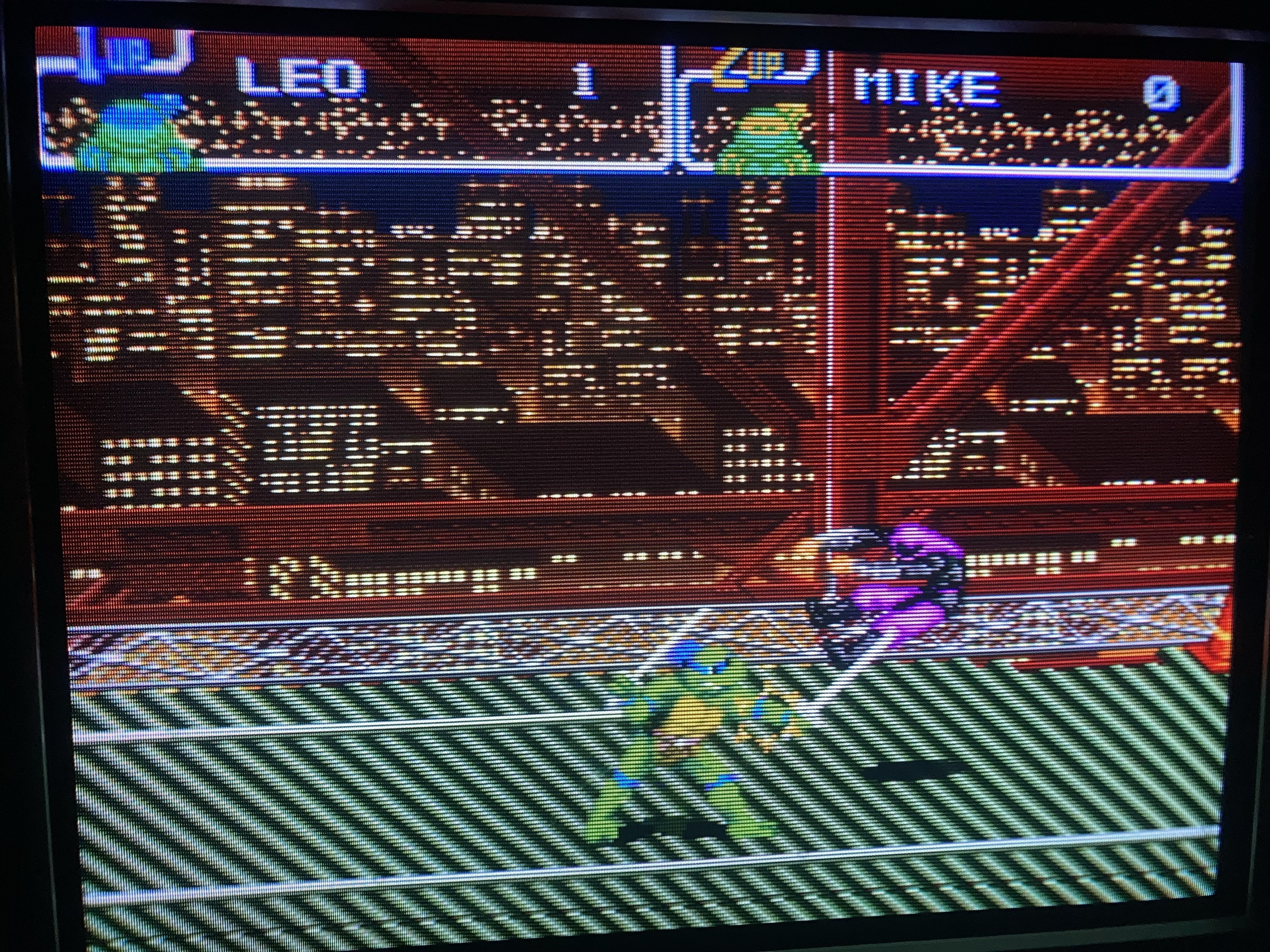

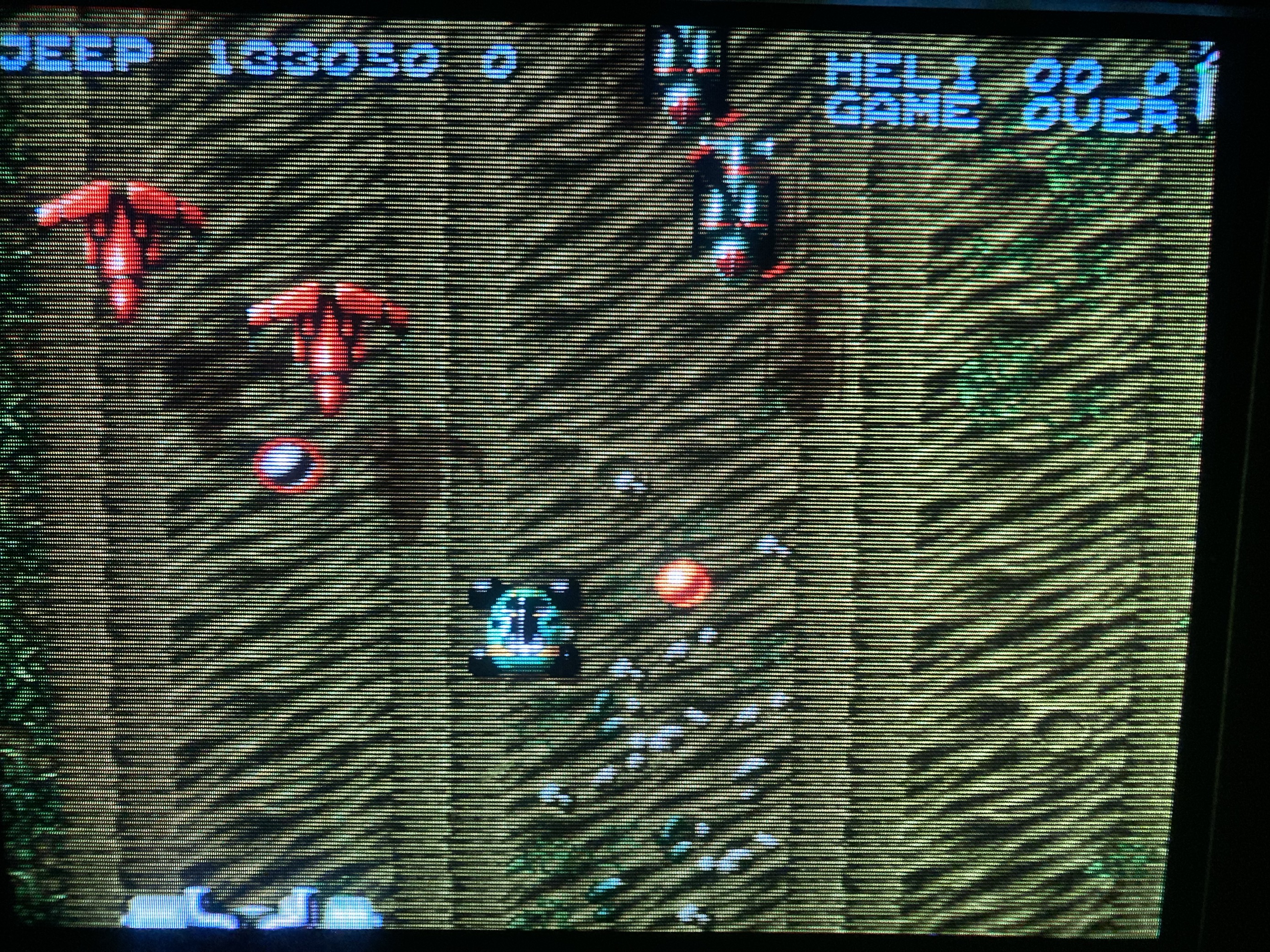

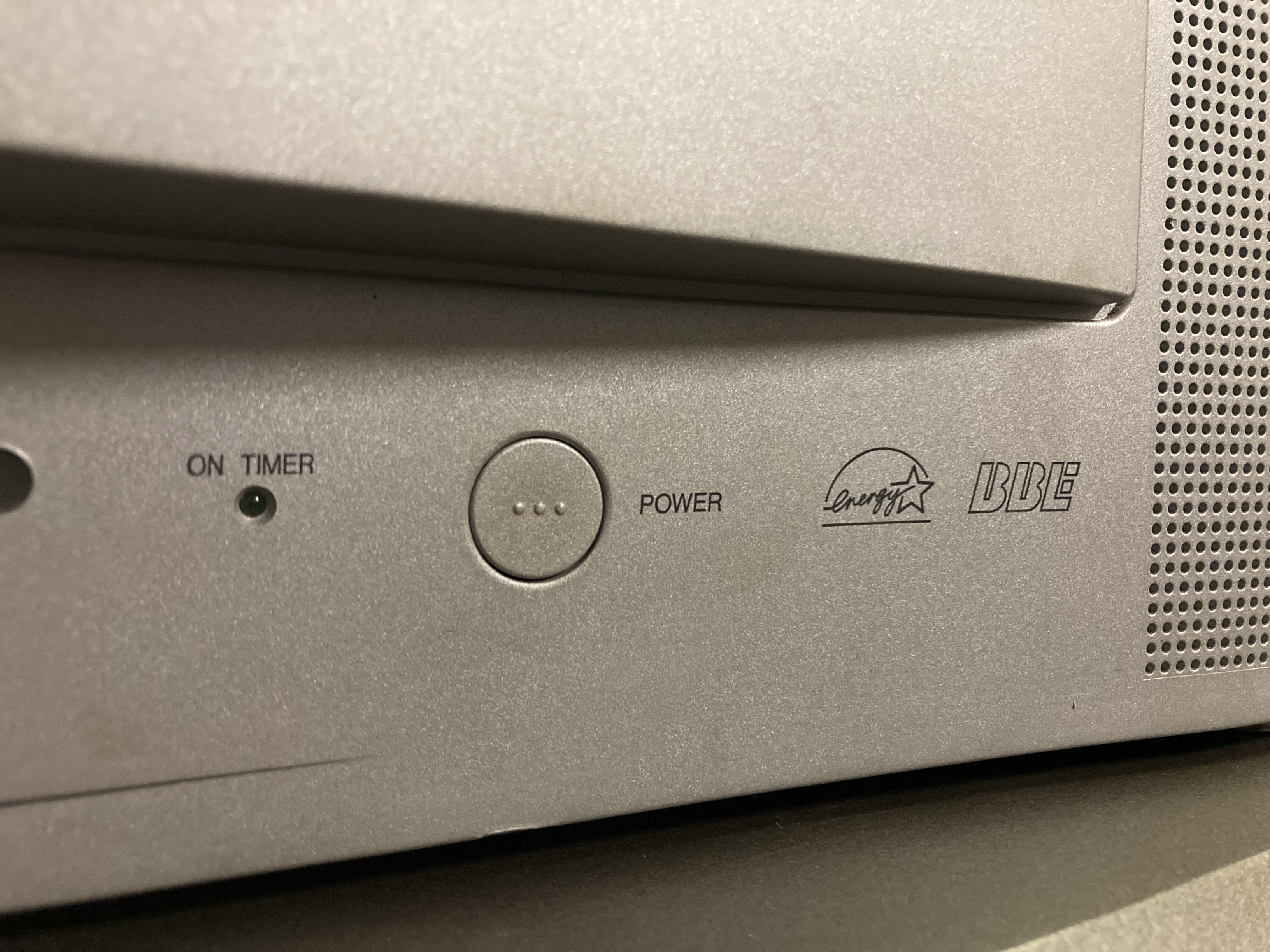

Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-27FA44 |

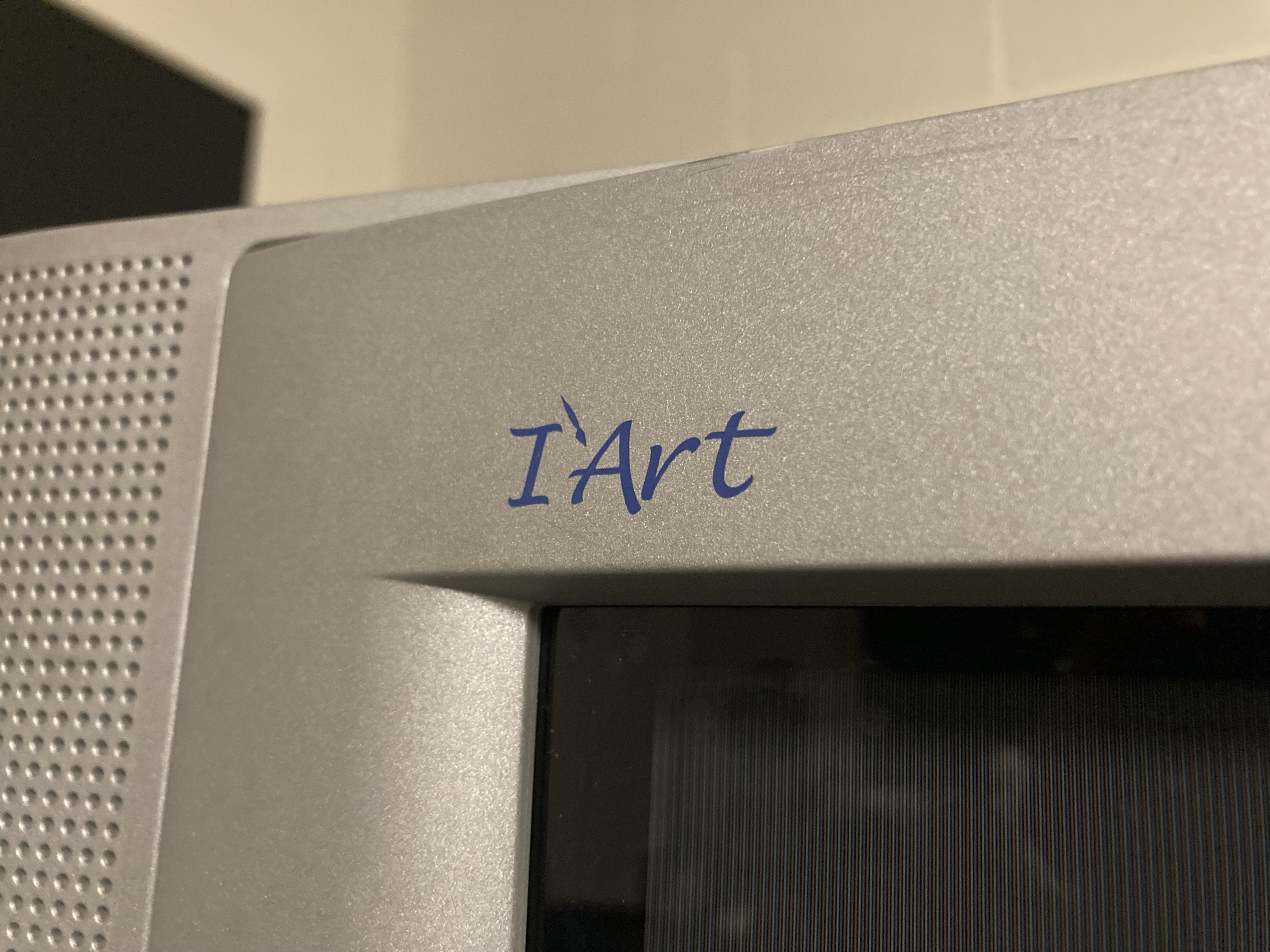

| Series: | I'Art |
| Viewable Size: | 27" |

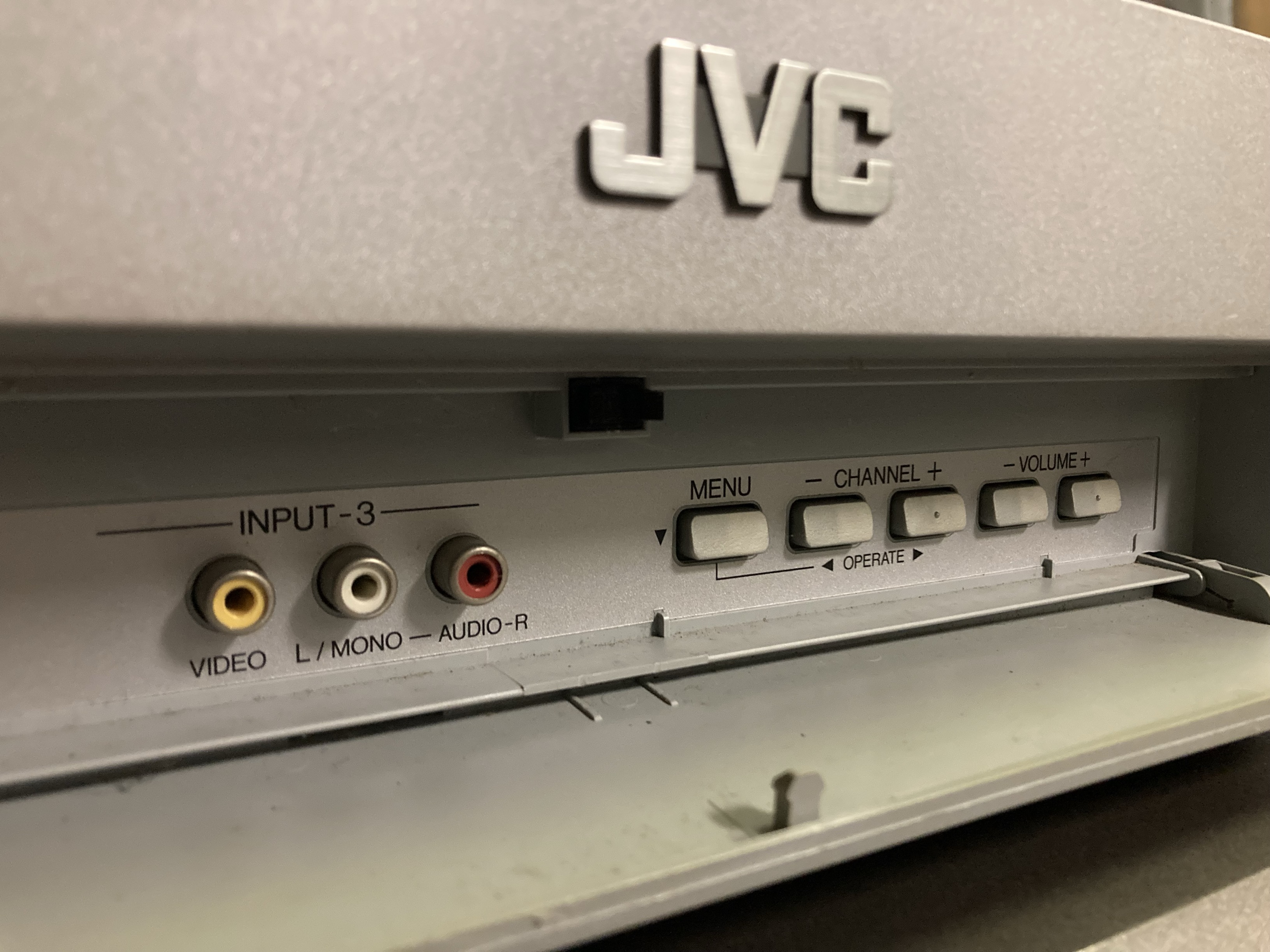

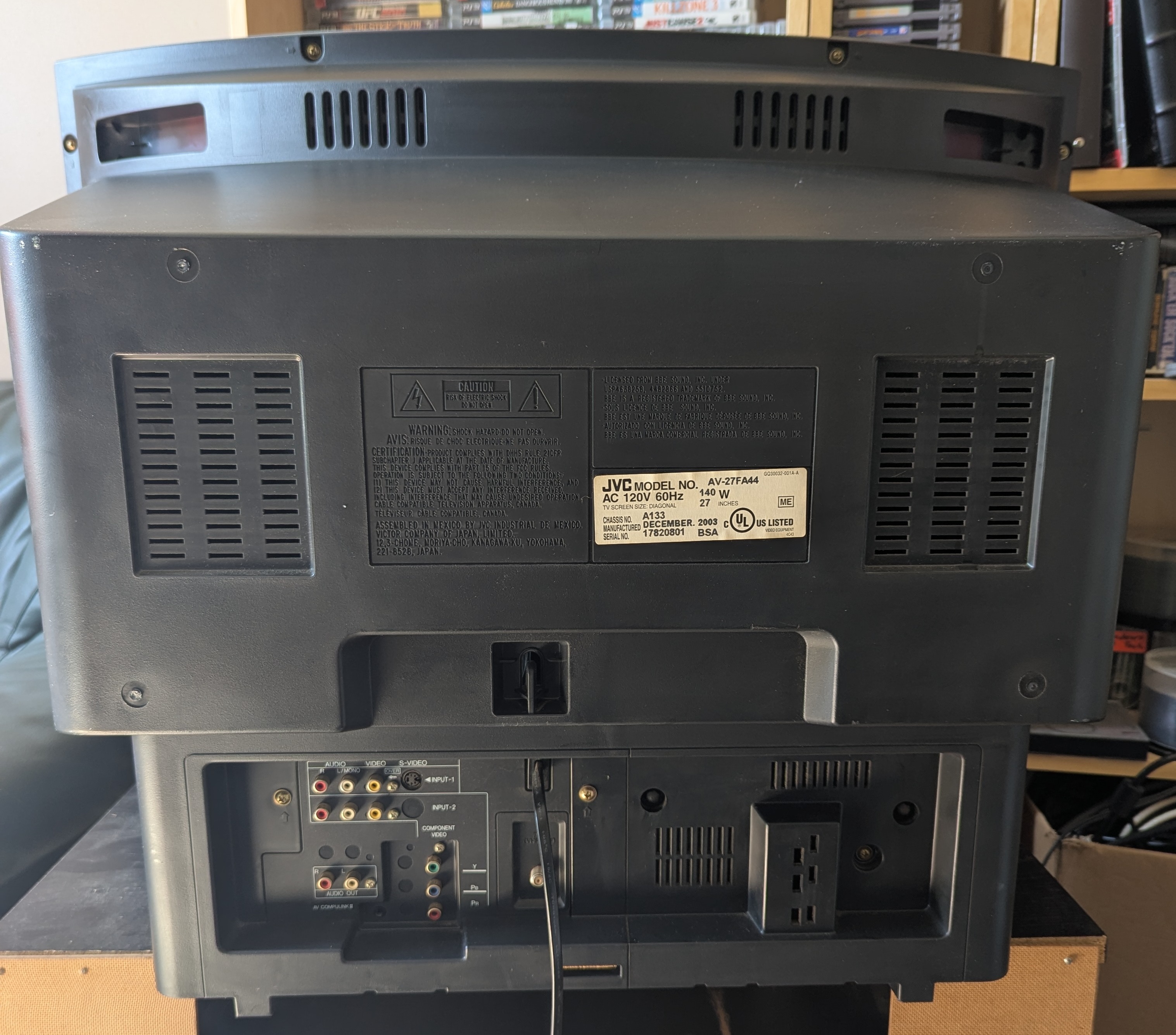

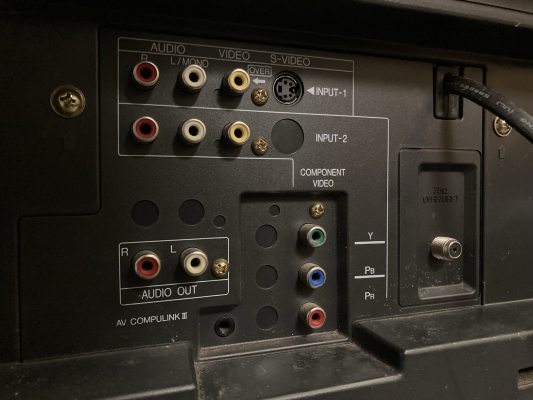

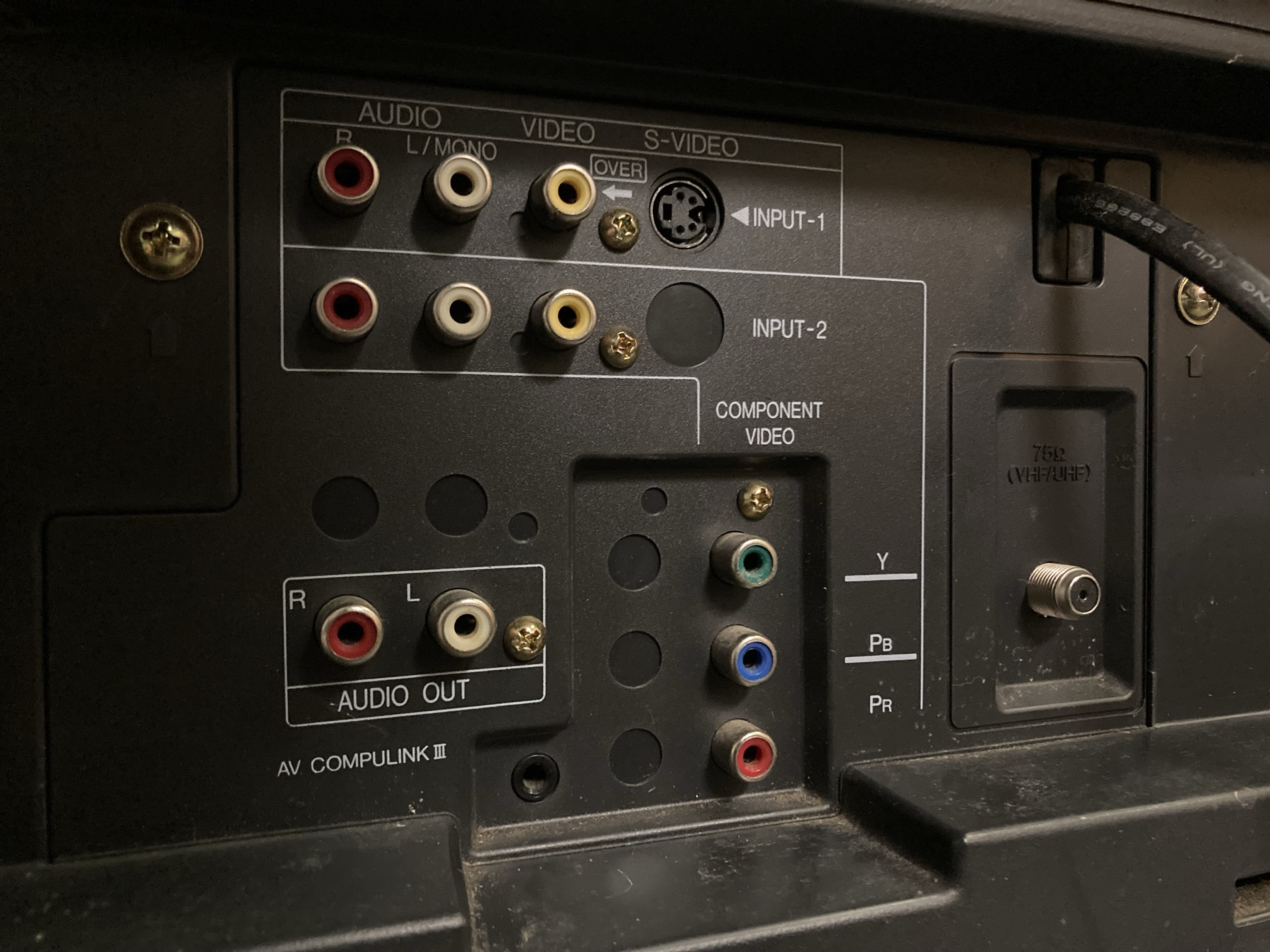

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2645 |
| Vertical Output IC: | LA7841 |
| Jungle IC: | Toshiba, TM8812C, TM8812CSDNG4RR3 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | TC90A49AP |

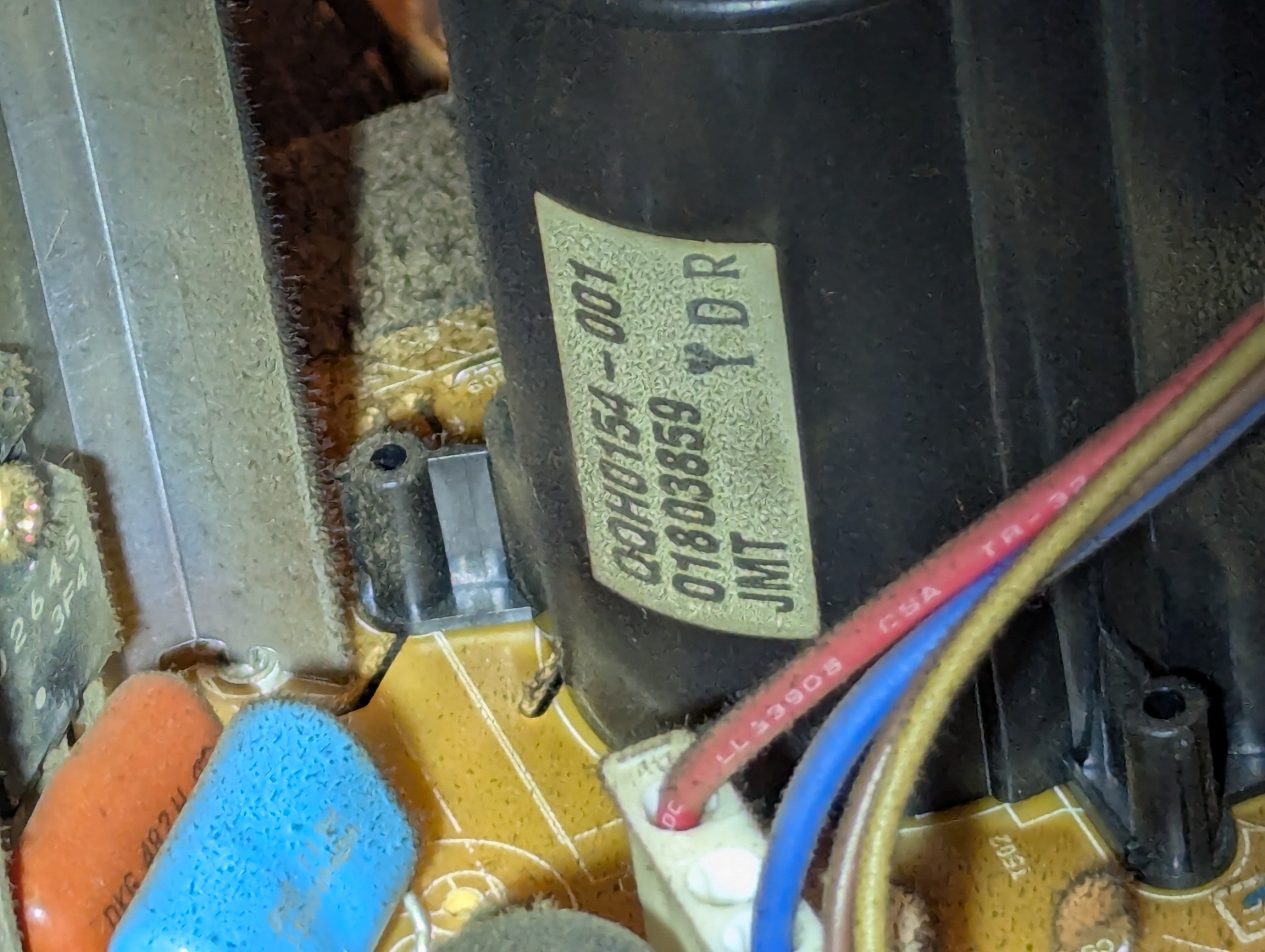

| Flyback: | E153162, QQH0121-001, QQH0152-001, QQH0154-001 |
| Focus Type: | Single |

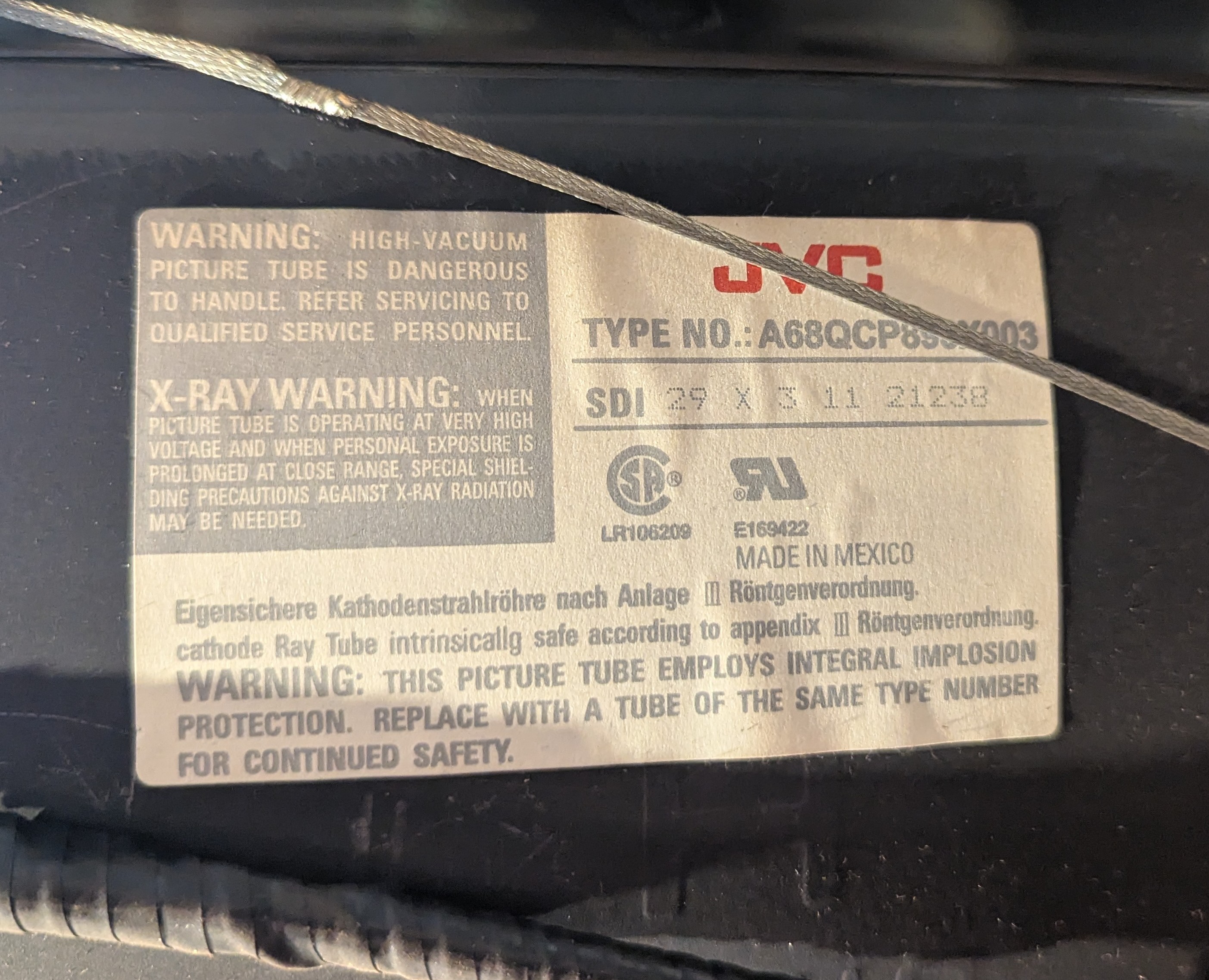

| Tube: | A68QCP893X , A68QCU754X62N , A68QCU754X , A68QCP893X001 , A68QCP983X003 |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

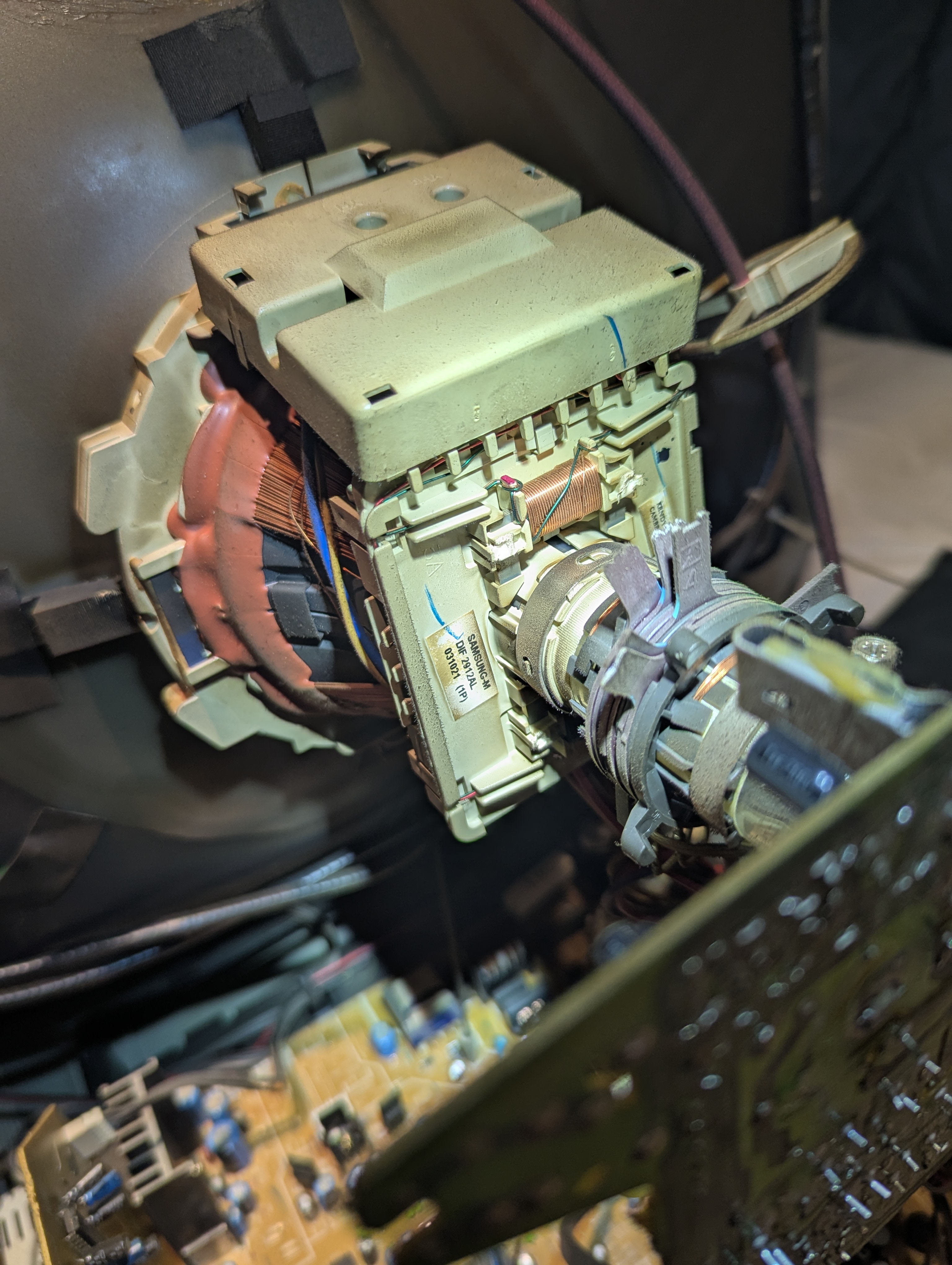

| Yoke: | DIF-2912AL |
| Speakers: | Stereo, 12W x 2 |
| Remote: | RM-C1251G |
| Chassis: | GJ2 |
| Weight: | 94.6 lbs (42.9 kg) |
| Dimensions (W/H/D): |
829 x 593 x 519 mm
(32.6 x 23.3 x 20.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |

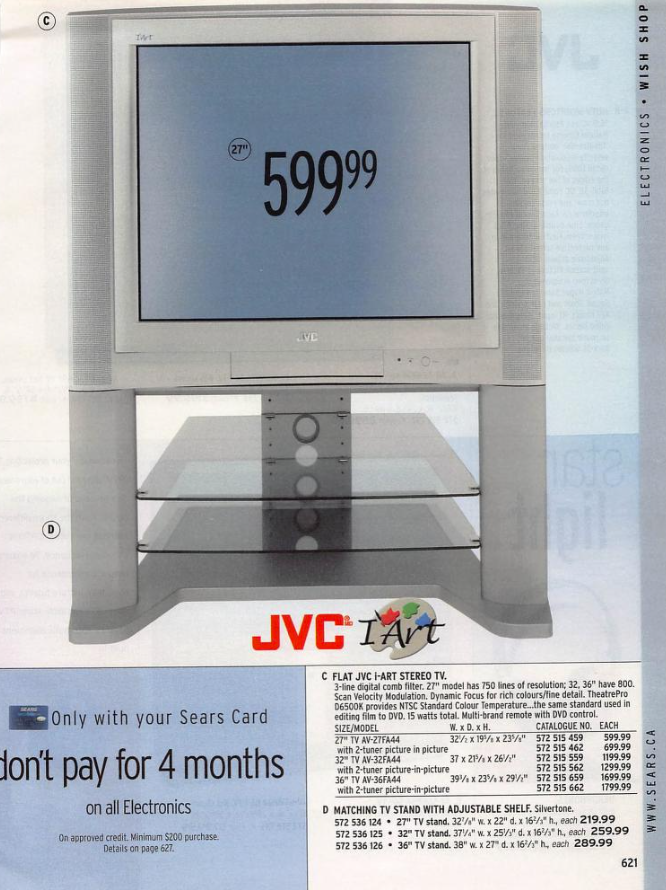

| MSRP: | 599 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
