JVC AV-32020
SegaSaturn94
February 27, 2026, 10:25 pm
June 3, 2026, 5:50 pm
February 27, 2026, 10:25 pm
June 3, 2026, 5:50 pm
Summary

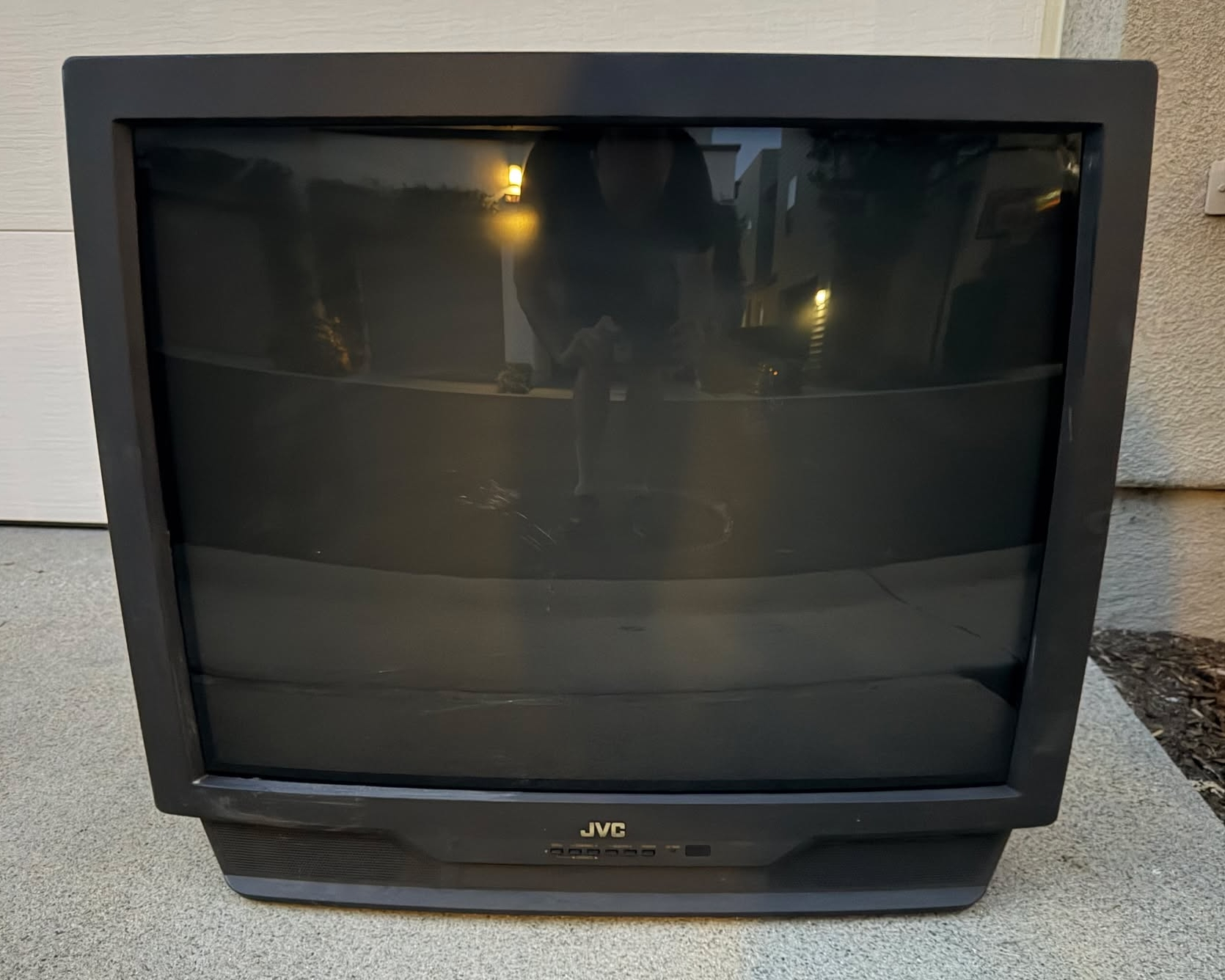

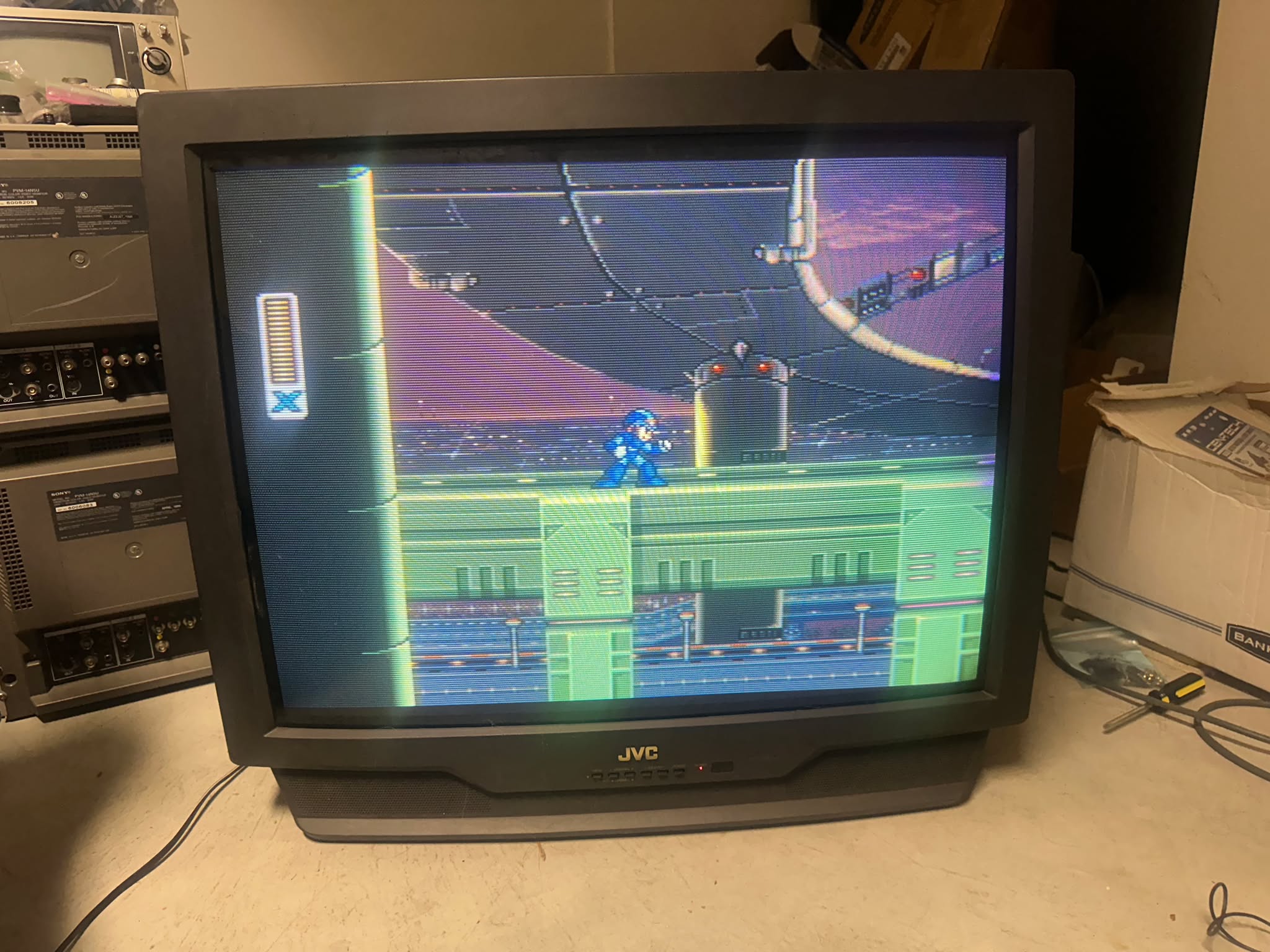

32" curved-screen CRT by JVC, made in Mexico in 1999. Has RF, composite and s-video inputs with stereo sound.
Manuals
Media & Promo Materials
Notes

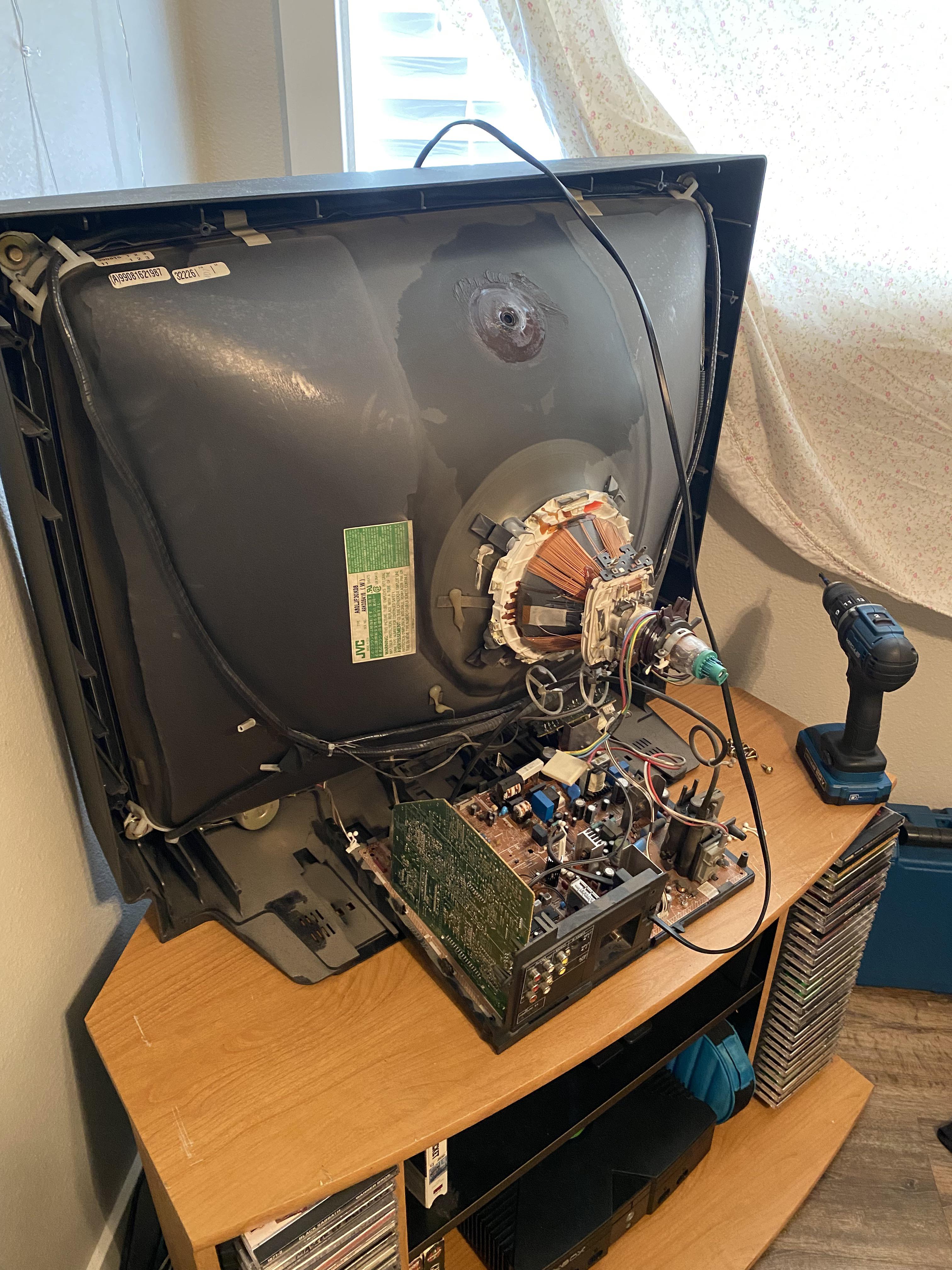

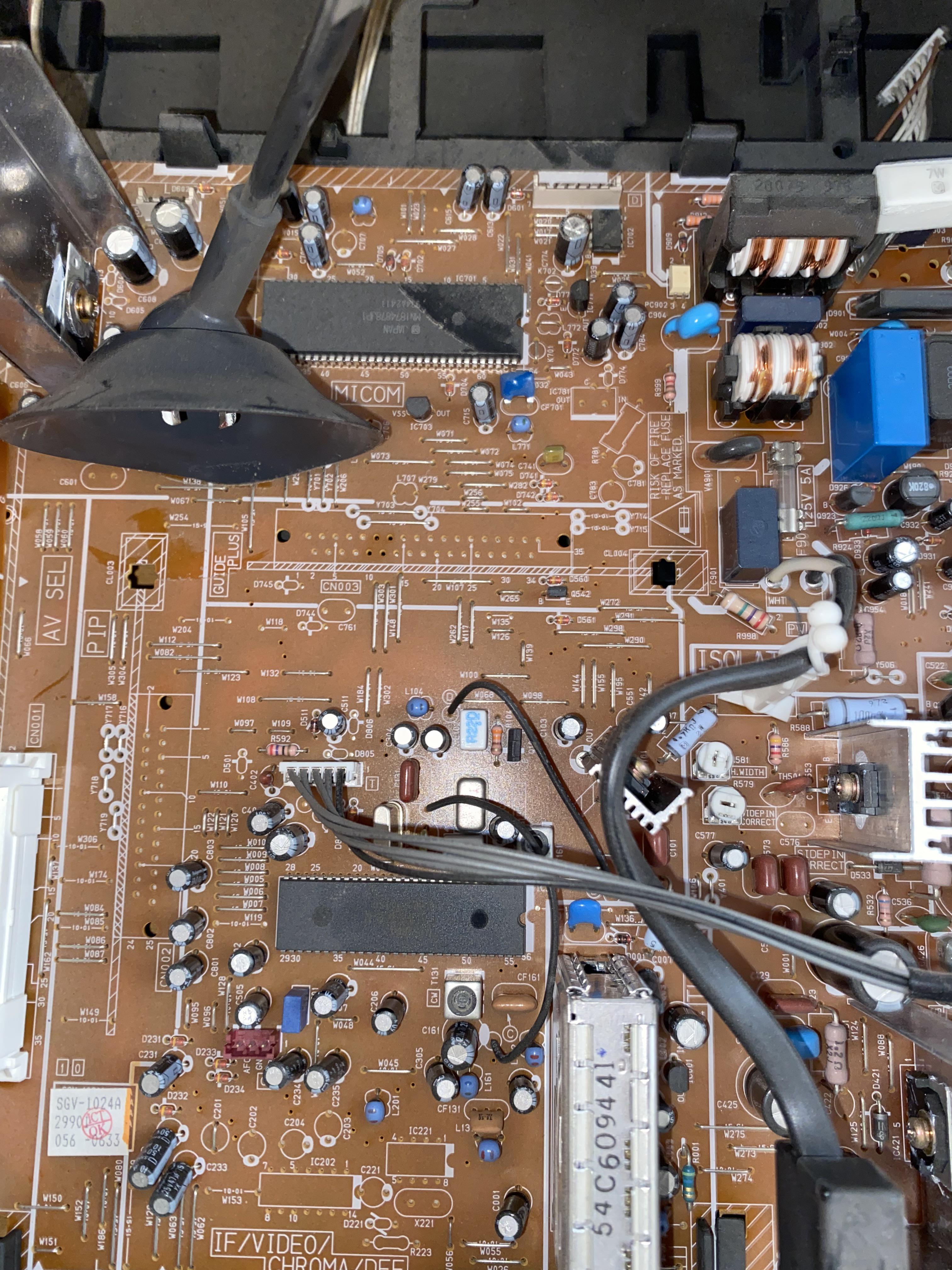

This set can be modded for RGB through the OSD mux method.
Repair Notes
- One unit would not power up. After being plugged in for a few seconds, on its own it would sound two quick relay clicks and then nothing after that. The 5V regulator had shorted, IC771. After replacing IC771 with a good one nothing changed in terms of powering on. Further investigation revealed a lot more shorted components in the stand-by power supply including a through-hole transistor, two diodes, and a surface-mount transistor. There was also another short when testing across C715. I did not continue the repair process further. (-E.K.)

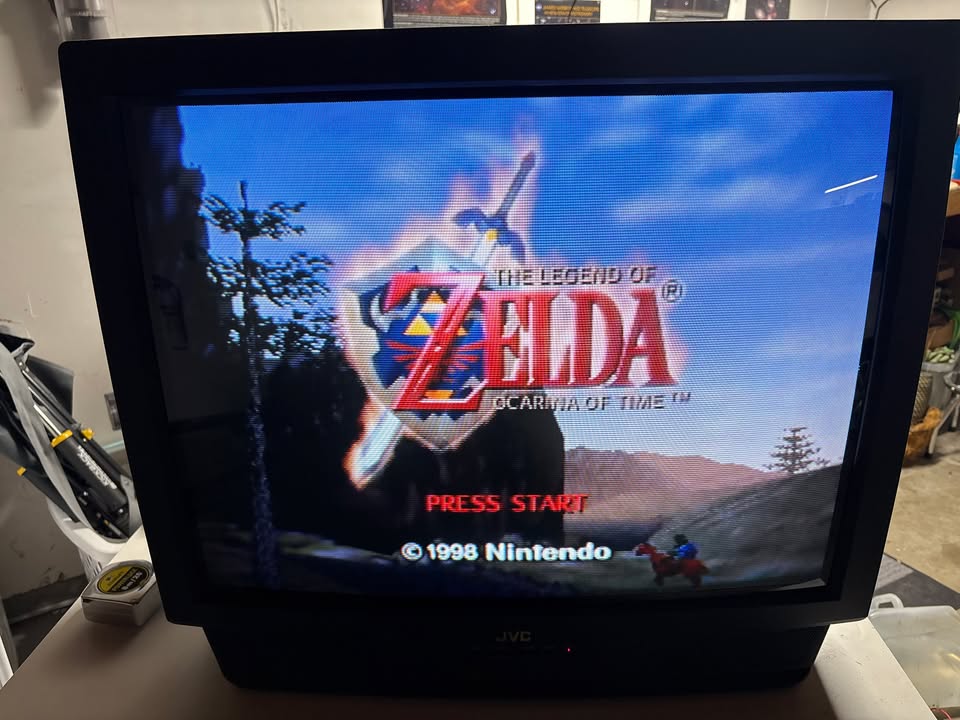

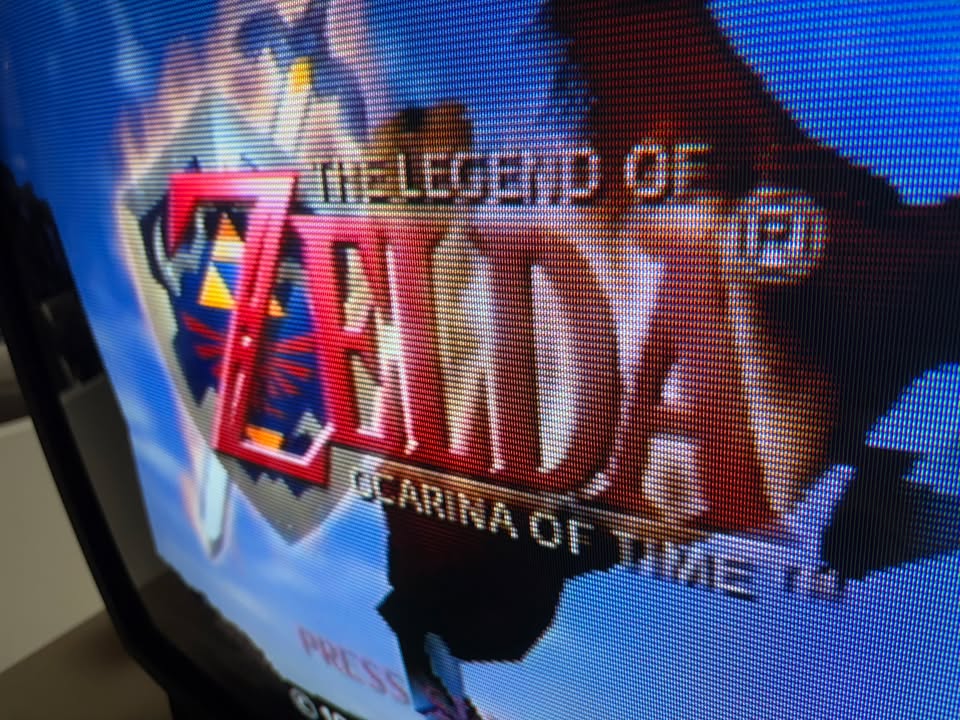

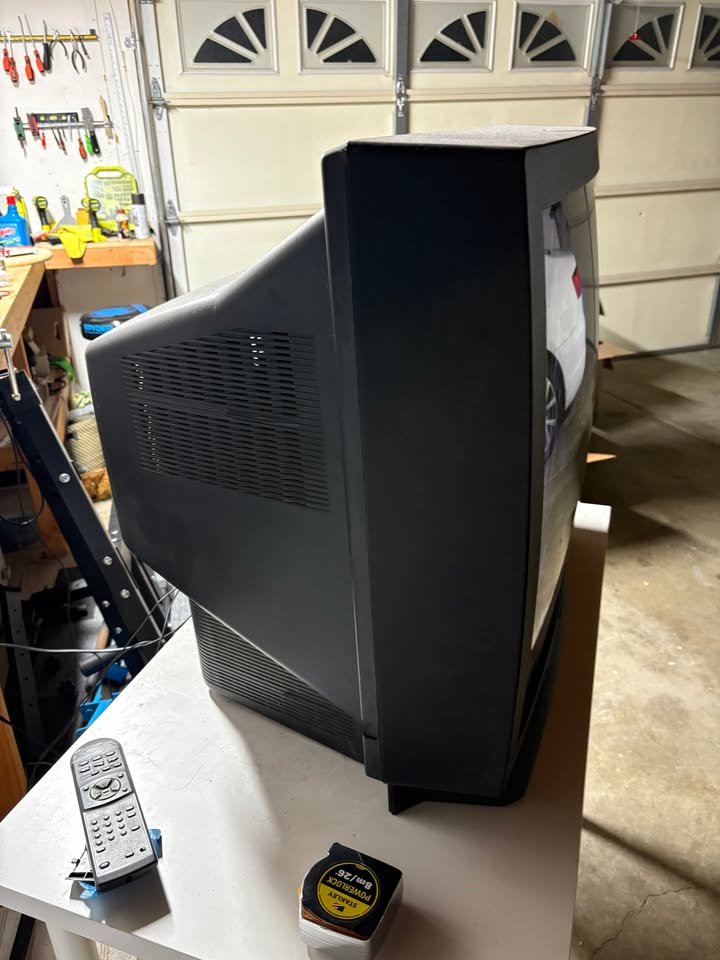

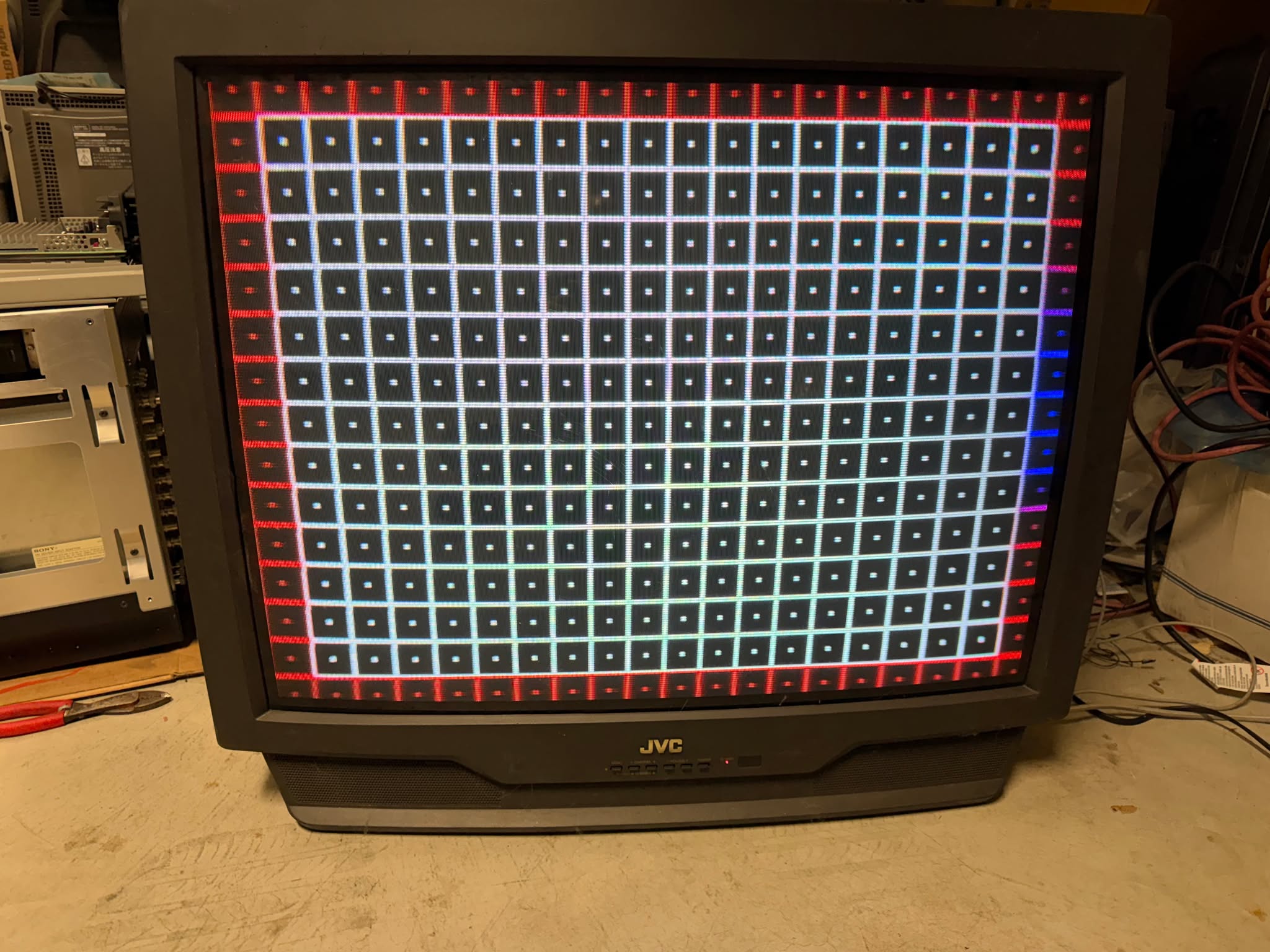

Gallery

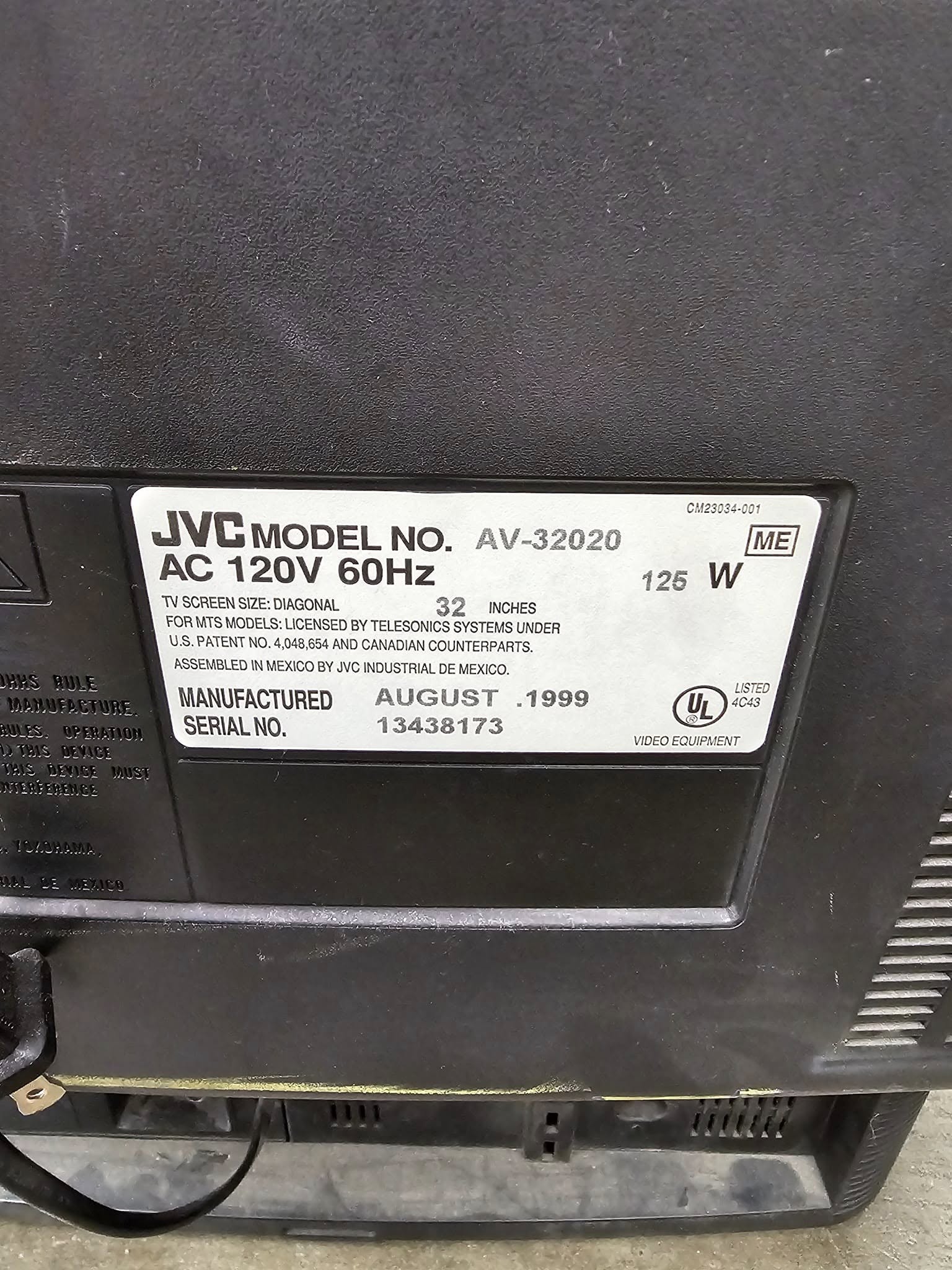

| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-32020 |
| Series: | AV |
| Viewable Size: | 32" |

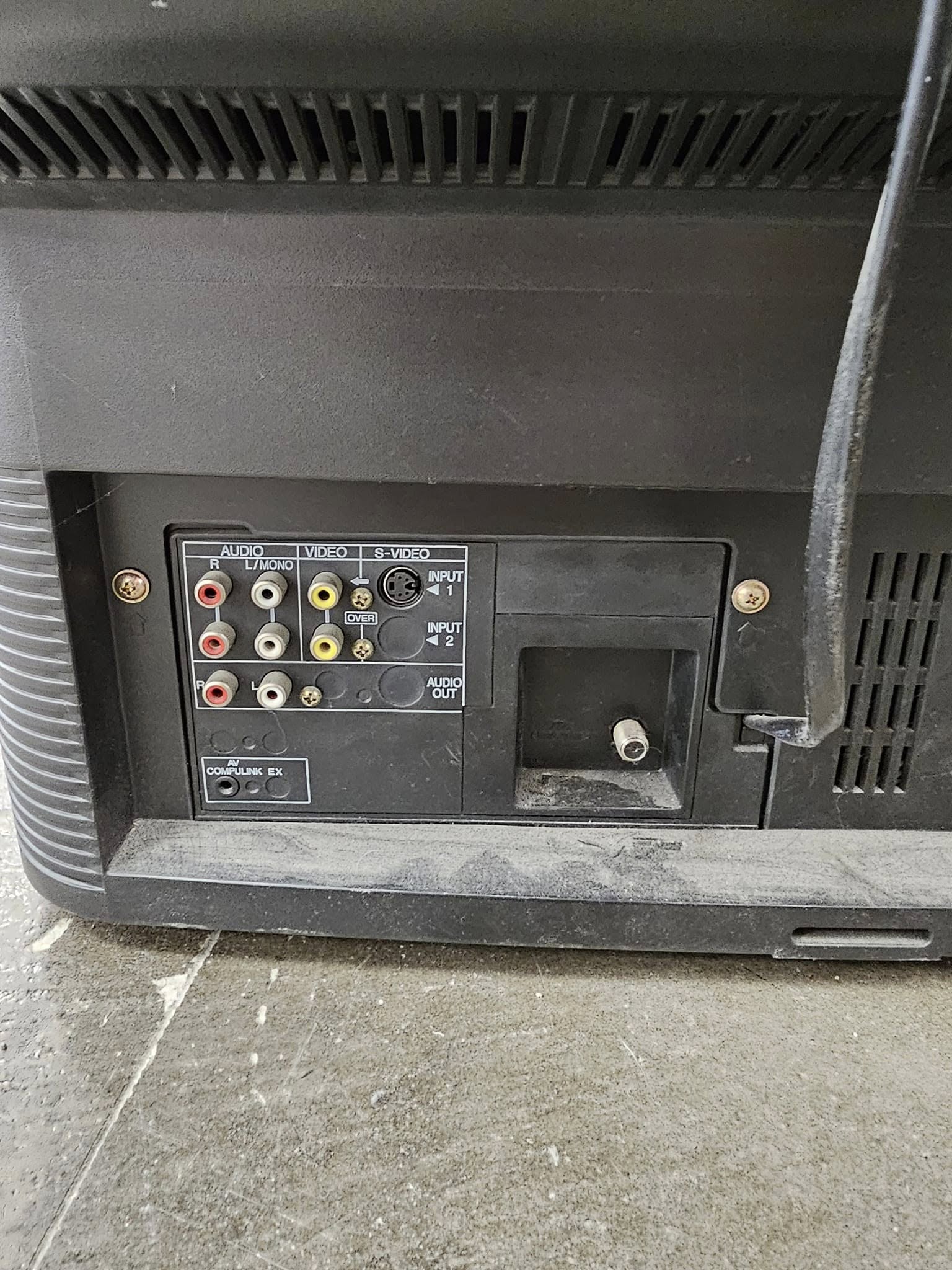

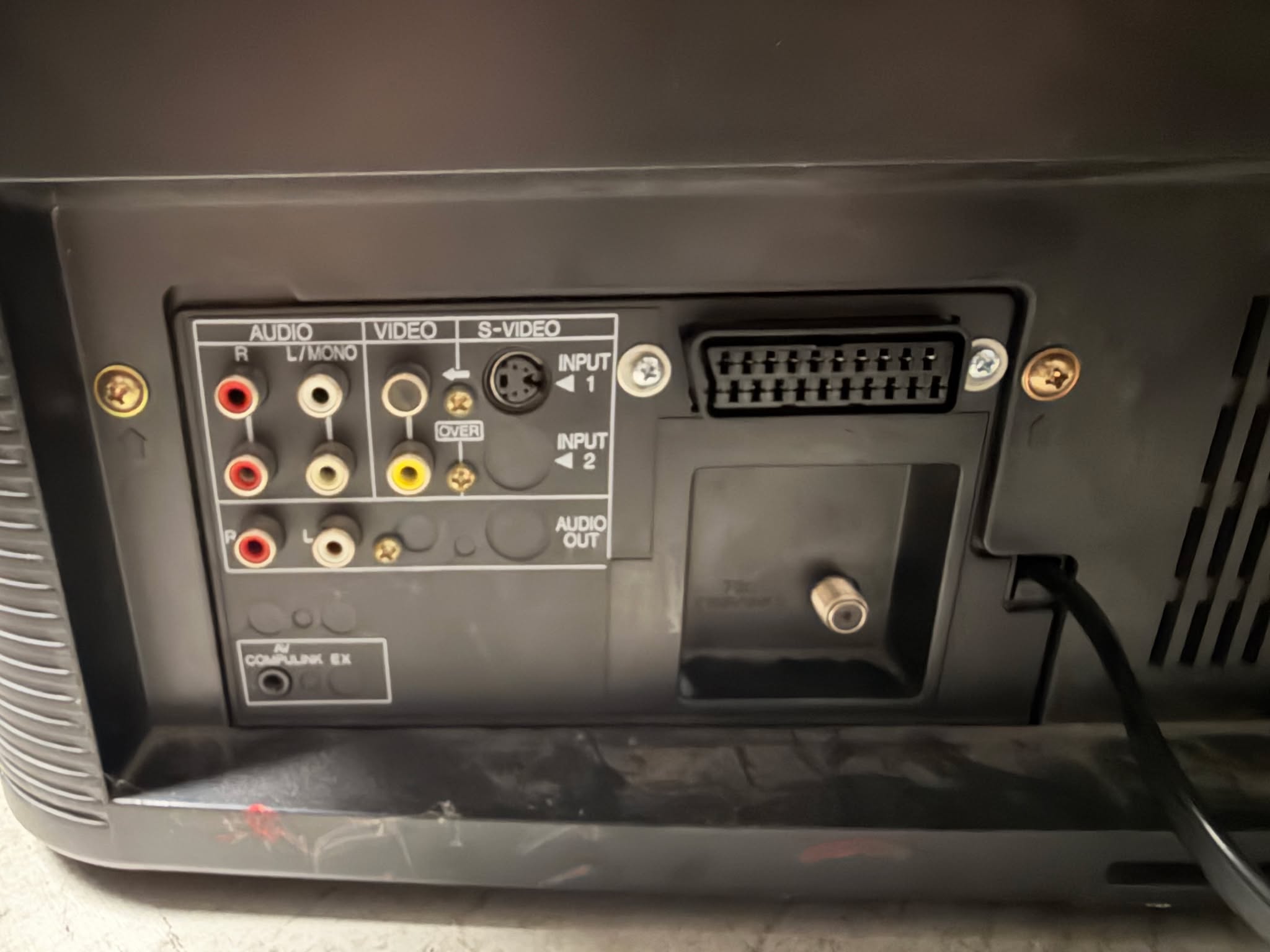

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2539-LB, 2SD2539 |
| Vertical Output IC: | LA7832 |
| Jungle IC: | Toshiba, TA1242N, TA1242 |
| Comb Filtering: | 2-Line Digital, Notch |
| Flyback: | QQH0032-001 |
| Focus Type: | Single |
| Tube: | Panasonic , Hitachi , A80LJF30X , LG , A80QCF240X , M80JUA061X , A80LJF30X08 , A80QCF240X14L , M80JUA061X06 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 89-21181-2 |
| Yoke Horz. Inductance: | .959 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 1.2 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 25.16 ohm |
| Yoke Vert. Resistance: | 10.44 ohm |
| Speakers: | Stereo, 3W x 2 |

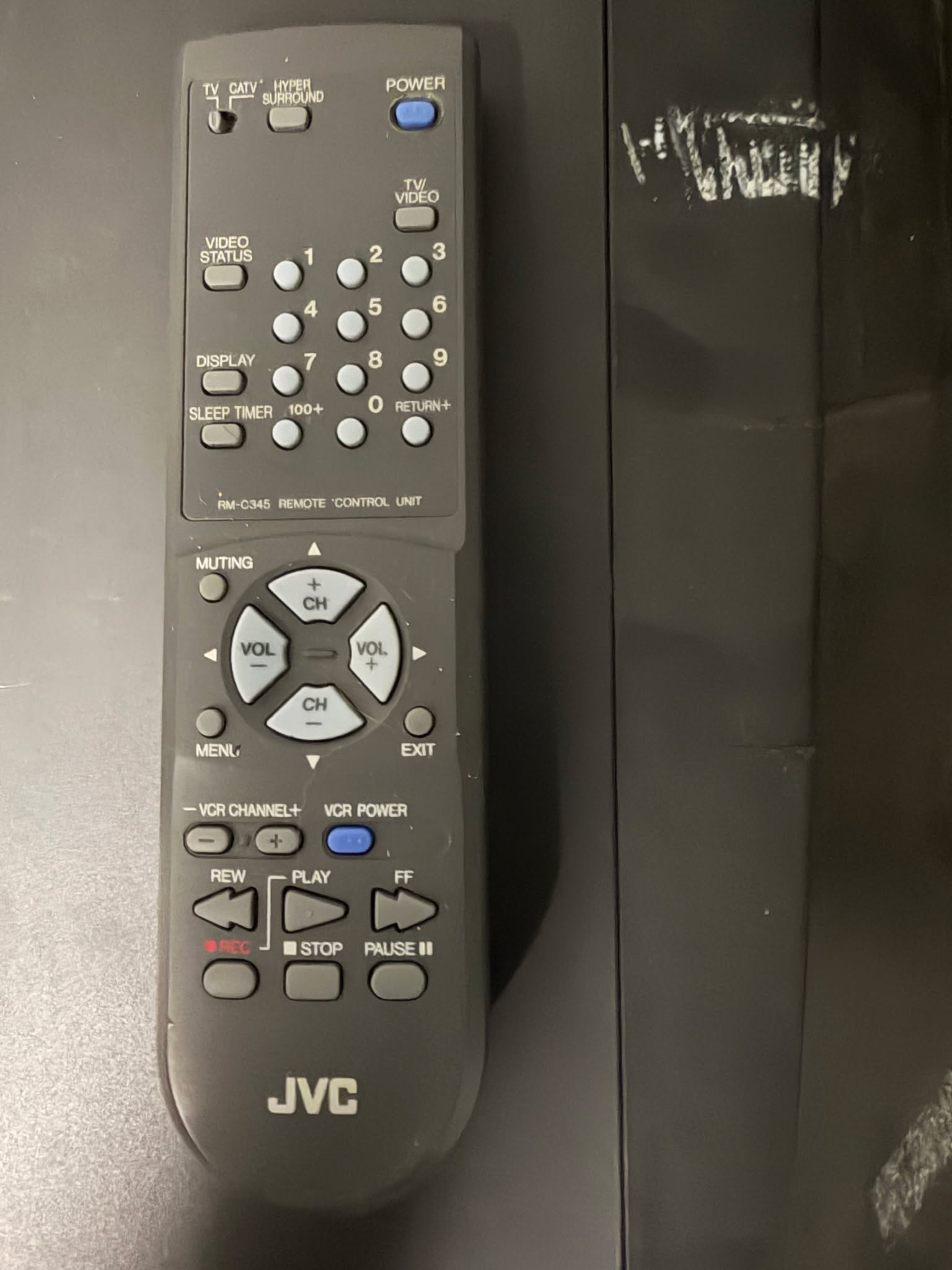

| Remote: | RM-C345 |
| Chassis: | GV2 |
| Weight: | 122.2 lbs (55.4 kg) |
| Dimensions (W/H/D): |
768 x 667 x 547 mm
(30.2 x 26.2 x 21.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 749 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, RK-3298 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Repair Log |
