Summary

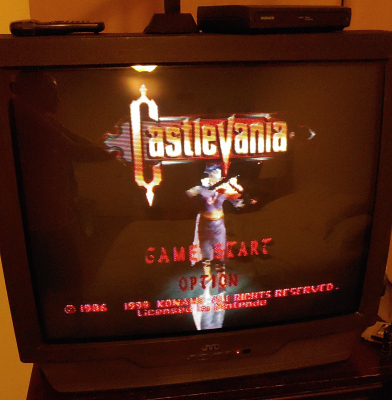

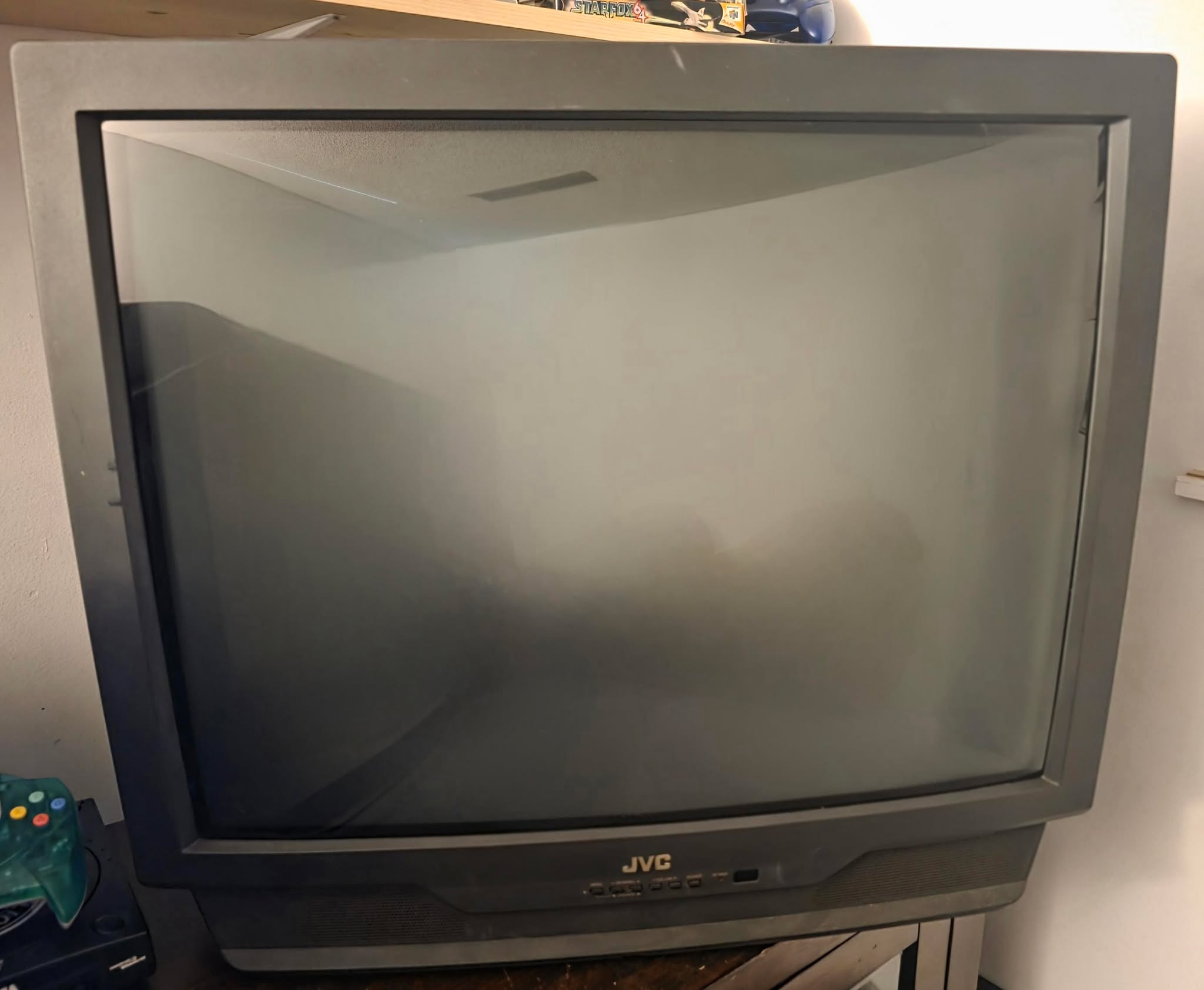

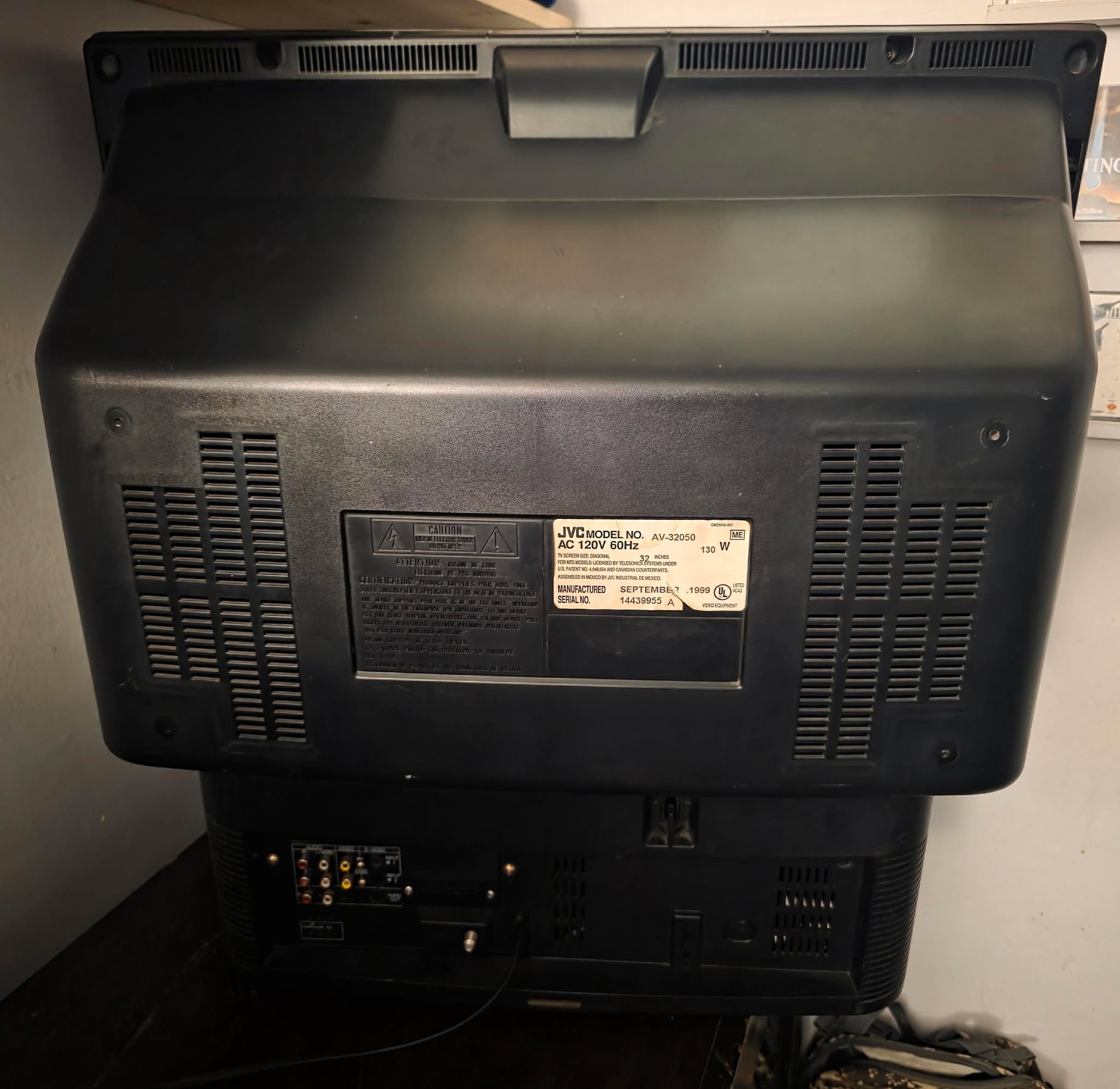

32" CRT by JVC, made in Mexico in 1999. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Michael Trueworthy for the pics!)
Manuals
Media & Promo Materials
Notes

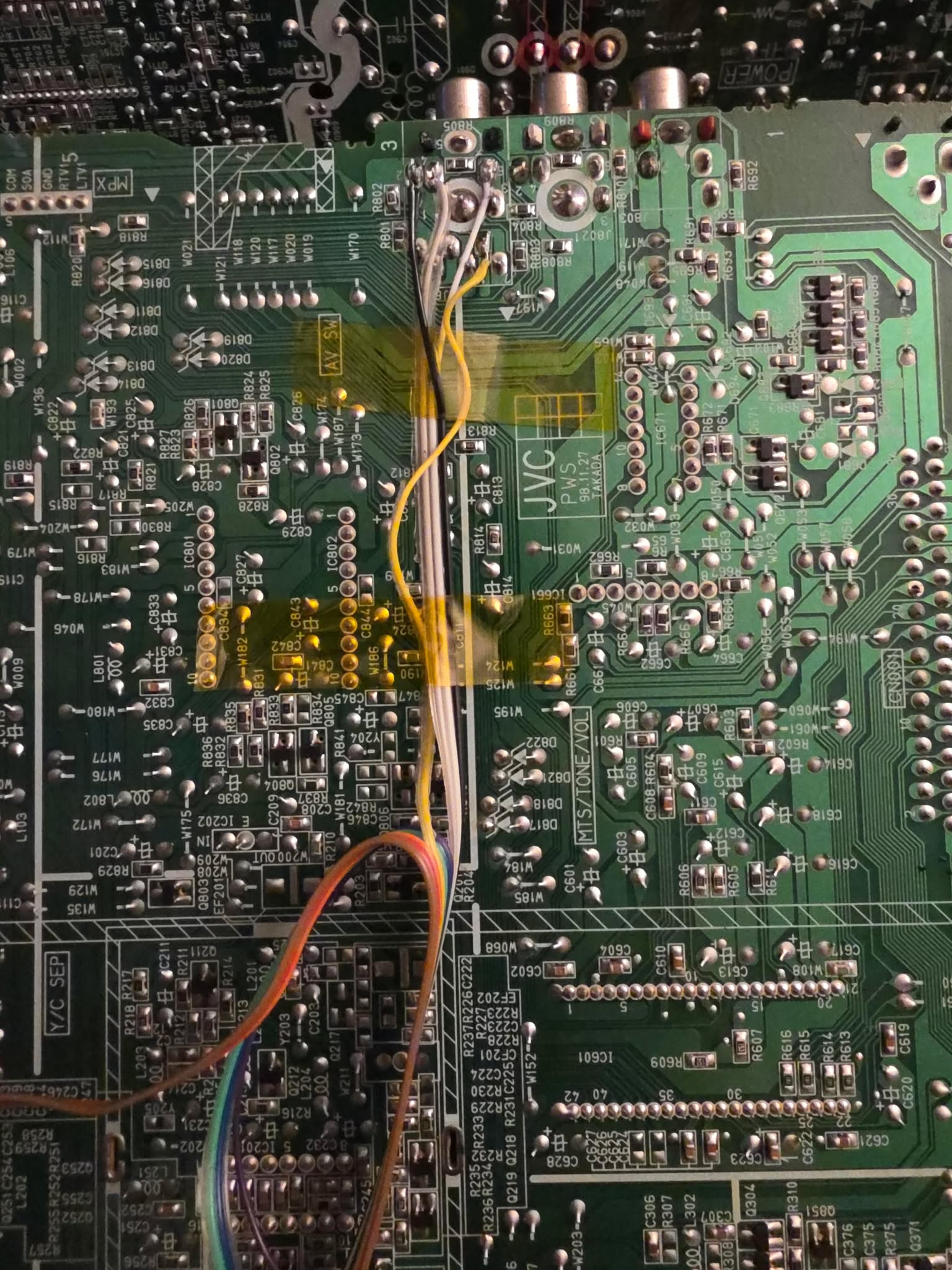

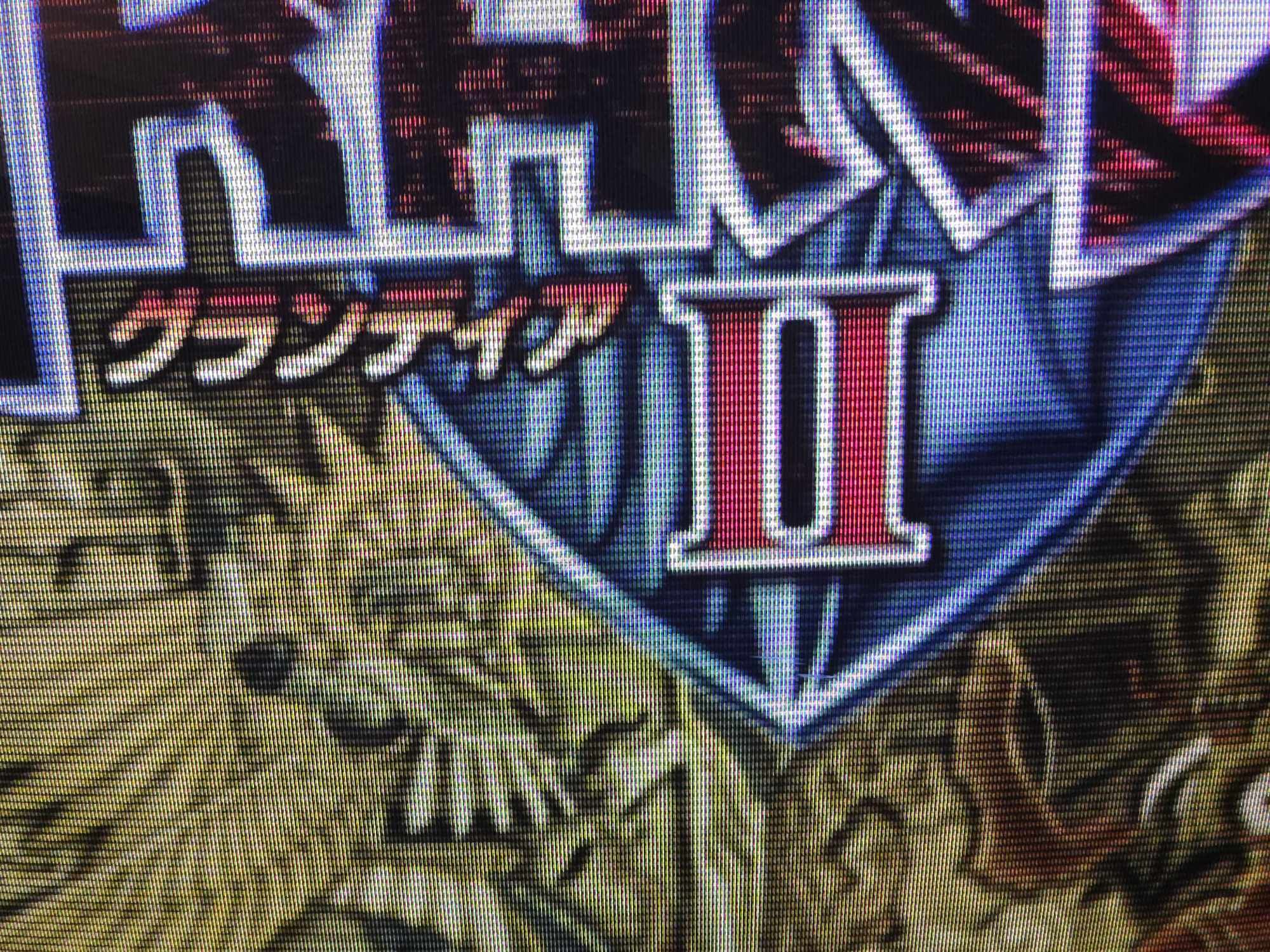

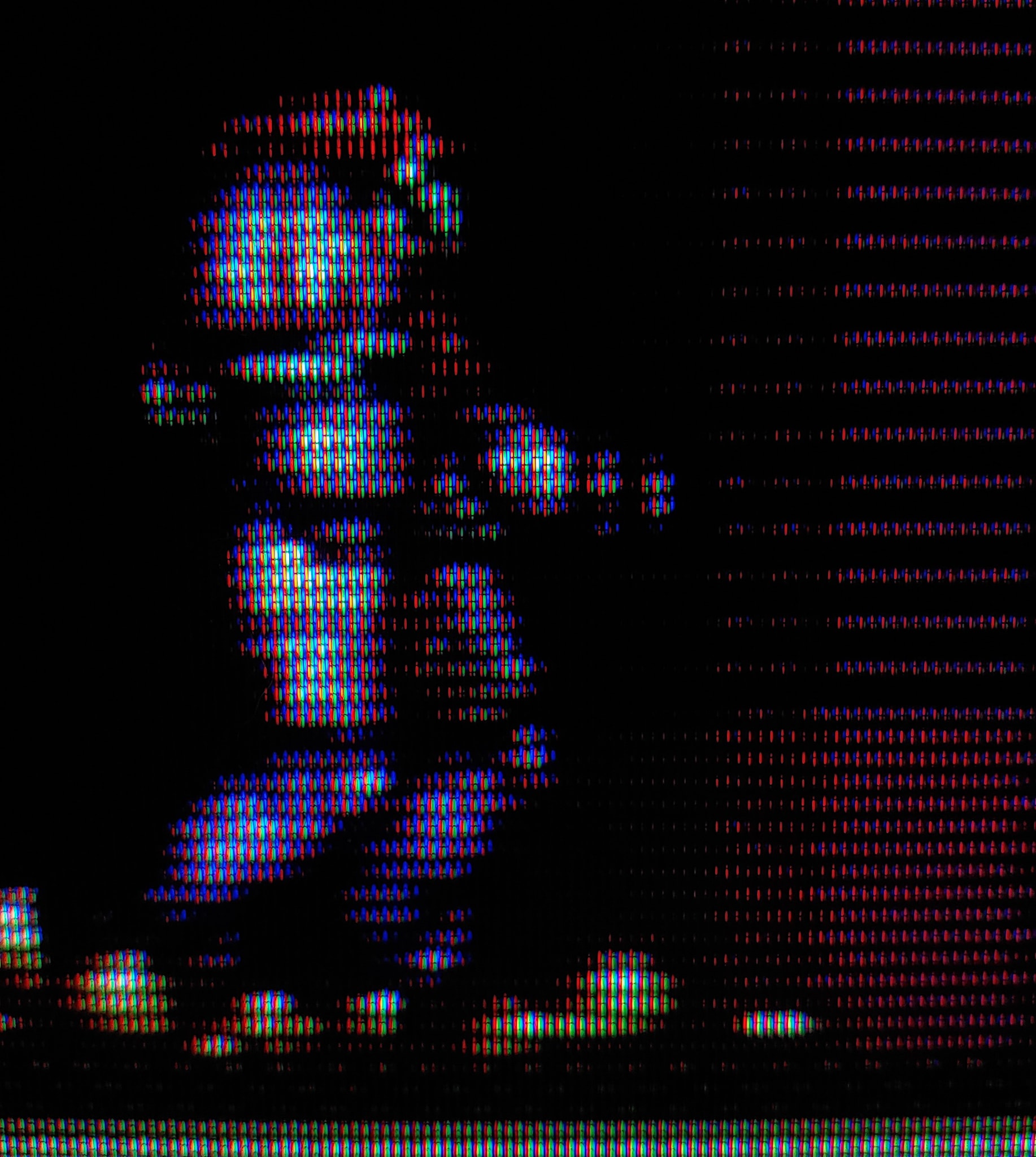

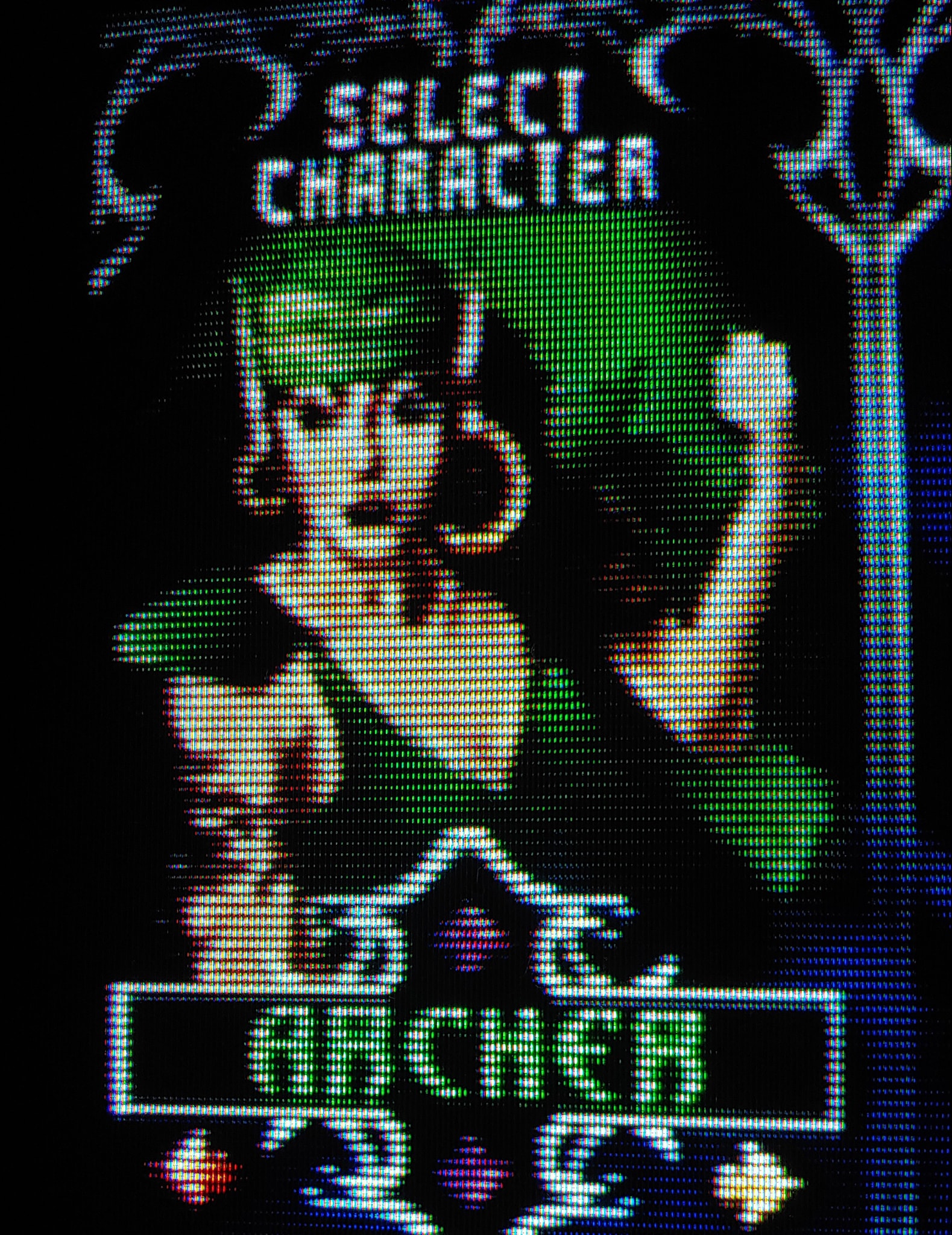

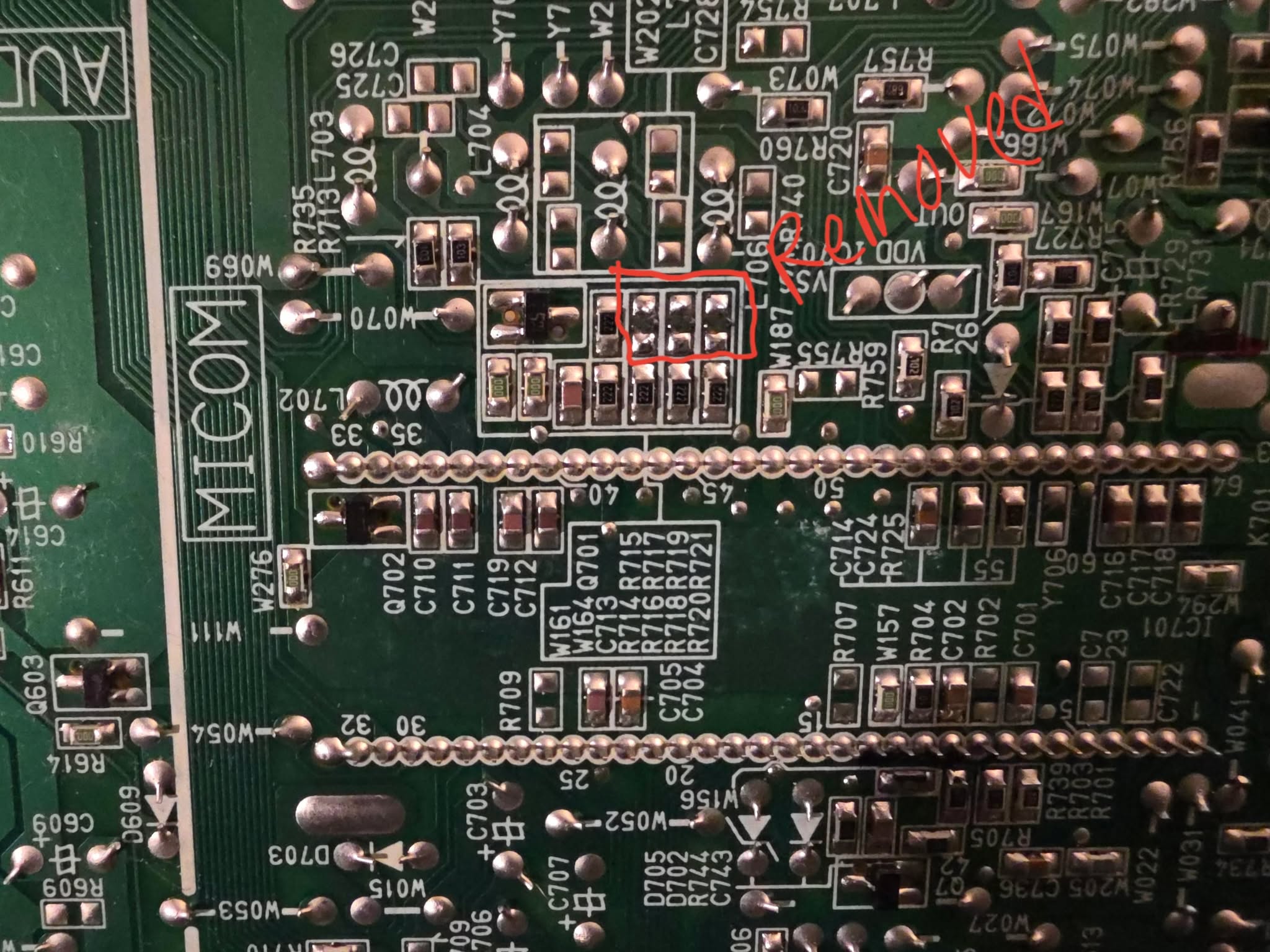

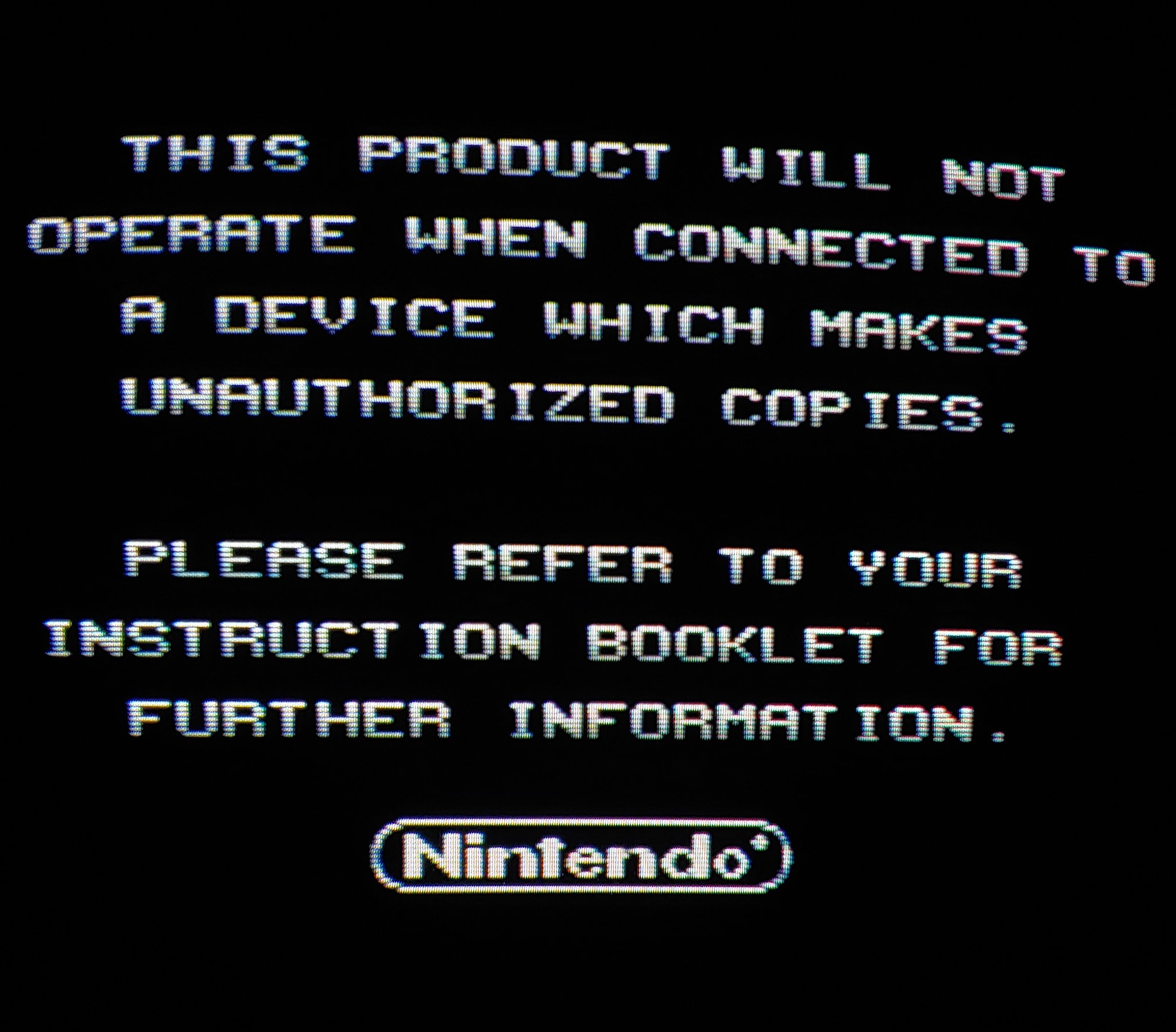

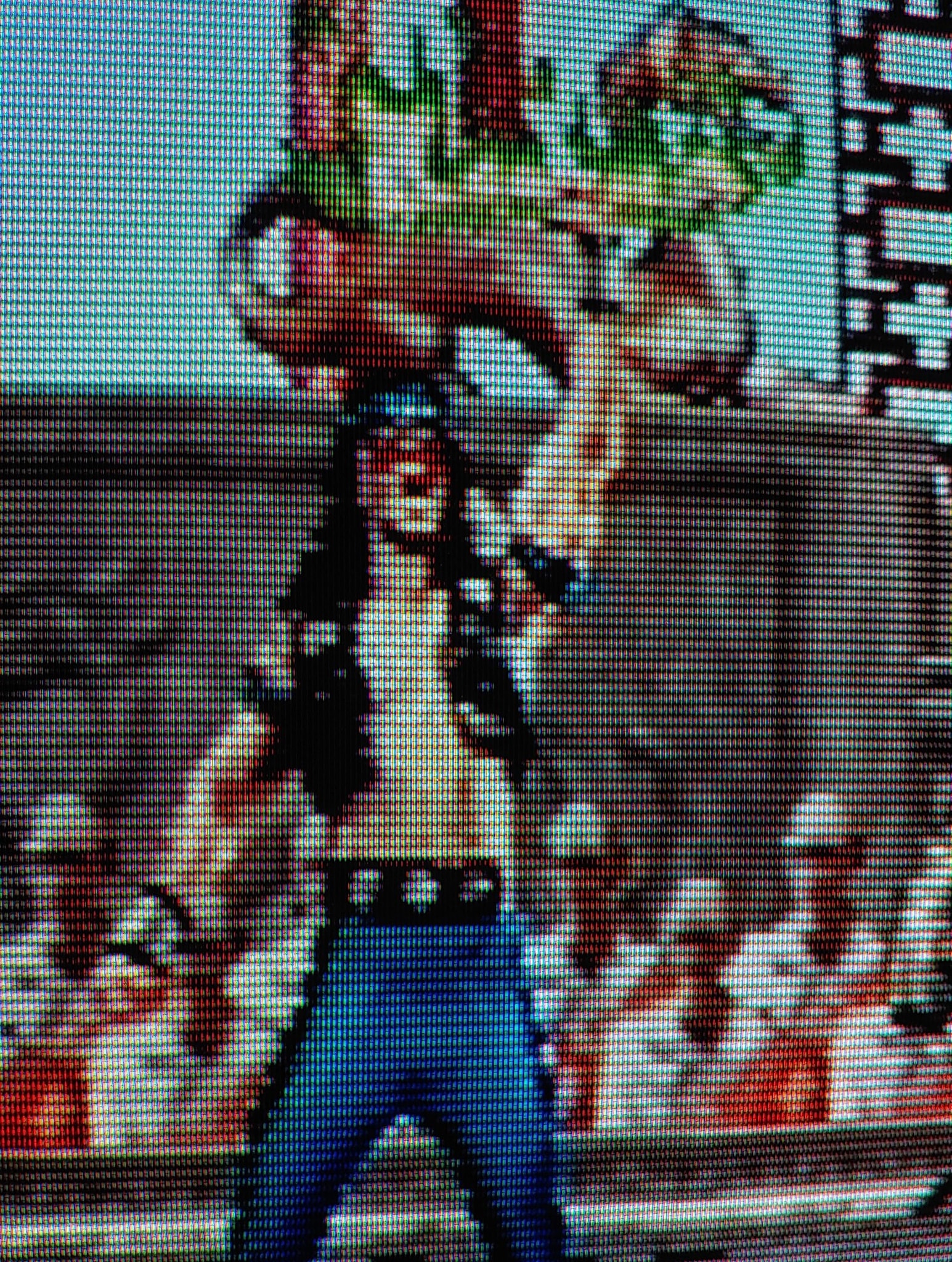

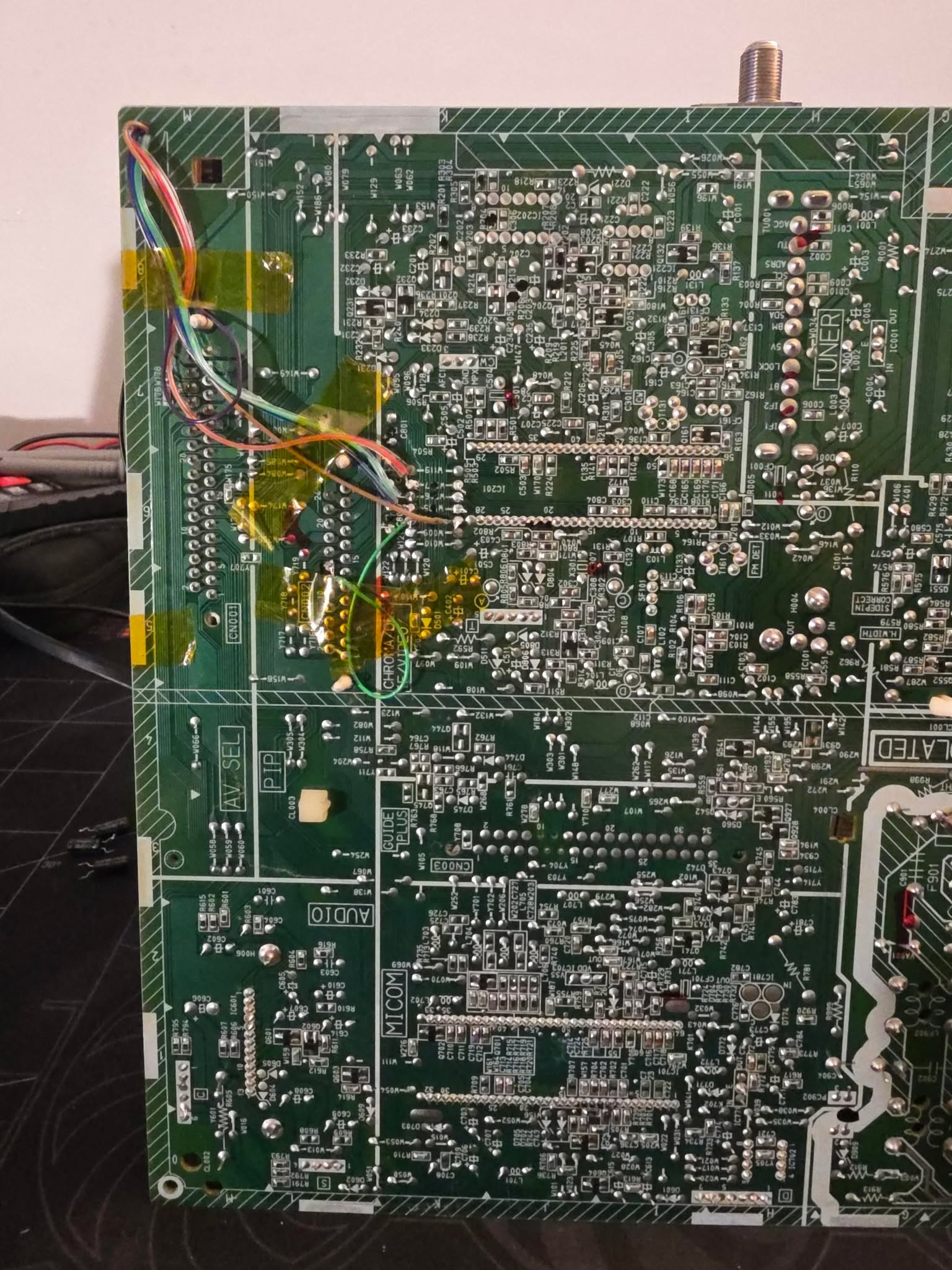

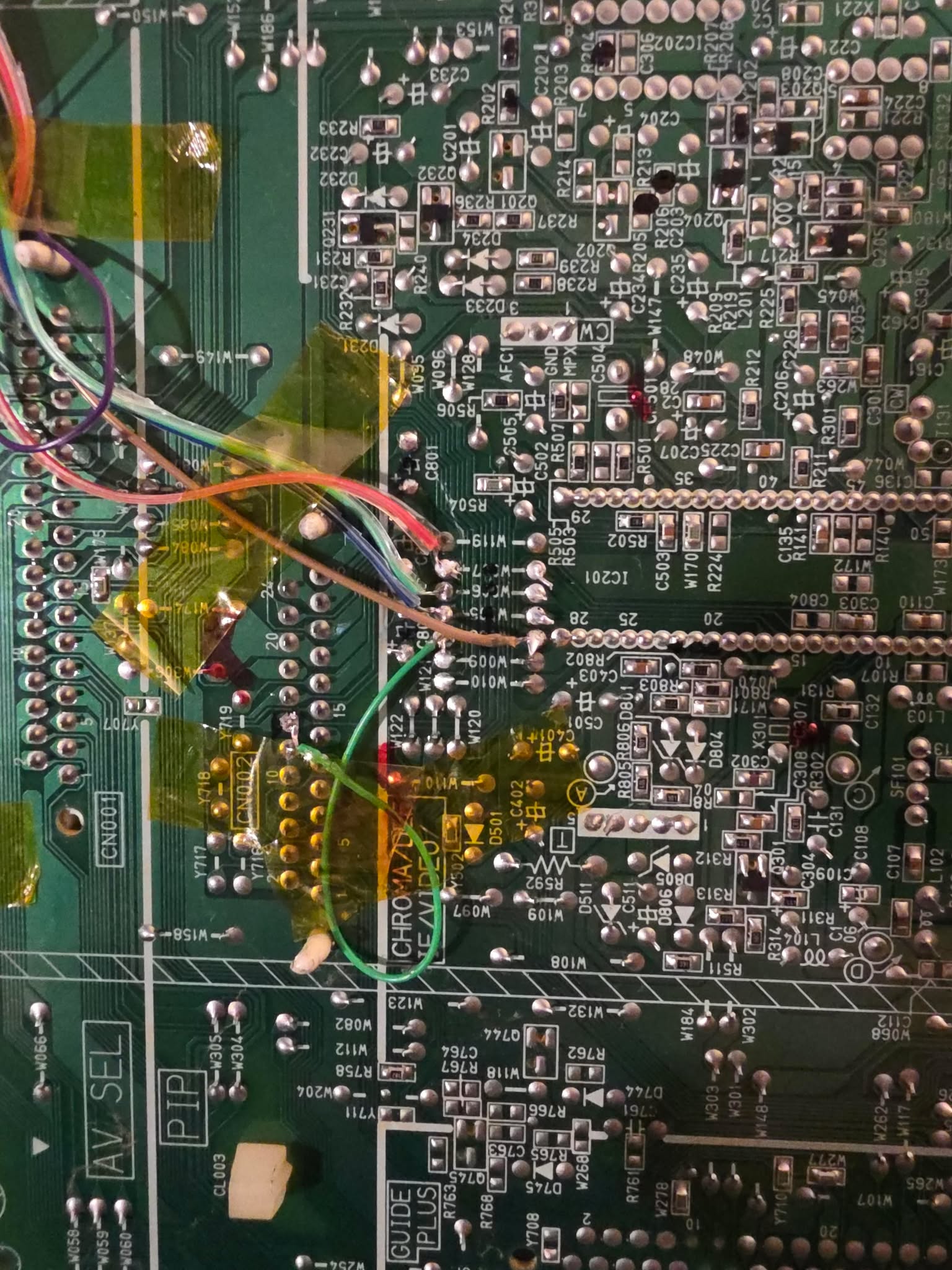

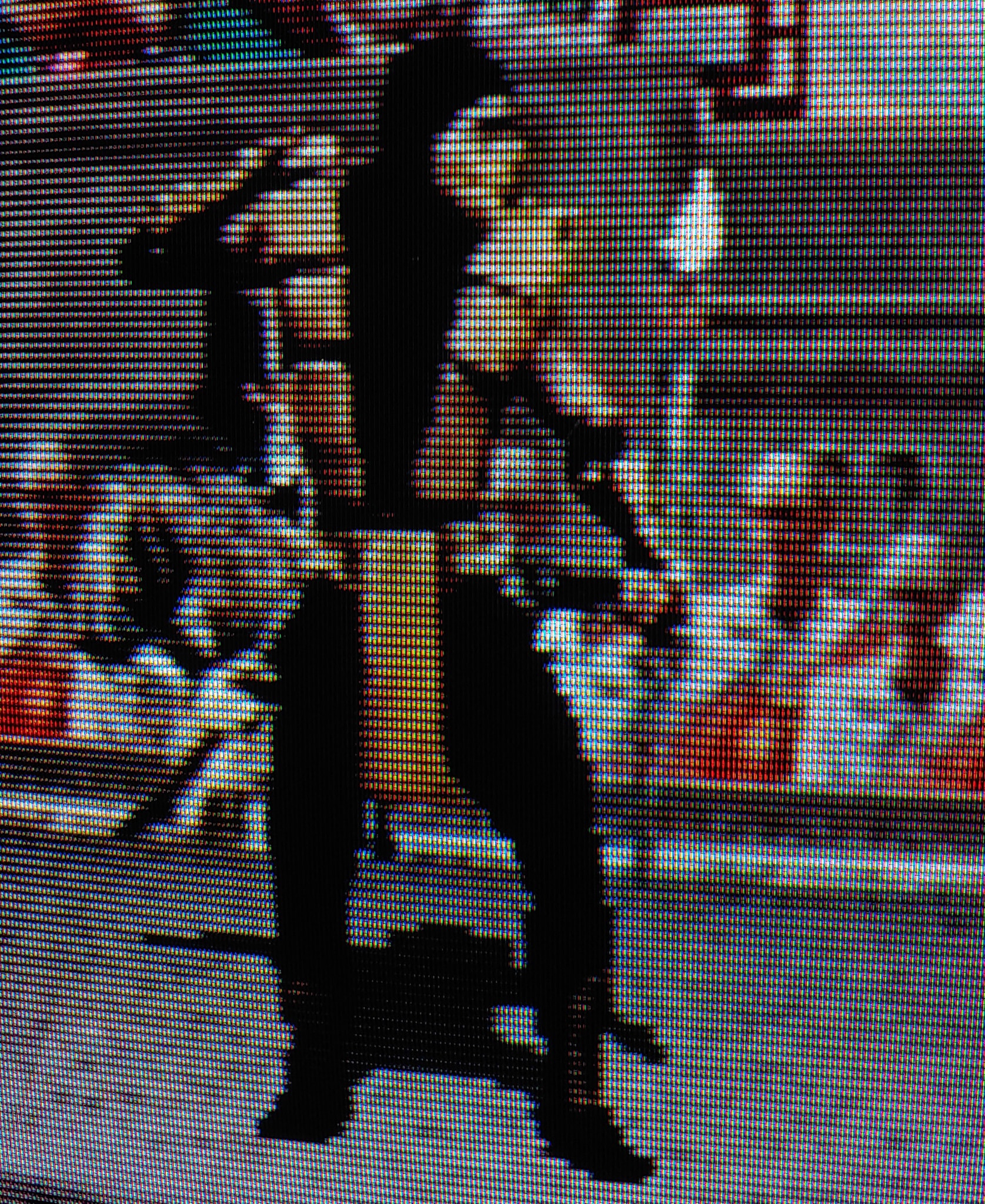

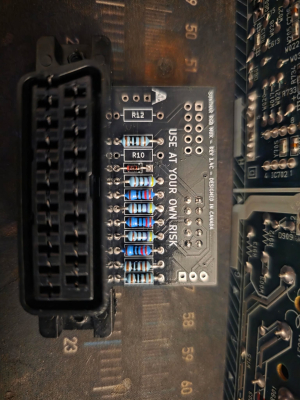

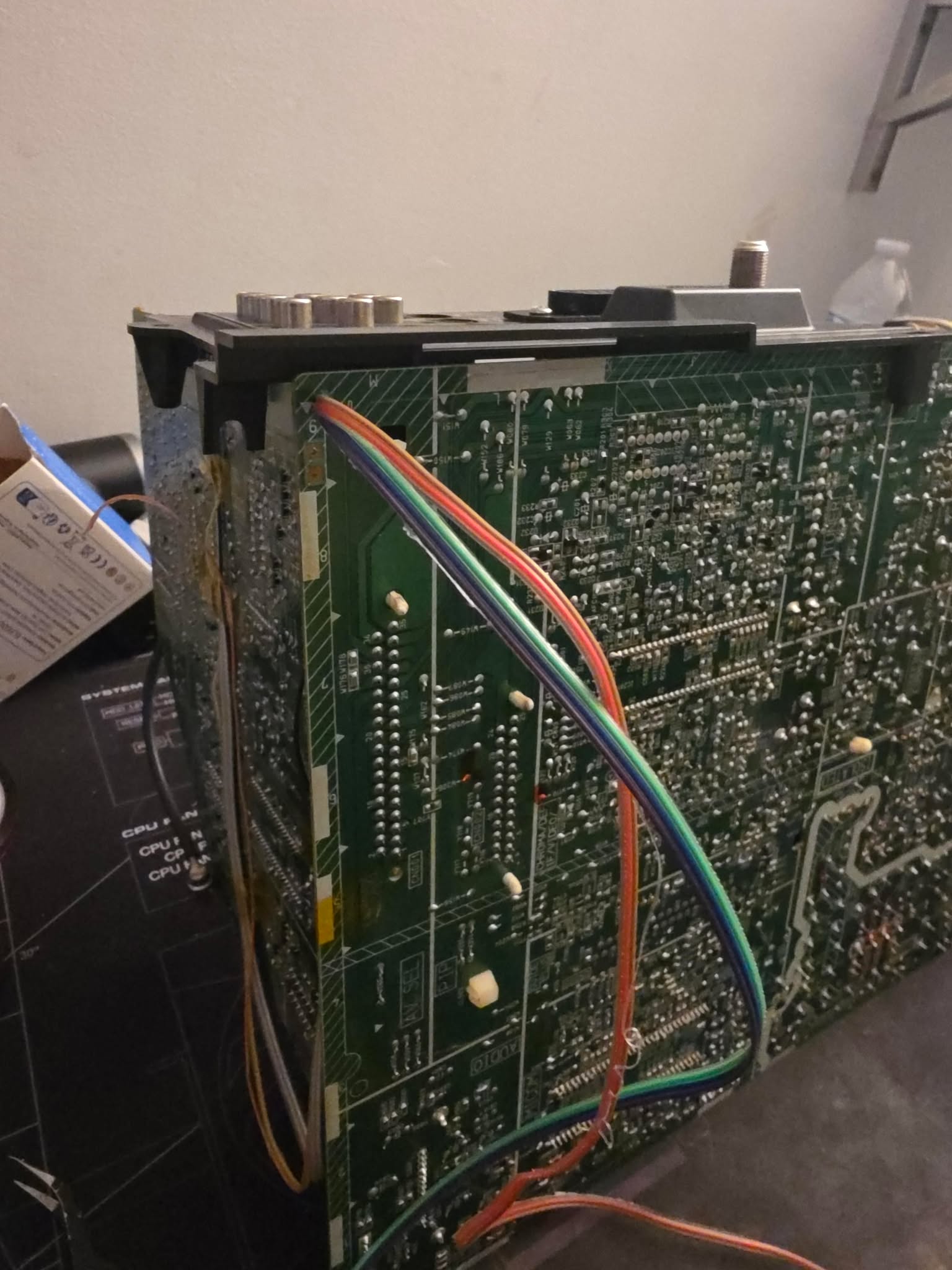

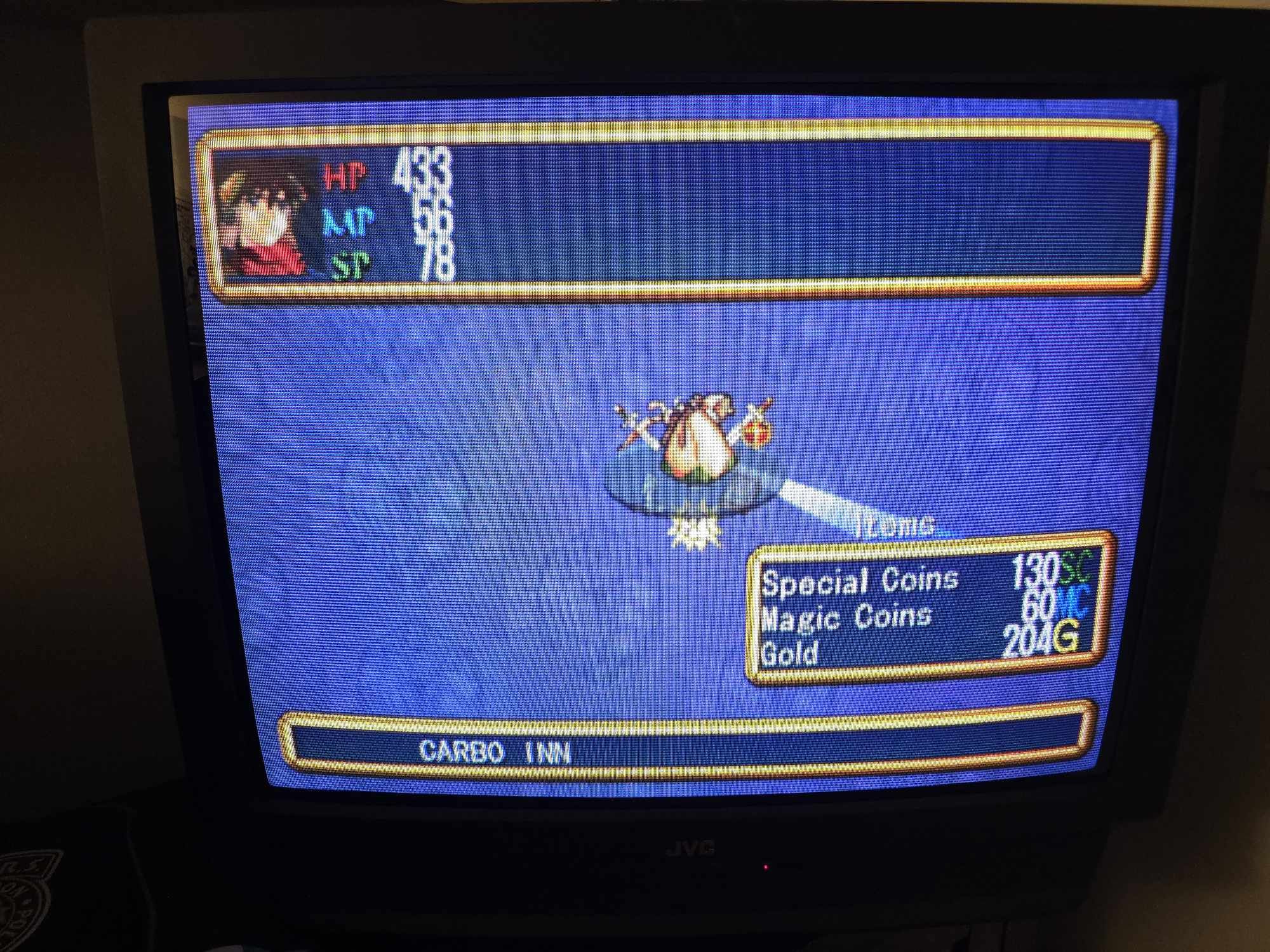

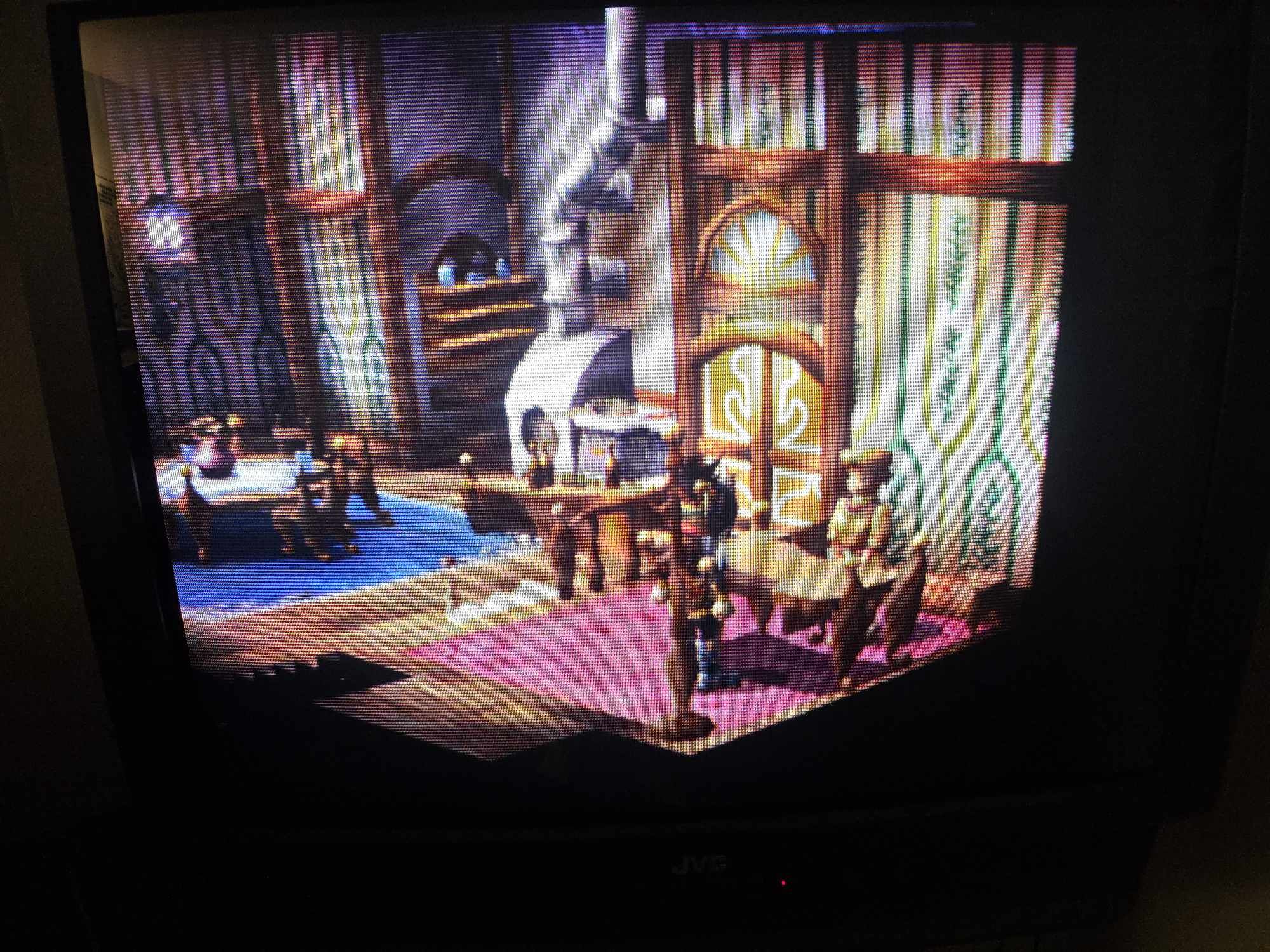

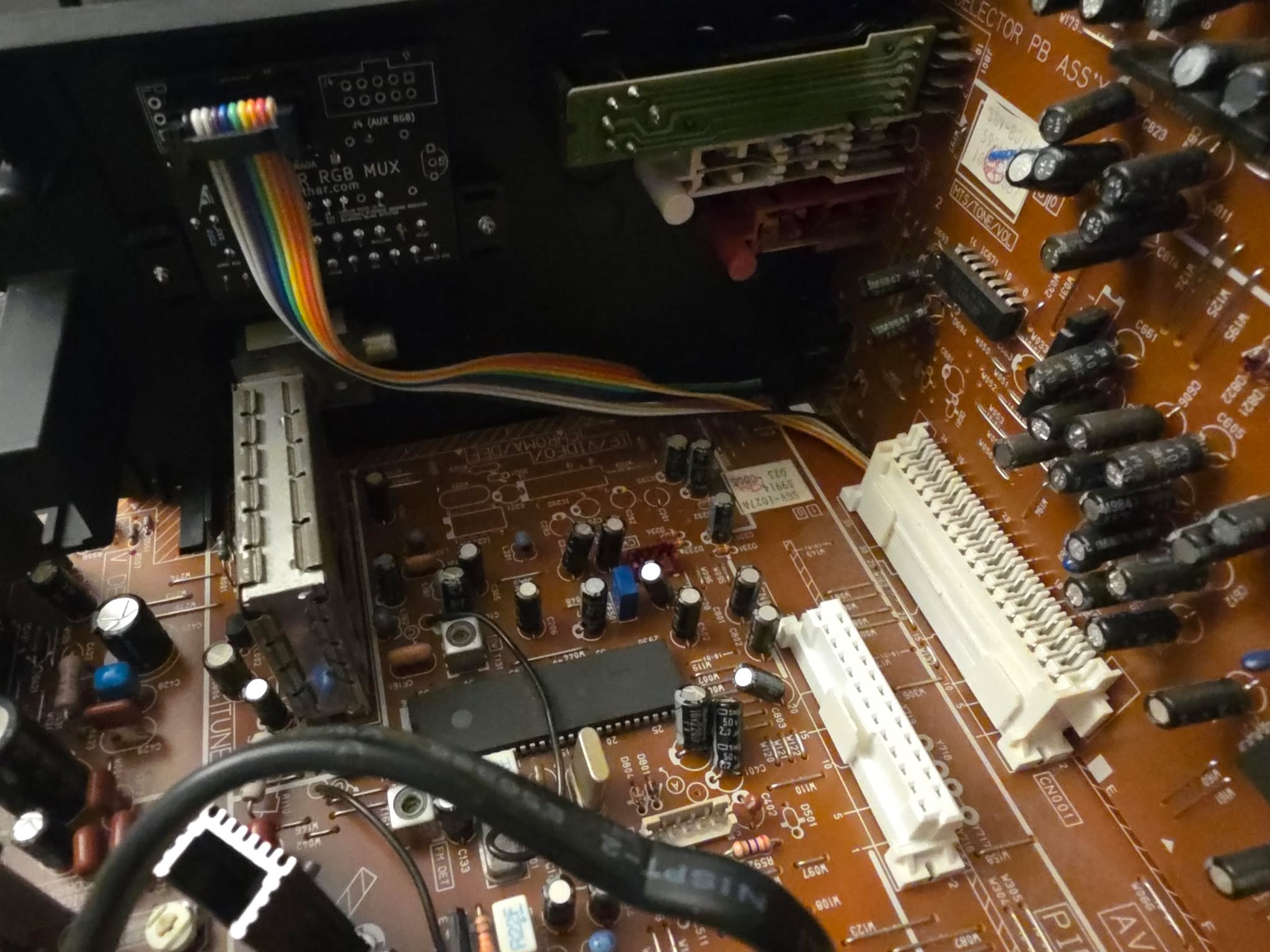

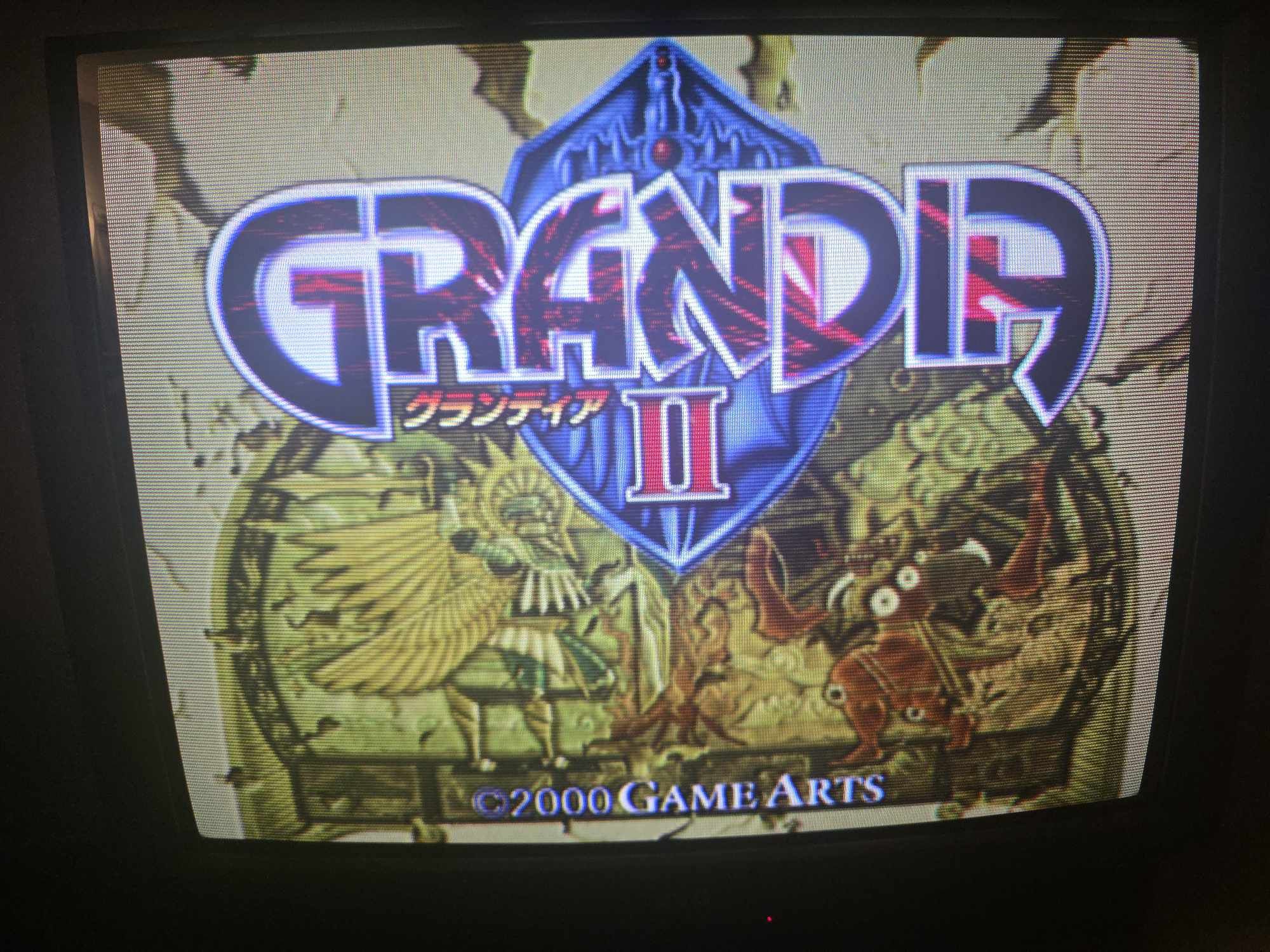

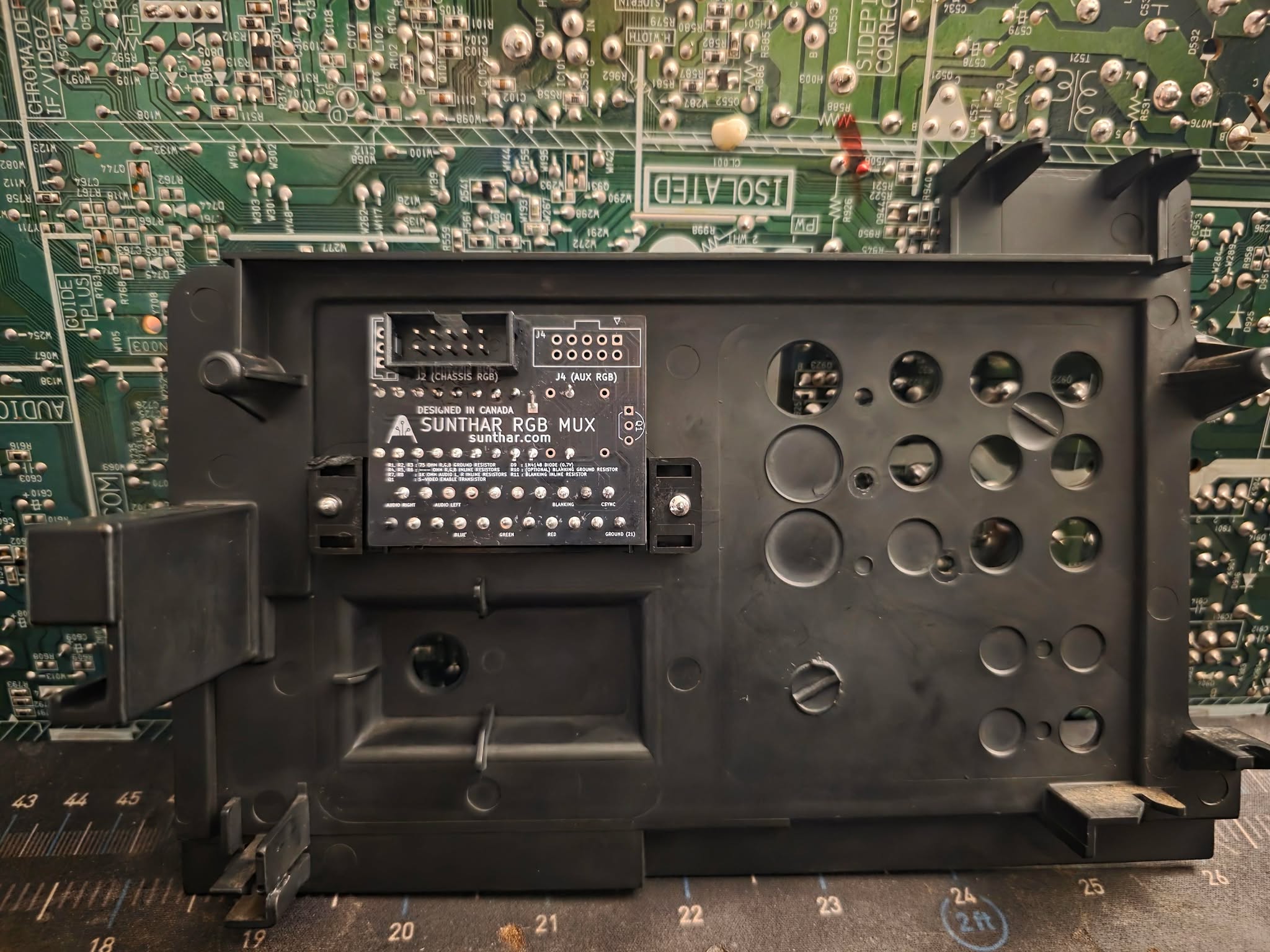

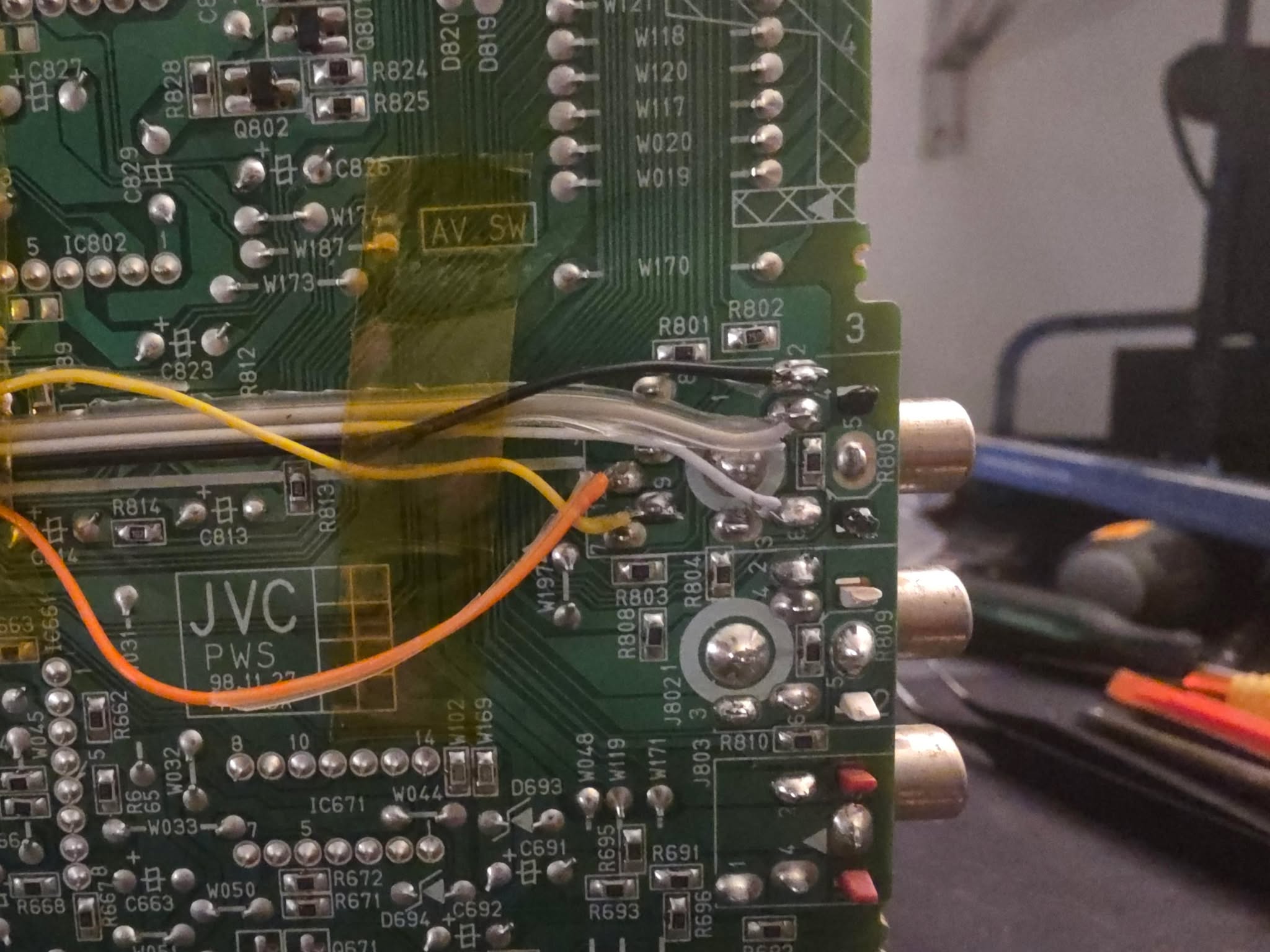

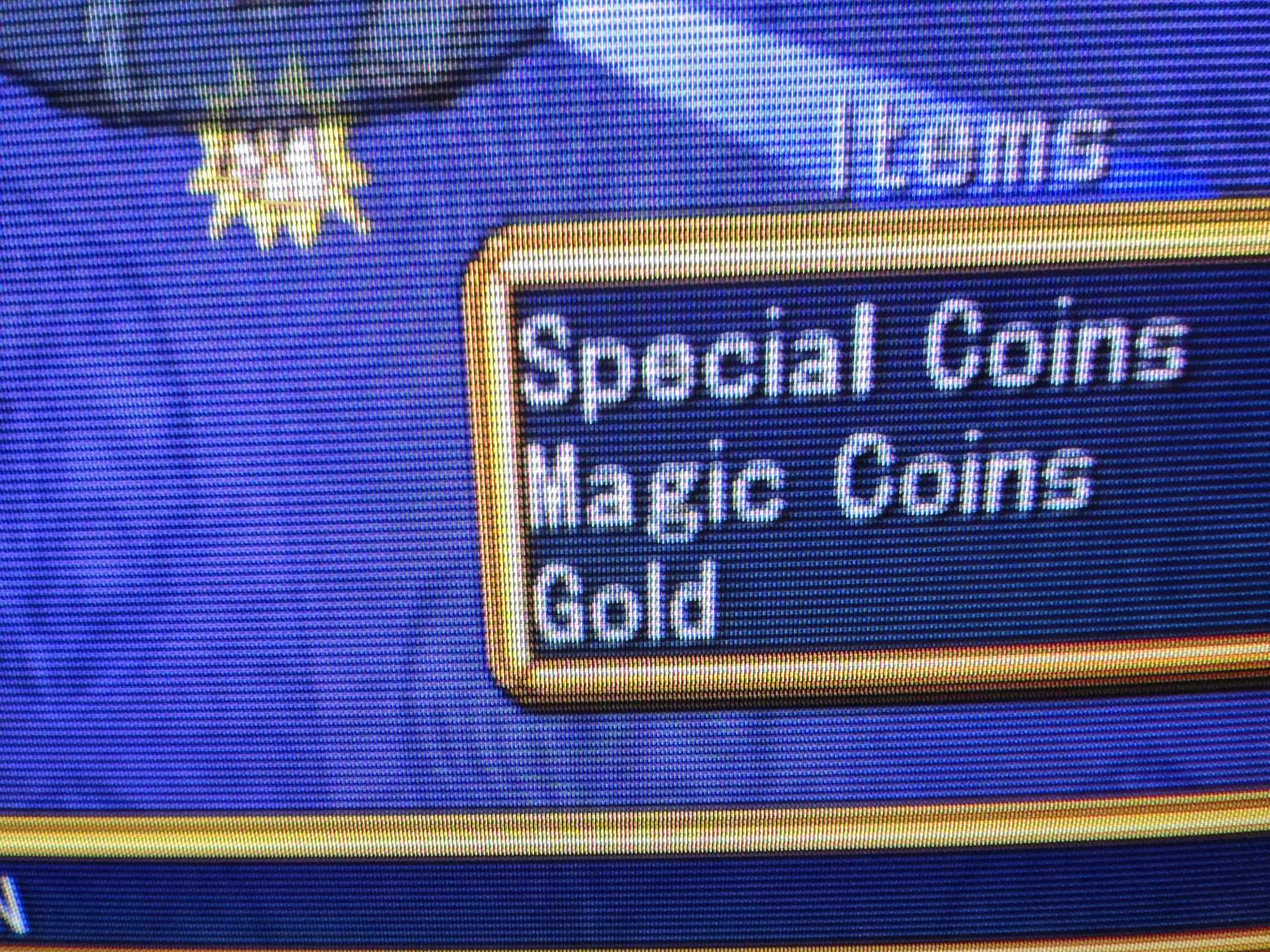

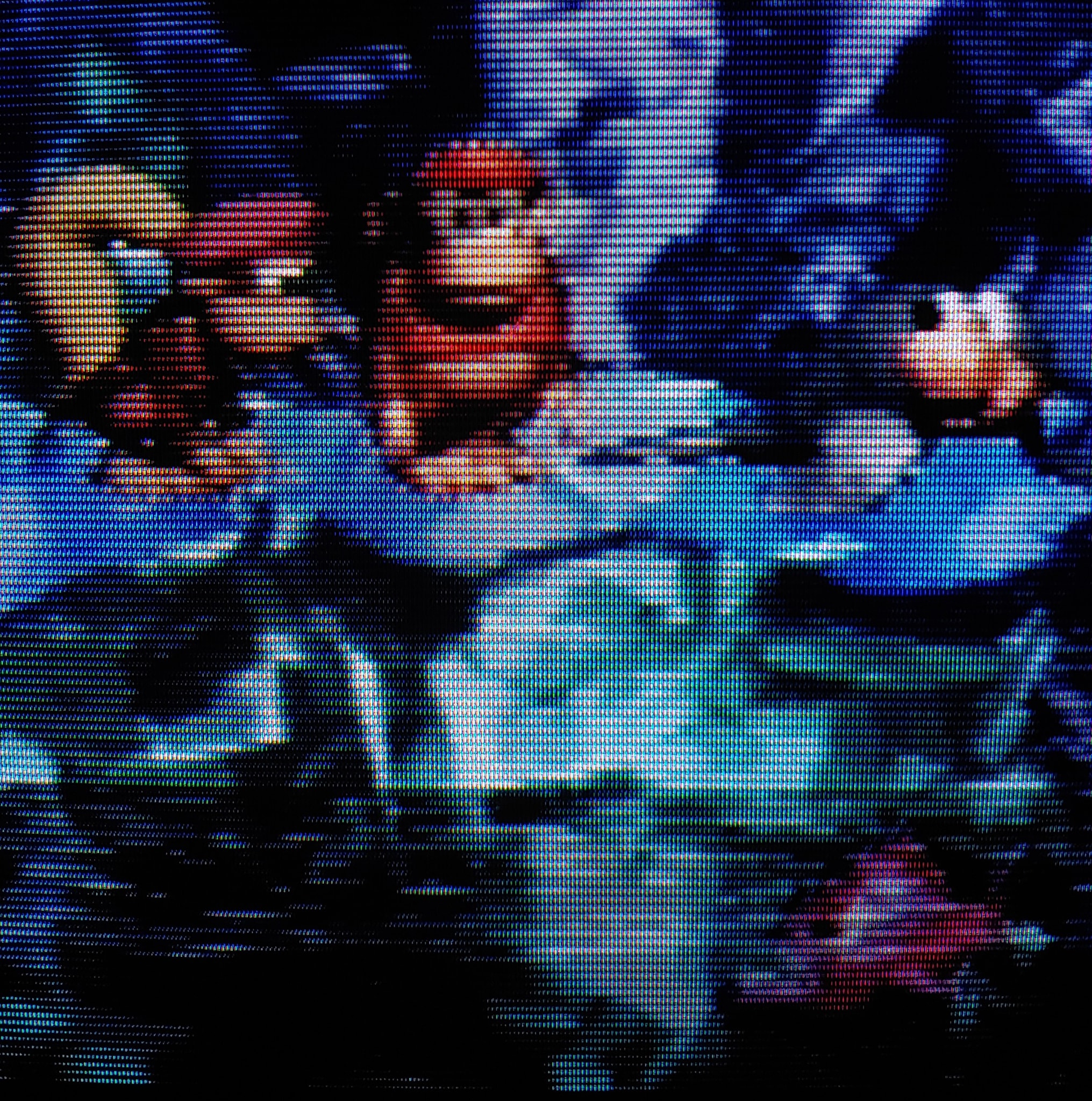

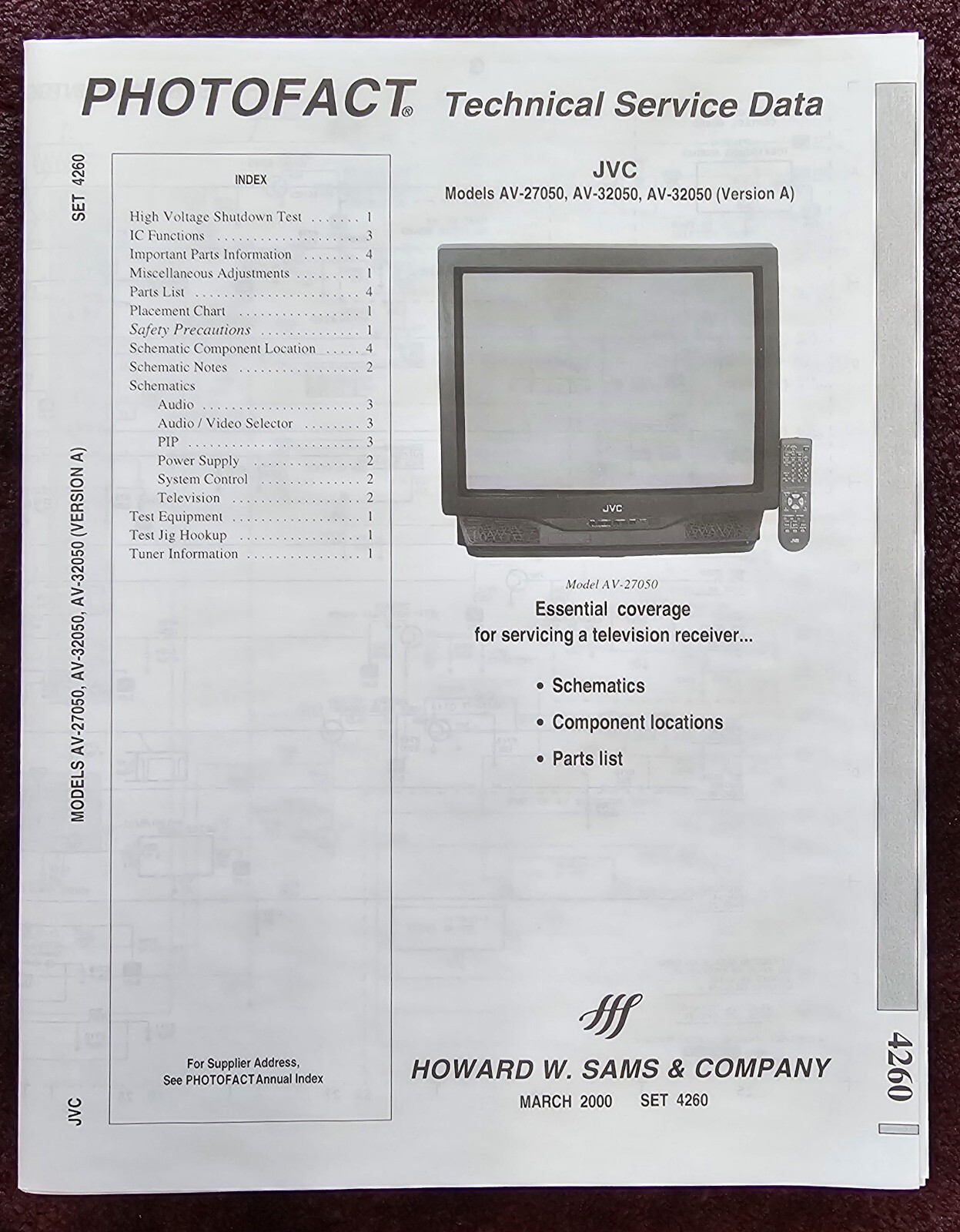

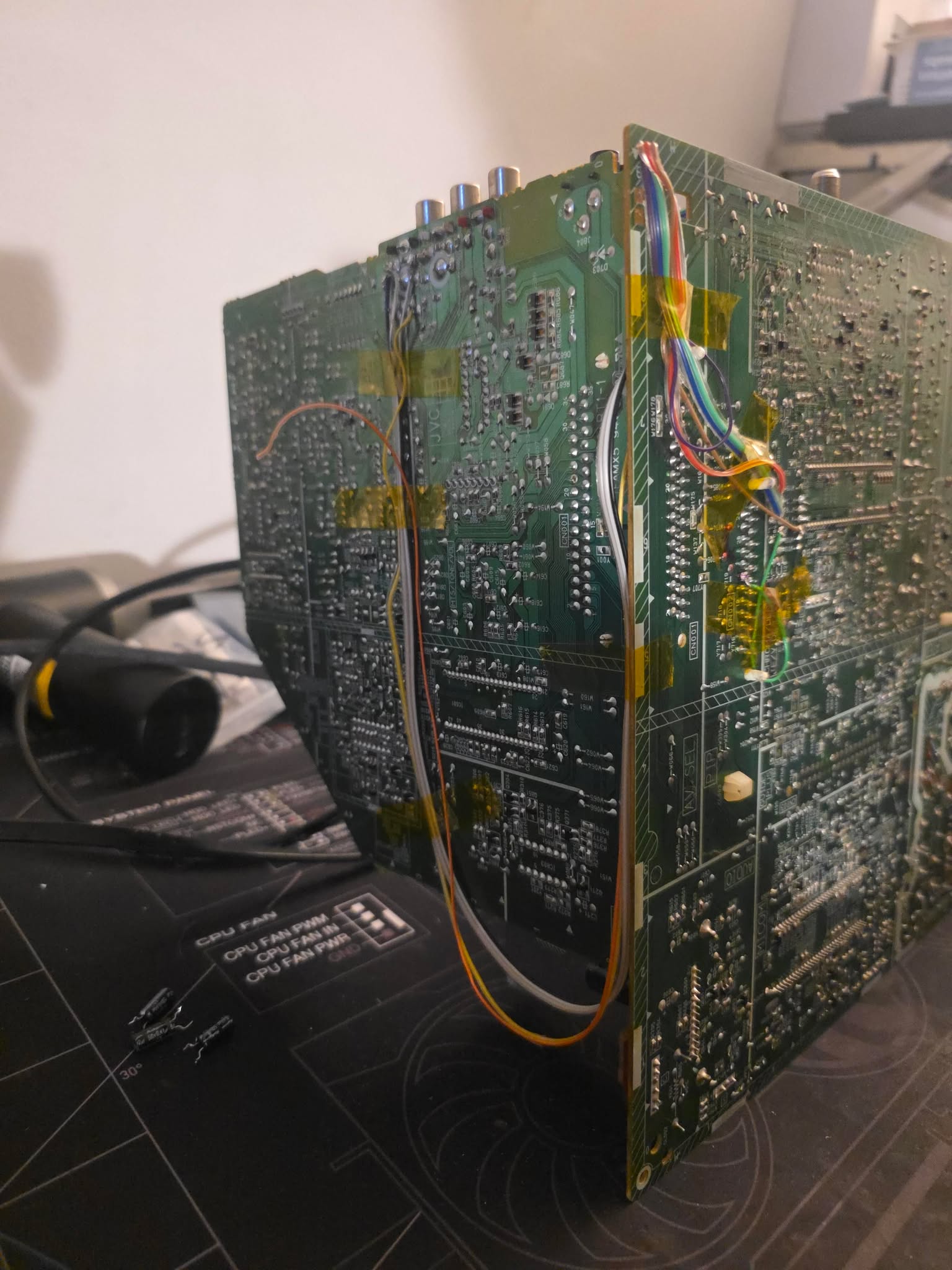

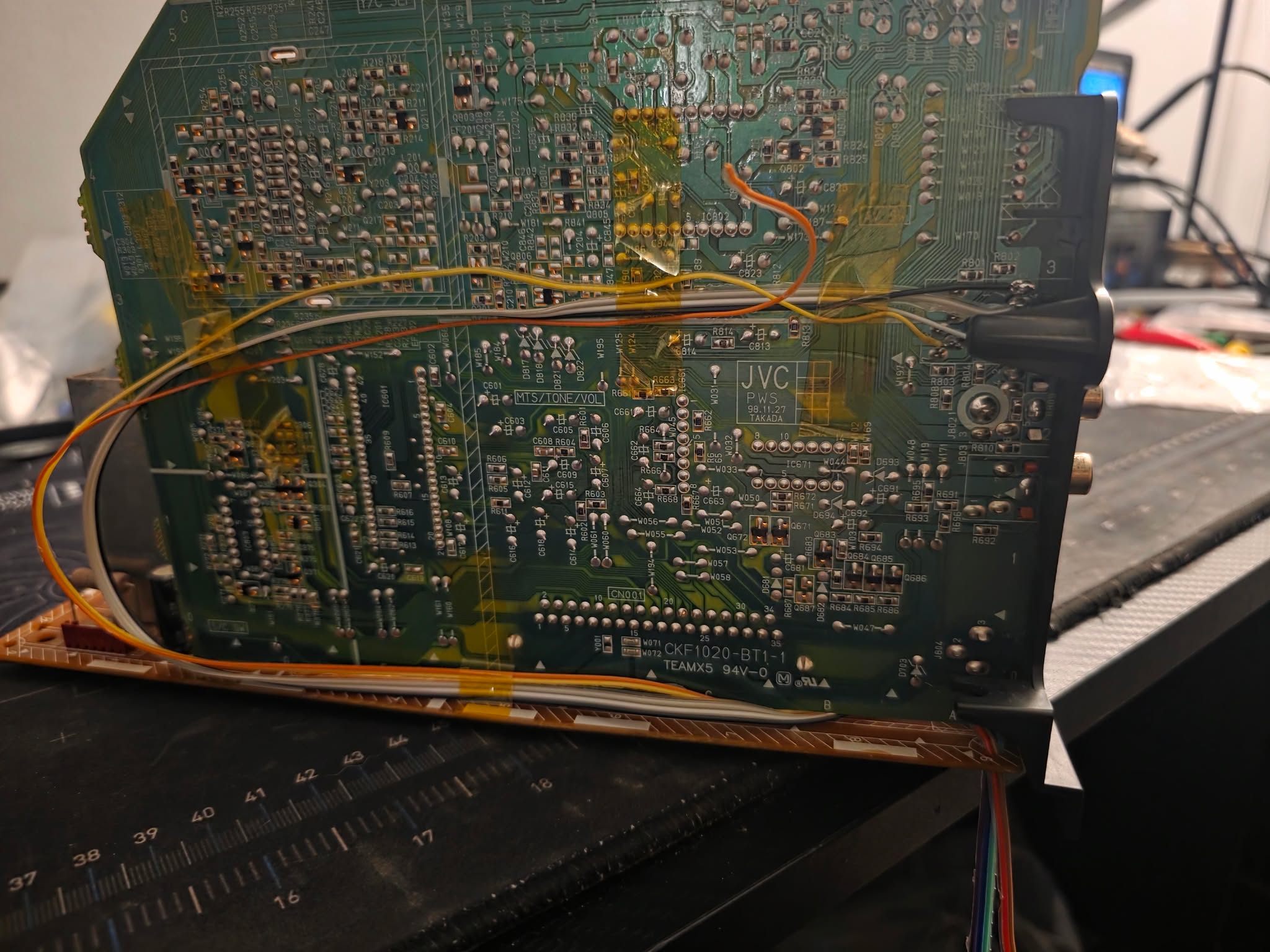

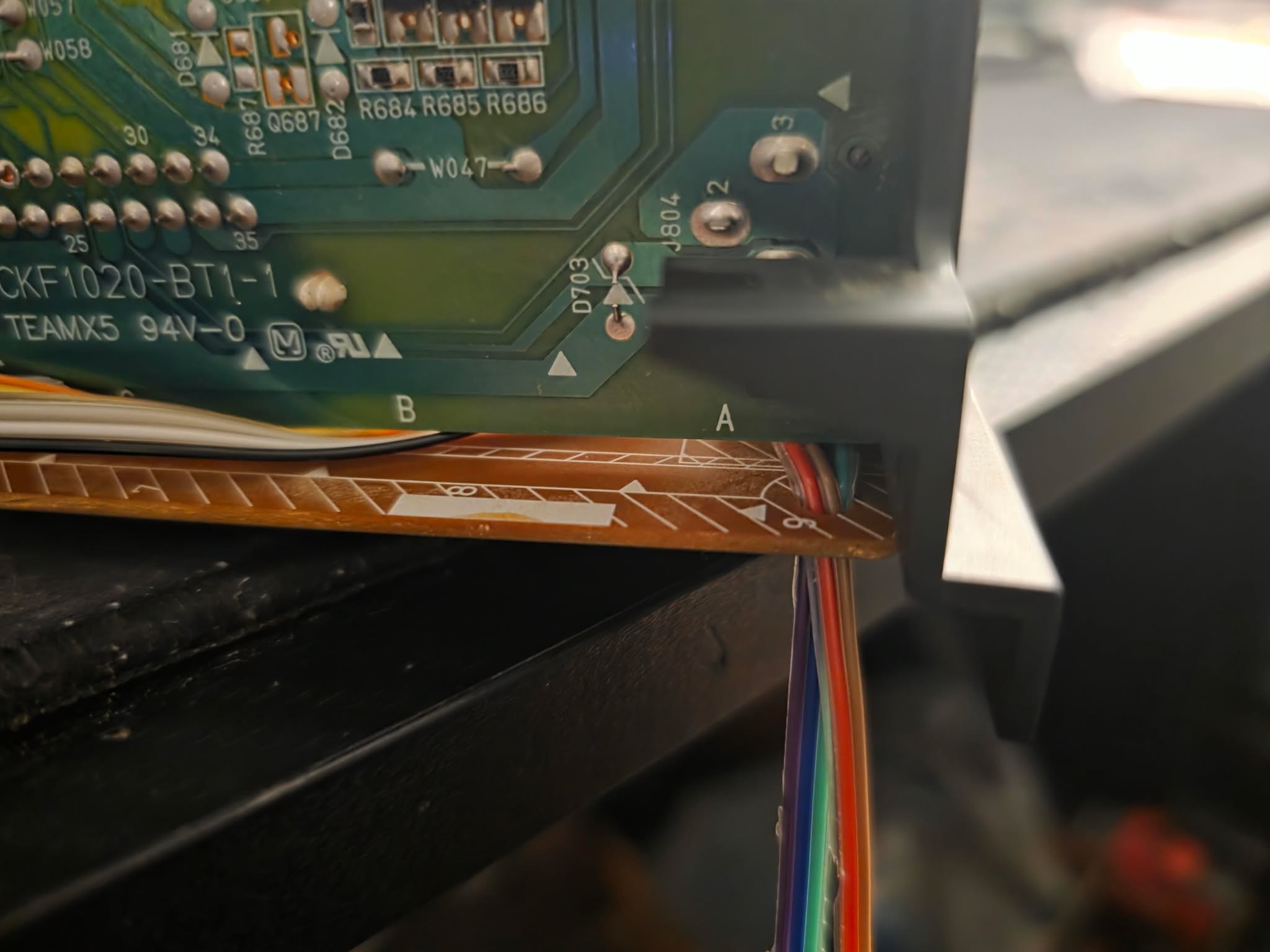

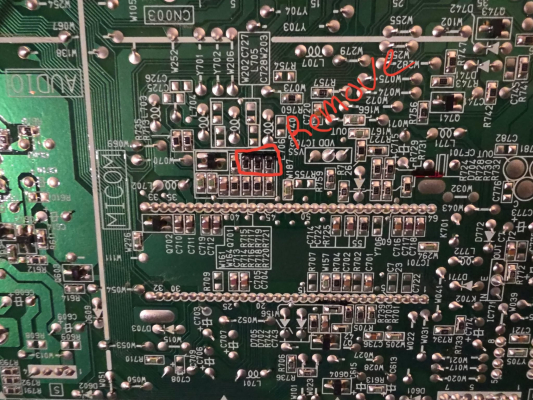

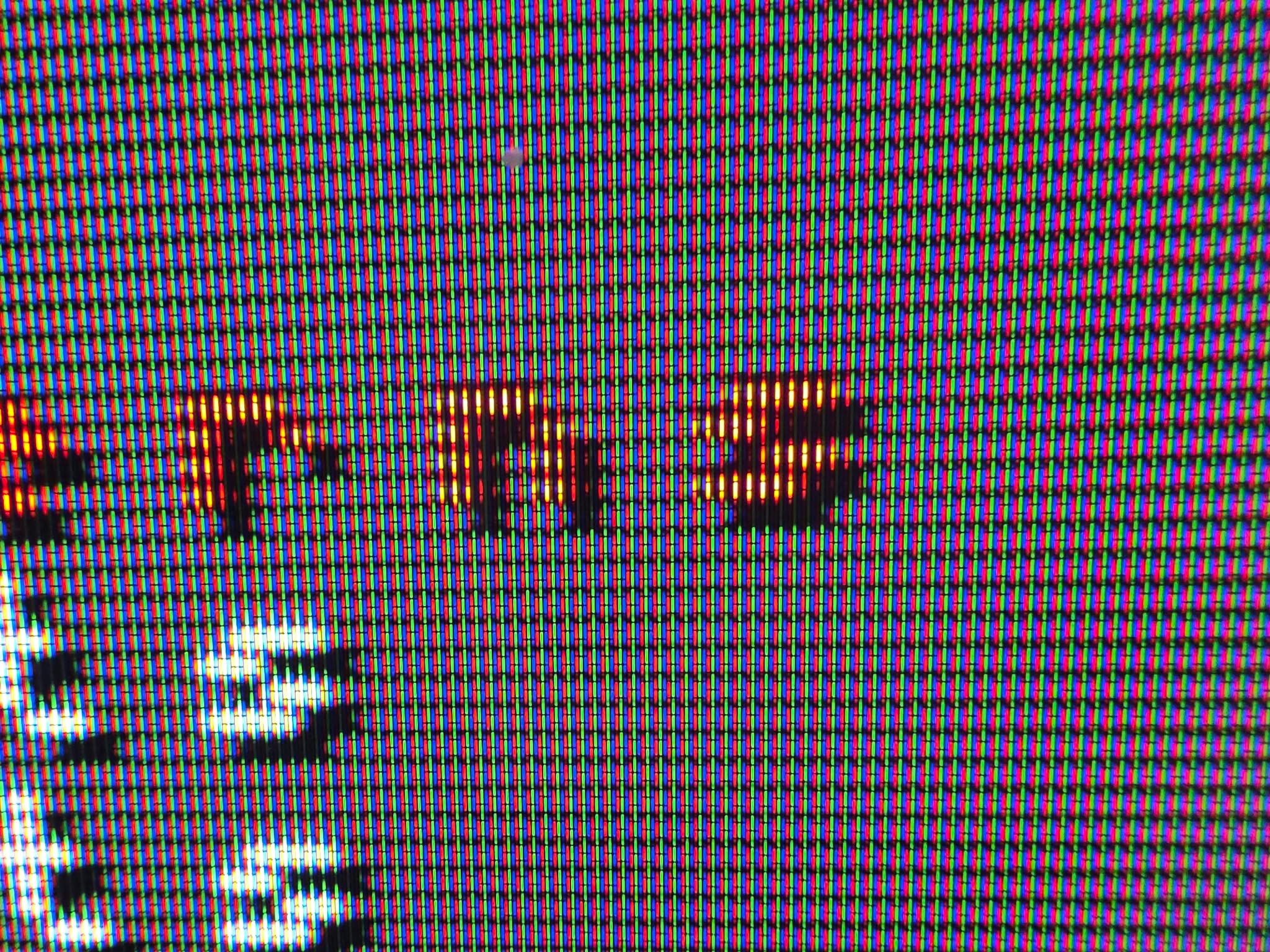

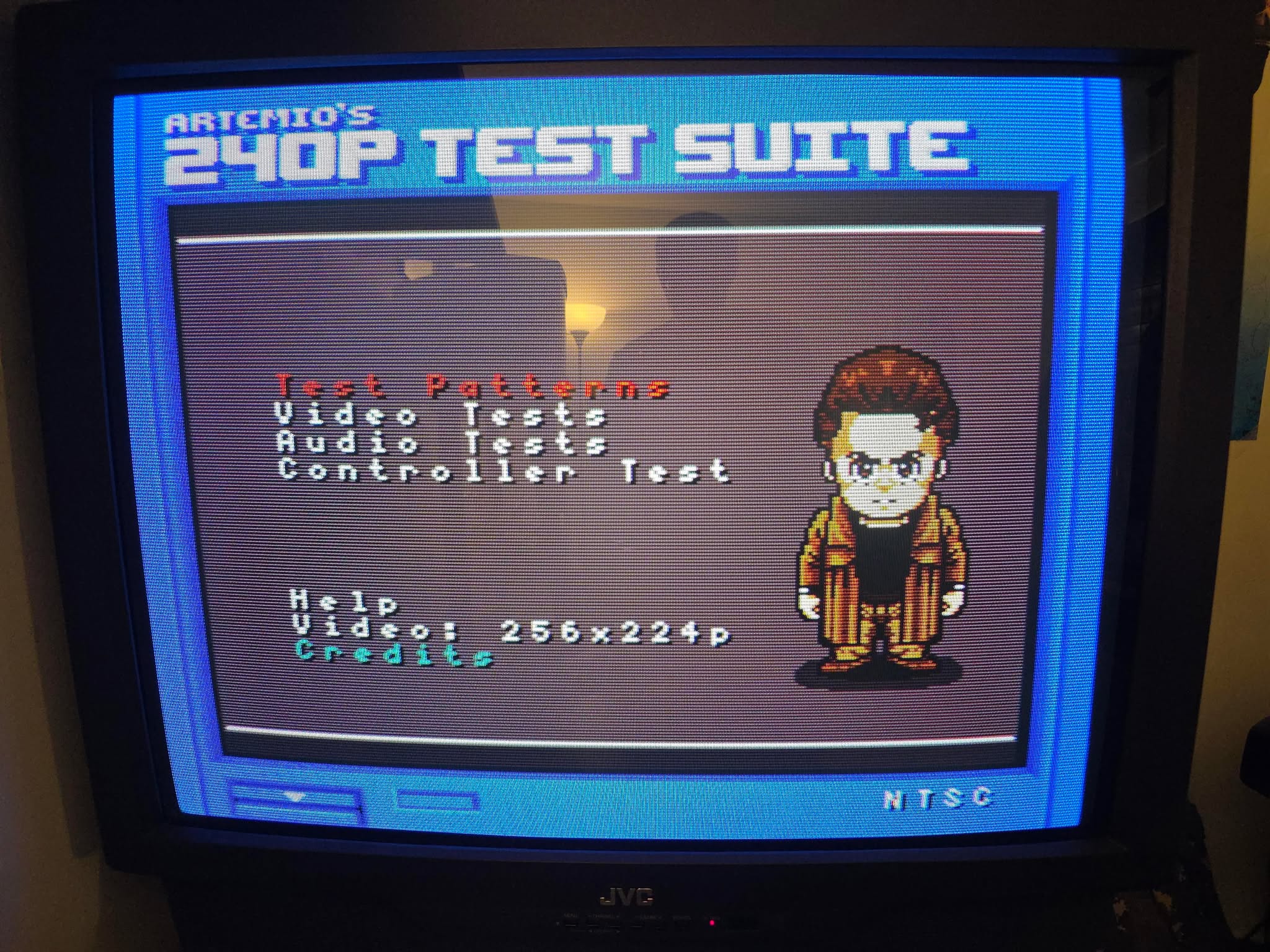

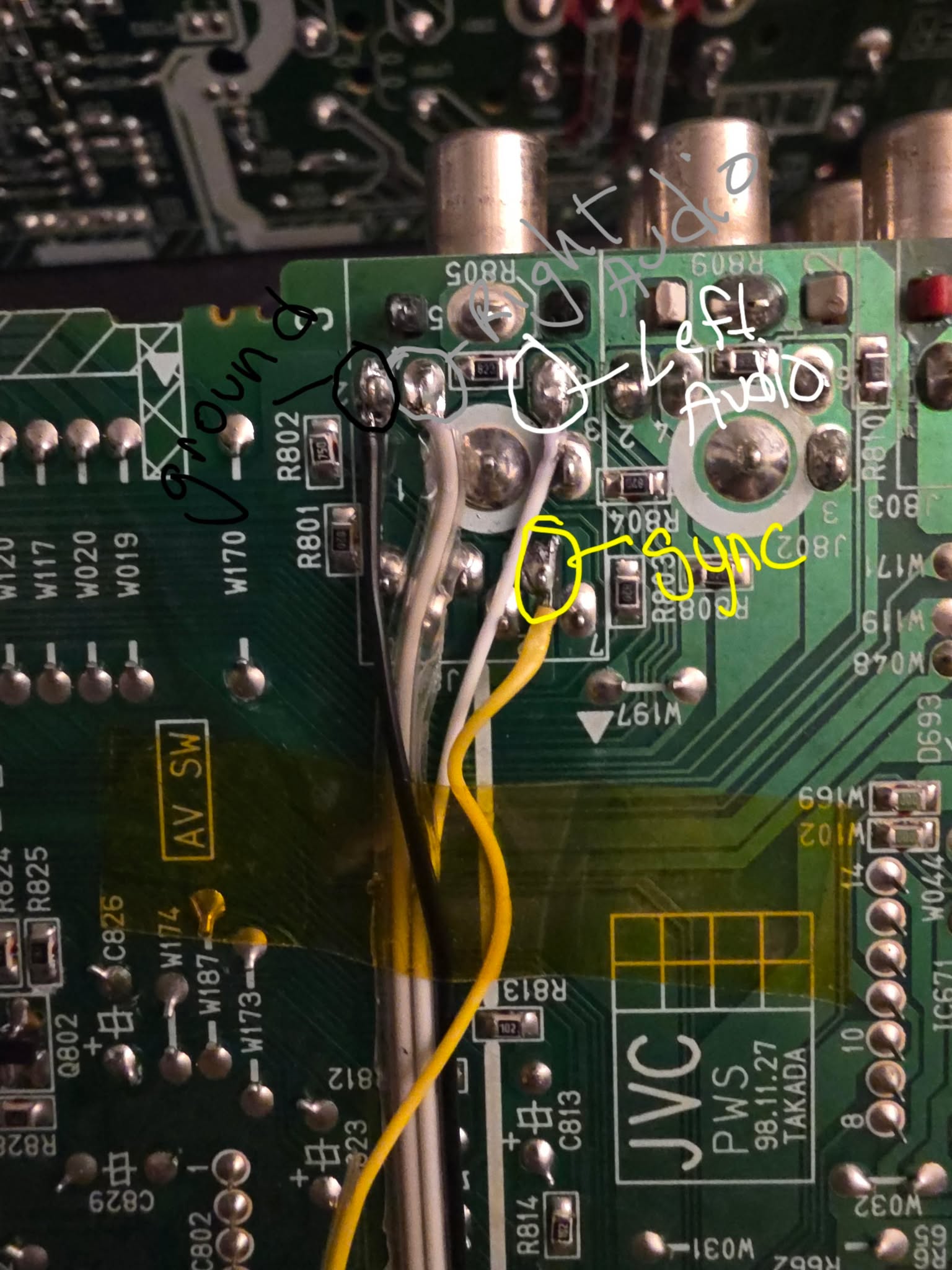

This set can be modded for RGB through the OSD mux method. The pictures following the picture of the Sam's Photofact are of RGB.
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-32050 |
| Series: | AV |
| Viewable Size: | 32" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TA1242N, TA1242 |
| Comb Filtering: | 2-Line Digital |
| Focus Type: | Single |
| Tube: | Hitachi , A80LJF30X , A80LJF30X08 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 3W x 2 |
| Chassis: | GV2 |
| Weight: | 112.2 lbs (50.9 kg) |
| Dimensions (W/H/D): |
768 x 667 x 547 mm
(30.2 x 26.2 x 21.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 599 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, RK-3298 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
