JVC AV-32850
SegaSaturn94
May 14, 2024, 9:03 pm
July 26, 2025, 12:21 am
May 14, 2024, 9:03 pm
July 26, 2025, 12:21 am
Summary

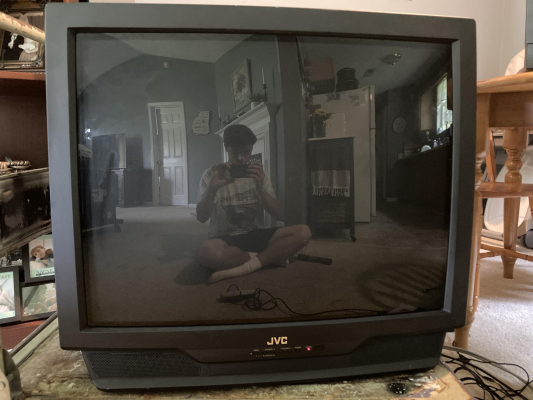

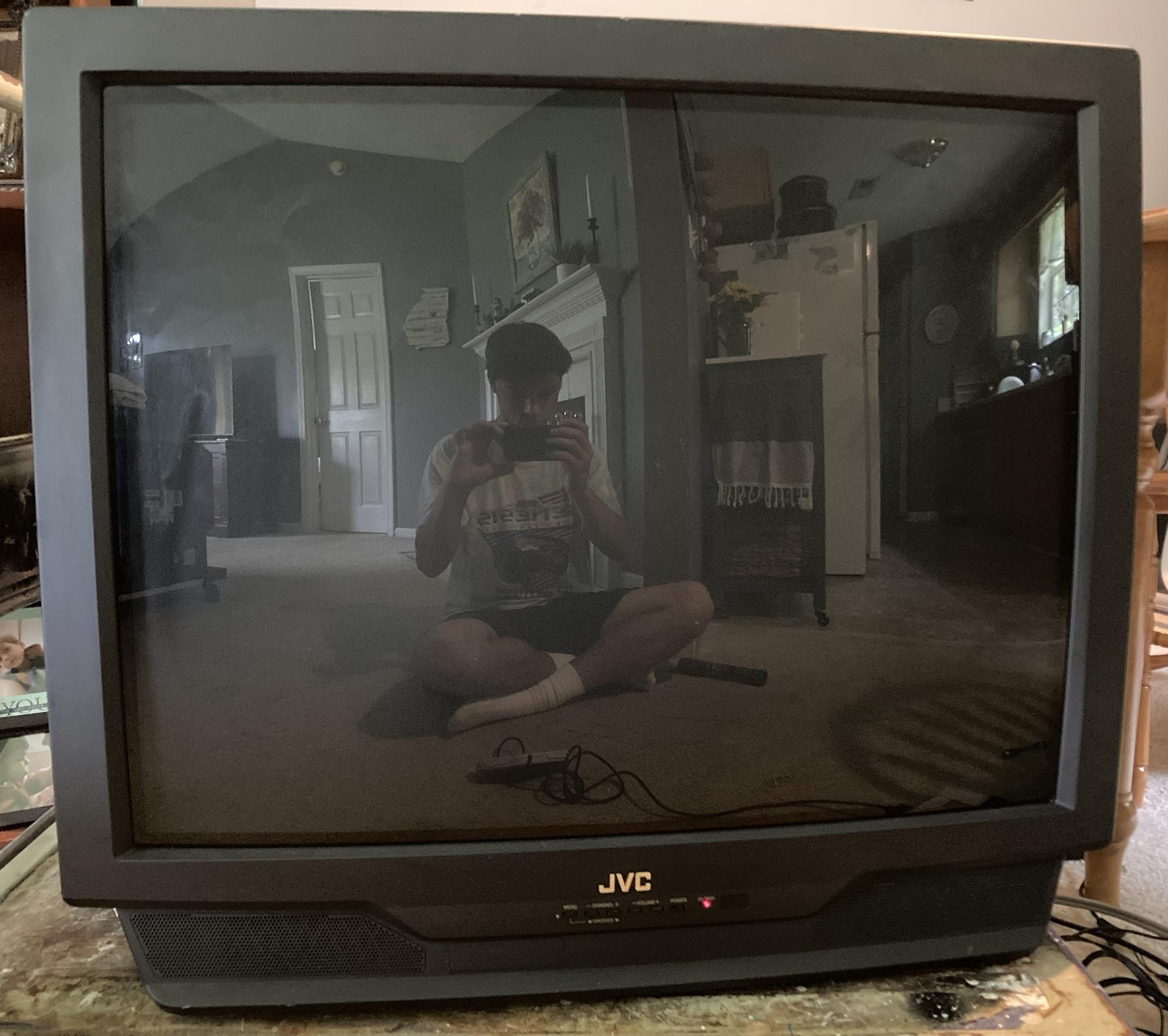

Mid-range 32" JVC TV from the late 1990s. 1997 was the year JVC established their longest-running design style for their standard CRT models, and this set is one of the very first. Has composite and s-video input. Picture tube is a common Hitachi model used in many other sets at the time, and it is a good one, all things considered.
Manuals
Notes

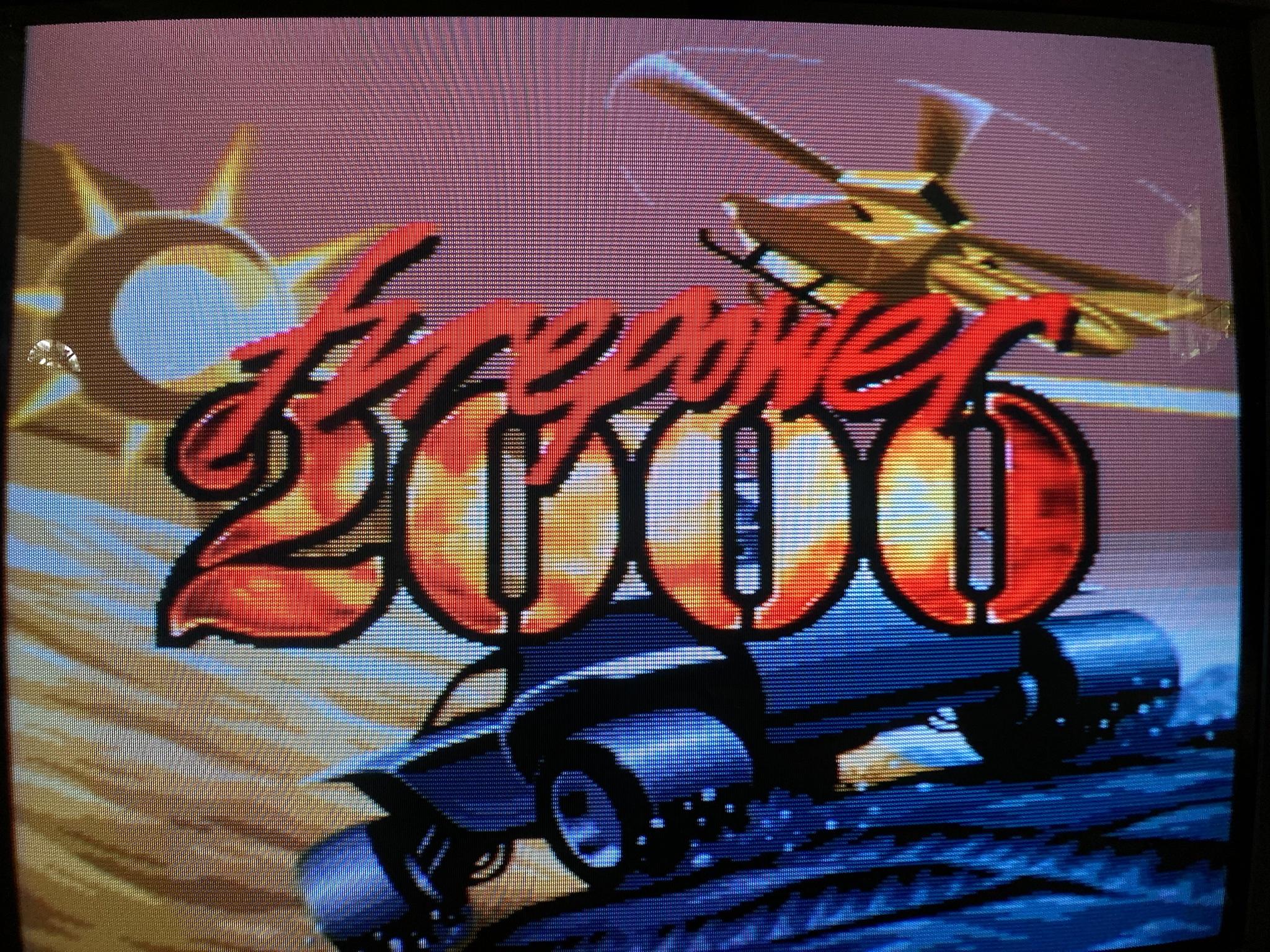

Picture quality over composite is pretty good, as you can engage a notch filter to clean up the signal. However, it is advised to turn it off when using s-video, as it is unnecessary and looks bad for that signal.

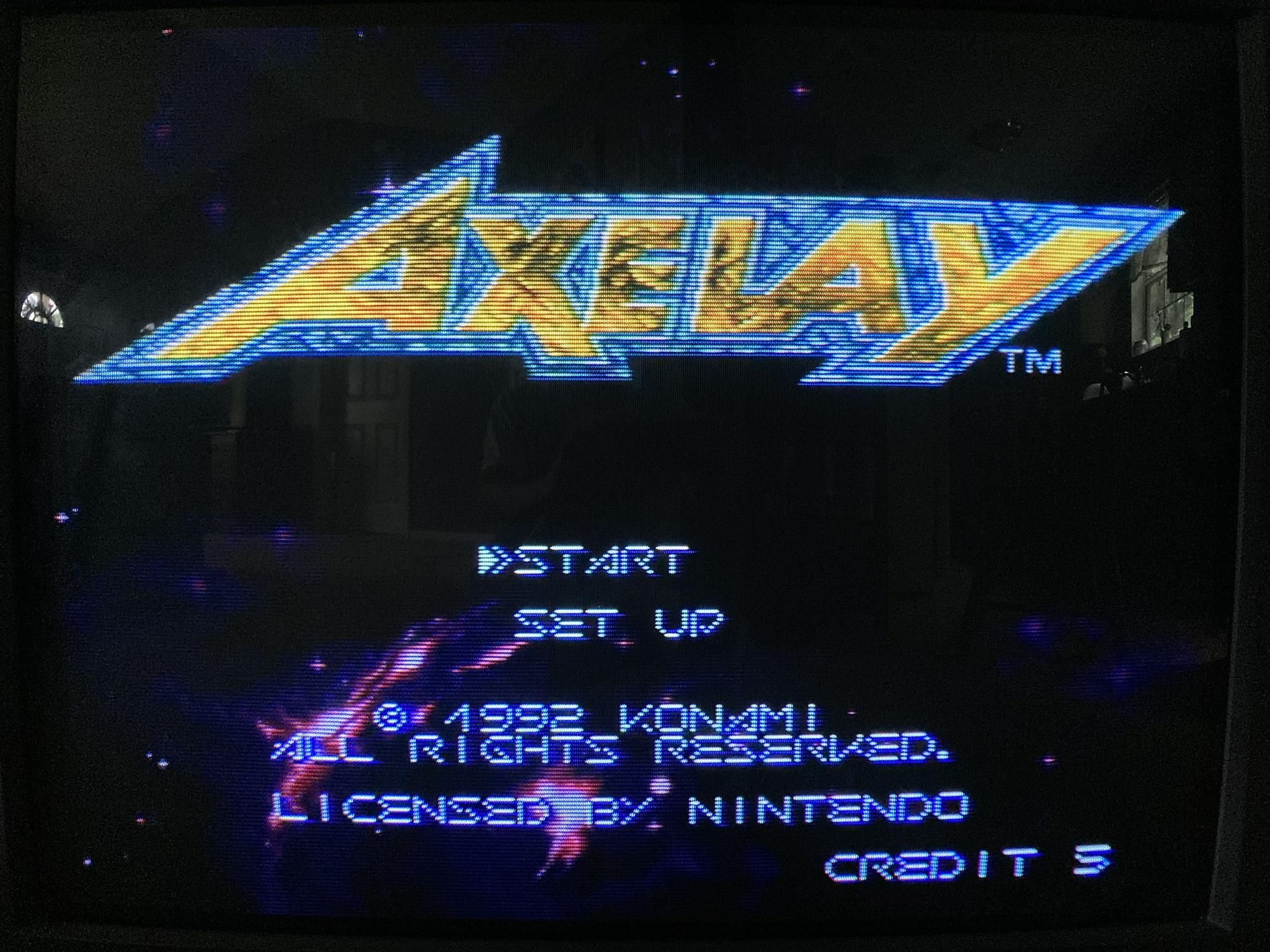

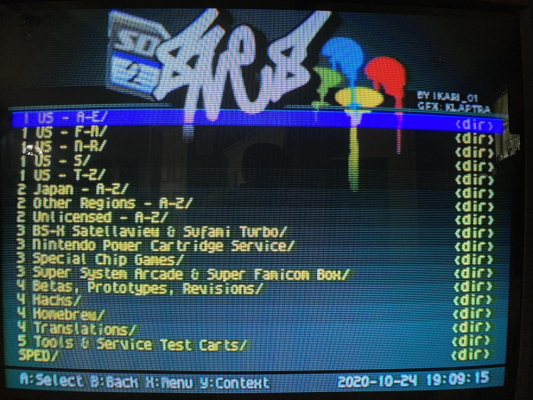

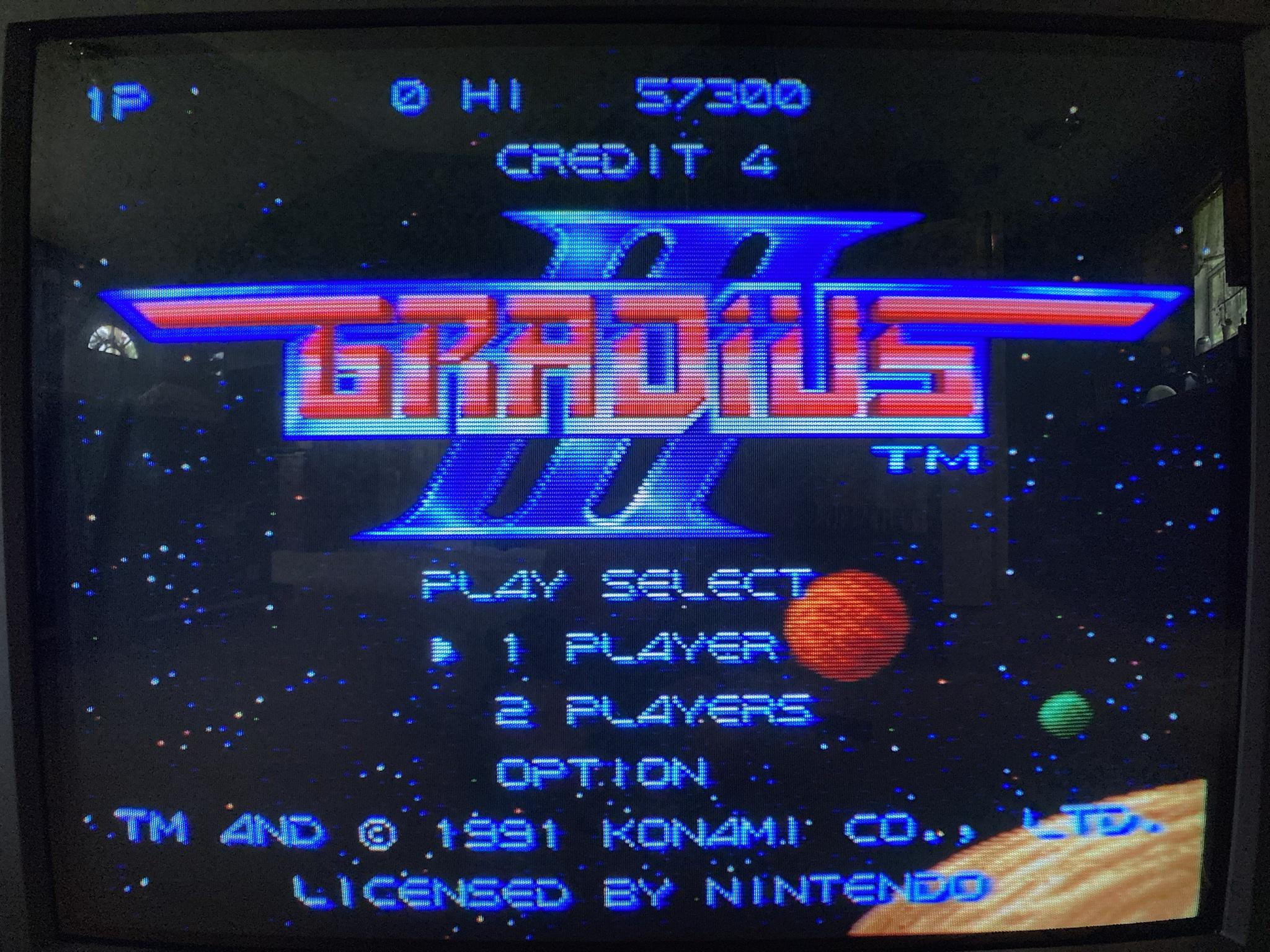

S-video quality is excellent. Very sharp and clean, with very little chroma bleed. It's so good, it could be mistaken for a component signal at first glance. Seriously.

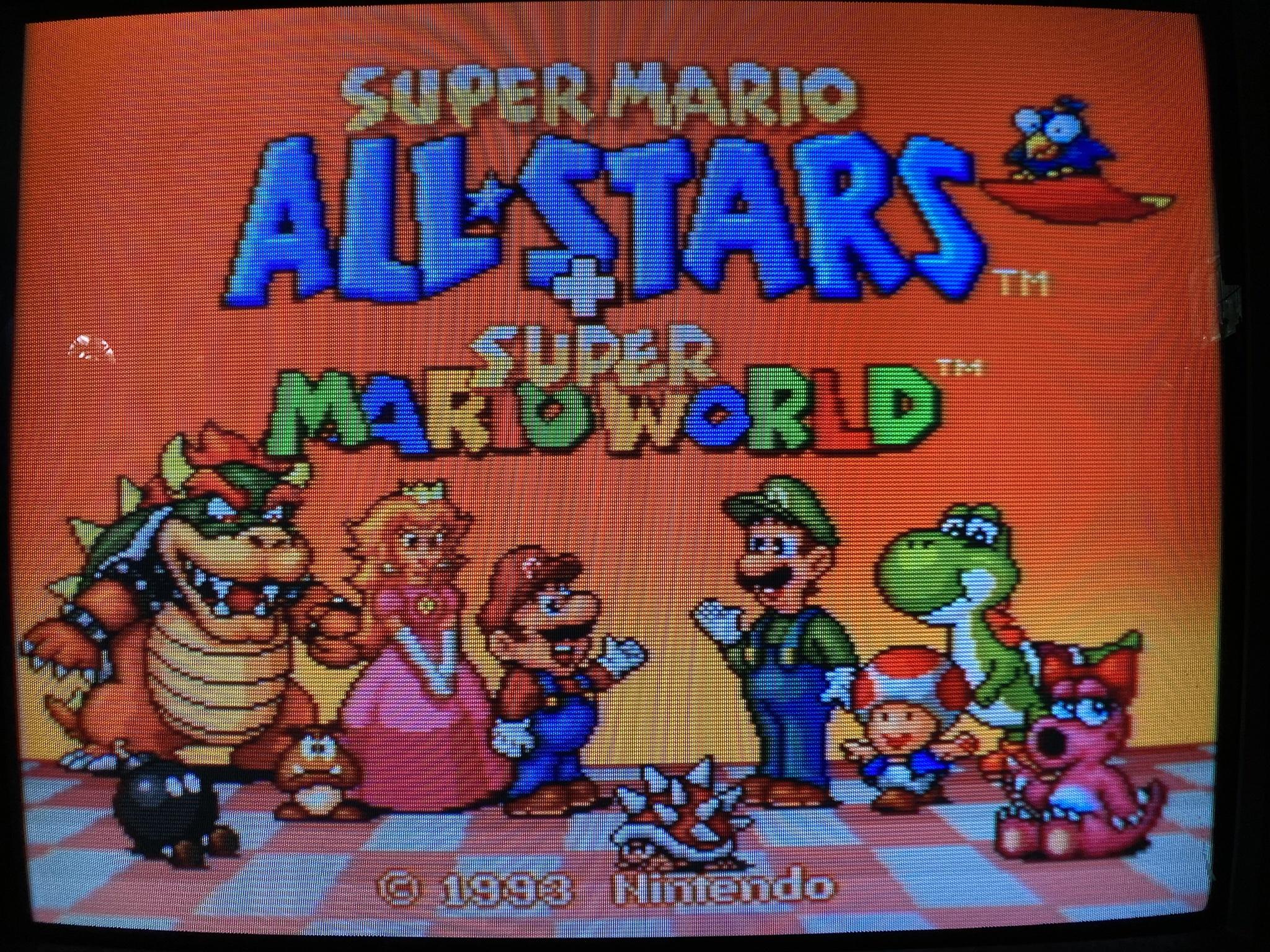

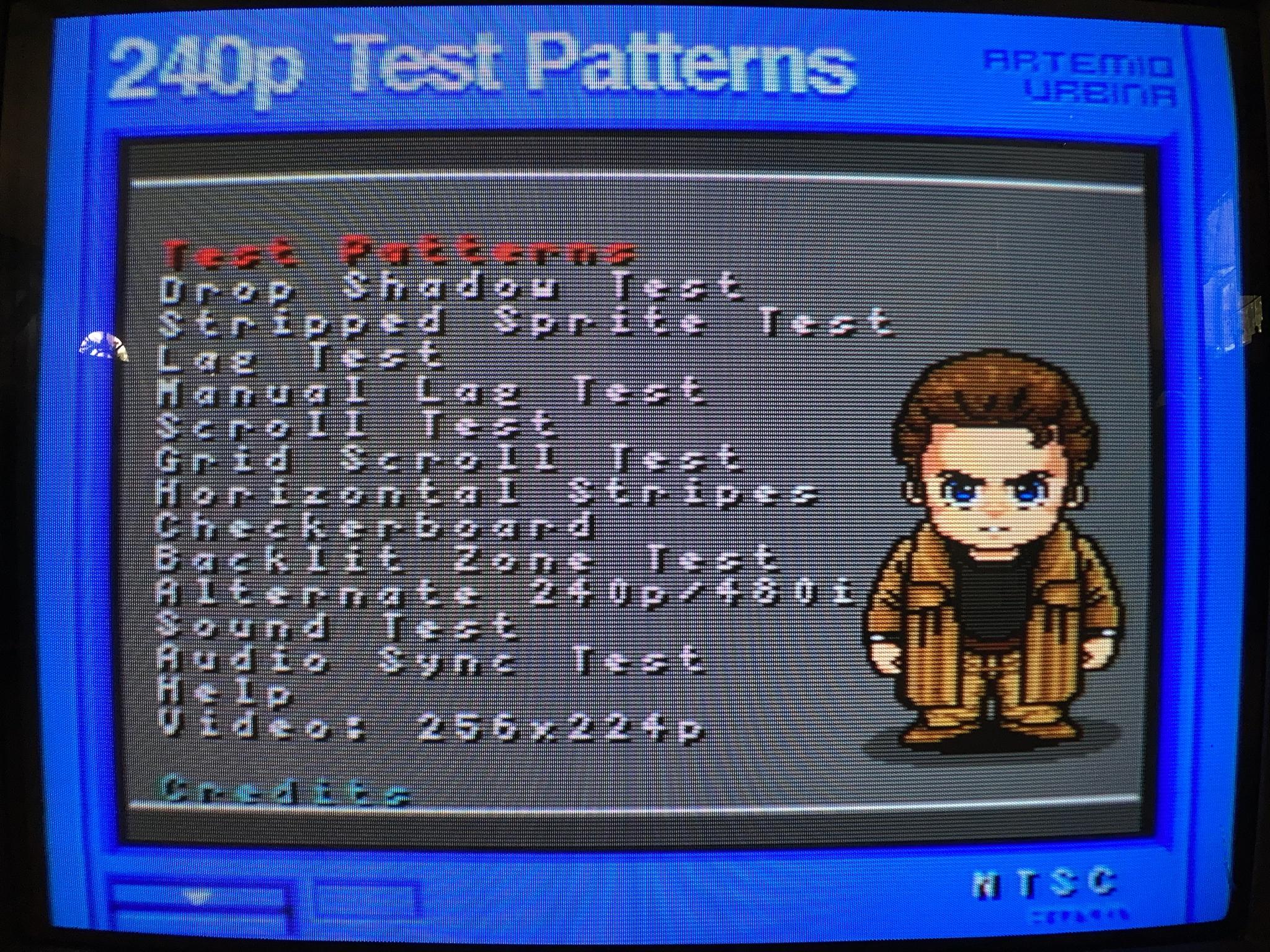

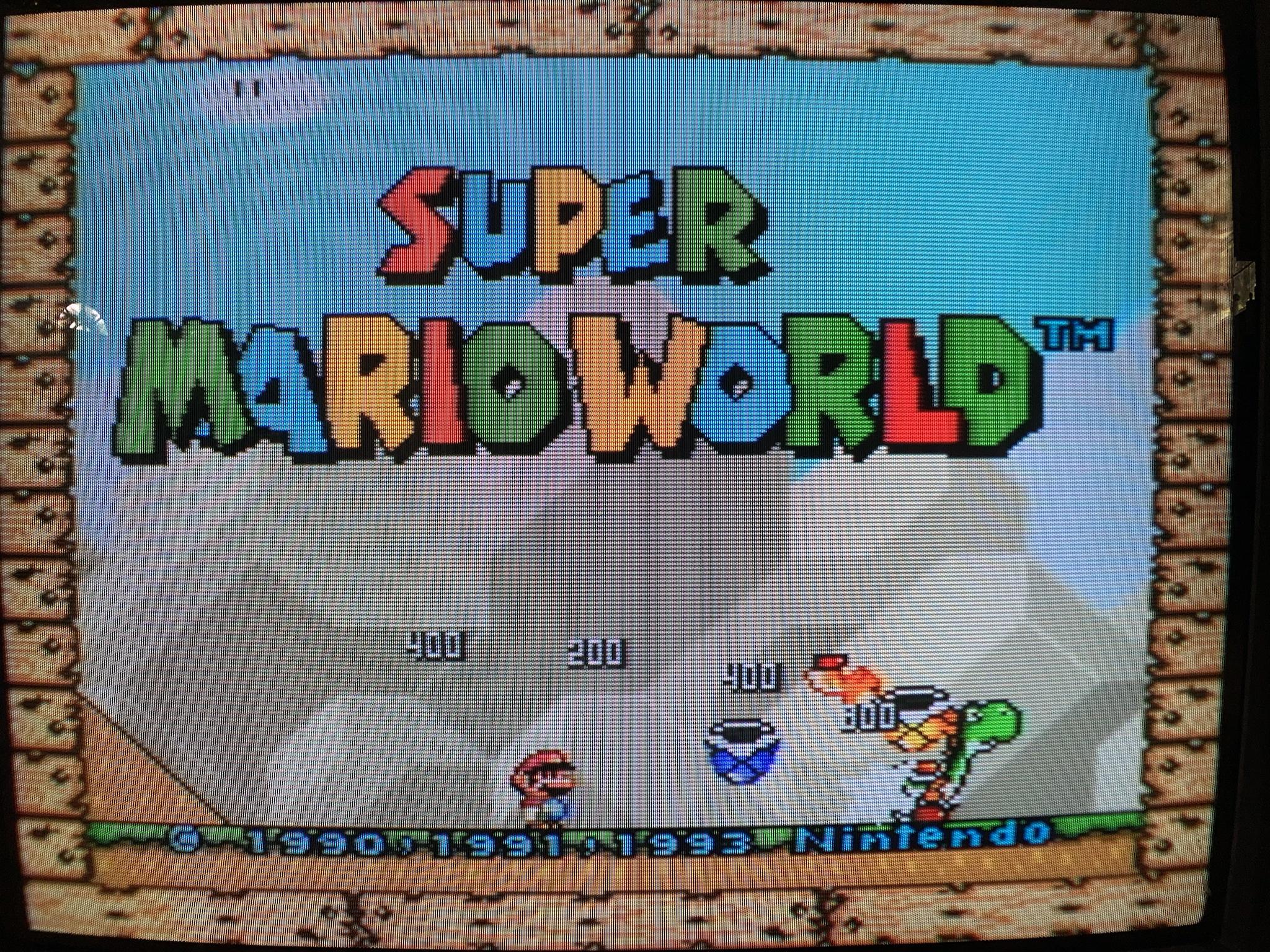

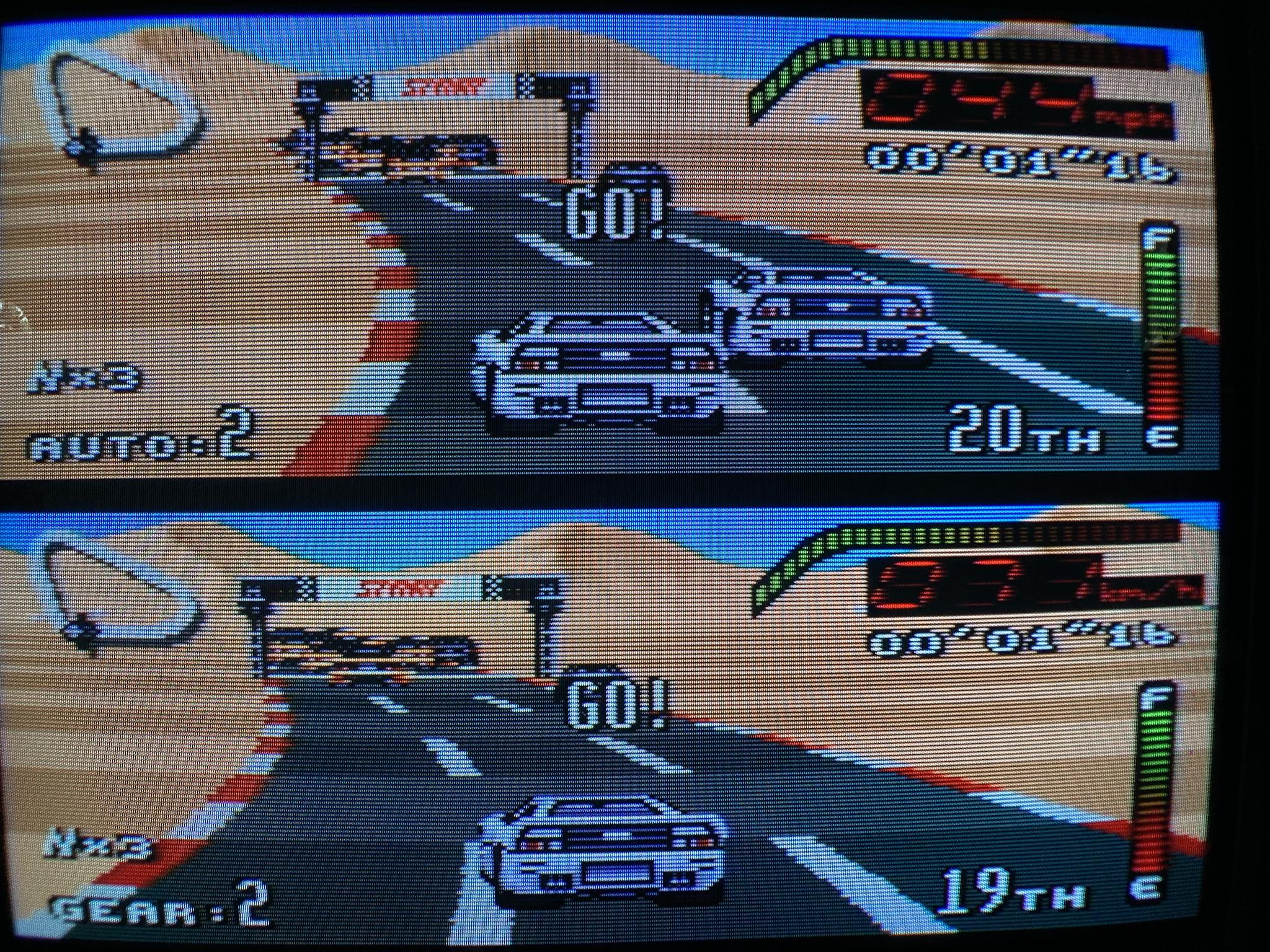

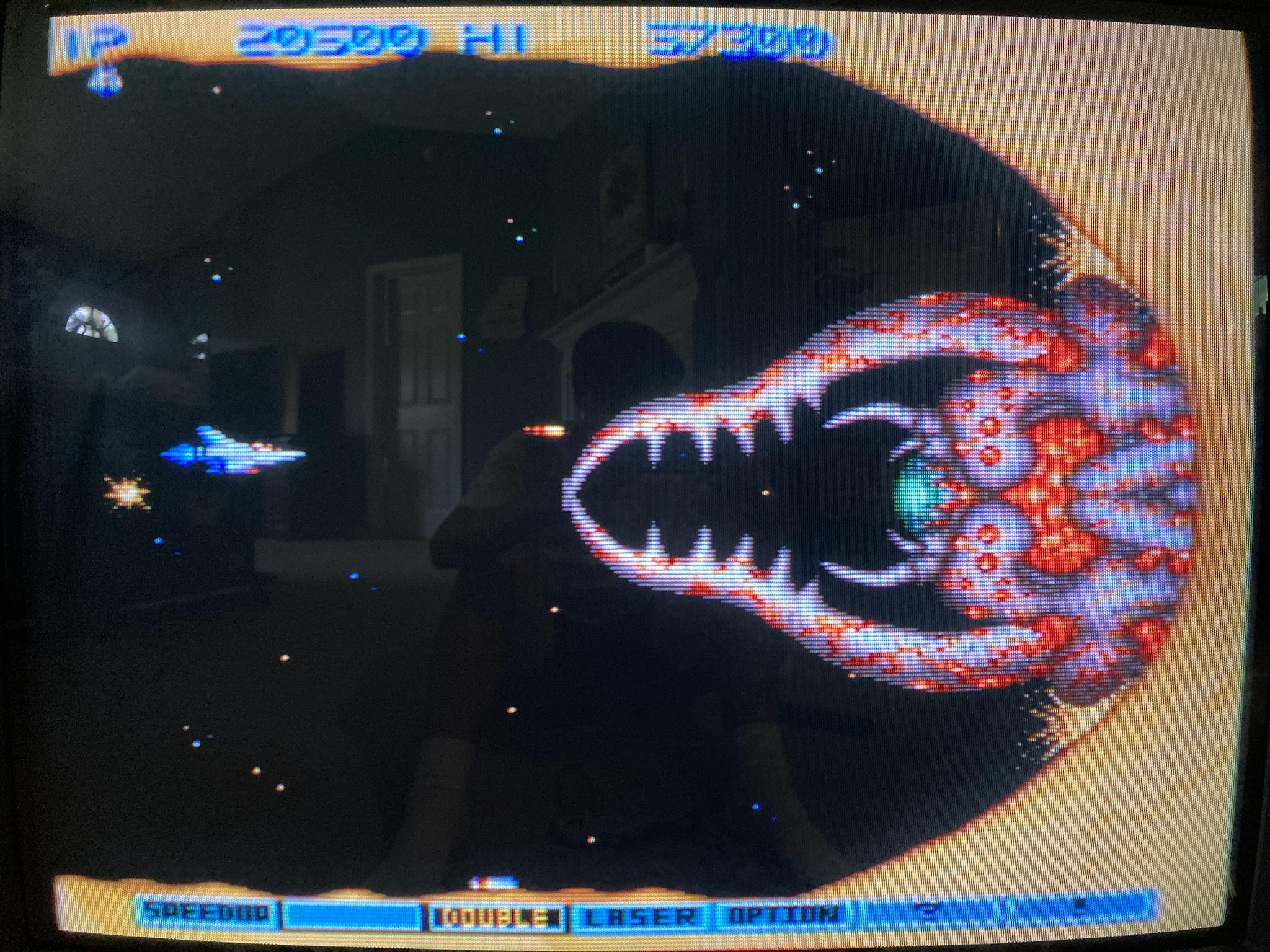

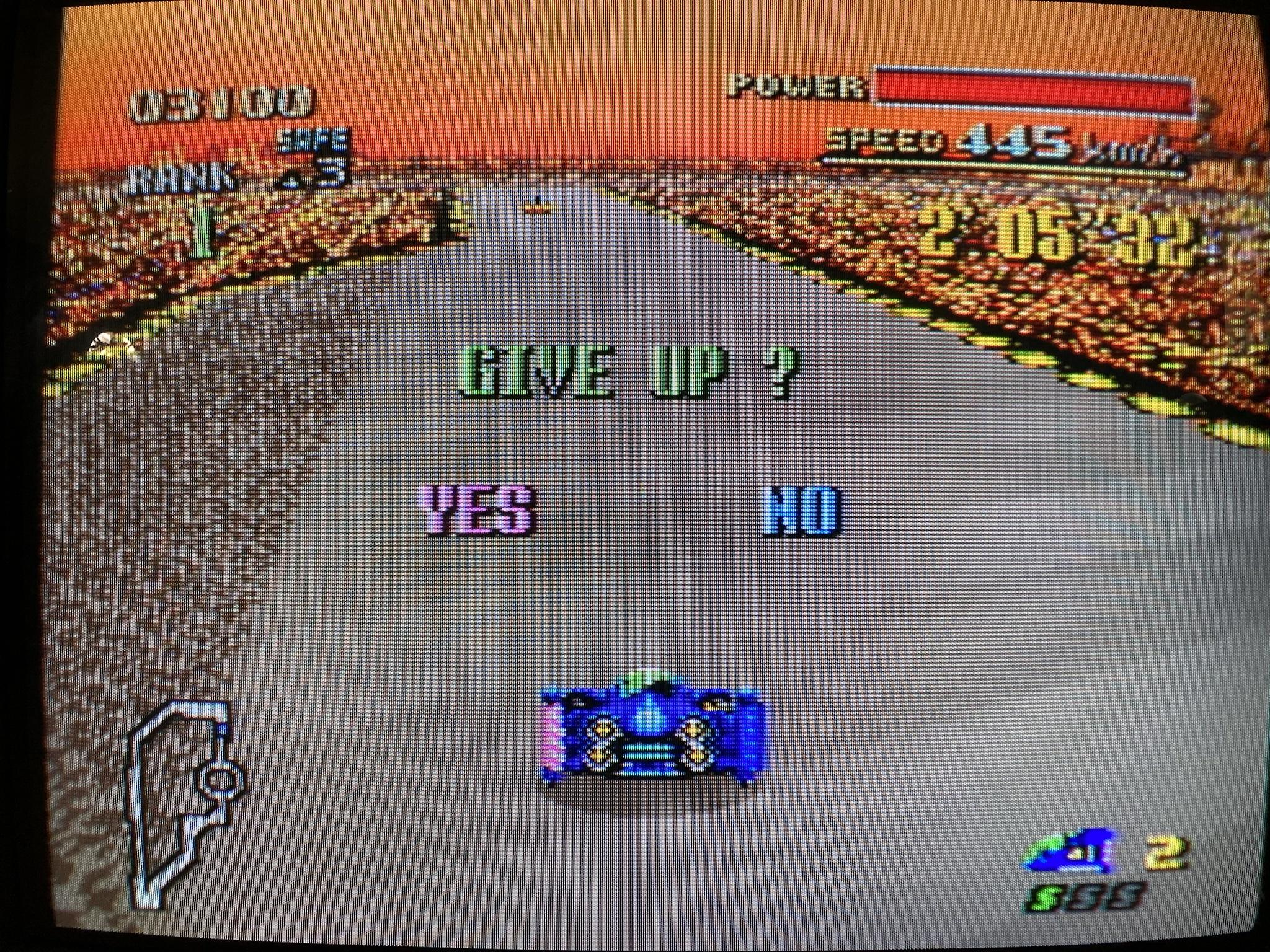

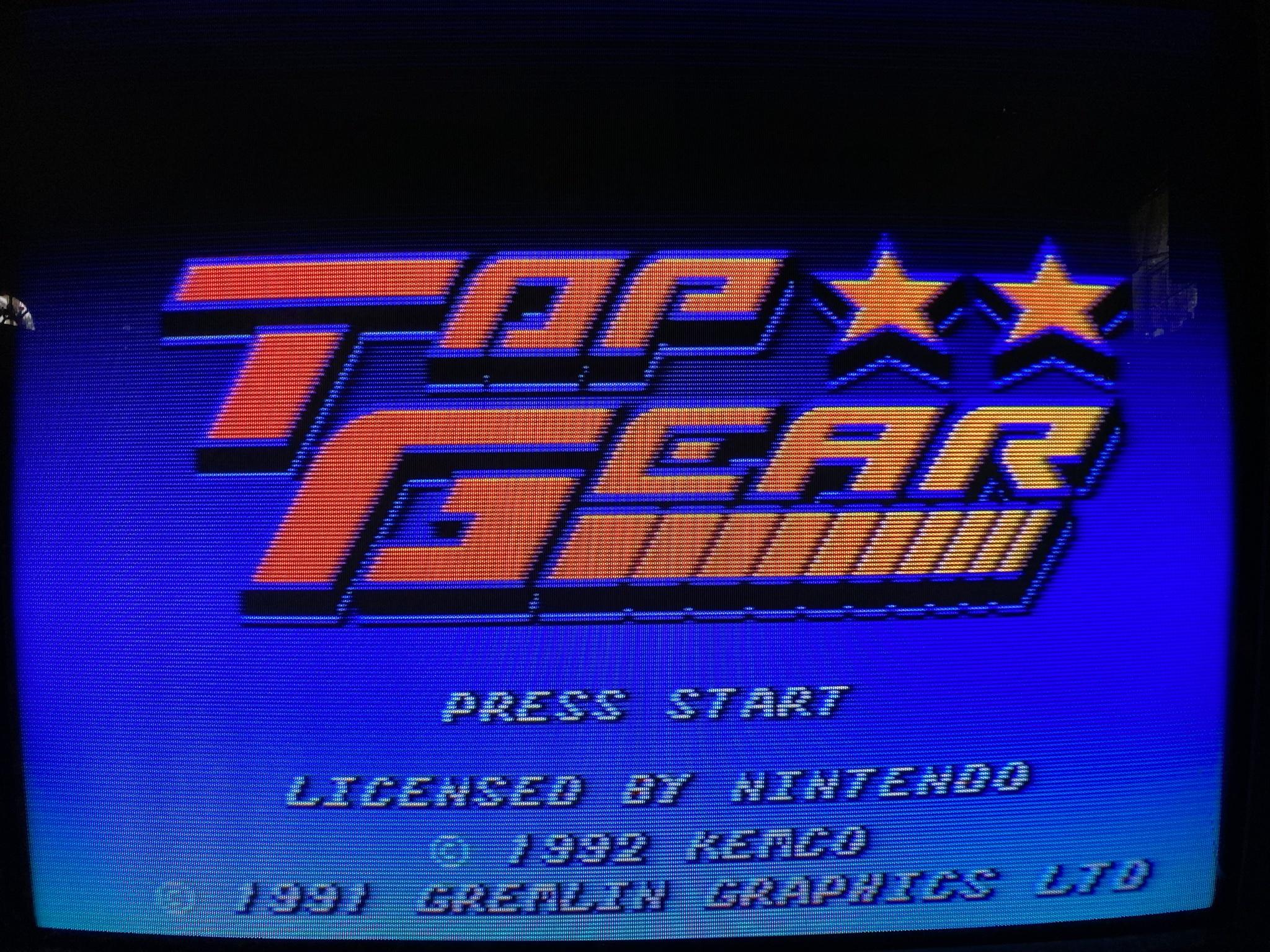

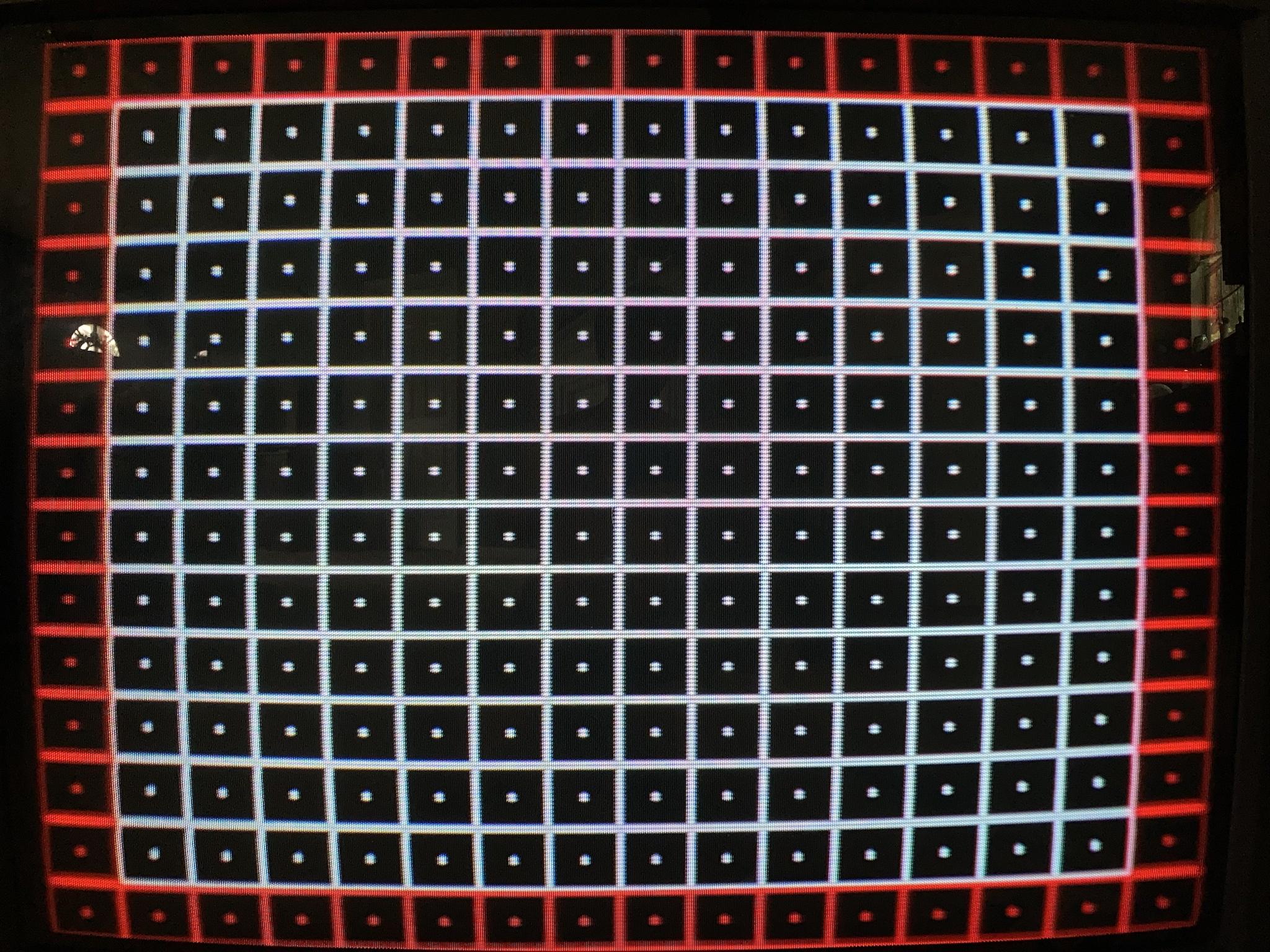

Gallery
















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-32850 |
Series: | AV |
Viewable Size: | 32" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Linecount: | 700 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | Sanyo, LA7832 |
Jungle: | Toshiba, TA1242N |
Flyback: | QQH0016-001 |
Focus Type: | Single |

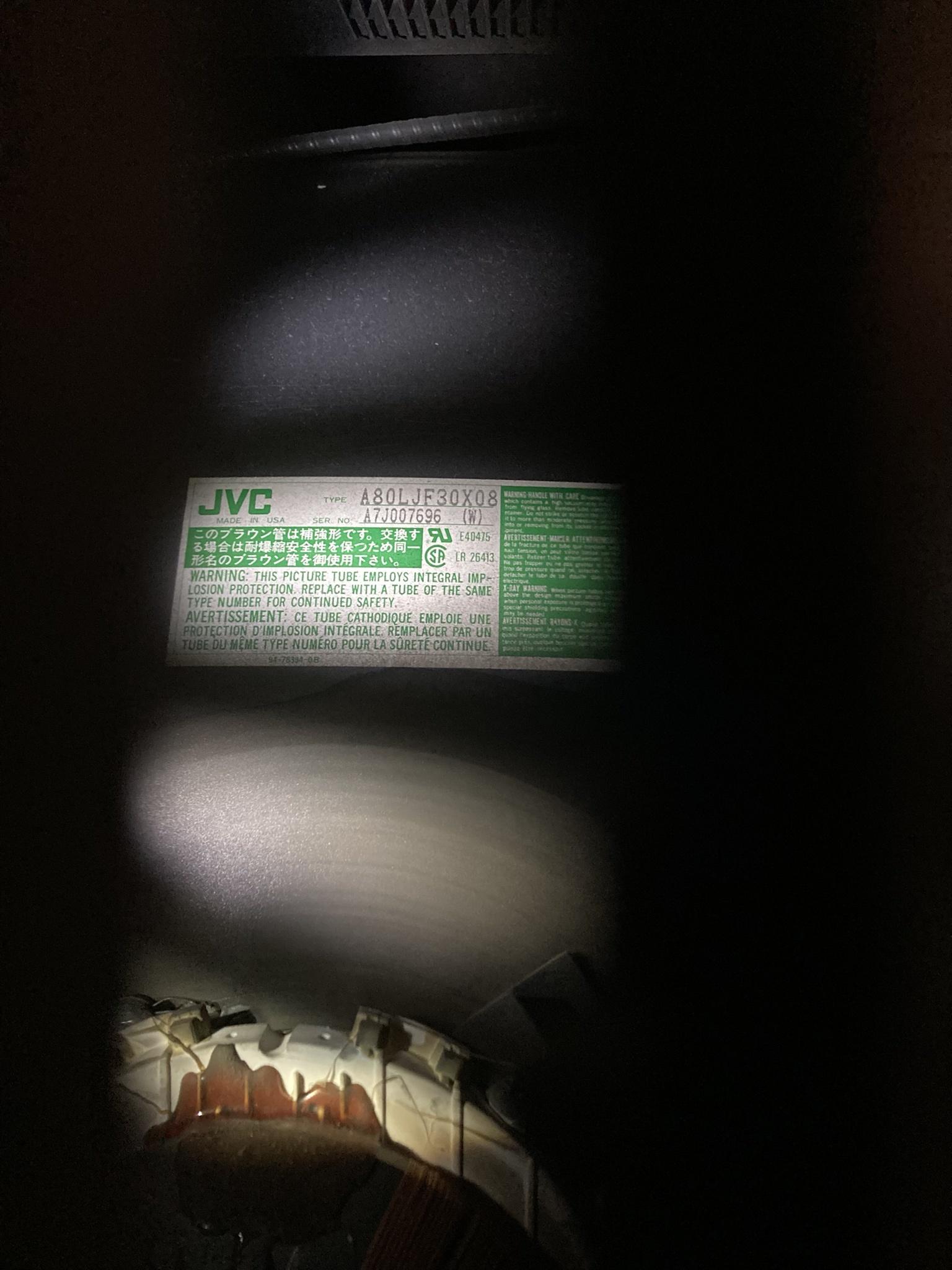

Tube: | Hitachi , A80LJF30X , A80LJF30X08 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | (ITC) |
Speakers: | Stereo, 3W x 2 |

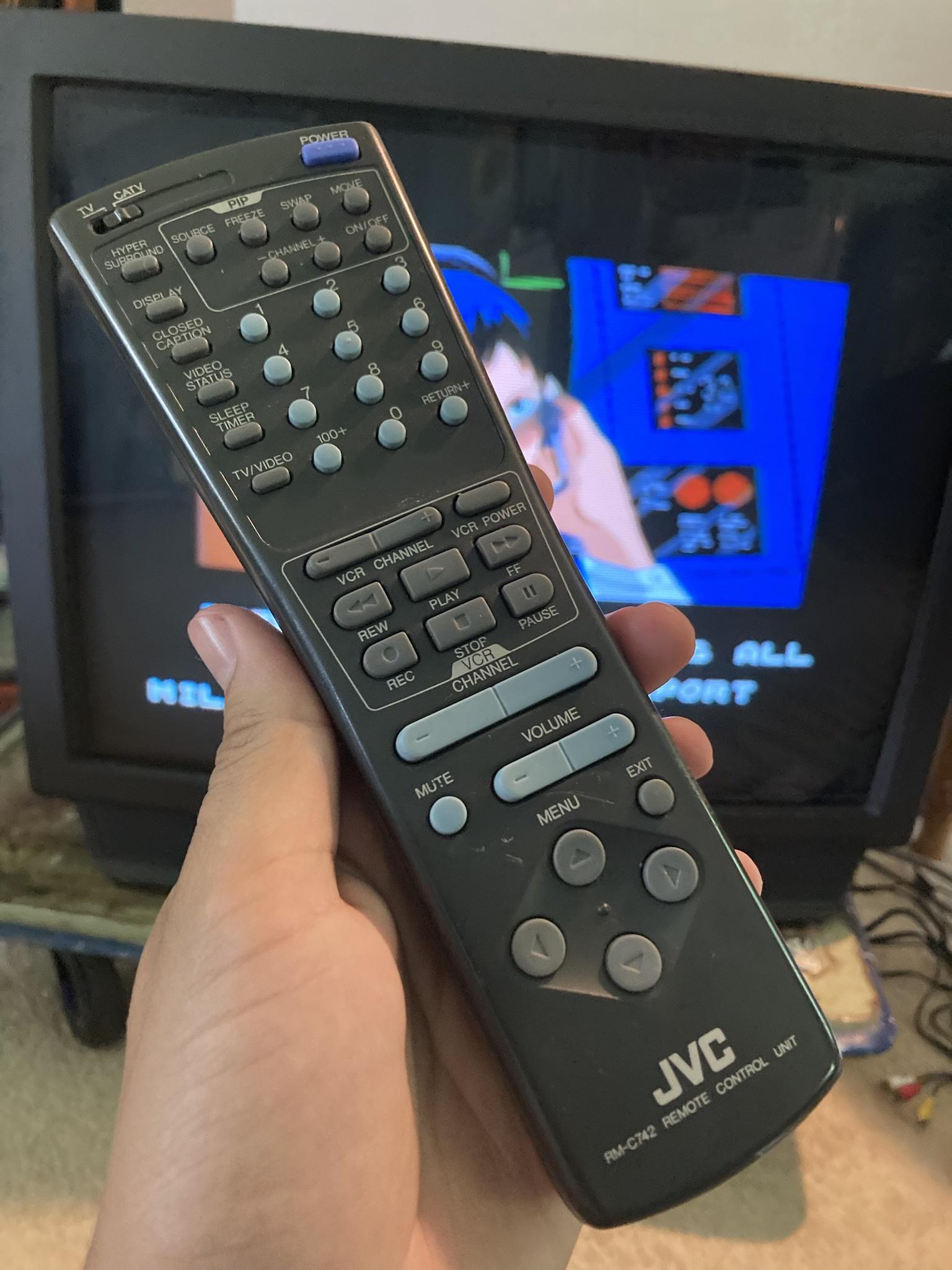

Remote: | RM-C745 |
Chassis: | FK |
Weight: | 112.5 lbs (51 kg) |
Dimensions (W/H/D): |
768 x 667 x 547 mm
(30.2 x 26.2 x 21.5") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1997 |
MSRP: | 799 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), OEM Stand, RK-3298 |
Mods: | RGB via Direct |
Degaussing: | Automatic on Power-on |
