Summary

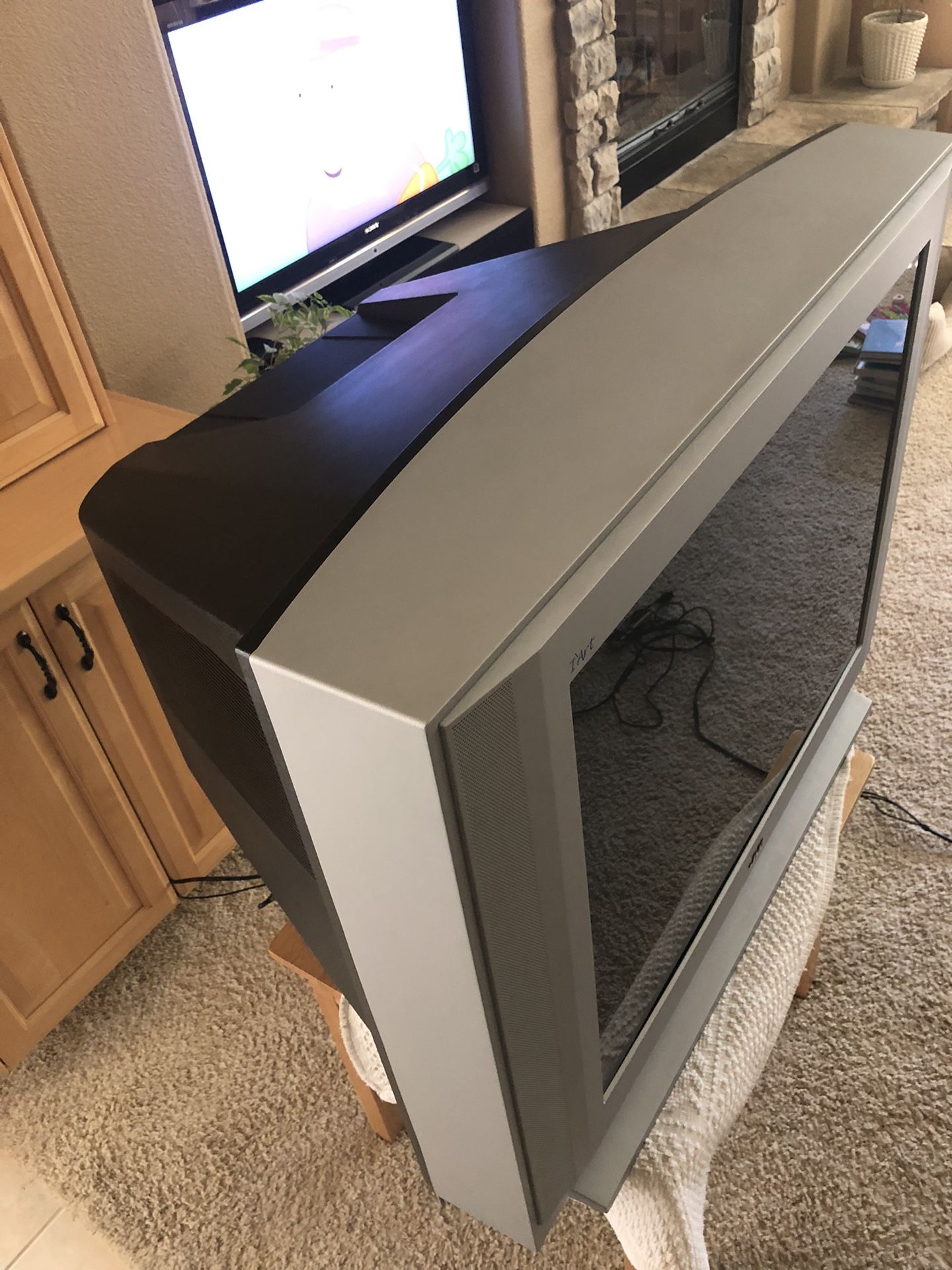

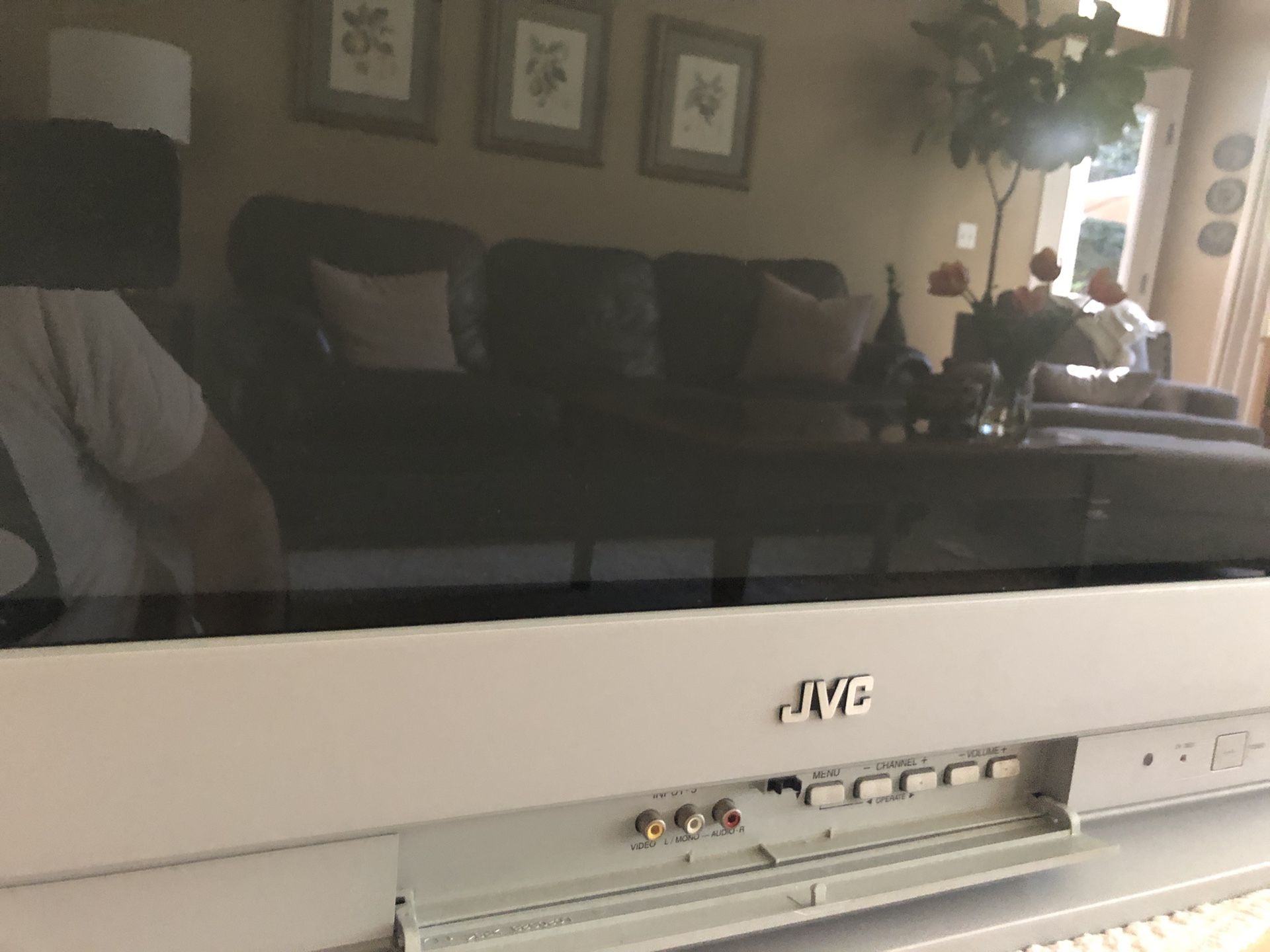

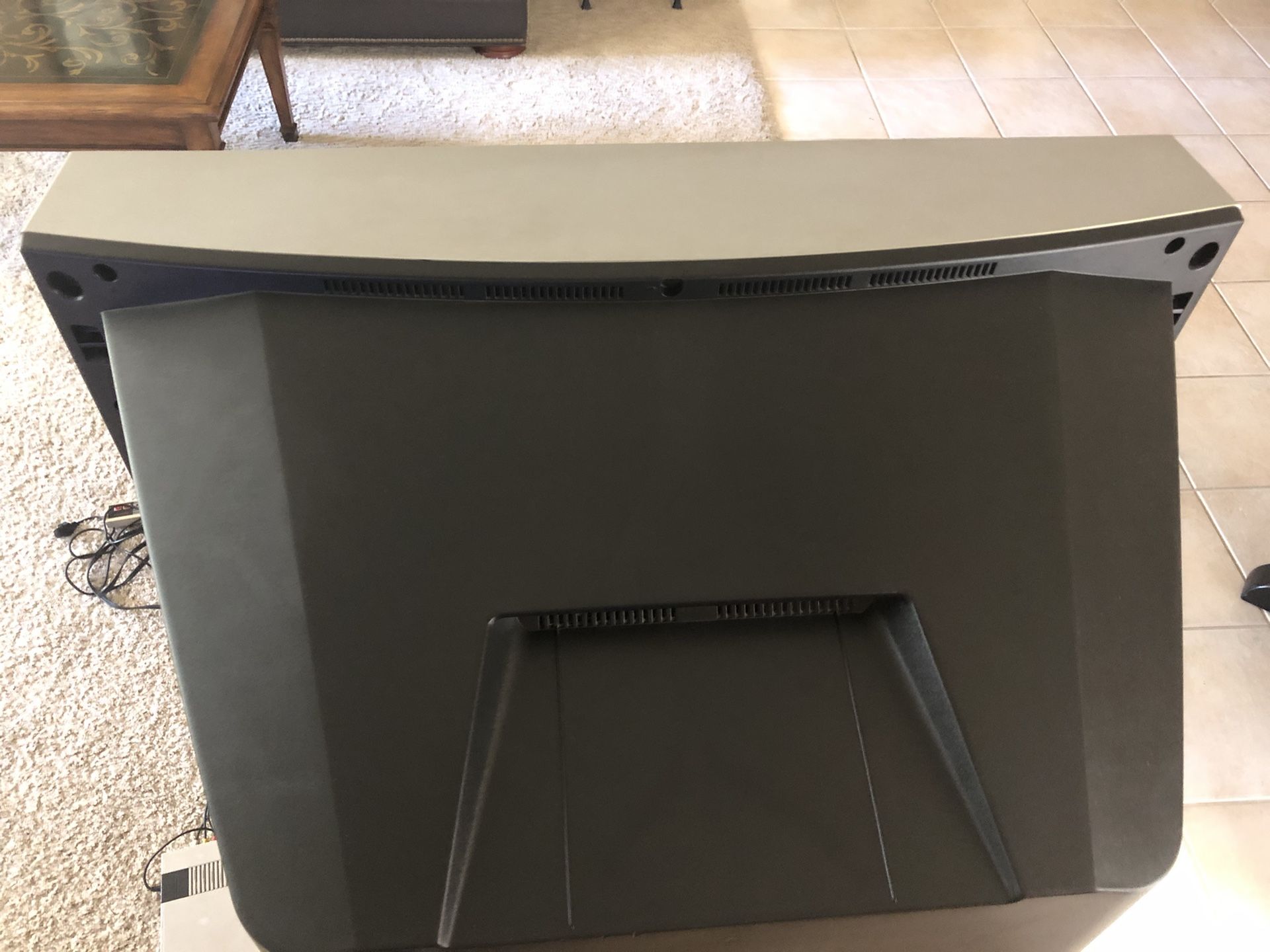

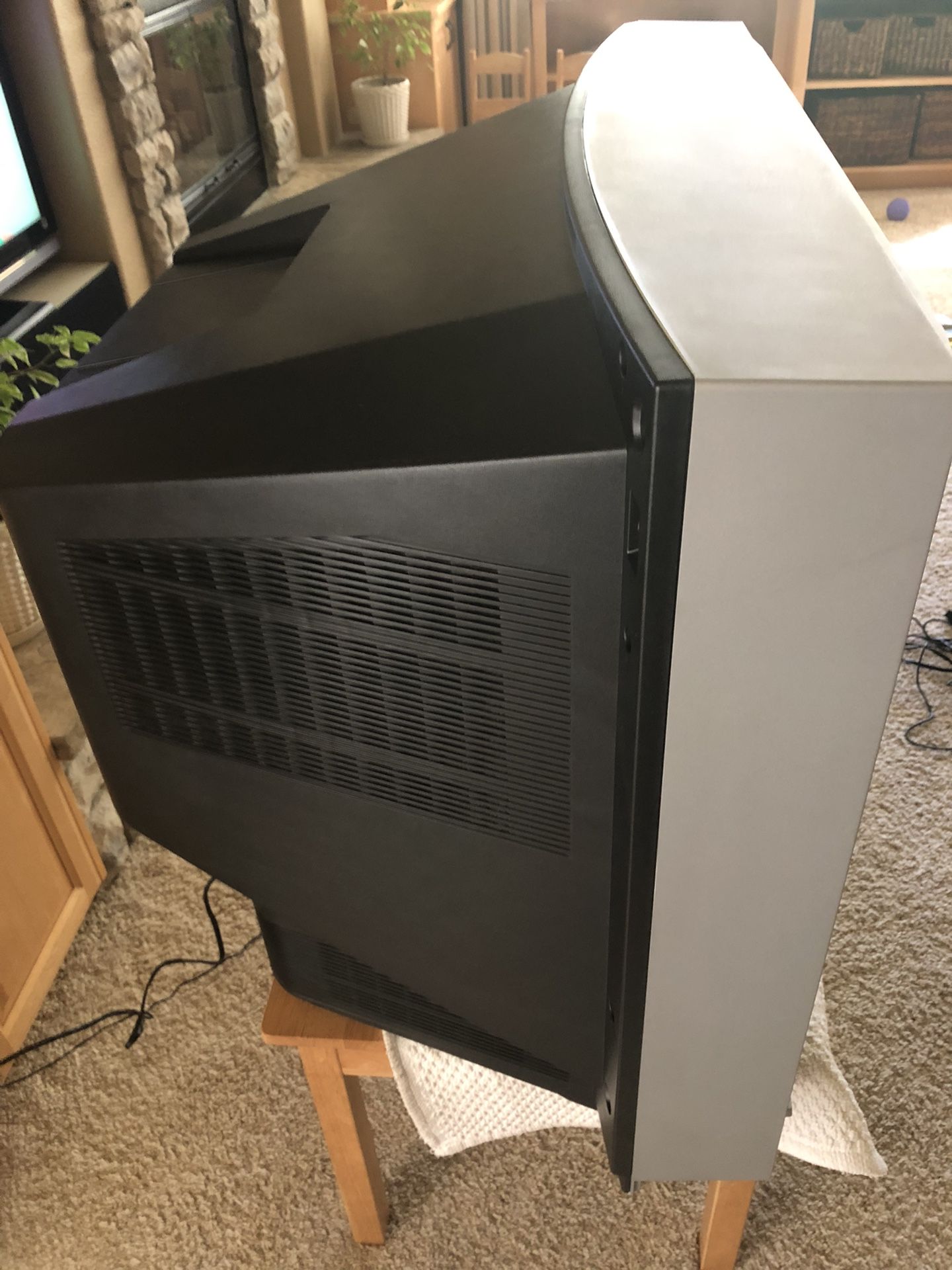

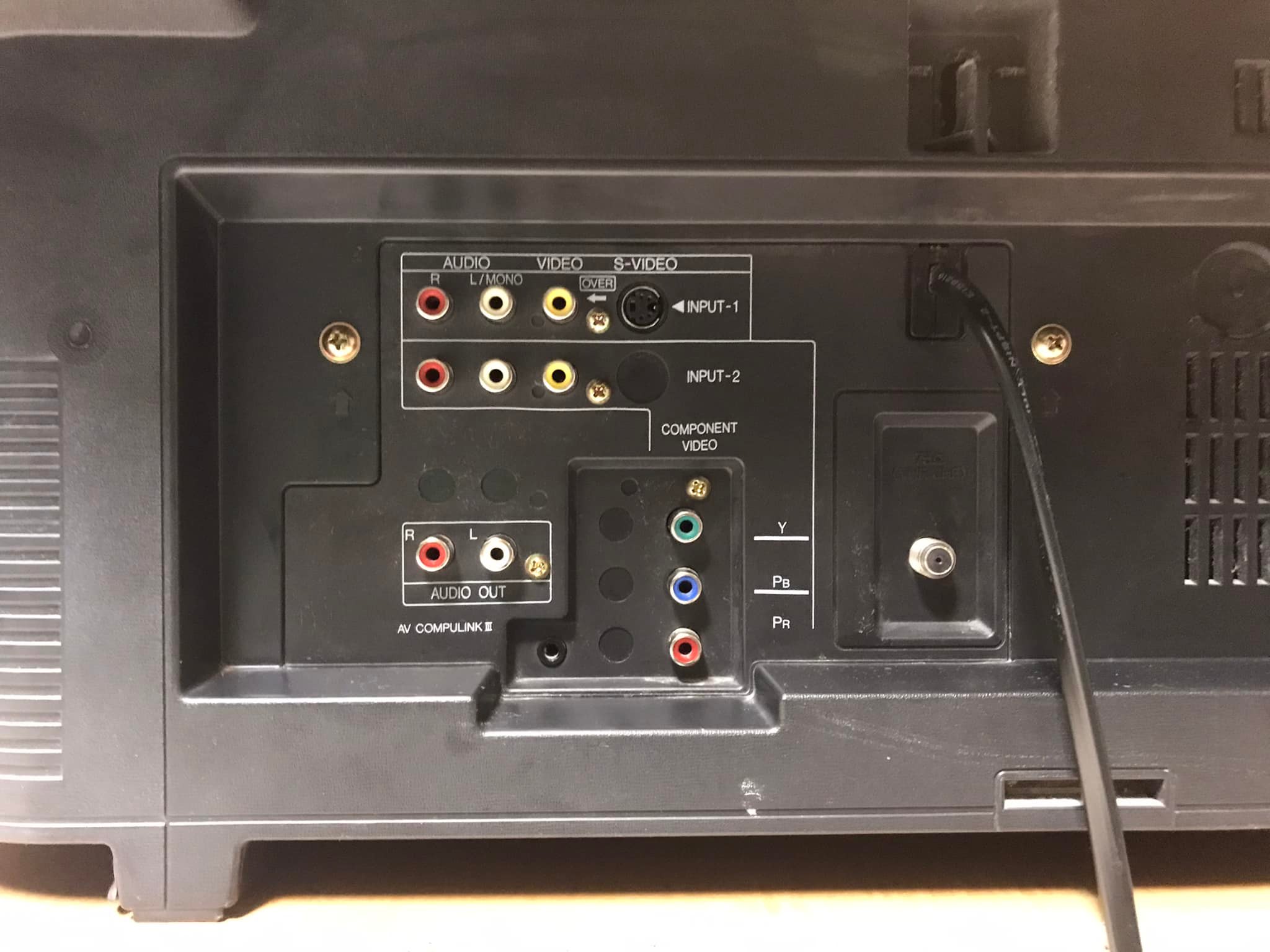

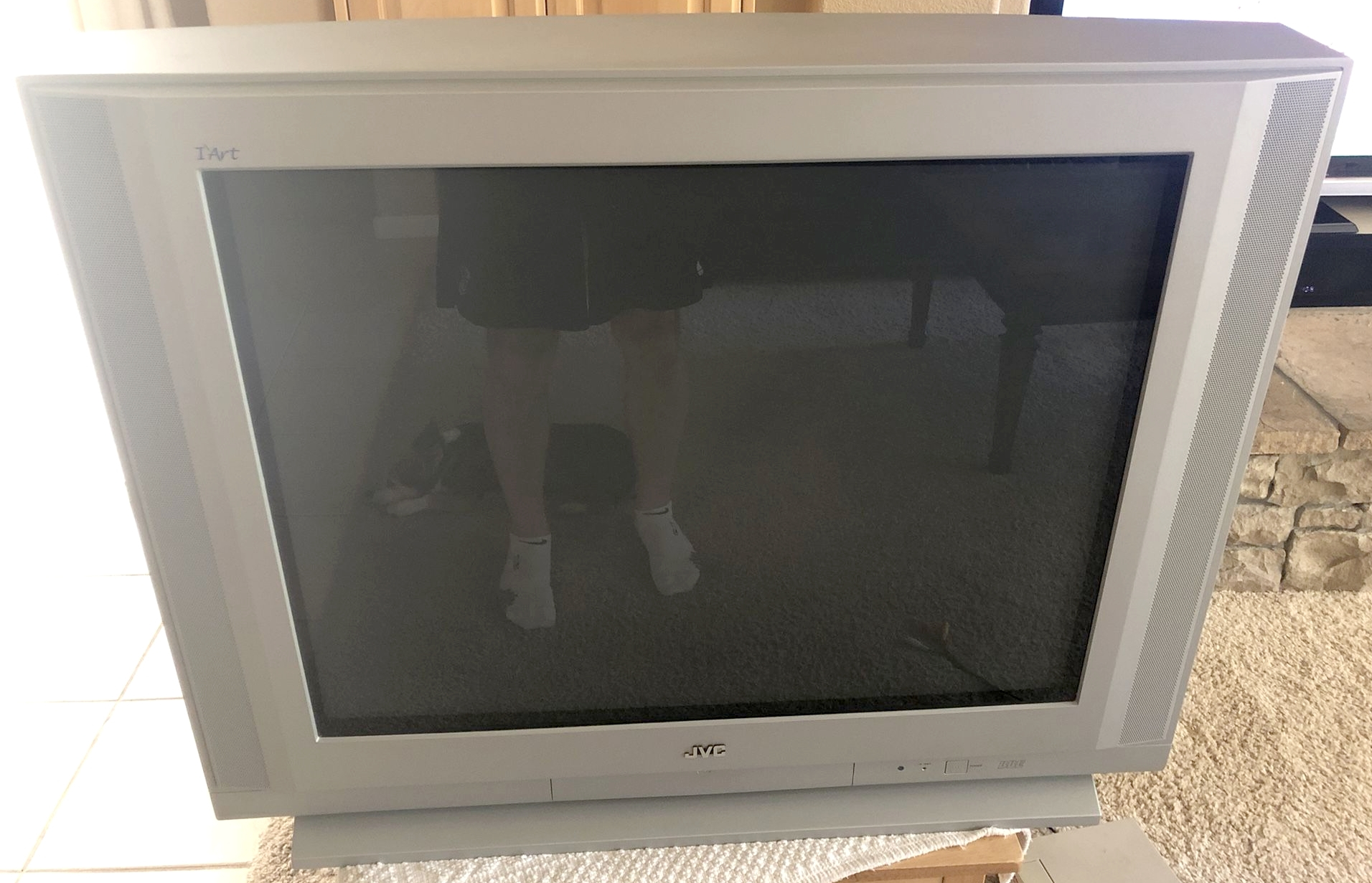

Flat 32" CRT by JVC, made in Mexico in 2002. Has a full set of inputs: RF, composite, s-video and component.
(Special thanks to Jared Wentzel for the pics!)
Manuals
Promo Materials
Notes
Velocity modulation can be turned off in the standard menu if one desires.
This set has intense red-push that you can disable in the service menu by setting NTSC-MAT to 0.

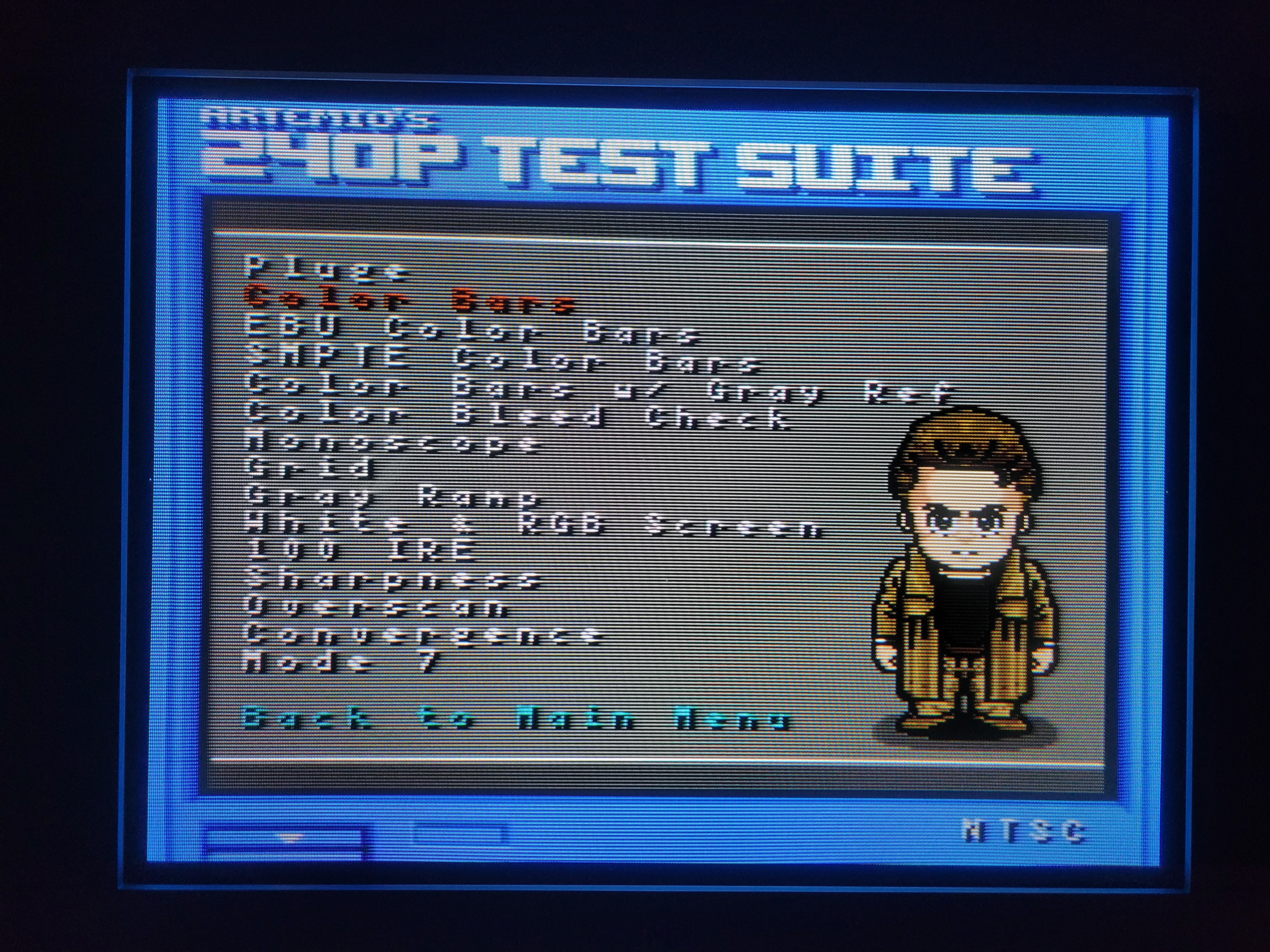

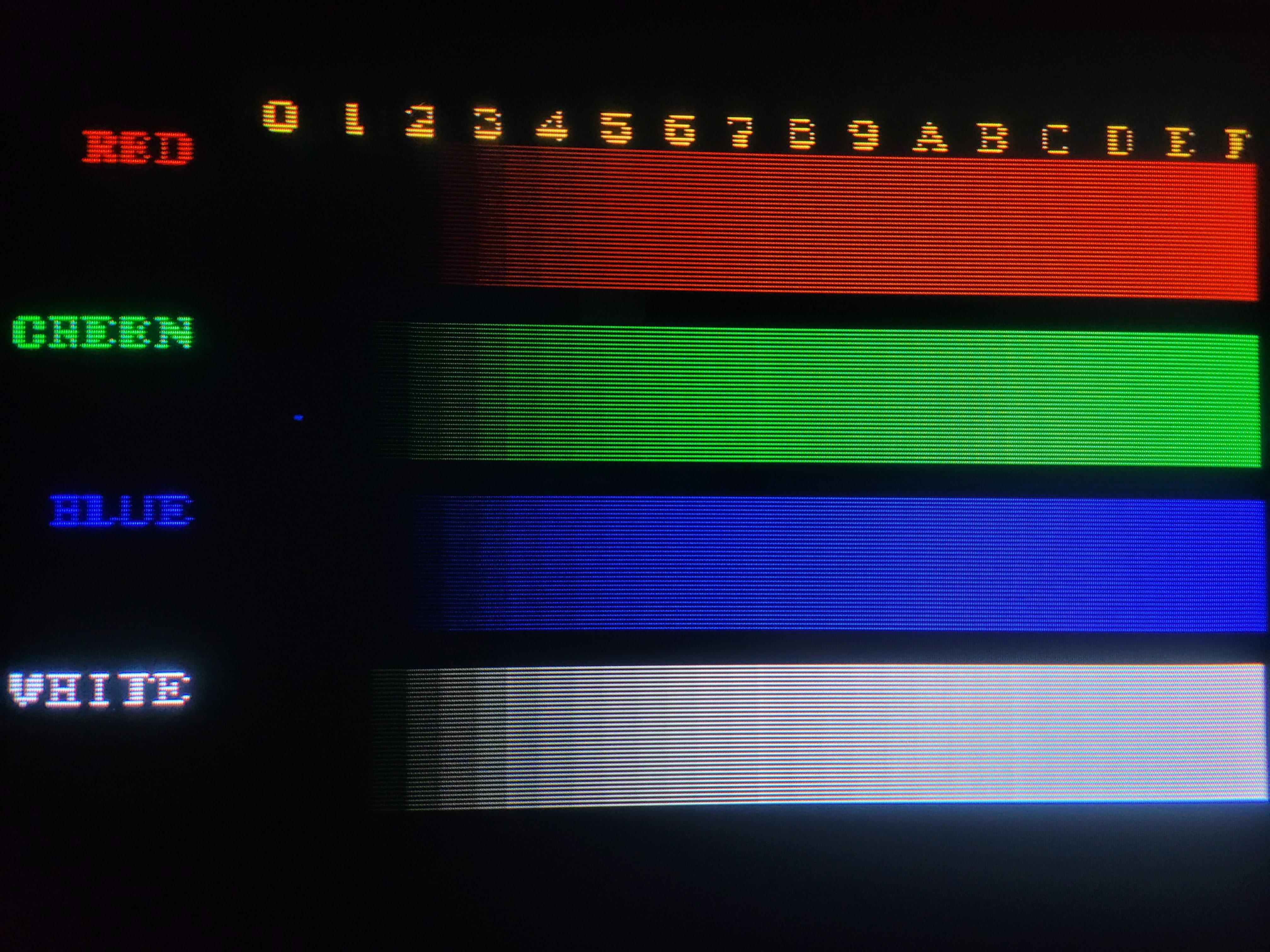

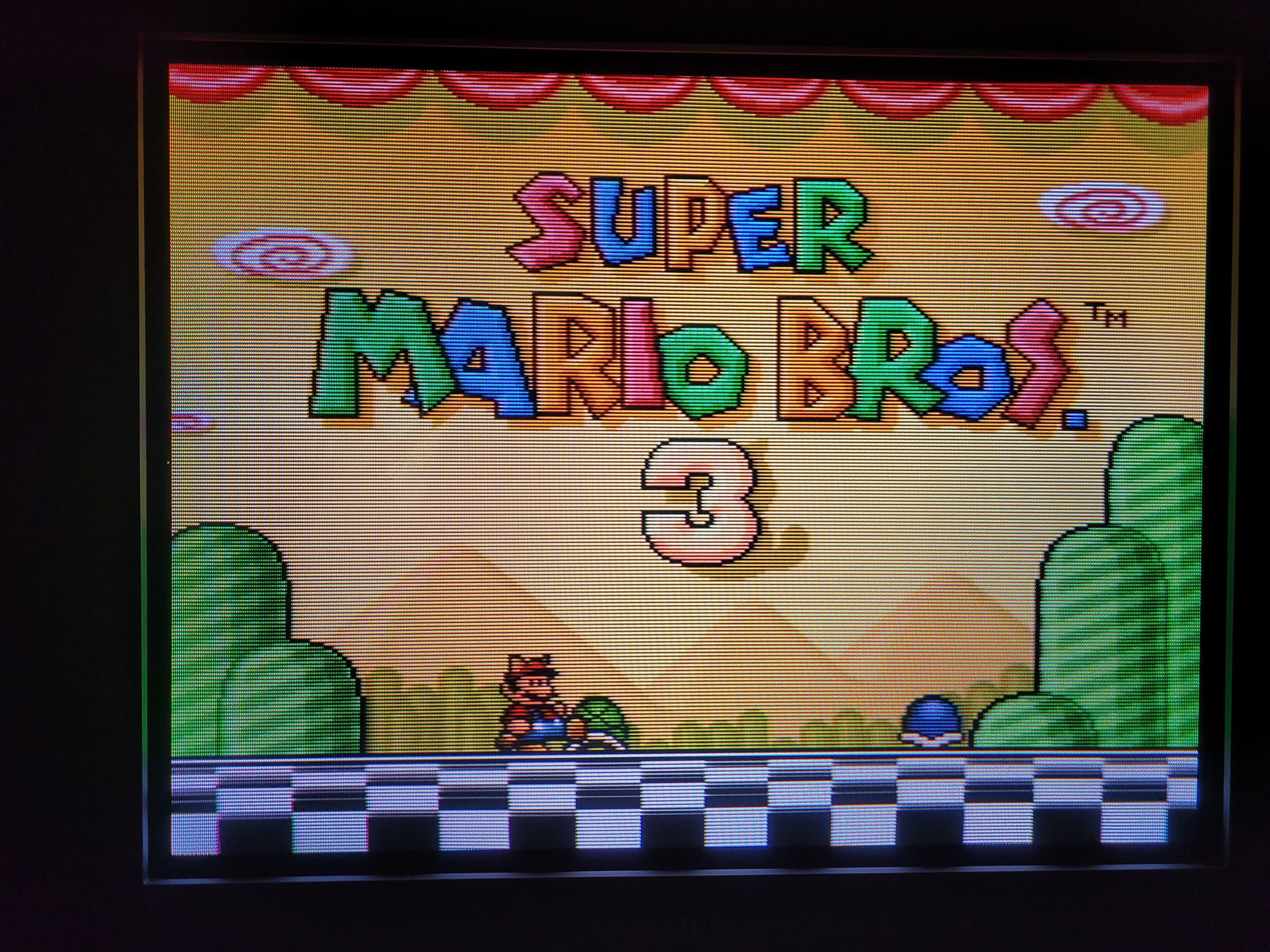

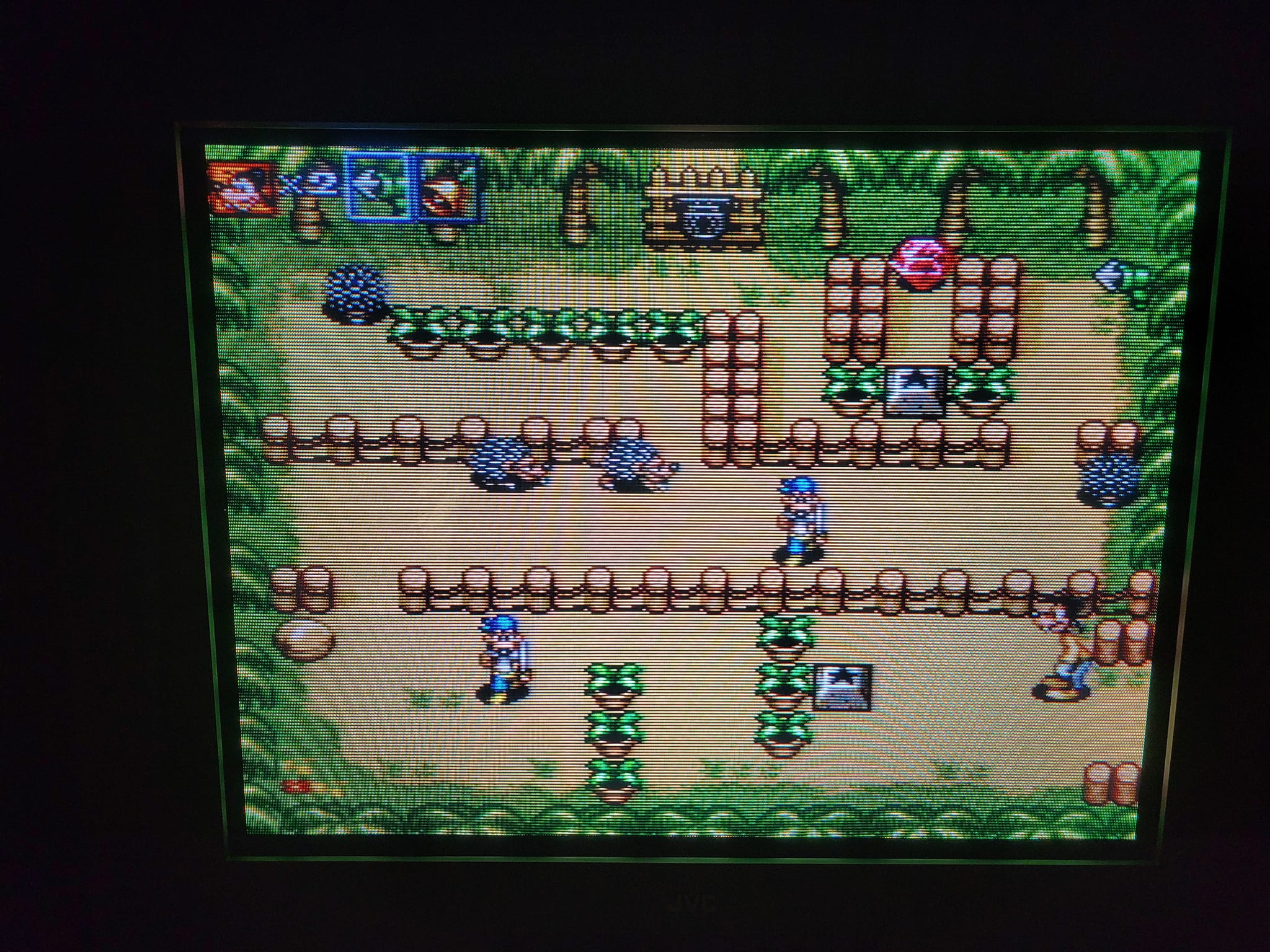

Composite 240p Performance
by Eli Krause
For composite decoding this set uses a Toshiba TC90A49P, a 3-line digital comb filter. Depending on the console/revision, dot artifacting ranges from slight to severe, and blending effects may be broken. If the set has an s-video or component YPbPr input, then using a good external notch filter to decode composite instead and sending that to the set would blend all dithering patterns and remove nearly all dot artifacts (full guide here).

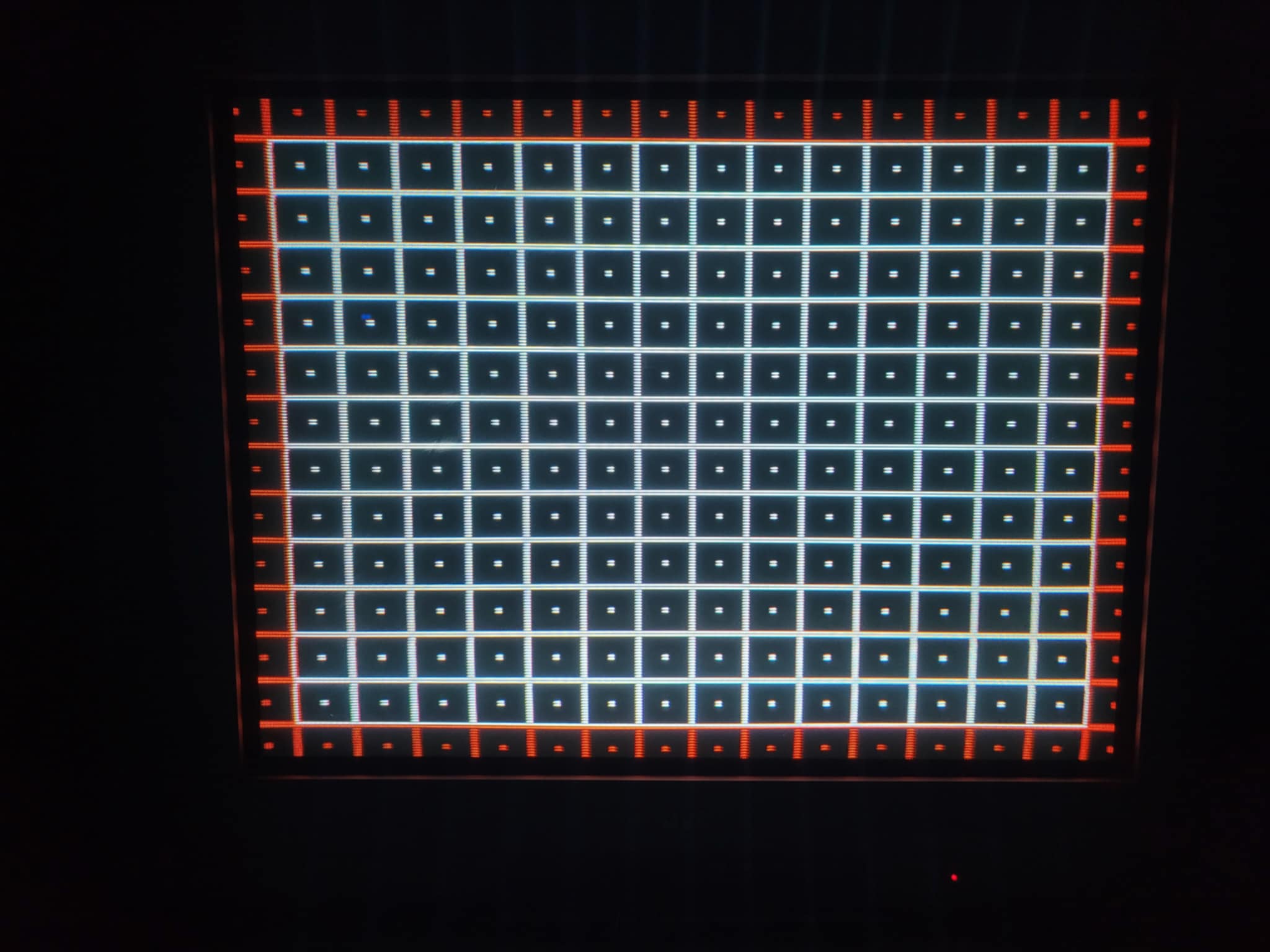

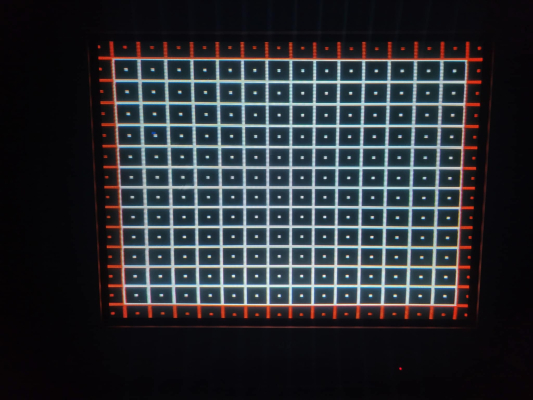

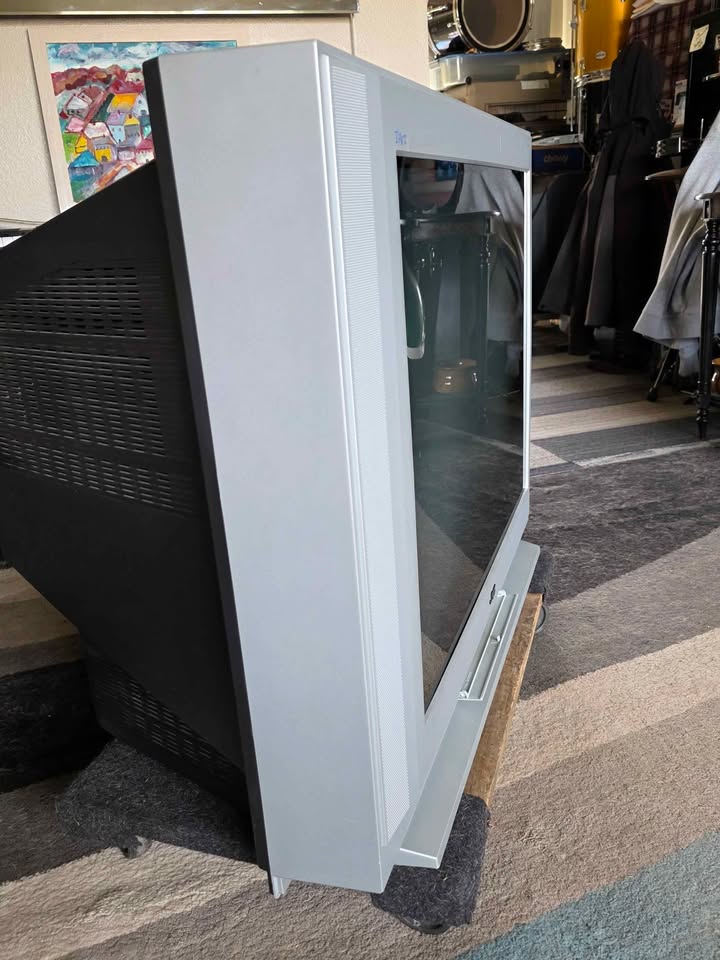

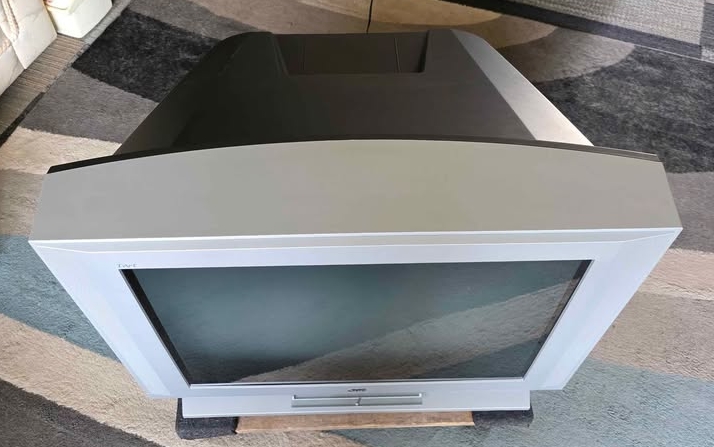

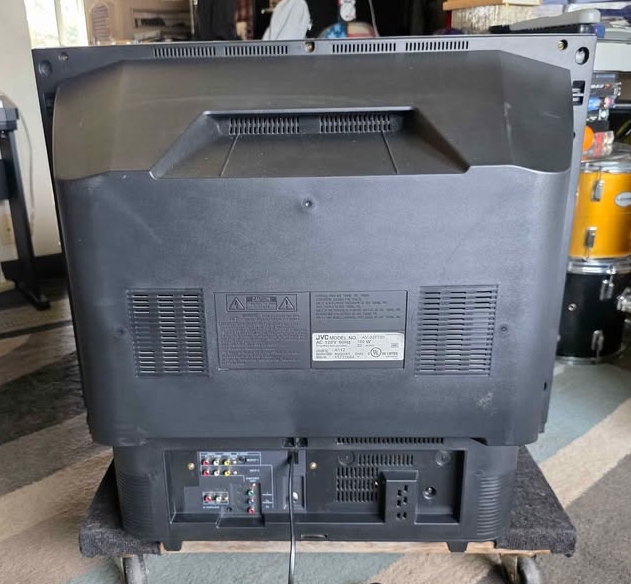

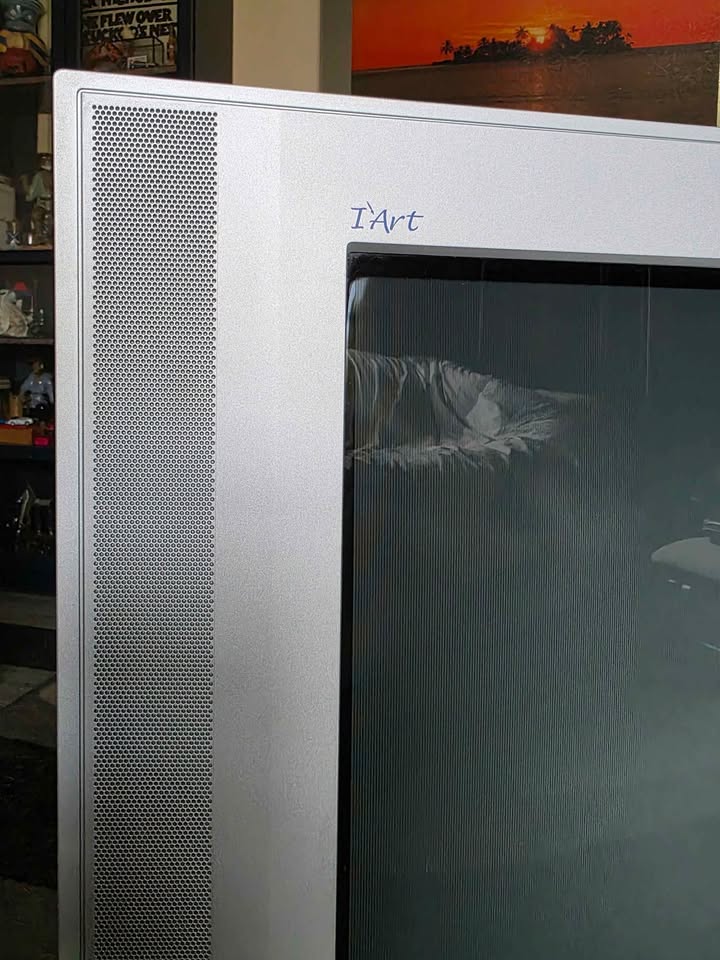

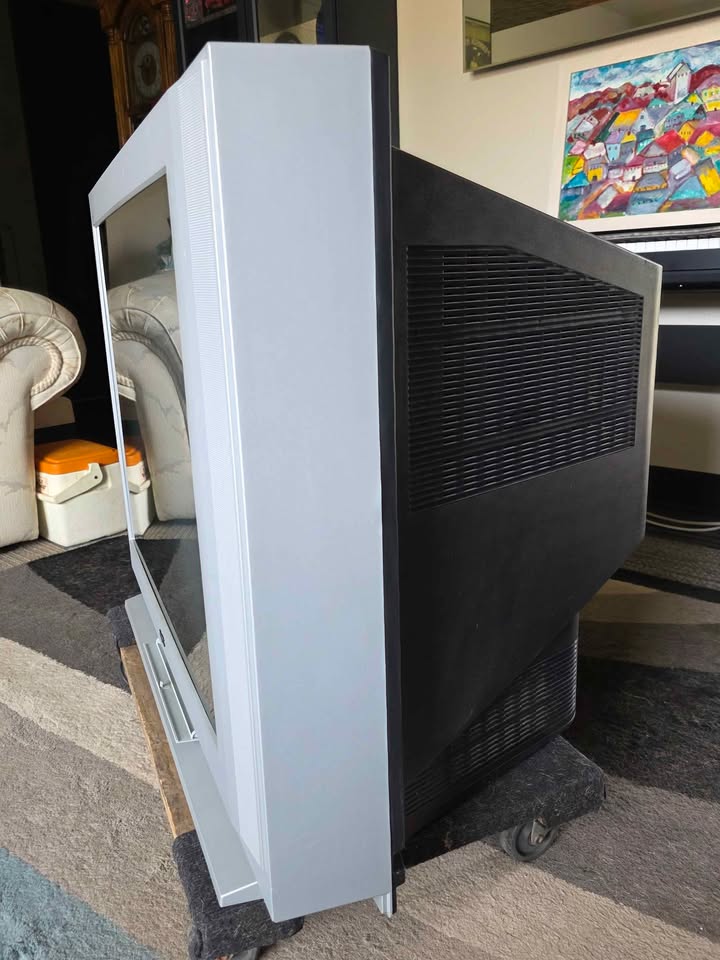

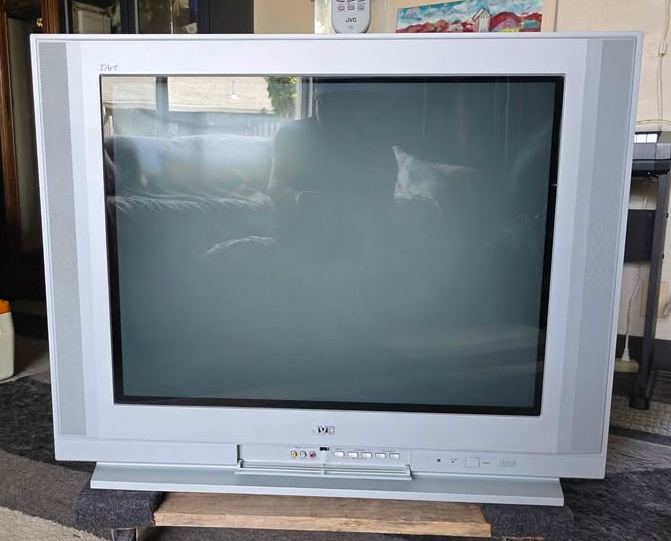

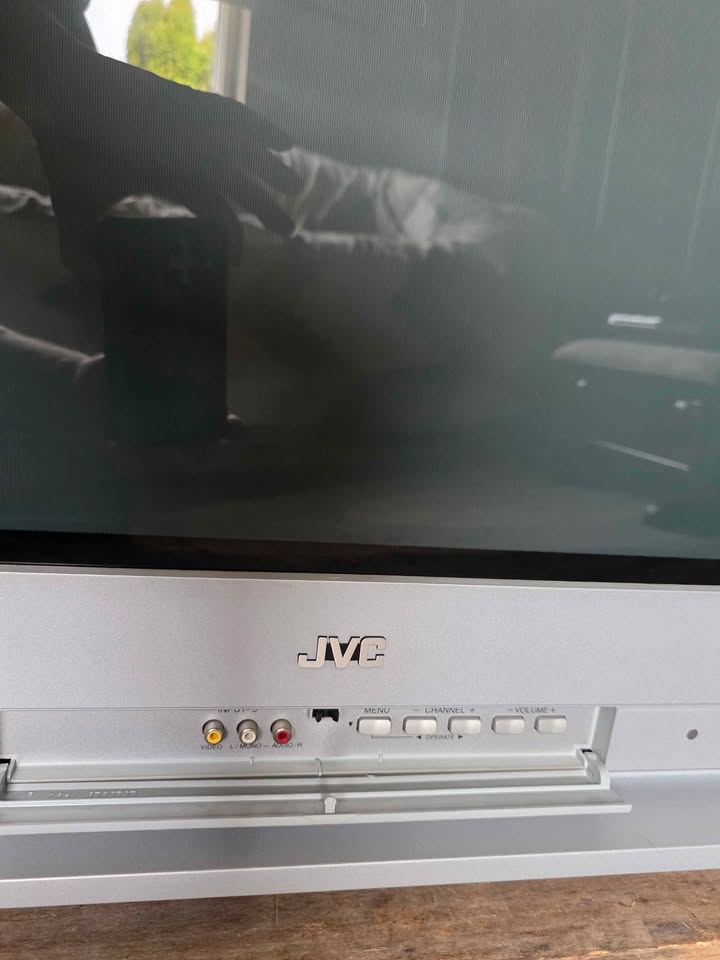

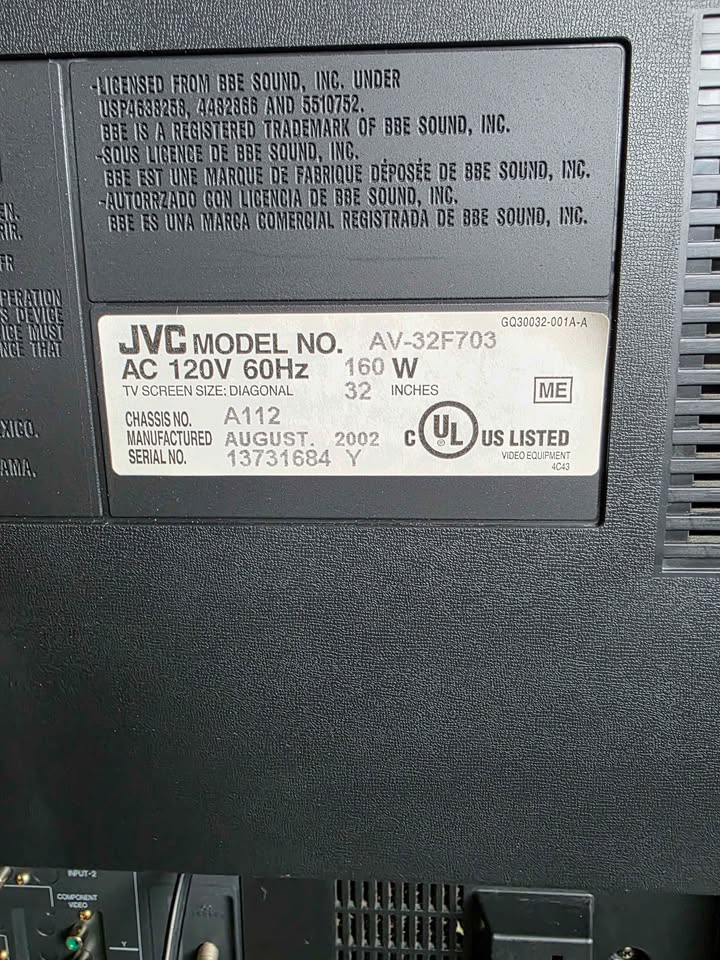

Gallery












Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |

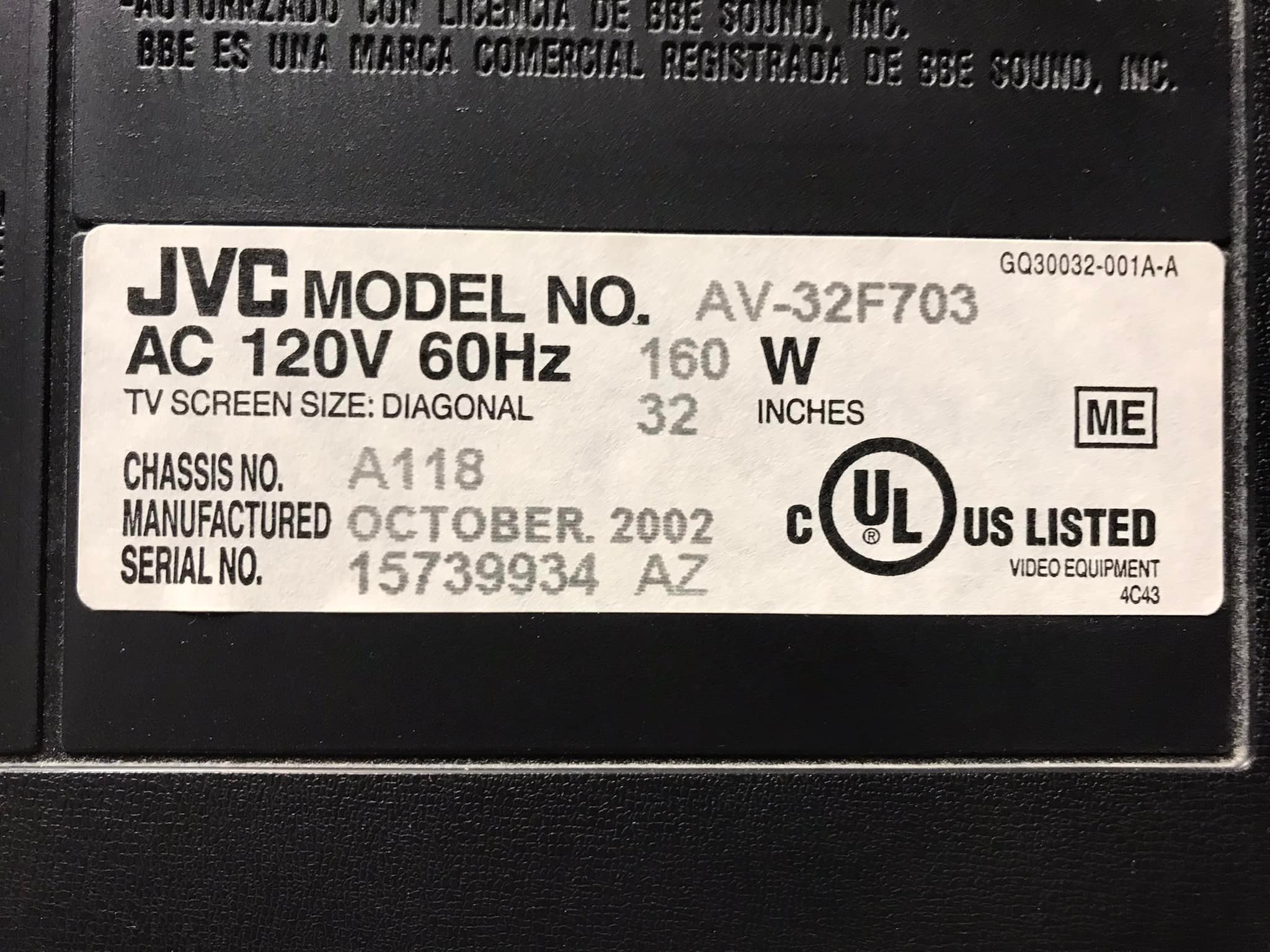

Model: | AV-32F703 |

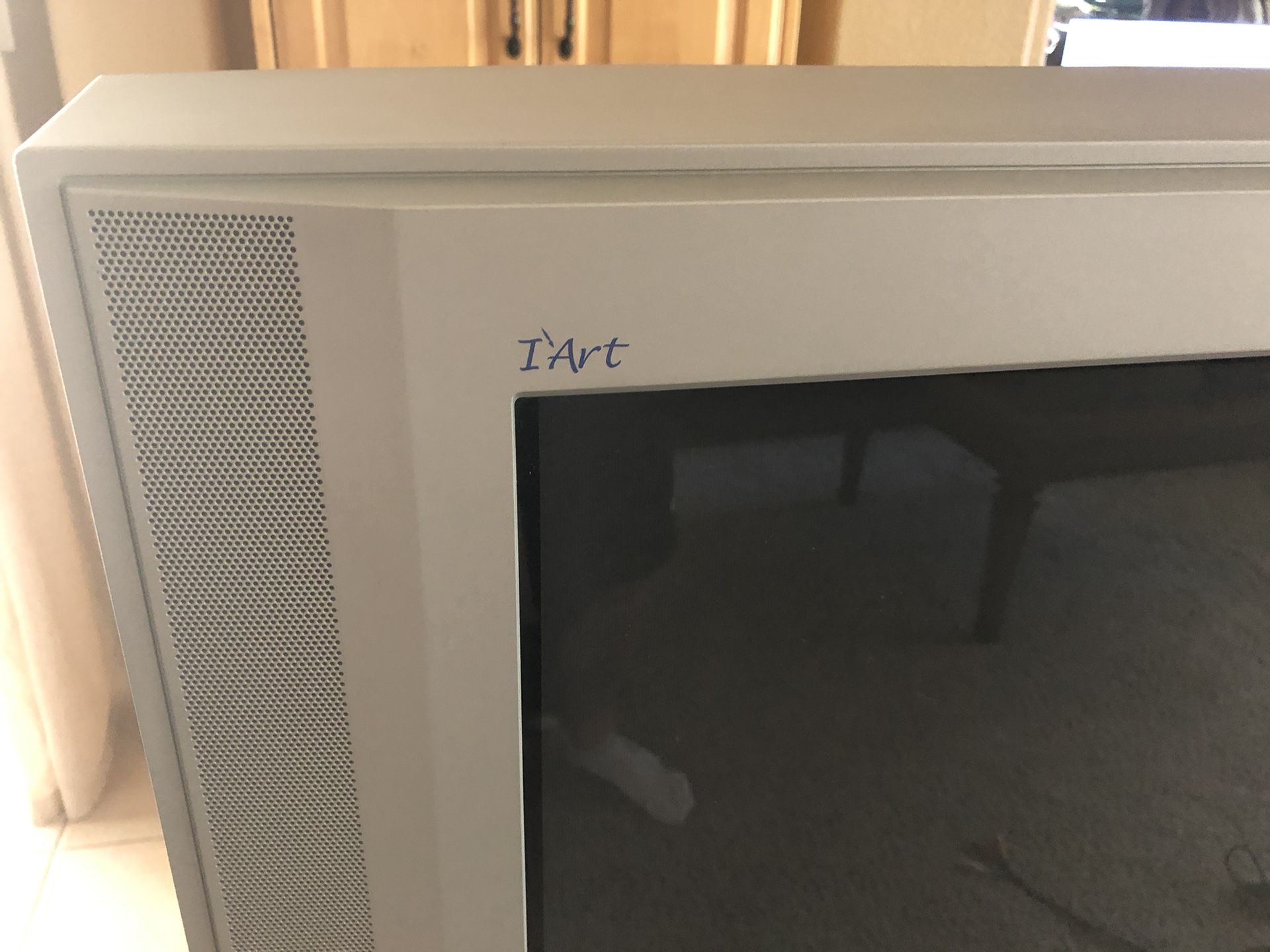

Series: | I'Art |
Viewable Size: | 32" |

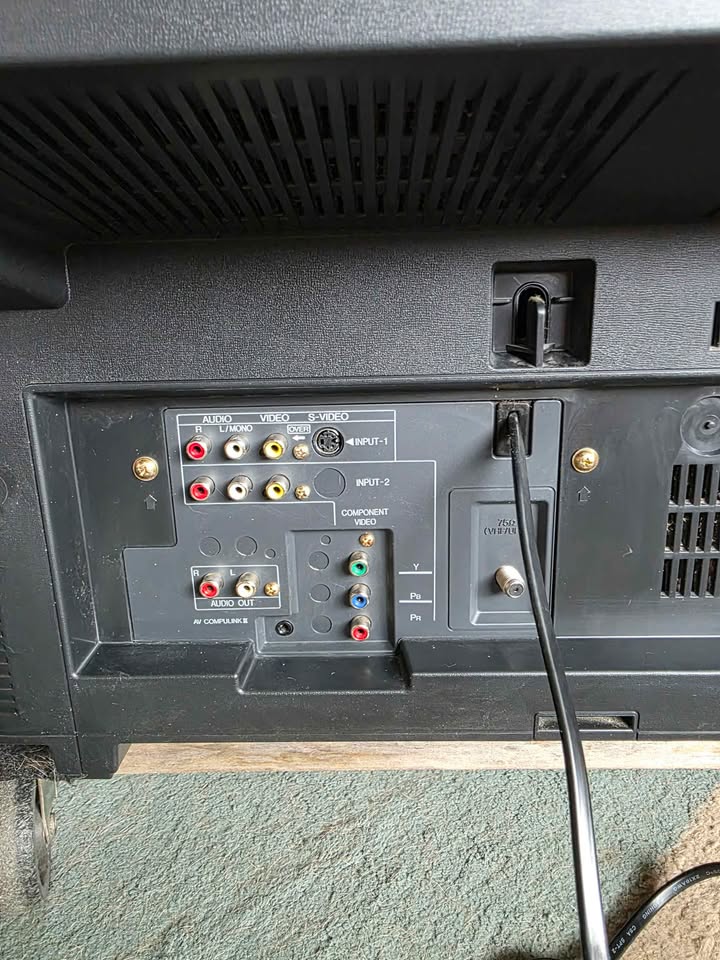

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | LA7841, Sanyo |
Jungle IC: | Toshiba, TM8812CSBNG3U68 |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Toshiba, TC90A49P |
Flyback: | QQH0125-001 |
Focus Type: | Single |
Tube: | Toshiba , A80AJZ90X03 , A80AJZ90X07 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |
Remote: | RM-C326G |
Chassis: | GJ |
Weight: | 140.8 lbs (63.9 kg) |
Dimensions (W/H/D): |
877 x 699 x 565 mm
(34.5 x 27.5 x 22.2") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
MSRP: | 1299 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
