Summary

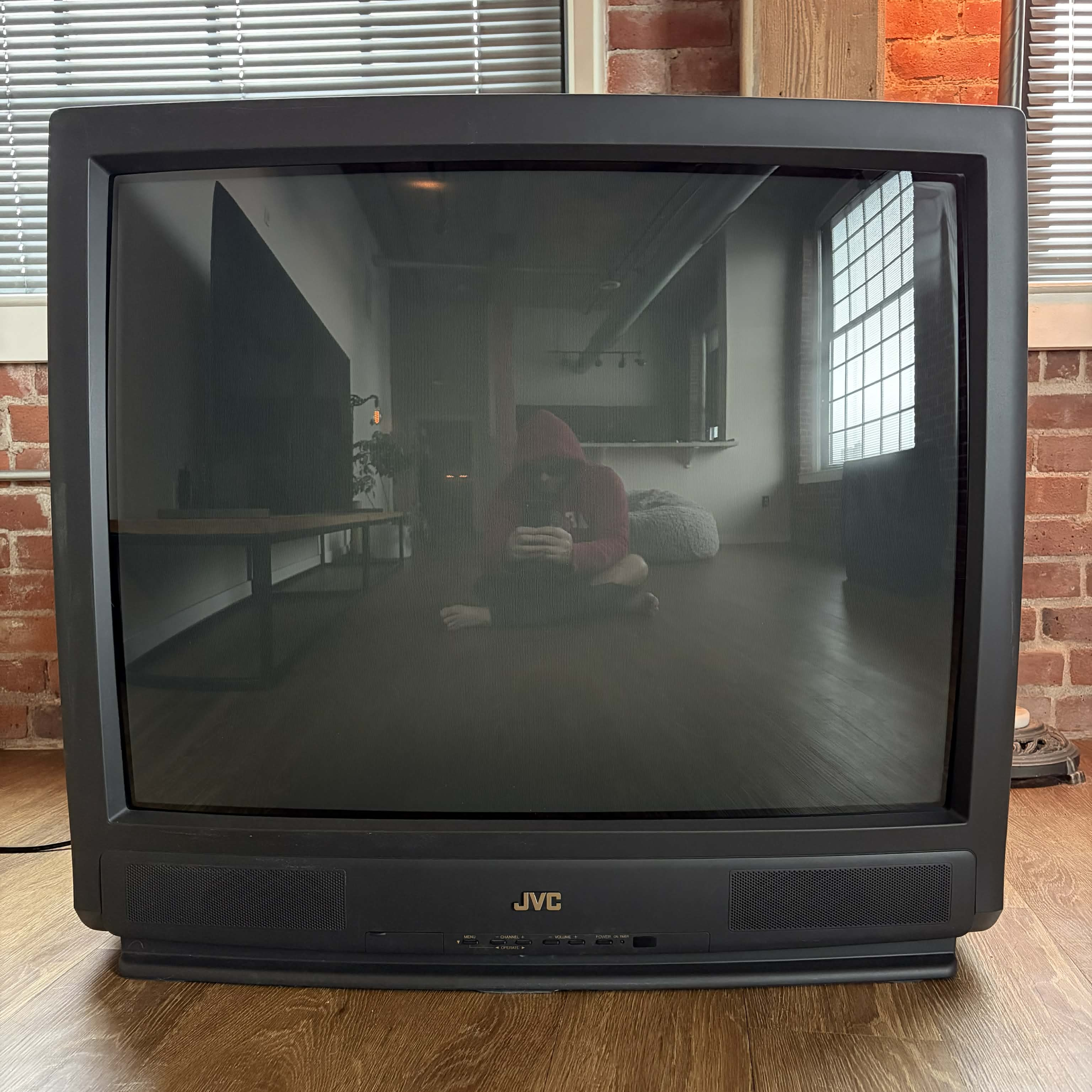

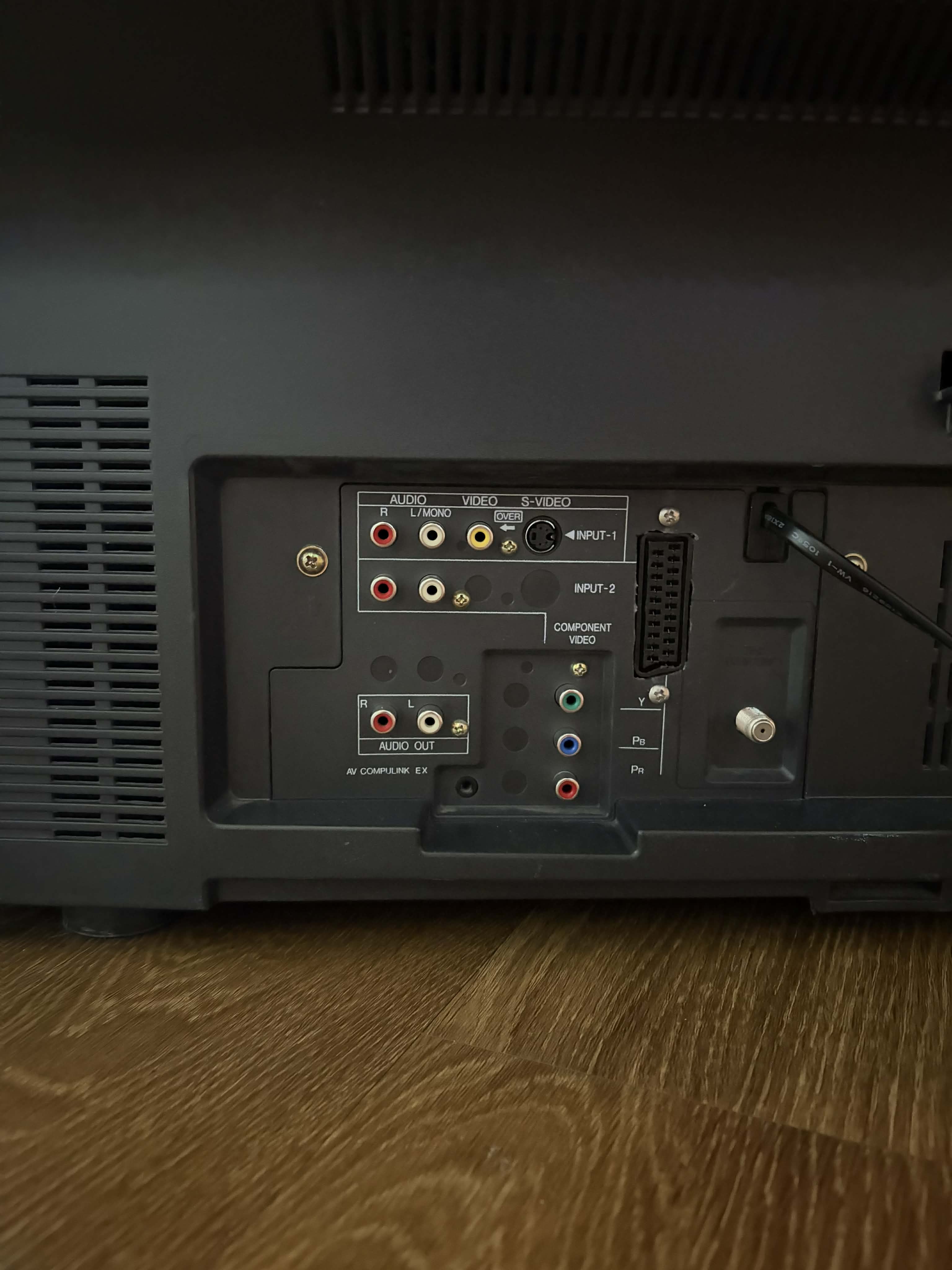

36" curved-screen CRT by JVC, made in Mexico in 2001. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to Luke Wadkins for the pics!)
Manuals
Media & Promo Materials
Notes

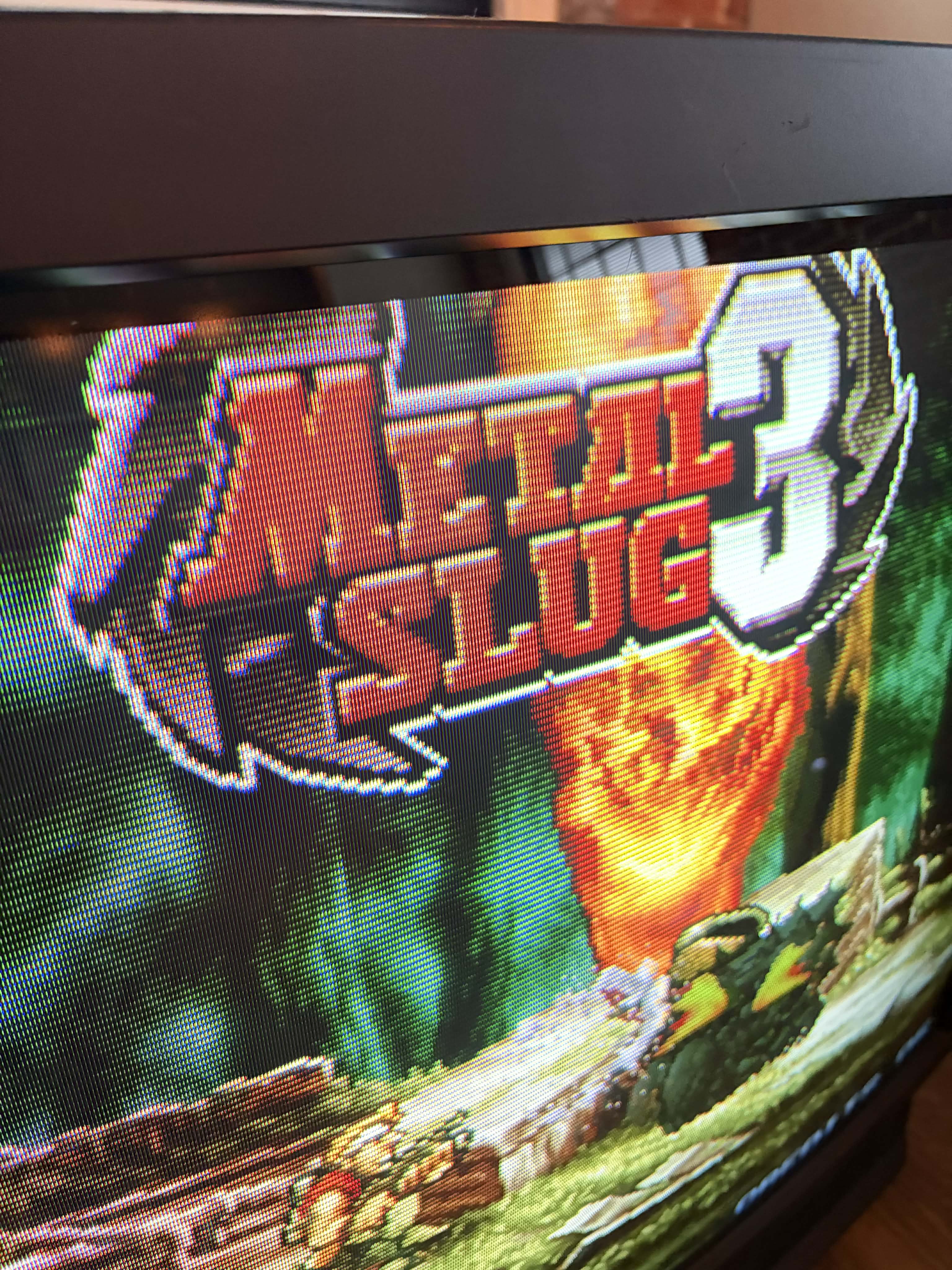

This TV can be modded for RGB. Component looks quite good on its own, but there's some nasty red push that is recommended you disable if one wants it looking closer to RGB.
Guide to disabling red push on these models HERE
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-36260 |
| Series: | AV |
| Viewable Size: | 20" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7841 |
| Jungle IC: | Toshiba, TB1253N, TB1253 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | TC90A53N |
| Flyback: | QQH0092-001 |
| Focus Type: | Single |
| Tube: | Hitachi , A90LPY30X04 , A90LPY30X , RCA , Thomson , A90AEJ15X01 , A90AEJ15X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |
| Speakers: | Stereo |
| Remote: | RM-C305 |
| Chassis: | AC |
| Weight: | 149.5 lbs (67.8 kg) |
| Dimensions (W/H/D): |
860 x 765 x 603 mm
(33.8 x 30.1 x 23.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 1099 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
