Summary
Modern multi-format monitor from JVC. Unlike the TM series, the DT series uses aperture grille Mitsubishi tubes instead of Chunghwa shadow masks.
Literature
Notes
WARNING: DO NOT CLEAN THIS MONITOR'S SCREEN WITH ANY PRODUCTS OTHER THAN DISTILLED WATER, OR DISH SOAP DILUTED IN DISTILLED WATER.
This tube has a fragile anti-glare coating which will be damaged by all common cleaning products including Ammonia-Free products. You should only clean it with distilled water or distilled water mixed with a few drops of dish soap. Use only a soft clean microfiber towel to wipe the screen. I reccomend buying a spray bottle to mist the screen with the water or dish soap solution.
If the screen has missing/discolored parts of the finish, or spots that look like scratches that don't come off, or parts where the mirror finish is missing, the coating has already been permanently damaged and should be removed. You can find instructions for removing and replacing the film here.
Many brands used these coatings including Mitsubishi, Sony, JVC, IBM, and more. Usually if the underlying tube technology is aperture grille-based and the monitor is a higher performance PC monitor, it can be assumed the tube has this fragile coating. The user manual of the monitor will also mention not to use any cleaning products on the screen.
Here is an example of what permanently damaged glare coating looks like: Click to open Image
This tube has a fragile anti-glare coating which will be damaged by all common cleaning products including Ammonia-Free products. You should only clean it with distilled water or distilled water mixed with a few drops of dish soap. Use only a soft clean microfiber towel to wipe the screen. I reccomend buying a spray bottle to mist the screen with the water or dish soap solution.
If the screen has missing/discolored parts of the finish, or spots that look like scratches that don't come off, or parts where the mirror finish is missing, the coating has already been permanently damaged and should be removed. You can find instructions for removing and replacing the film here.
Many brands used these coatings including Mitsubishi, Sony, JVC, IBM, and more. Usually if the underlying tube technology is aperture grille-based and the monitor is a higher performance PC monitor, it can be assumed the tube has this fragile coating. The user manual of the monitor will also mention not to use any cleaning products on the screen.
Here is an example of what permanently damaged glare coating looks like: Click to open Image

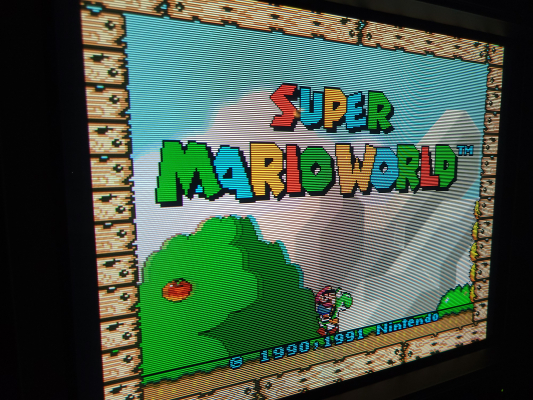

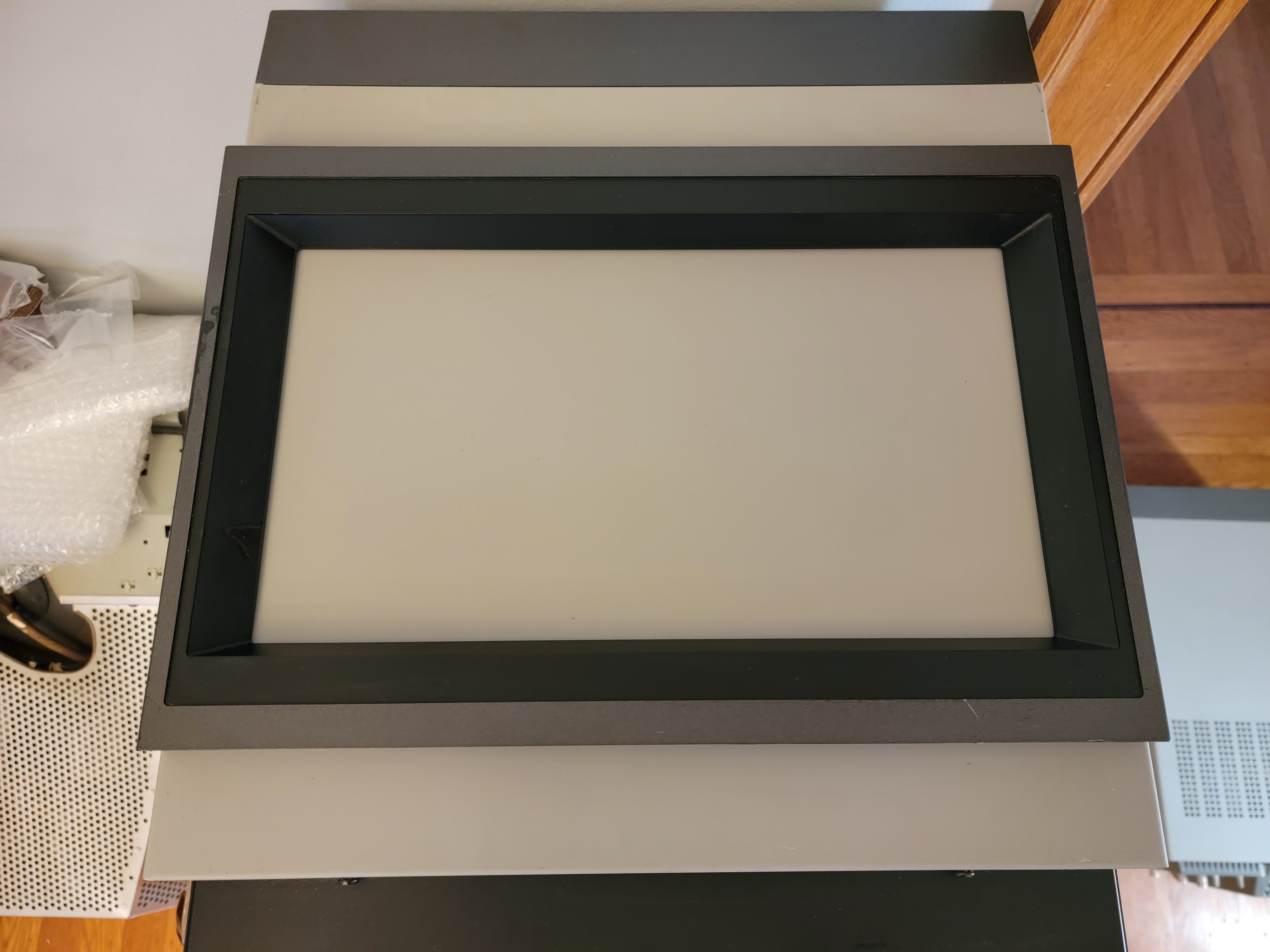

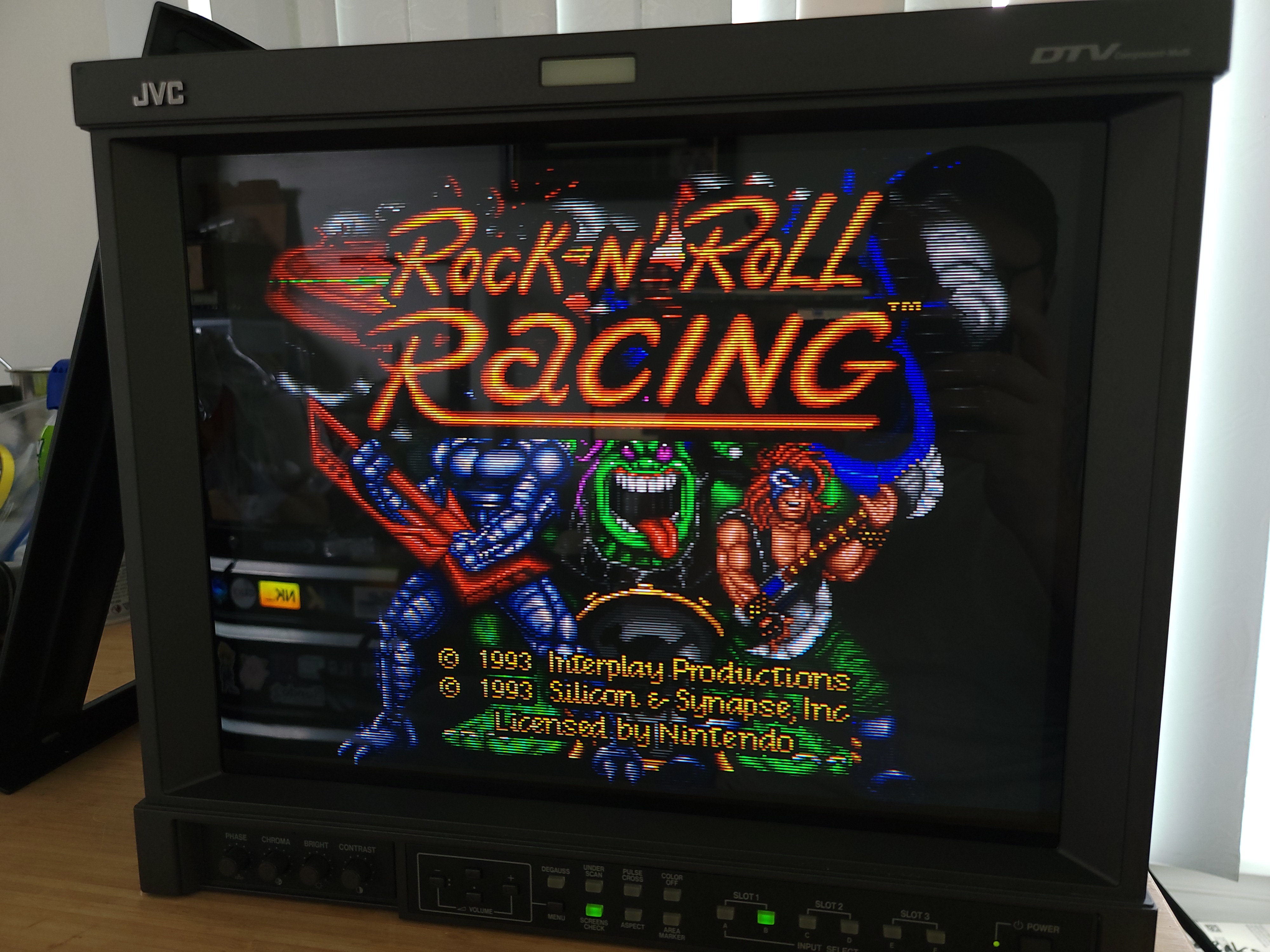

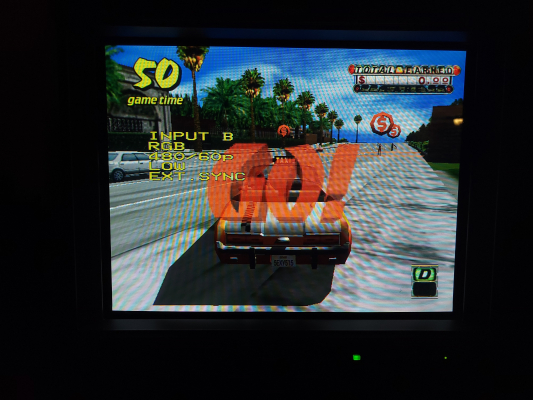

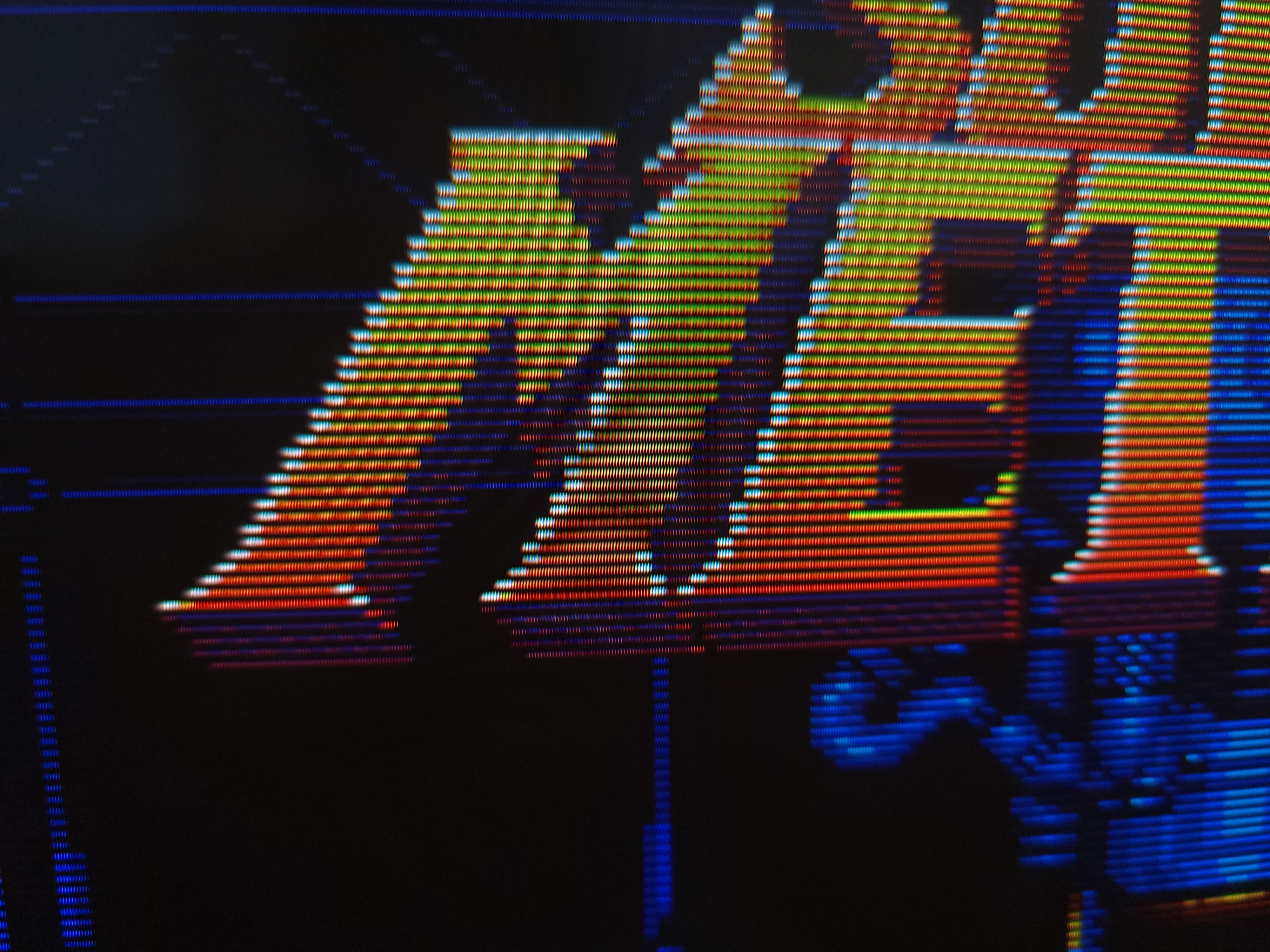

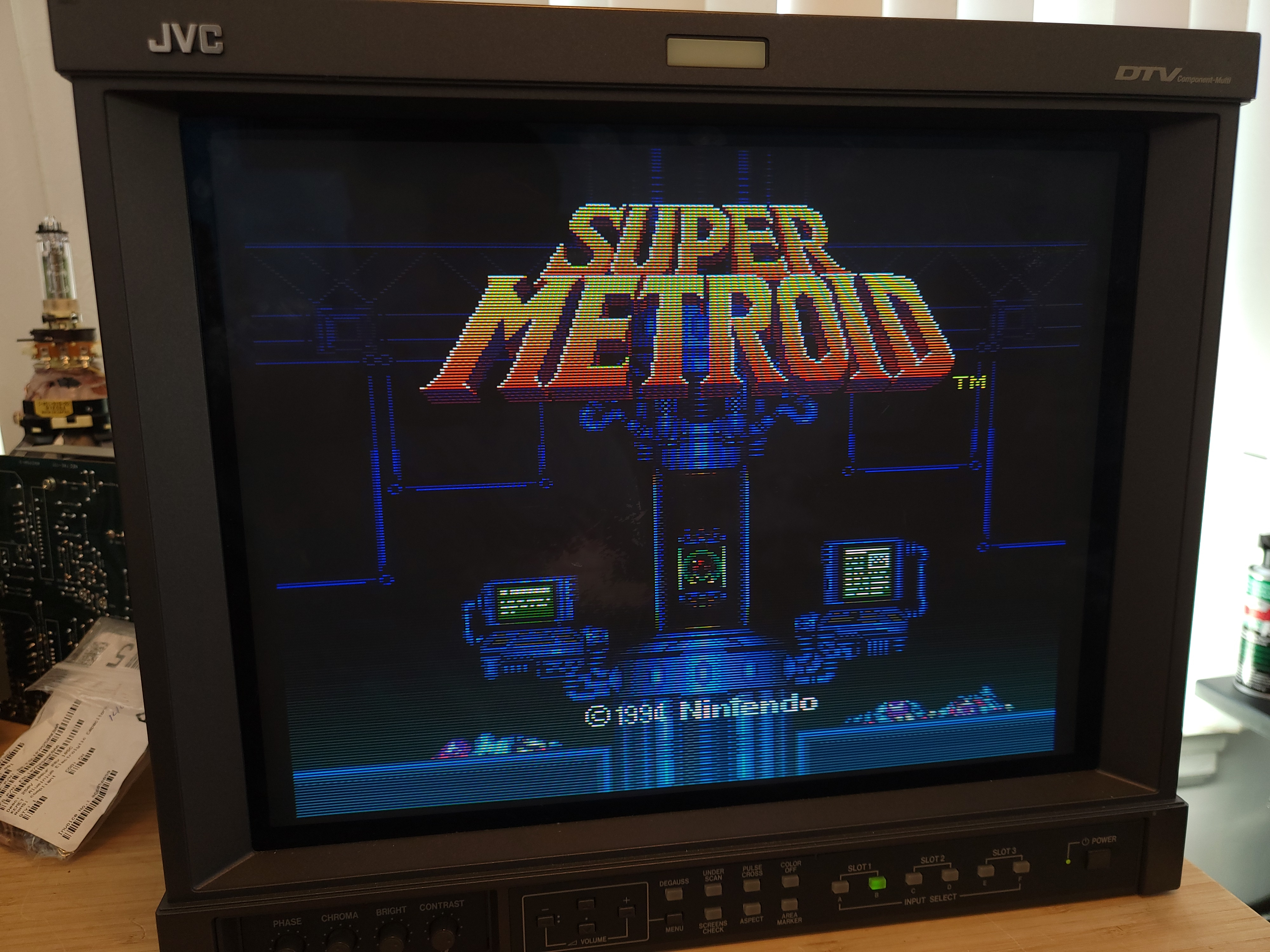

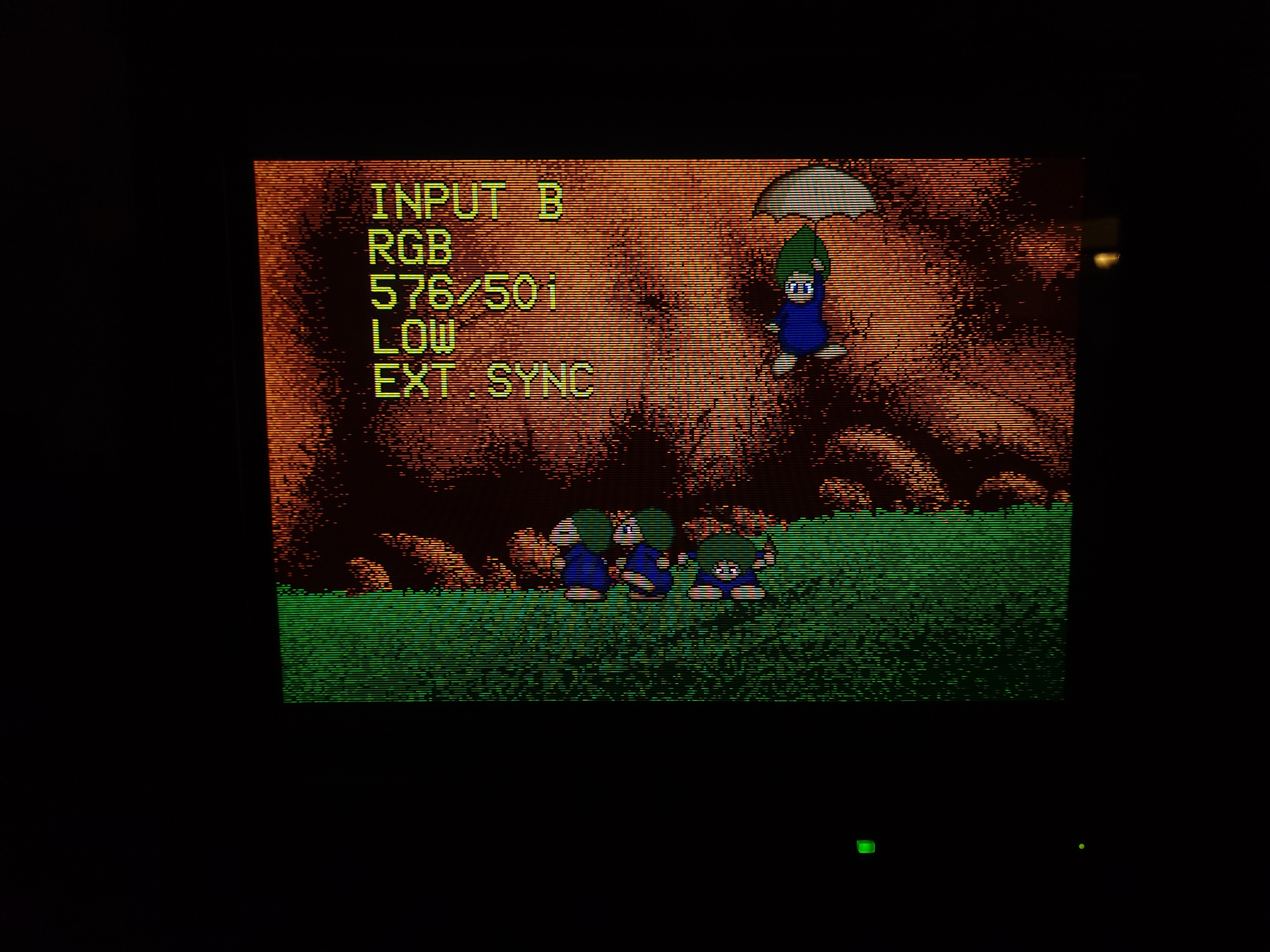

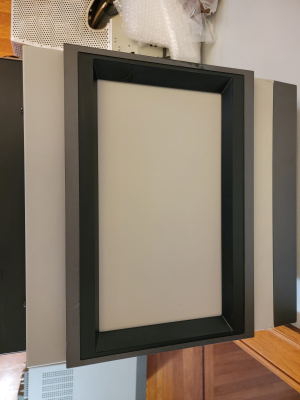

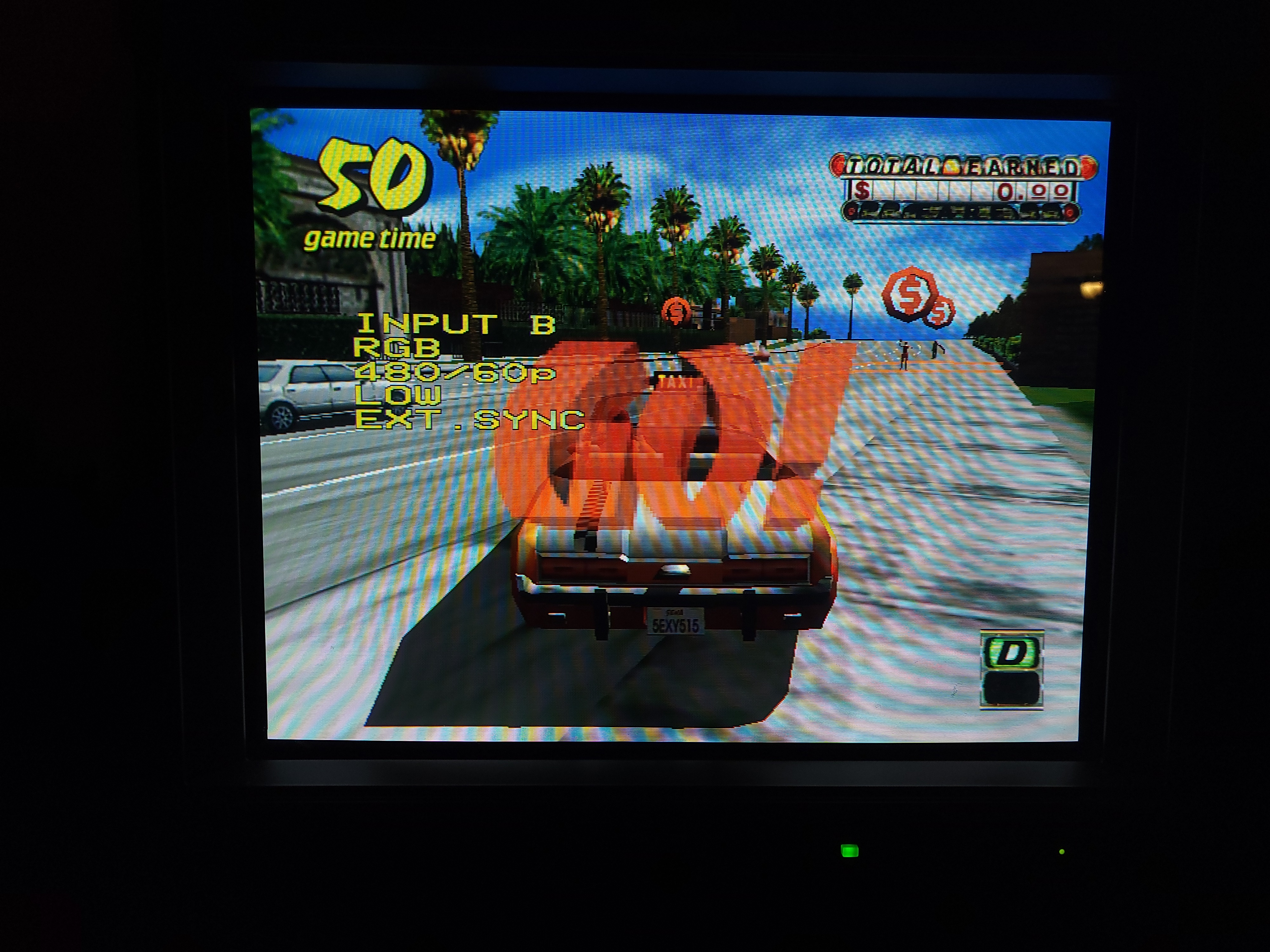

Gallery
Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | V1700CG |
Series: | DT |
Viewable Size: | 17" |
Inputs: | VGA, Composite, S-Video, Component YPbPr, RGB, SDI |
Sync: | HV Sync, CSYNC, Sync on Green, Sync over Composite, Sync on Luma |
Resolutions: | VGA, 240p, 480i, 480p, 720p, 1080i, 288p, 576p |
Linecount: | 800 TVL |
Horizontal Scan Range: | 15 kHz, 45 kHz |
Vertical Scan Range: | 50 Hz, 100 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Expansions: | Input Cards |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Tube: | Mitsubishi , M41LRY31X , M41LRY31X22 |
Deflection: | 90° |
Mask: | Aperture Grille |
Tint: | Dark |
Speakers: | Mono |
Weight: | 51 lbs (23 kg) |
Application: | Professional |
Launched: | 2001 |
Country of Manufacture: | Japan |
Mounting: | Rackable |
Degaussing: | Automatic on Power-on |
