Summary

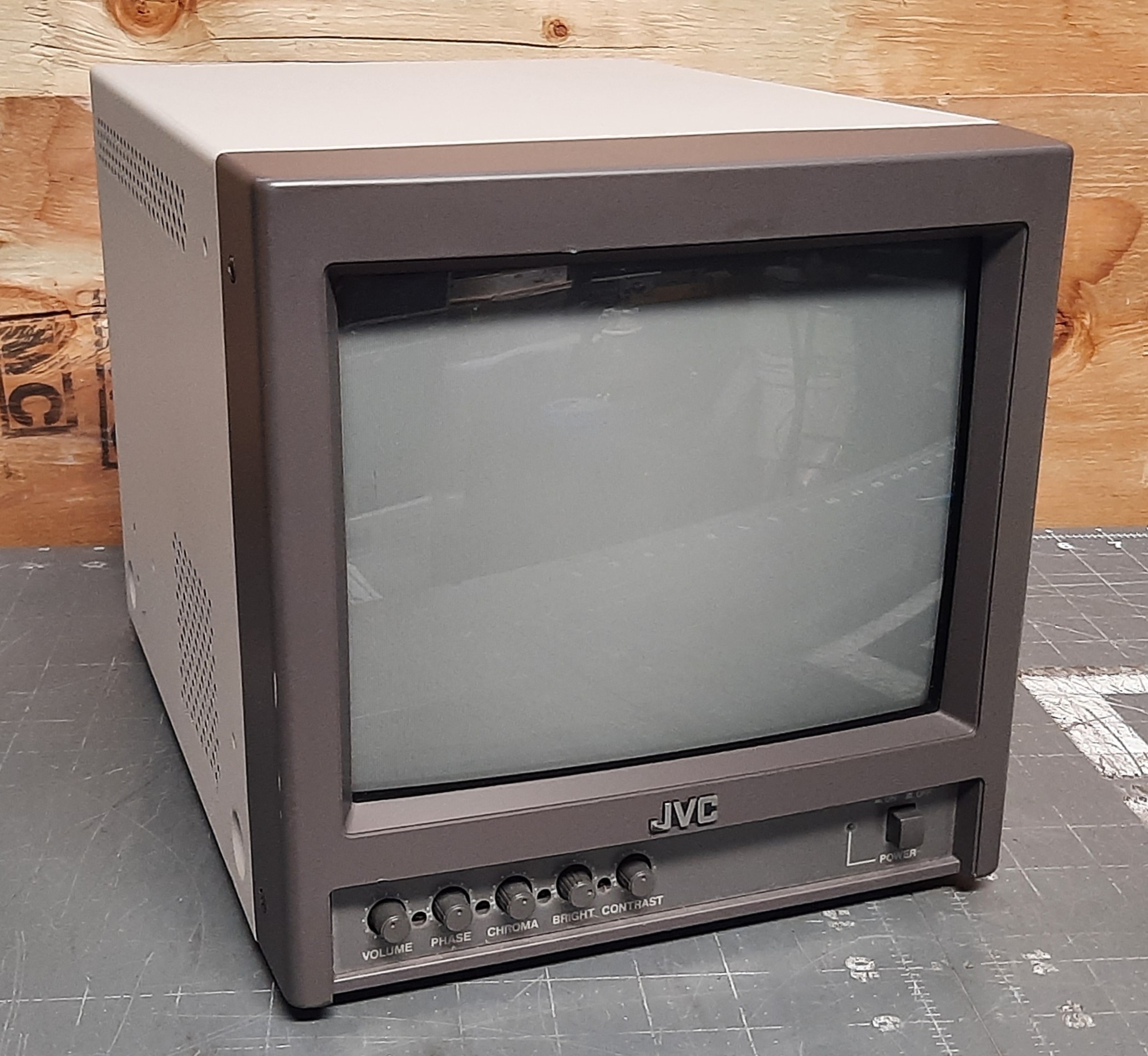

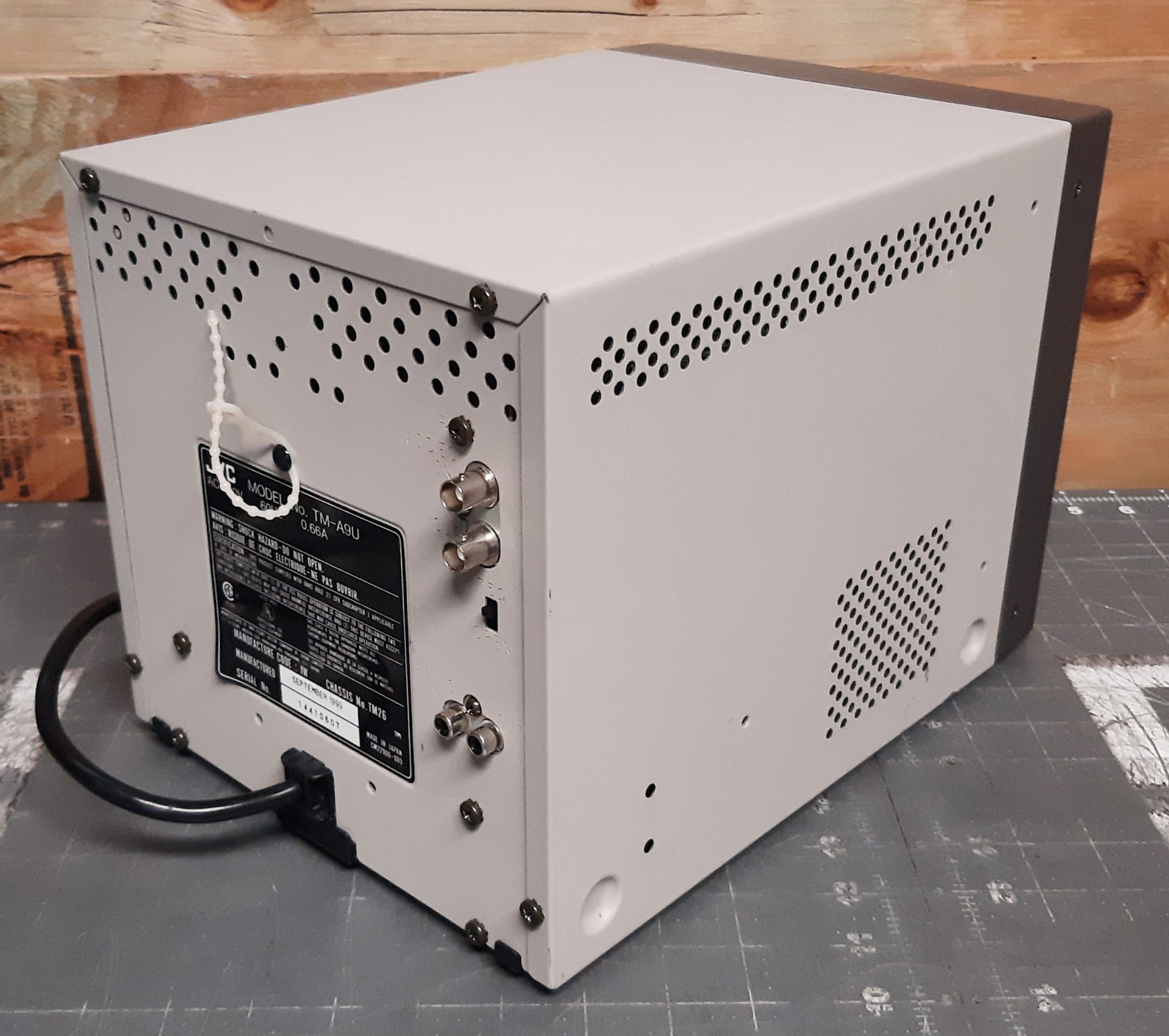

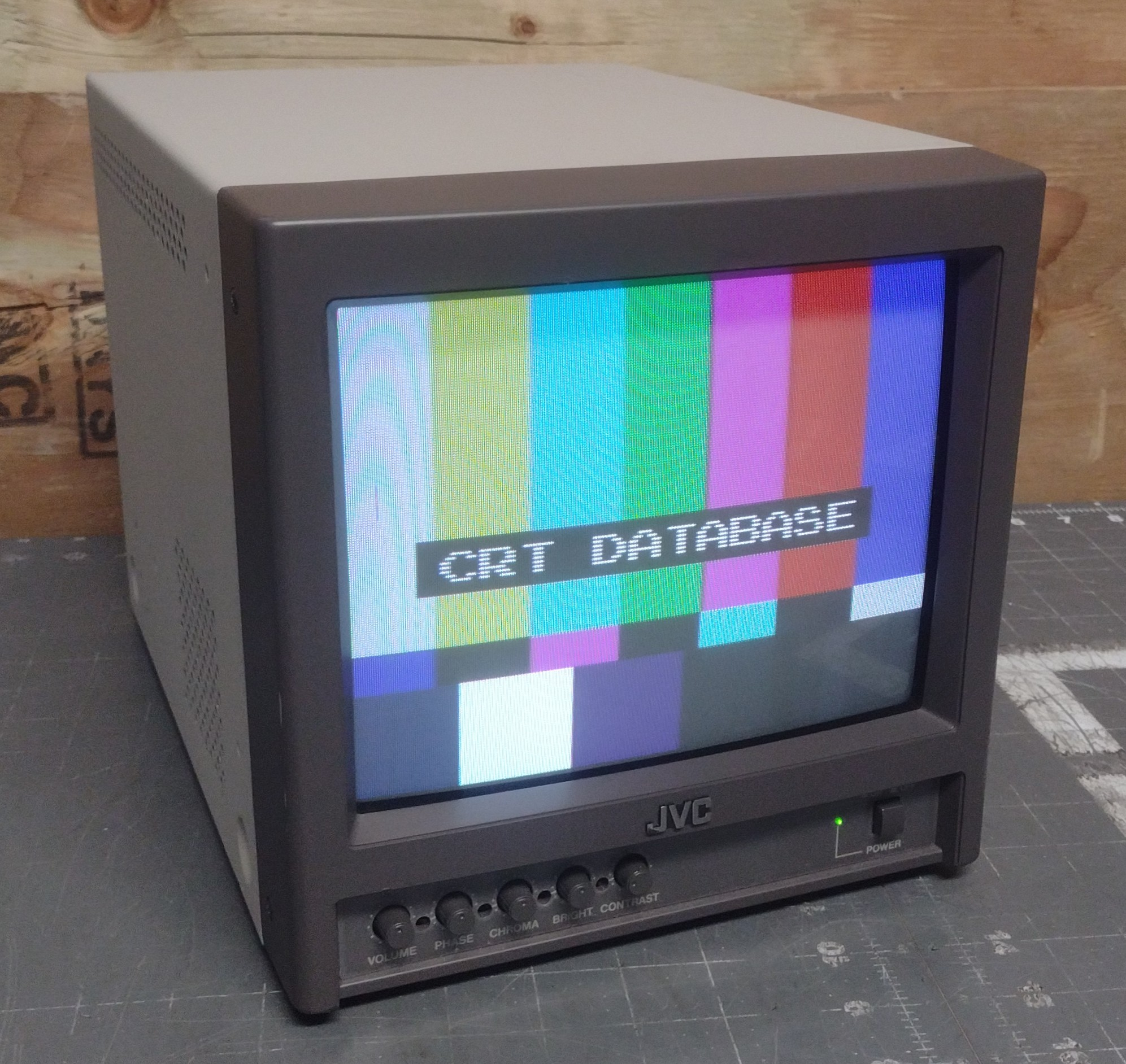

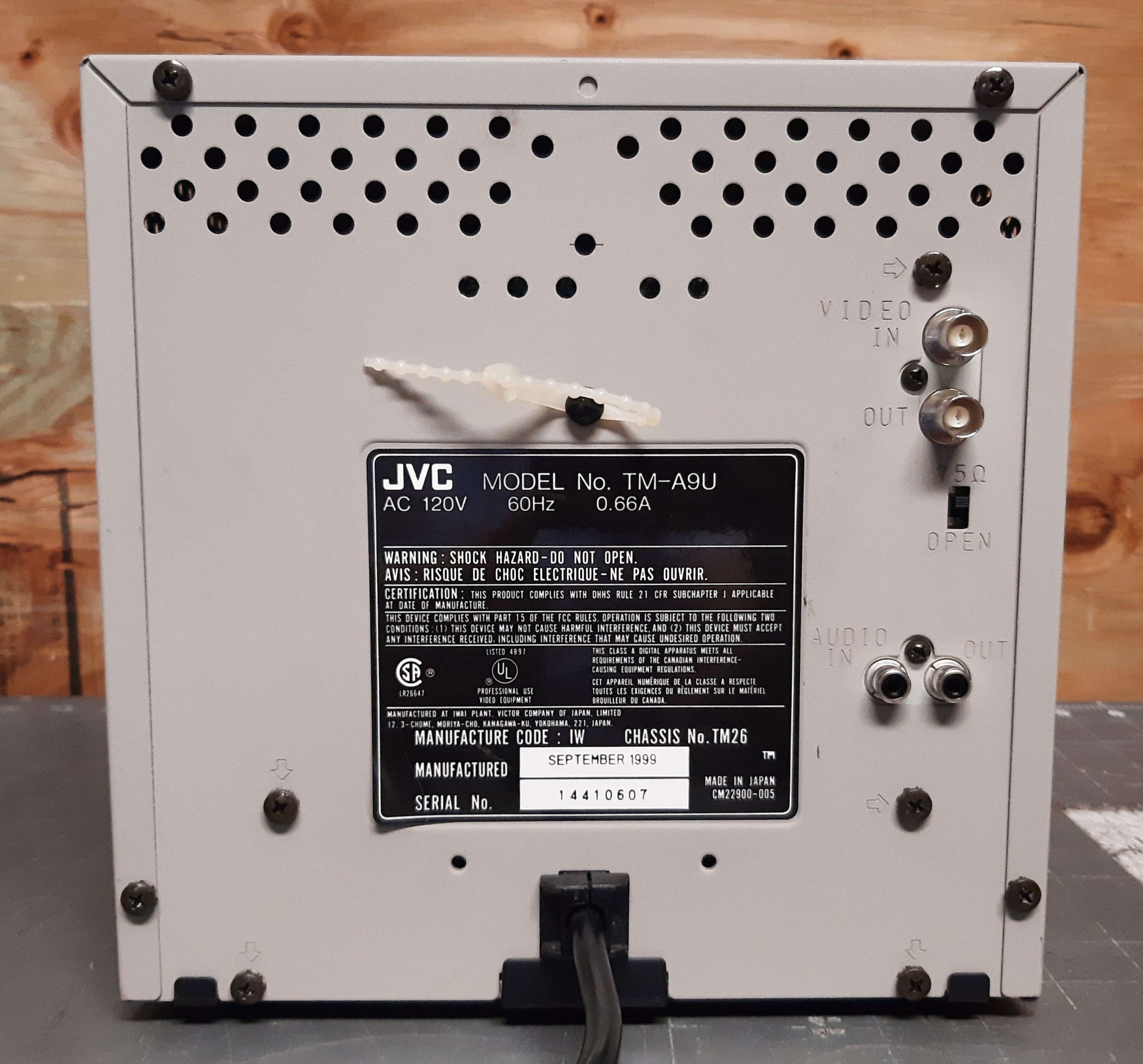

Basic 9" color monitor from JVC. Similar to the TM-910SU, but without the broadcast-specific functions. It has a single composite video input and a mono speaker.

Literature

• User Manual
• Service Manual
• Sales Brochure

Notes

The TM-A9UCV is a video-only version of this monitor. It is missing the speaker, audio input, and volume knob.

It has been speculated that the JVC TM series uses some prefix and suffix letters to denote what features the monitor has:

• A ??
• H indicates monitor has a high-TVL M-class tube. For JVC this usually means > 750 TVL Chunghwa tubes.
• C indicates the monitor has one or more option card slots on the back for input expansion.
• G indicates global signal compatibility, which simply means the monitor supports both NTSC and PAL formats, as well as 120/240 volt AC input.
• SU indicates the monitor has multiple additional features for video production such as external sync input, support for 16:9 mode, underscan, blue only, and other front panel toggles. In some cases all of these features are present on the monitor while in other cases only one or two.
• CV may abbreviate "Color Video". Generally indicates the monitor is designed for CCTV applications (24/7 operation).
