Summary

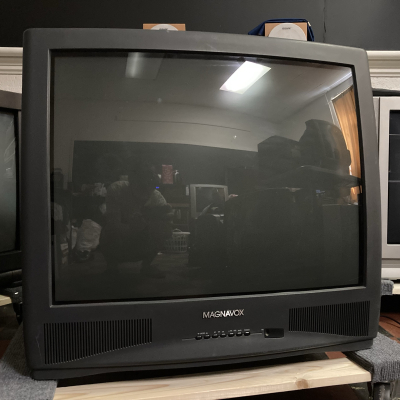

Mid-range 27" Magnavox TV with RF, composite and s-video input. Originally manufactured by North American Philips Corporation in 1995.
Manuals
Notes
When the TV is powered on via it's front panel and charged batteries are in the remote, the remote will make a chirping noise to notify it's location.

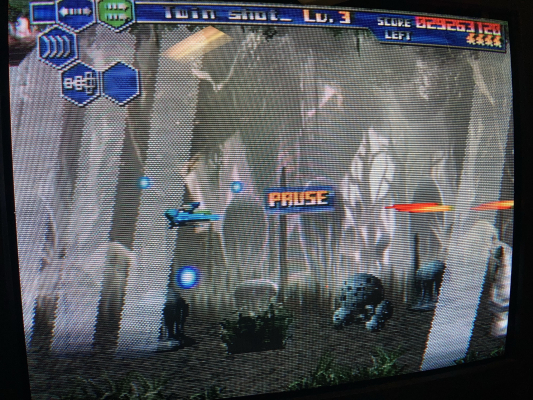

S-video quality is excellent via the Philips-made jungle IC.
While this set does have an OSD menu, service adjustments are conducted with potentiometers on the board itself.
Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | North American Philips |
| Model: | 27TP82 C103 |
| Series: | TP |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle: | Philips, TDA8369 |
| Flyback: | 0036-4103-0001 |
| Focus Type: | Single |
| Tube: | Philips , A68AGN32X02 , A68AGN32X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 601-607418-007 |
| Speakers: | Stereo |
| Remote: | 00M174DB-AA01 |
| Chassis: | 27R501-00AA, 27R5 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| MSRP: | 499 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Measurements |
