Magnavox AV2777 A204
SegaSaturn94
July 19, 2026, 10:11 am
July 19, 2026, 2:36 pm
July 19, 2026, 10:11 am
July 19, 2026, 2:36 pm
Summary

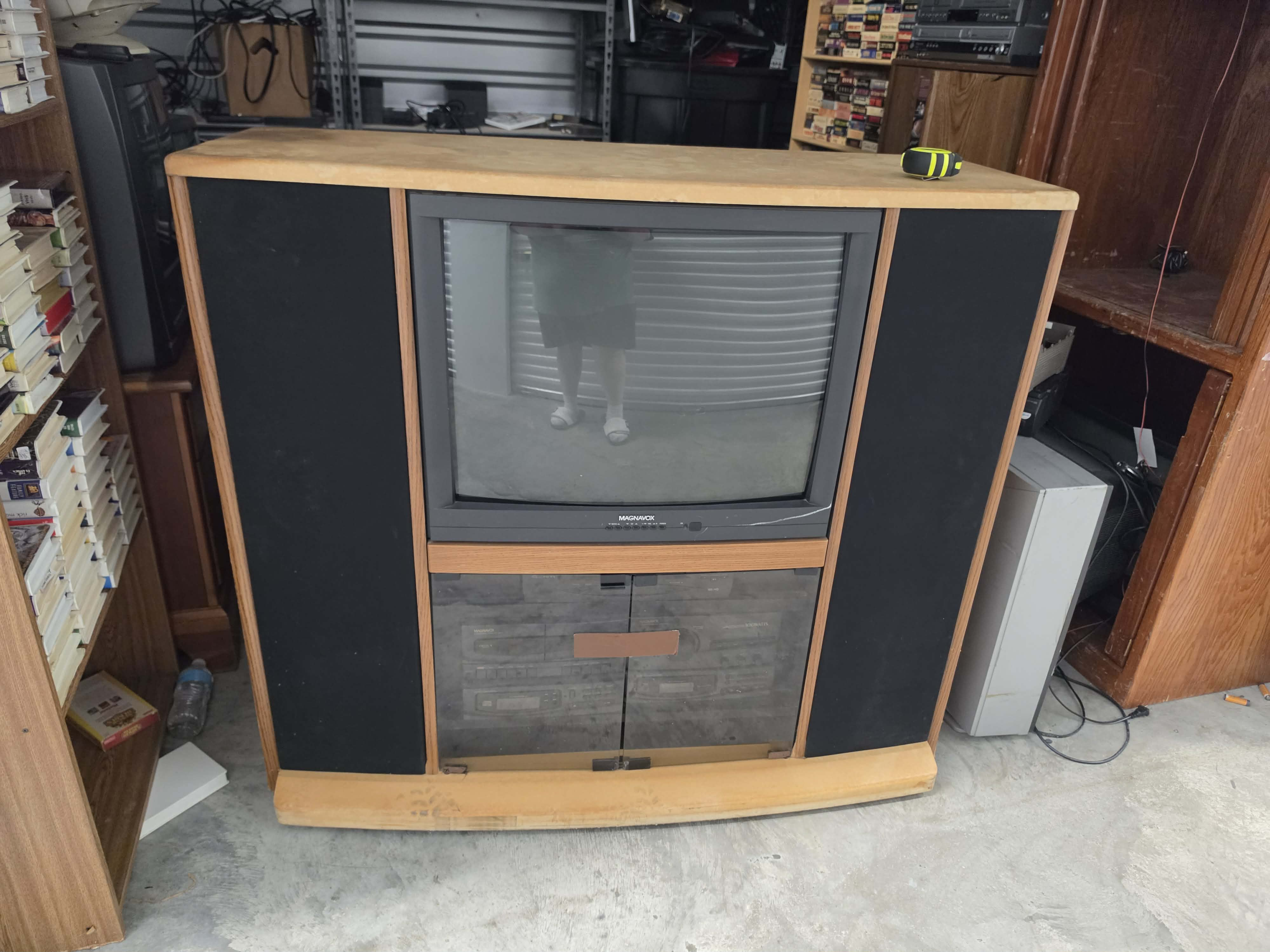

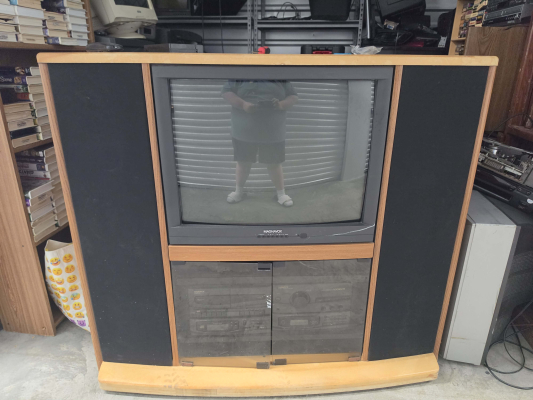

27" console TV with integrated AV system by Magnavox, launched in 1996. Has RF and composite inputs with excellent stereo sound. Originally manufactured by Philips in the USA.
(Special thanks to Pryce Wilson for the pics!)
Manuals
(None at this time.)
Notes

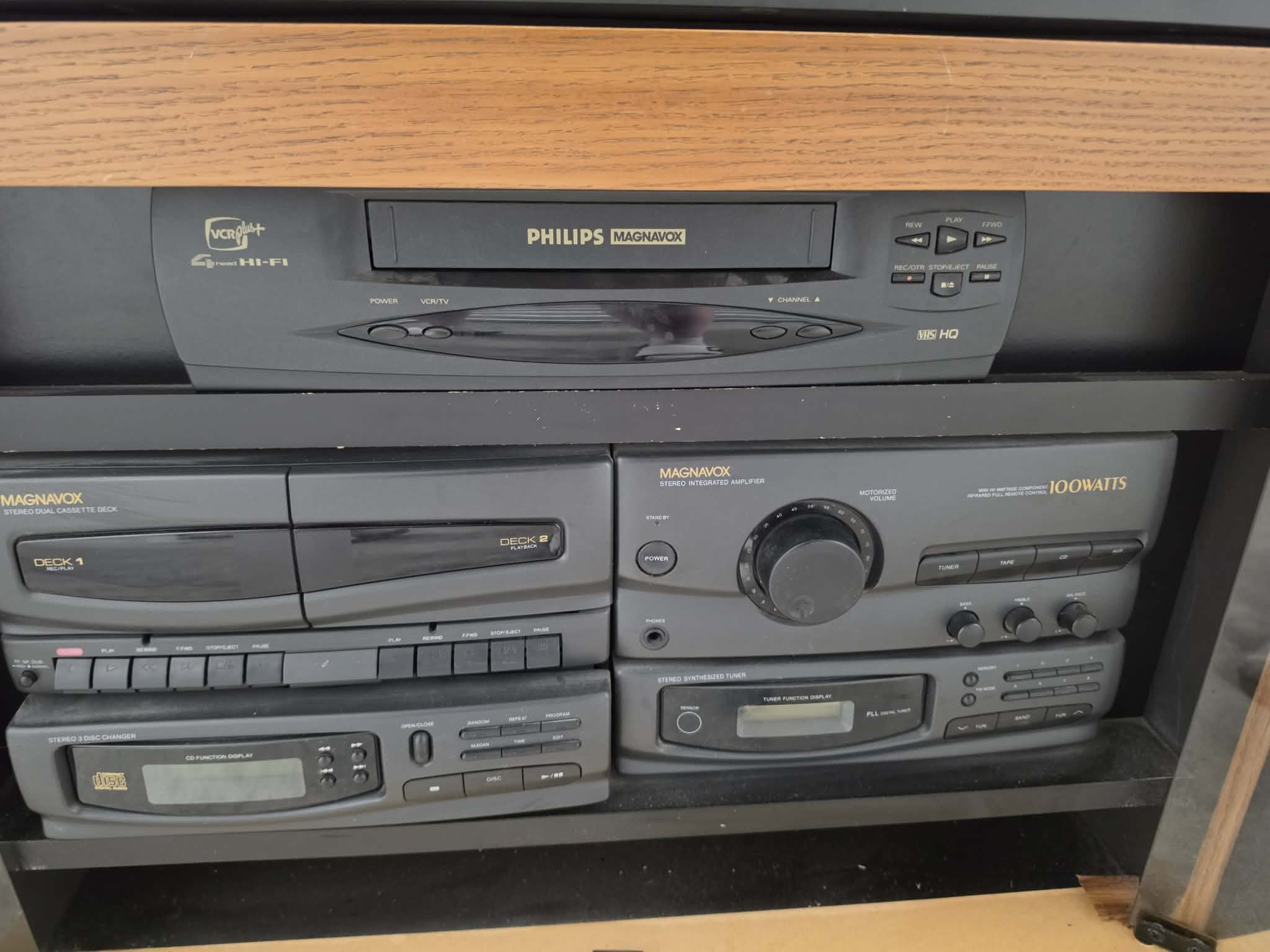

The integrated equipment includes the following:
- Philips-Magnavox VCR model VRX262AT22 (Funai chassis)
- Magnavox Stereo Dual Casette Deck
- Stereo 3 Disc CD changer
- 100 Watt Stereo Amplifier
- Stereo Synthesized Tuner
These AV-series consoles by Magnavox are tough to get any info on. I speculate they may have been sold exclusively at some furniture stores like some Zenith and RCA consoles had at the time.
Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Philips |

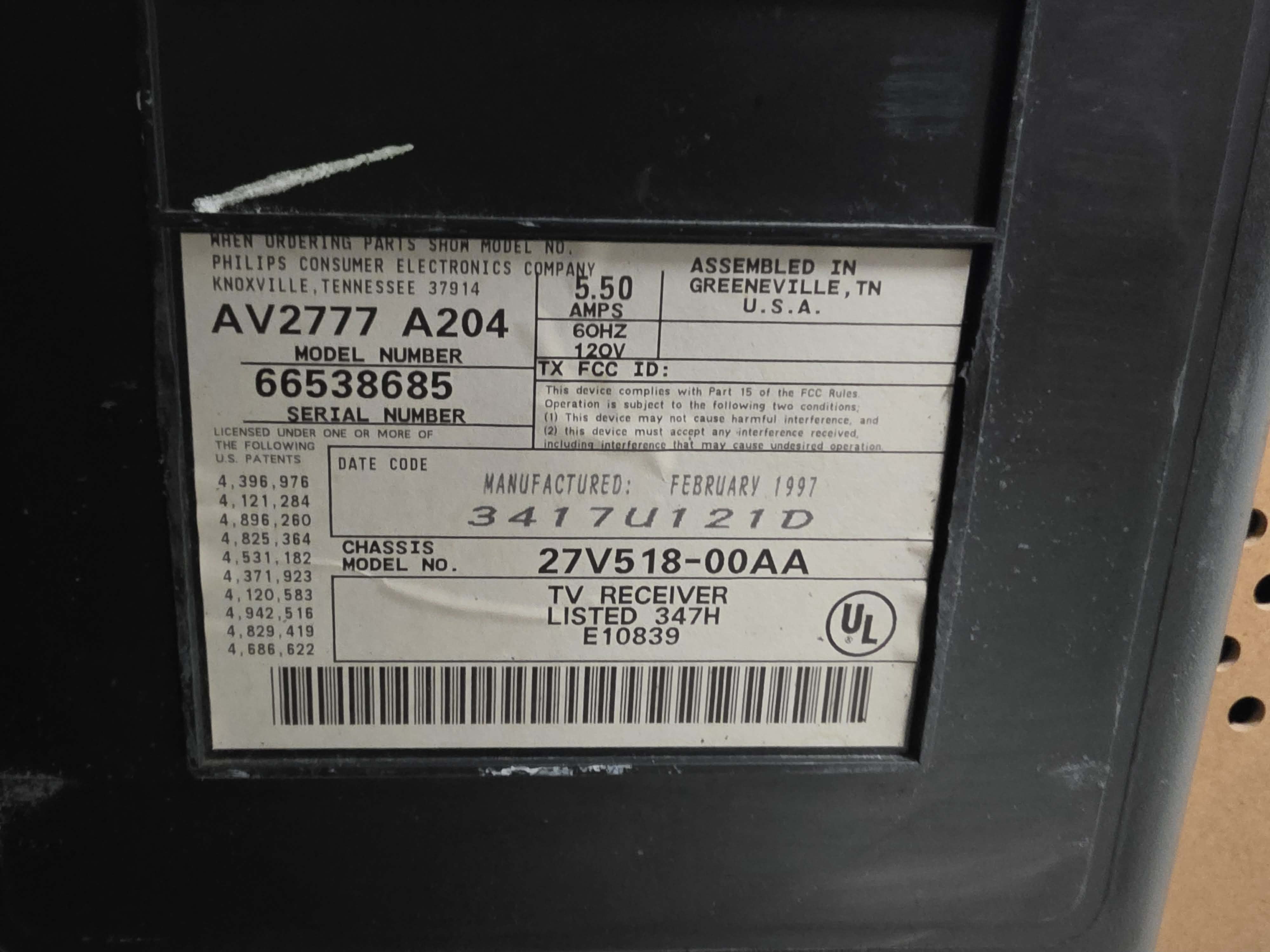

| Model: | AV2777 A204 |
| Series: | AV |
| Viewable Size: | 27" |

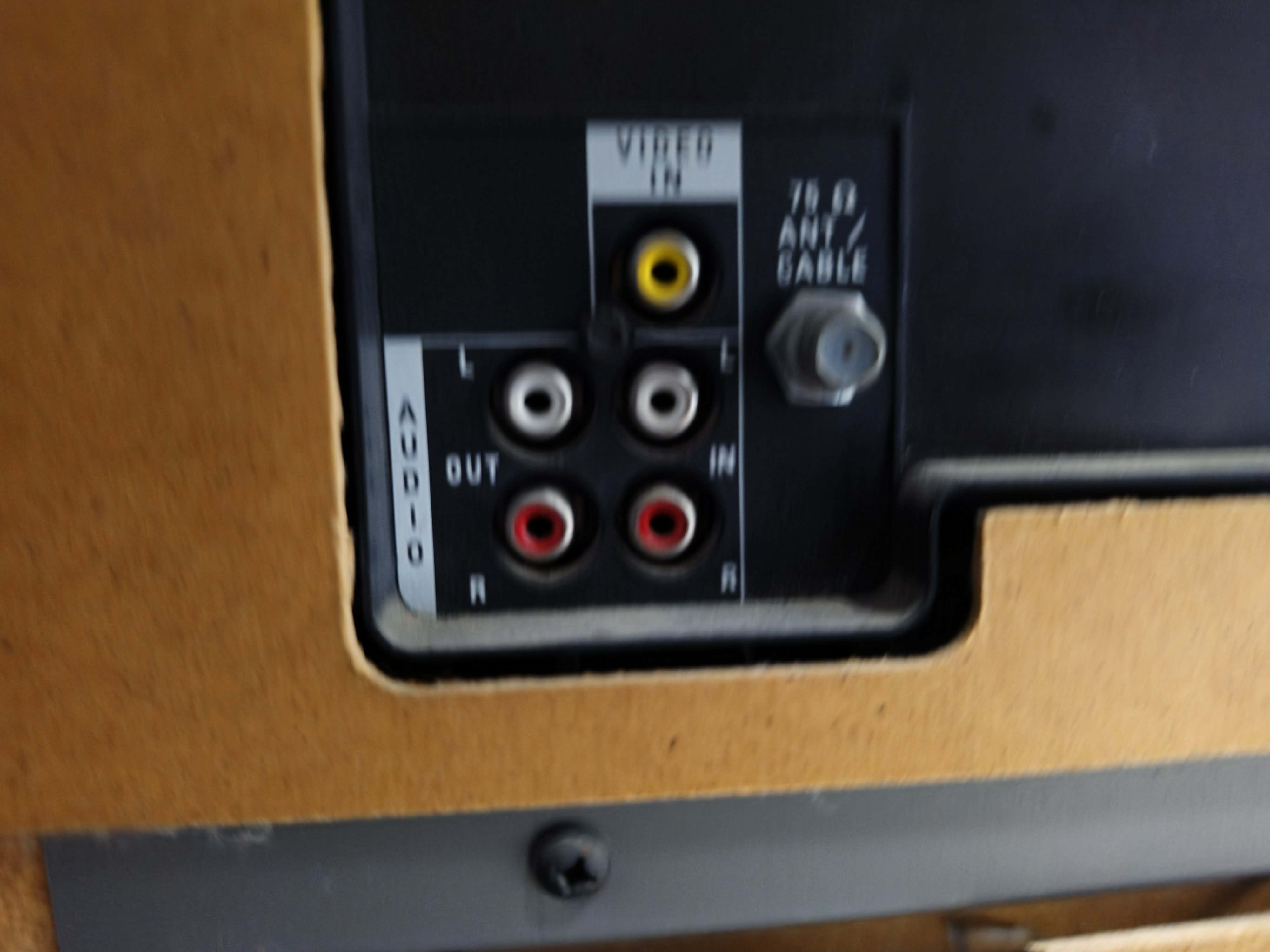

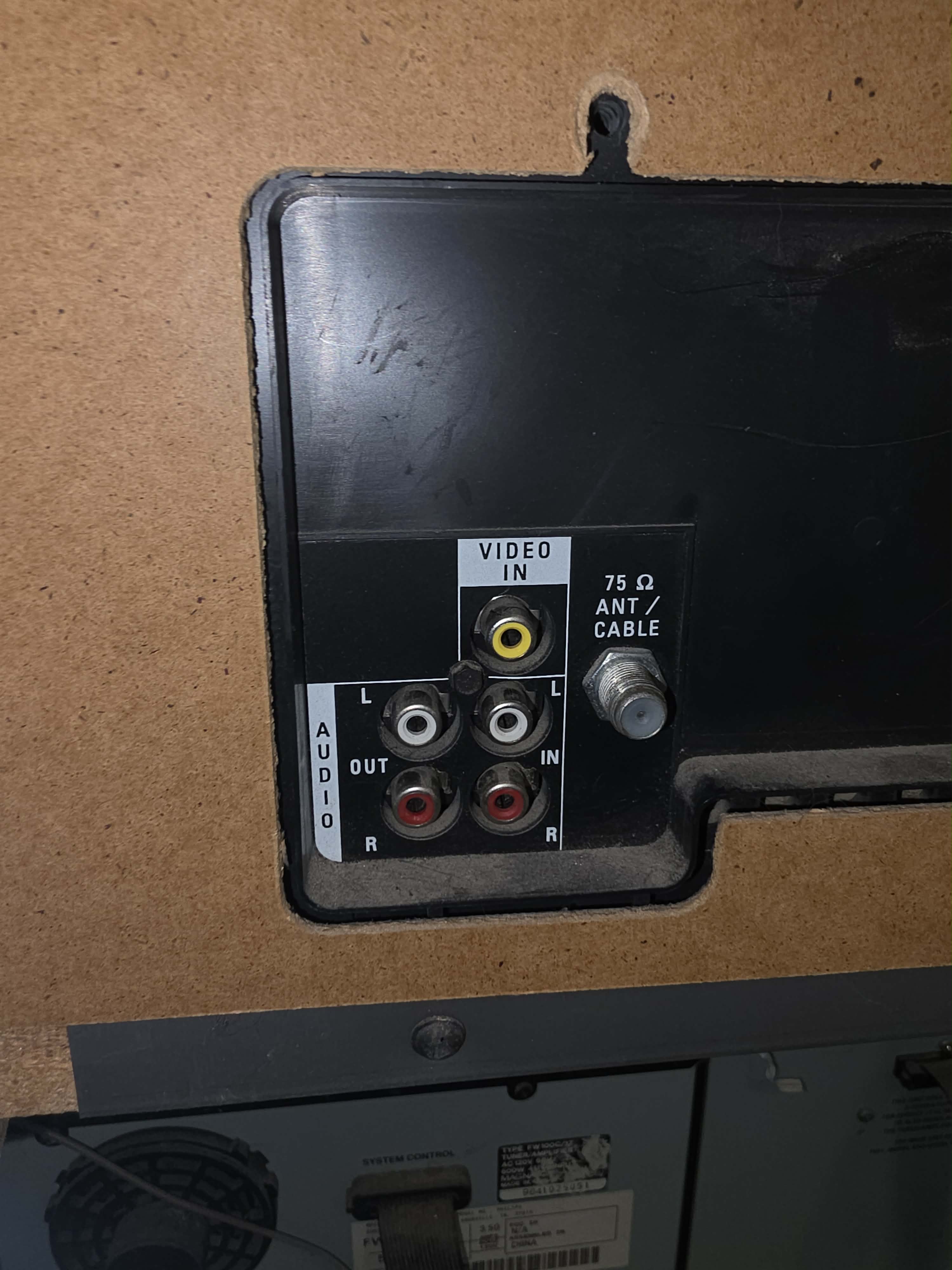

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D2627 |
| Jungle IC: | Philips, TDA8369 |

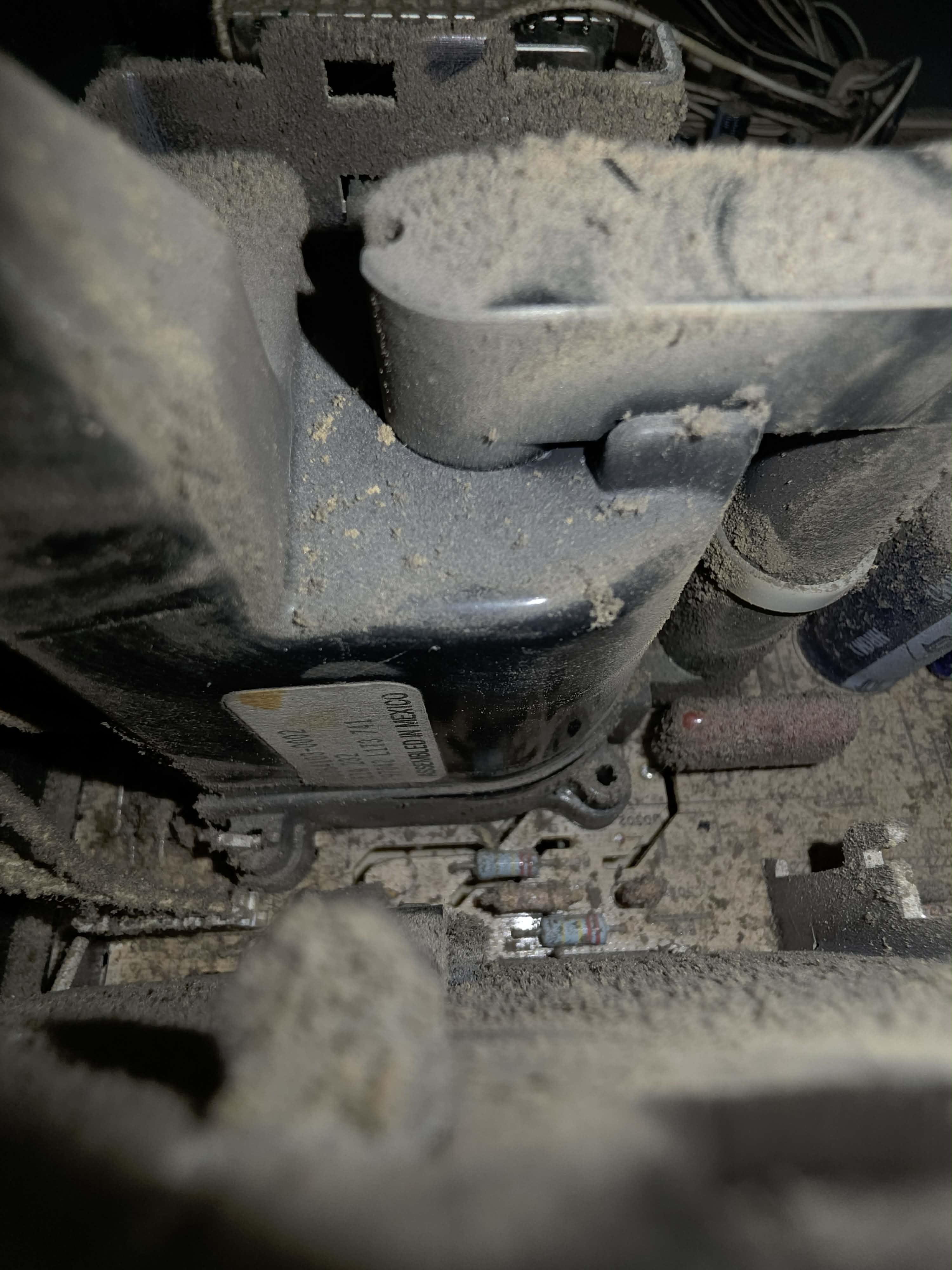

| Flyback: | 0036-4103-0002 |
| Focus Type: | Single |

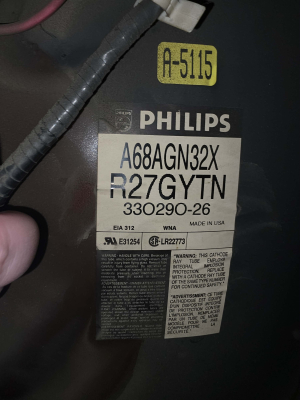

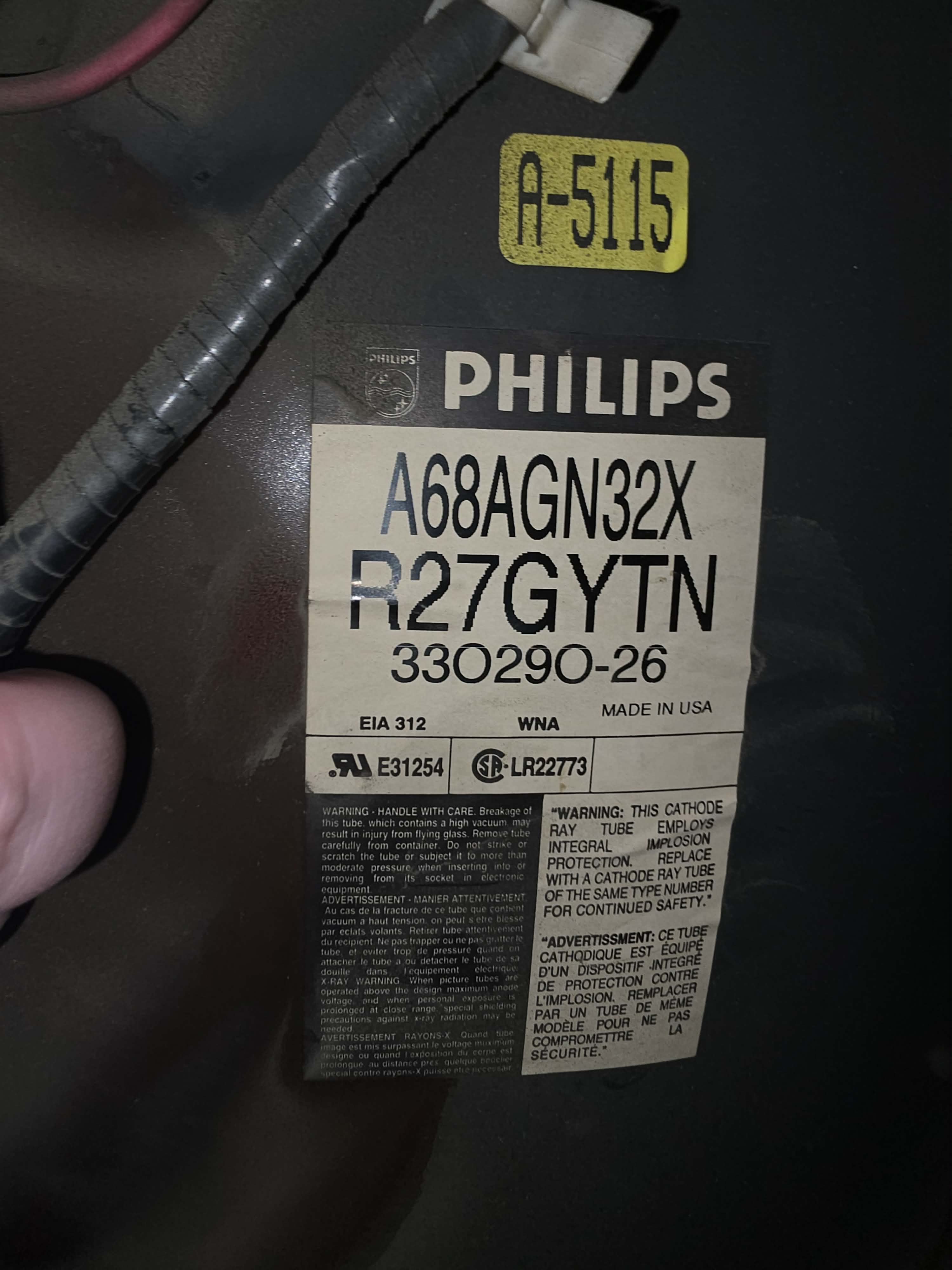

| Tube: | Philips , A68AGN32X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

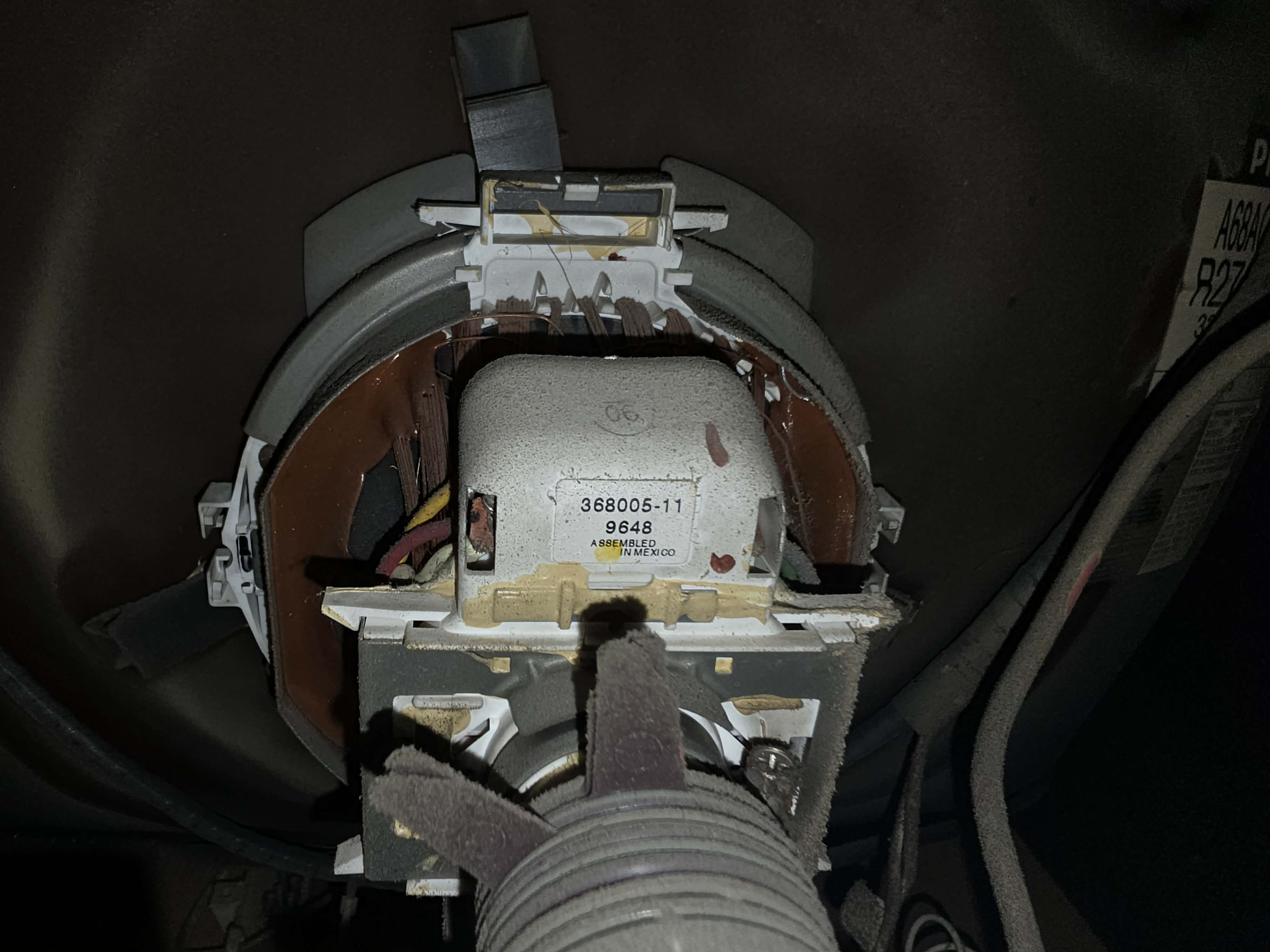

| Yoke: | 368005-11 |
| Speakers: | Stereo |

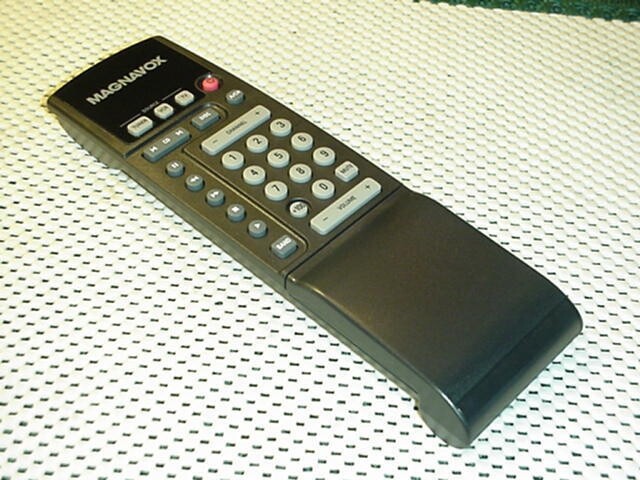

| Remote: | RC7139 |
| Chassis: | 27V518-00AA, V5 |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1996 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
