Summary
Combo by Funai requires a compatible remote with a "Picture" button in order to access picture settings.
Manuals
Mods & Repair Guides
Notes
Accessing the service menu requires cutting and bodging pins on a small IC inside the remote and is not novice-friendly.
The internal DVD player is connected to the jungle chip via Y/C (S-Video).

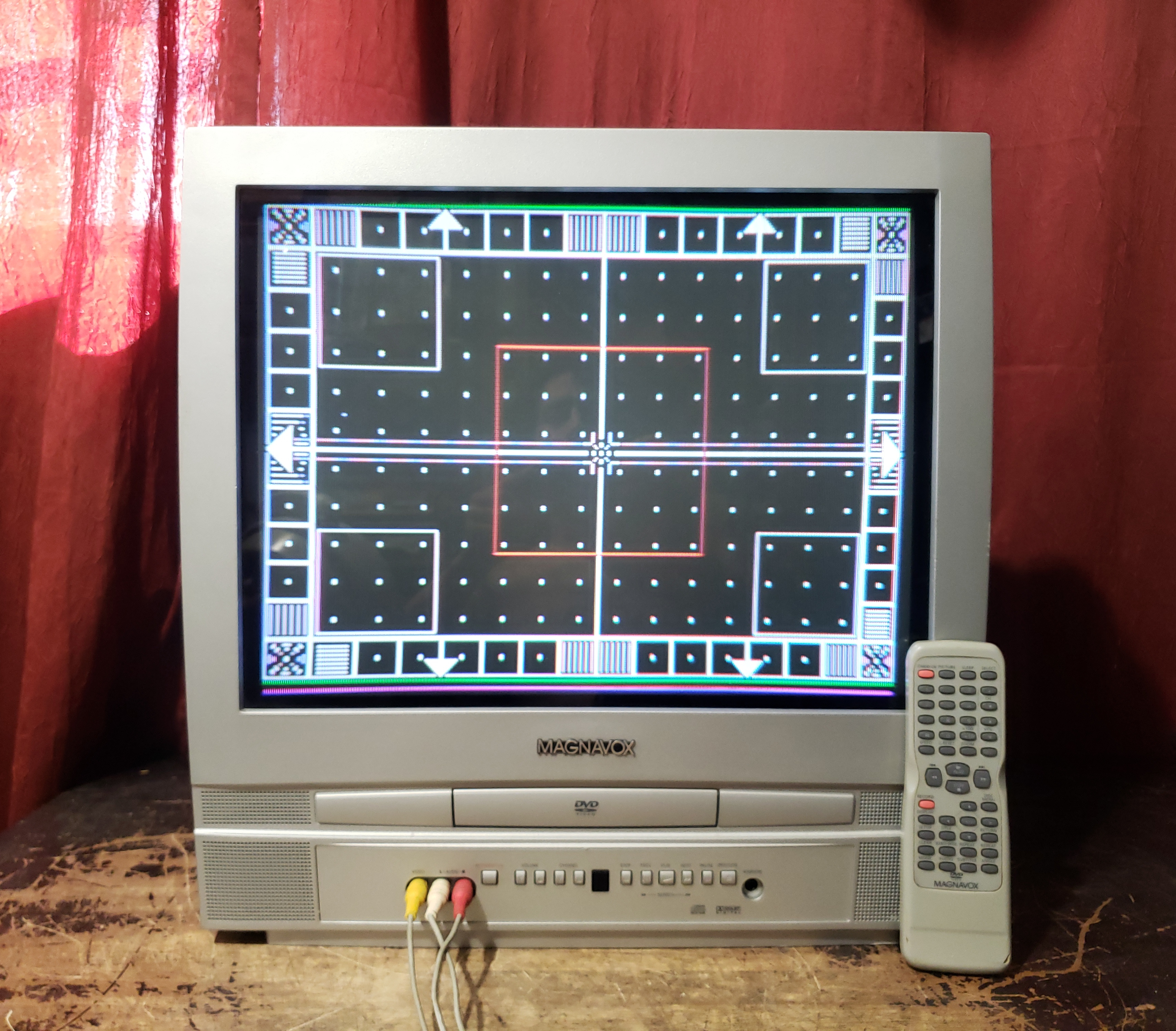

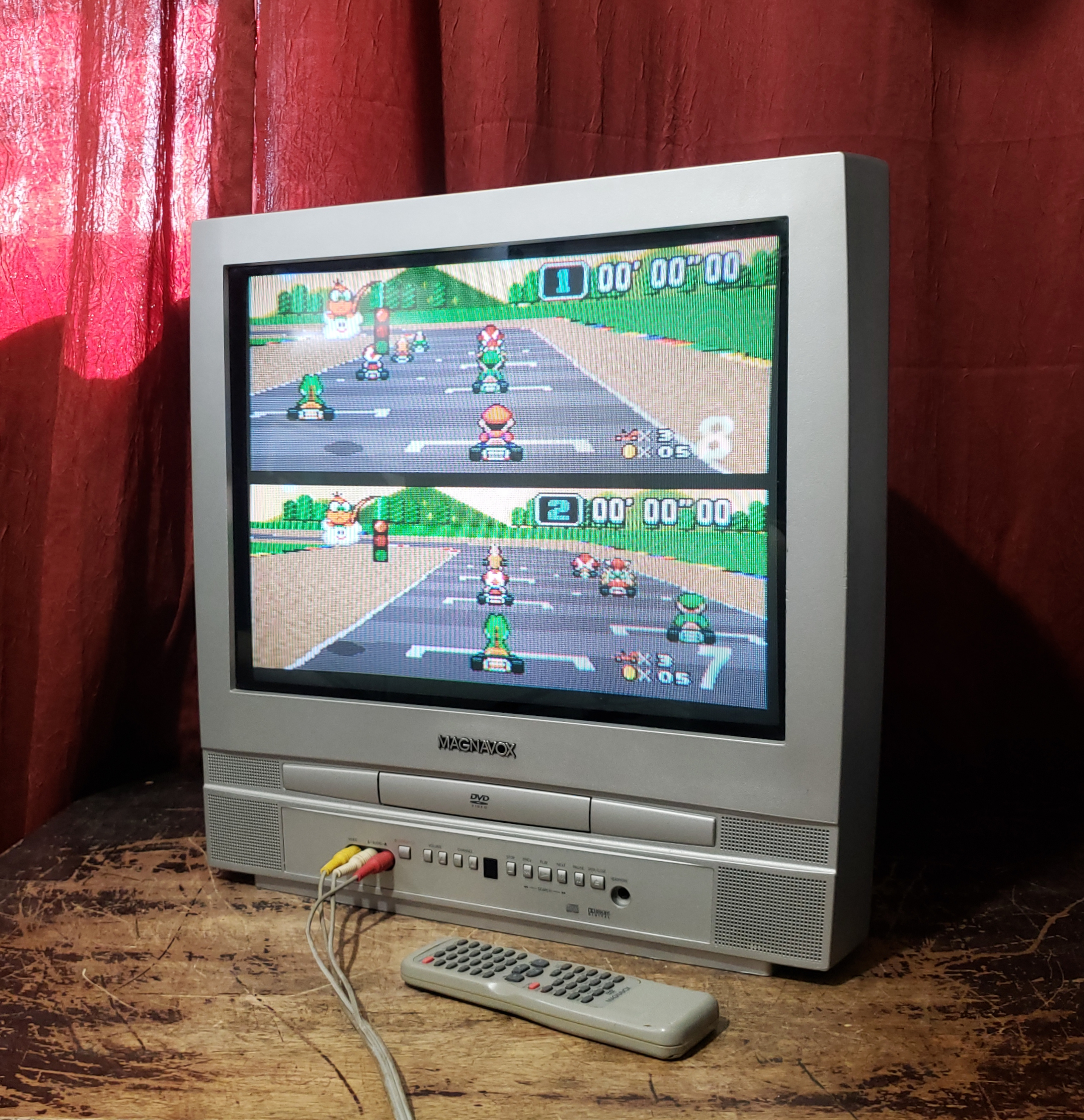

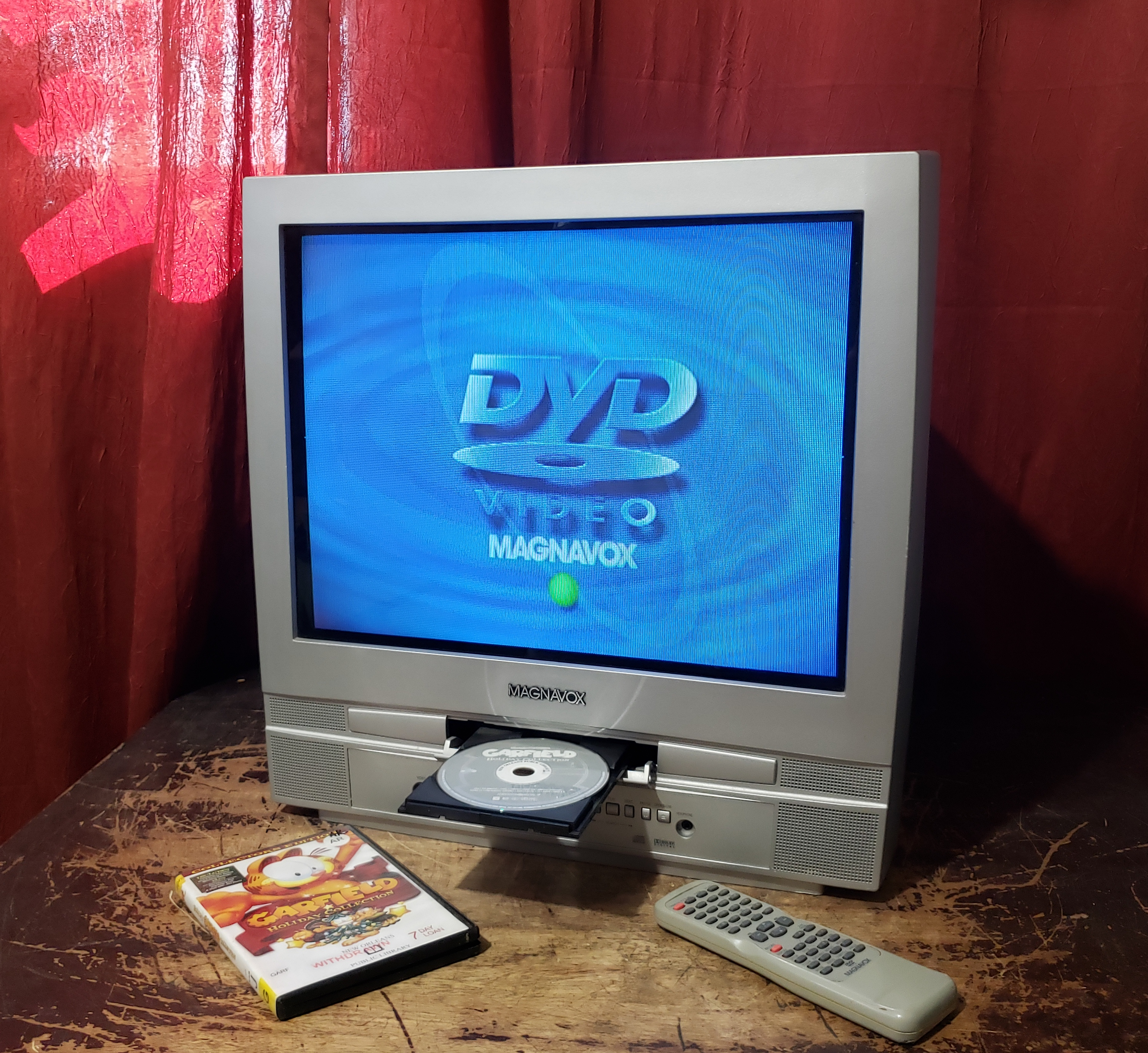

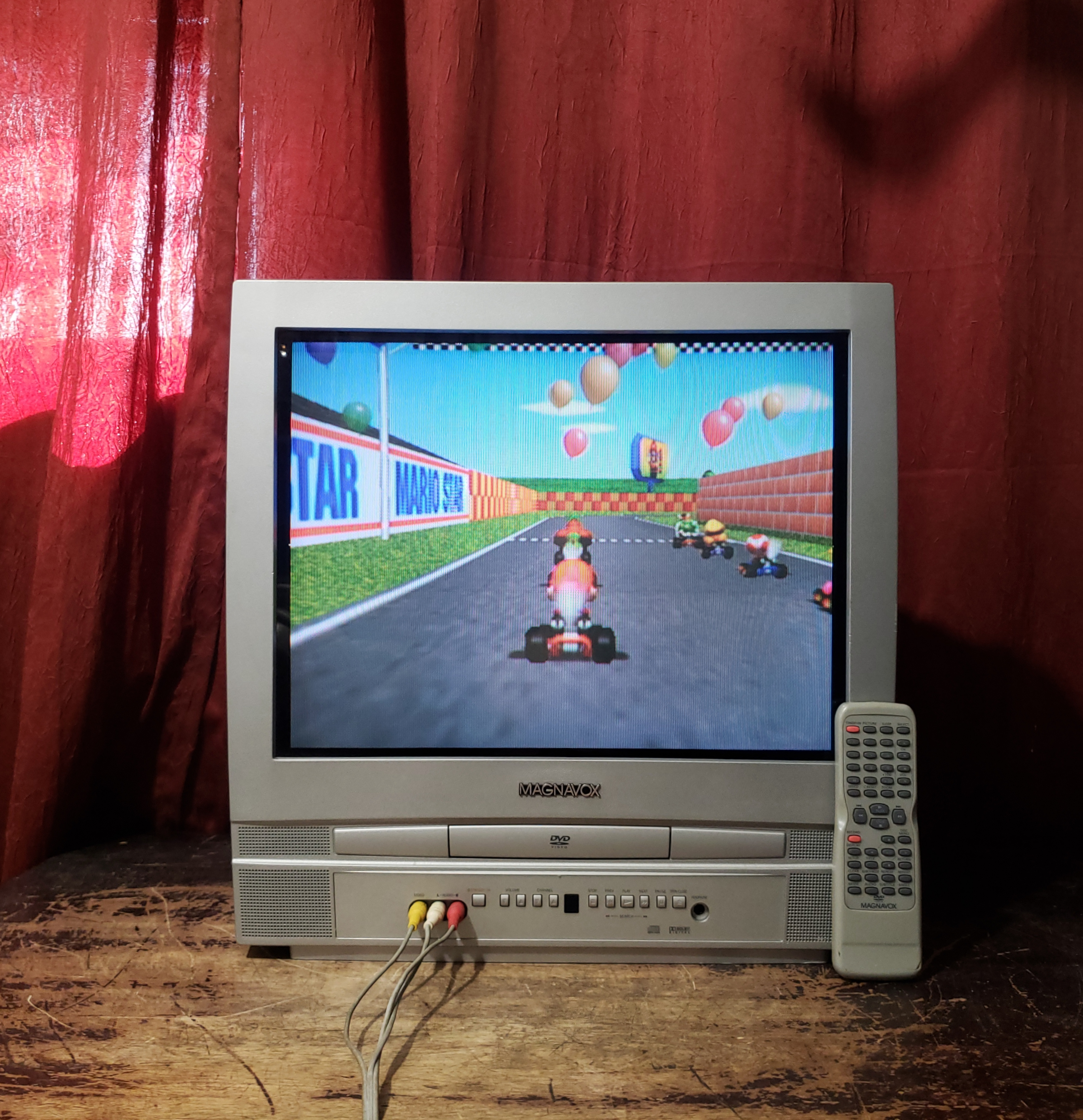

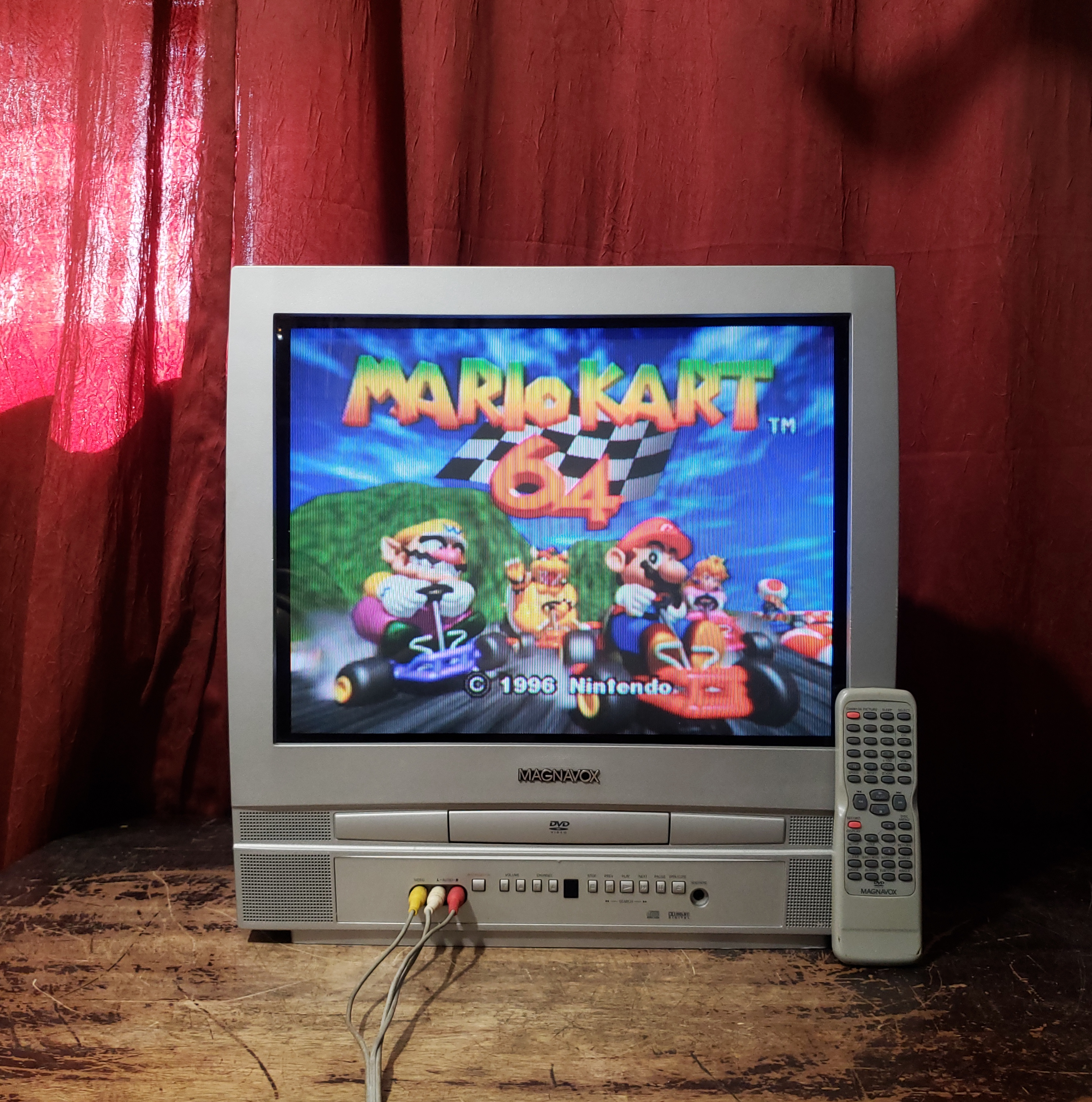

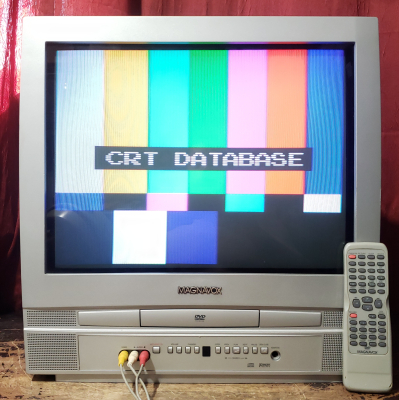

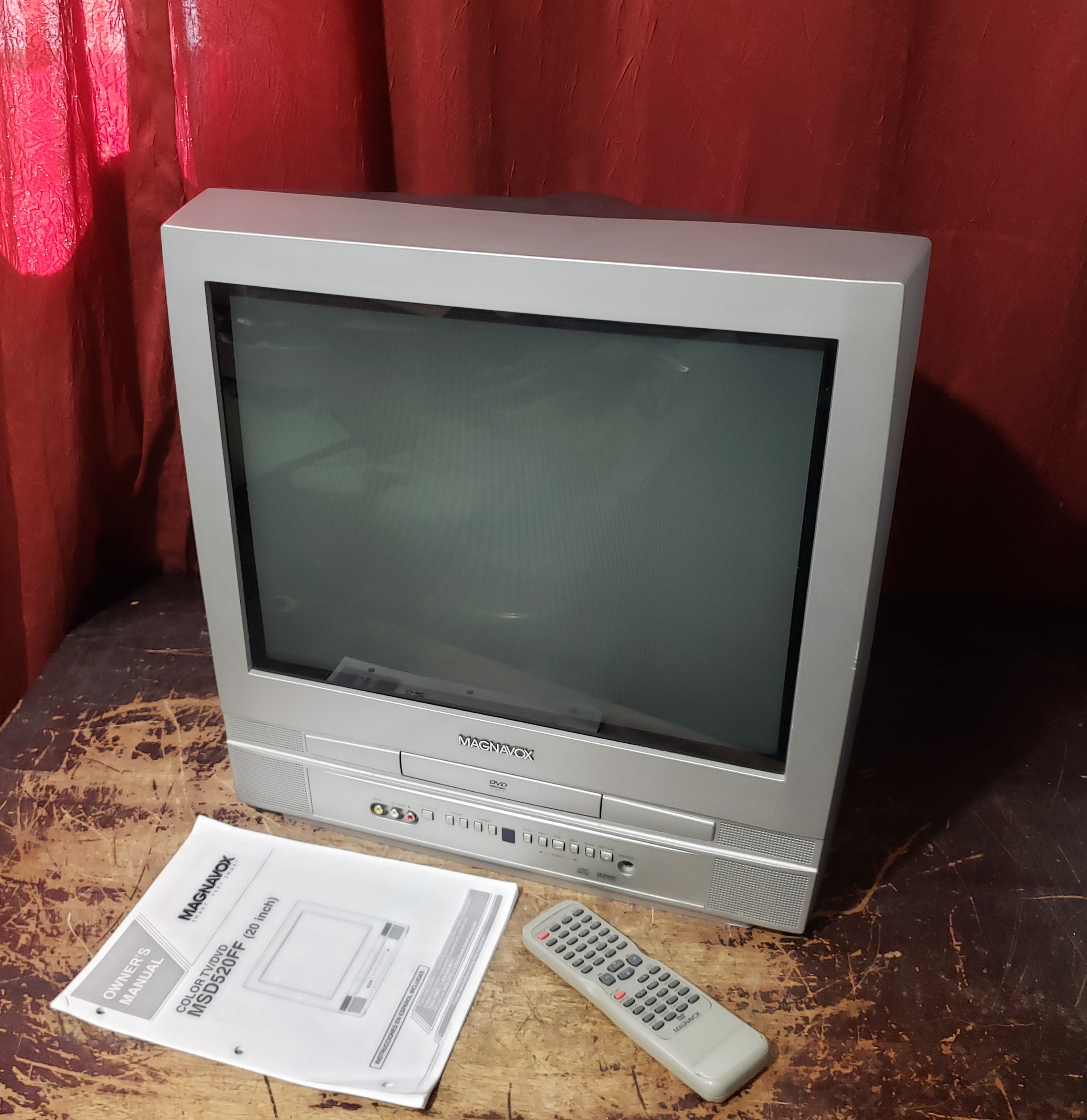

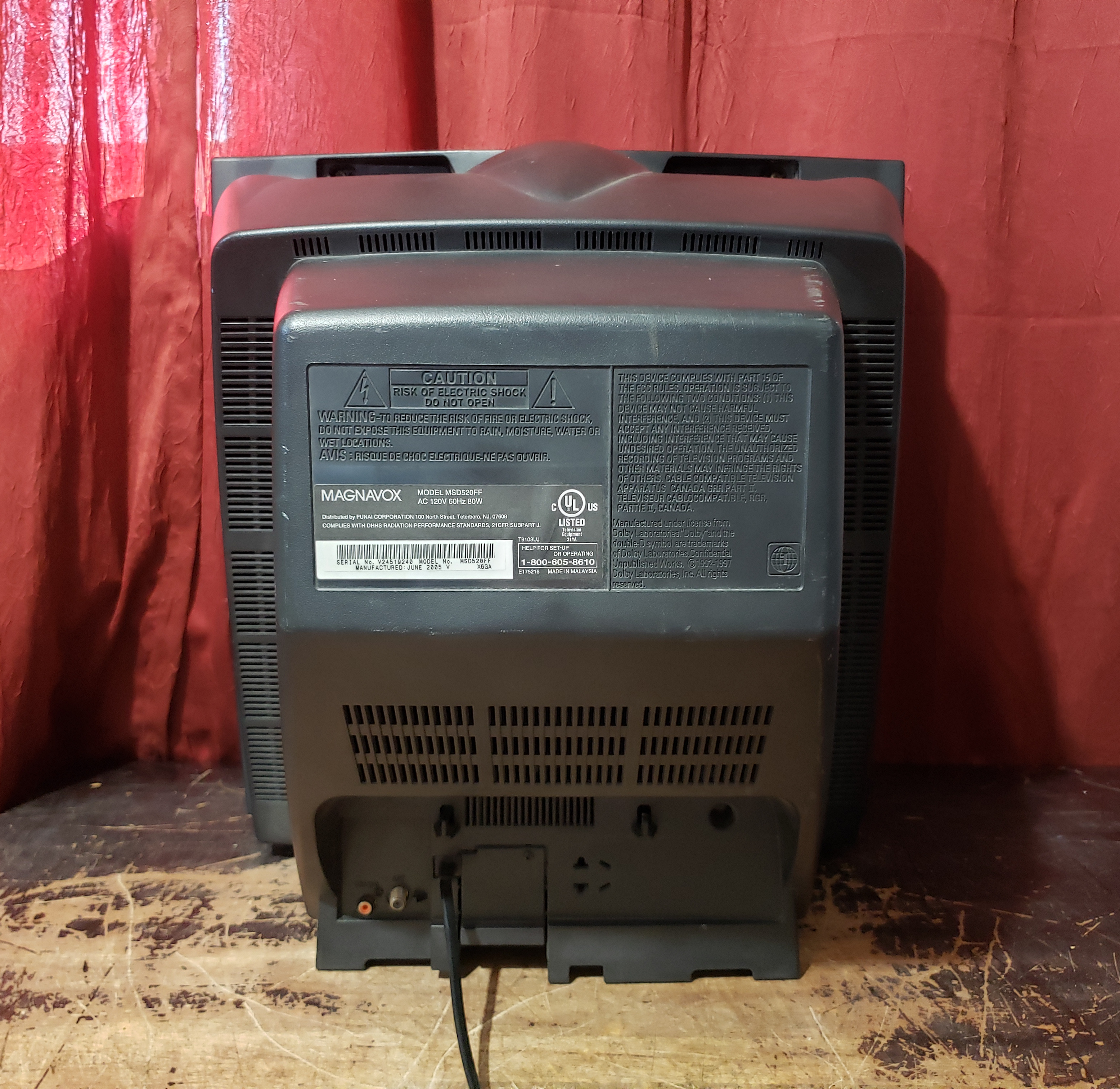

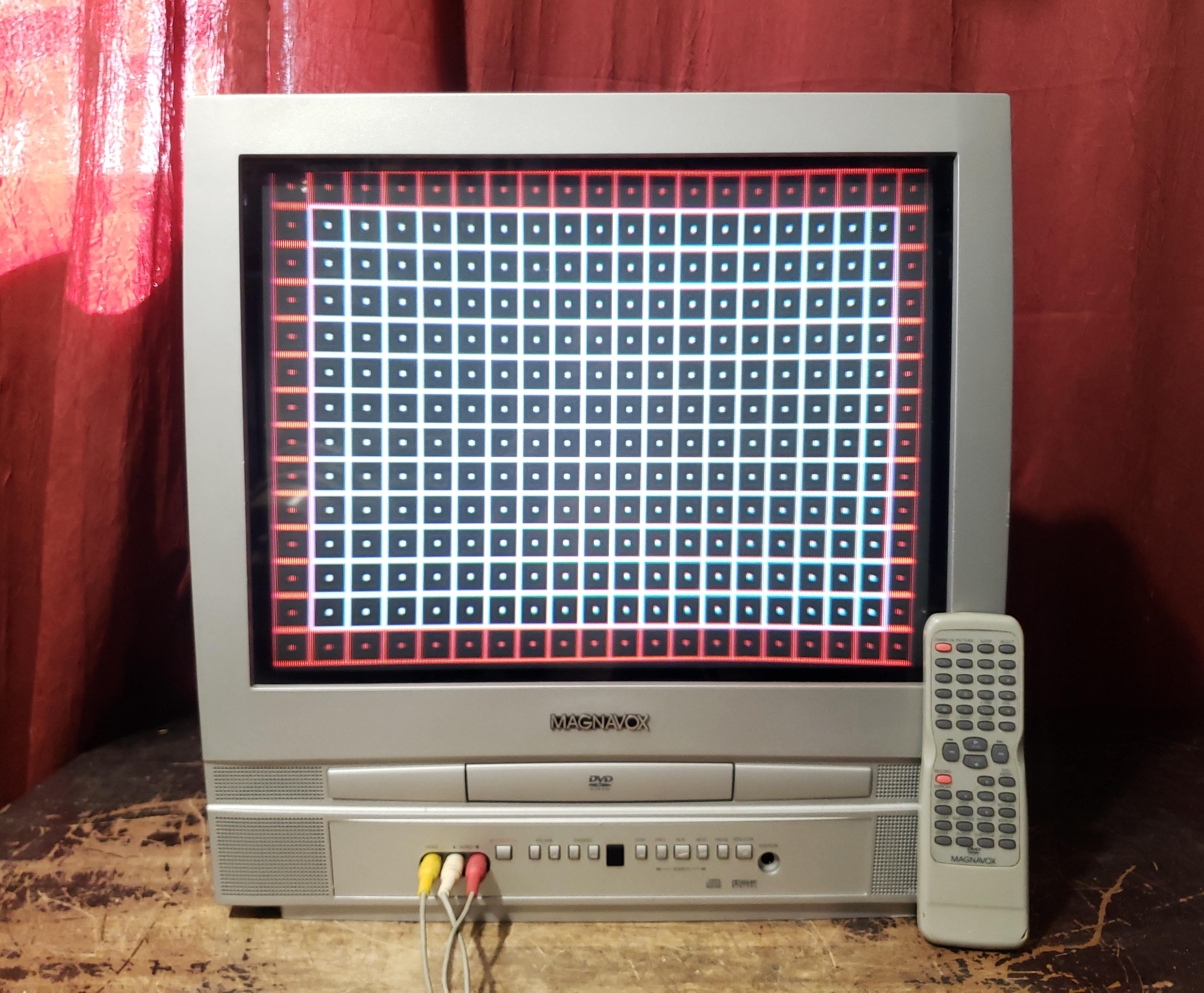

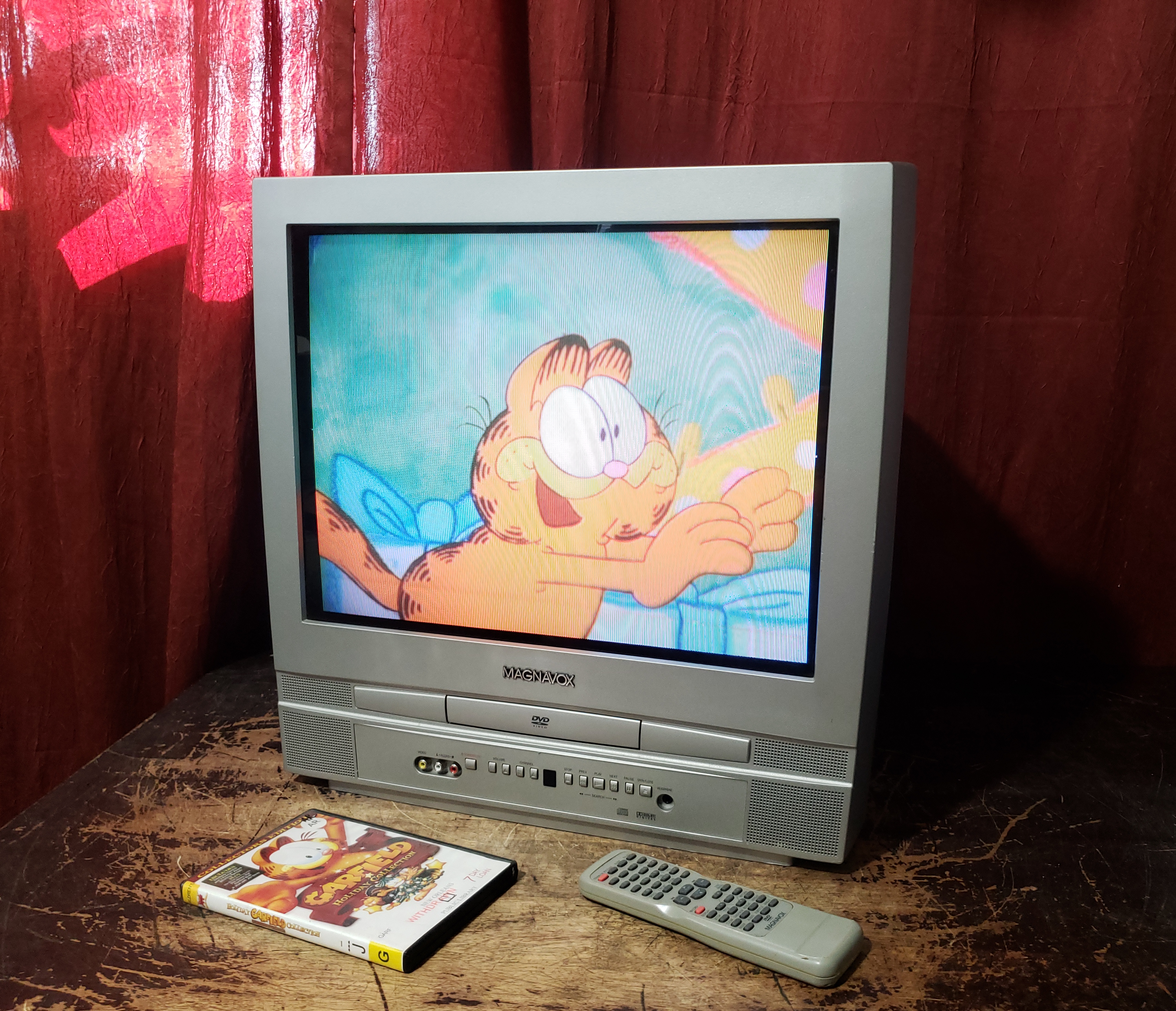

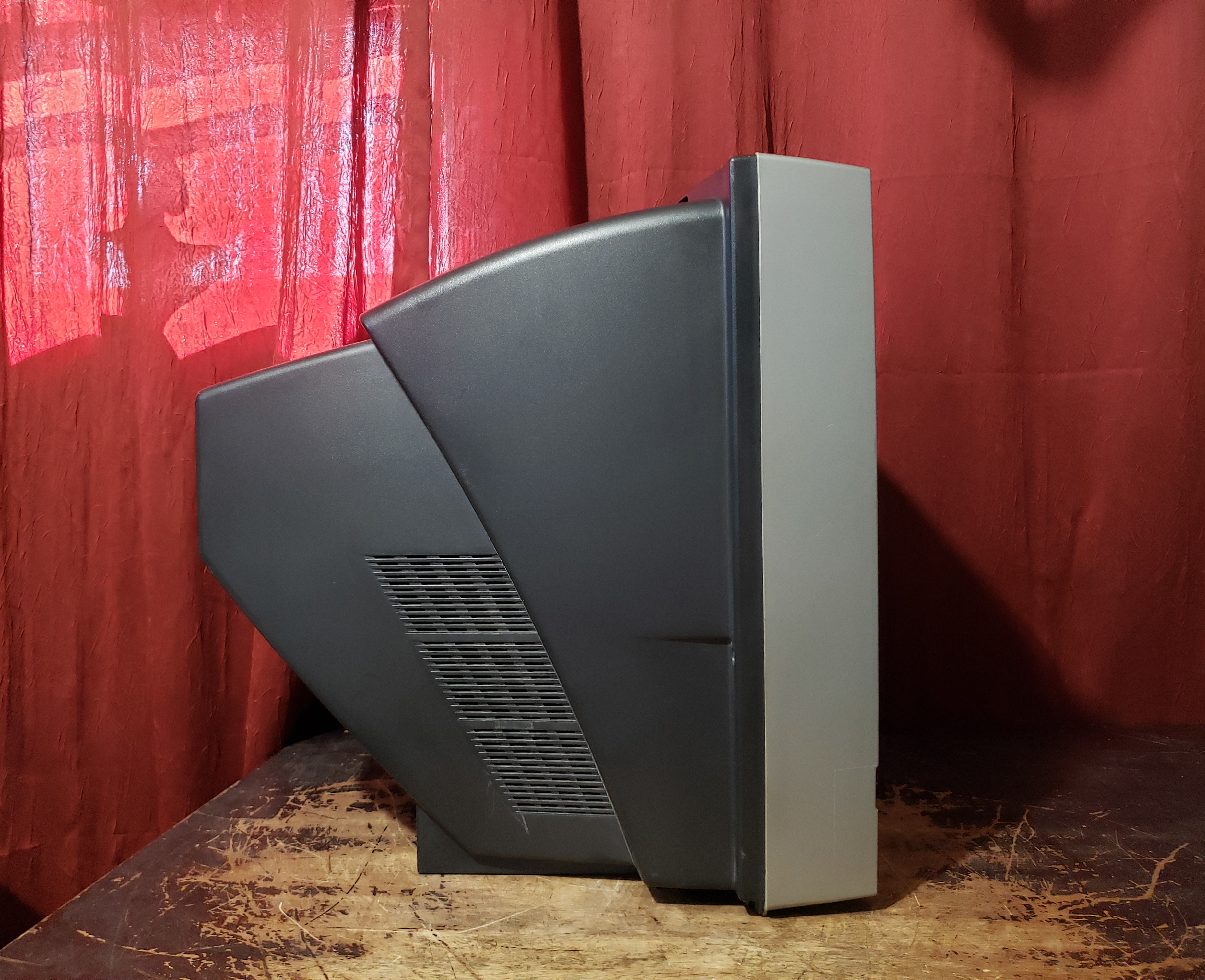

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Funai |
| Model: | MSD520FF |
| Series: | TV/DVD Combo |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2140LS-YB11 |
| Vertical Output IC: | LA78041 |
| Jungle IC: | M61271M8-056FP |
| Comb Filtering: | Notch |
| Flyback: | LTF00CPS2030 |
| Focus Type: | Single |
| Tube: | A51LYZ093X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY3NWG22X |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE219UD |
| Chassis: | T8100UA |
| Weight: | 46.3 lbs (21 kg) |
| Dimensions (W/H/D): |
512 x 514 x 503 mm
(20.1 x 20.2 x 19.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
