Summary

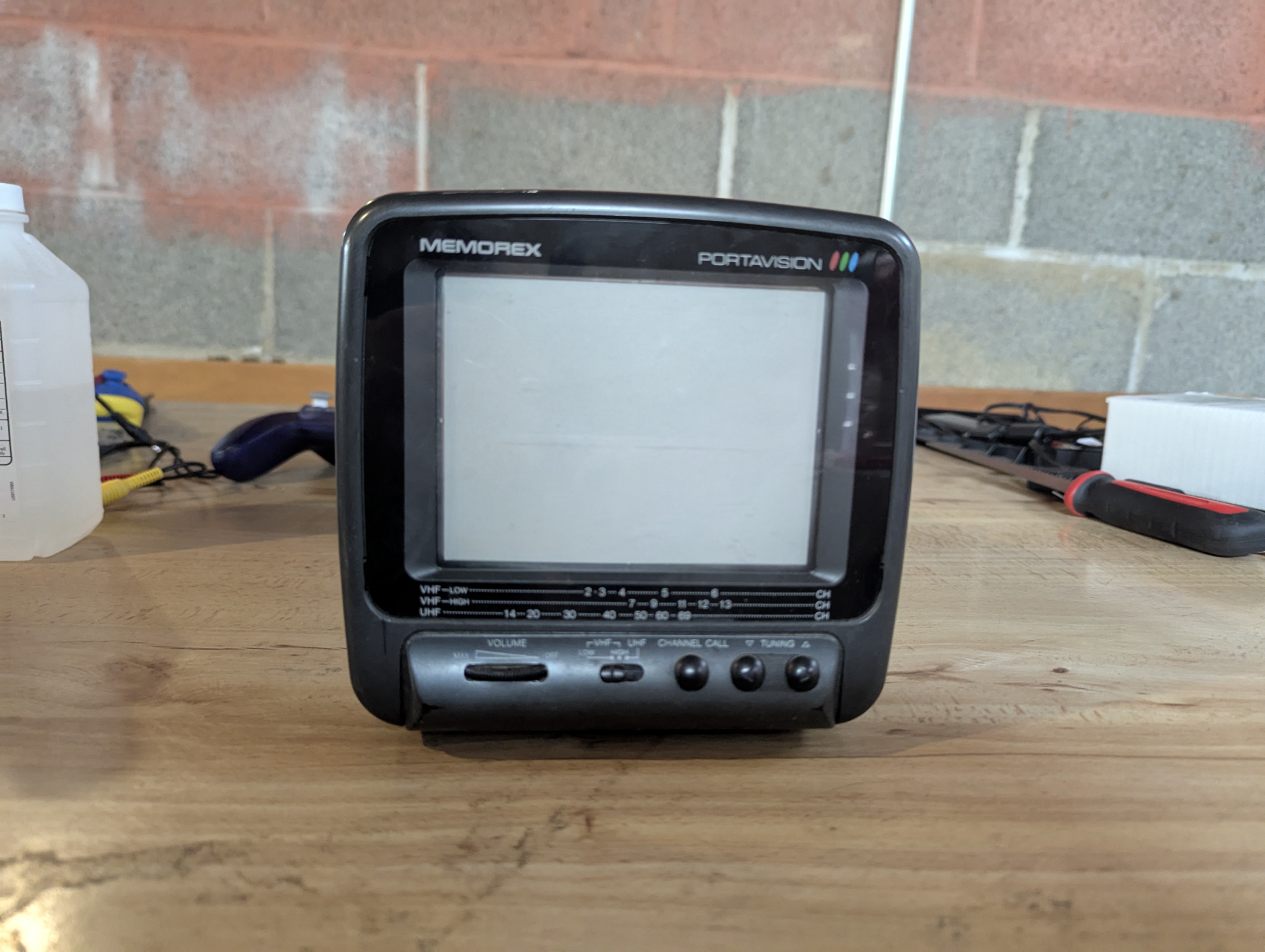

5" color portable TV by Memorex. Has RF and composite input with mono sound. Originally manufactured by KTV Corporation (KEC) at their Taiwan plant in 1992.
(Special thanks to Jason Tryon for the pics!)
Manuals
(None at this time.)
Notes
This same model number was rebadged by RadioShack in 1998, likely to use up remaining parts in inventory:

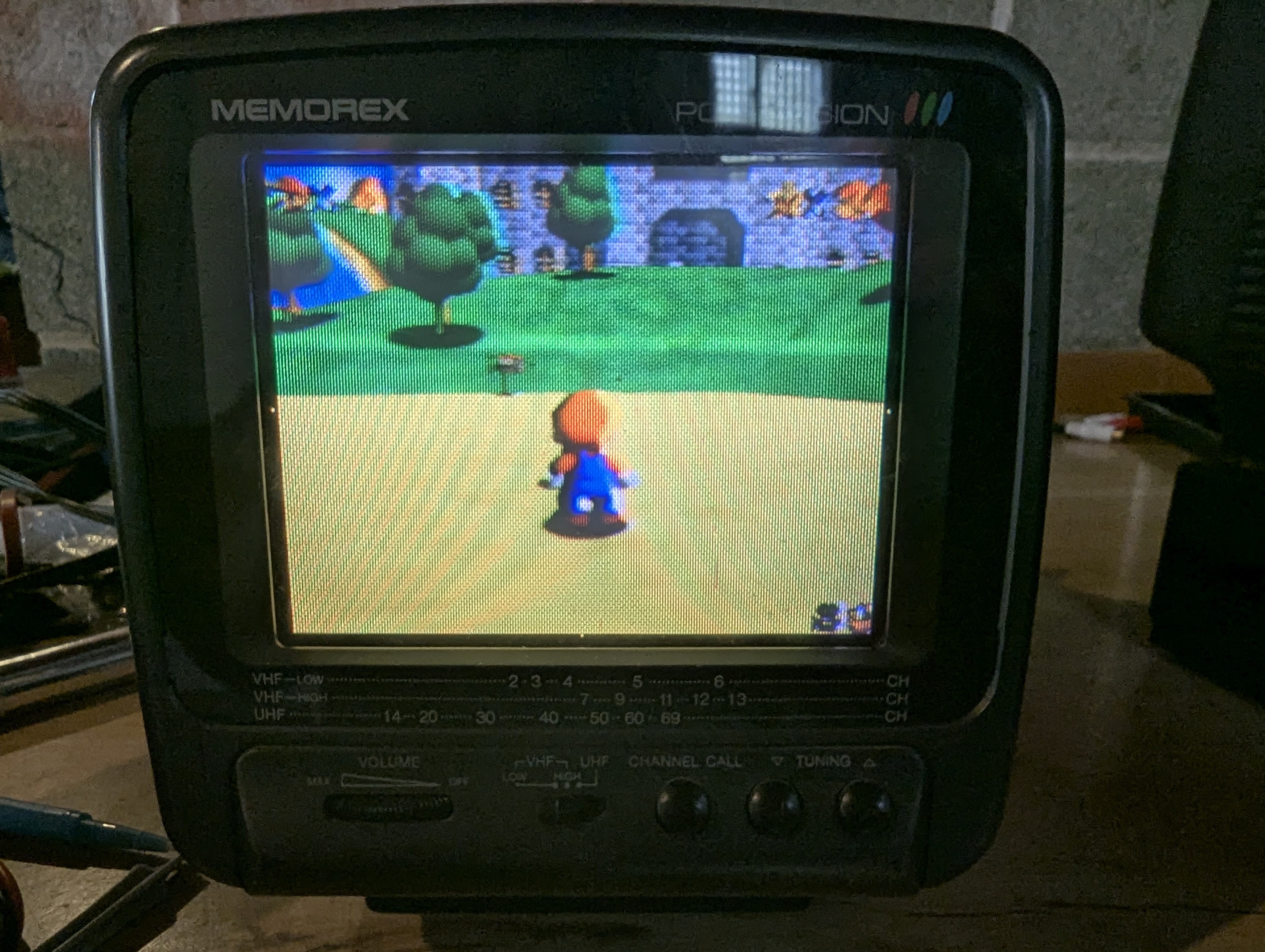

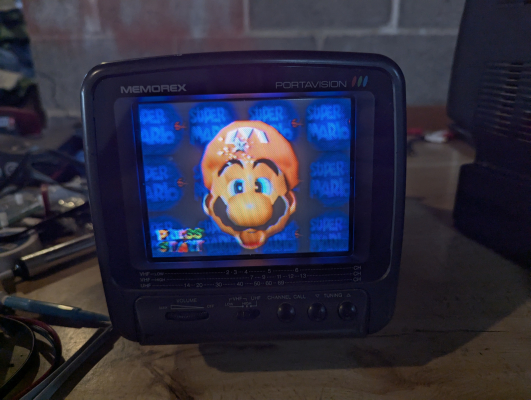

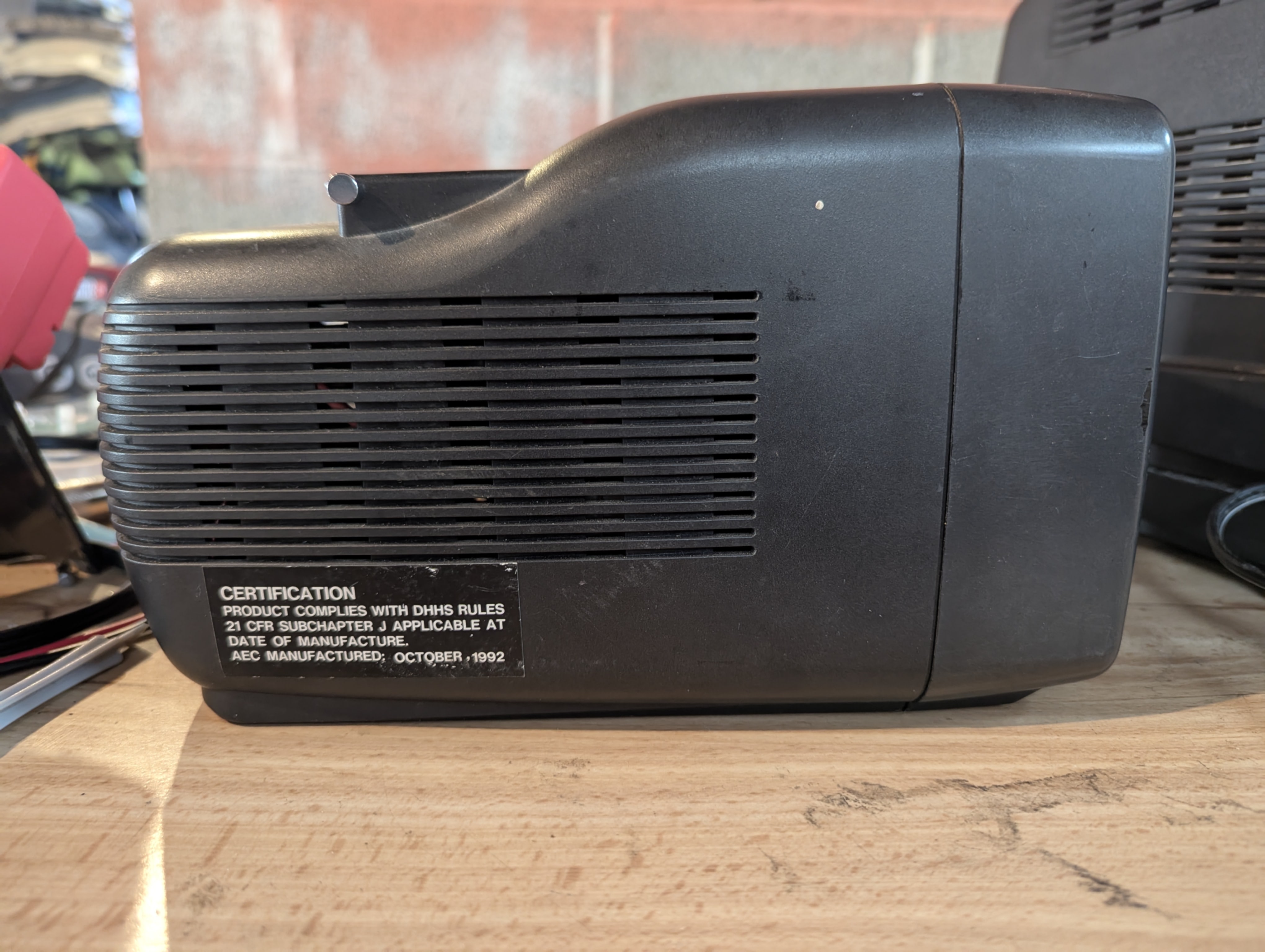

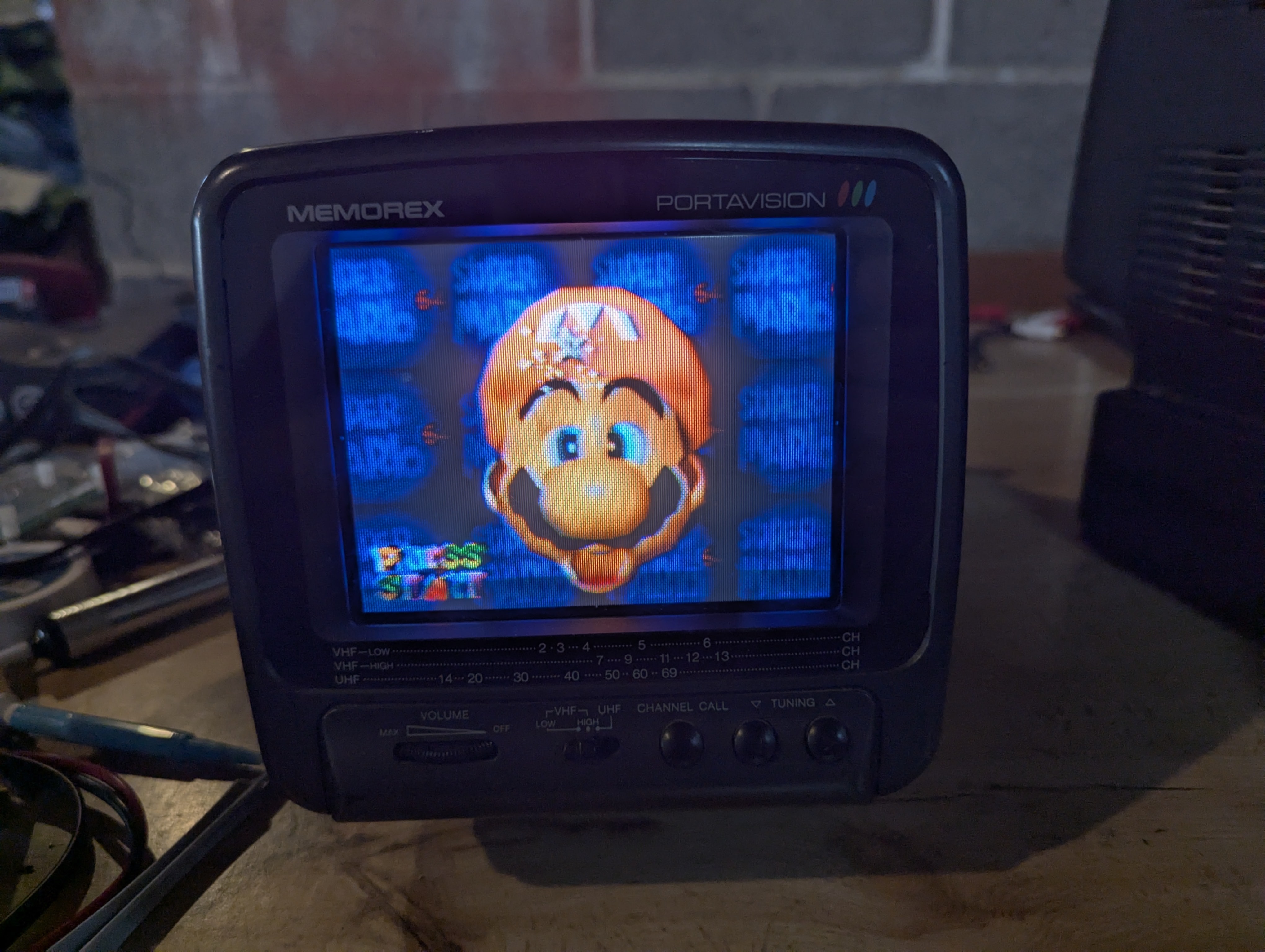

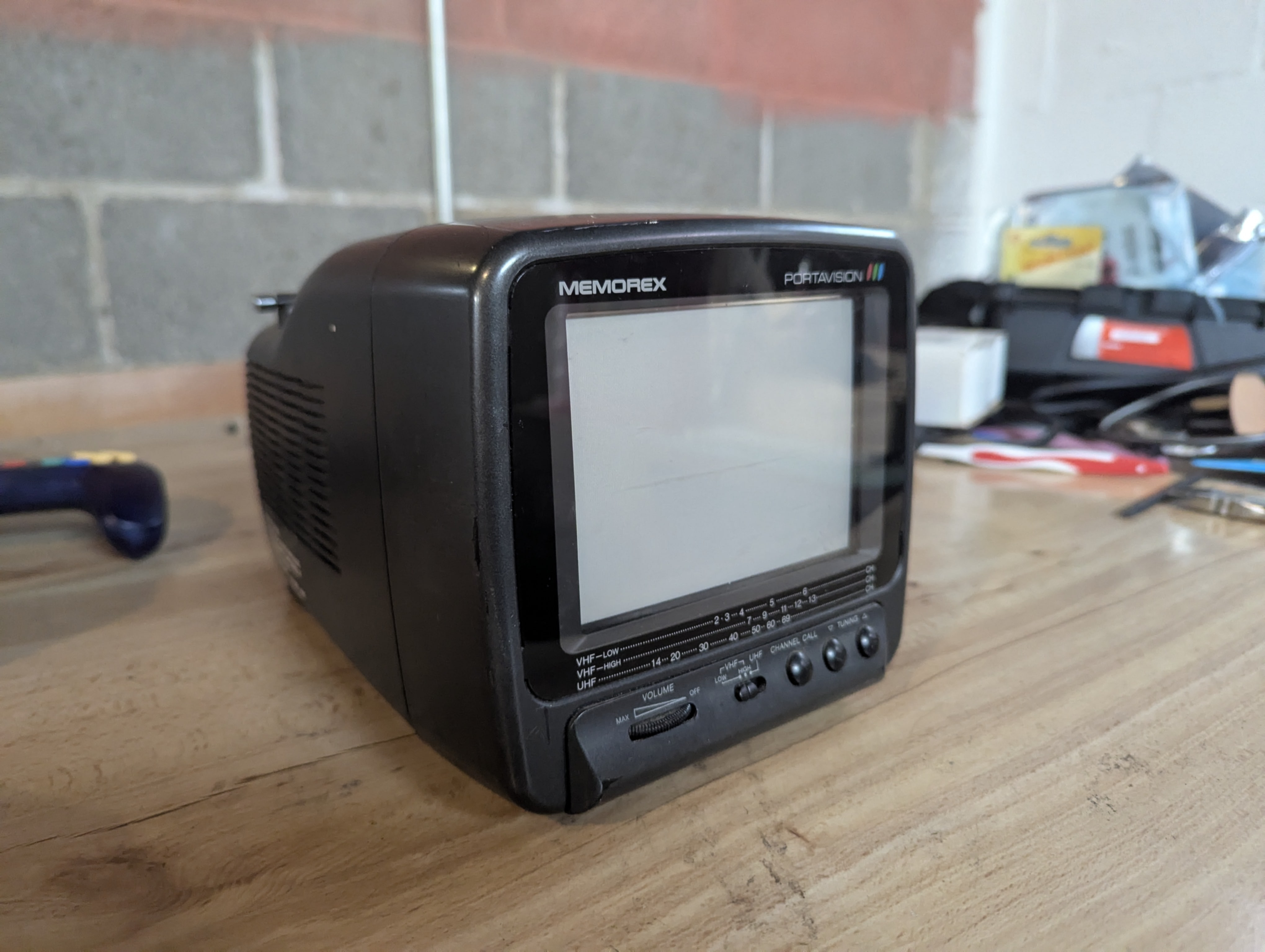

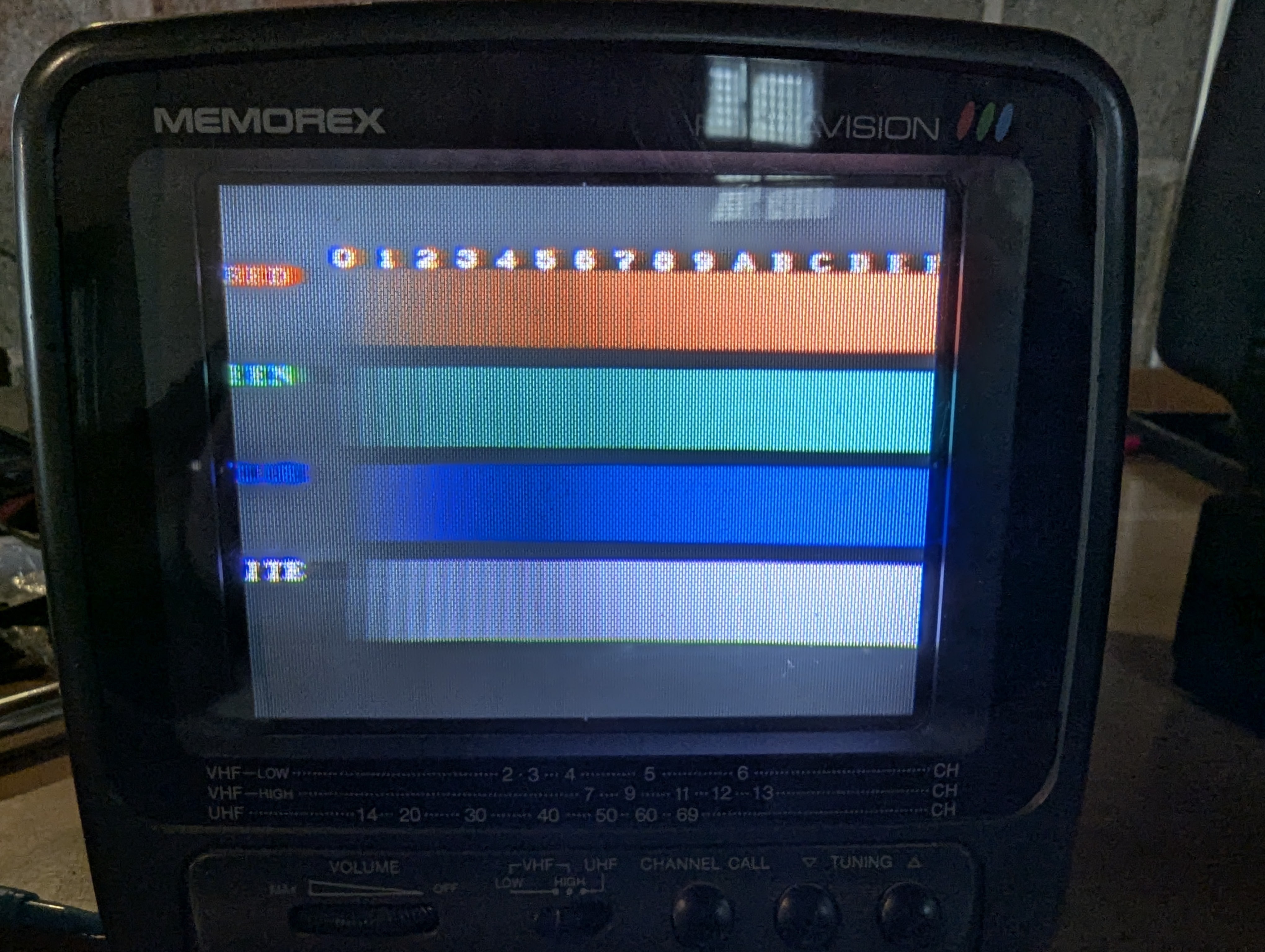

Gallery
| Specifications | |
|---|---|
| Brand: | Memorex |
| Manufacturer: | KTV Corporation |
| Model: | 16-125 |
| Series: | Portavision |
| Viewable Size: | 5" |

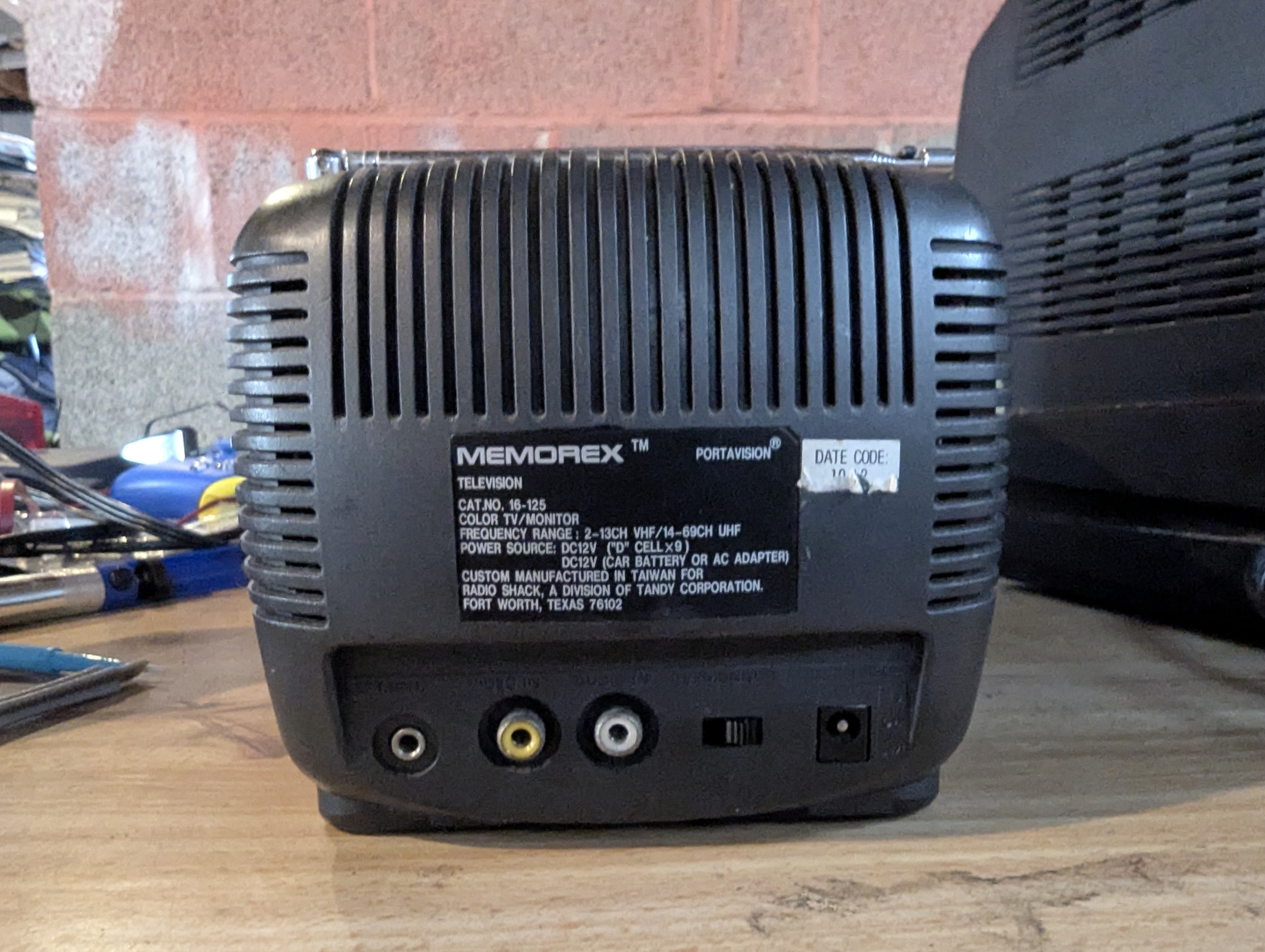

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

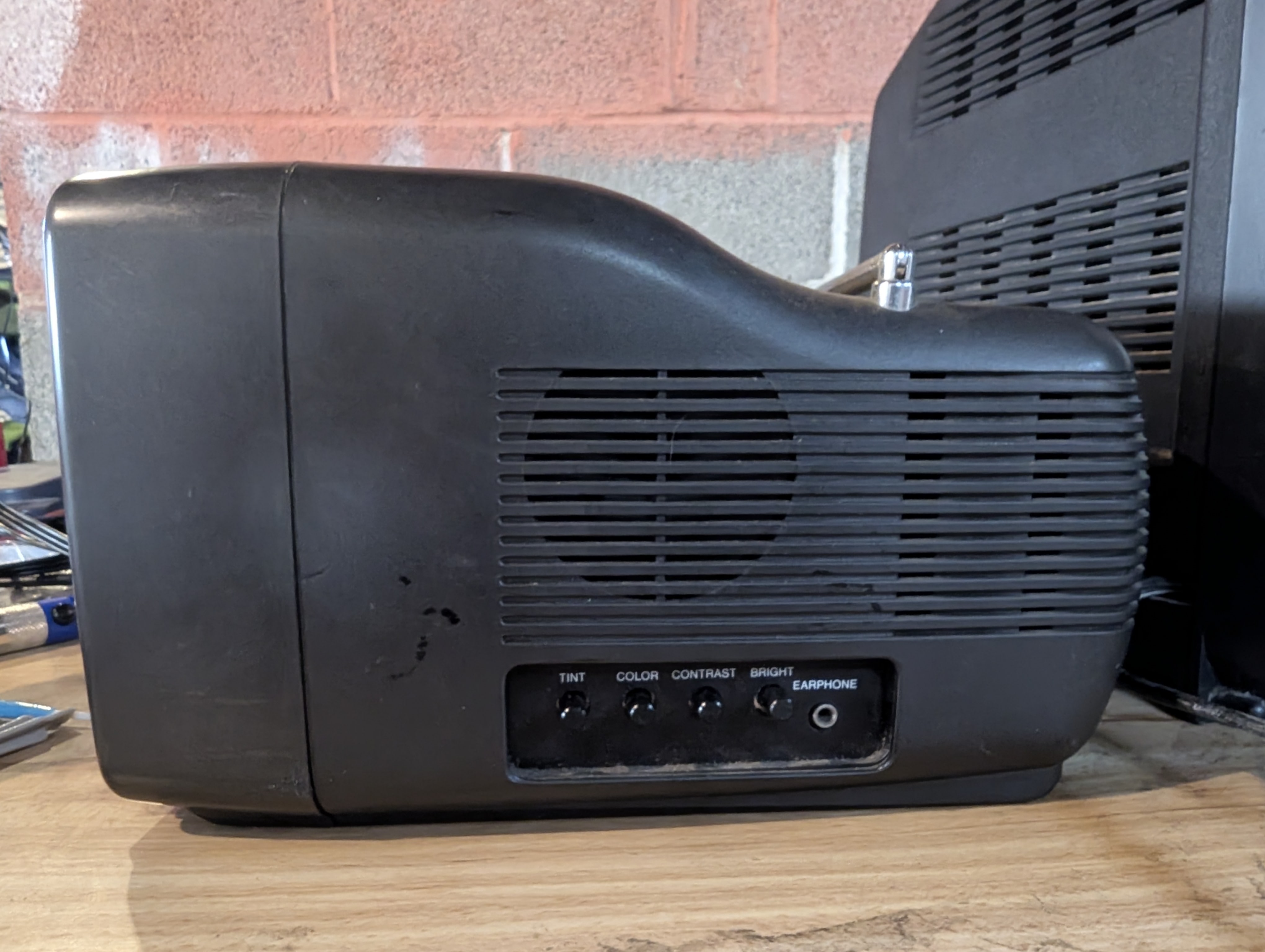

| Adjustments: | Internal Potentiometers, External Potentiometers |

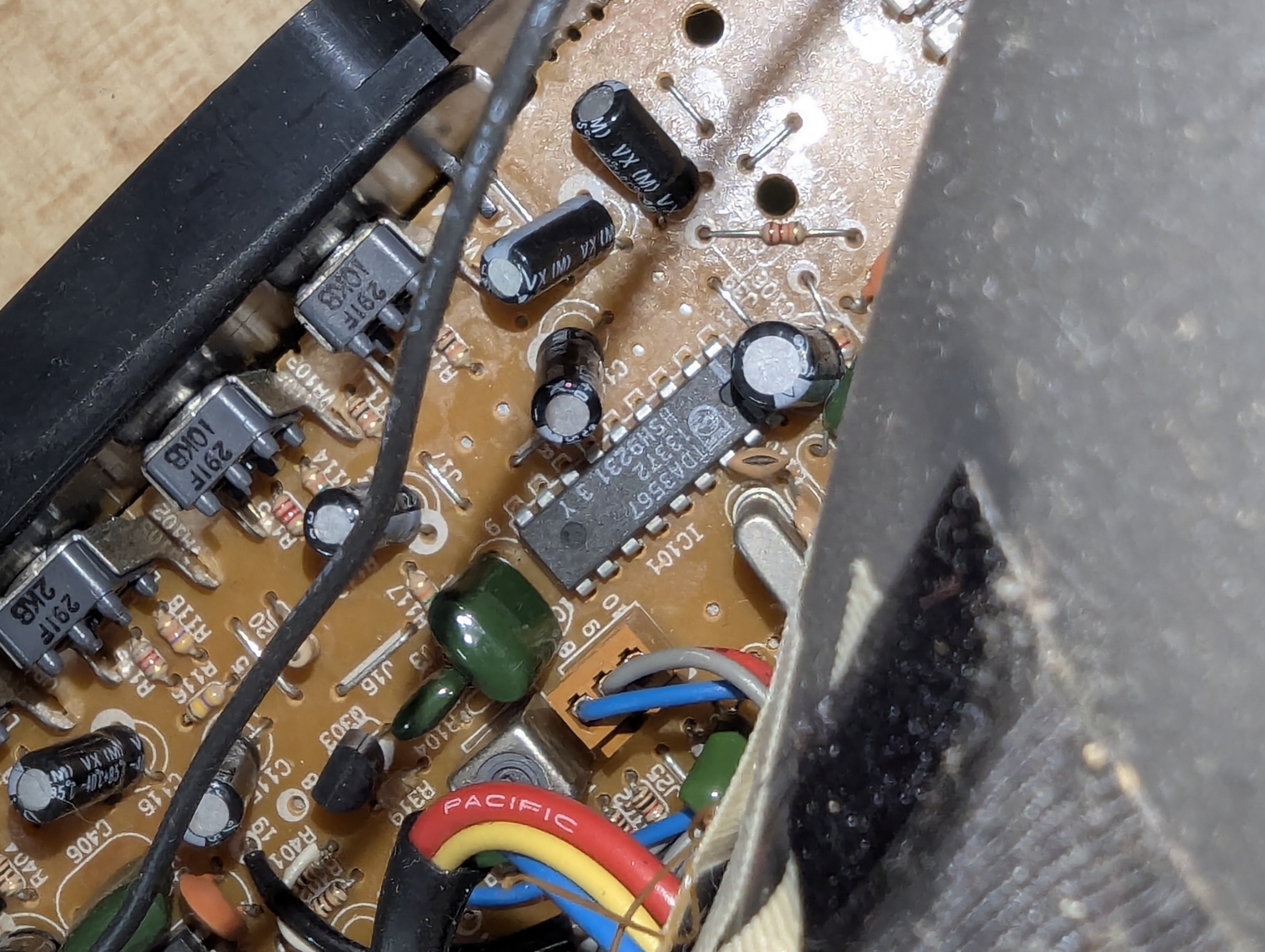

| Jungle IC: | Philips, TDA3567 |

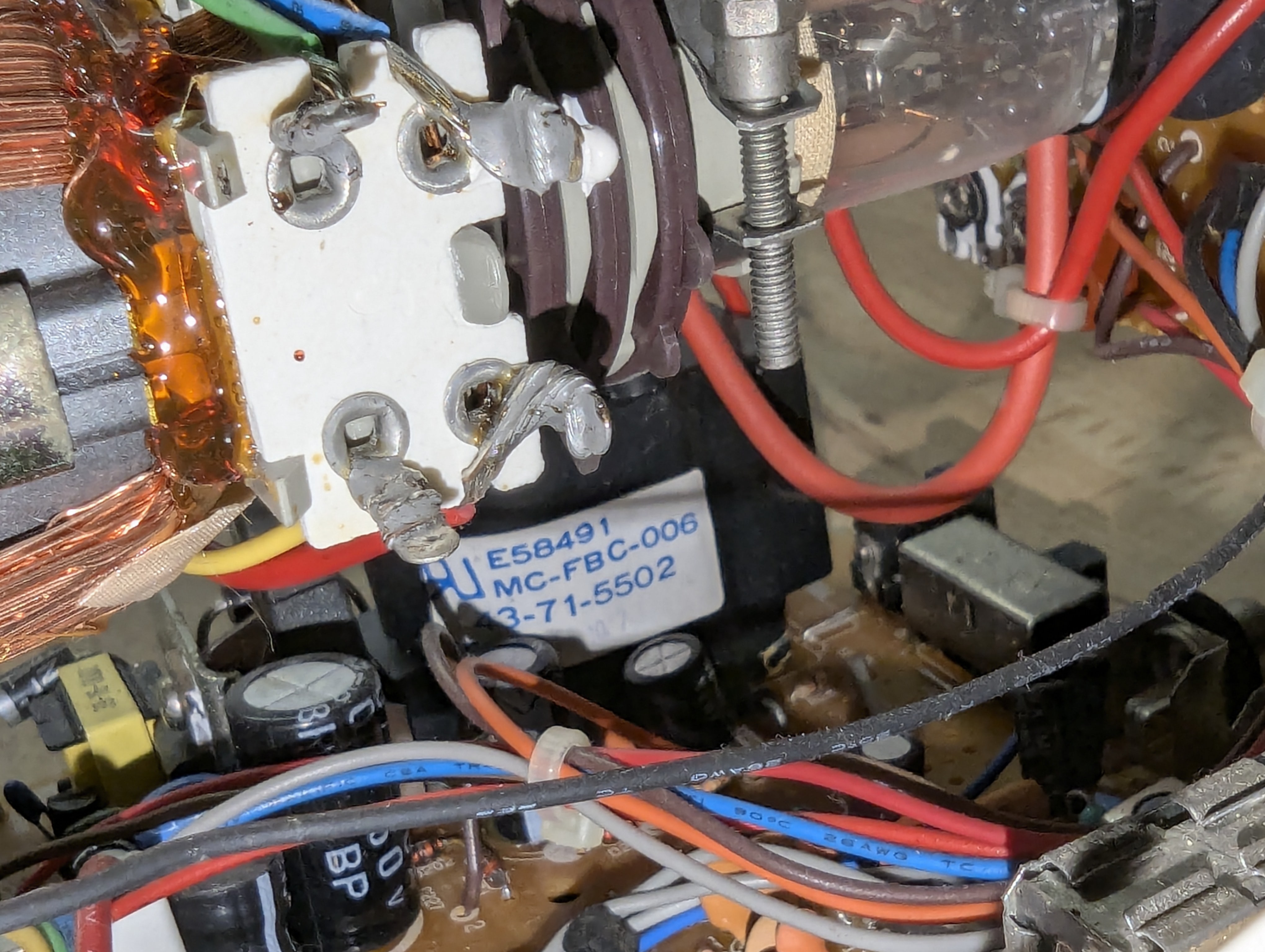

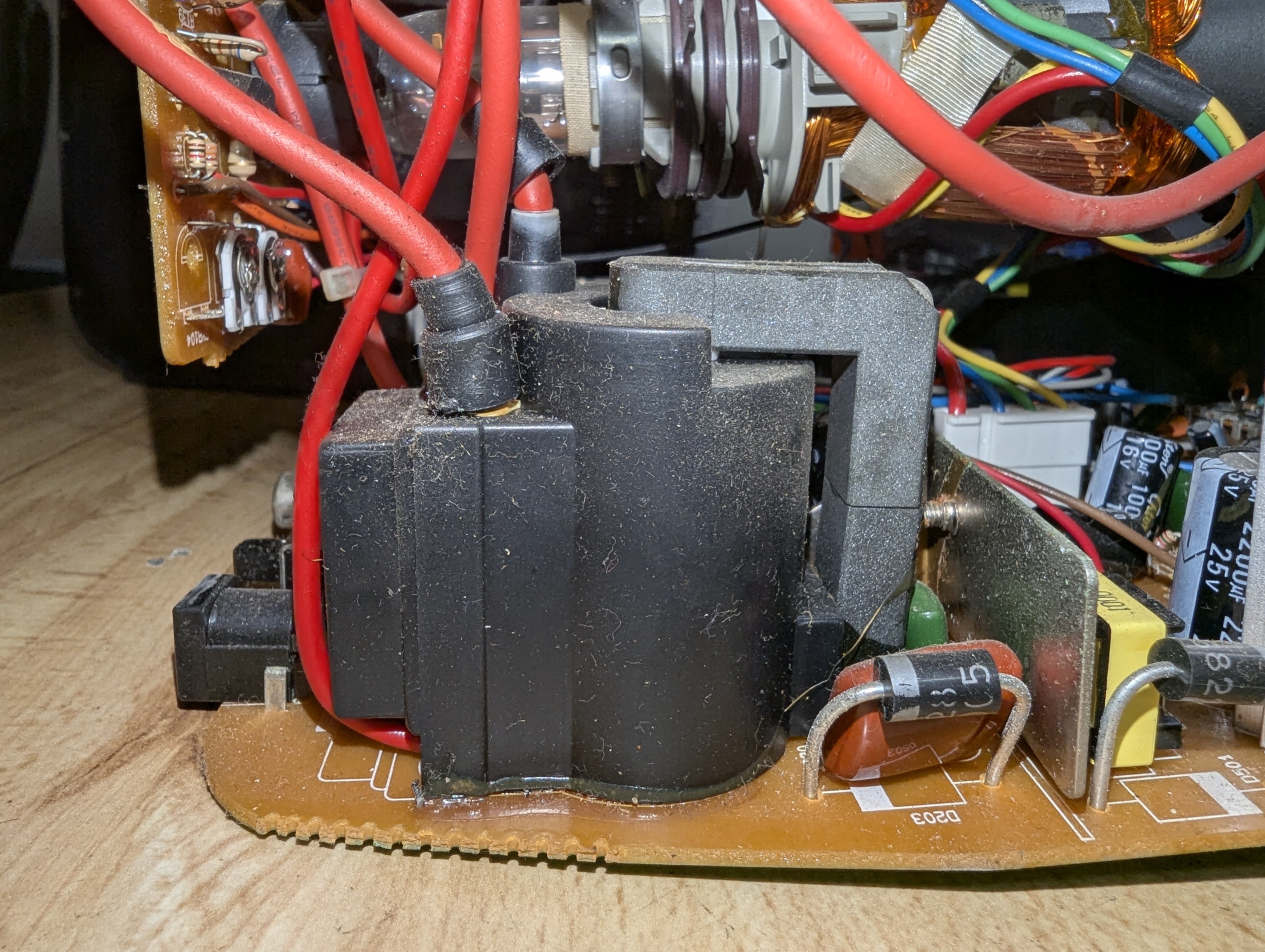

| Flyback: | MC-FBC-006, 43-71-5502 |

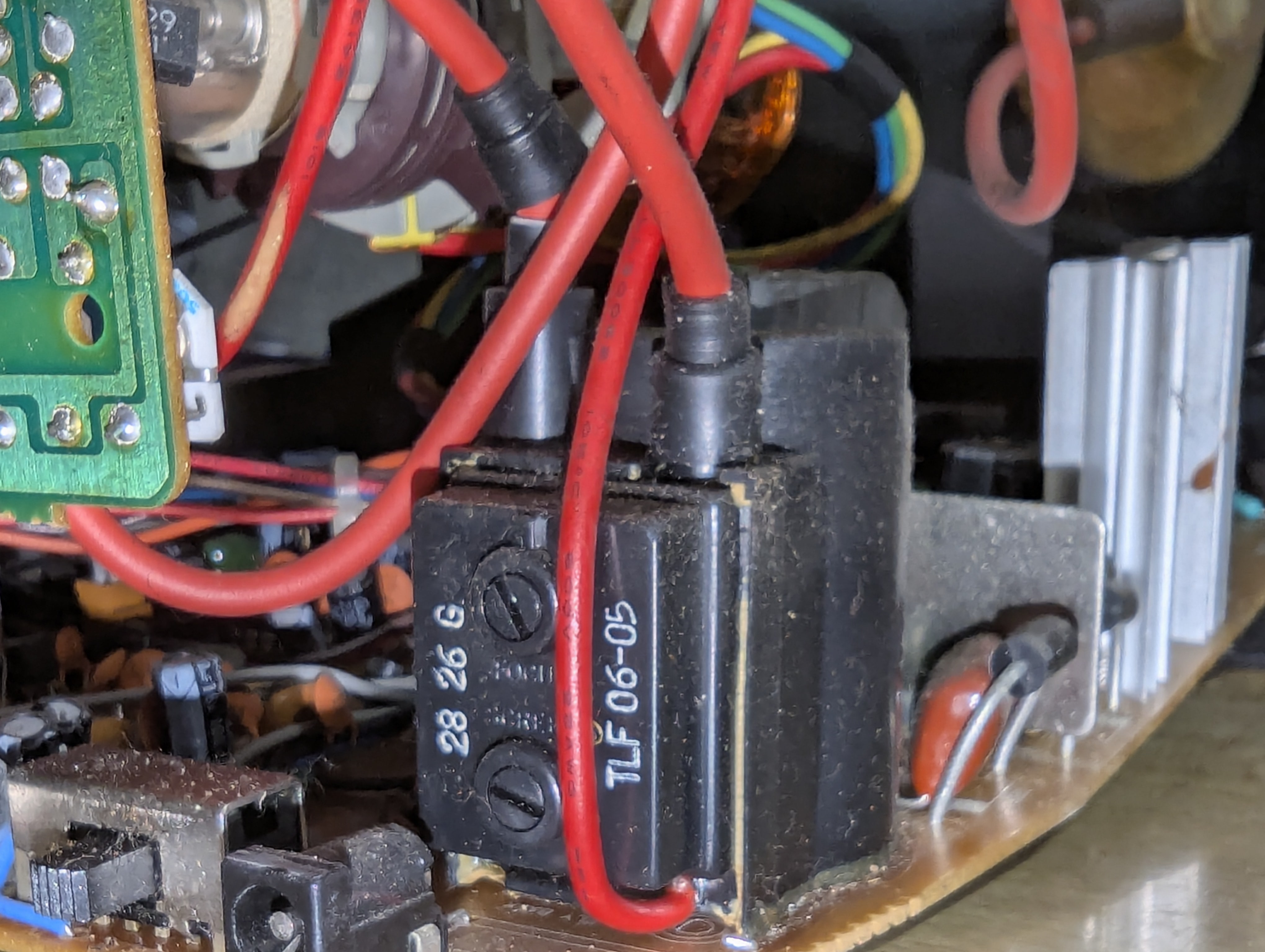

| Focus Type: | Single |

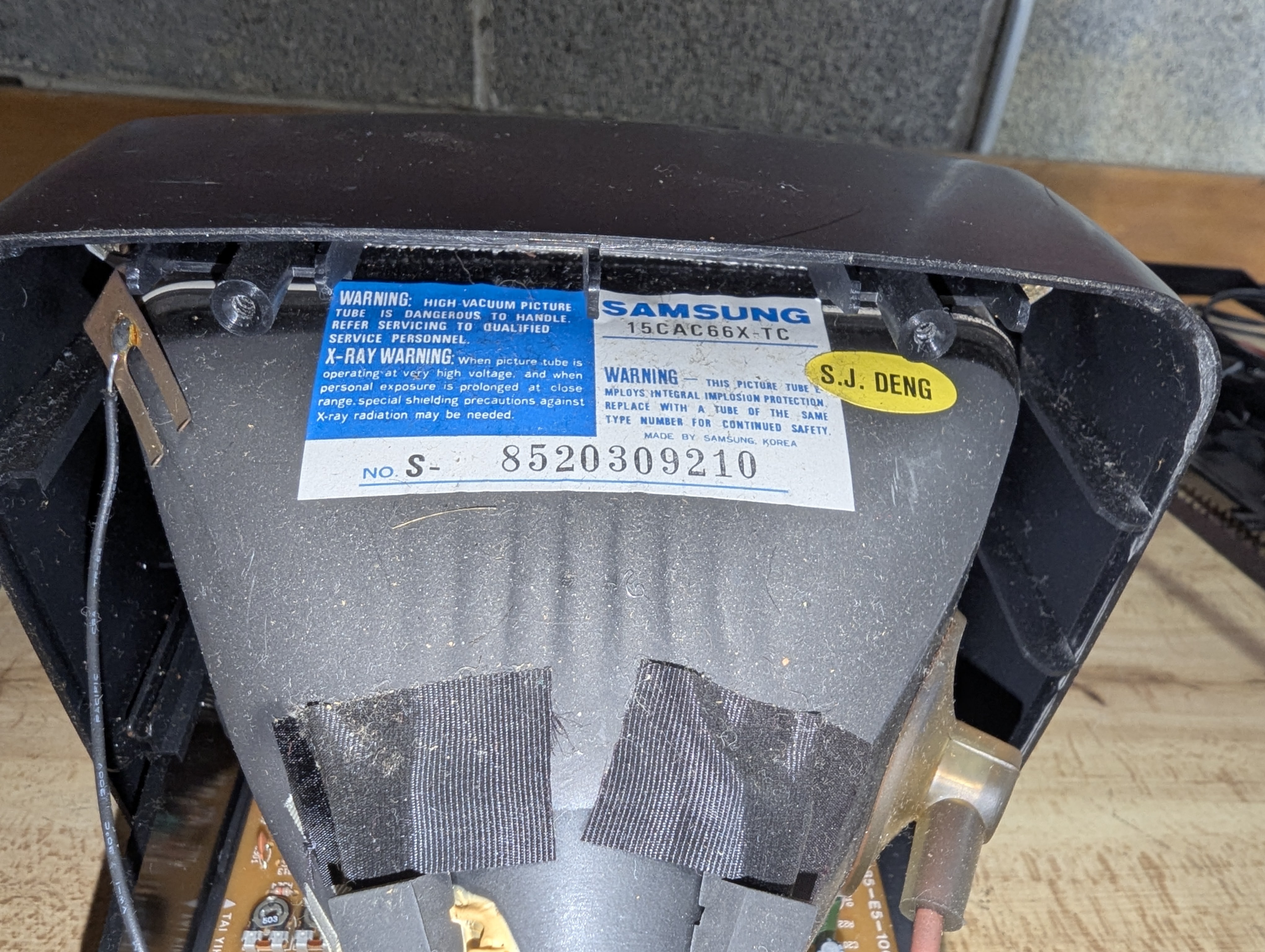

| Tube: | Samsung , 15CAC66X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Light |
| Removable Glare Film: | No |

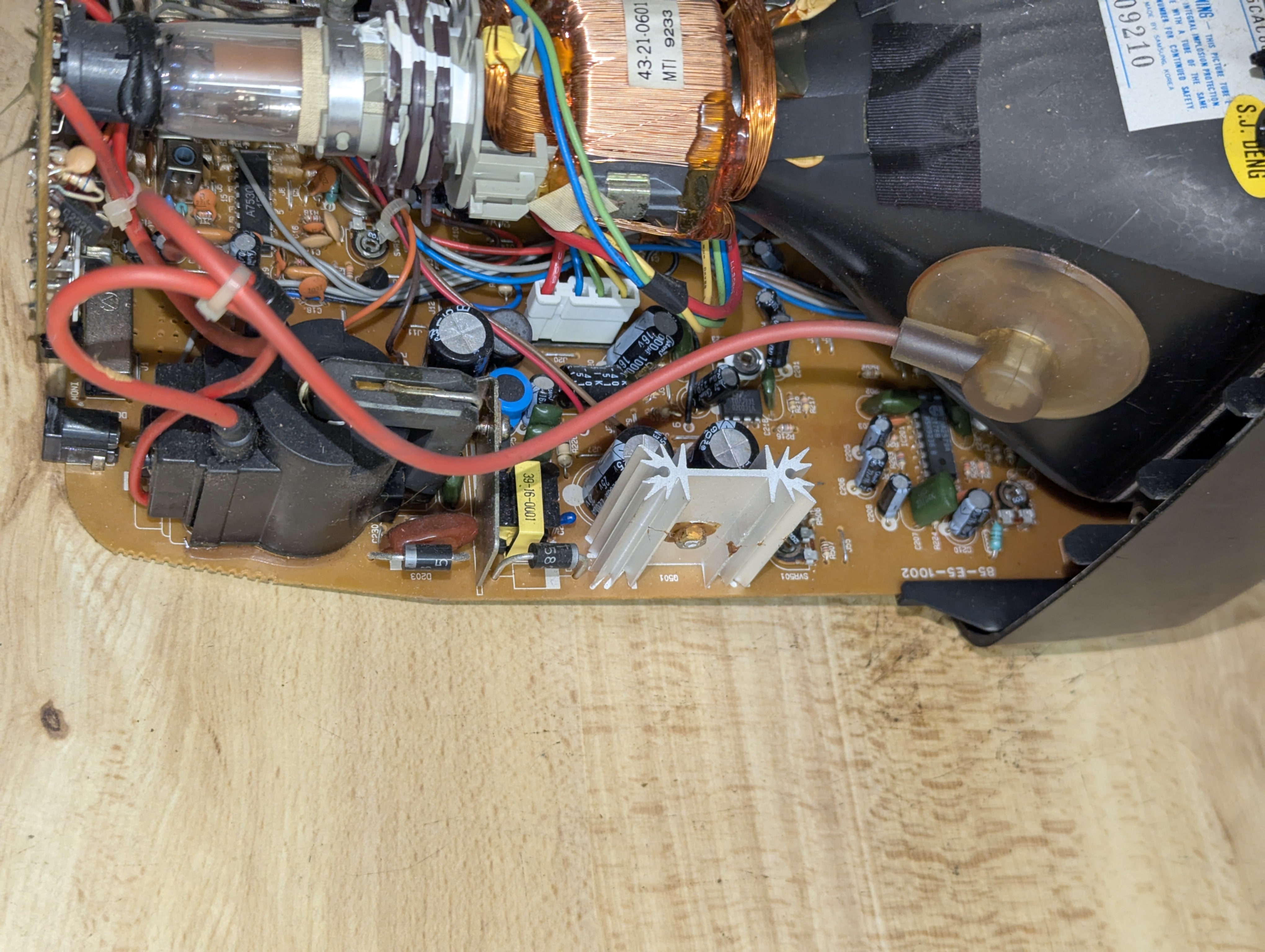

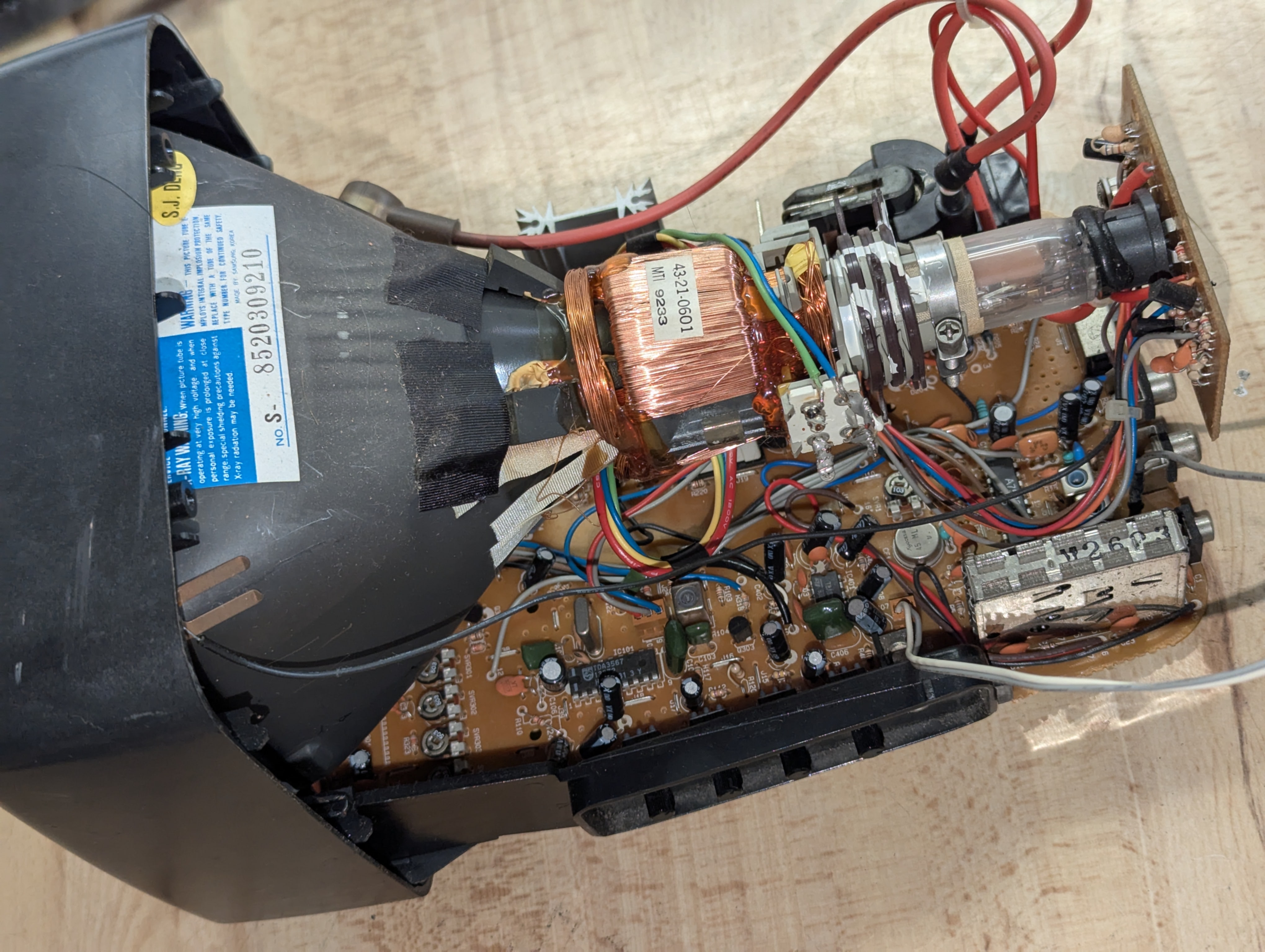

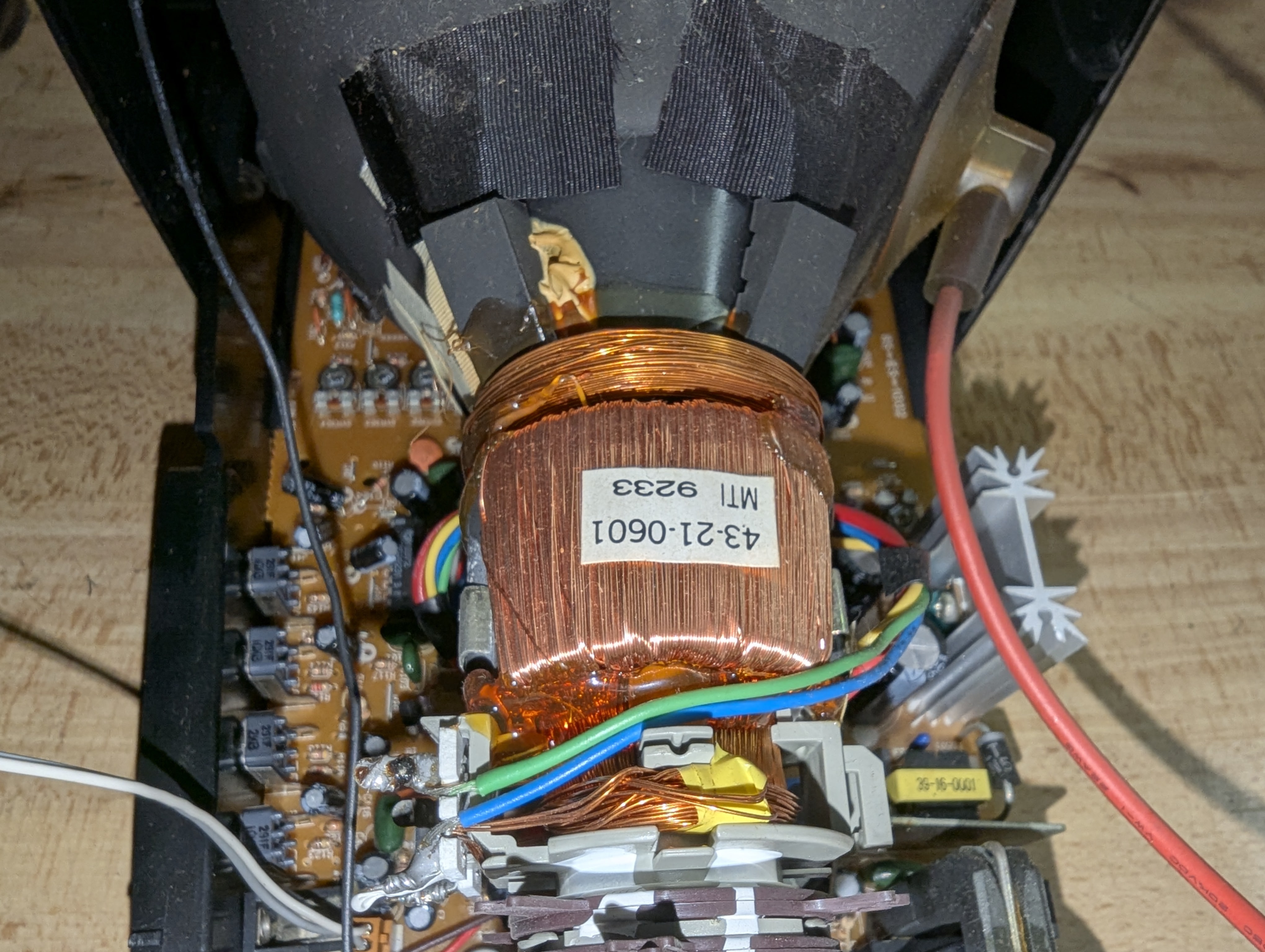

| Yoke: | 43-21-0601 |
| Speakers: | Mono |
| Dimensions (W/H/D): |
165 x 191 x 267 mm
(6.5 x 7.5 x 10.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
