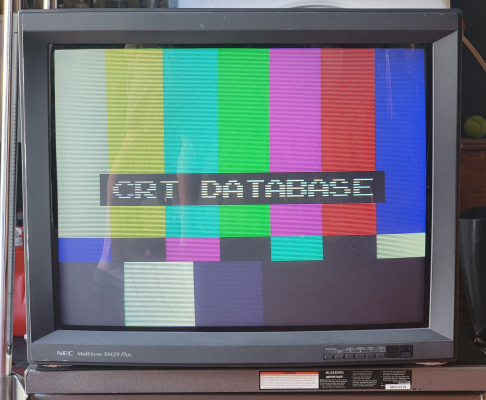

NEC XM-2960 "XM29 Plus"

Andy King, Eli Krause
May 21, 2022, 11:28 am
December 11, 2024, 1:02 am

Summary

Multisync Presentation Monitor from NEC. There is a "Plus" (2960) and regular (non-plus 2950) variant. The "Plus" model has a sharper tube (m-class spec) vs the regular variant which uses a consumer-grade (a-class spec) tube.

29" diagonal, 27" viewable image size, flat square technology, stripe trio, 108 degree deflection angle, invar shadow mask, medium-short persistence phosphor, Microfilter, dynamic focus, optical filter coating, anti-static coating

Literature

Notes

These monitors can be a little picky with sync but using an Extron in series with your input signal should solve all of that. For example an Extron 160xi, 203xi, or similar.

The tube pitch is variable (like most flatter tubes this size). For this Plus model, center pitch is 0.6mm, and at the edges it reaches 0.71mm.

The sync range supports 15.7kHz and common PC and broadcast resolutions between 31kHz to 65kHz including 480p, 720p, 1024x786@75Hz, and 1280x1024@60hz.

Everything will be displayed in 4:3, so widescreen resolutions like 720p and 1080i, although supported, are not recommended for use.

The speakers on this can deteriorate over time - if the sound can't get very loud without audible cracking or clipping, you should inspect the speakers.

The stock exhaust fans can be quite loud. They are easily replaceable with Noctua fans. You will need (2) NF-A8 and (1) NF-A9 fans. Simply remove the old fans and either splice in the new ones or make your own connectors using the spare adapters Noctua provides in their boxes. The "alarm" wire on the original fans needs to be tied with ground to prevent the monitor from thinking the replacement fans are malfunctioning.

The rear of the chassis can be folded down for servicing/access (which makes the fan replacement easier). To do this, remove the screws at the top edge of the rear support structure, then slightly losen (but don't remove) the button screws on the same support structure. This will allow it to open downwards like a truck tailgate. See pictures below for example.

Computer Signal Compatibility: 640 x 480 VGA @ 60, 72, 75, 85 Hz non-interlaced 800 x 600 SVGA @ 56, 60, 72, 75, 85 Hz non-interlaced 1024 x 768 @ 60, 70, 75 Hz non-interlaced 1280 x 1024 @ 60 Hz non-interlaced 8514/A, XGA, XGA-2 Macintosh: 640 x 480, 832 x 624, 1024 x 768

Bandwidth: RGB: 60 MHz; Video: 5 MHz
