Summary

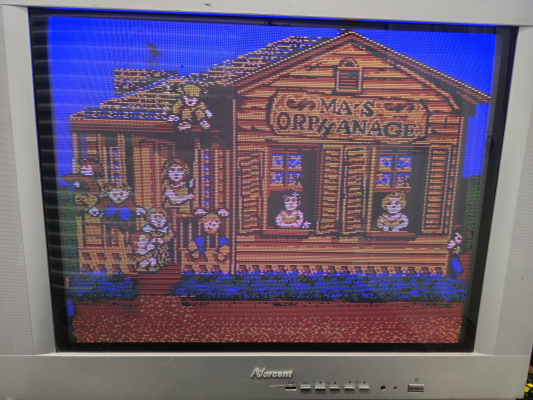

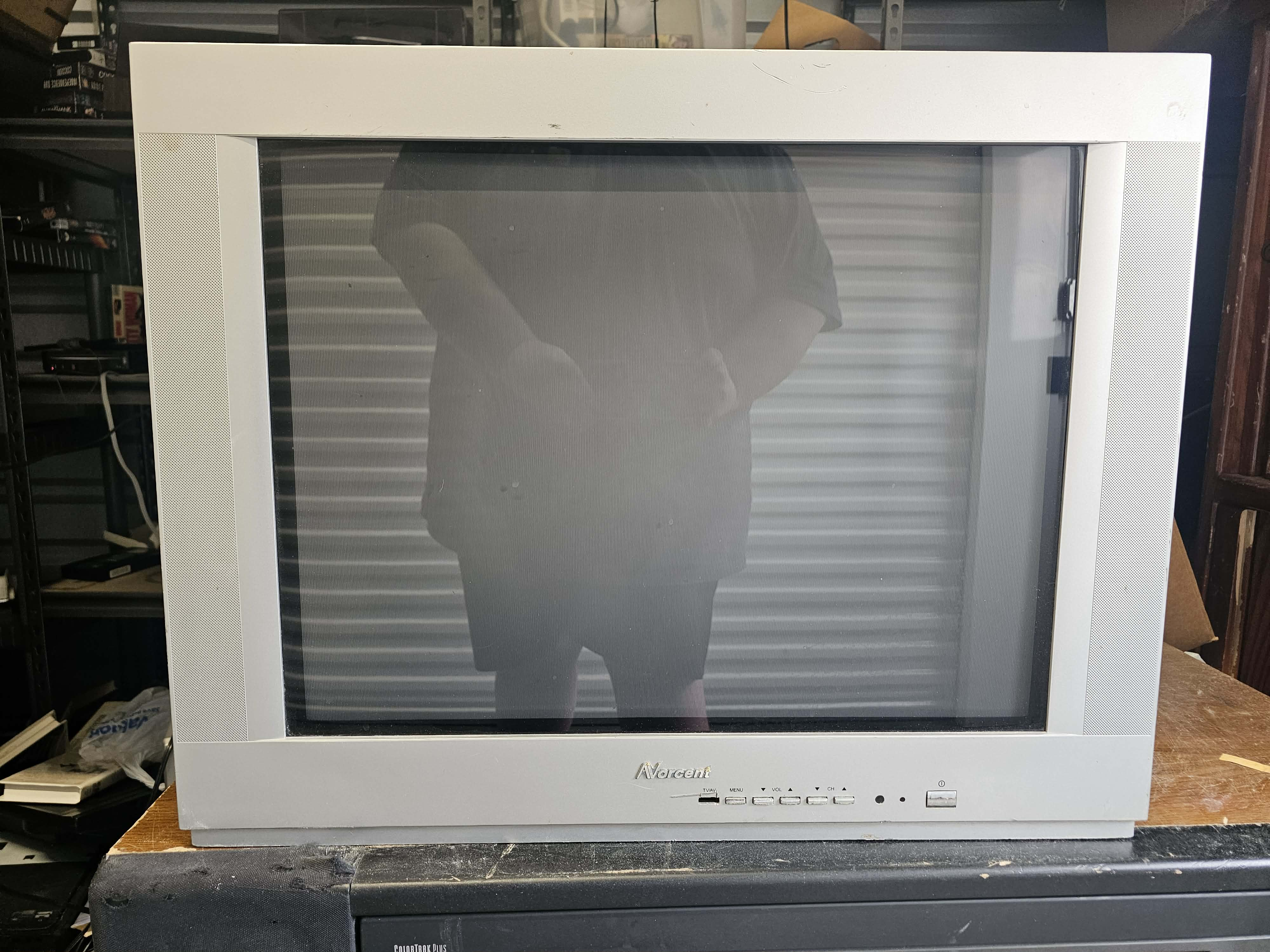

27" flatscreen CRT by Norcent, launched in 2002. Has RF, composite, and -svideo inputs with stereo sound. Originally manufactured by Hisense in China.
(Special thanks to Bryce Wilson for the pics!)
Manuals
(None at this time.)
Media & Promo Materials
Notes

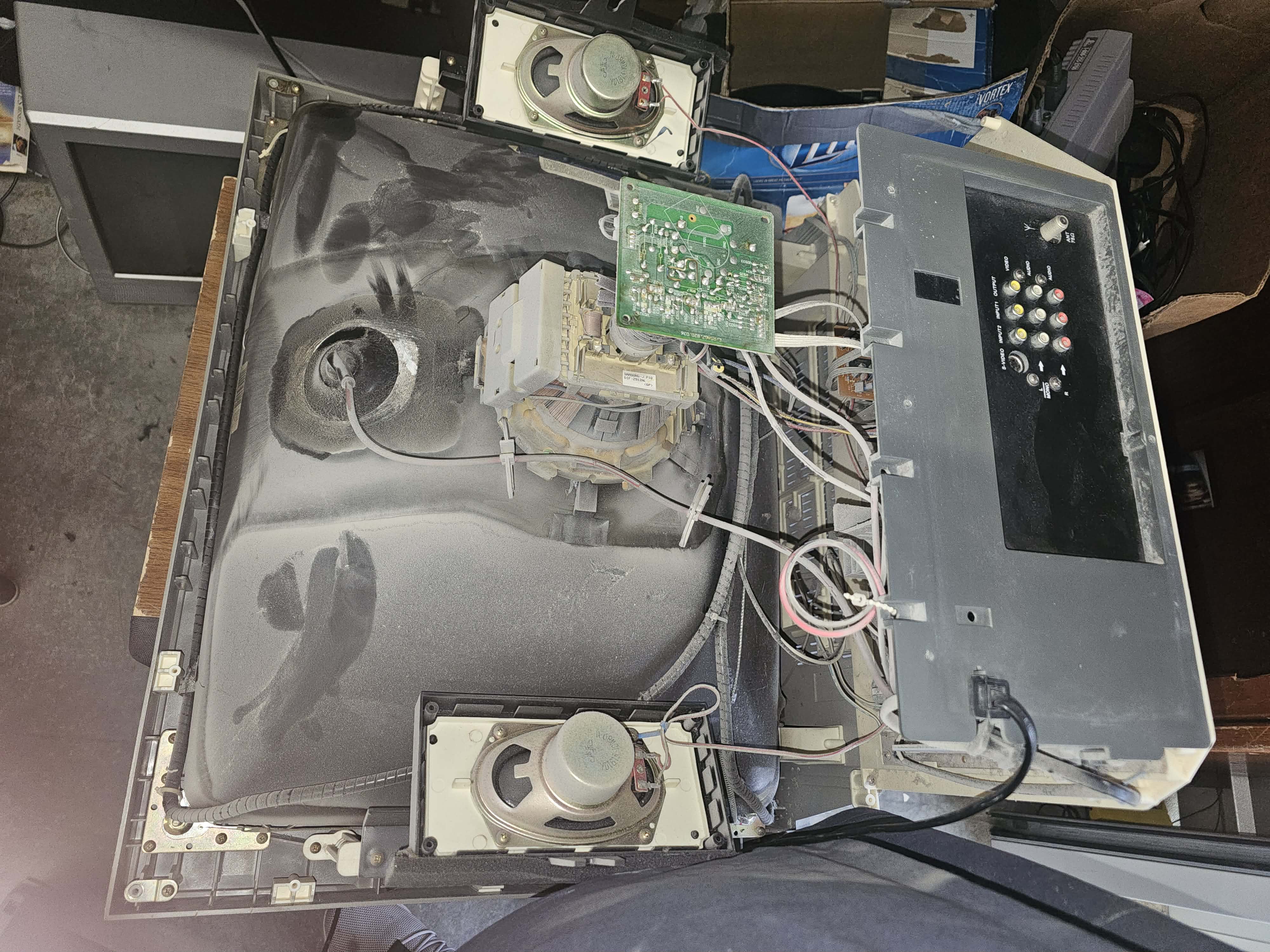

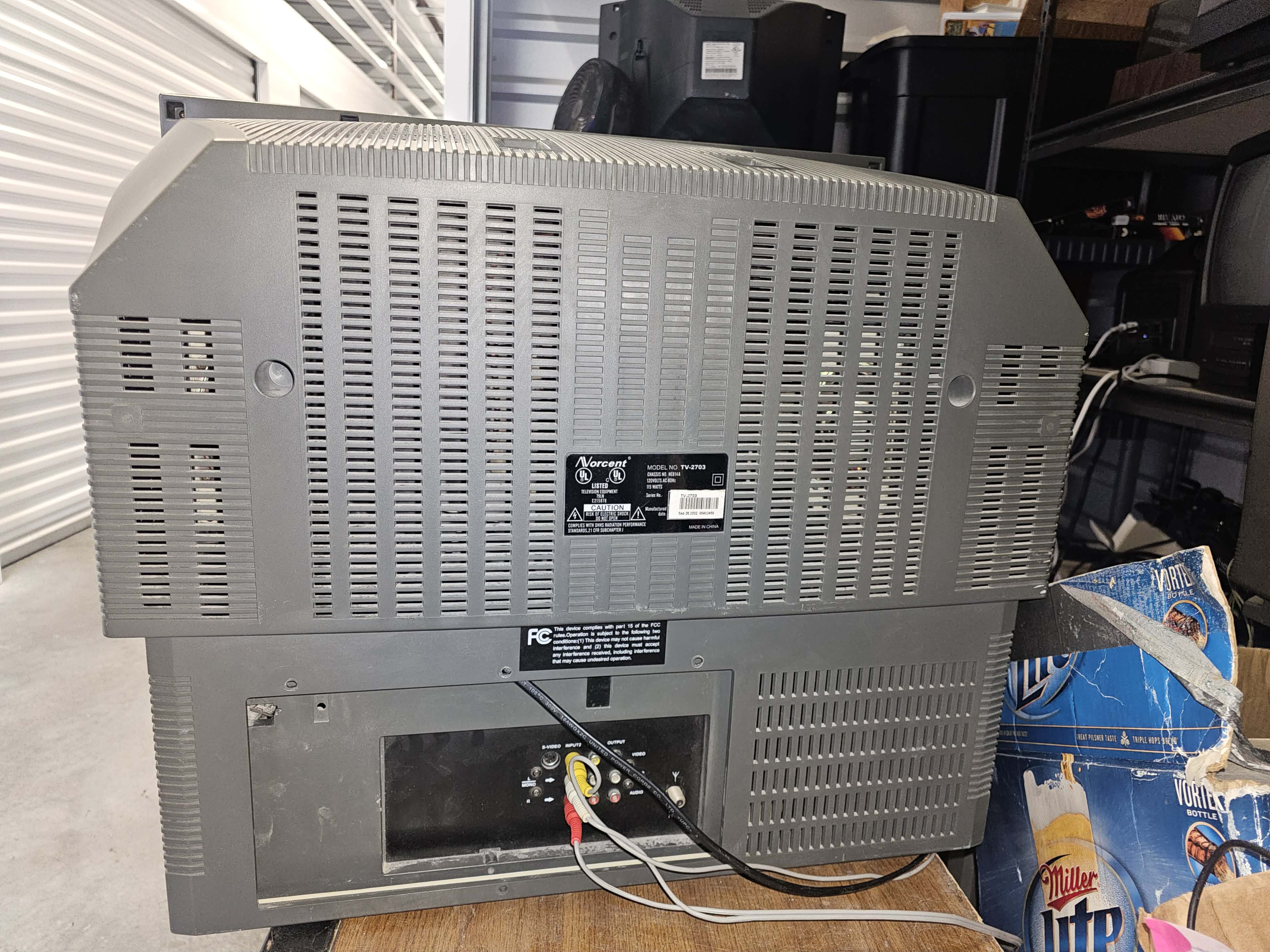

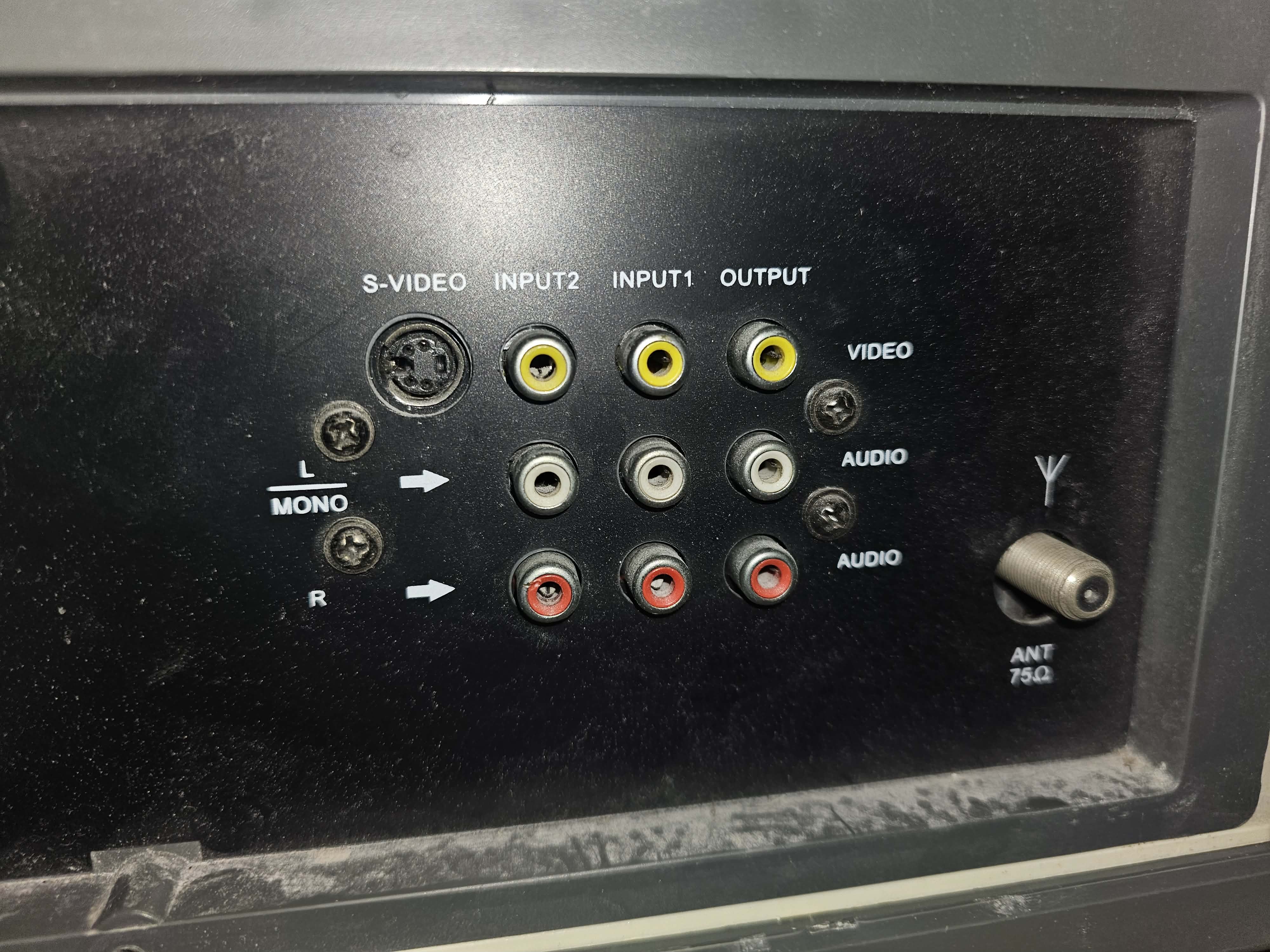

Despite the official webpage and the Amazon page saying this set has component inputs, it in fact does NOT have that input, as you can see.

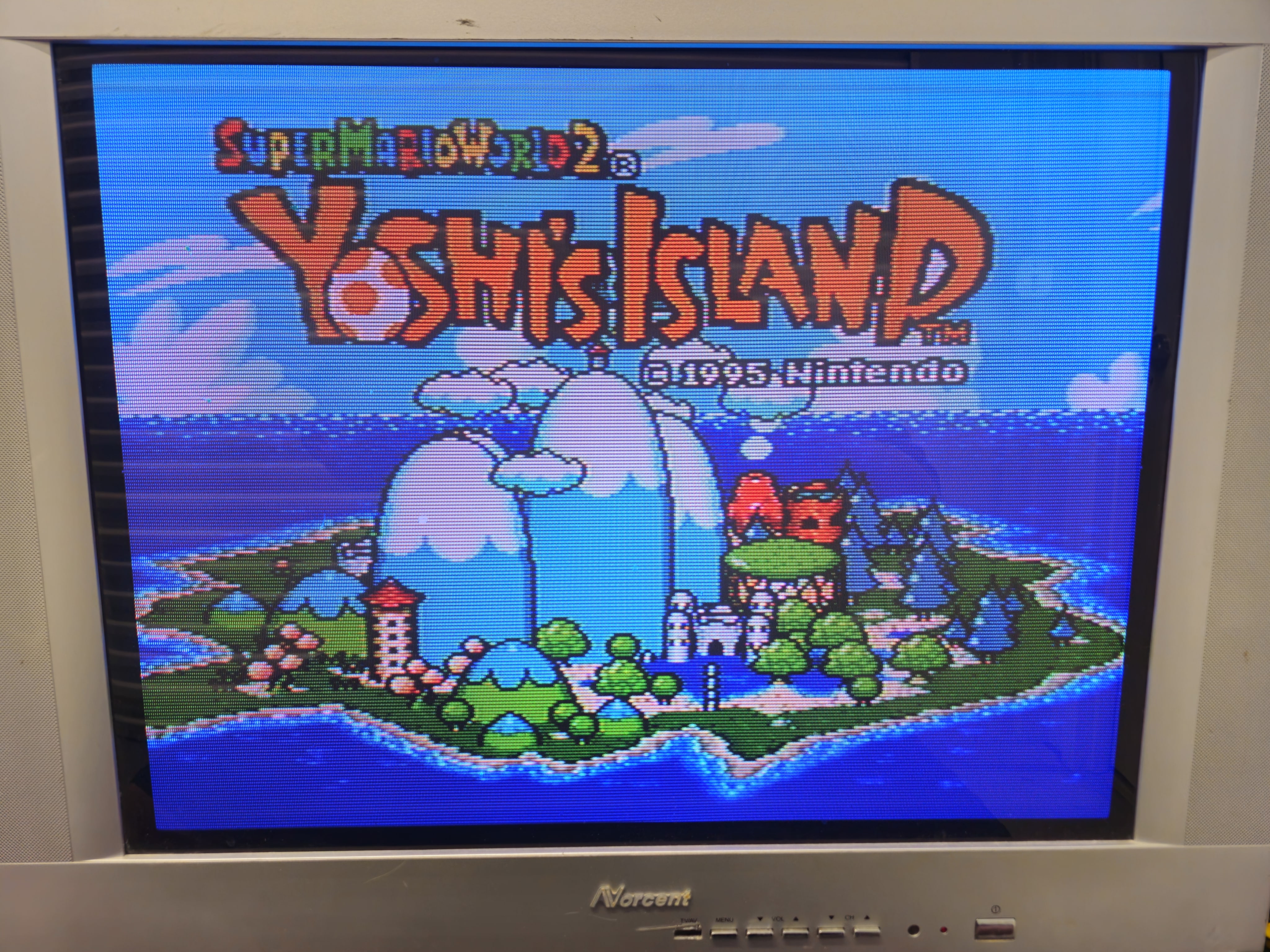

Gallery
| Specifications | |
|---|---|
| Brand: | Norcent |
| Manufacturer: | Hisense |
| Model: | TV-2703 |
| Series: | TV |
| Viewable Size: | 27" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

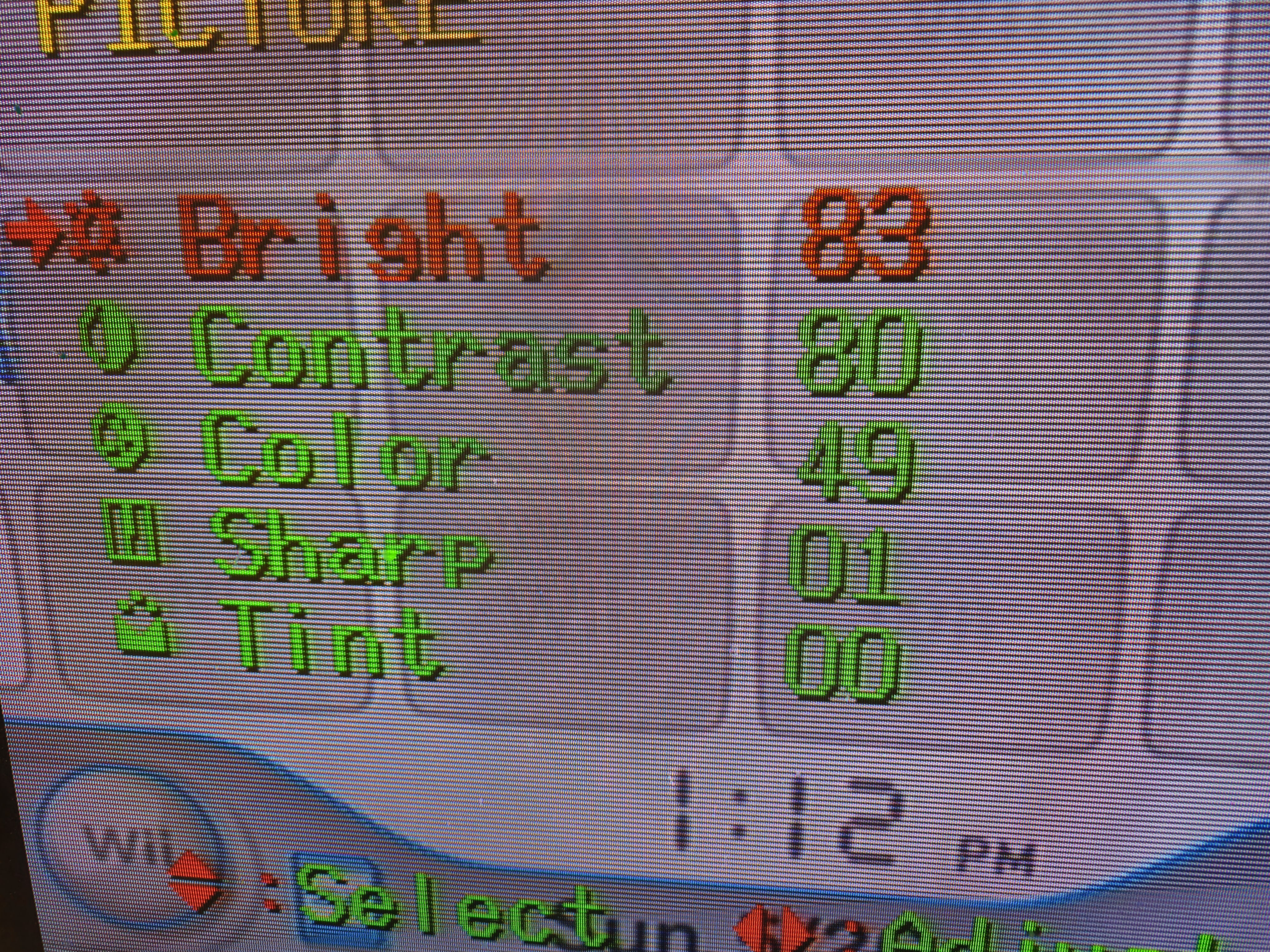

| Adjustments: | OSD Customer Controls, OSD Service Menu |

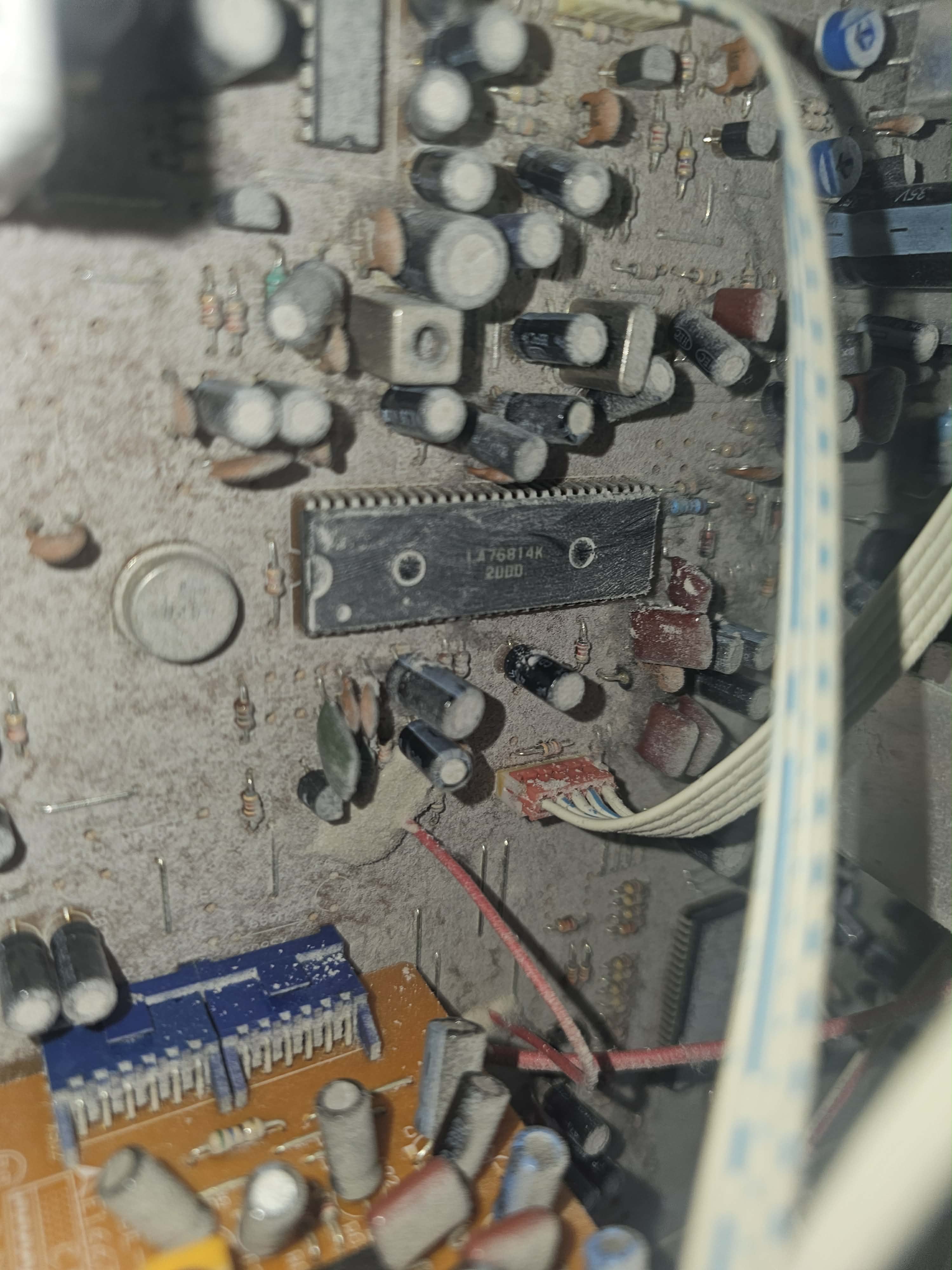

| Jungle IC: | Sanyo, LA76814, LA76814K |
| Focus Type: | Single |

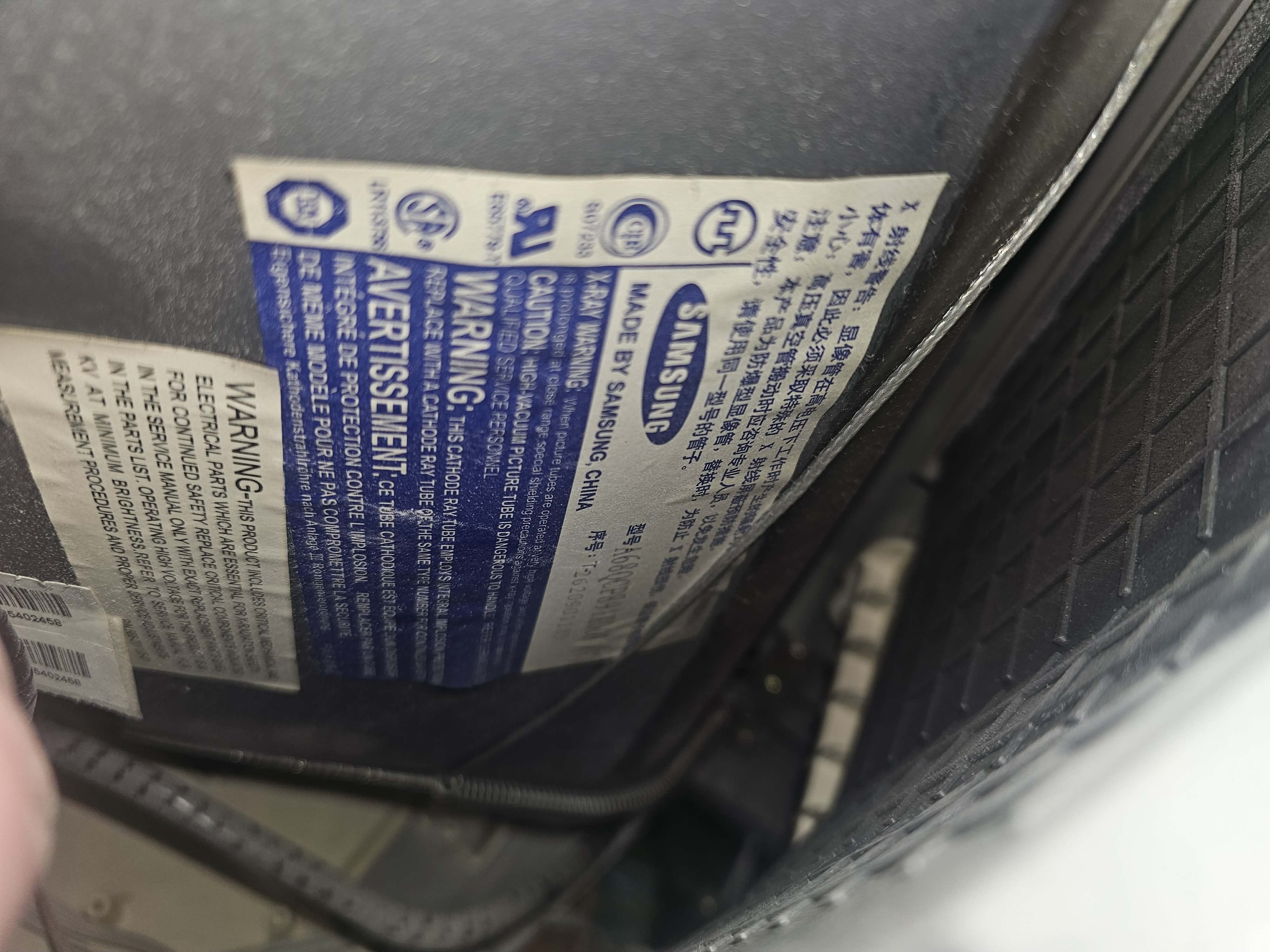

| Tube: | Samsung , A68QCP891X , A68QCP891X003 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

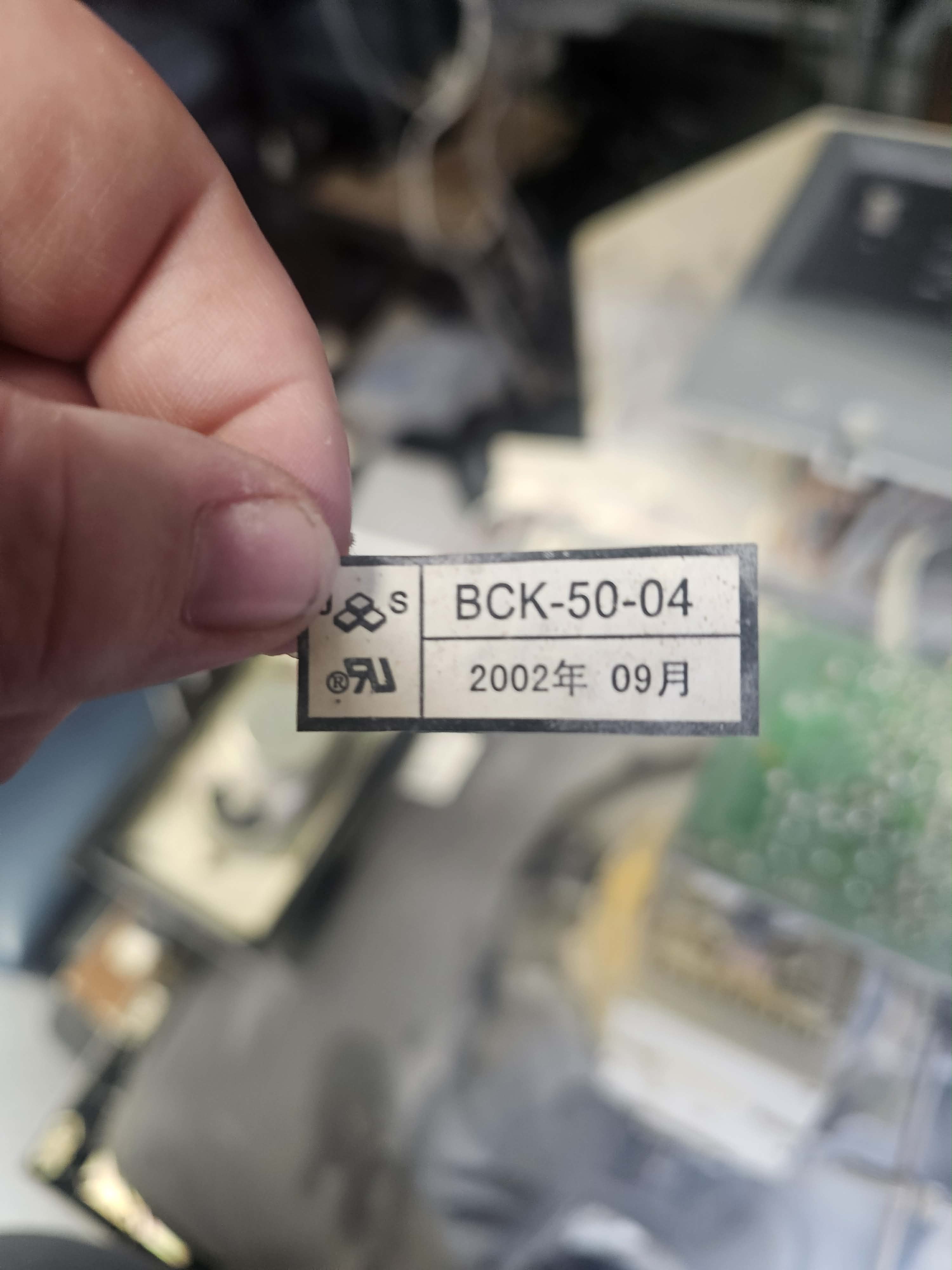

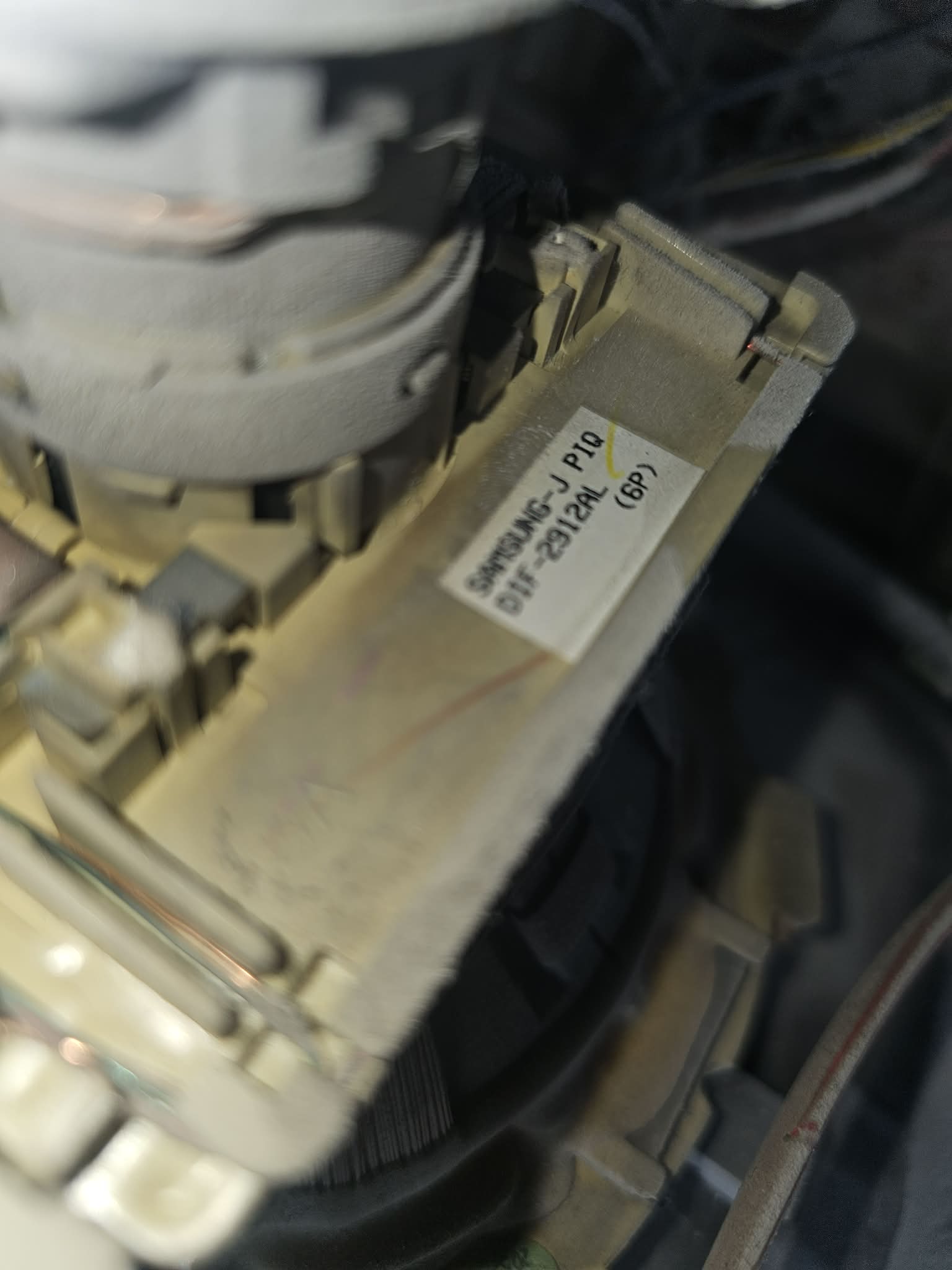

| Yoke: | DIF-2912AL |
| Speakers: | Stereo, 4W x 2 |
| Weight: | 101.4 lbs (46 kg) |
| Dimensions (W/H/D): |
651 x 602 x 503 mm
(25.6 x 23.7 x 19.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 319 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
