Summary

Basic consumer TV from Orion. It has one composite input and a single 1 amp speaker that's mounted on the bottom of the TV. This and similar TVs were sold under a number of different brands, most notably Toshiba. It appears to be a clone of the Toshiba 13A22.

Manuals

• Owner's Manual (Closest Available)
• Service Manual (Closest Available)

Notes

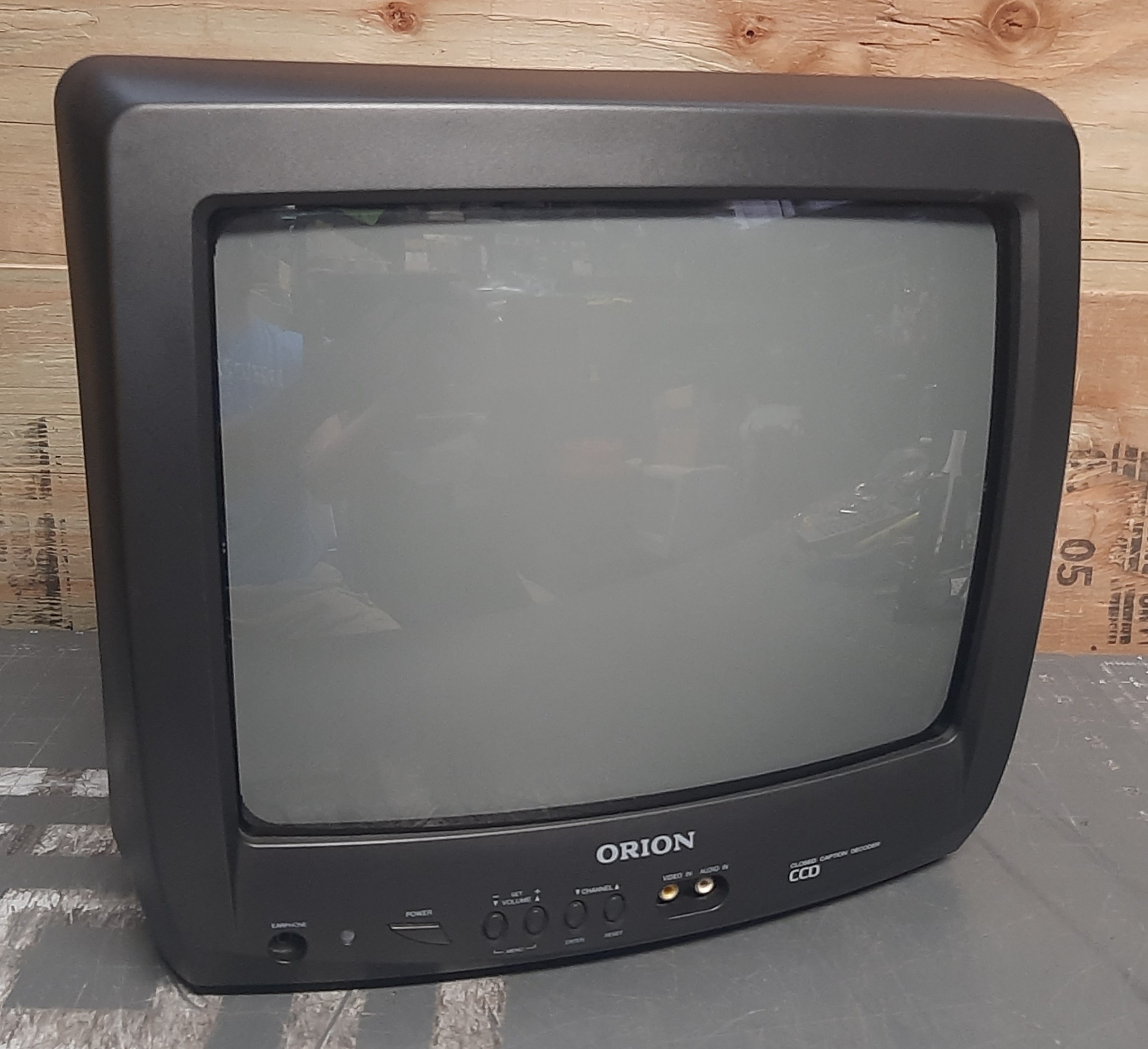

Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.

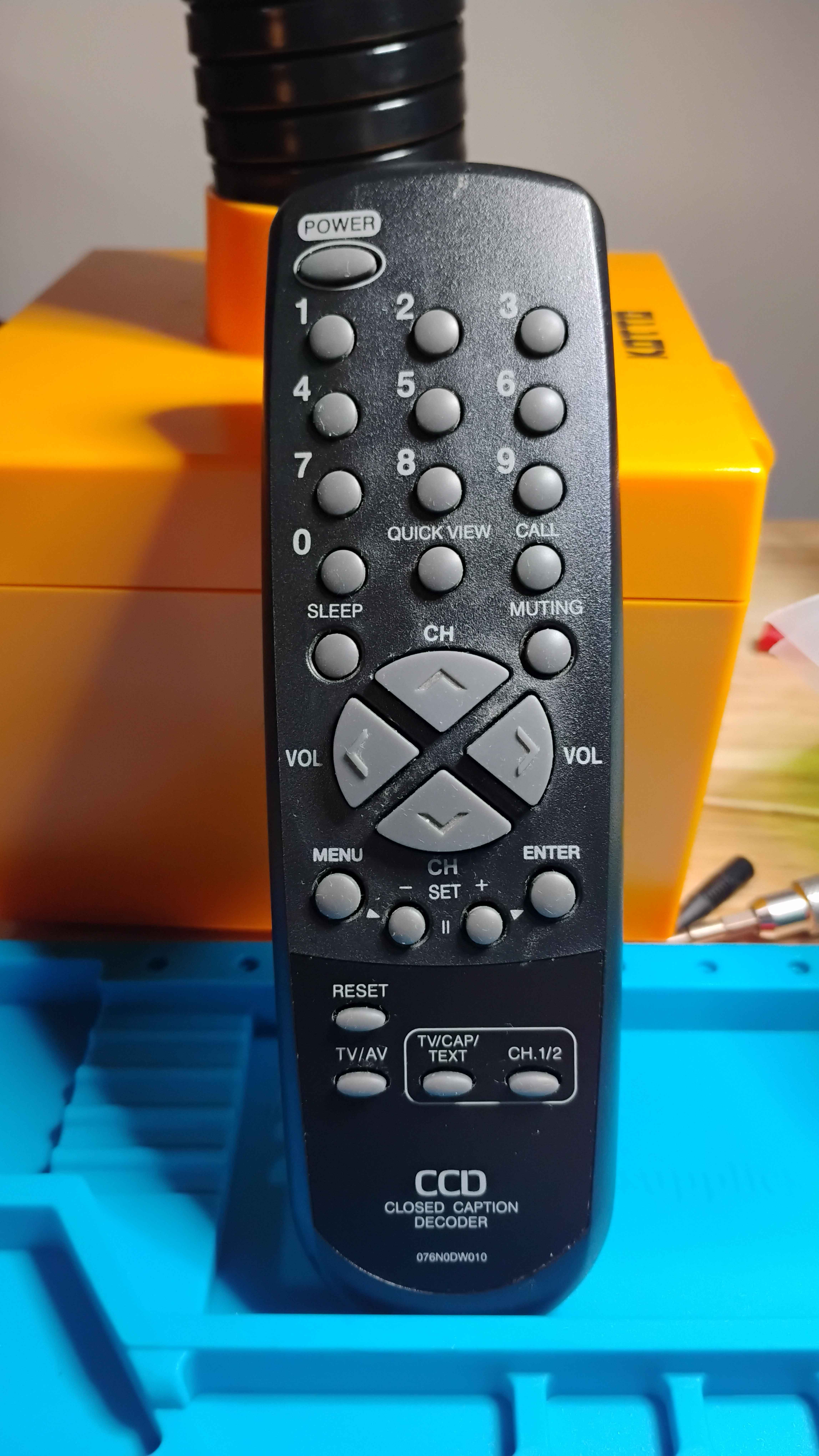

To access the service menu, press and hold the Volume Down (-) button on the front panel of the TV while simultaneously pressing the 9 button on the remote control for a few seconds. Turn the television off using the power button to exit the service mode and save changes.

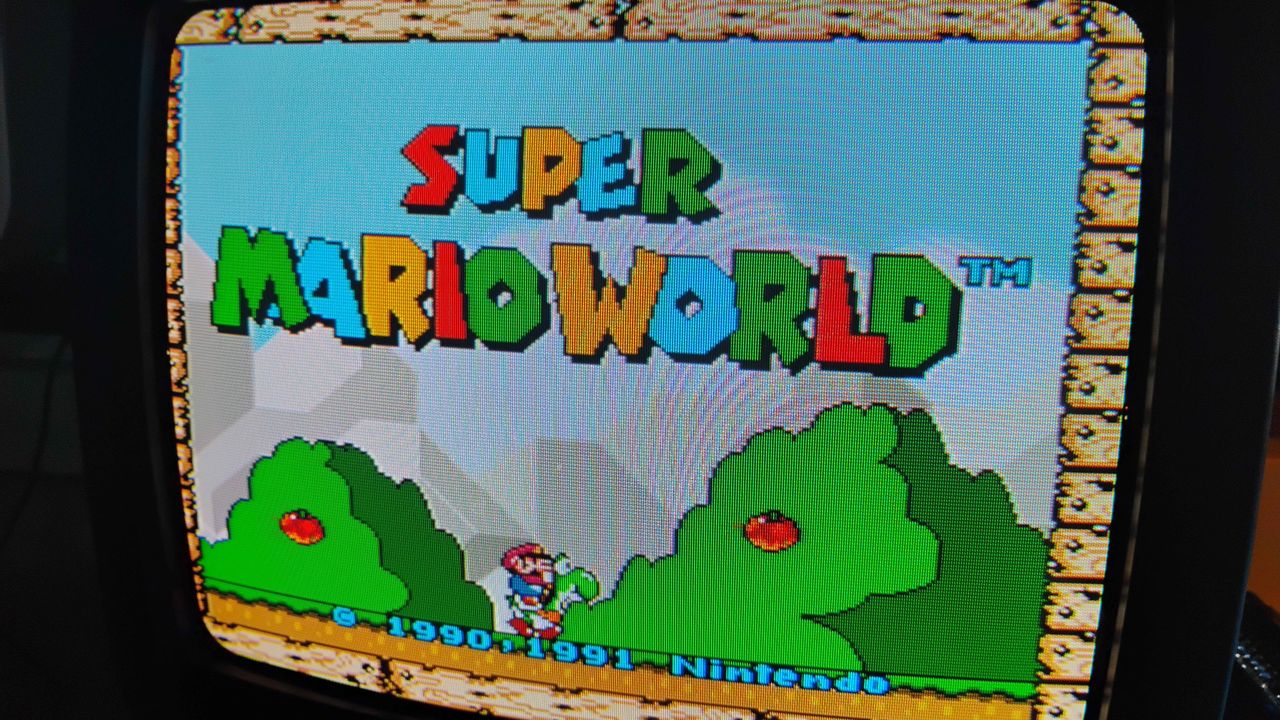

This TV is RGB moddable, same setup as the Toshiba 13A22. The Super Mario pic in the Gallery below is RGB.
