Summary
This television appears to be a variant of the TV1934. There is no information readily available regarding this "a" model, but there's a good chance it shares a lot of components to the original.
Notes

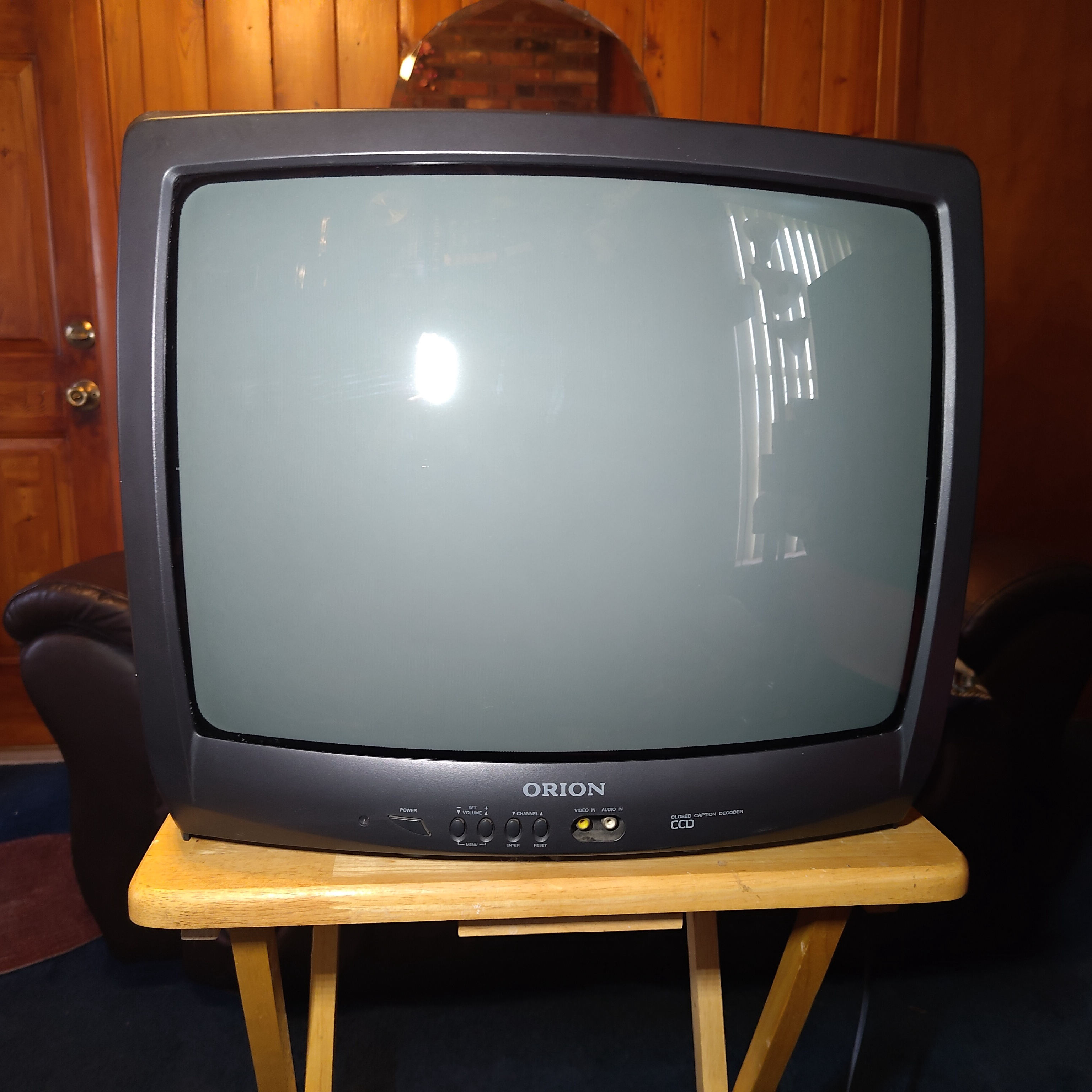

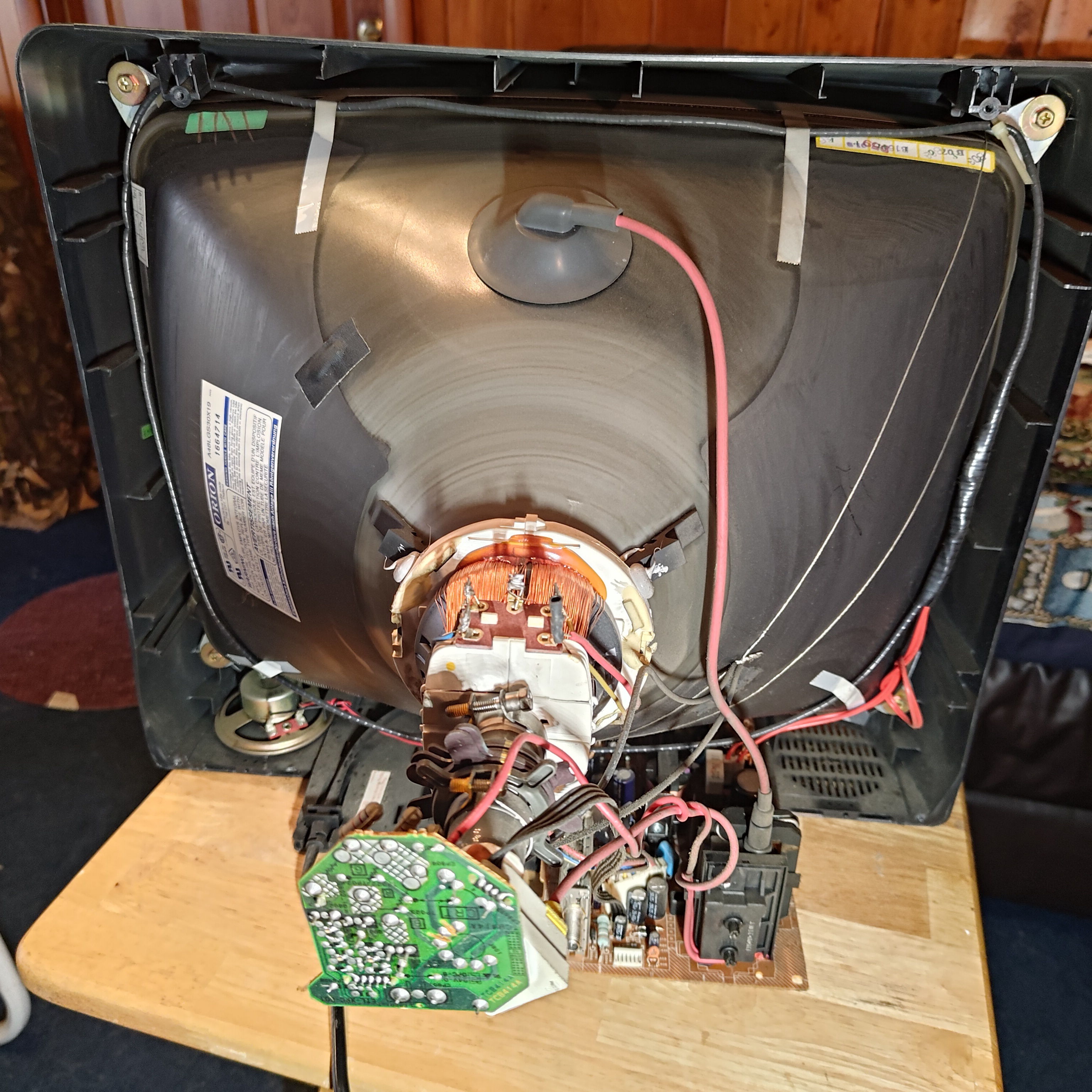

Menu controls and composite input can be accessed without remote. The chassis is rather flimsy and is held together with only four screws.

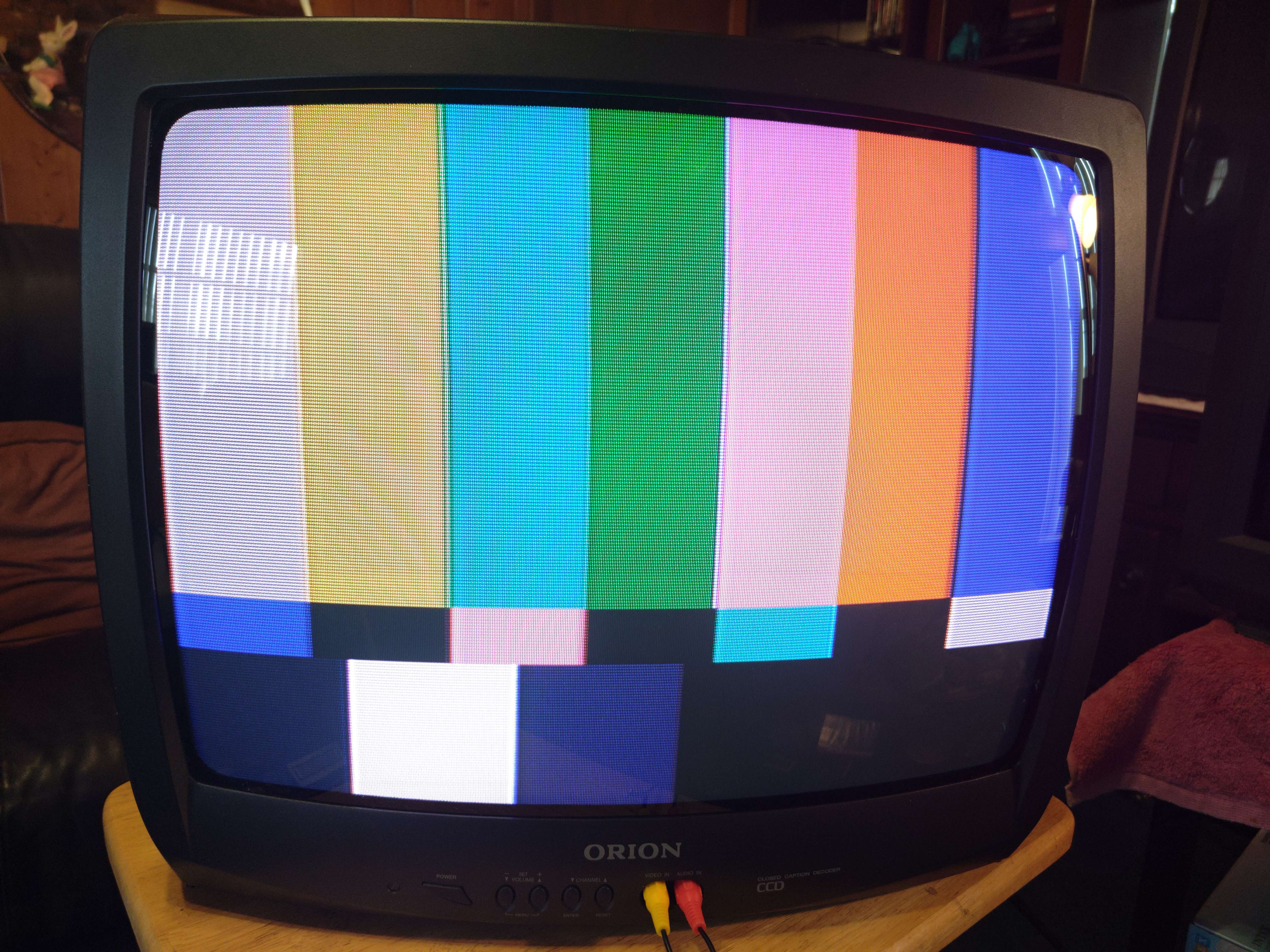

Gallery
| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |
| Model: | TV1934A |
| Series: | TV |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |

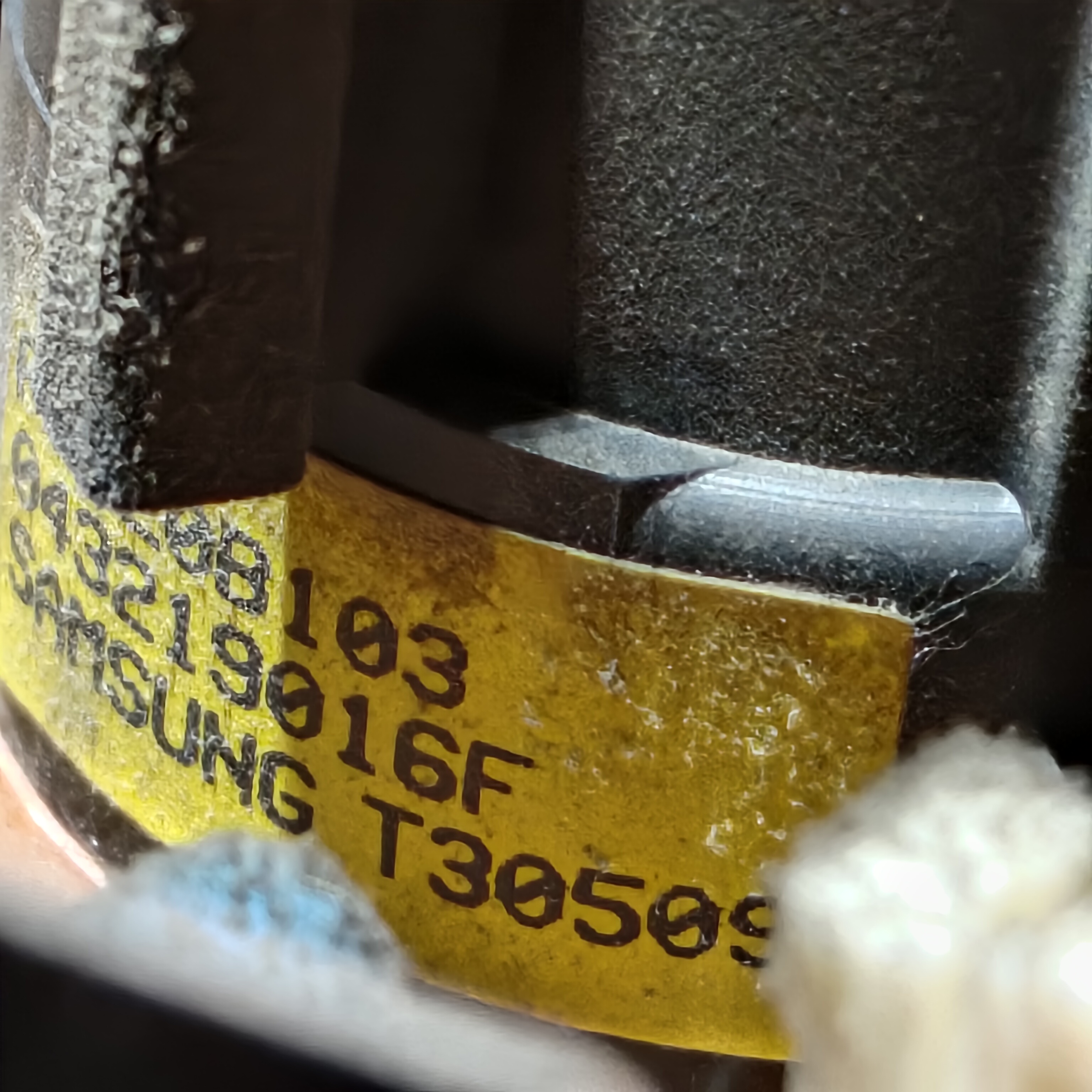

| Flyback: | FQI20B103 |

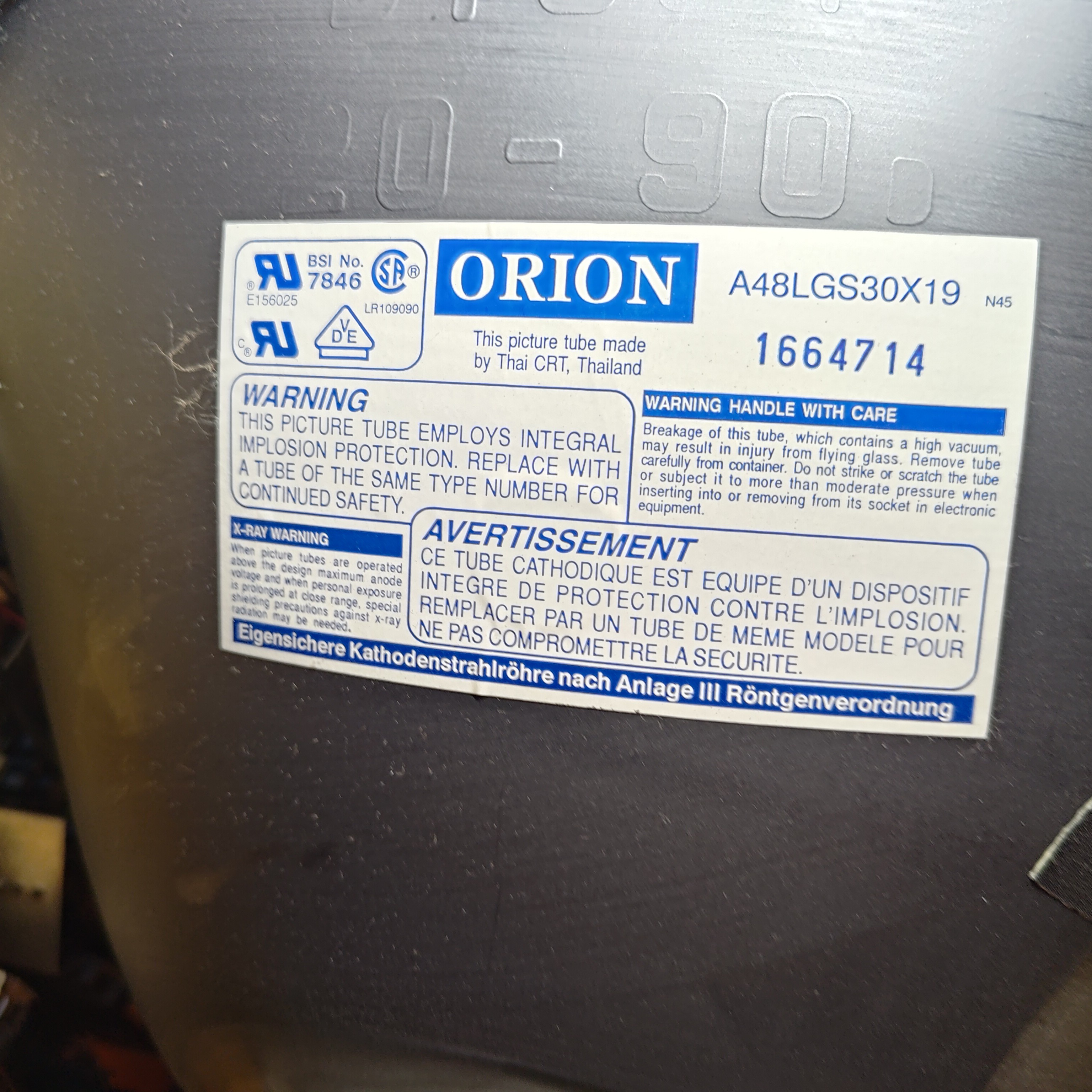

| Tube: | A48LGS30X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light |
| Removable Glare Film: | No |
| Remote: | 076N0DW090 |
| Chassis: | M3M27 |
| Weight: | 35 lbs (15.9 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info, Community Submission |
