Orion TVDVD092
Eli Krause
June 12, 2025, 11:36 am
March 1, 2026, 11:39 pm
June 12, 2025, 11:36 am
March 1, 2026, 11:39 pm
Summary

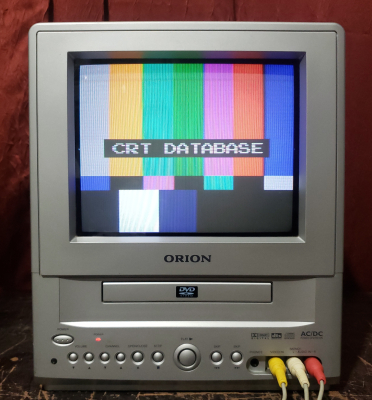

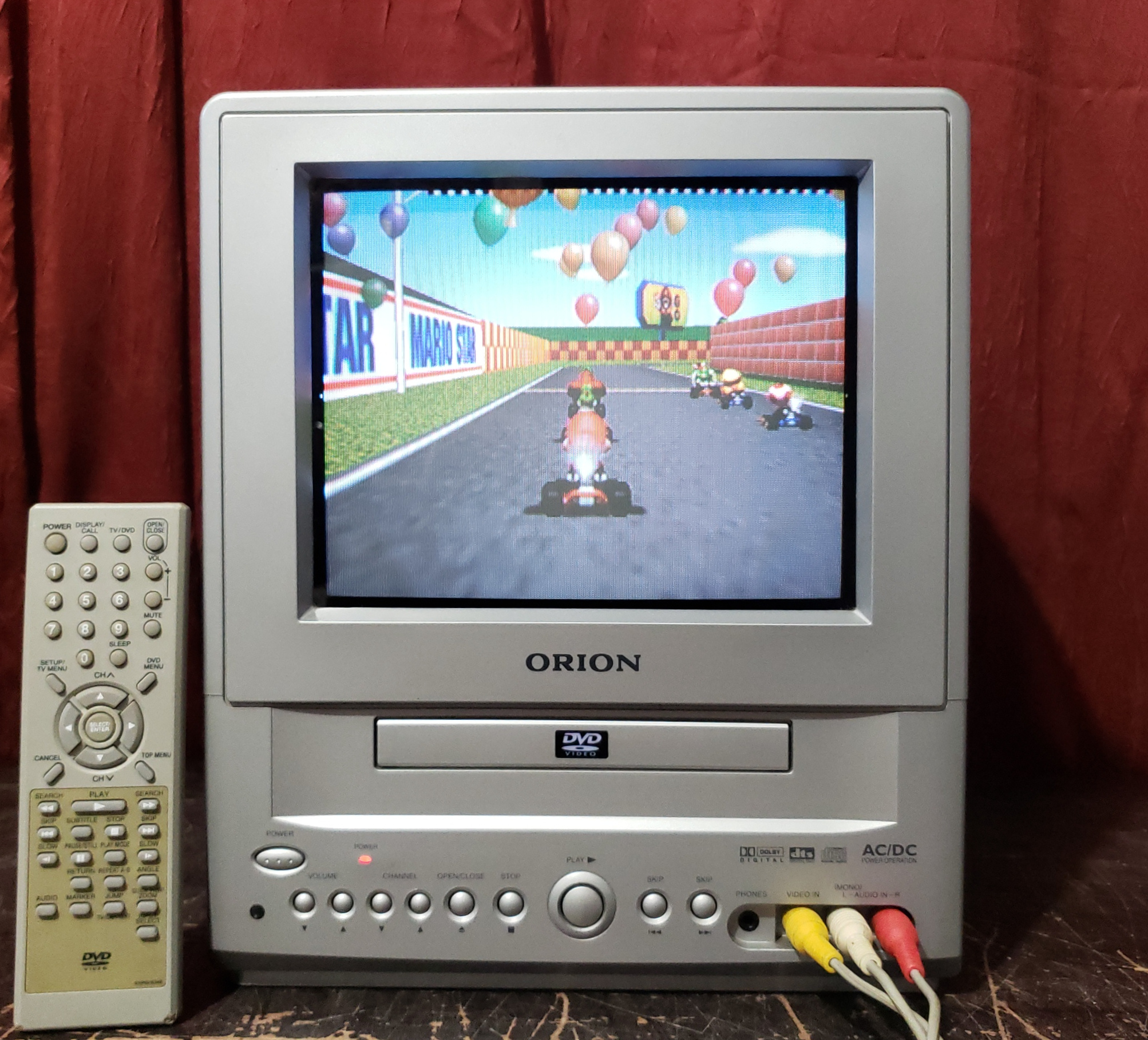

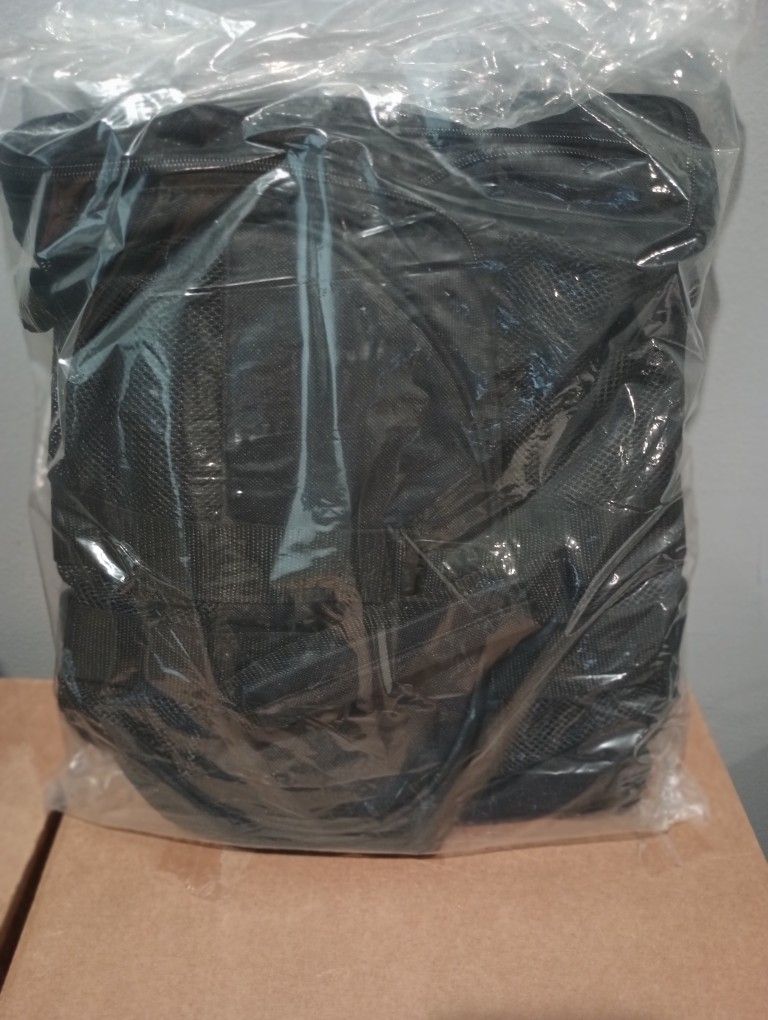

Orion 9-Inch Flat Screen TV/DVD with Bonus travel bag. AC/DC 2-way power system. AV input to connect video game systems and camcorders.
Manuals
None at this time.
Media & Promo Materials
Notes

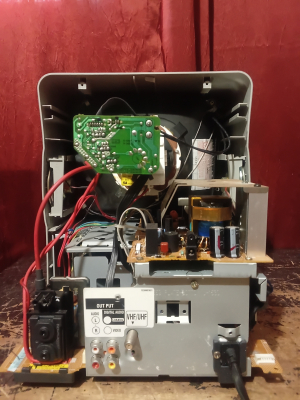

While most picture adjustments are performed with the service menu, there is an adjustment pot on the main board for vertical position.
Very much the same as the Toshiba MD9DP1.
Gallery
| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |
| Model: | TVDVD092 |
| Series: | TV/DVD Combo |
| Viewable Size: | 9" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

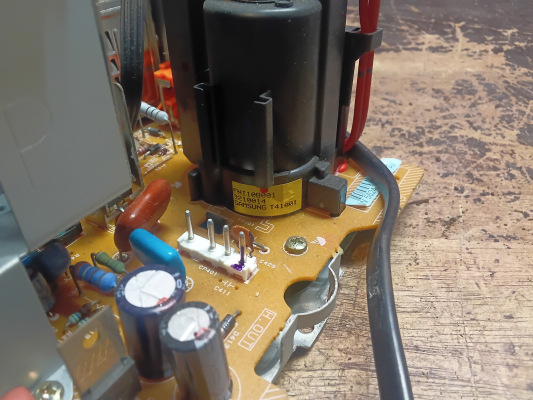

| Flyback: | FNI10B001 |

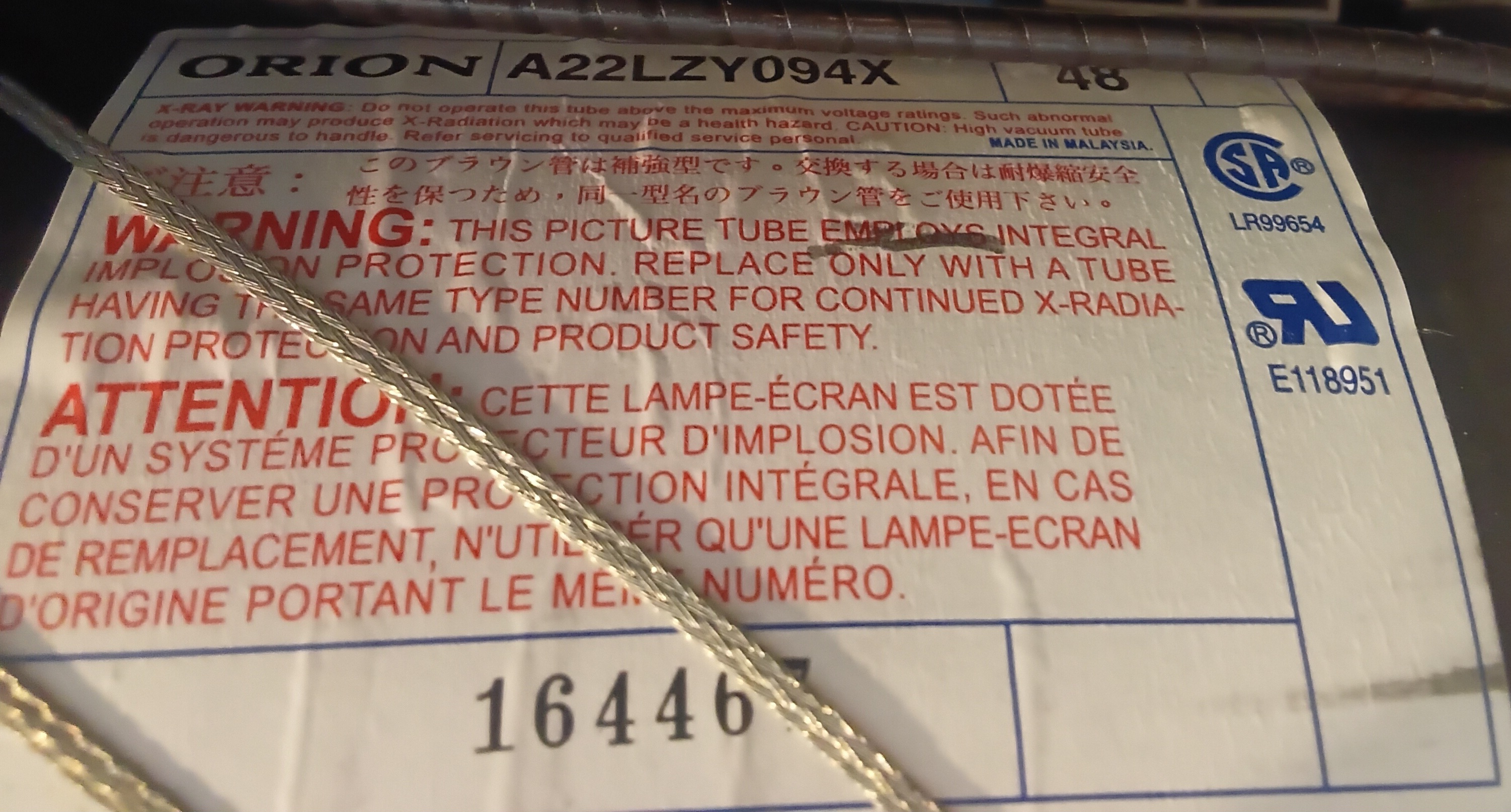

| Tube: | A22LZY094X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Dark |

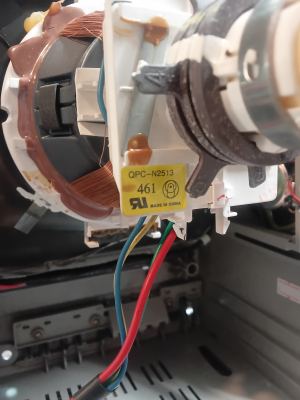

| Yoke: | QPC-N2513 |
| Speakers: | Stereo |
| Remote: | 076R0HE04B, 076R0HE04A |
| Chassis: | M5M931 |
| Weight: | 17.6 lbs (8 kg) |
| Dimensions (W/H/D): |
278 x 311.5 x 306.5 mm
(10.9 x 12.2 x 12") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 160 USD |
| Country of Manufacture: | Thailand |
| Power Standard: | 120v, 12VDC |
| Mounting: | Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info |
