Summary

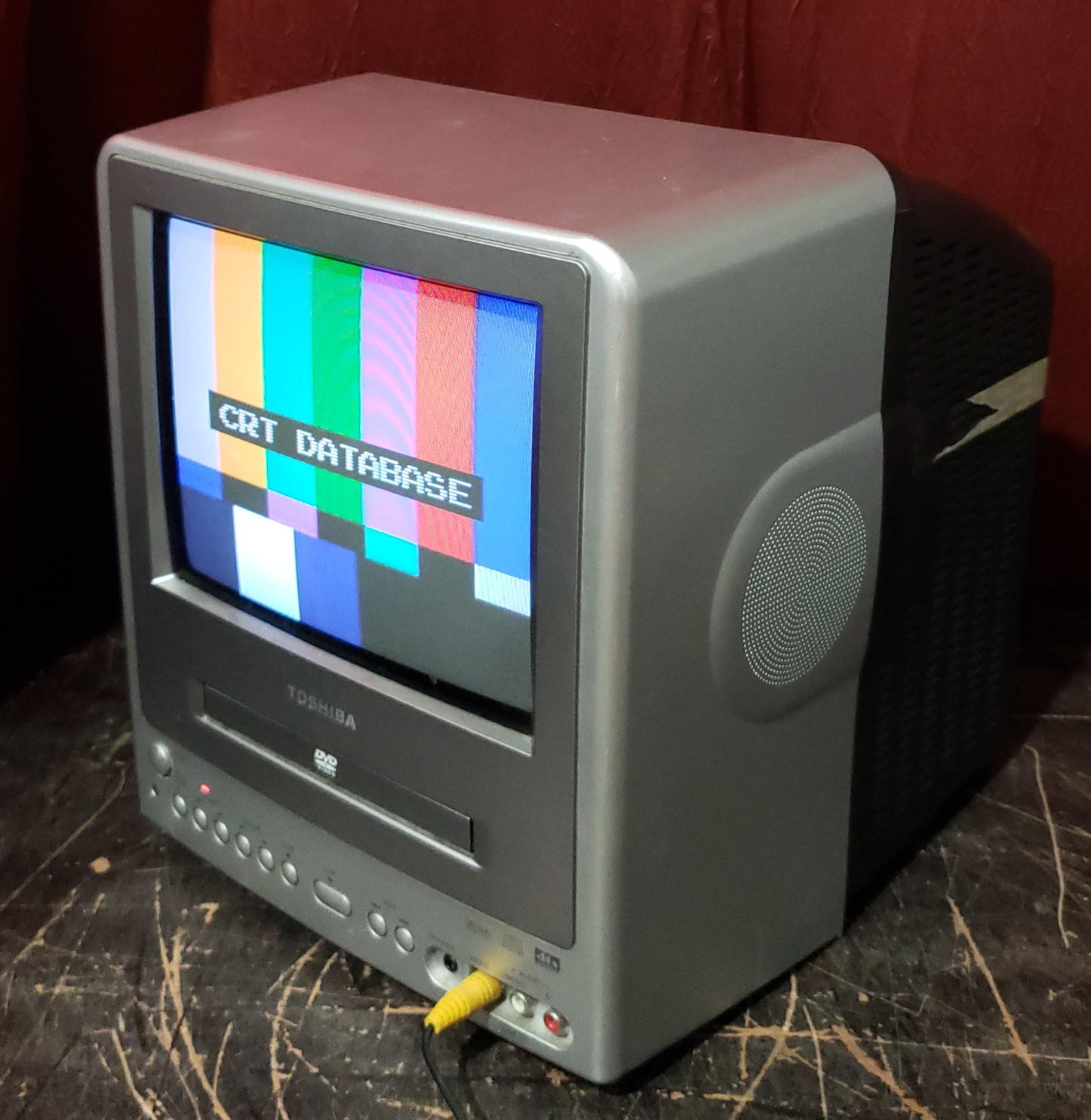

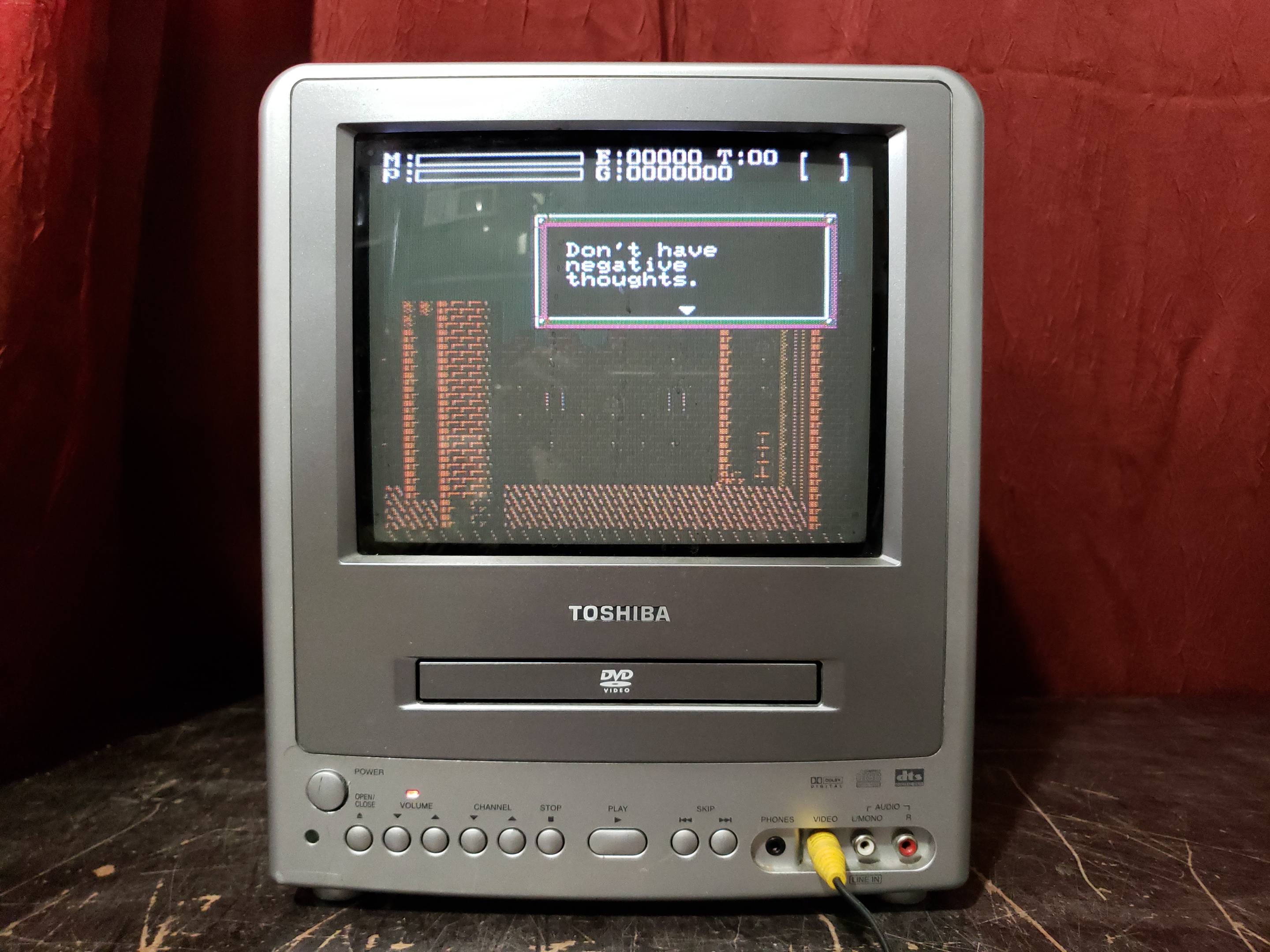

Toshiba's MD9DP1 is a relatively inexpensive portable television suitable for in-vehicle use. It has a built-in DVD player and front ports for easy video-game connections.
Manuals

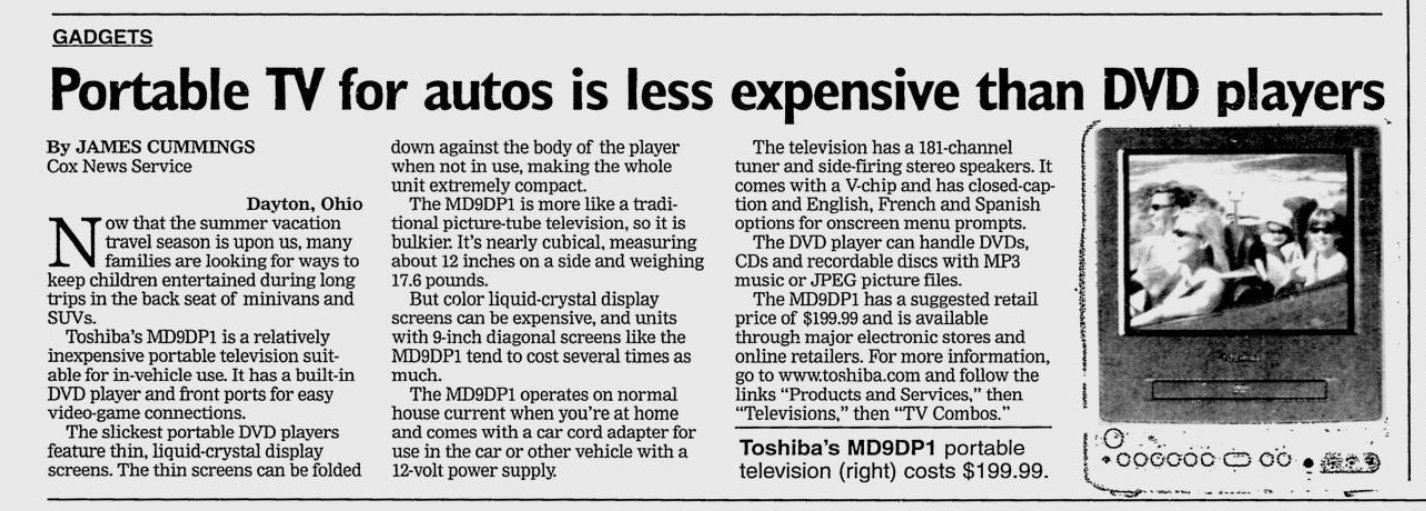

Media & Promo Materials
Notes
This TV uses the same tube as the JVC TM-A9 series of pro monitors.

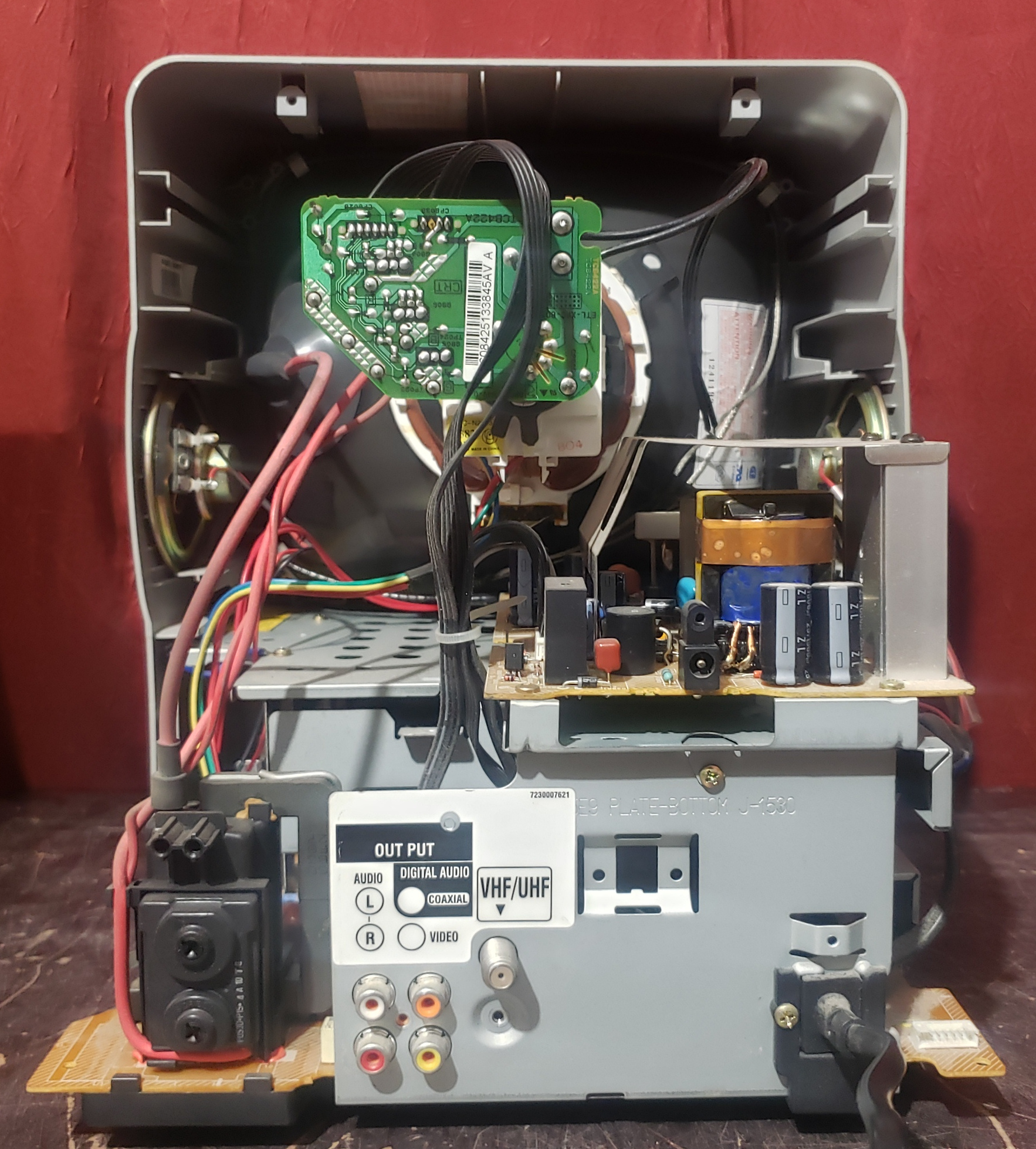

While most picture adjustments are performed with the service menu, there is an adjustment pot on the main board for vertical position.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MD9DP1 |
| Series: | MD |
| Viewable Size: | 9" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu, Internal Potentiometers |
| Horz. Output Transistor: | TT2140LS-YBC11 |
| Vertical Output IC: | LA78040N-E |
| Jungle: | LA76319M-MPB-E |

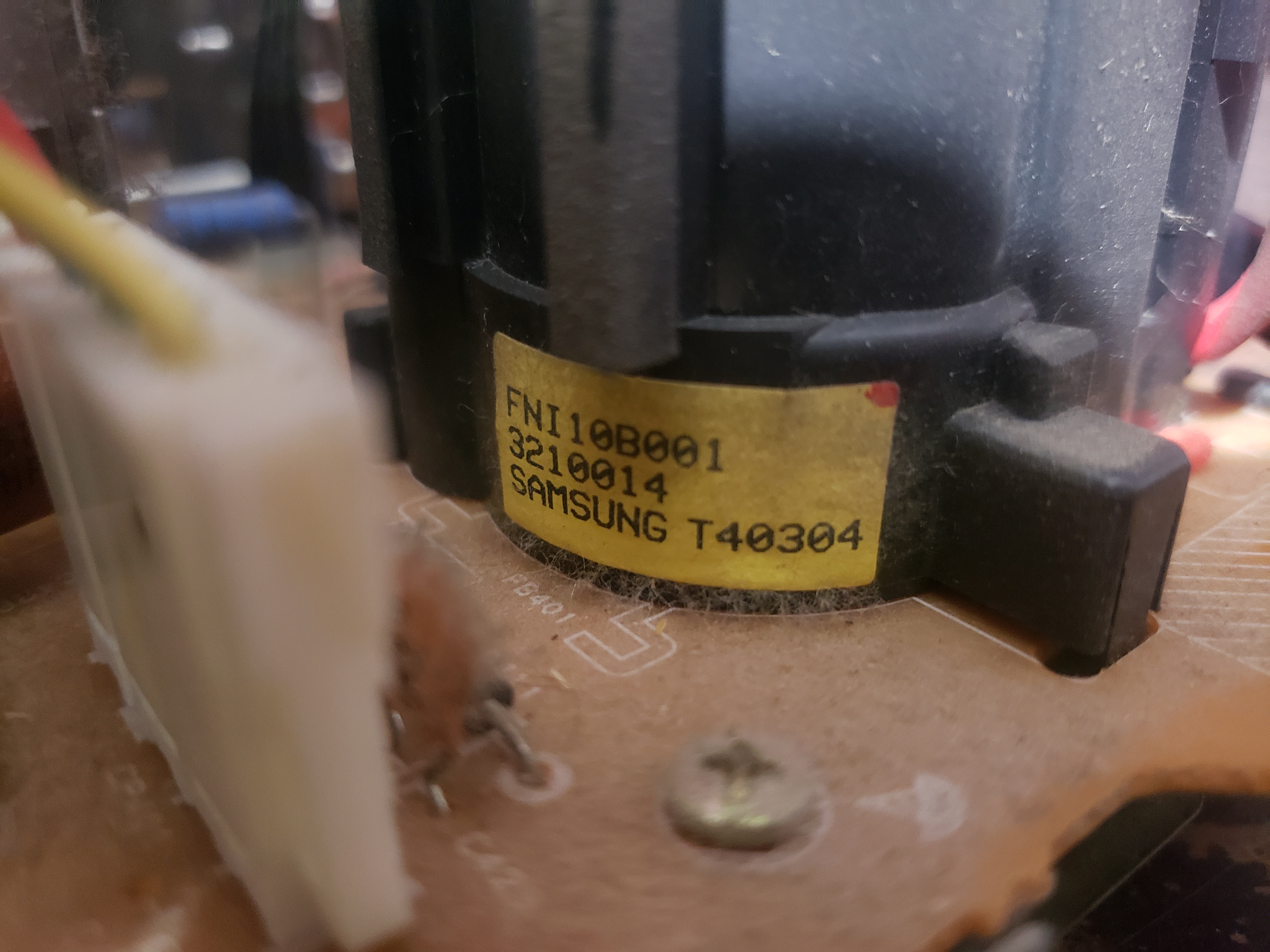

| Flyback: | FNI10B001, 3210014, T40304, Samsung |
| Focus Type: | Single |

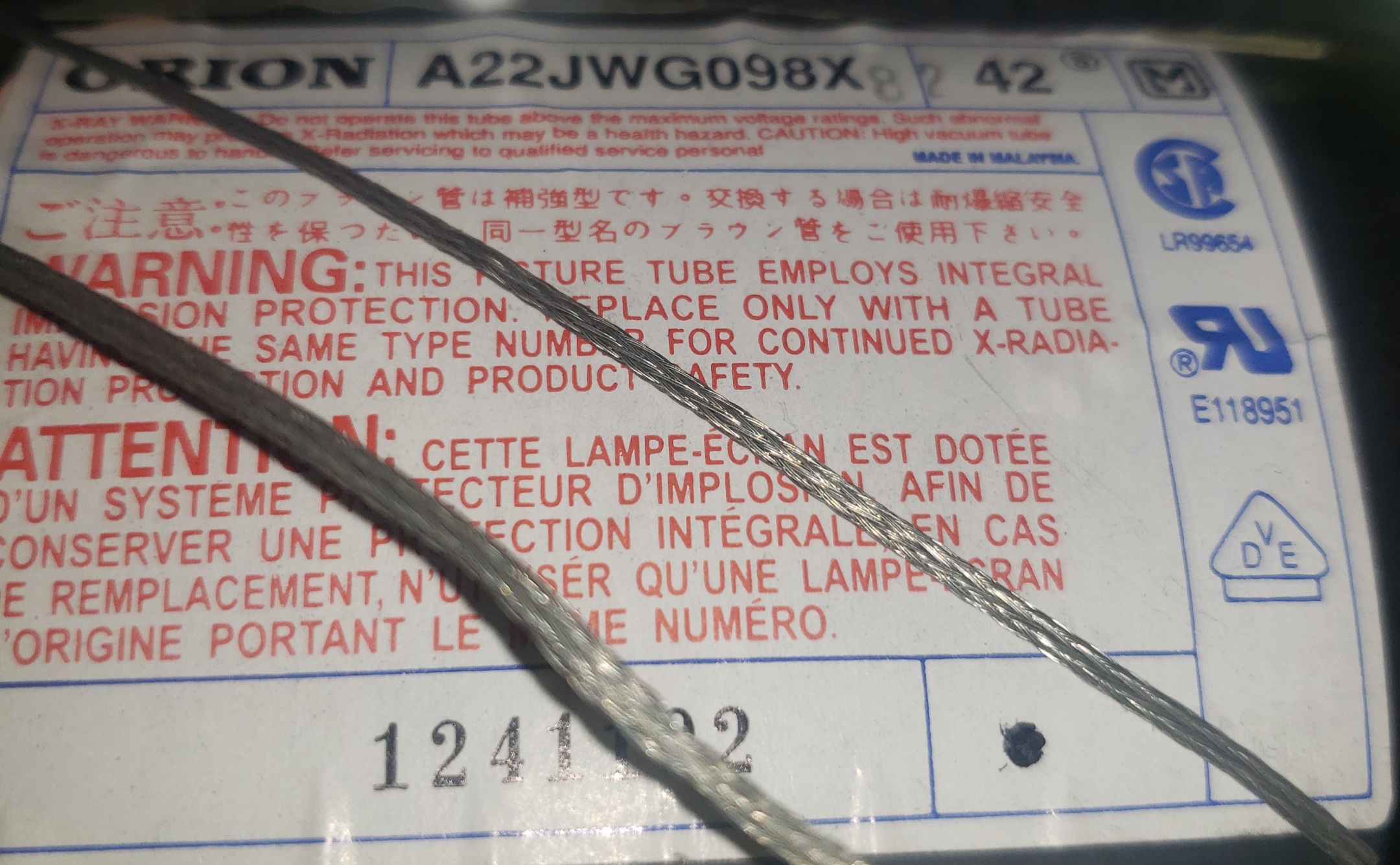

| Tube: | Panasonic , A22JWG098X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Dark |

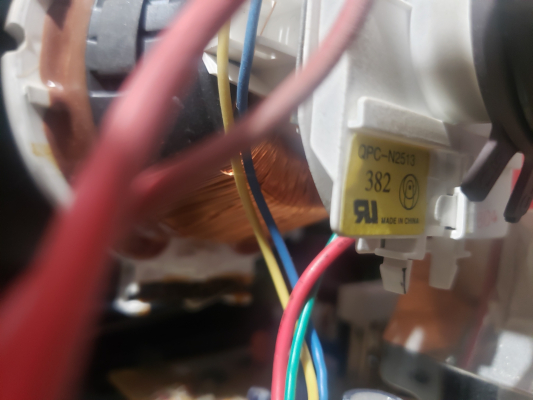

| Yoke: | QPC-N2513 |
| Speakers: | Stereo |

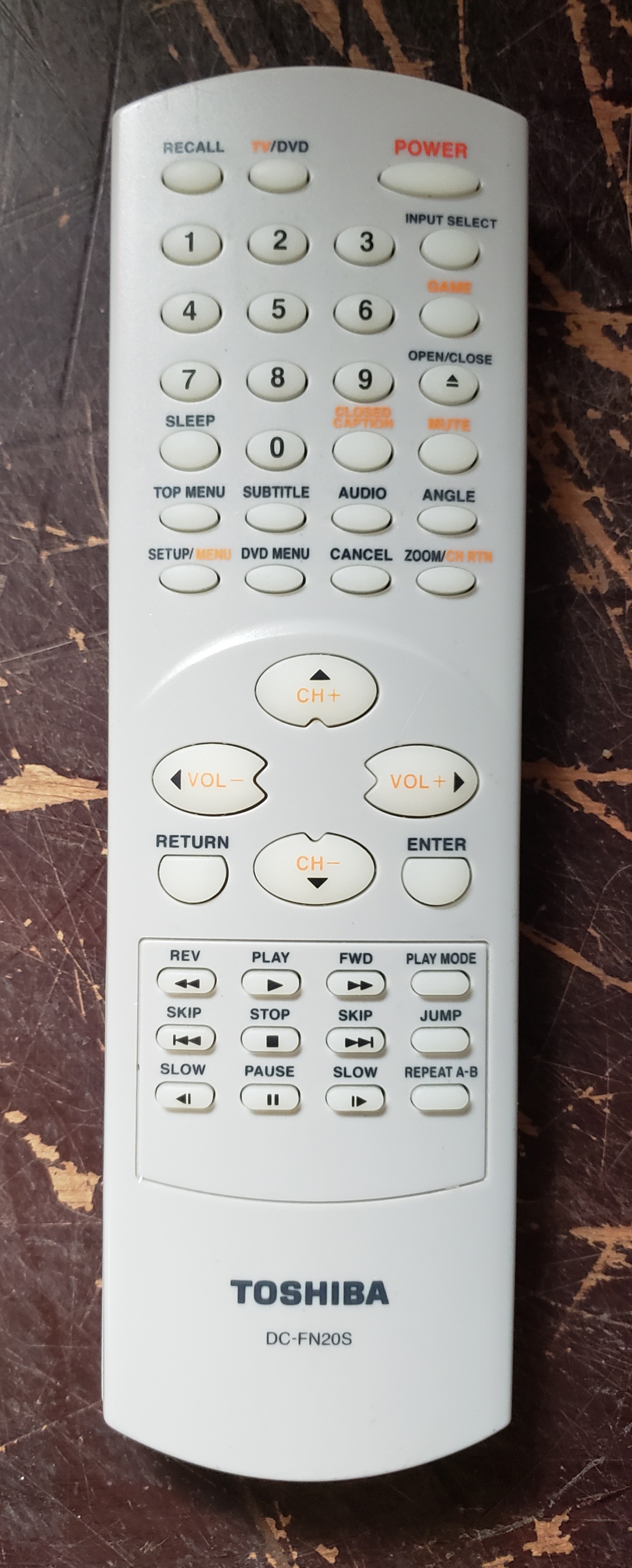

| Remote: | DC-FN20S |
| Weight: | 17.6 lbs (8 kg) |
| Dimensions (W/H/D): |
278 x 311.5 x 306.5 mm
(10.9 x 12.2 x 12") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 199 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Carrying Handle |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
