Panasonic CT-1384Y
Matt Ross
August 8, 2024, 8:55 pm
December 16, 2024, 11:47 pm
August 8, 2024, 8:55 pm
December 16, 2024, 11:47 pm
Summary

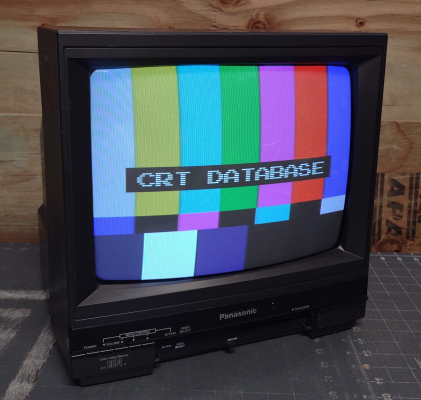

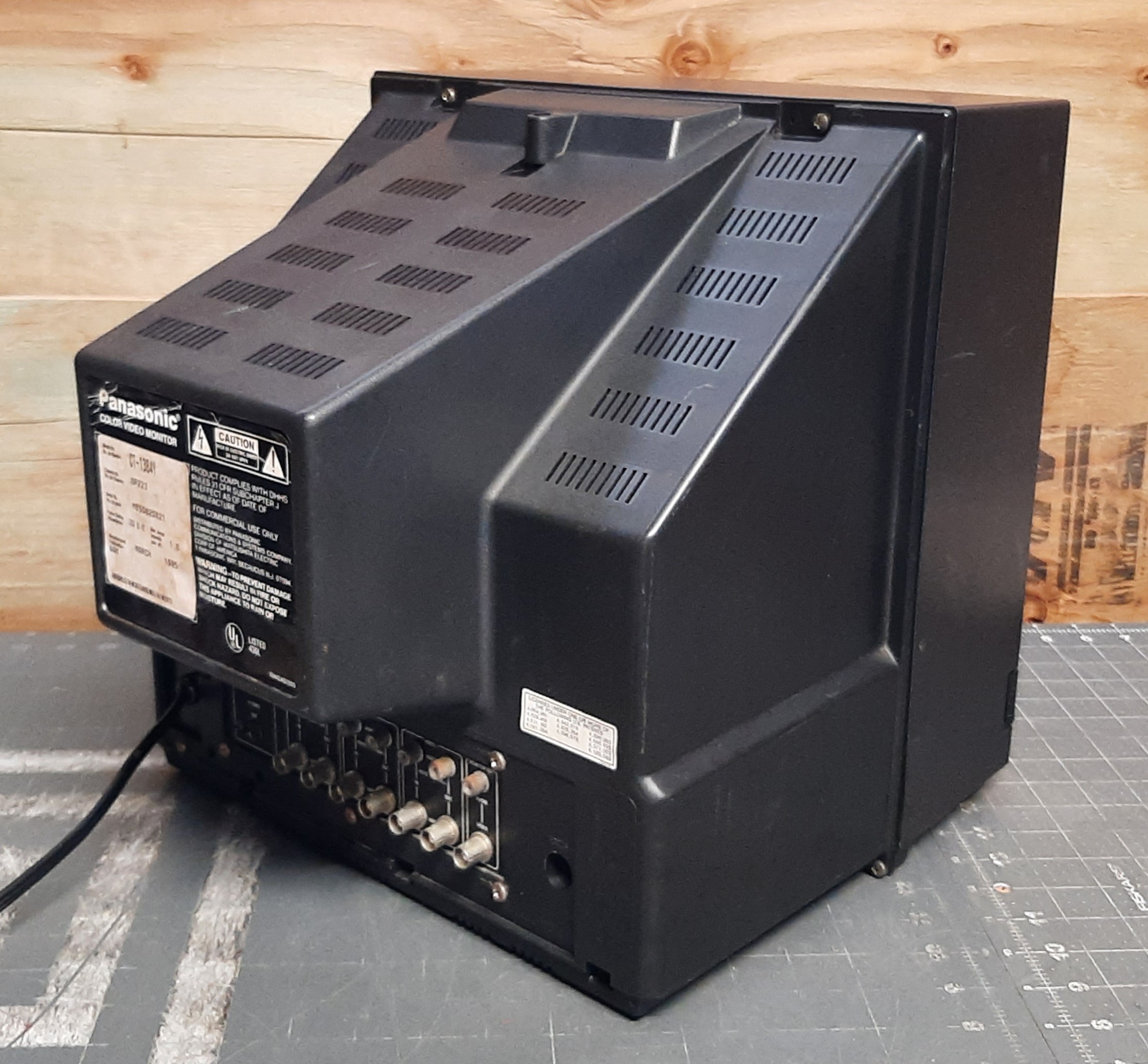

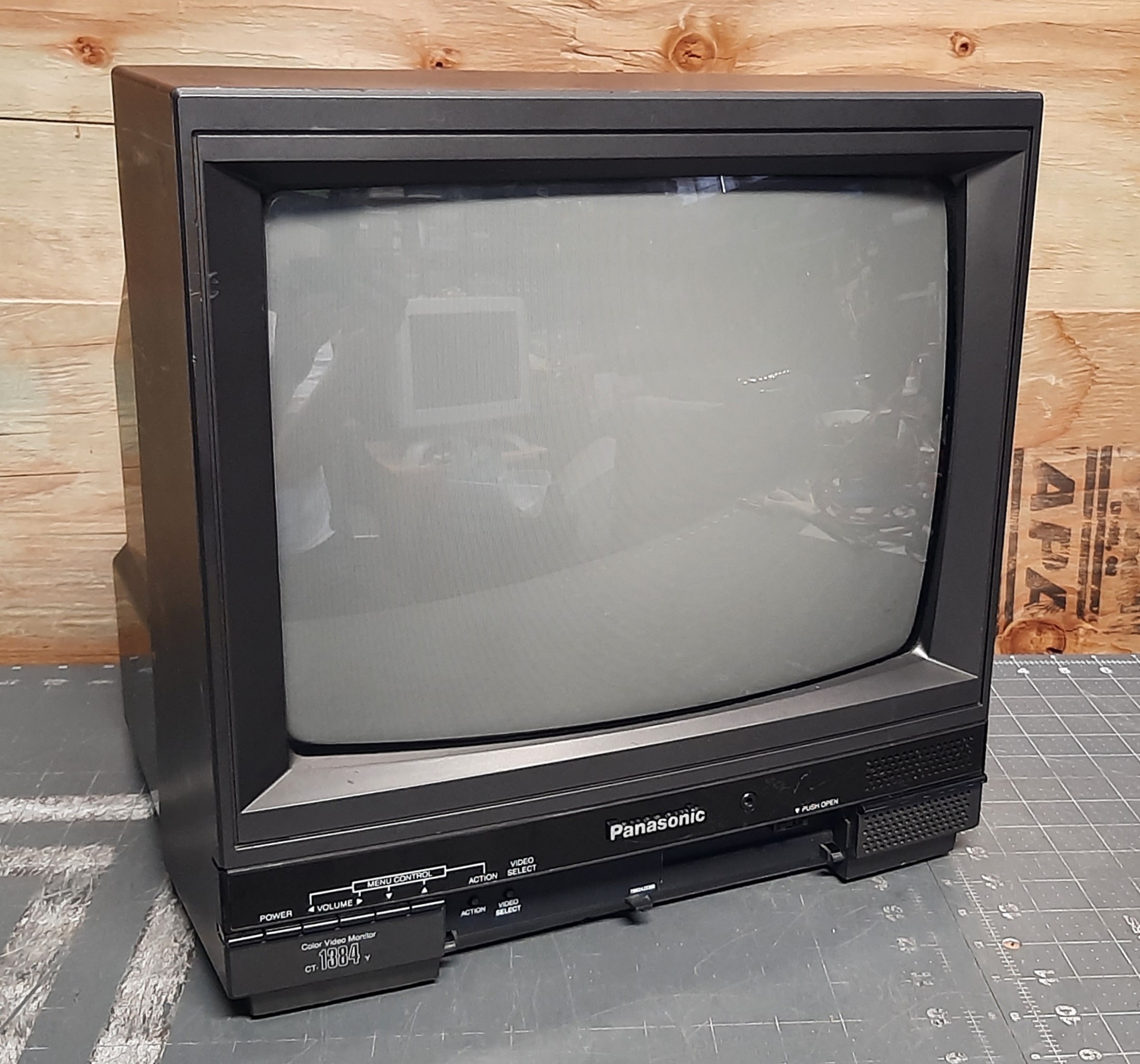

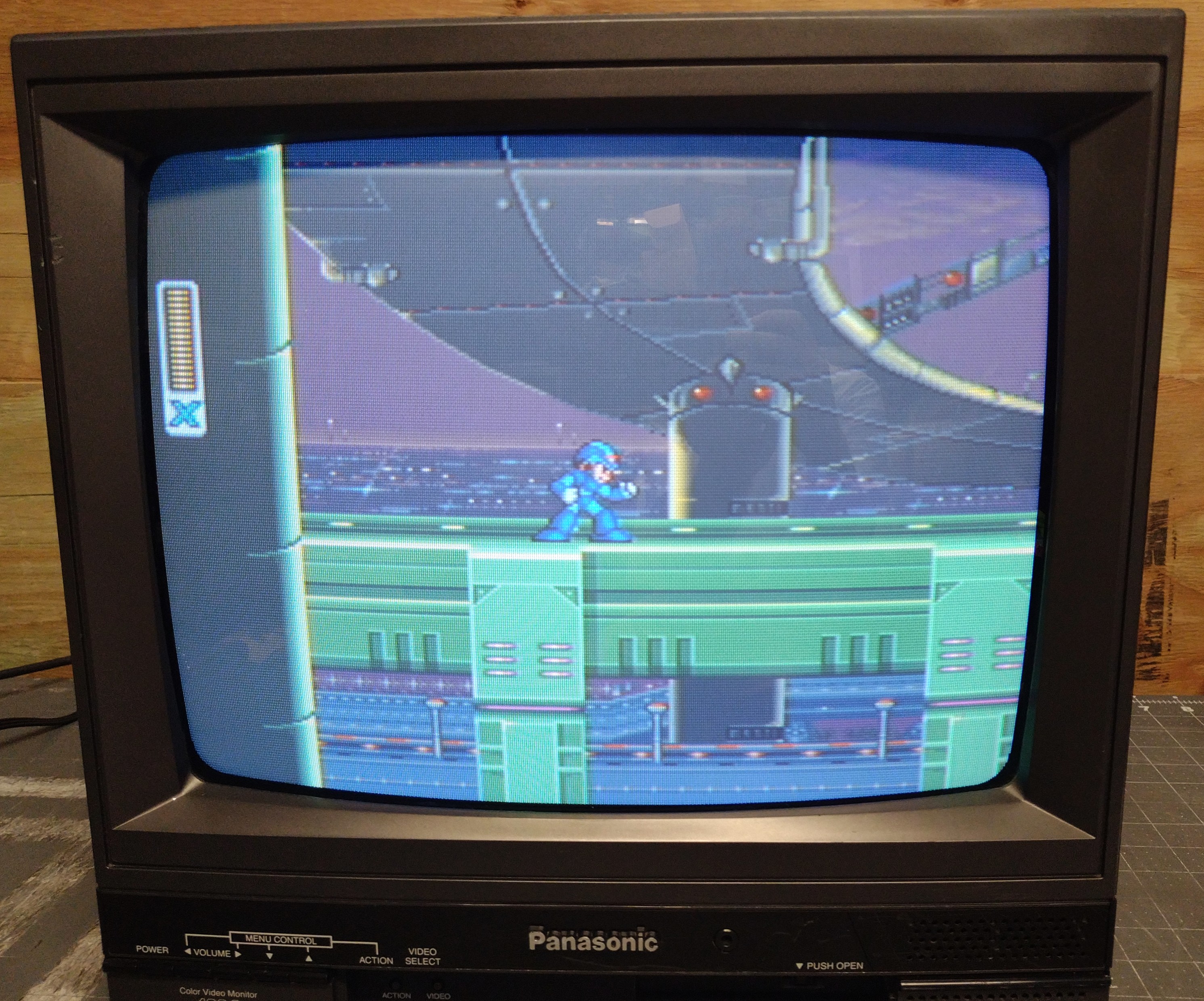

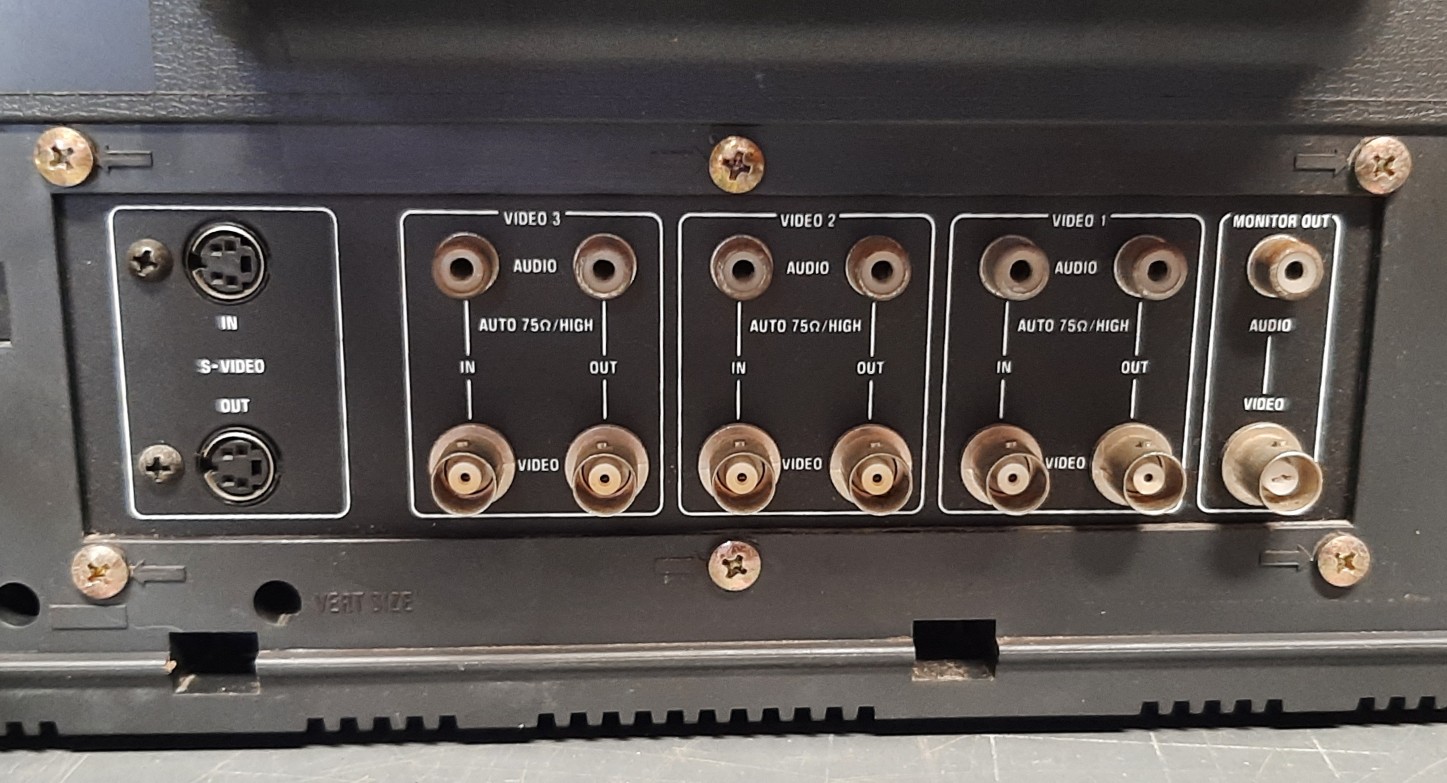

13" commercial video monitor. Similar in design and construction to their consumer TVs of the same size, this model features three composite video inputs, one composite output, and one S-Video input. Picture quality through S-Video is very clean, and it includes a comb filter for improved composite quality.
Manuals
Service Manual (closest available)
Notes
This model does not have a TV tuner or remote control support. Both of those features were included in the CT-1384VY, which also had a $50 higher MSRP.

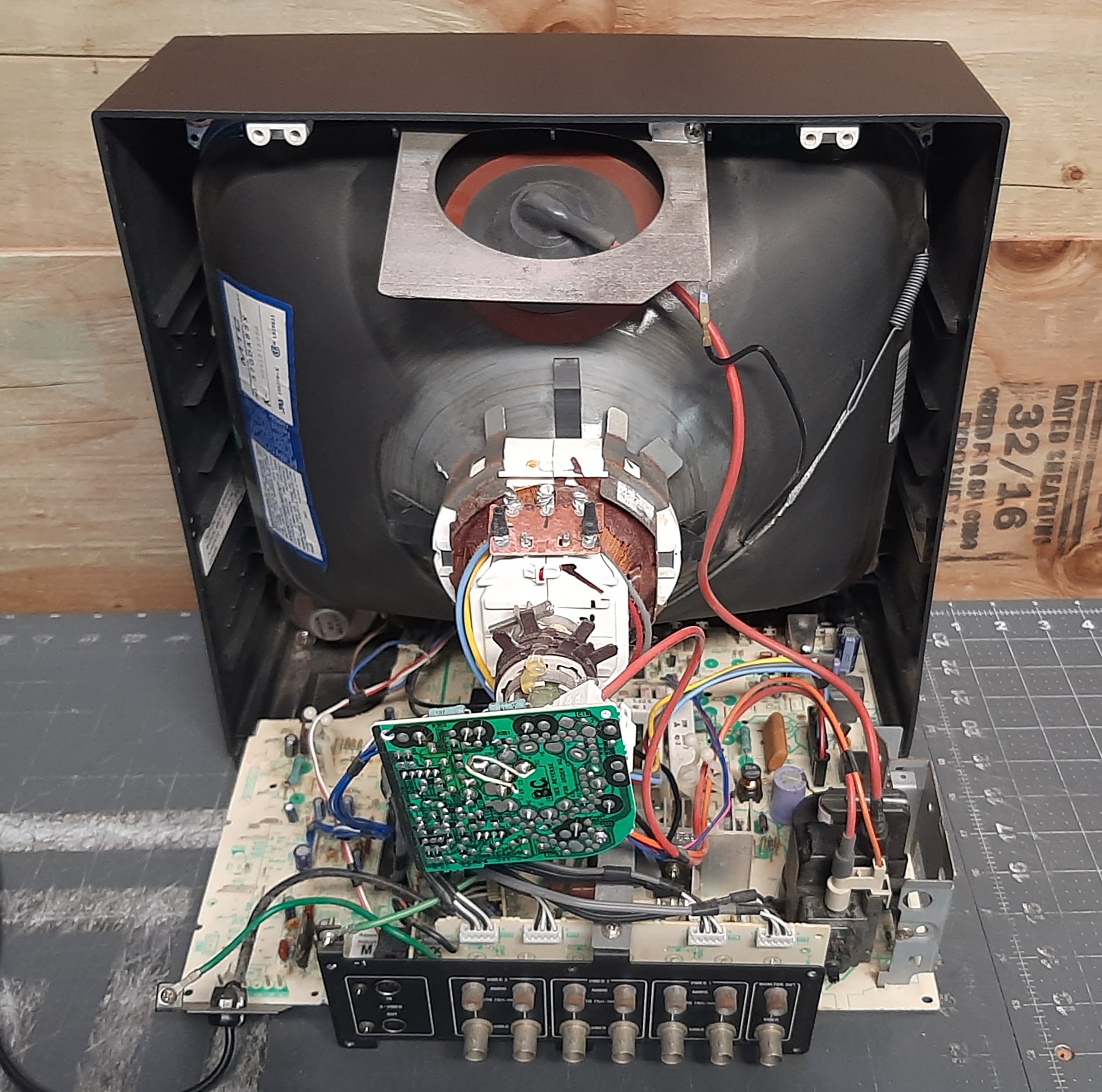

Many components including the tube, yoke, and flyback, are identical to Panasonic's consumer TVs from the same period. Therefore, finding donor TVs for replacement parts is not difficult.

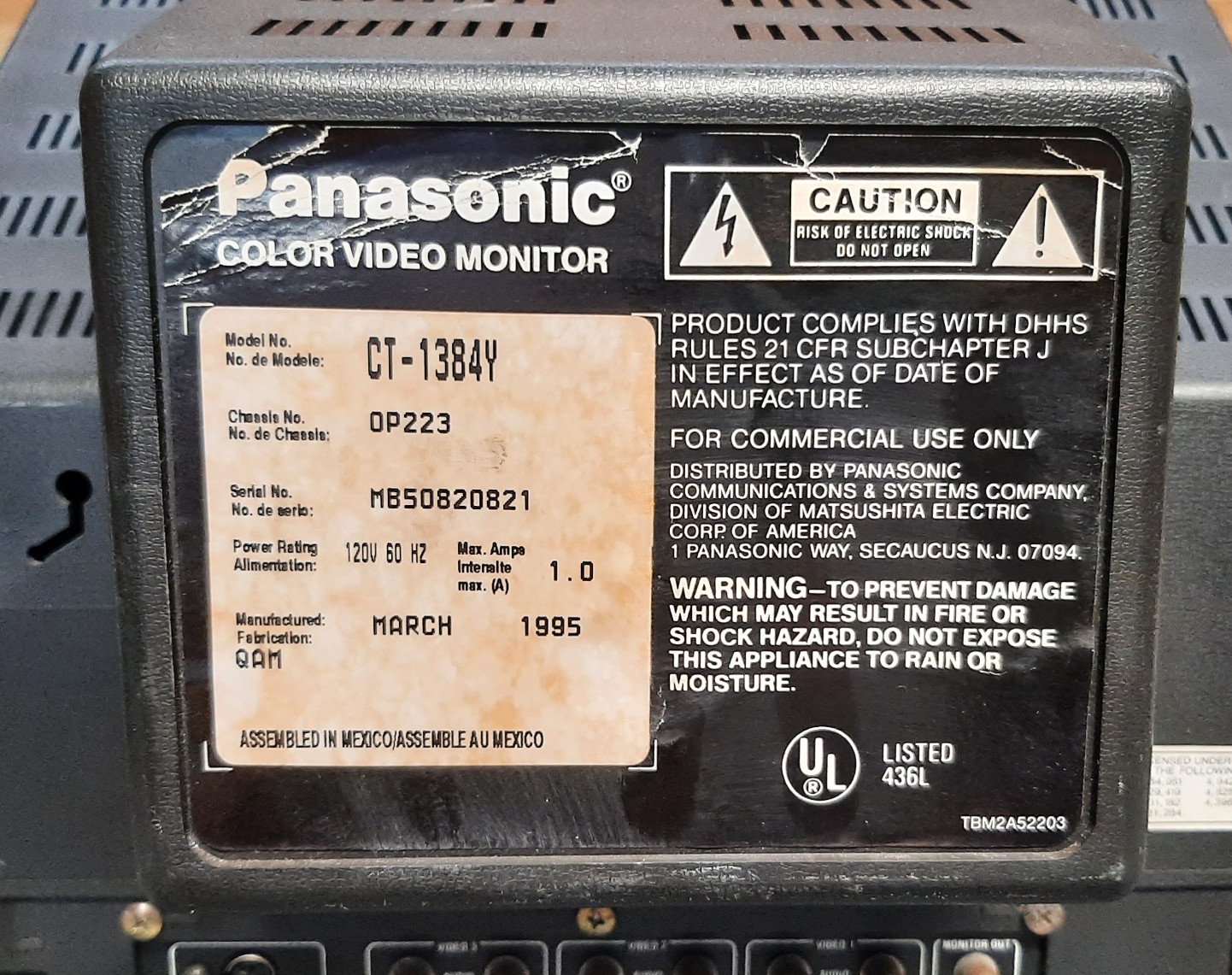

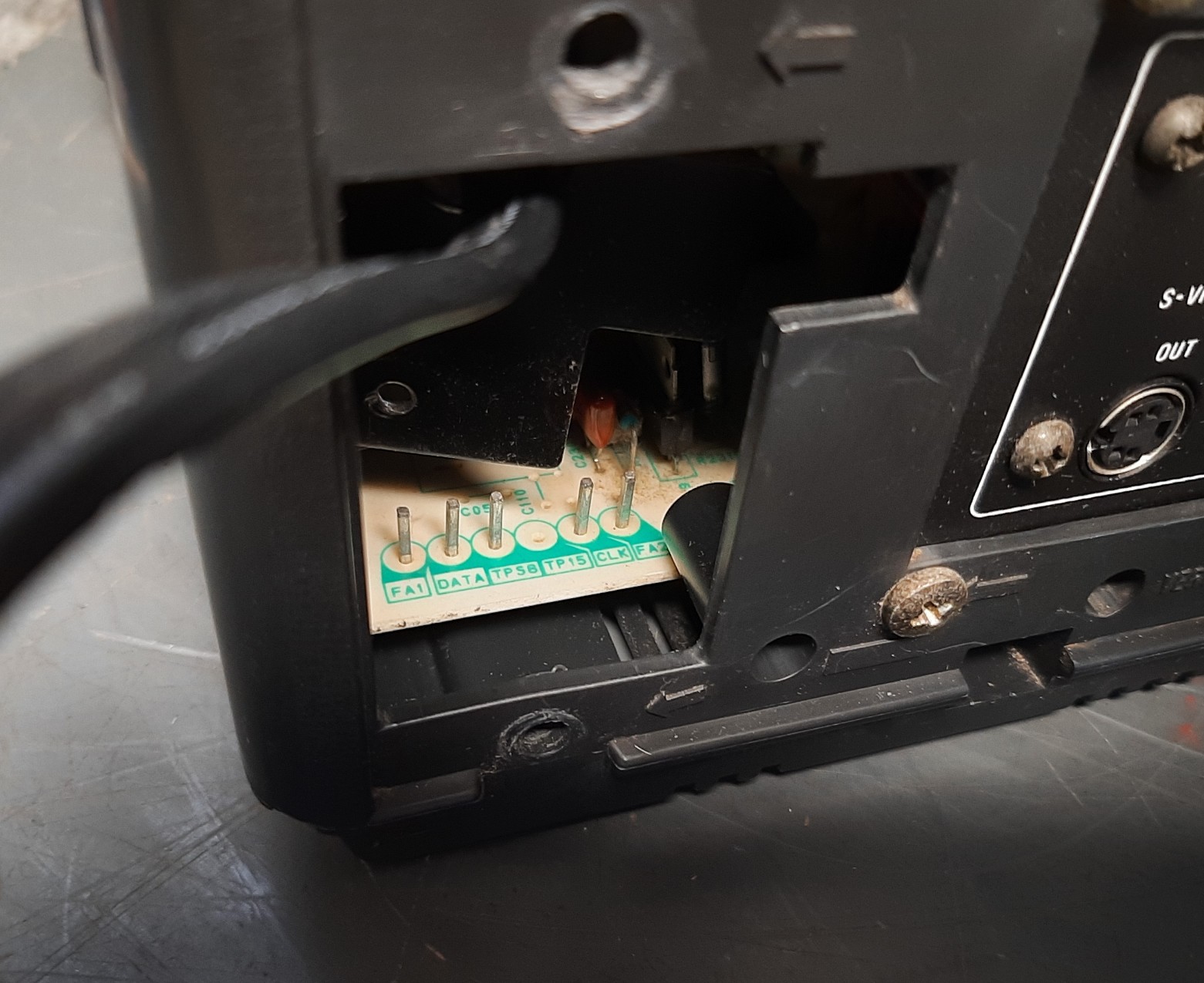

Gallery
Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-1384Y |
Series: | CT |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | BU2506DF |
Vertical Output IC: | LA7835 |
Jungle: | AN5163K |
Comb Filtering: | Glass |
Flyback: | OLF04701F |
Tube: | Panasonic , 37GDA85X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | OLY15304F |
Yoke Horz. Inductance: | 3.109 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 27.59 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 4.45 ohm |
Yoke Vert. Resistance: | 13.78 ohm |
Speakers: | Mono |
Chassis: | OP223 |
Weight: | 20.8 lbs (9.4 kg) |
Application: | Commercial |
Cabinet Material: | Plastic |
Launched: | 1993 |
MSRP: | 255 USD |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
