Summary

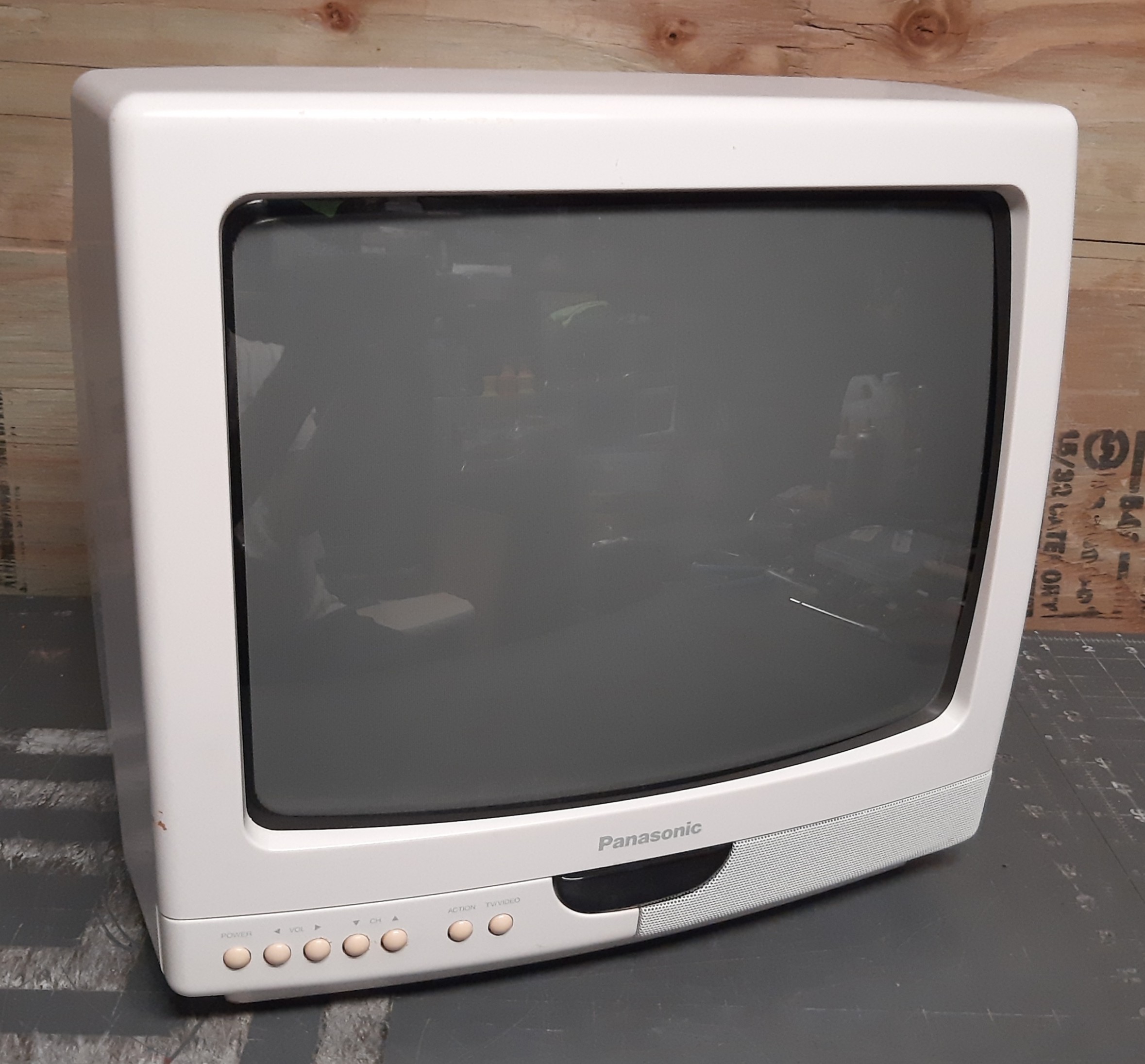

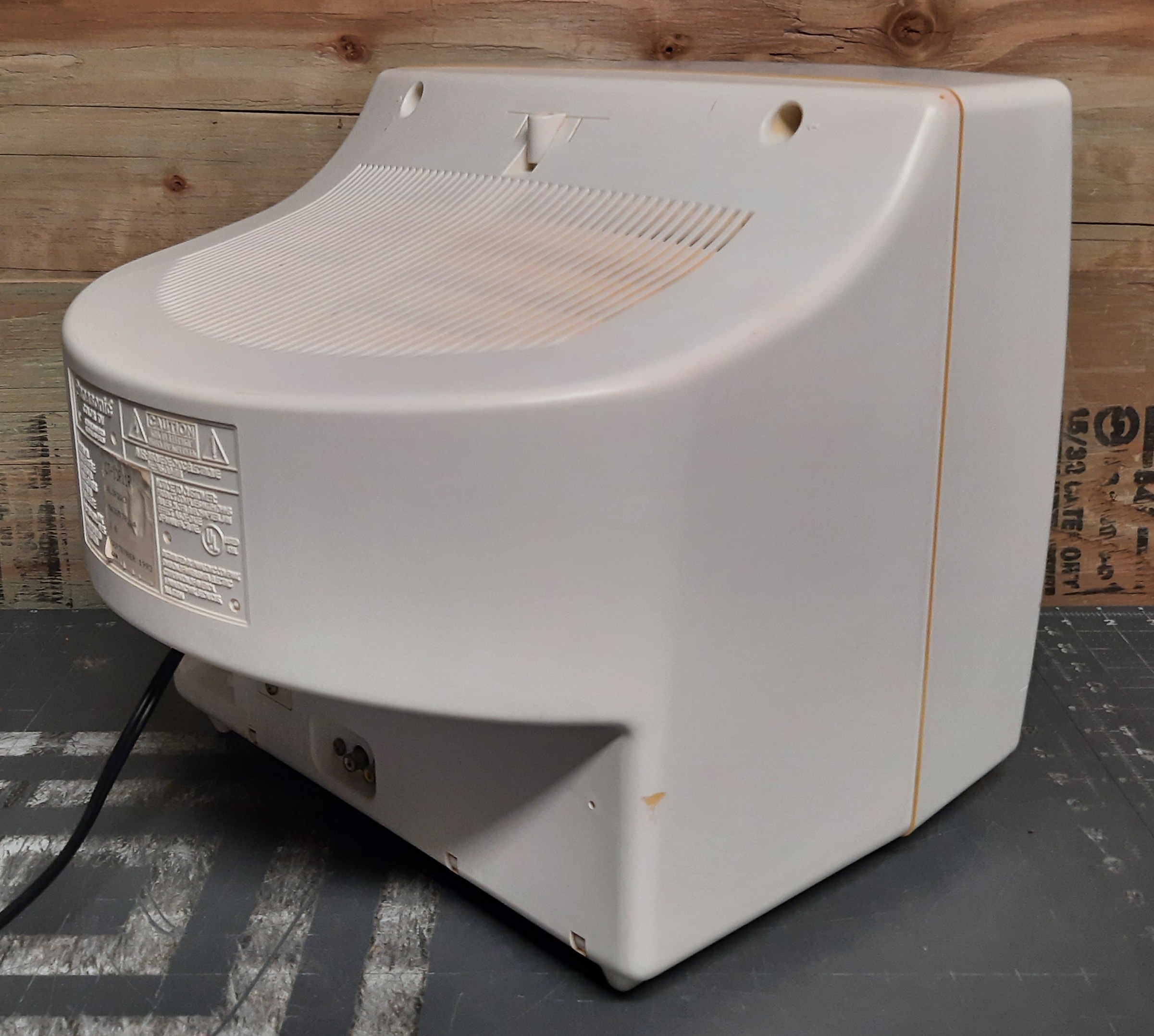

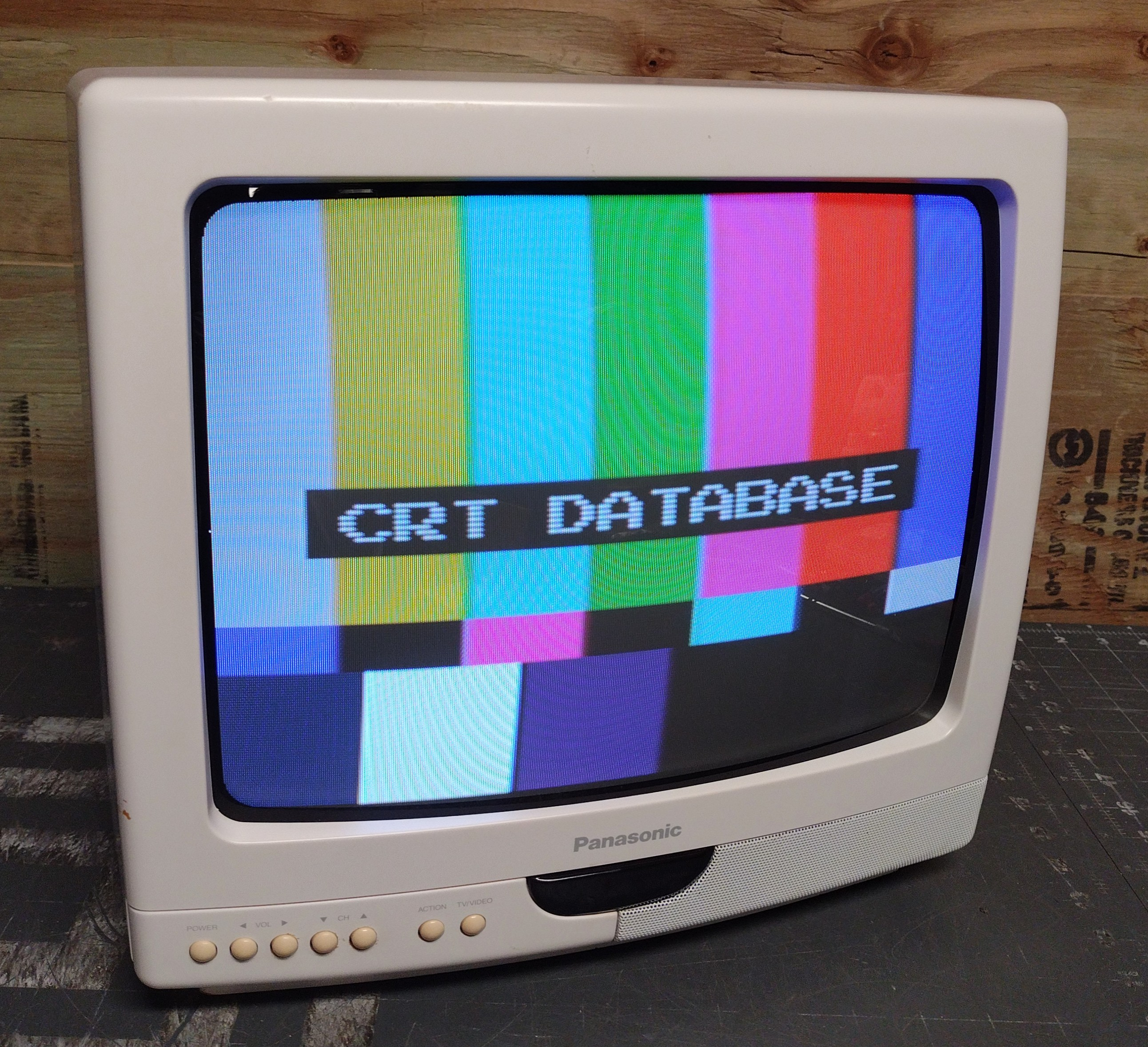

13" consumer TV from Panasonic, with one composite AV input. White version of the CT-13R10R. Build quality is good for its size.
Manuals
No documentation is available online at this time.
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-13R11R |
| Series: | CT |
| Viewable Size: | 13" |

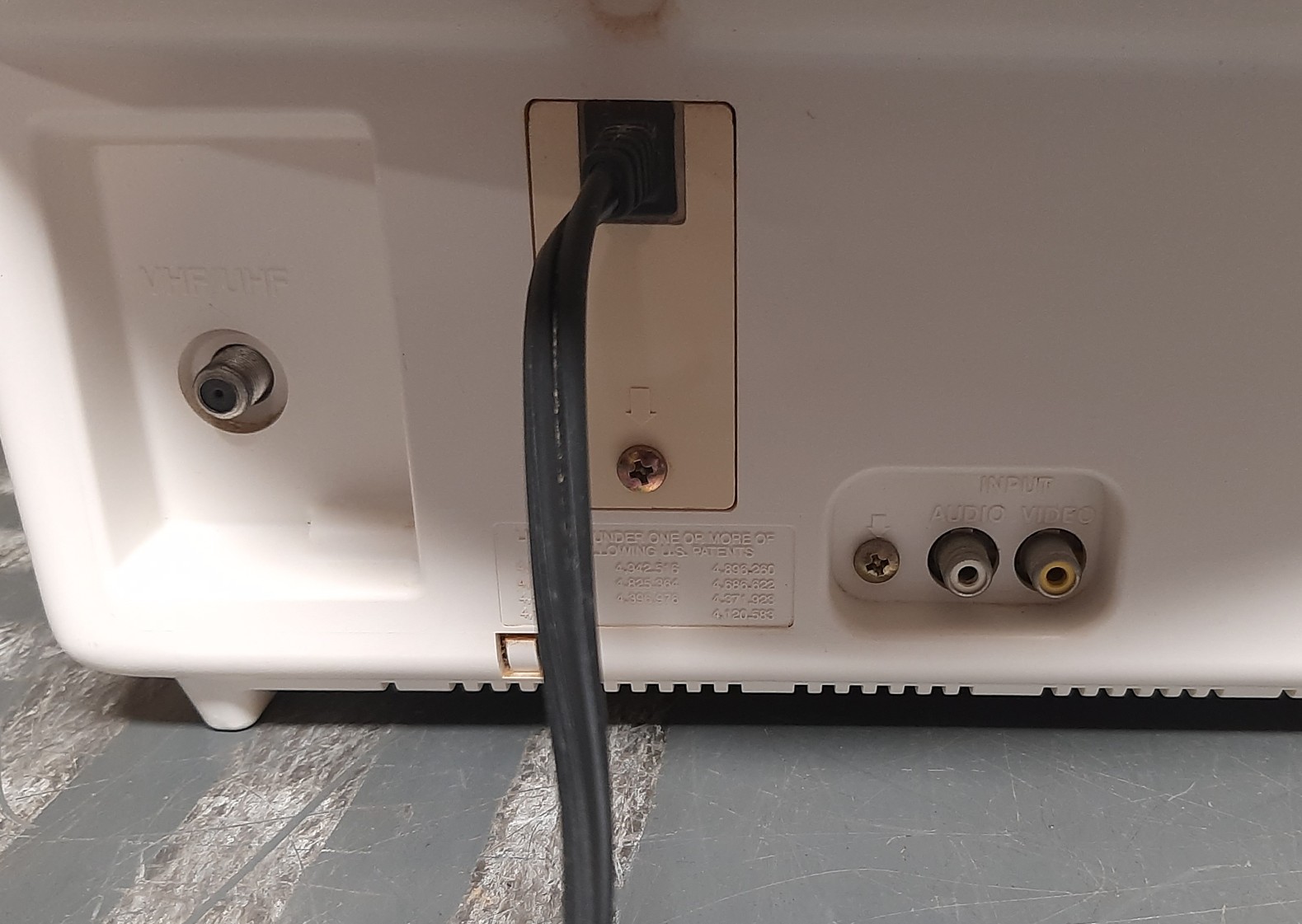

| Inputs: | Composite, RF |

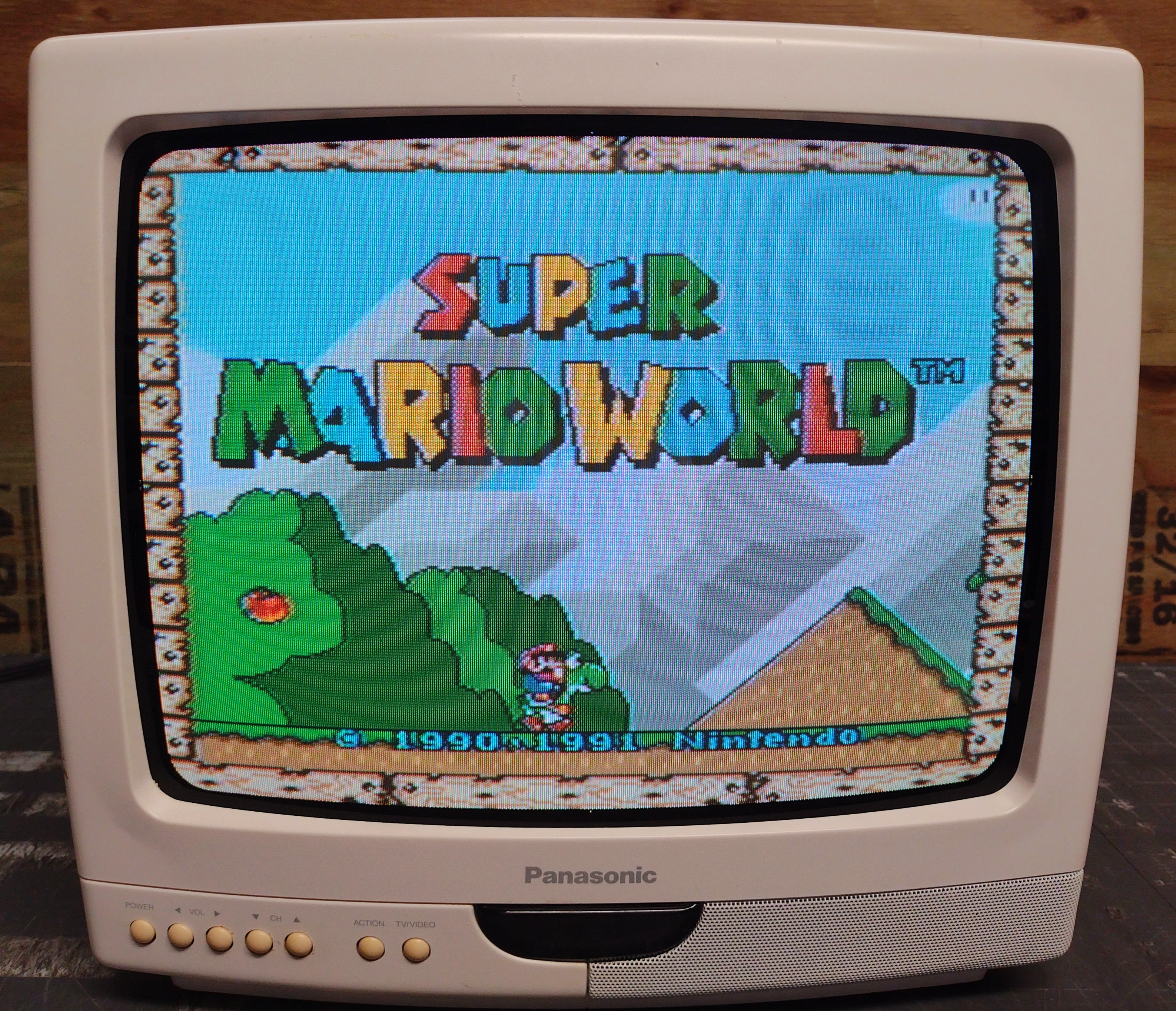

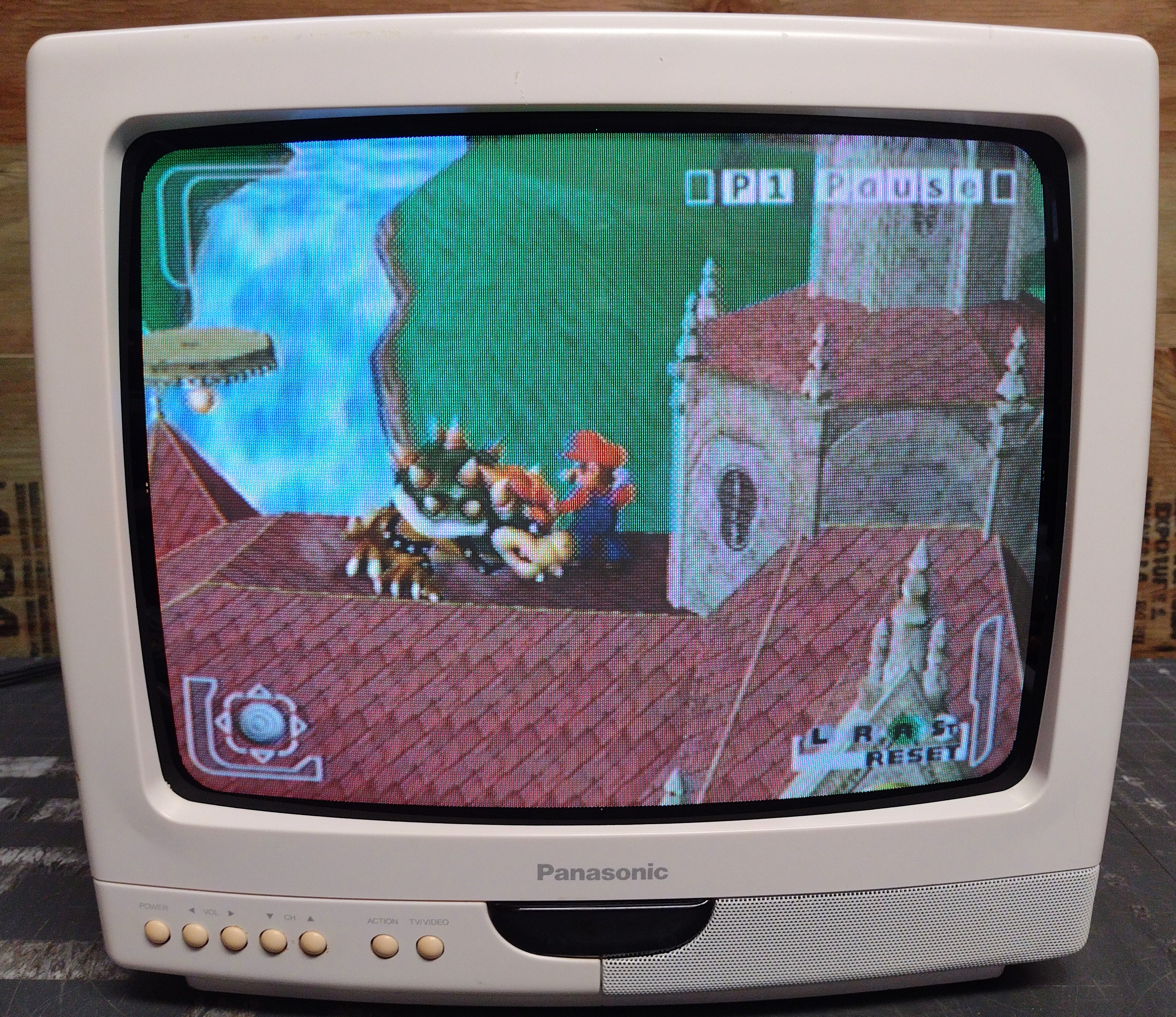

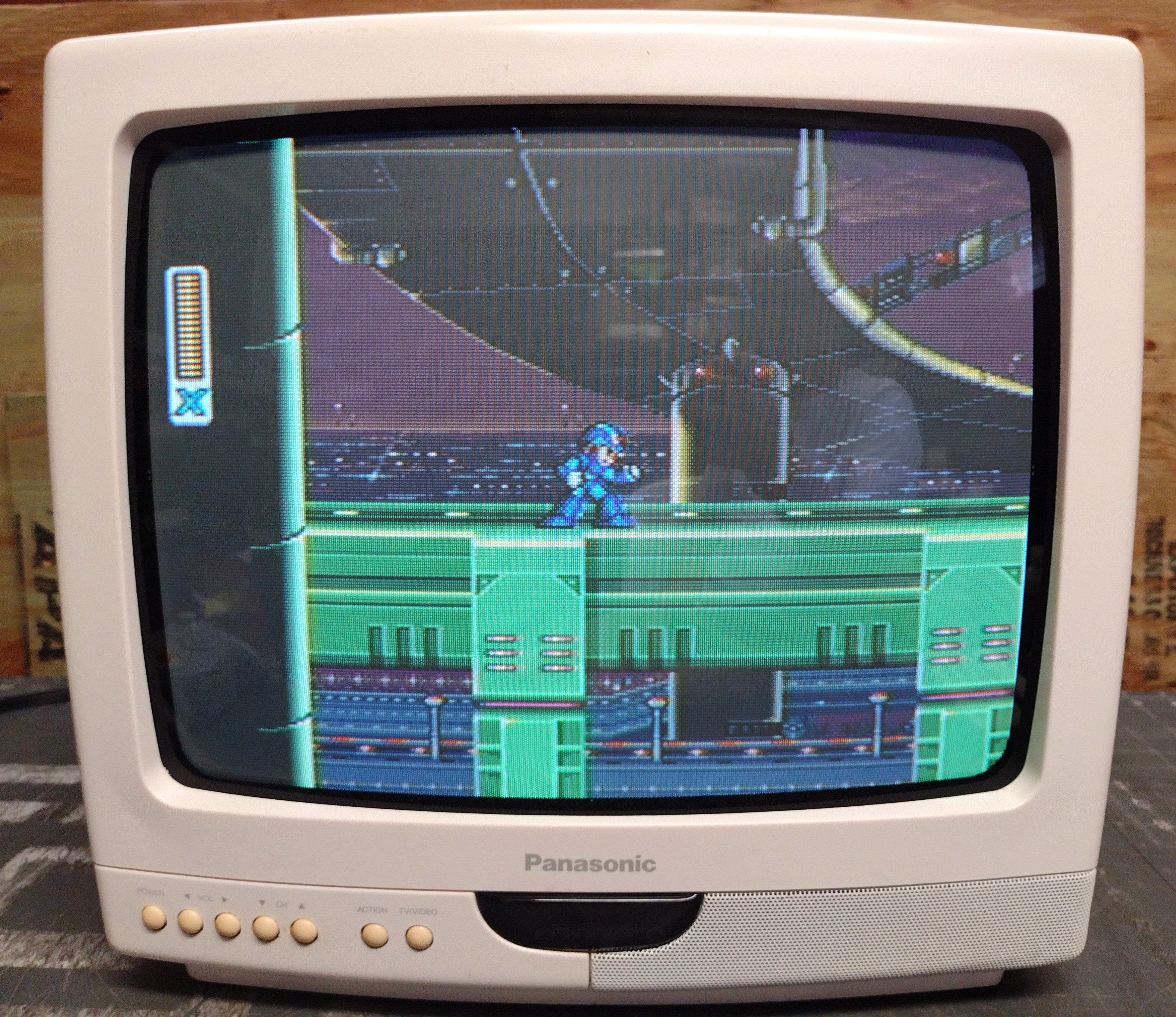

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | BU2506DF |
| Vertical Output IC: | LA7837 |
| Jungle: | AN5163K |
| Comb Filtering: | None |
| Flyback: | OLF04701F |
| Focus Type: | Single |
| Tube: | Panasonic , 37GDA85X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | OLY15304F |
| Yoke Horz. Inductance: | 3.109 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.59 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.45 ohm |
| Yoke Vert. Resistance: | 13.78 ohm |
| Speakers: | Mono |

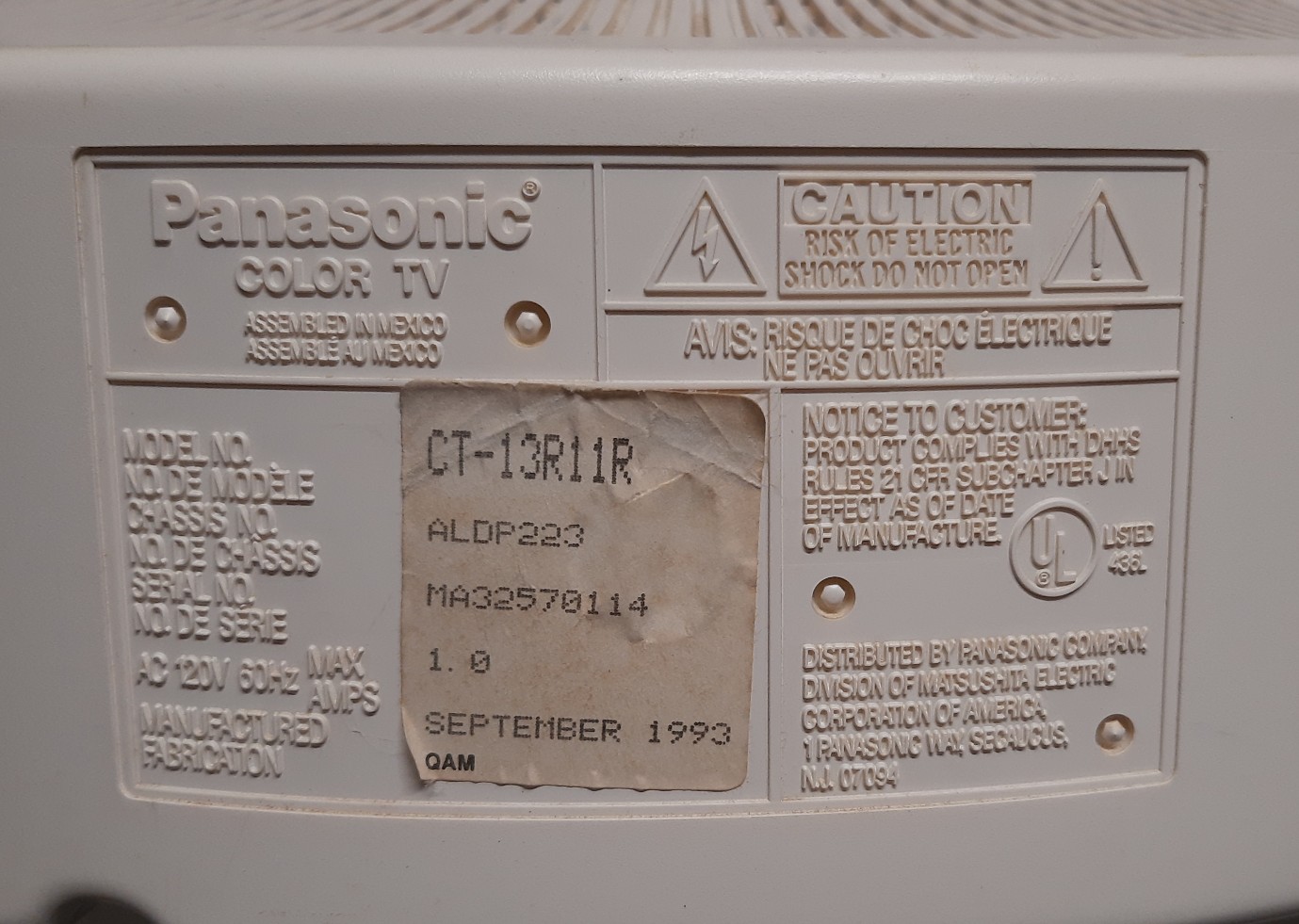

| Chassis: | ALDP223 |
| Weight: | 19.6 lbs (8.9 kg) |
| Dimensions (W/H/D): |
355 x 335 x 380 mm
(14 x 13.2 x 14.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
