Summary

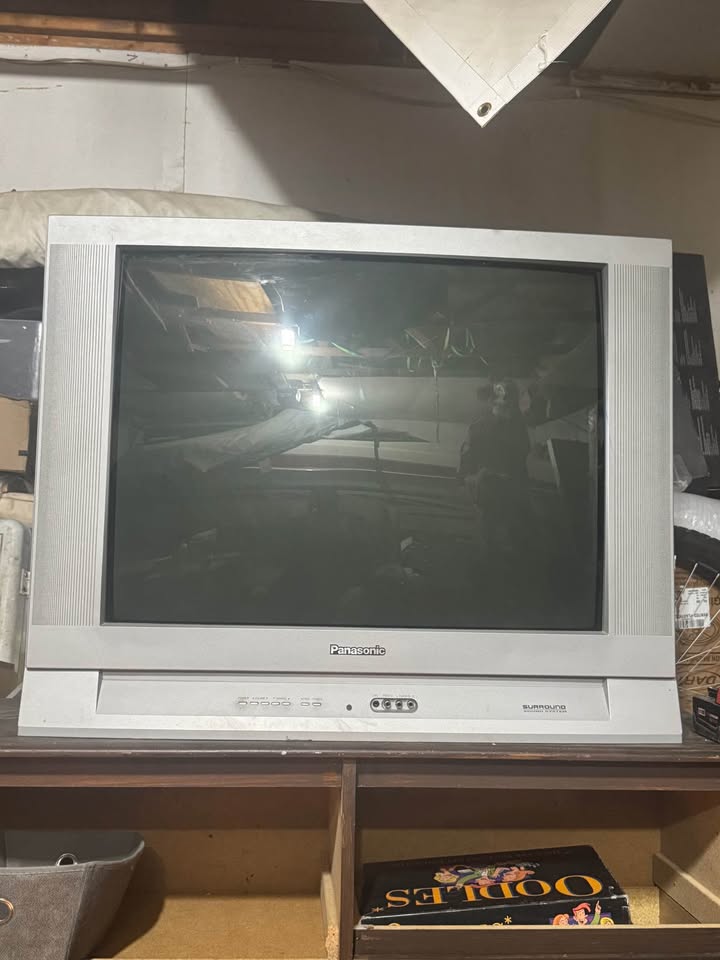

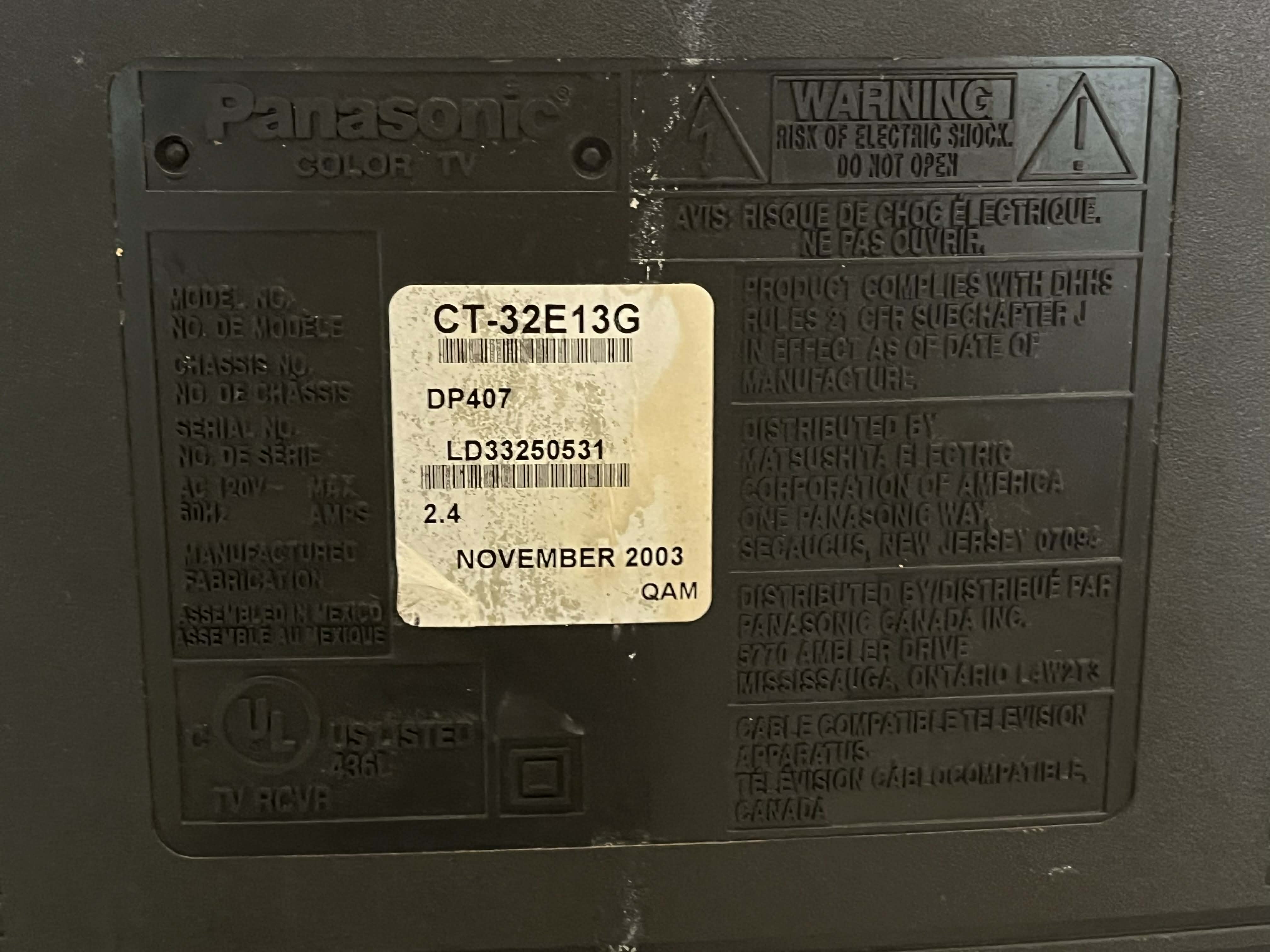

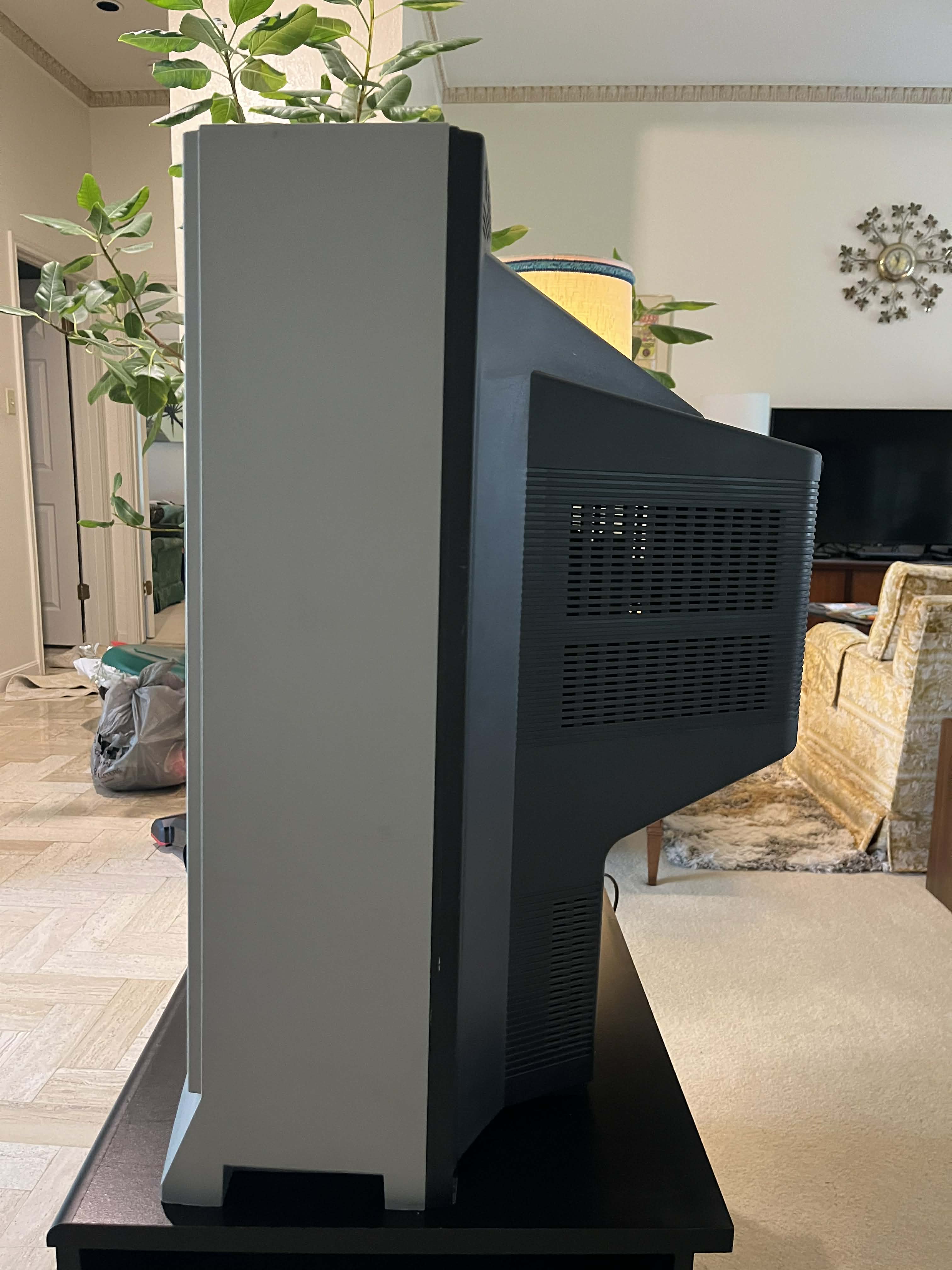

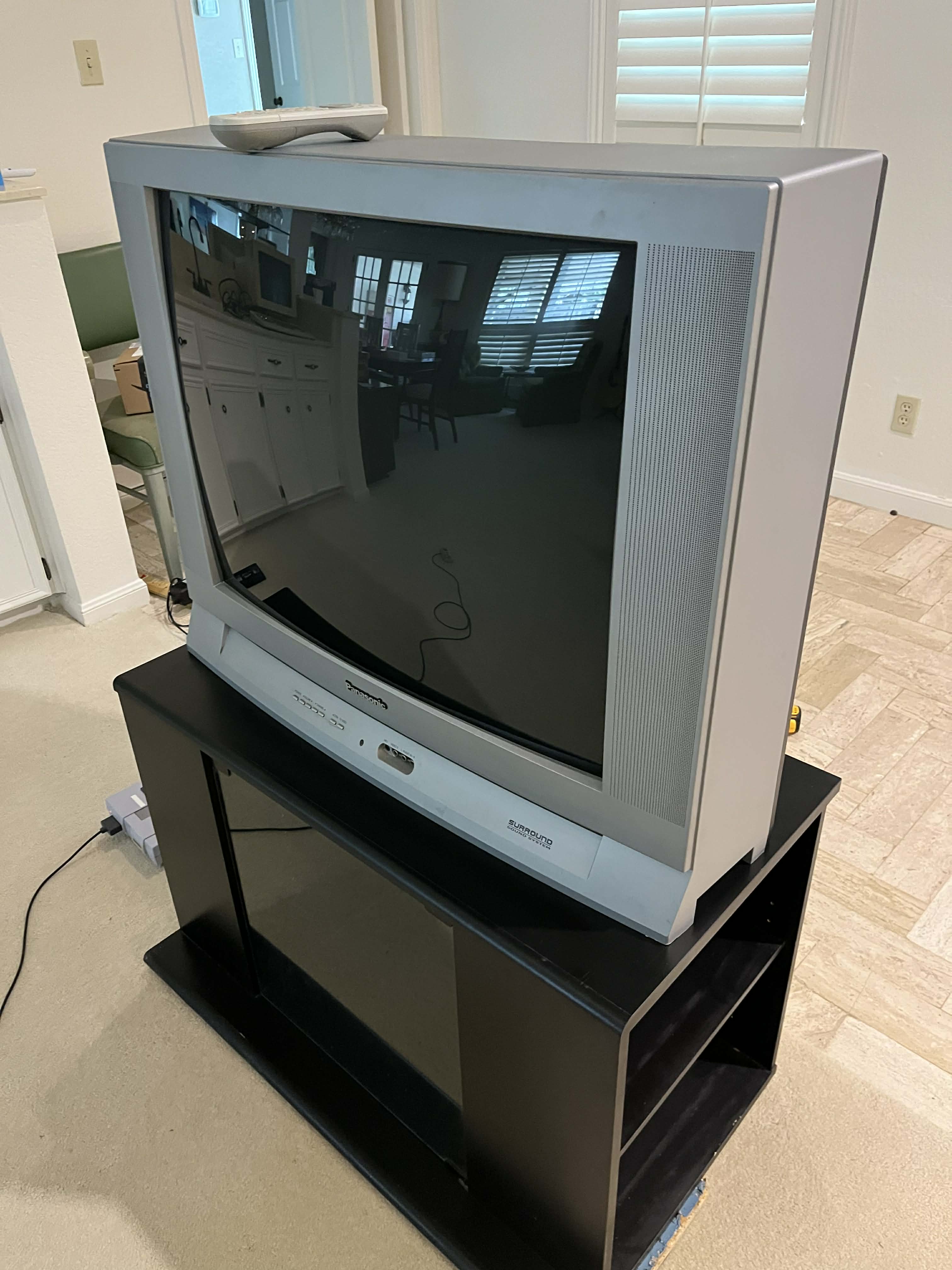

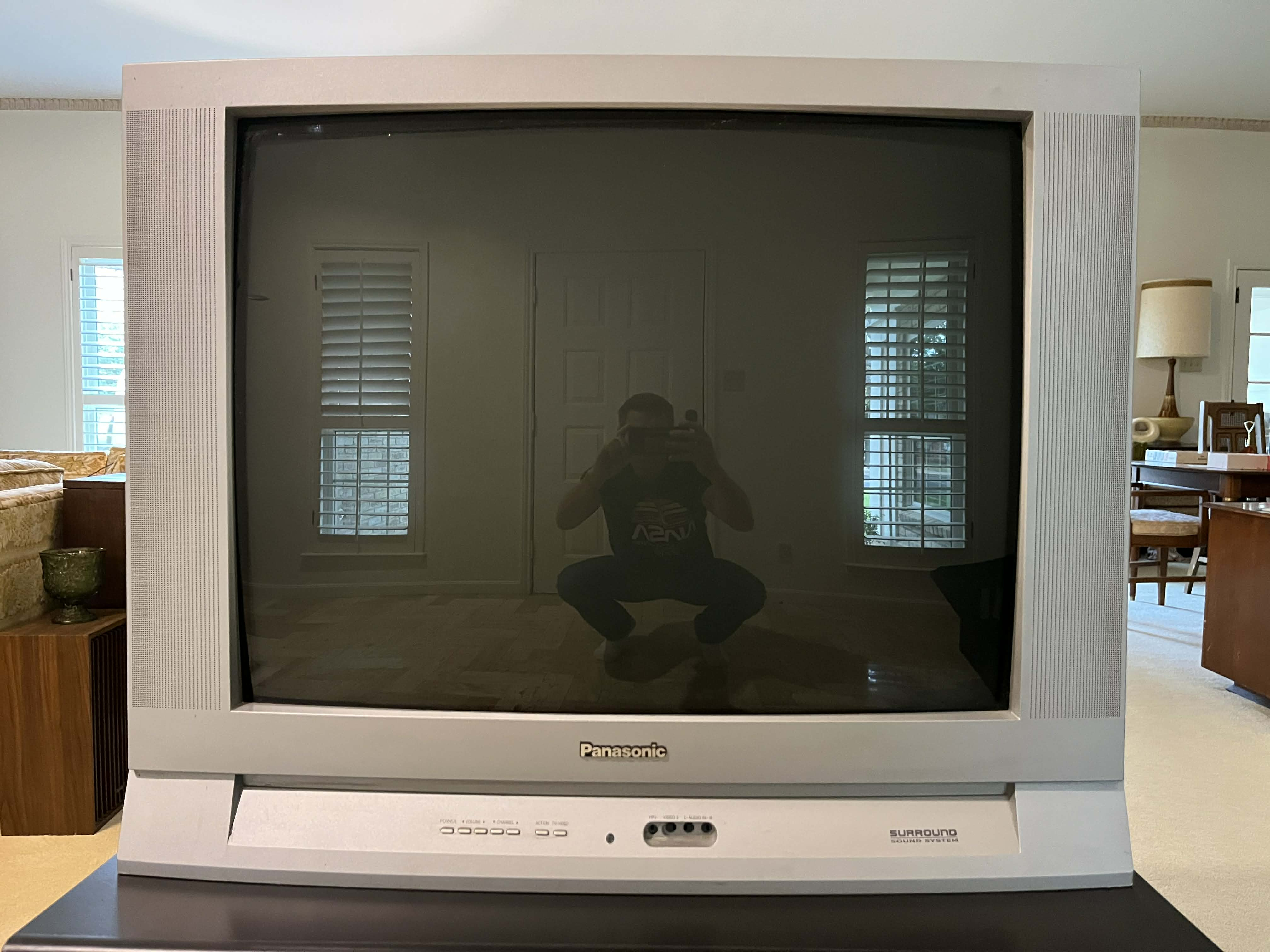

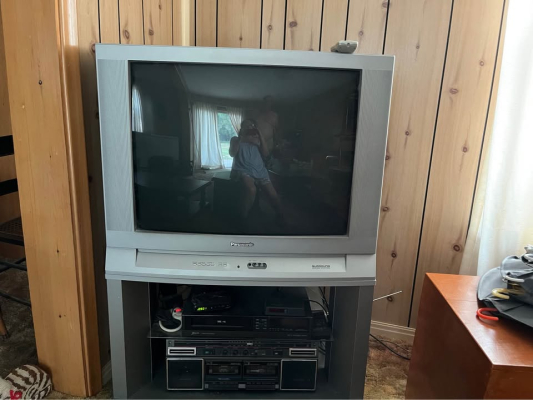

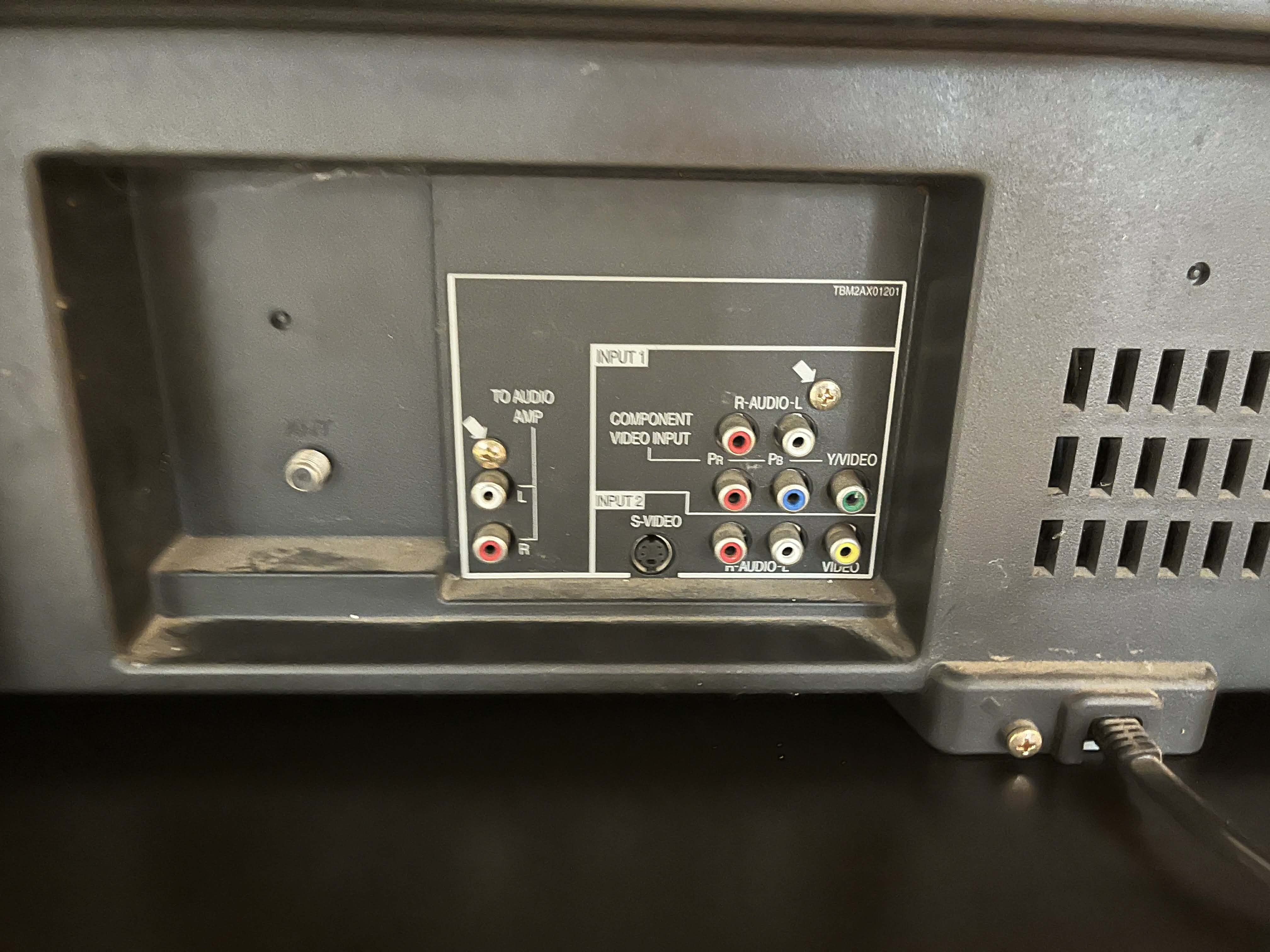

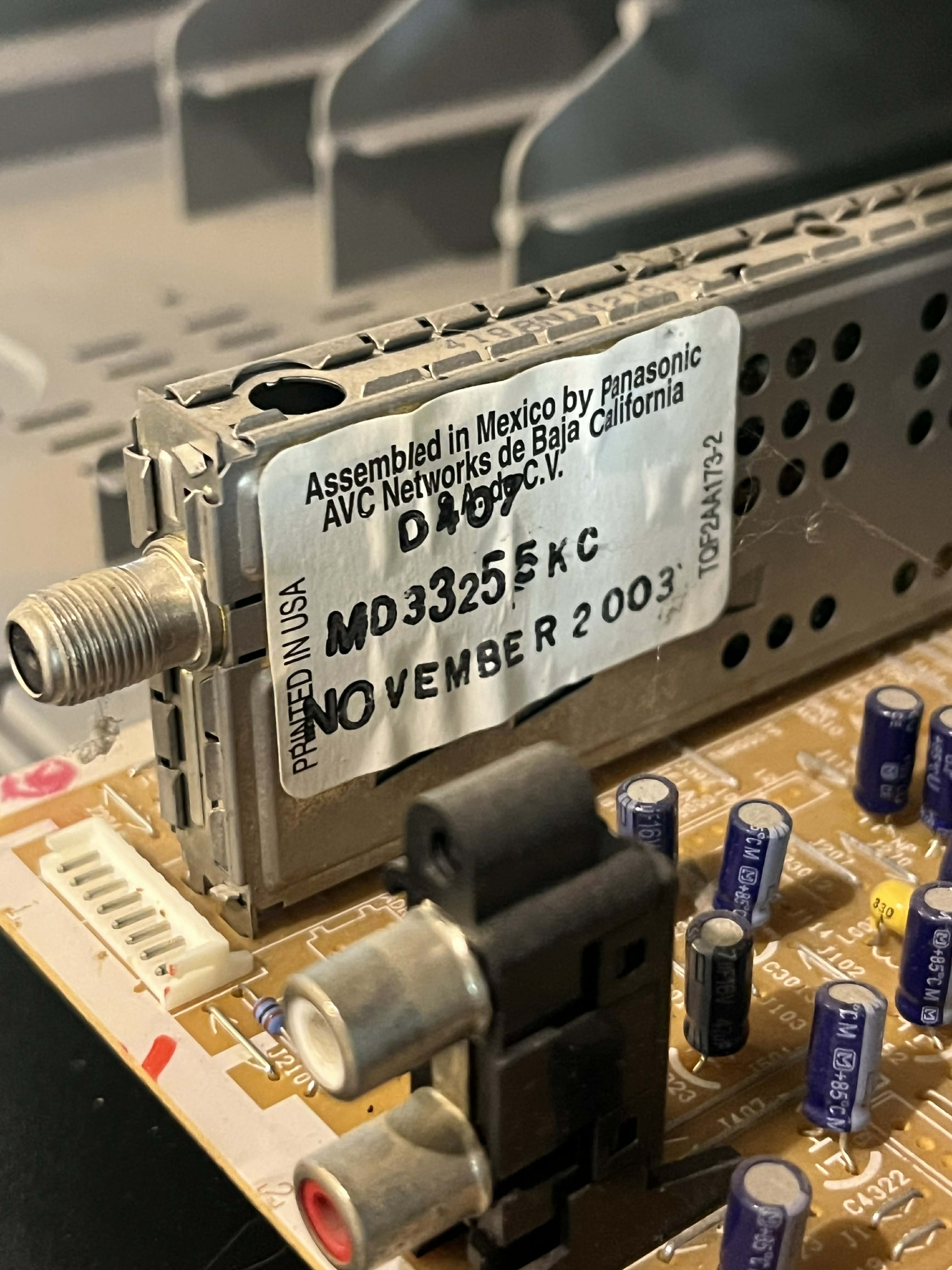

32" curved-screen TV by Panasonic, made in Mexico in 2003. Has RF, composite, s-video and component inputs.

(Special thanks to Todd Ramsey for the pics!)

Manuals

• User Manual
• Service Manual

Promo Materials

• Panasonic Website Archive

Notes

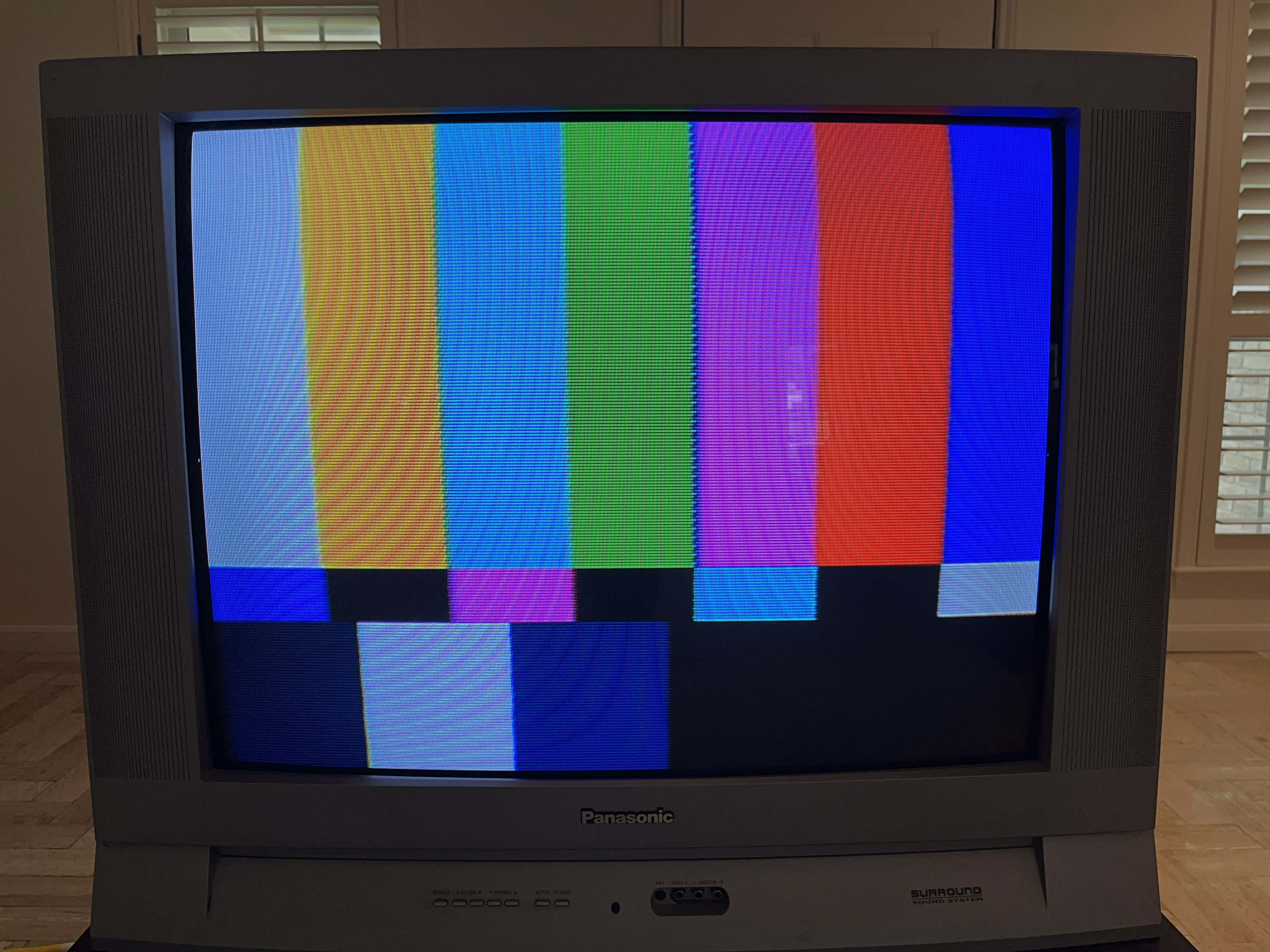

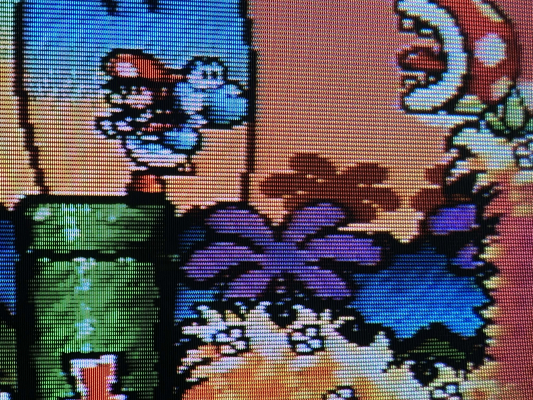

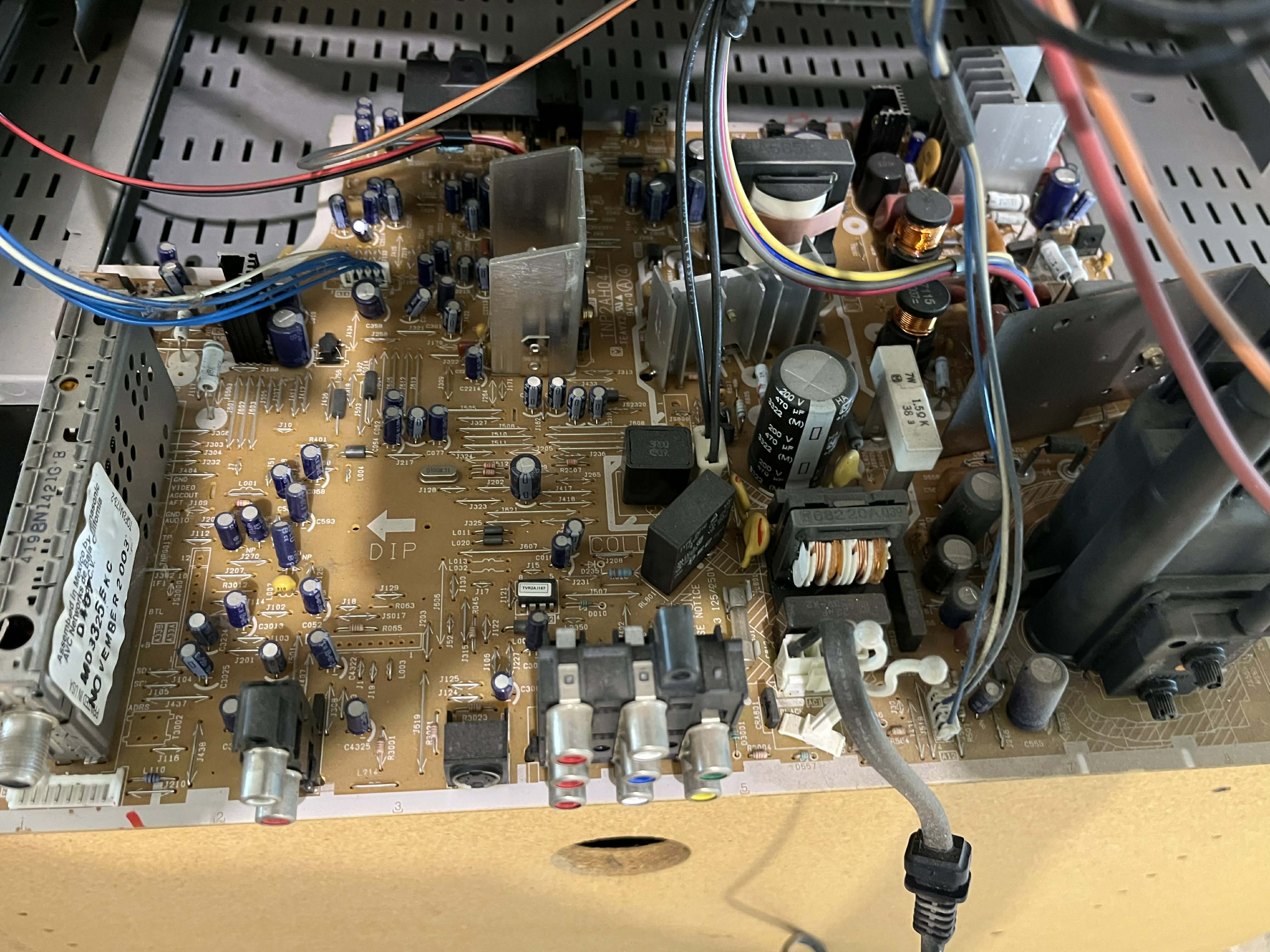

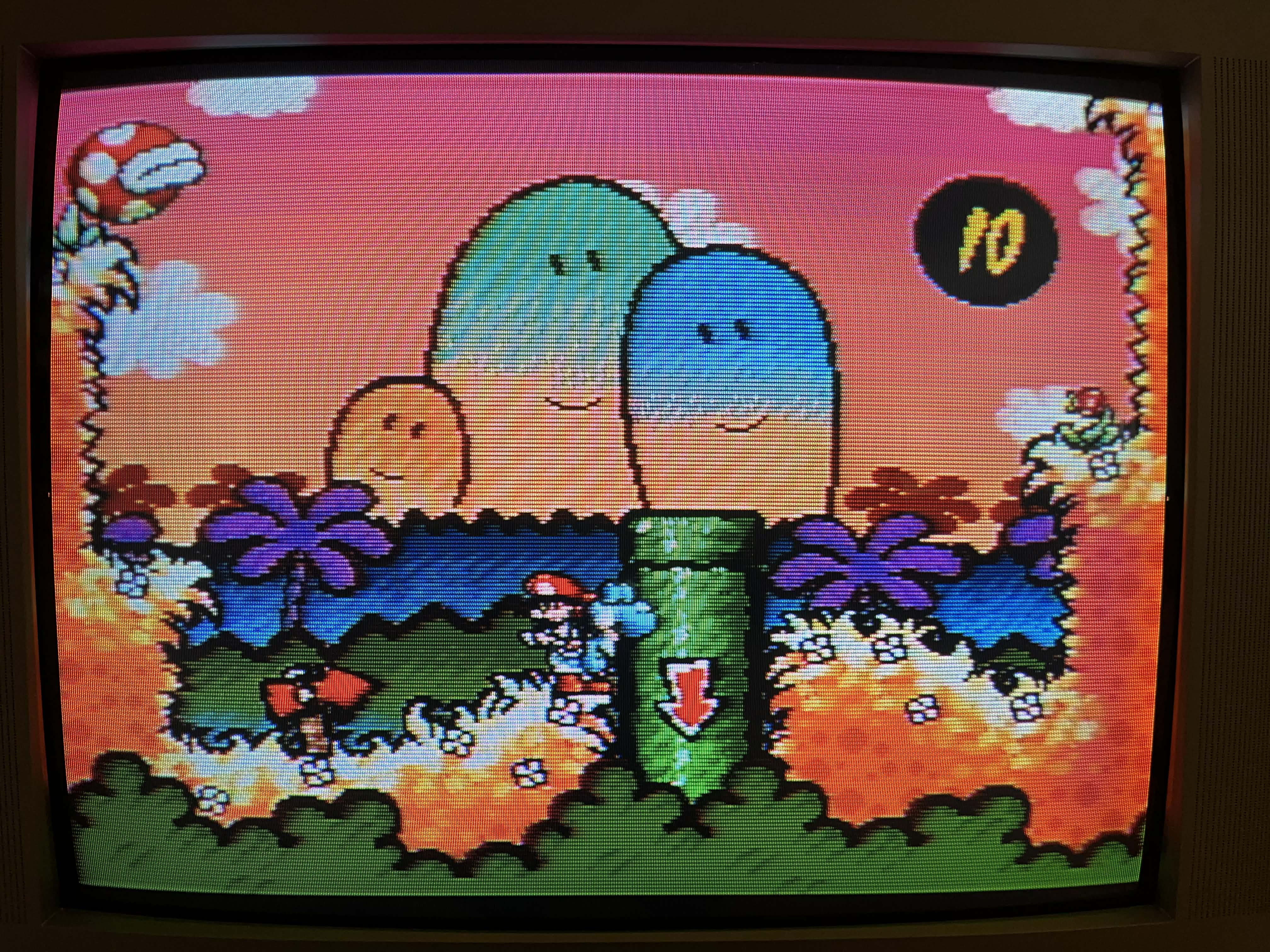

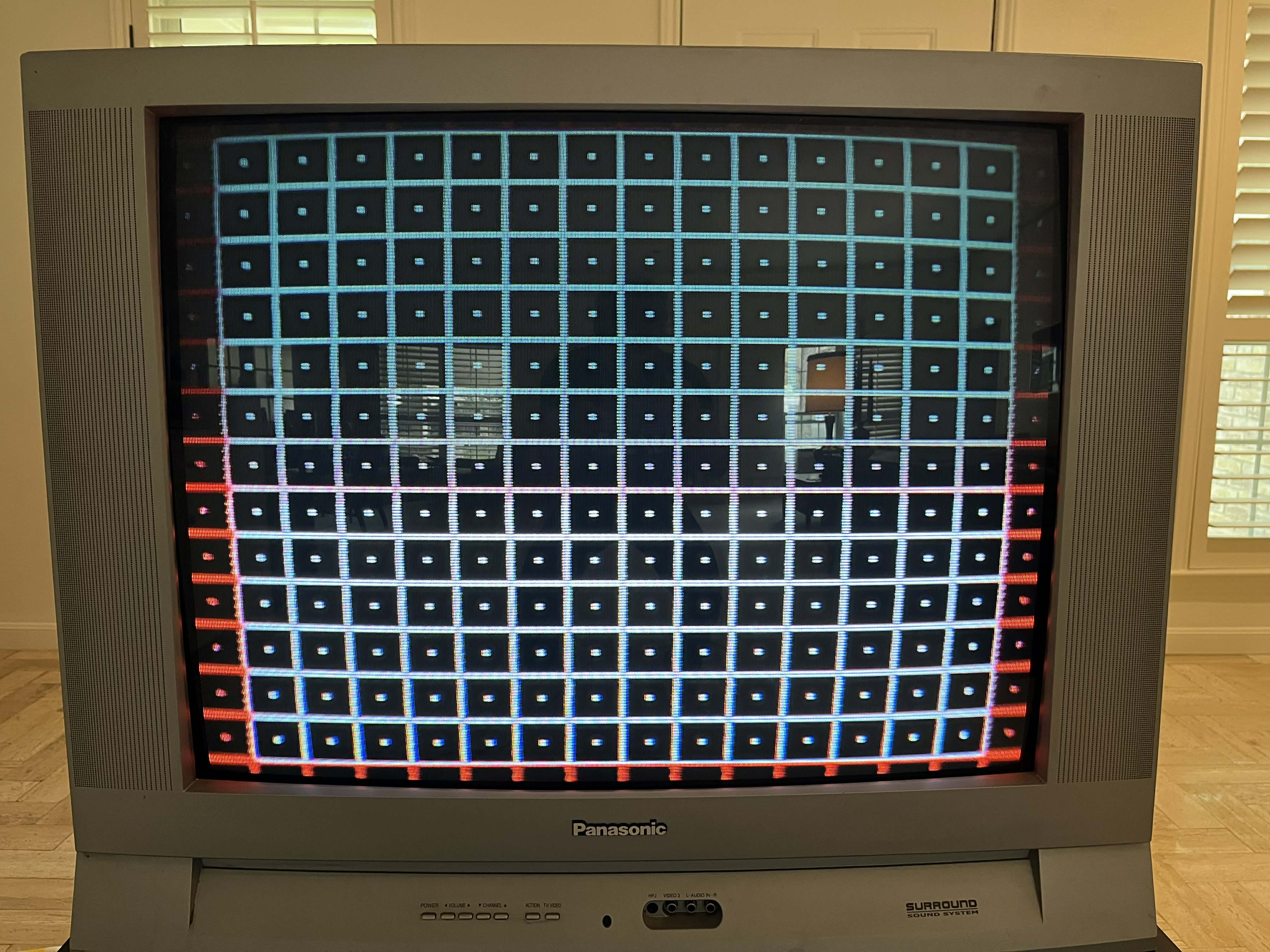

This set uses a chassis (NA10) with a design flaw in the video processing. For whatever reason all signals have haloing artifacts, noise, and black crush. Perhaps the jungle chip may be the culprit, or perhaps its a configuration error on Panasonic's part. Whatever the case may be, it looks bad. I personally recommend using this set for VHS or LaserDisc content so that the haloing will be less noticeable.

The jungle chip is an all-in-one design with a digital OSD that cannot be modified for RGB.

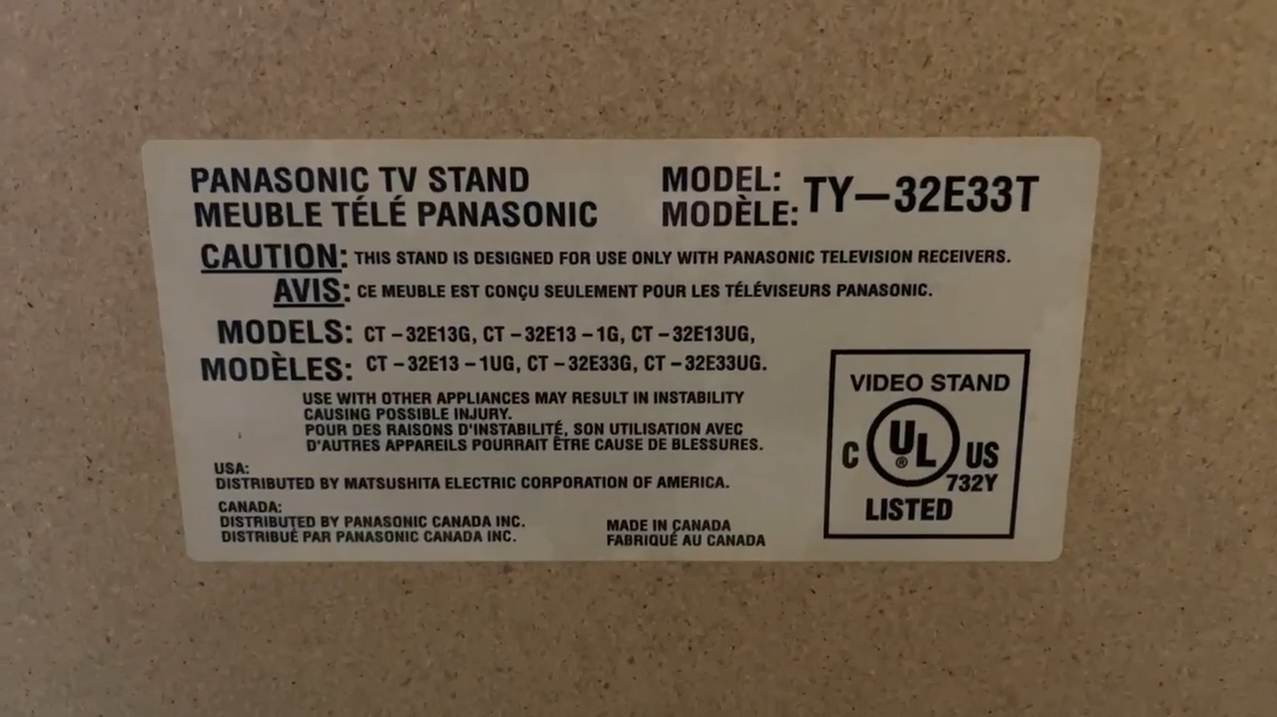

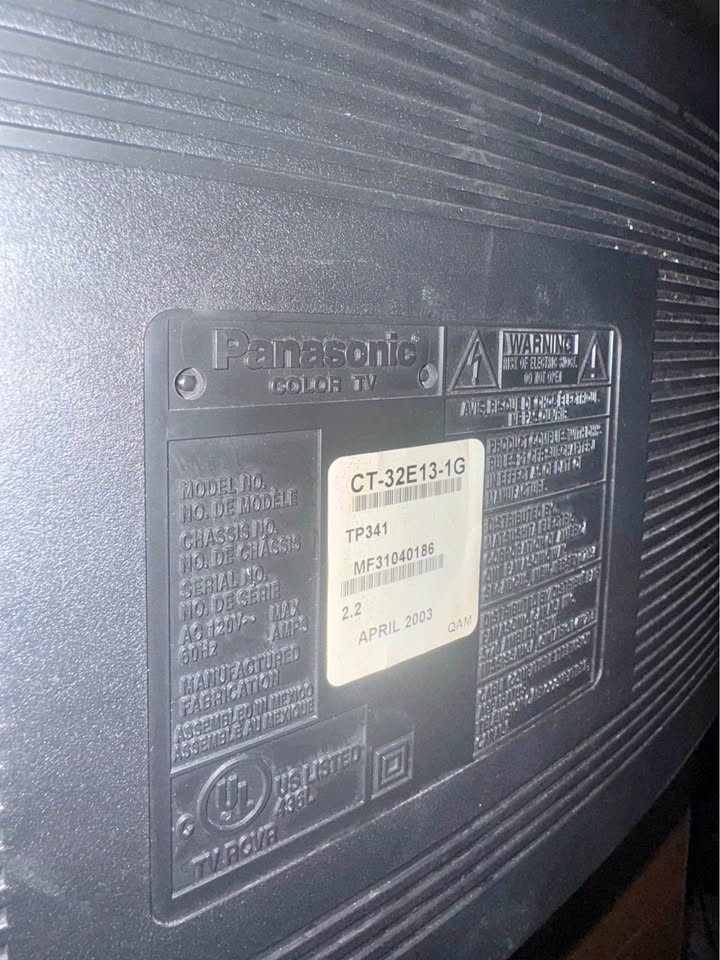

As an aside, Panasonic made a variant of this set, CT-32E13-1G, with an older chassis. It uses a Toshiba jungle chip with much better picture processing:

!
