Summary
High-end 27" console set by Panasonic from the early 90's.
Manuals
No documentation is available online at this time.
Notes
Uses a then-new Superflat/GAOO picture tube design that has a flatter screen curvature. The early SuperFlats also were packing high-quality "DOME" speakers with subwoofers for nice bass.
Uses the same chassis as the CTP-3189SF.

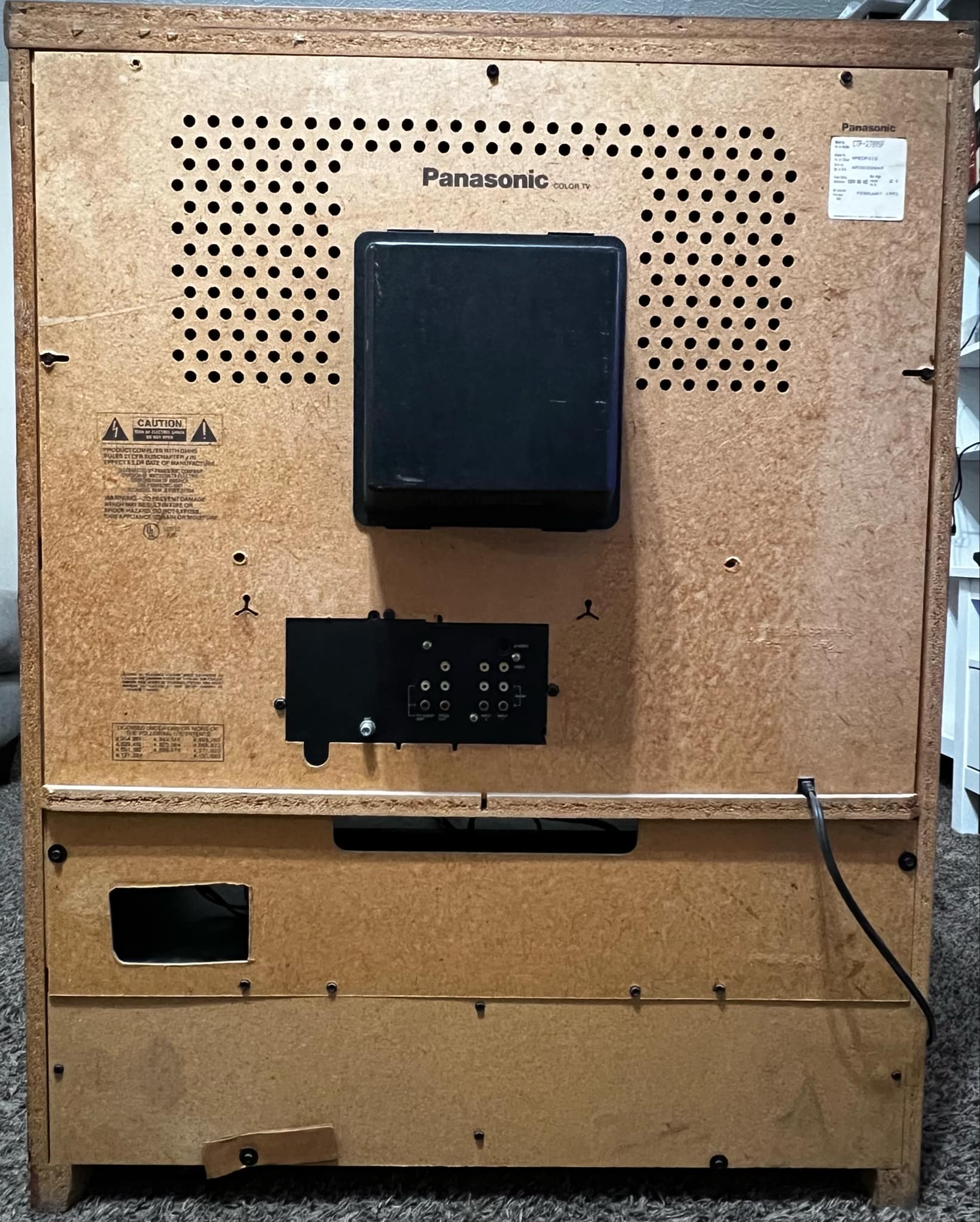

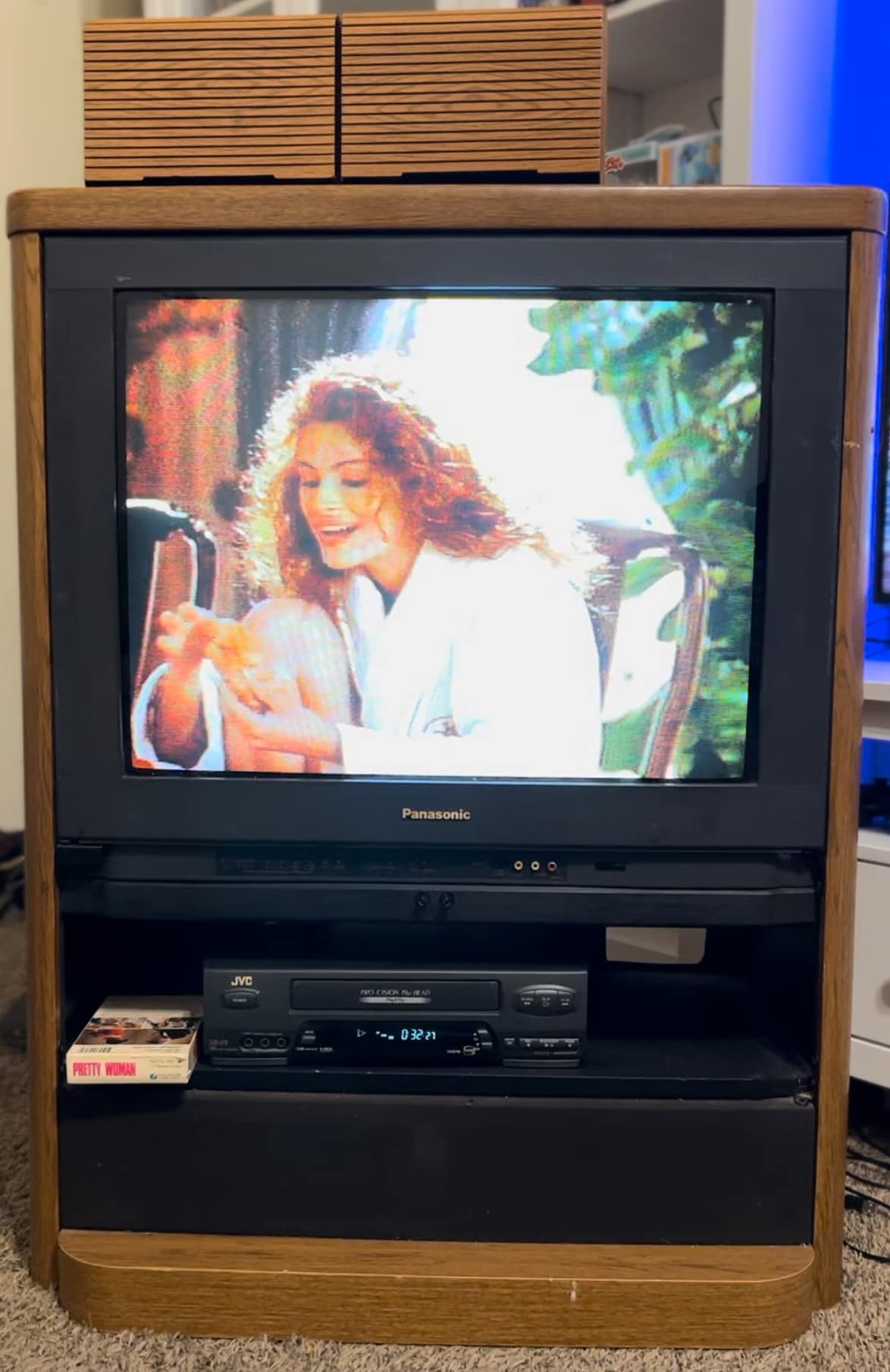

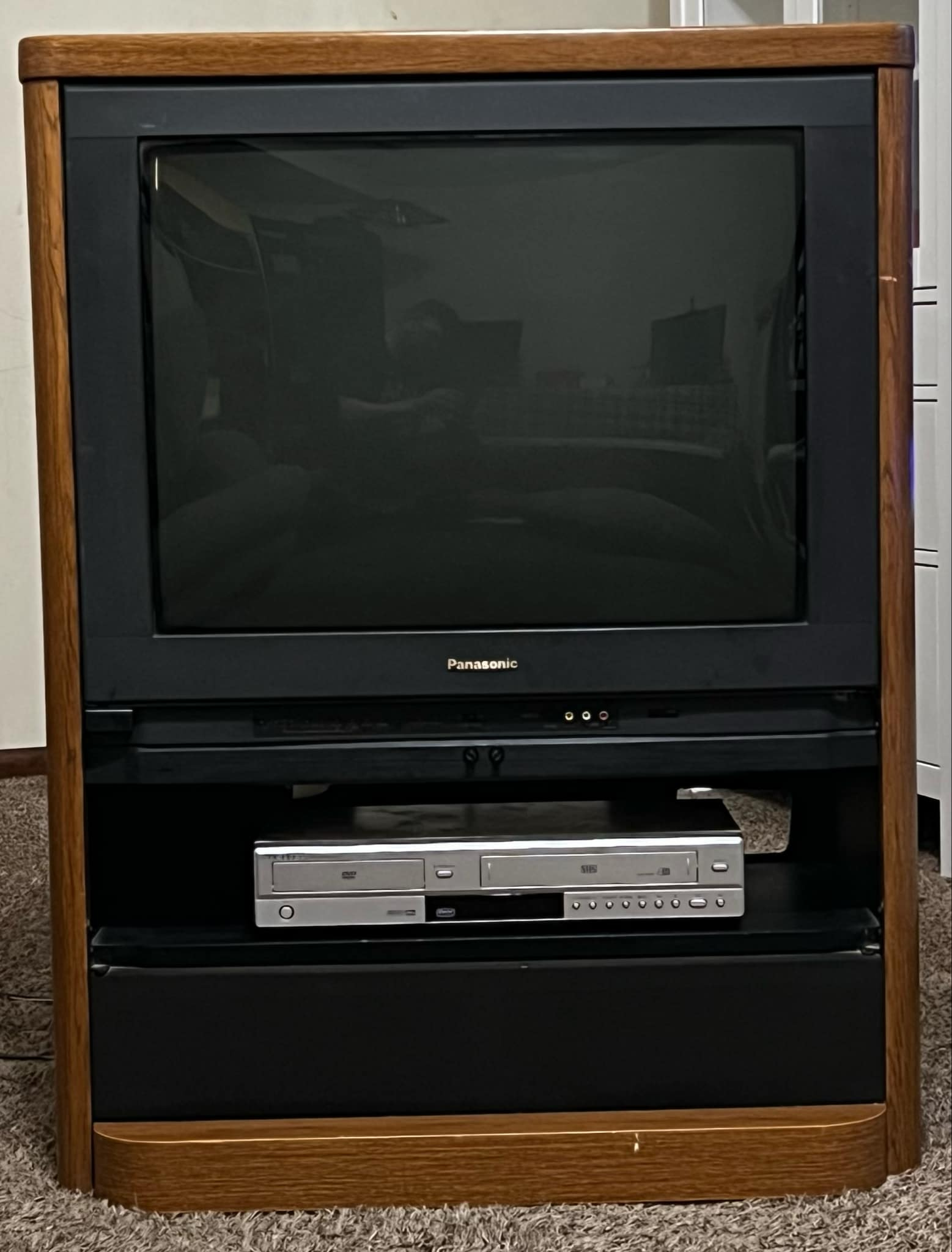

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CTP-2789SF |
| Series: | GAOO / SuperFlat |
| Viewable Size: | 27" |

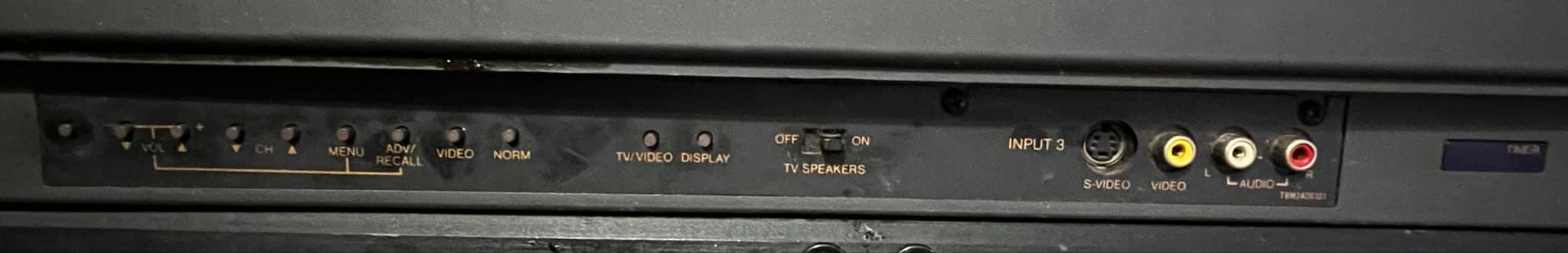

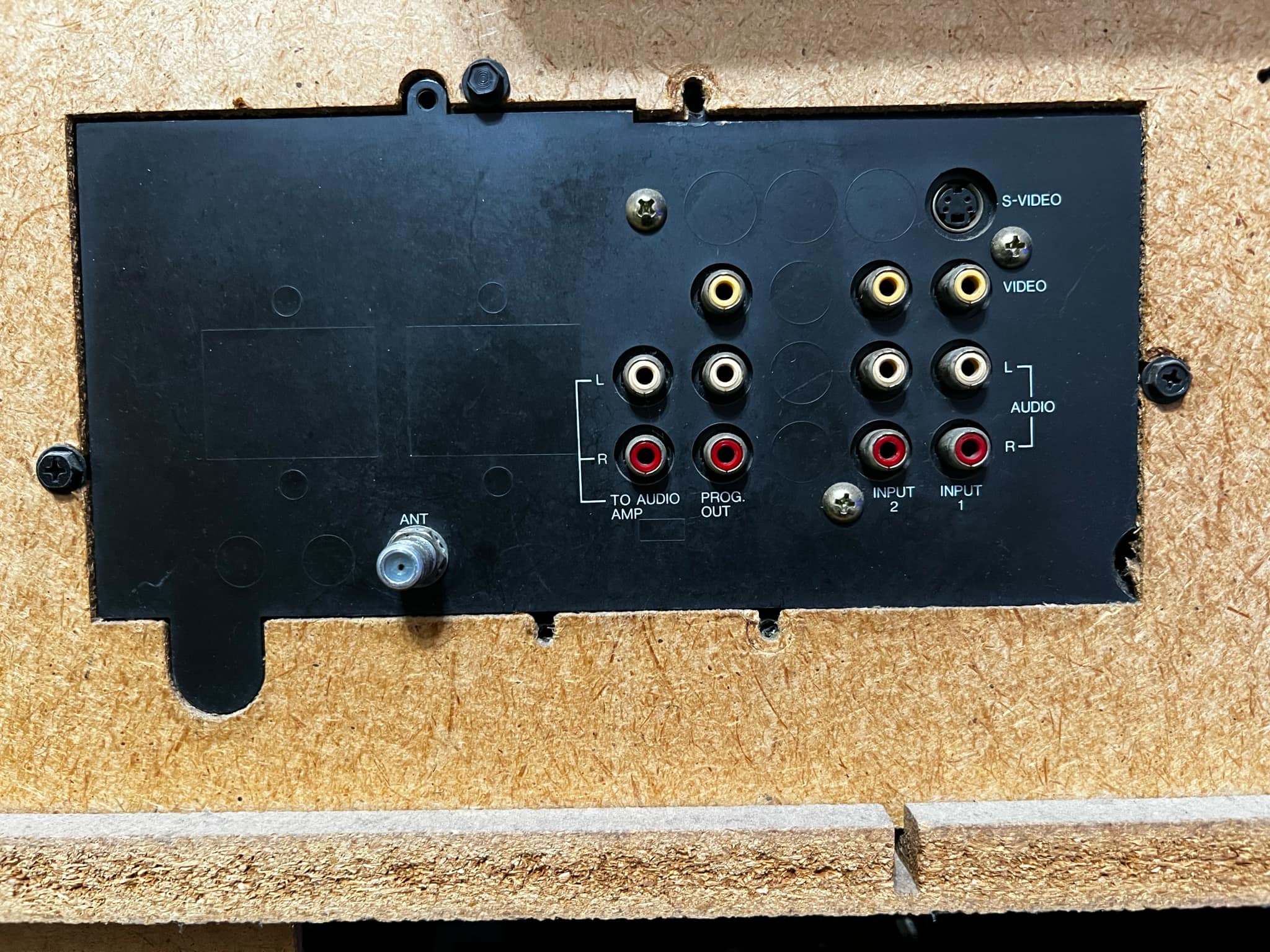

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle IC: | AN5304K |
| Flyback: | 0LF04507F |
| Focus Type: | Single |
| Tube: | Matsushita (MTC) , M68KTY161X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | ETC-35C6NA |
| Speakers: | Stereo |

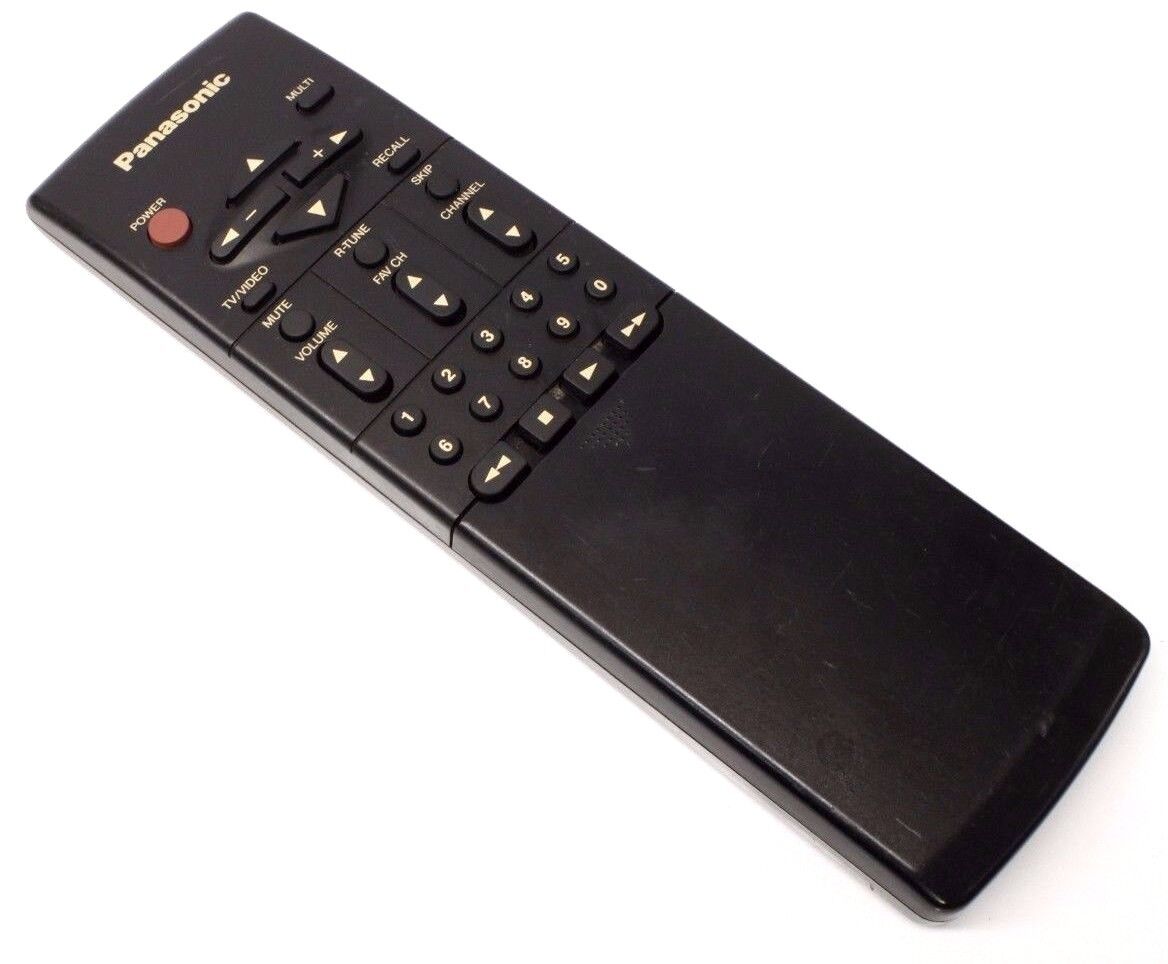

| Remote: | EUR51704 |

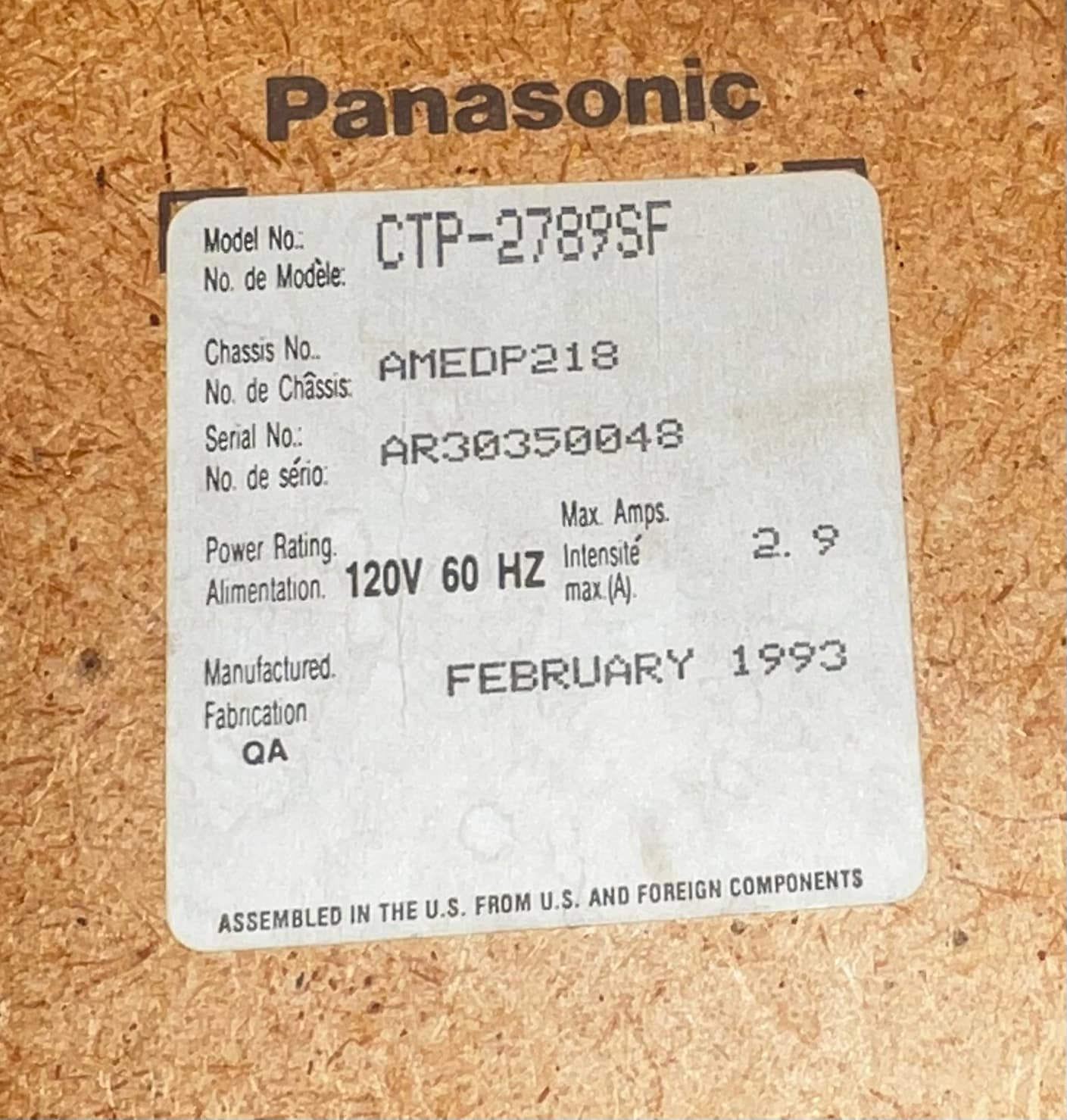

| Chassis: | AMEDP218 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| MSRP: | 1199 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
