Summary
High-end 31" console set by Panasonic from the early 90's.
Manuals
No documentation is available online at this time.
Notes
Uses the same chassis and tube as the CTP-3189SF. It's very likely the same set but without the wooden cabinet.

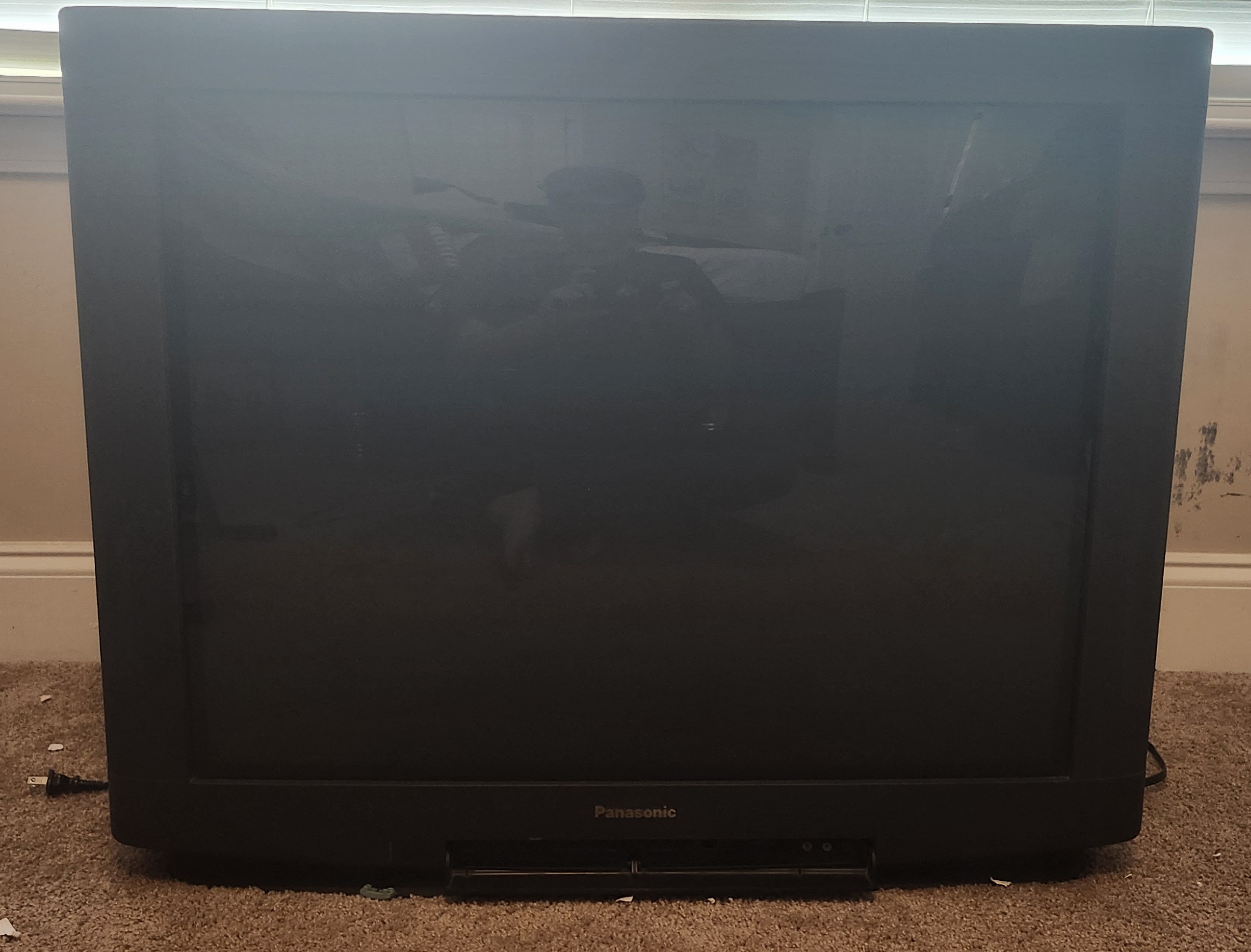

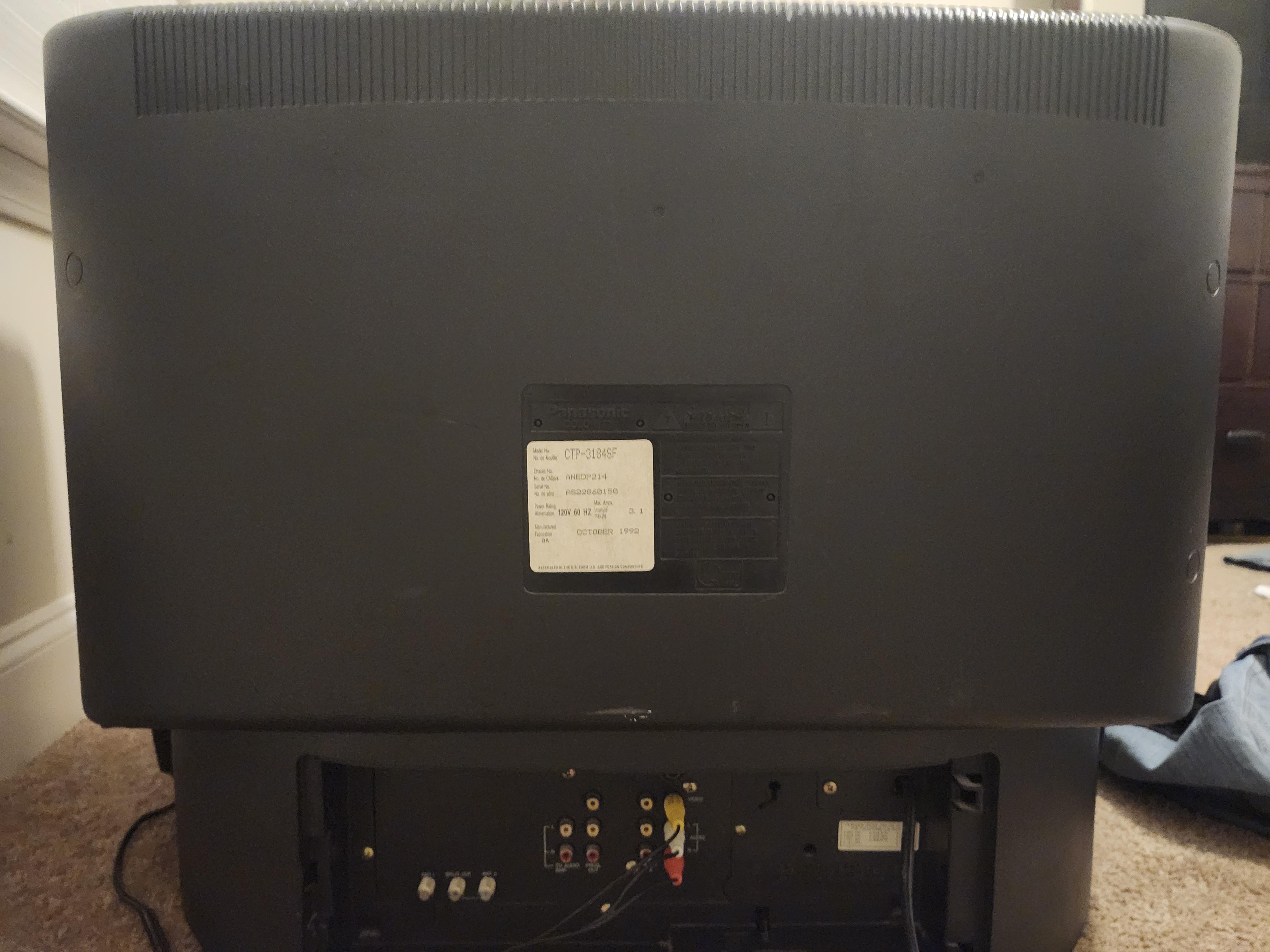

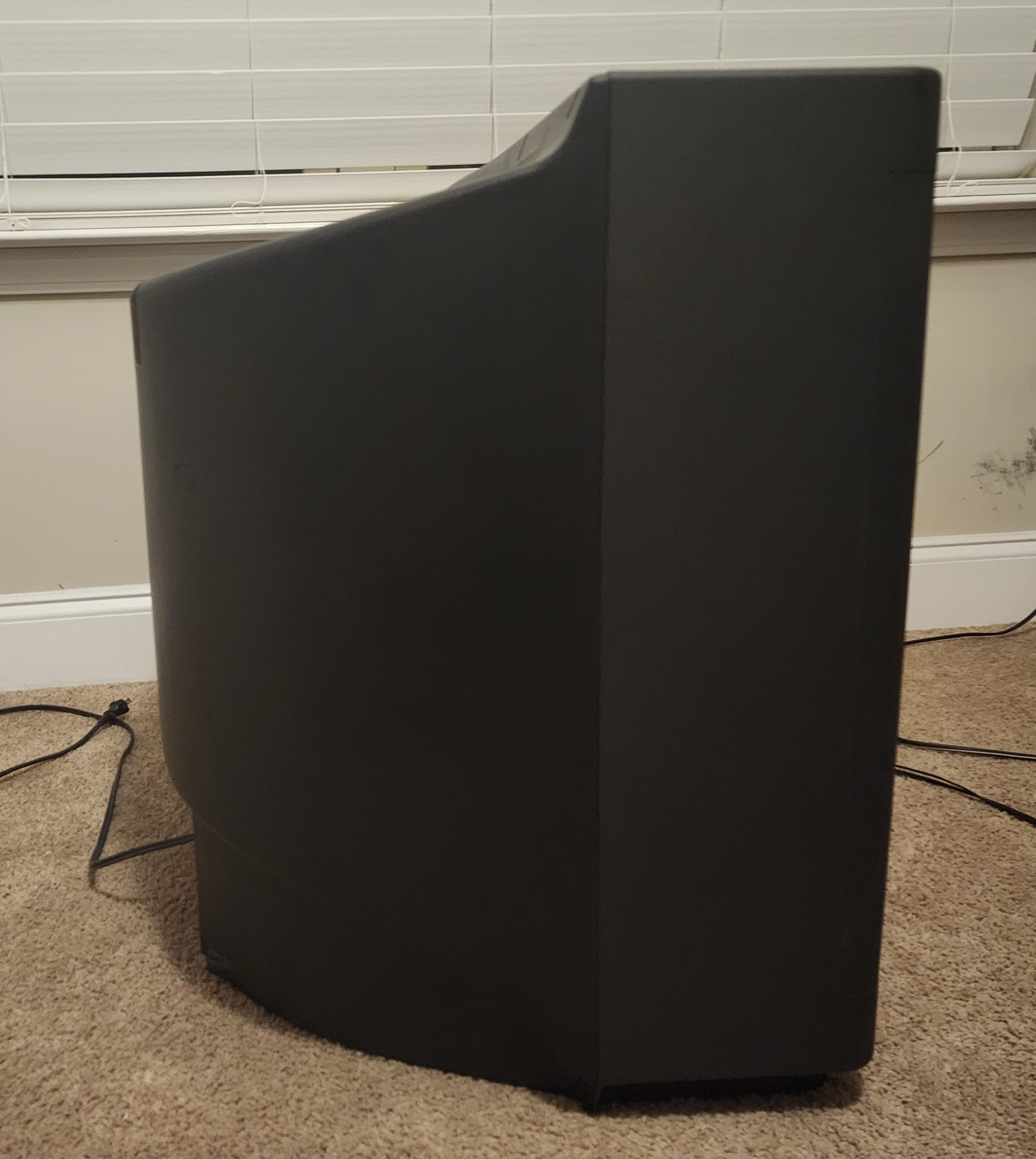

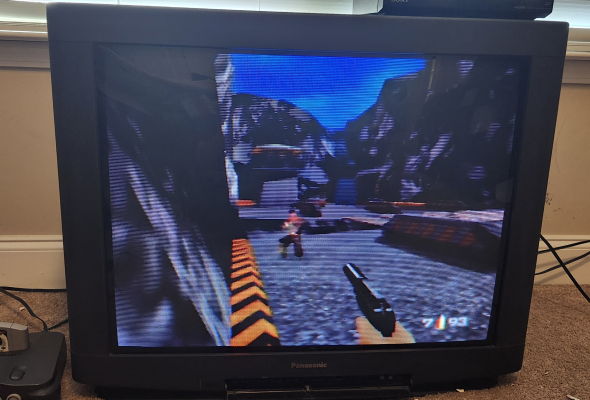

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CTP-3184SF |
| Series: | GAOO / SuperFlat |
| Viewable Size: | 31" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | 2SD1556 |
| Vertical Output IC: | LA7838 |
| Jungle IC: | AN5304NK |
| Flyback: | TKF14459F |
| Focus Type: | Single |
| Tube: | Matsushita (MTC) , M78KTY161X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | OLY15901F |
| Yoke Horz. Inductance: | 1.1 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 21.4 mH (@ 100 Hz) |
| Speakers: | Stereo |
| Remote: | EUR51705 |
| Chassis: | APEDP214 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Community Submission |
