| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

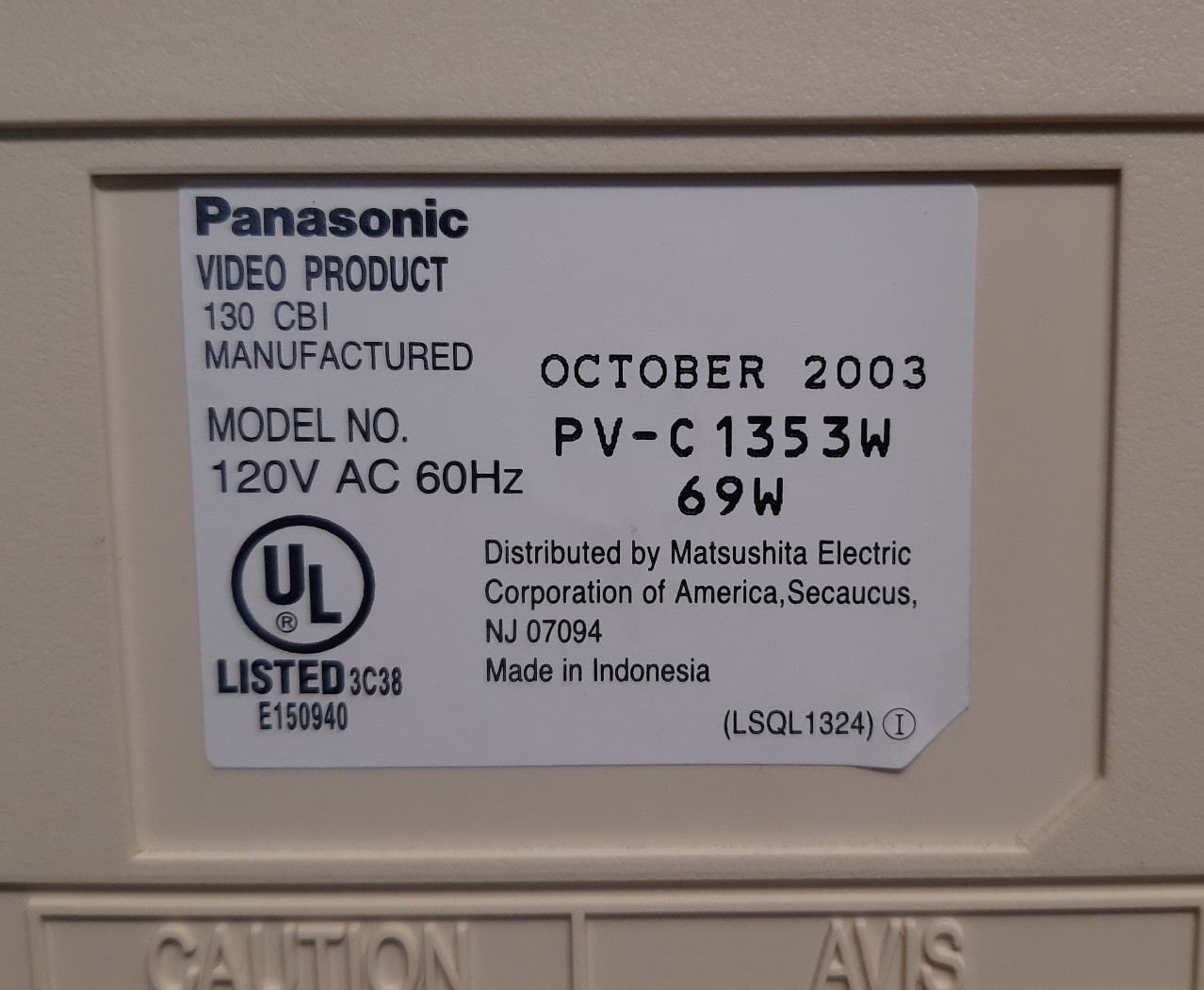

| Model: | PV-C1353W |
| Series: | Omnivision |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2586 |
| Vertical Output IC: | LA7837 |
| Comb Filtering: | None |
| Flyback: | G4G3H0000001 |
| Focus Type: | Single |
| Tube: | Panasonic , A34LRQ90X , A34LRQ90X09 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | CDY-M1466T |
| Yoke Horz. Inductance: | 3.921 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.85 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.59 ohm |
| Yoke Vert. Resistance: | 15.61 ohm |
| Speakers: | Mono |
| Remote: | LSSQ0383 |
| Weight: | 25.2 lbs (11.4 kg) |
| Dimensions (W/H/D): |
386 x 385 x 374 mm
(15.2 x 15.1 x 14.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
