Summary

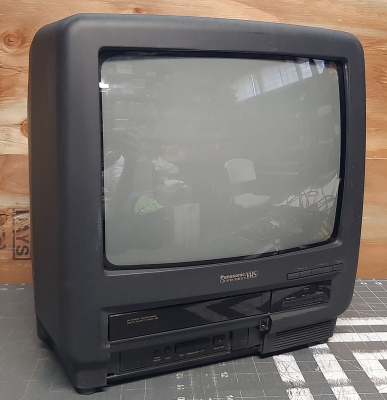

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units.

This TV is the 13" equivalent to the PV-M2021. Unlike that unit, however, the 1321 has the VCR mounted on the bottom rather than the top.

Literature

Documentation is not available online at this time.

Notes

Adjusting video settings on this TV requires an original remote. The necessary buttons are not present on the face of the TV, and universal remotes usually don't have a valid code for this model.

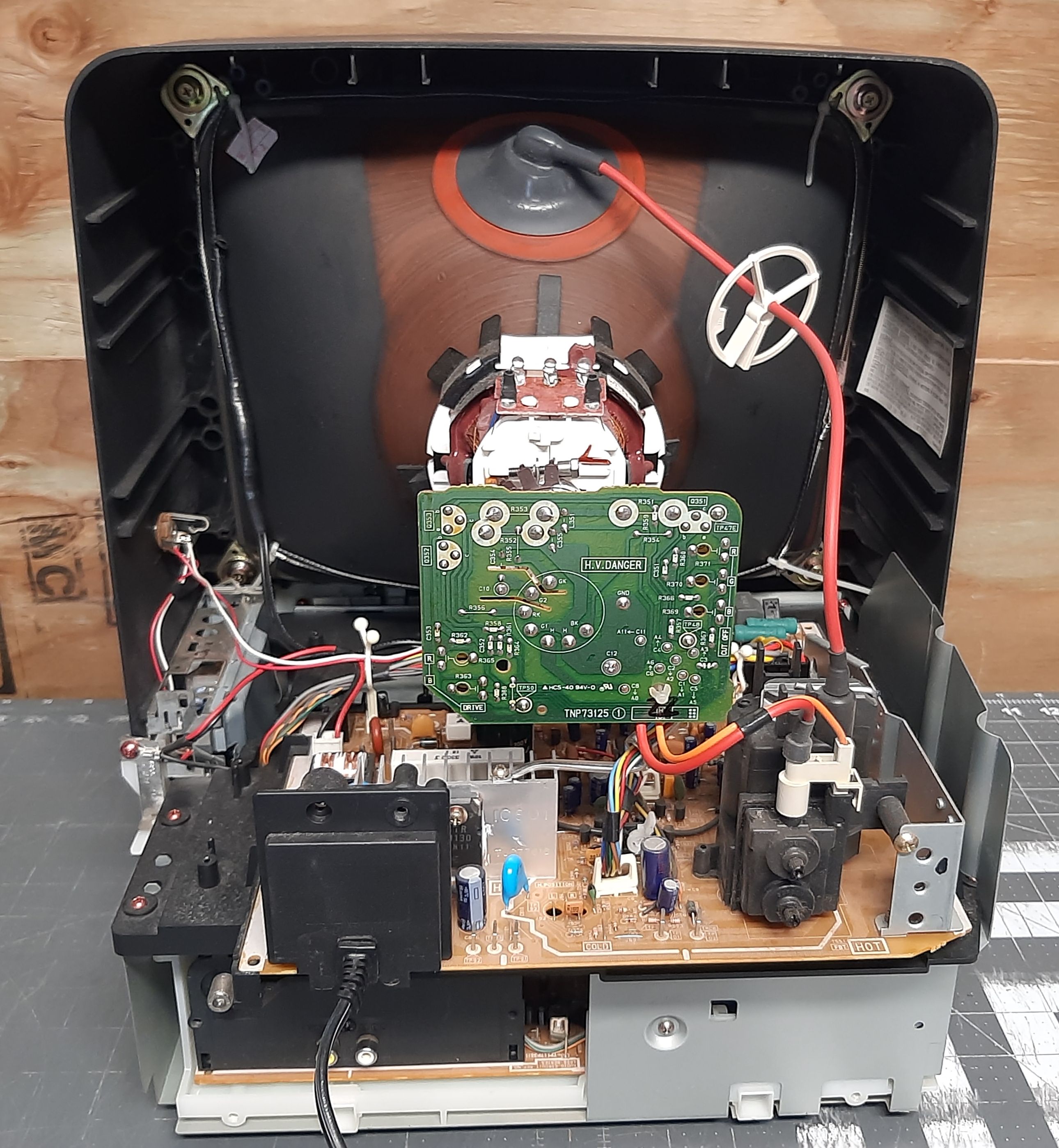

While it does have an on screen display, the PV-M1321 does not have a service menu. Adjustments are performed using trim pots on the chassis.

This TV does not have horizontal or vertical position pots on the chassis. If it's necessary to adjust the screen position, the best option is the purity rings.
