Summary
This set seems to be a Chinese-made variant compared of the 19PS45 S321. This was right before Philips' collaboration with TCL, so I suspect that this set may have been a transitional step by moving production to China. Curiously, the chassis number is not listed, so I've provided the closest equivalent service manual as a substitute.
Manuals
Notes

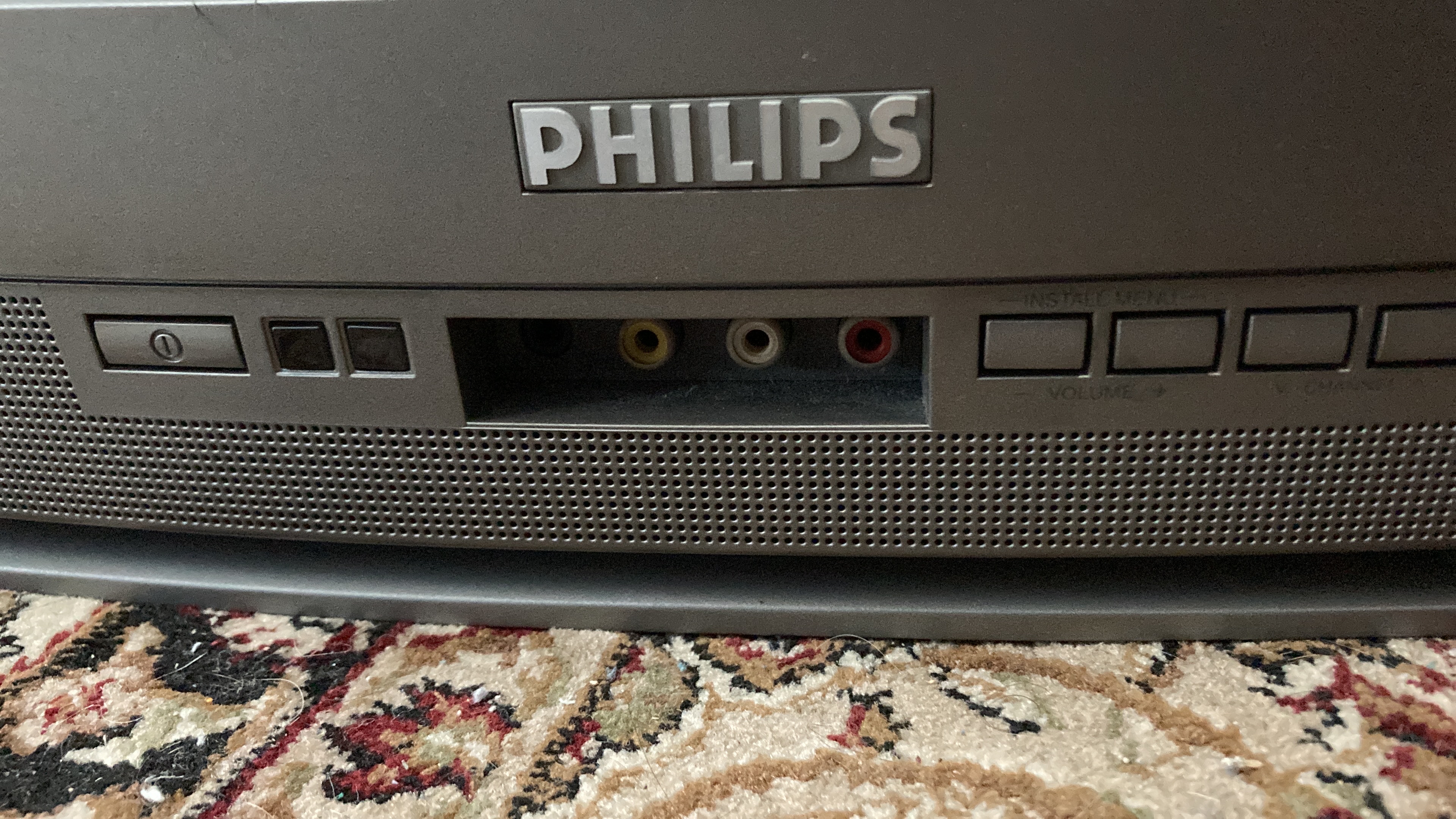

Several Philips TVs, including this model, are prone to oxidized microswitches on the front panel. This causes the buttons to perform the wrong function when pressed. This can be fixed by replacing the switches, or avoided by using the remote instead.
It should be possible to modify this TV for component and/or S-Video inputs.

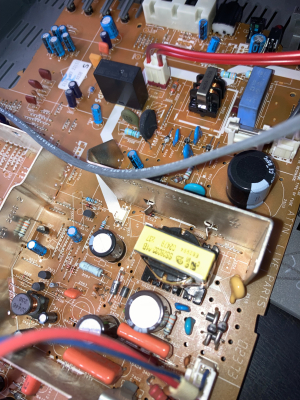

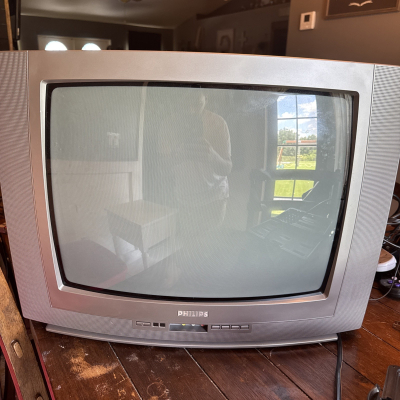

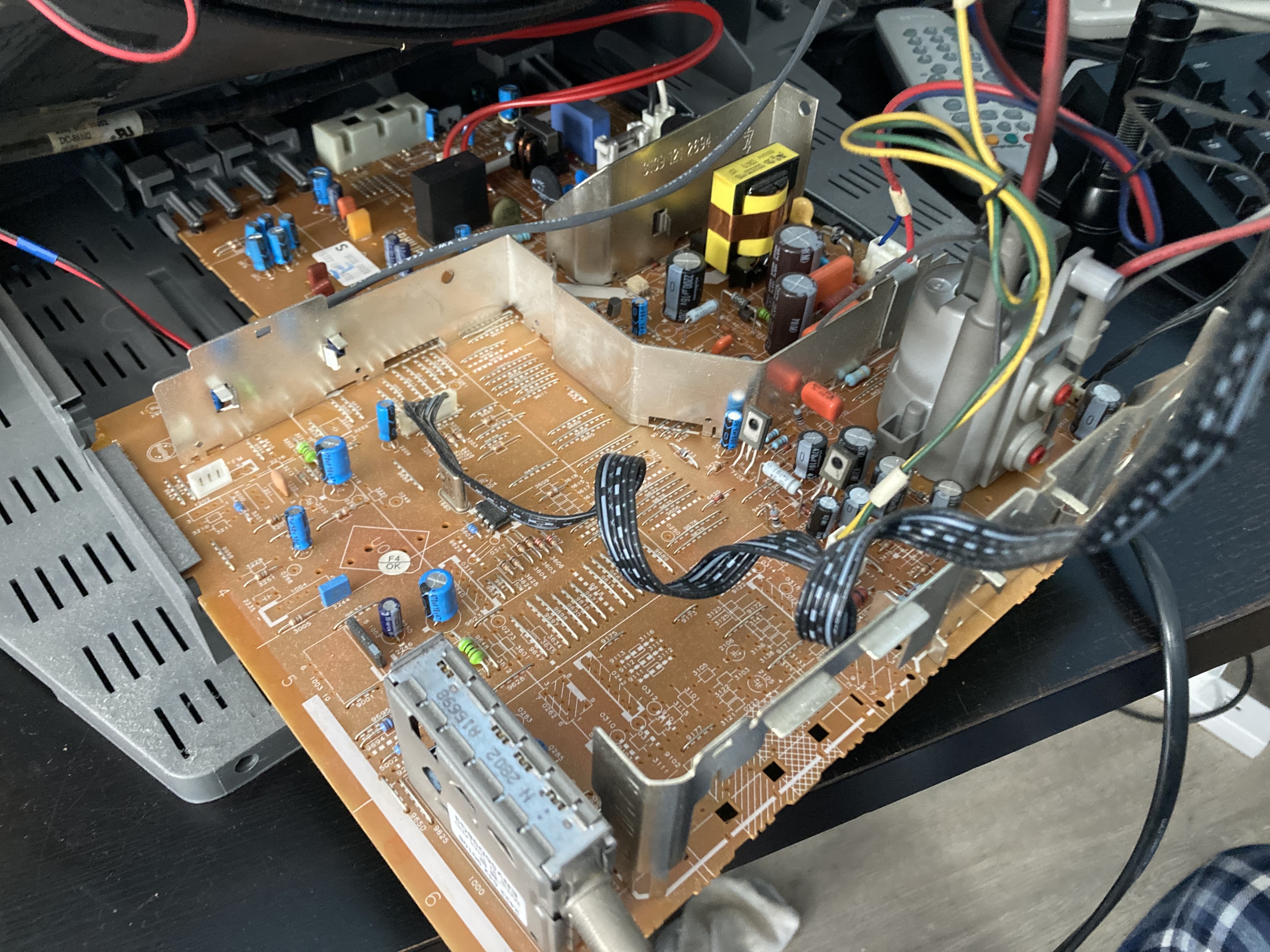

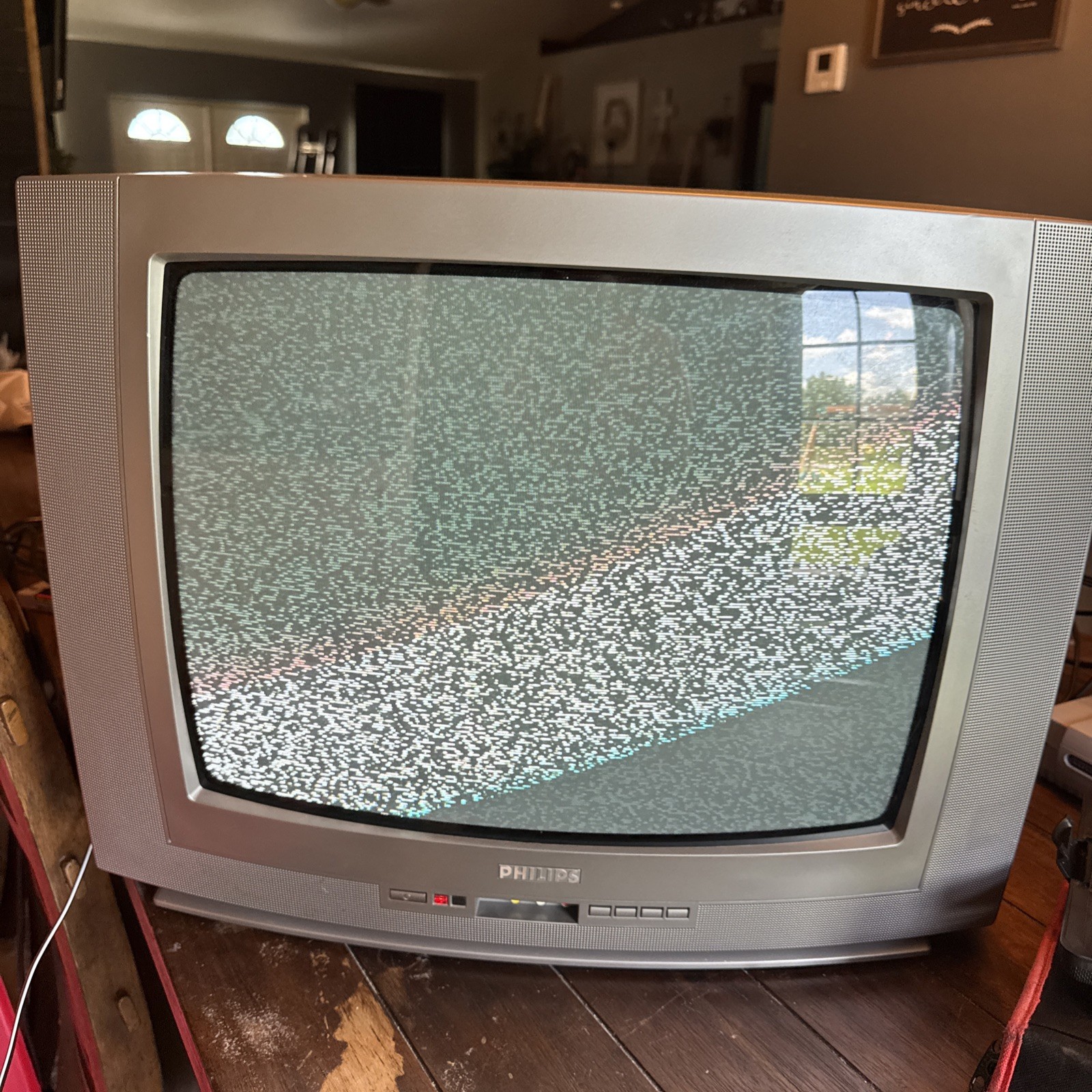

Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |

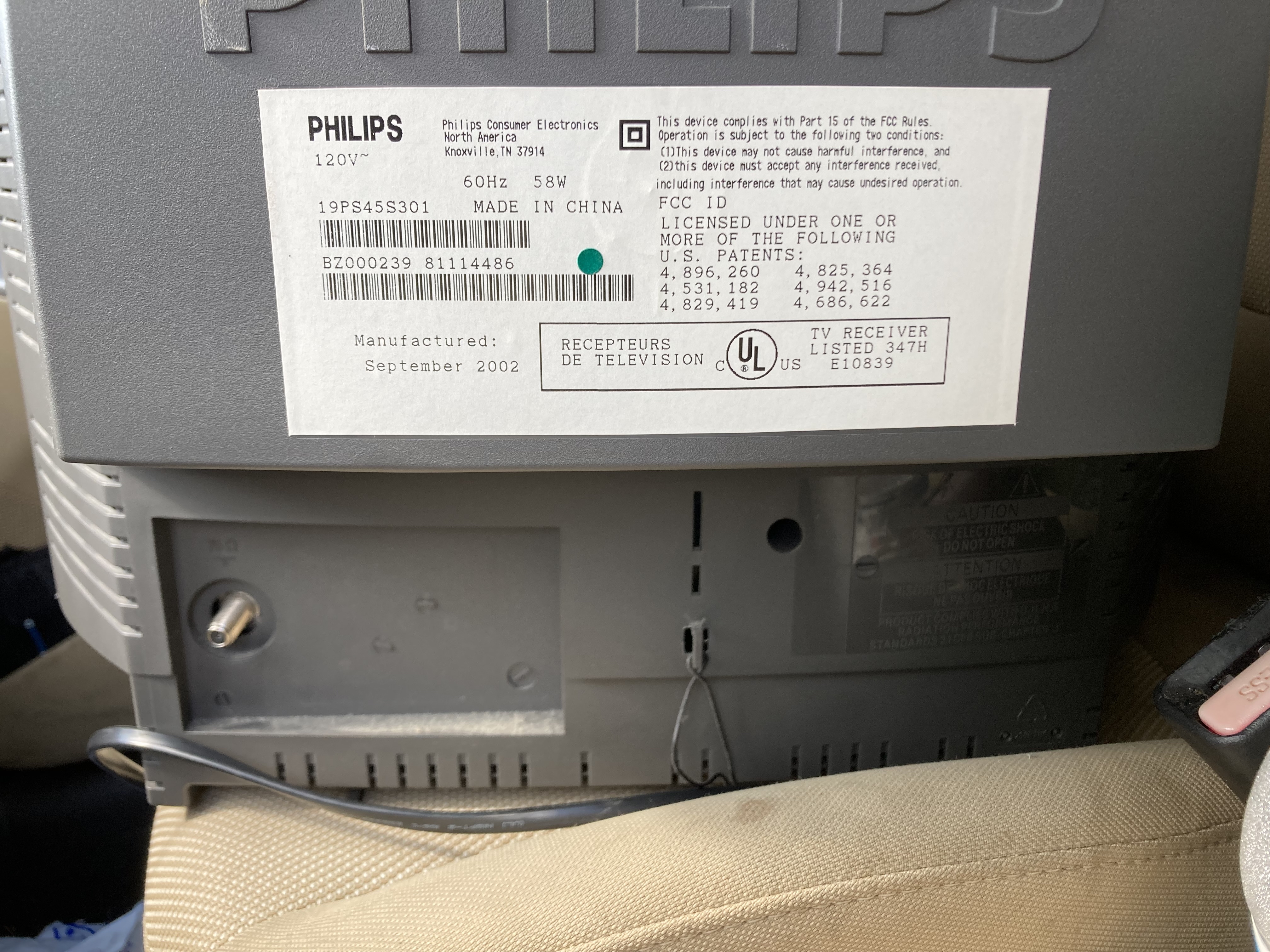

| Model: | 19PS45 S301 |
| Series: | PS |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | BUT11APX |
| Vertical Output IC: | TDA9302H |

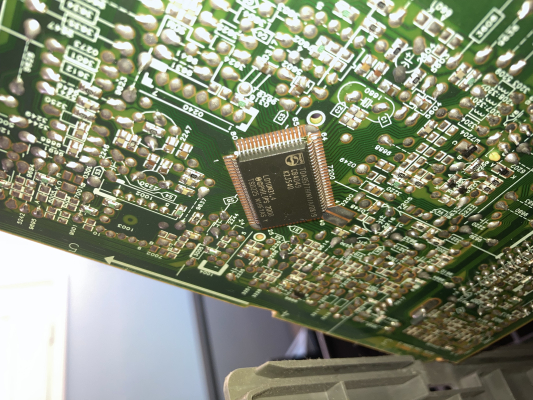

| Jungle: | Philips, TDA9587H |
| Focus Type: | Single |

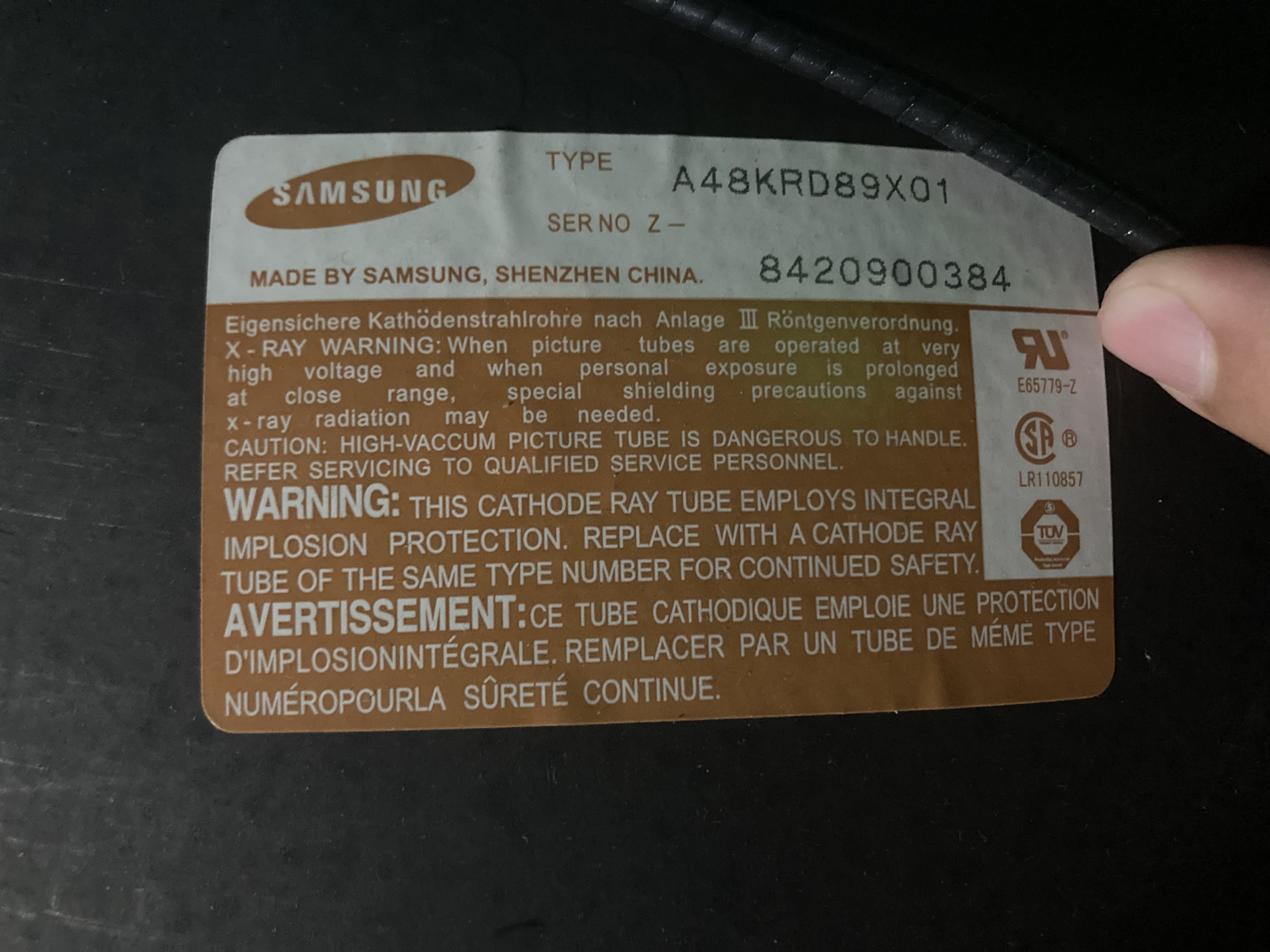

| Tube: | Samsung , A48KRD89X , A48KRD89X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Headphone Jack |
| Remote: | RC19335004/01 |
| Chassis: | S8 |
| Weight: | 44 lbs (20 kg) |
| Dimensions (W/H/D): |
592 x 465 x 472 mm
(23.3 x 18.3 x 18.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 169 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video, Component YPbPr |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info, Needs Tube Info |
