Summary
14" flat CRT with a built in DVD player, manufactured by Konka and sold under the Polaroid brand. Has two composite inputs as well as RF.
Manuals
Notes
Uses the same chassis as the Insignia NS-14FCT.

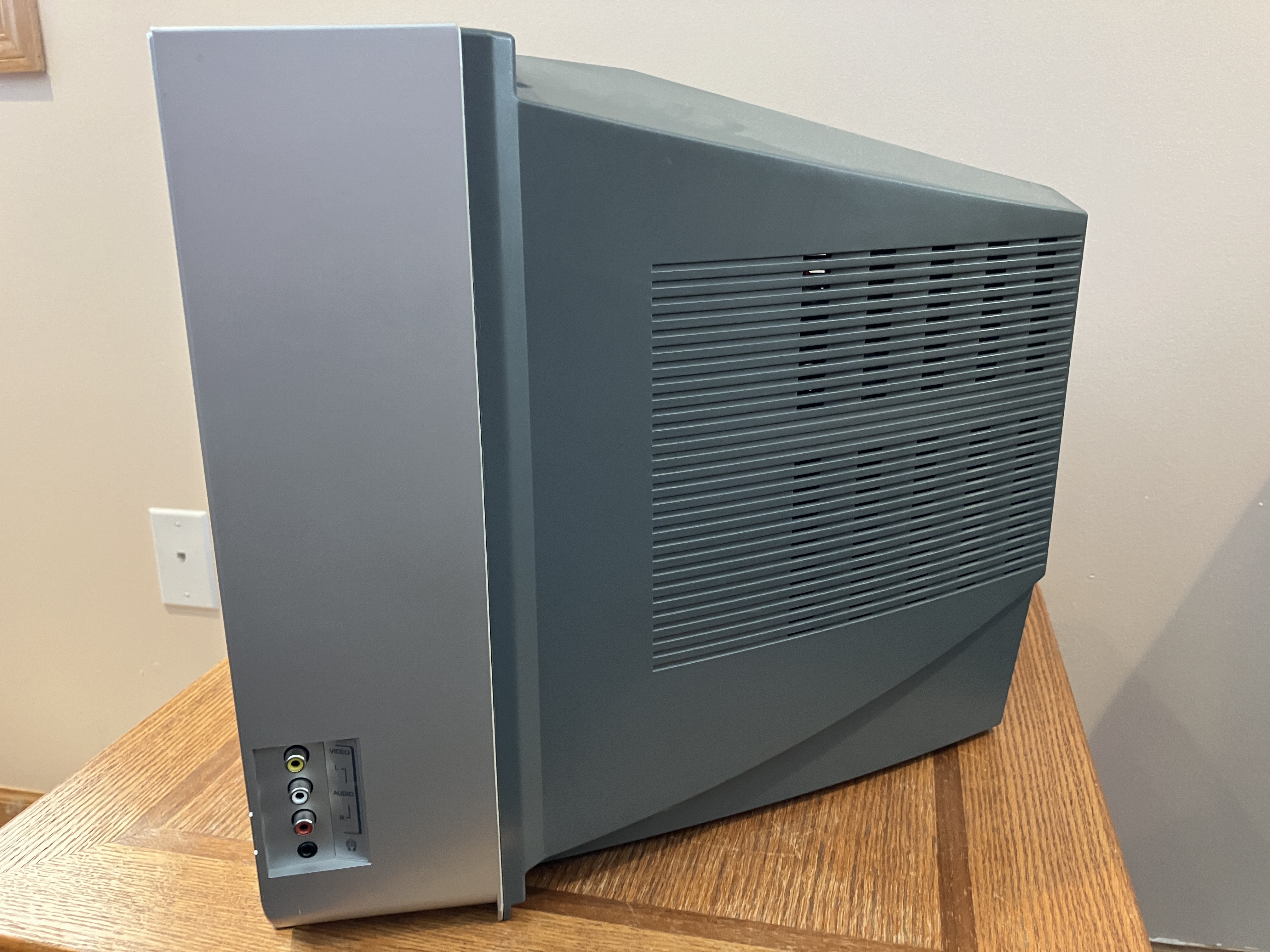

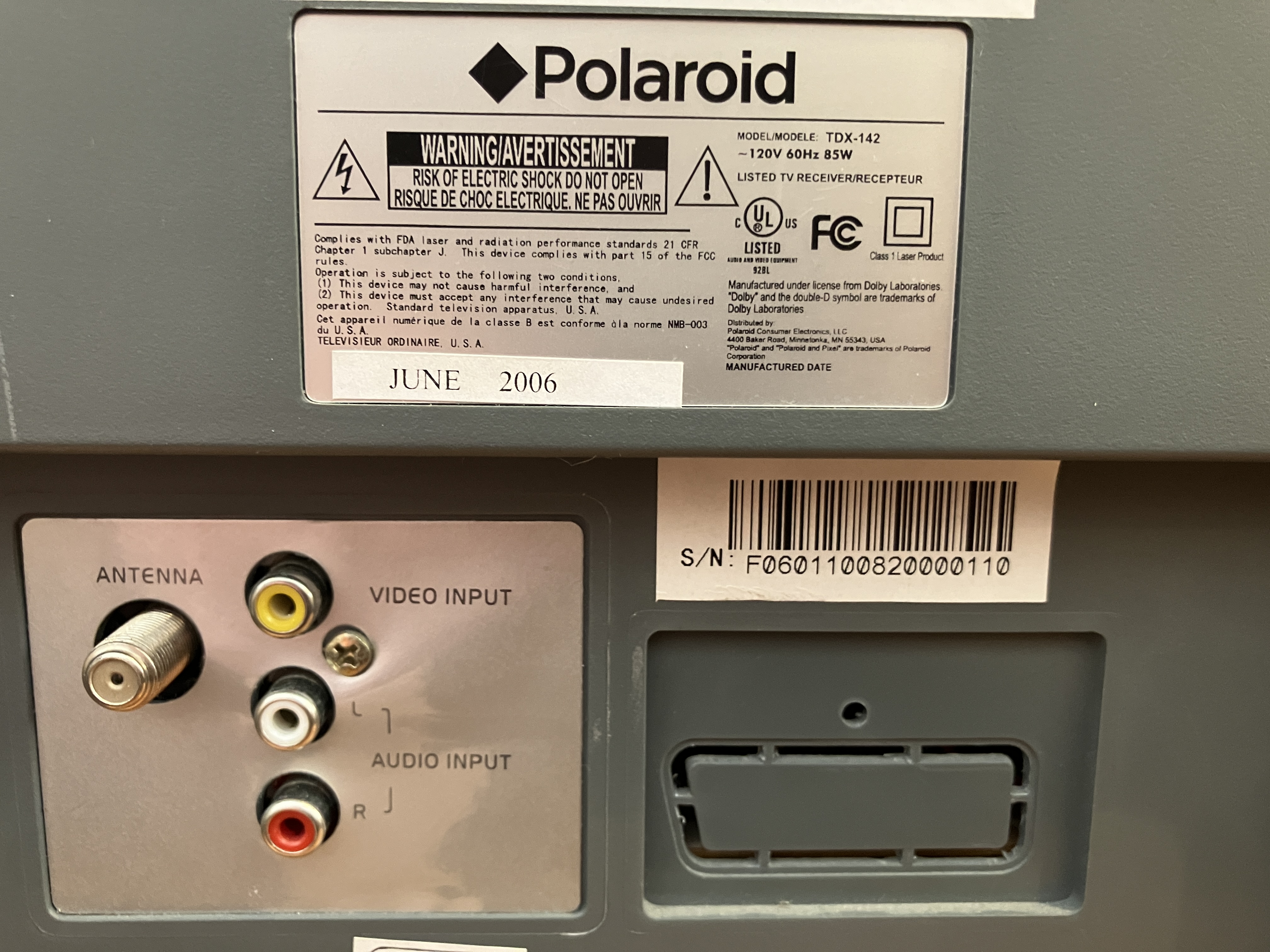

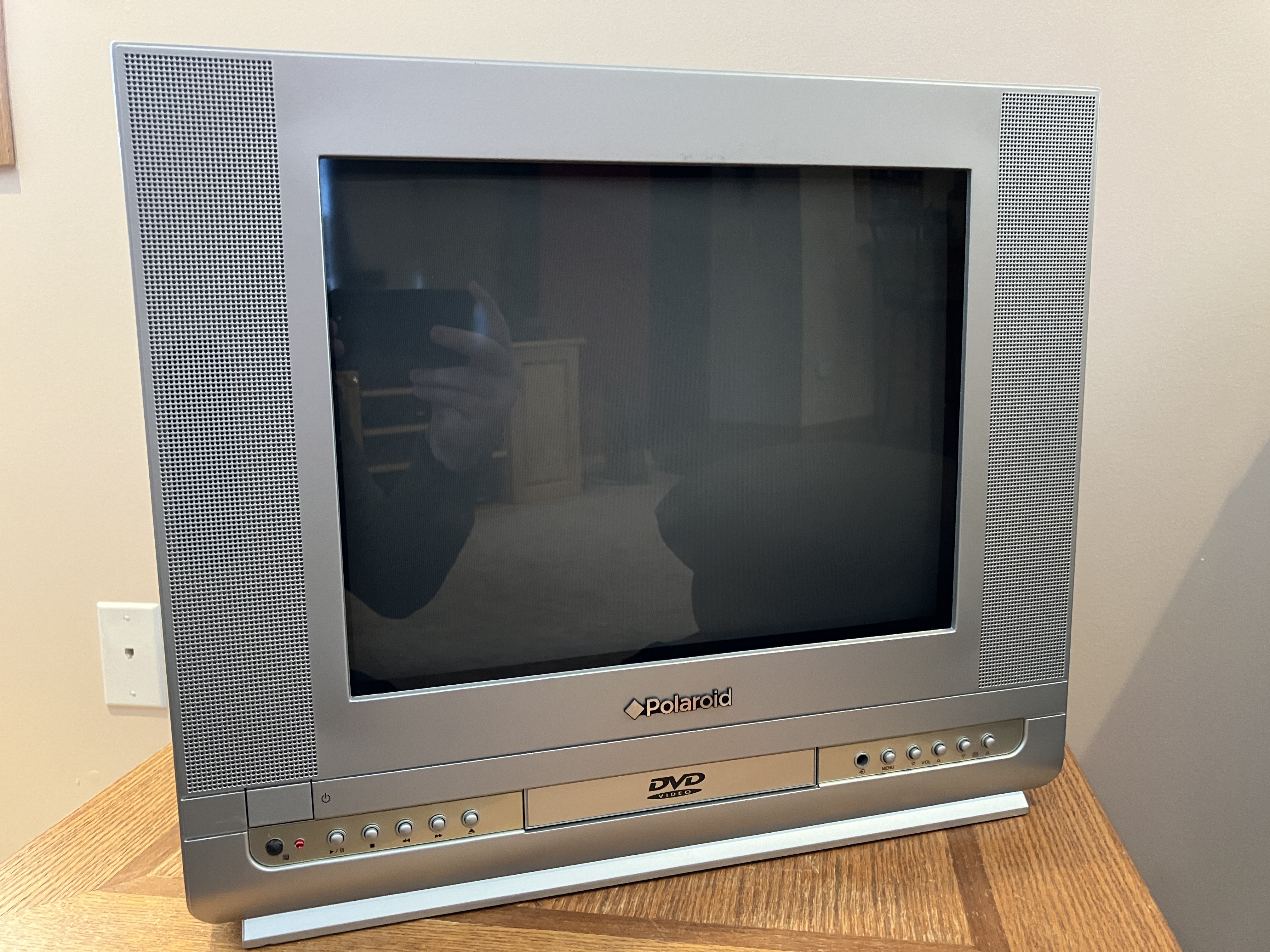

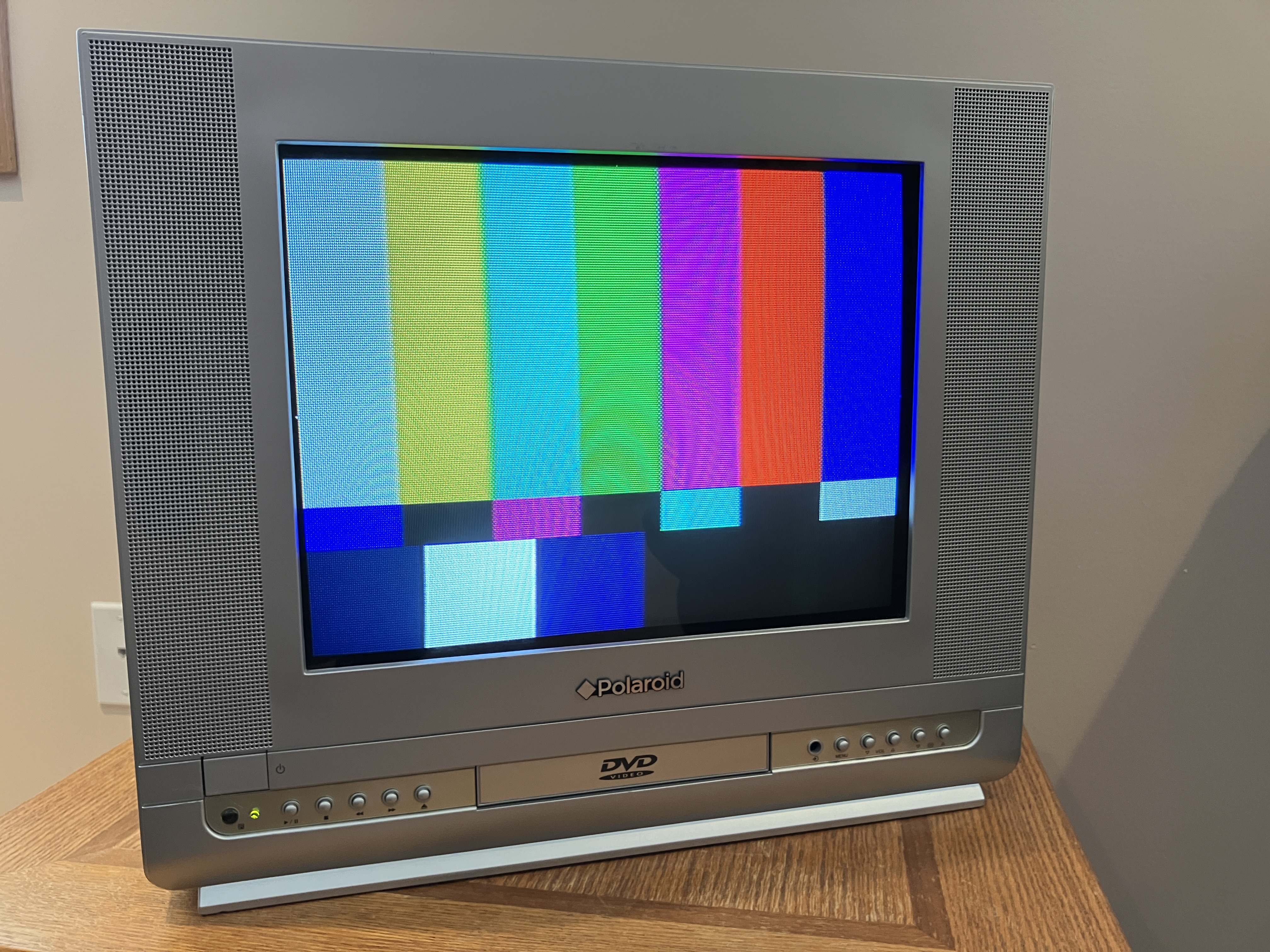

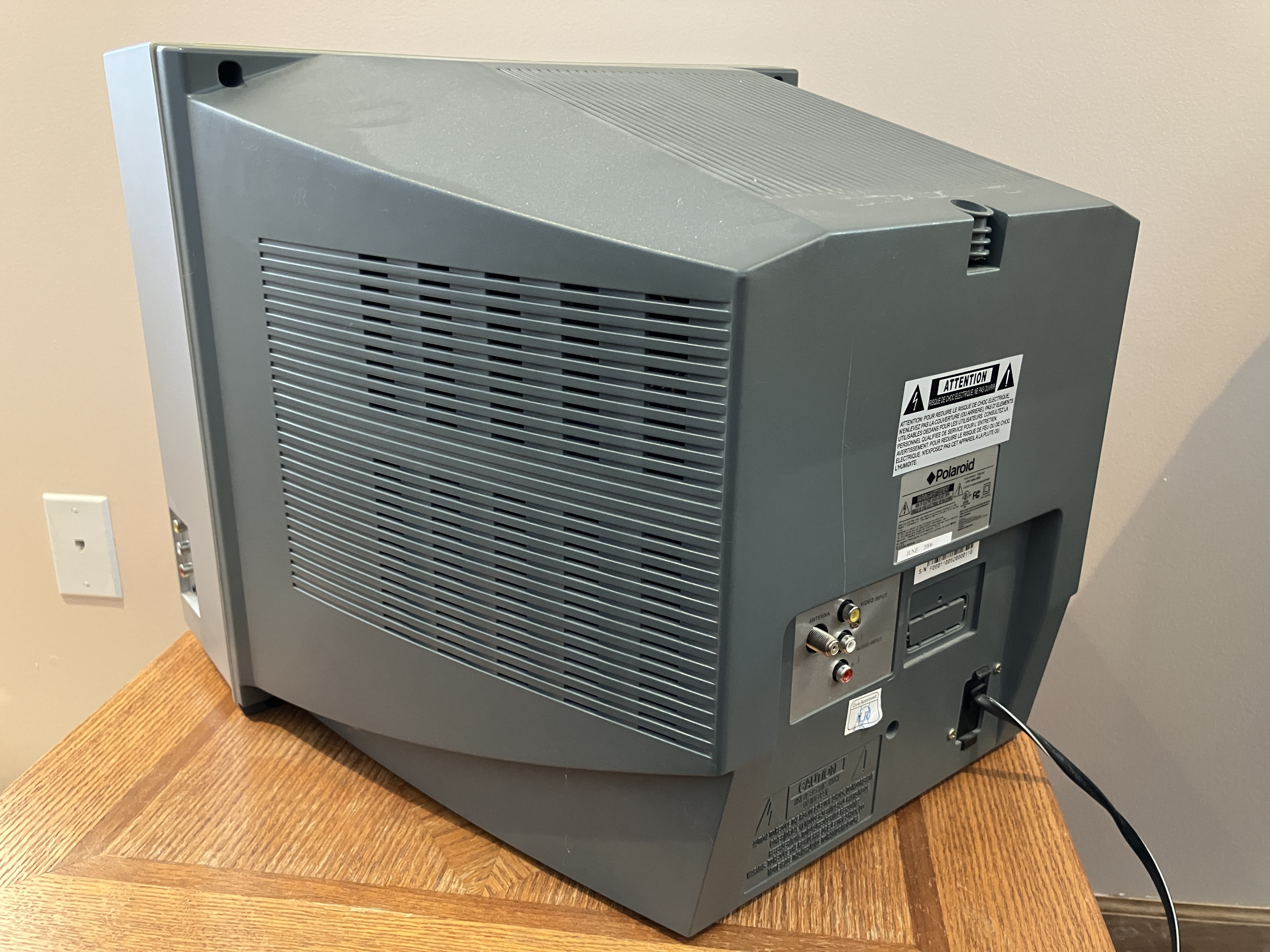

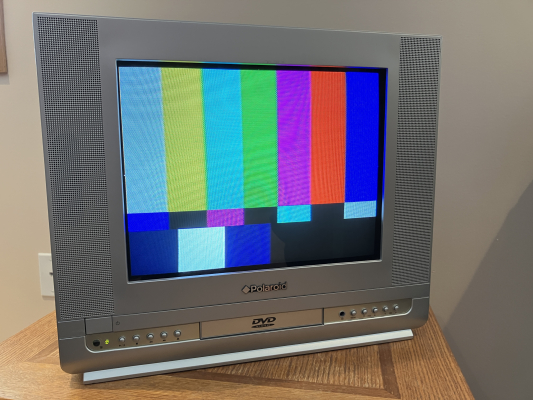

Gallery
| Specifications | |
|---|---|
| Brand: | Polaroid |
| Manufacturer: | Konka |
| Model: | TDX-142 |
| Series: | TDX |
| Viewable Size: | 14" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2102 |
| Vertical Output IC: | Sanyo, LA78040 |
| Jungle IC: | Sanyo, LA76950N, LA76950 |
| Comb Filtering: | None |
| Flyback: | JF0501-19521 |
| Focus Type: | Single |
| Tube: | Chunghwa , A36AKJ13X20 , A36AKJ13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Headphone Jack |
| Remote: | KK-Y295J |
| Weight: | 28.6 lbs (13 kg) |
| Dimensions (W/H/D): |
421 x 371 x 437 mm
(16.5 x 14.6 x 17.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission, Needs Service Manual |
