Summary

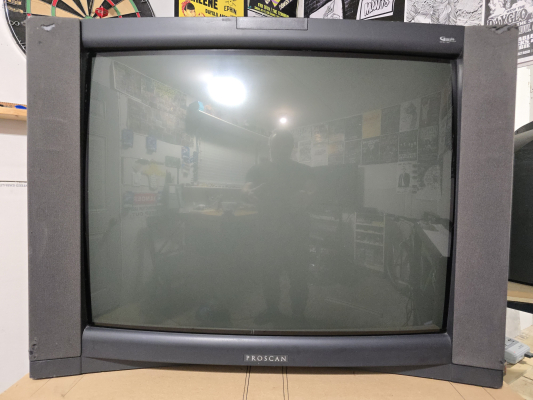

32" Proscan CRT by RCA/Thomson. Has RF, composite, and s-video inputs with stereo sound. Originally manufactured in Mexico in 1998.
(Special thanks to Gary Marven for the pics!)
Manuals
Notes
Picture quality looks excellent over s-video. Despite using a Sanyo jungle chip, the picture quality is quite good. Even the RCA tube on this set is good, which is surprising.
RGB Mod
Johnny Baez has successfully modded the PS27600 which uses the same chassis. Link to post HERE
Gallery
| Specifications | |
|---|---|
| Brand: | Proscan |
| Manufacturer: | RCA |
| Model: | PS32600 |
| Series: | PS |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Sanyo, LA7612N |
| Tube: | RCA , A80AEJ16X , A80AEJ16X09 |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | CTC197CK, CTC197CK3 |
| Application: | Consumer |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
