Summary
A low-end 19" TV be Quasar from 1989. Originally manufactured by Matsushita/Panasonic.
Manuals
(None at this time)
Notes
Despite being branded by Matsushita, the tube is a Samsung model made in Korea. It has been found in Hantarex MTC900 arcade chassis, and other Capcom cabs from 1989-1990.
Mods
It is possible to mod this set for RGB, as the jungle chip has unused pins for that signal. Reddit post detailing the process HERE

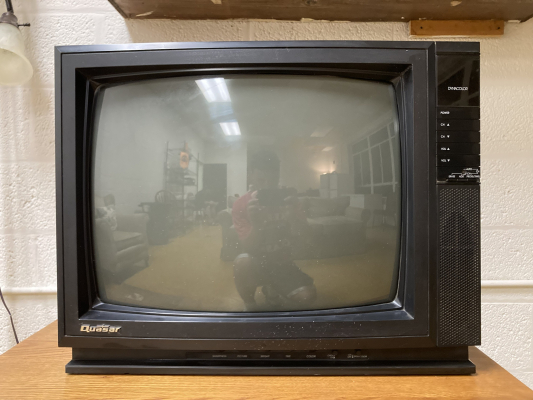

Gallery
| Specifications | |
|---|---|
| Brand: | Quasar |
| Manufacturer: | Panasonic |
| Model: | TP1920DW |
| Series: | TP |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, OSD Customer Controls |
| Jungle IC: | Panasonic, AN5301NK |
| Focus Type: | Single |
| Tube: | Samsung , 51GGB95X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Remote: | EUR50482 |
| Chassis: | ADC195 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 249 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
