Summary

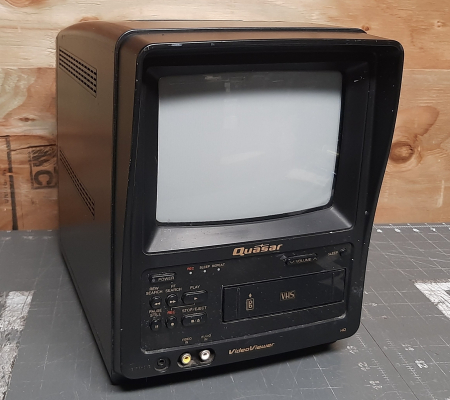

Portable VHS player with a built in 7" monitor and top-mounted speaker. Runs on 12-24v DC, with a rear mounted AC adapter unit.
Literature
No documentation is available online at this time.
Notes
Unlike most TV/VCR combos, this unit does not have a TV tuner and can only accept composite video.
The VCR mechanism is very compact and likely is difficult to service.
Gallery
| Specifications | |
|---|---|
| Brand: | Quasar |
| Manufacturer: | Panasonic |
| Model: | VV-9407 |
| Series: | VideoViewer |
| Viewable Size: | 7" |
| Inputs: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D1439 |
| Vertical Output IC: | AN5532 |
| Jungle IC: | AN5332N |
| Flyback: | TLF14758F |
| Tube: | Panasonic , A18JHC90X |
| Heater Voltage: | 6v |
| Deflection: | 70° |
| Mask: |
Slot
|
| Tint: | Light |
| Removable Glare Film: | No |
| Yoke: | TLY15256F |
| Yoke Horz. Inductance: | 9.468 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 24.00 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 19.184 ohm |
| Yoke Vert. Resistance: | 10.57 ohm |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| Country of Manufacture: | Japan |
| Degaussing: | Automatic on Power-on |
