Summary

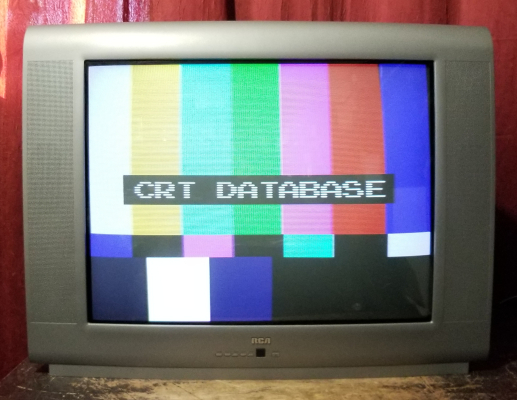

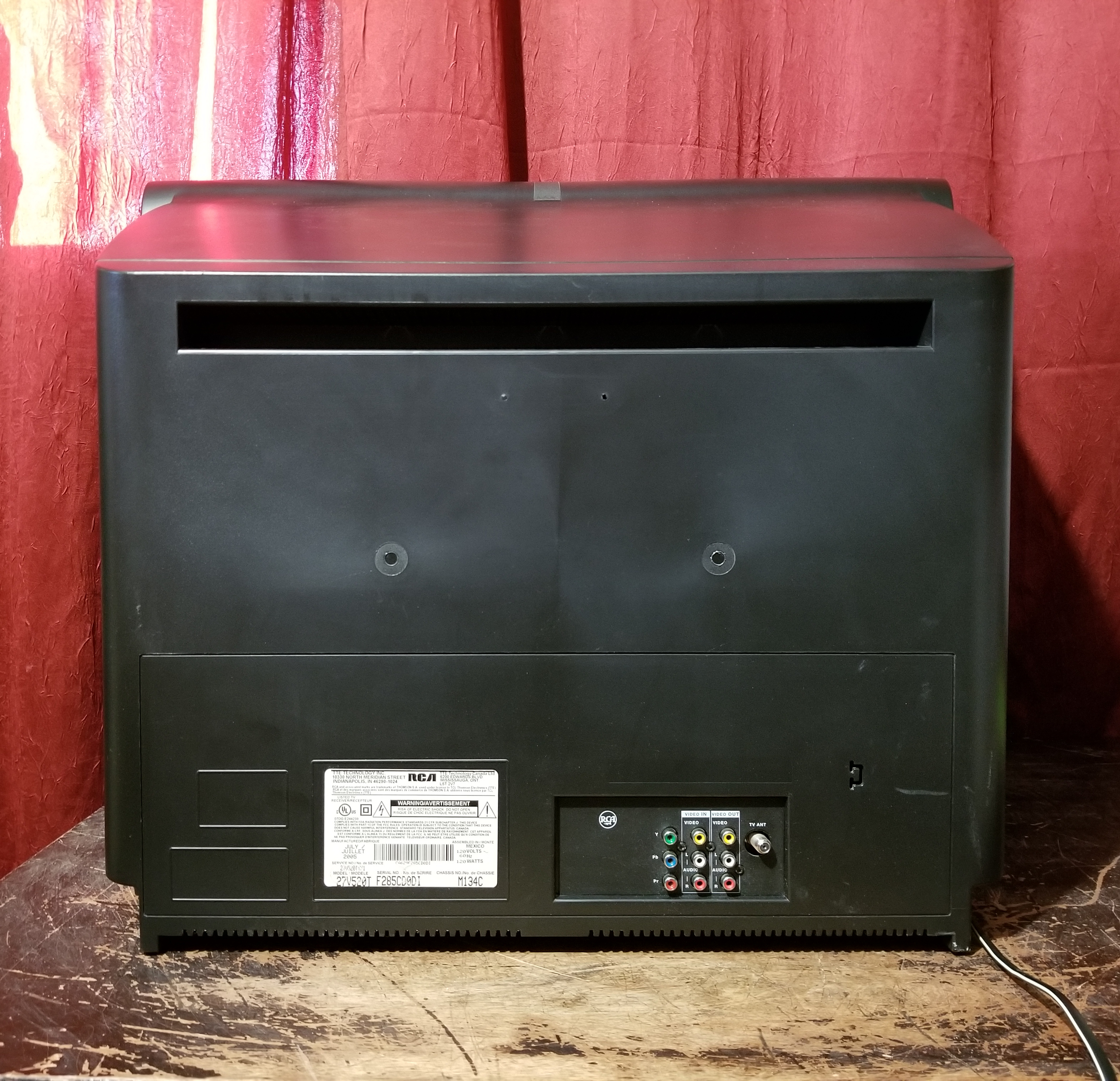

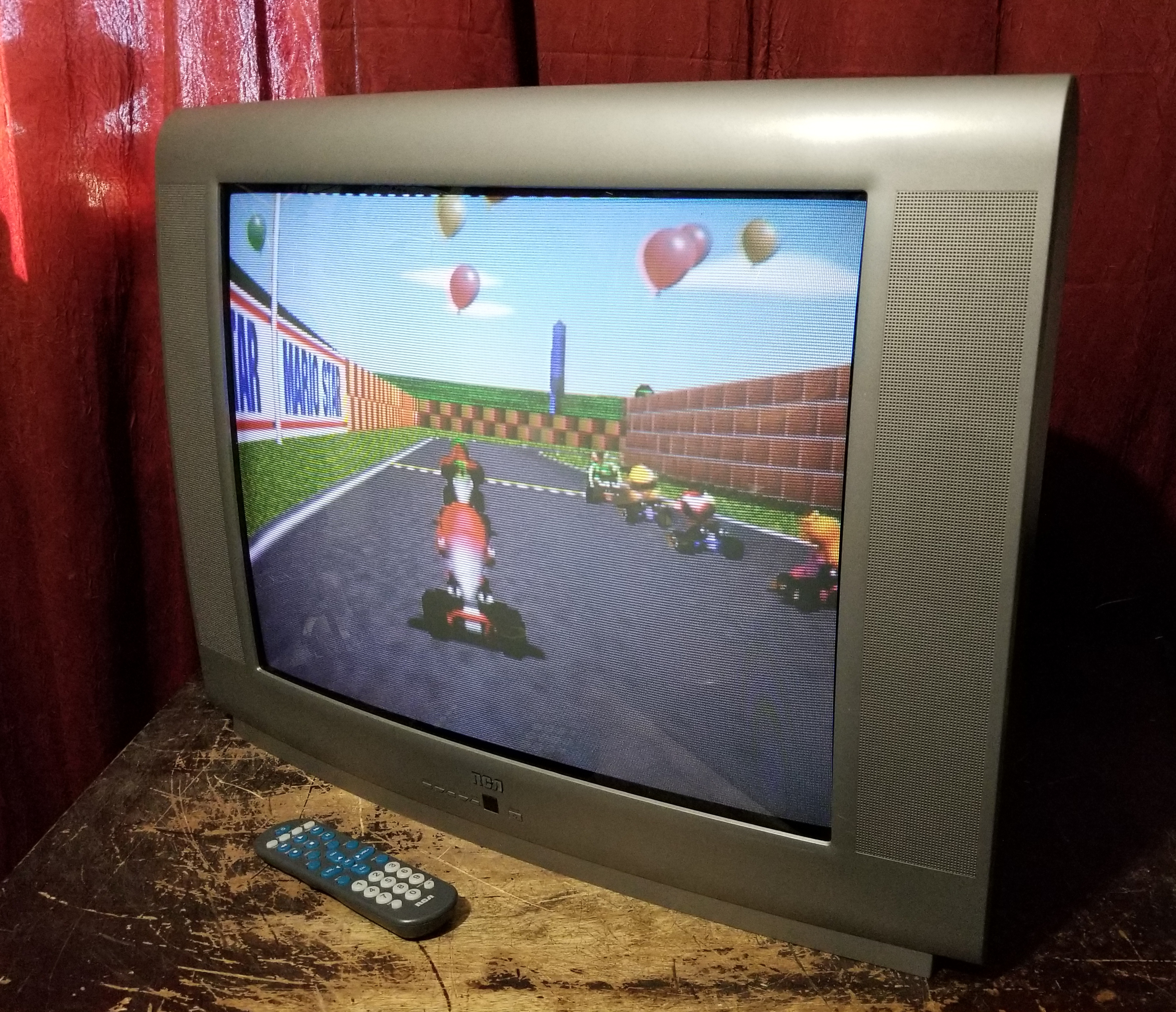

Connections and Features! This RCA 27" diagonal Television has the connections and features that you are looking for! Using the Component Video Inputs (Y Pr Pb) provides a more vibrant, sharper image as compared to single video inputs. This television also includes an Electronic On-Screen Notepad which displays messages at selected times or when the television is powered on.

Manuals

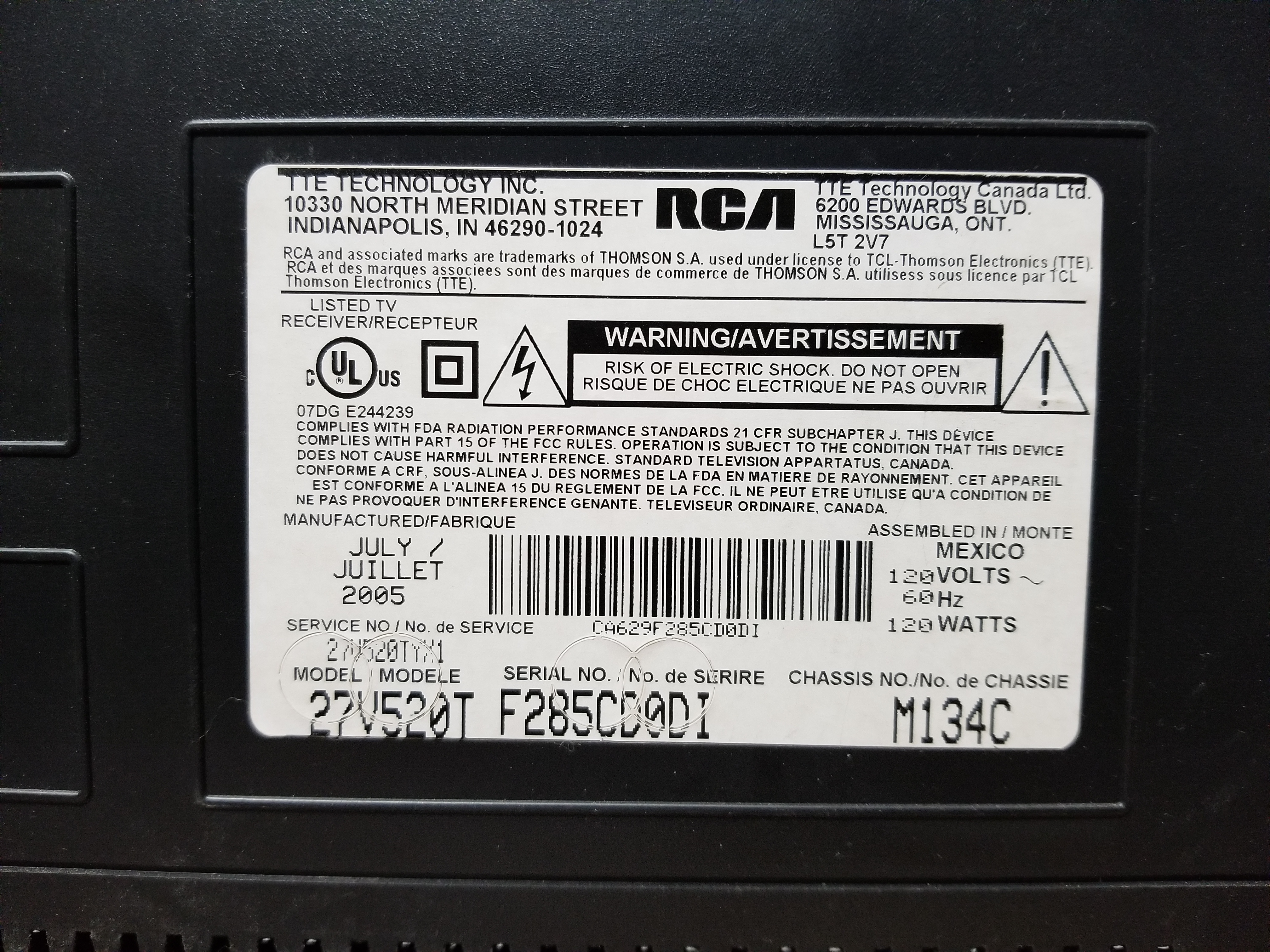

• Service Manual M134 Chassis

Media & Promo Materials

• Spec Sheet
• RCA Product Page
• Newegg Product Page

Notes

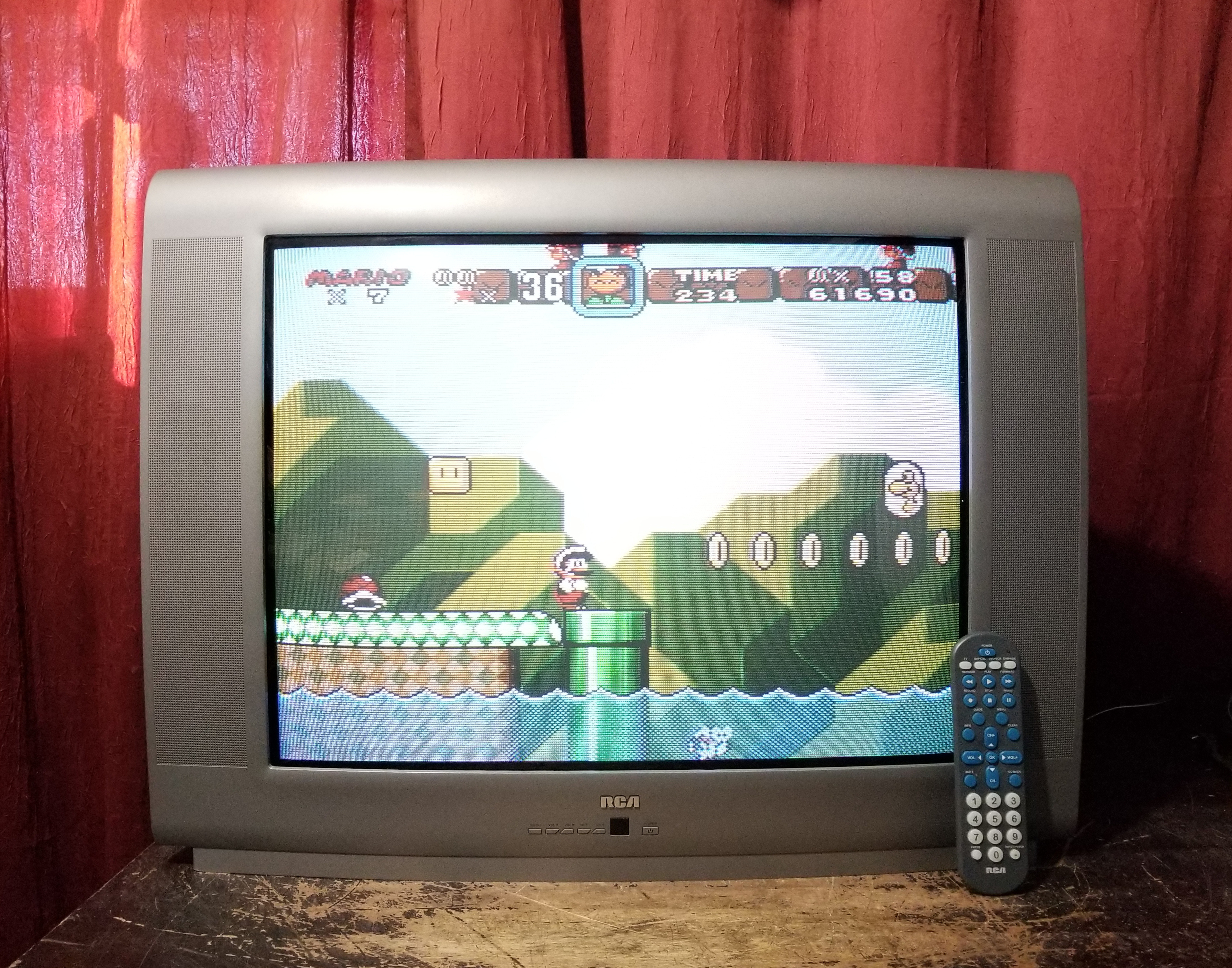

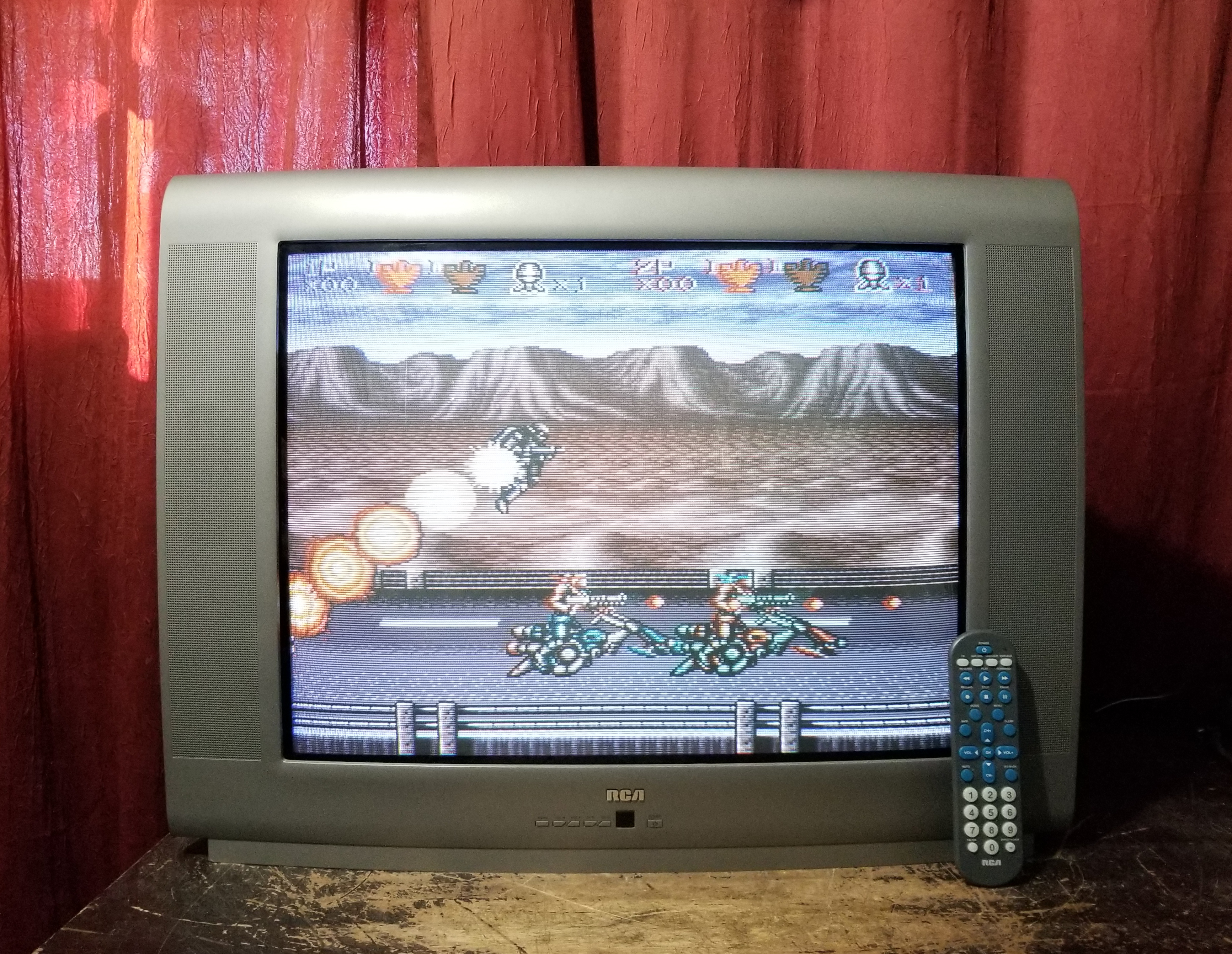

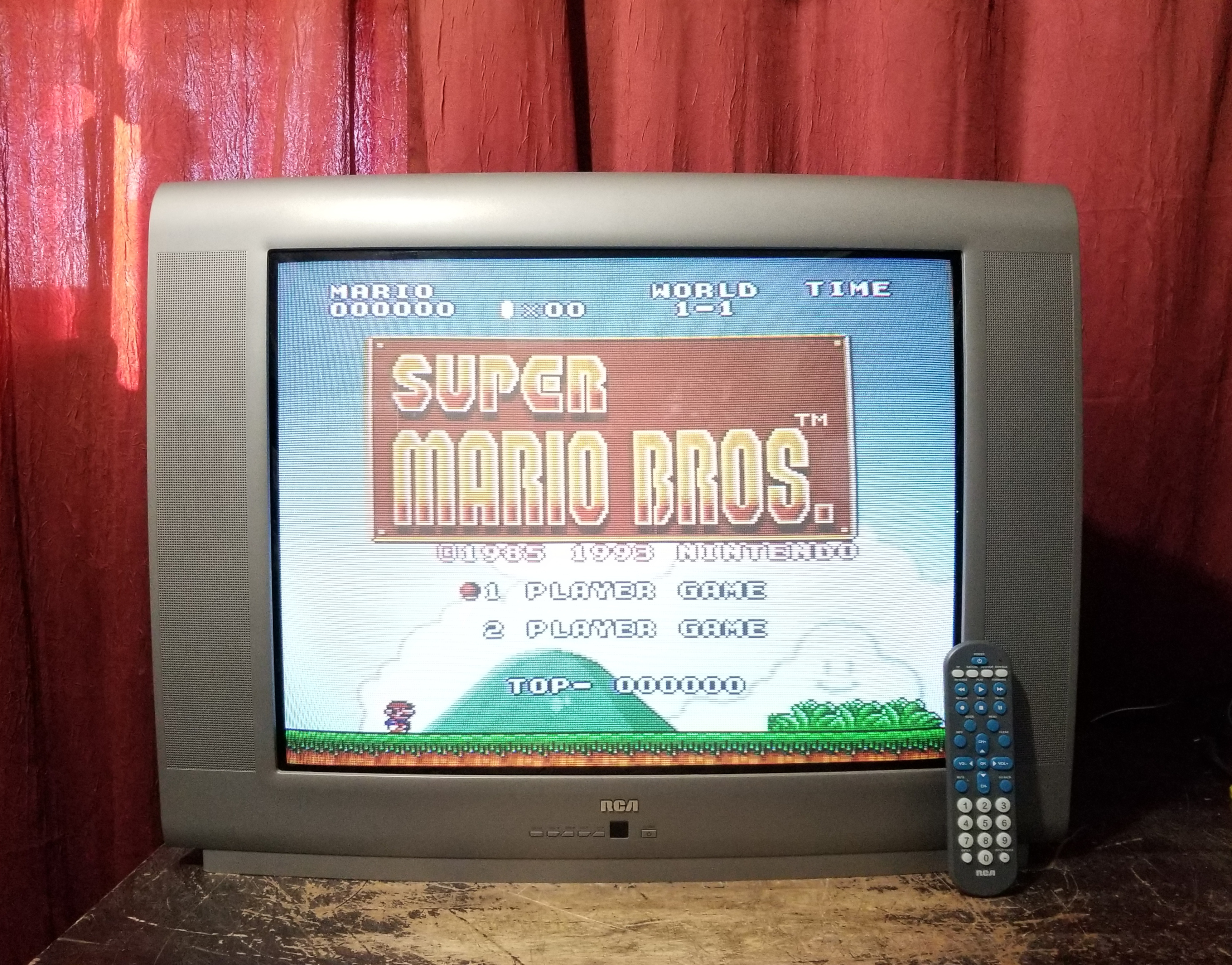

Remote pictured is not the original remote.

Composite 240p Performance

by Eli Krause

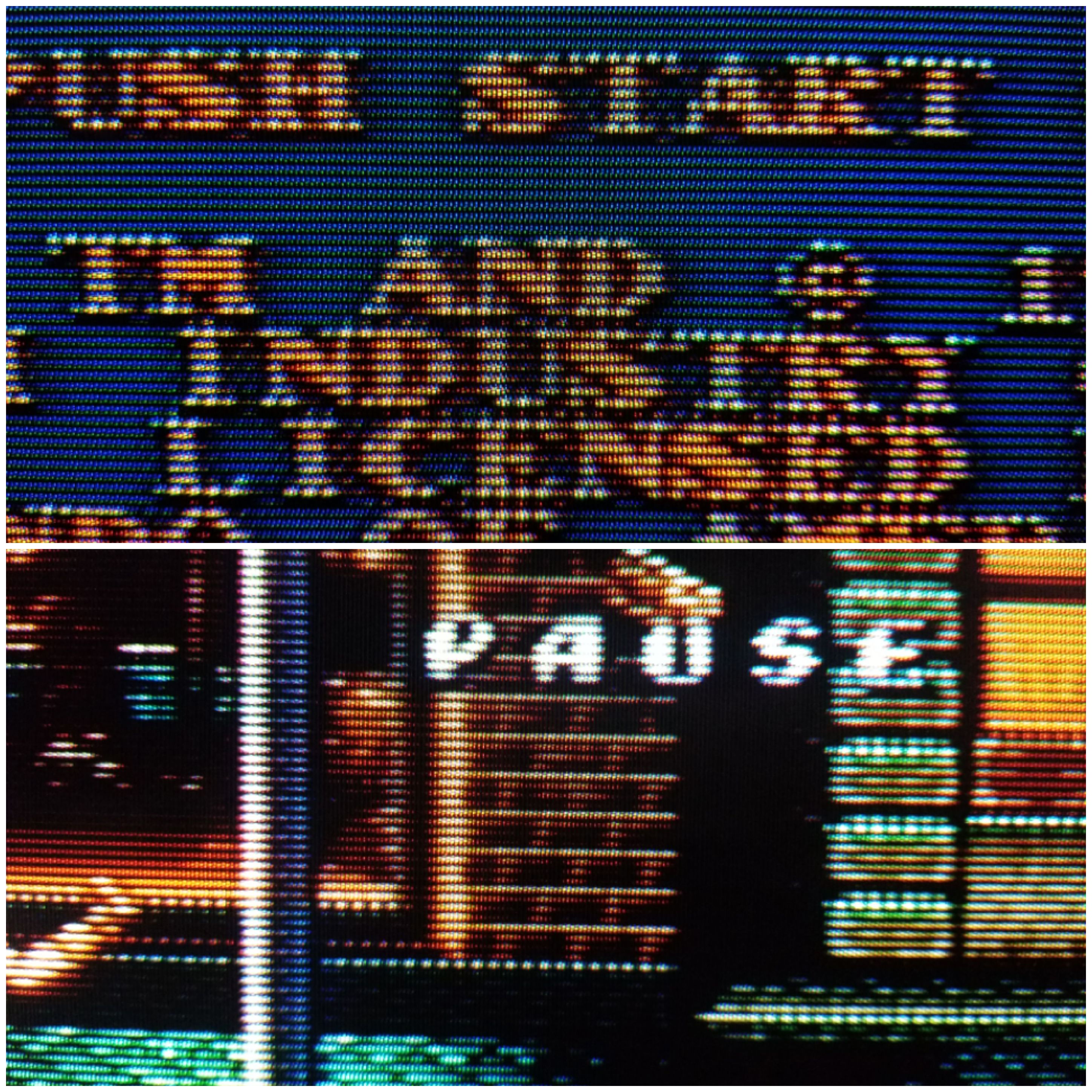

For composite decoding this set uses a Toshiba TC90A49P, a 3-line digital comb filter. Depending on the console/revision, dot artifacting ranges from slight to severe, and blending effects may be broken. If the set has an s-video or component YPbPr input, then using a good external notch filter to decode composite instead and sending that to the set would blend all dithering patterns and avoid nearly all dot artifacts (full guide here).
