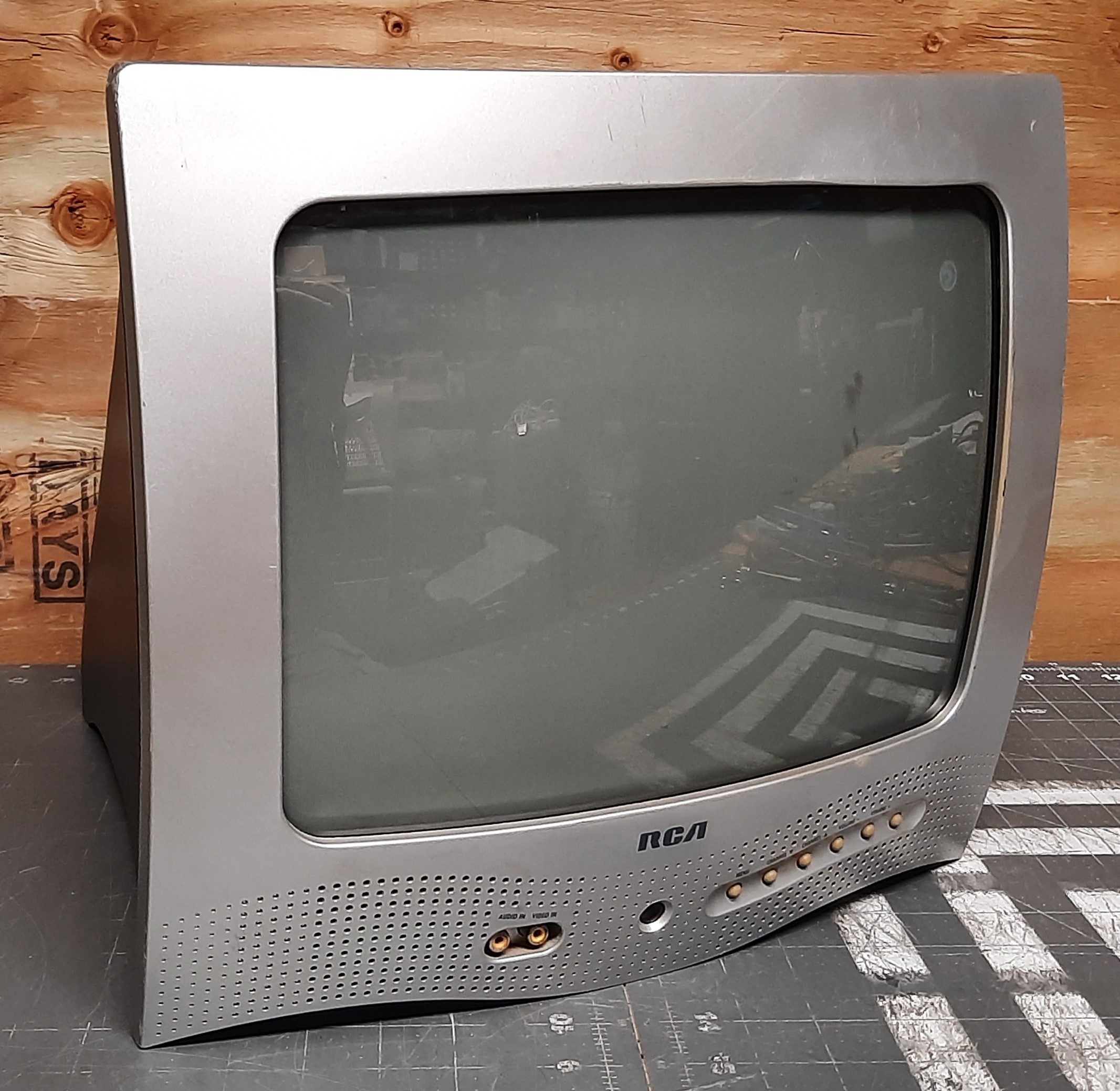

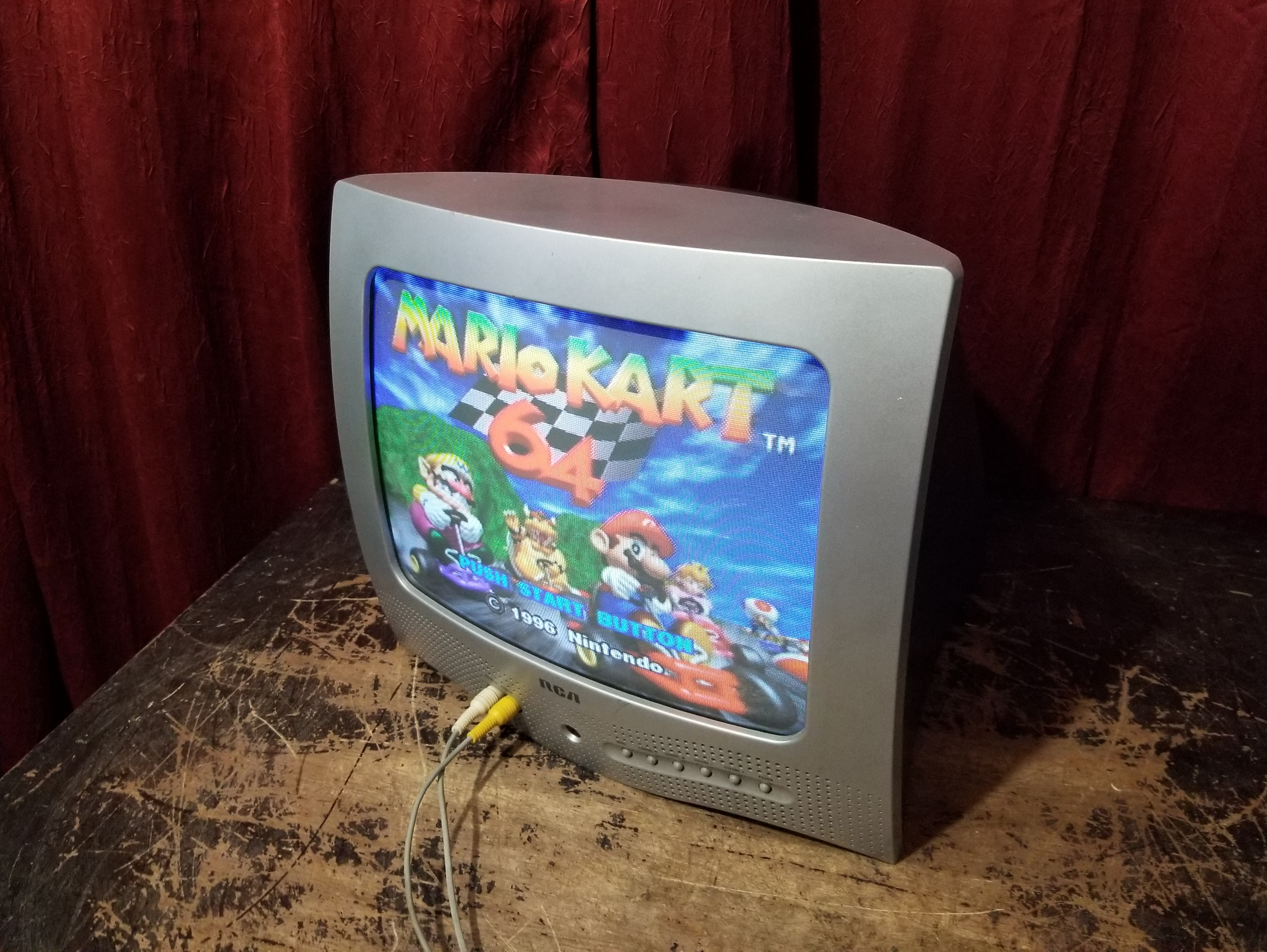

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | E13320 |
| Series: | E |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 1803DHI |
| Vertical Output IC: | TA8403K |
| Jungle IC: | TA1268N |
| Flyback: | 6174Z-8006B |
| Tube: | Thai CRT Co. , A34JXV70X , A34JXV70X14 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 330P509 |
| Yoke Horz. Inductance: | 2.467 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.47 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.729 ohm |
| Yoke Vert. Resistance: | 15.64 ohm |
| Speakers: | Mono |
| Remote: | RCR100TC1, RCR111TB1 |
| Chassis: | TX808H |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
