Summary

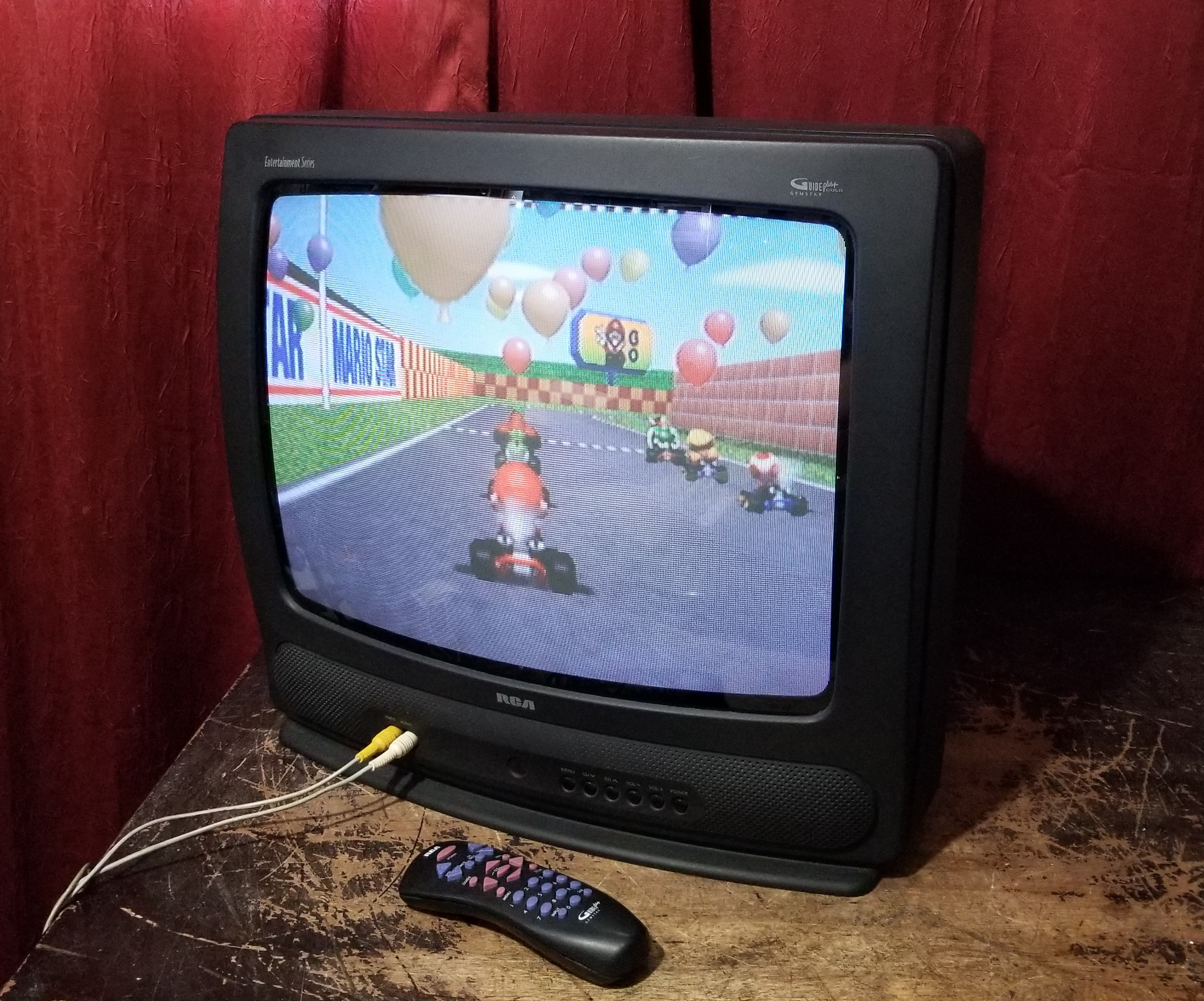

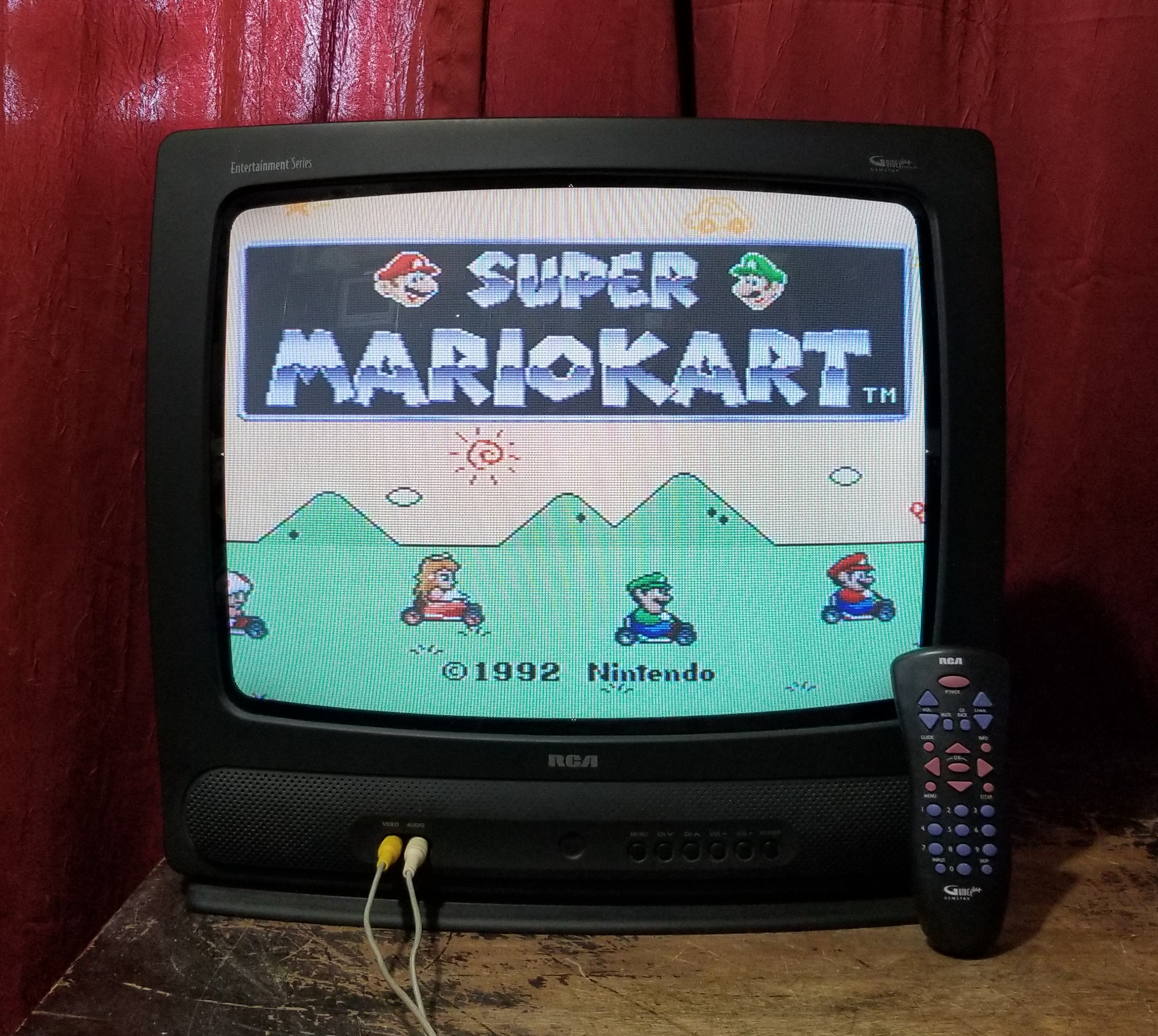

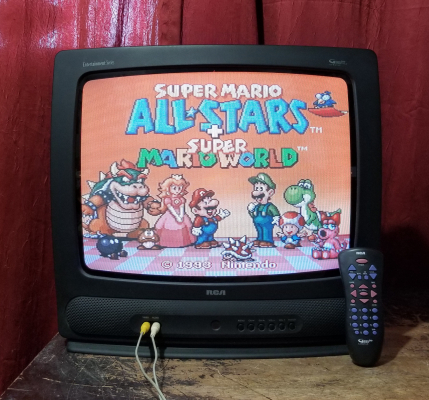

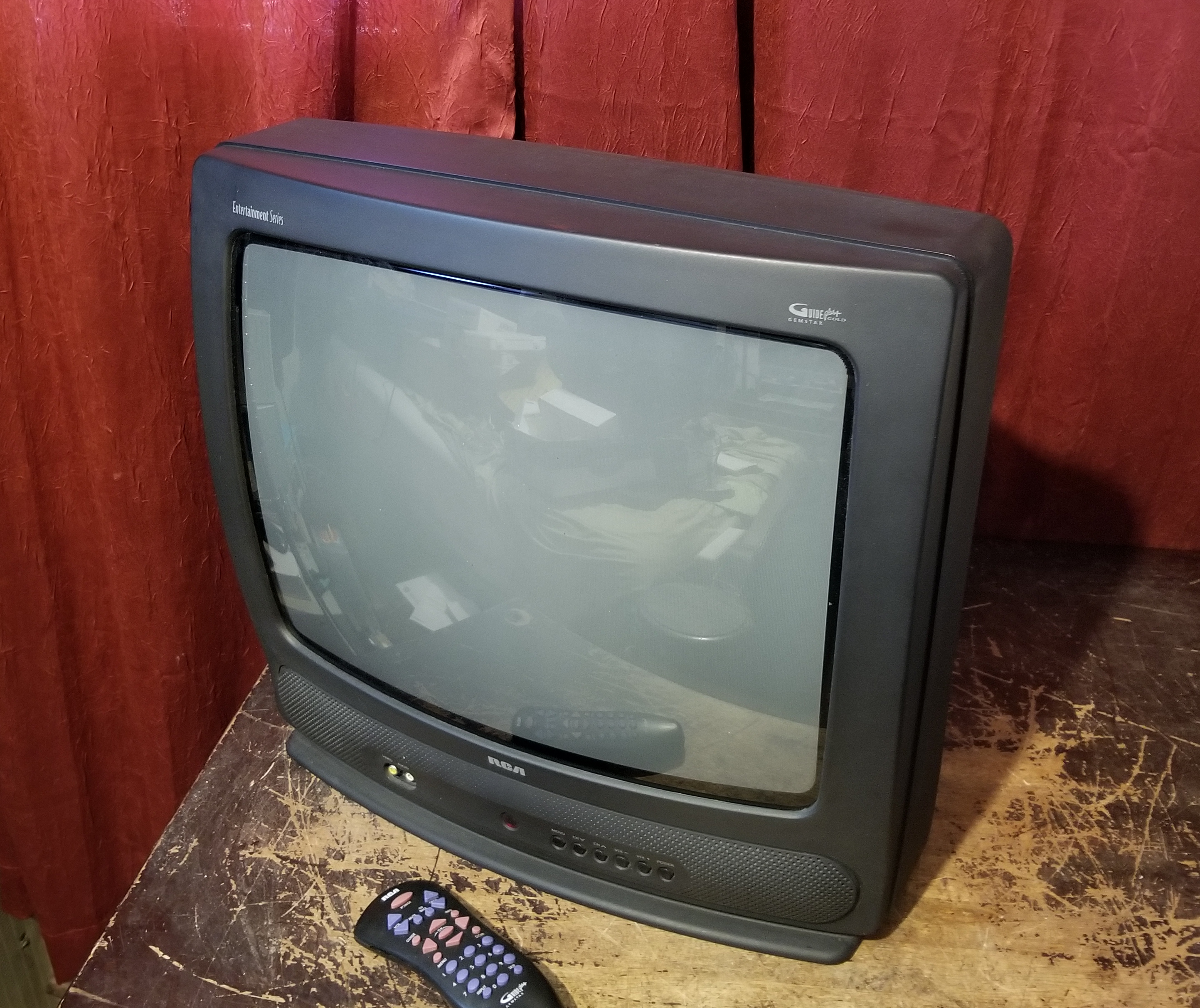

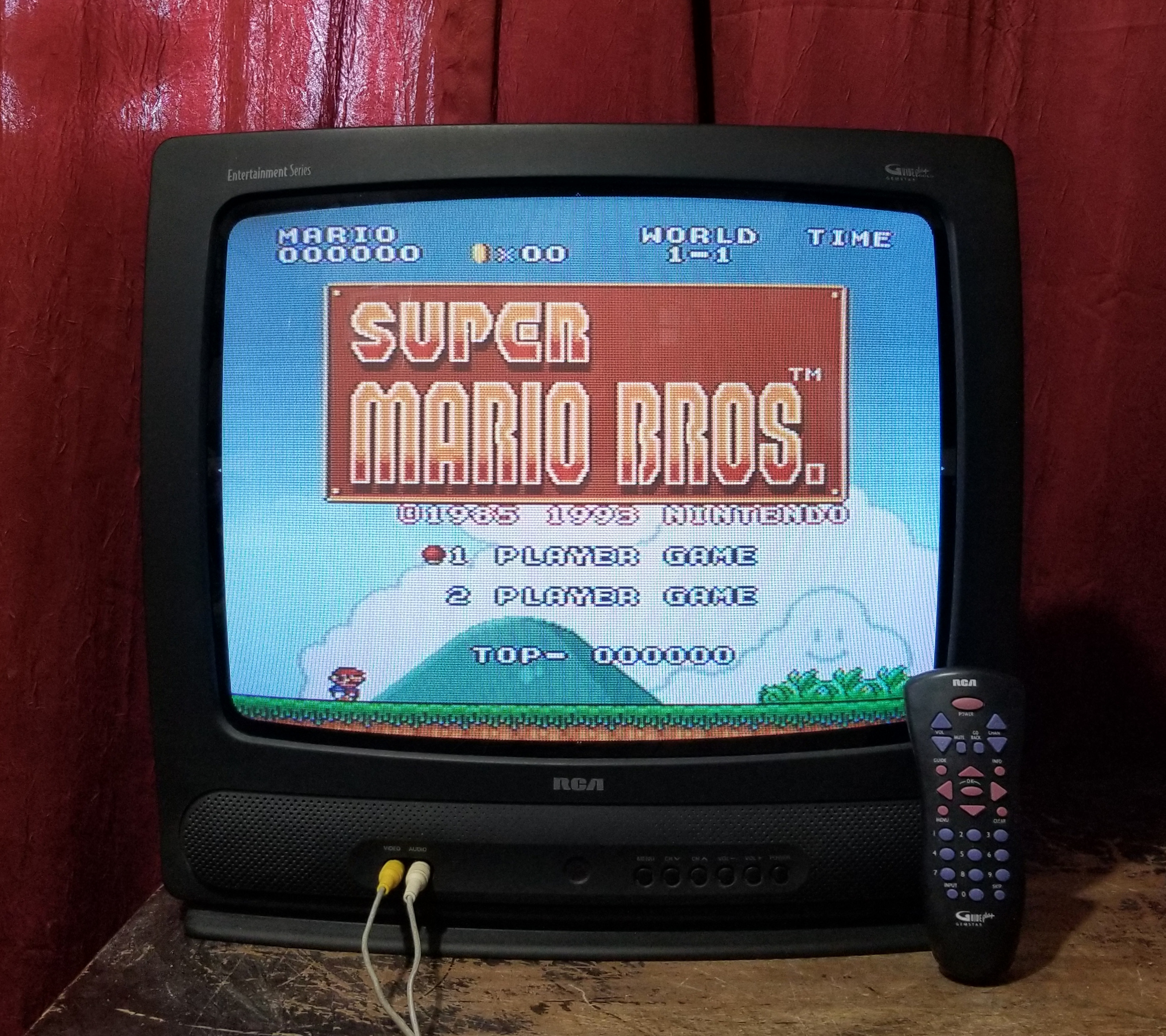

RCA 19-Inch Color TV with Remote. Front A/V input jacks for easy connection to most video game systems.
Manuals
Media & Promo Materials
Notes

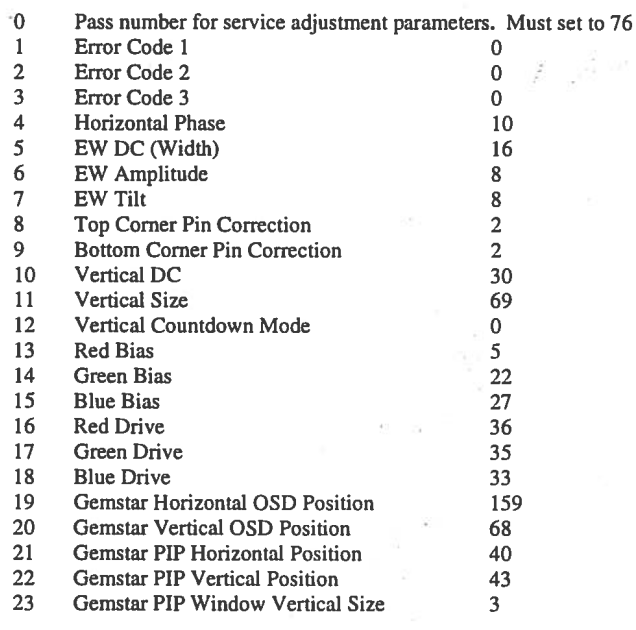

To enter the service menu, while the set is already on press and hold Menu on the set, tap and release Power, tap and release Volume +, then release Menu. Use Volume + to increment to 76, and then you can use the channel buttons to navigate and volume buttons to adjust. Descriptions of the service menu items are in a picture in the gallery below.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | F19424 |
| Series: | Entertainment Series |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | LA7612N |
| Comb Filtering: | Notch |
| Focus Type: | Single |
| Tube: | A48AAB13X02 , A48AAB13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Mono |
| Remote: | CRK17TA1 |
| Chassis: | CTC203U5 |
| Weight: | 47 lbs (21.3 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 169 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements, Needs Yoke Info |
