Summary

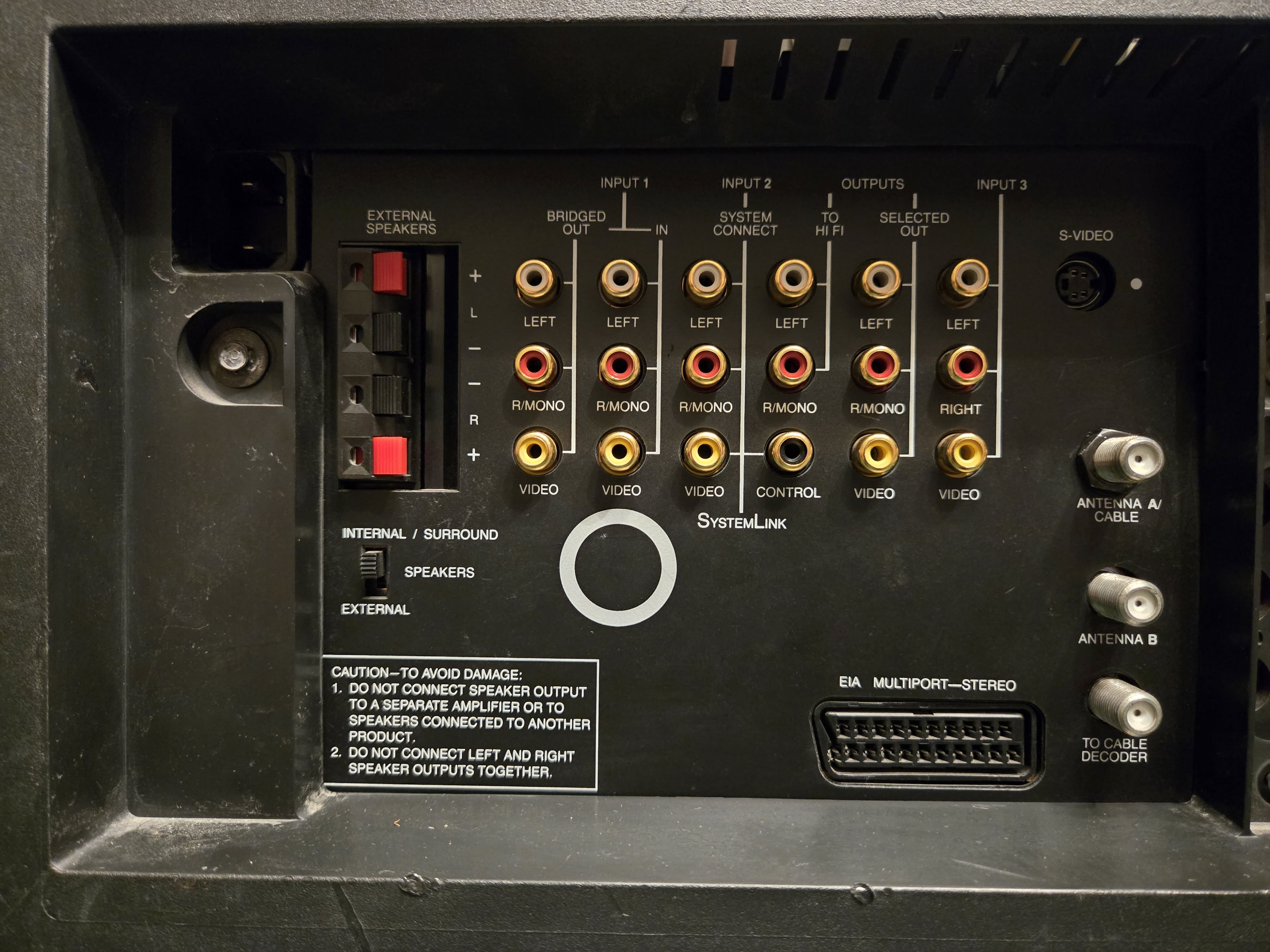

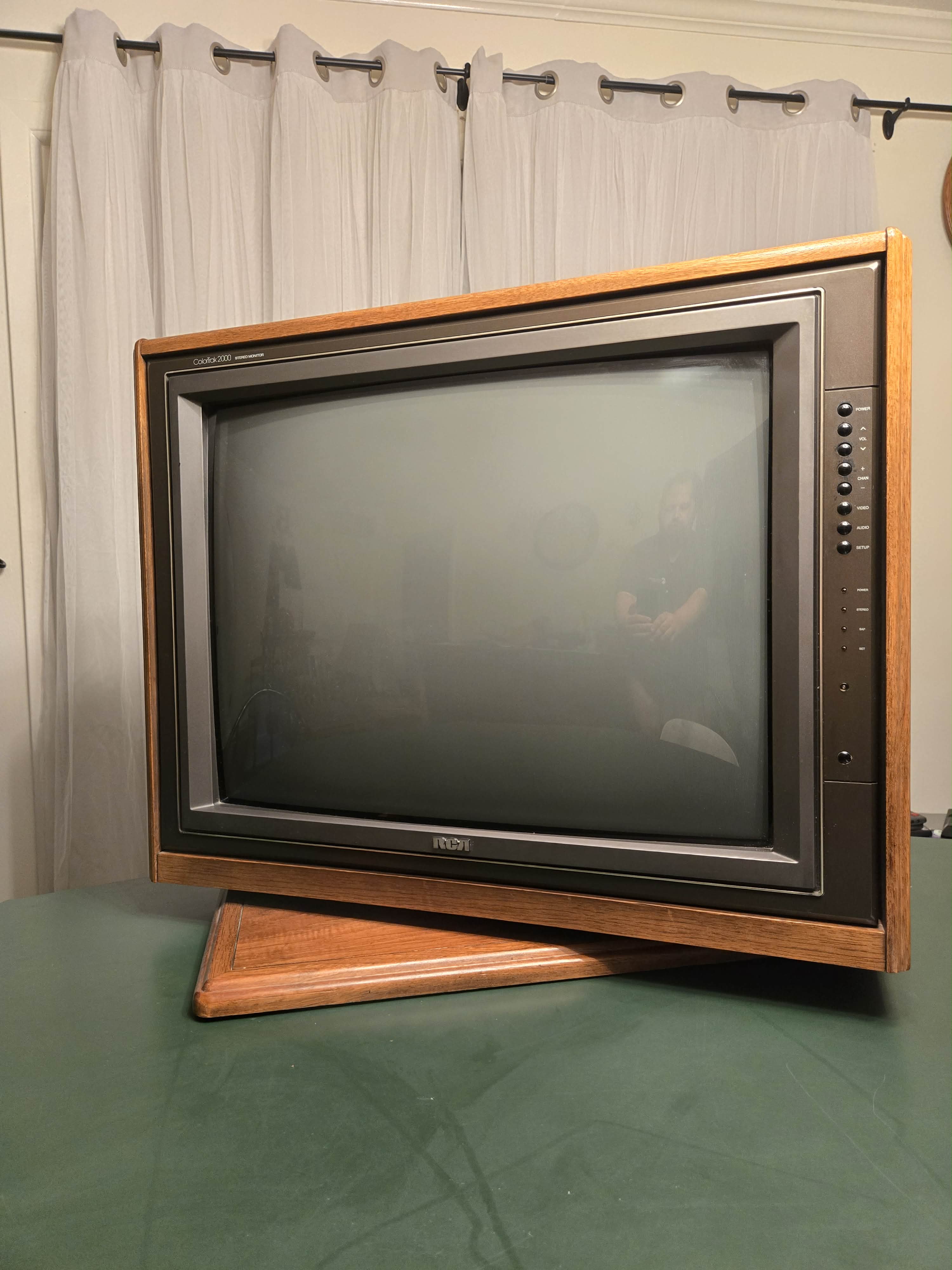

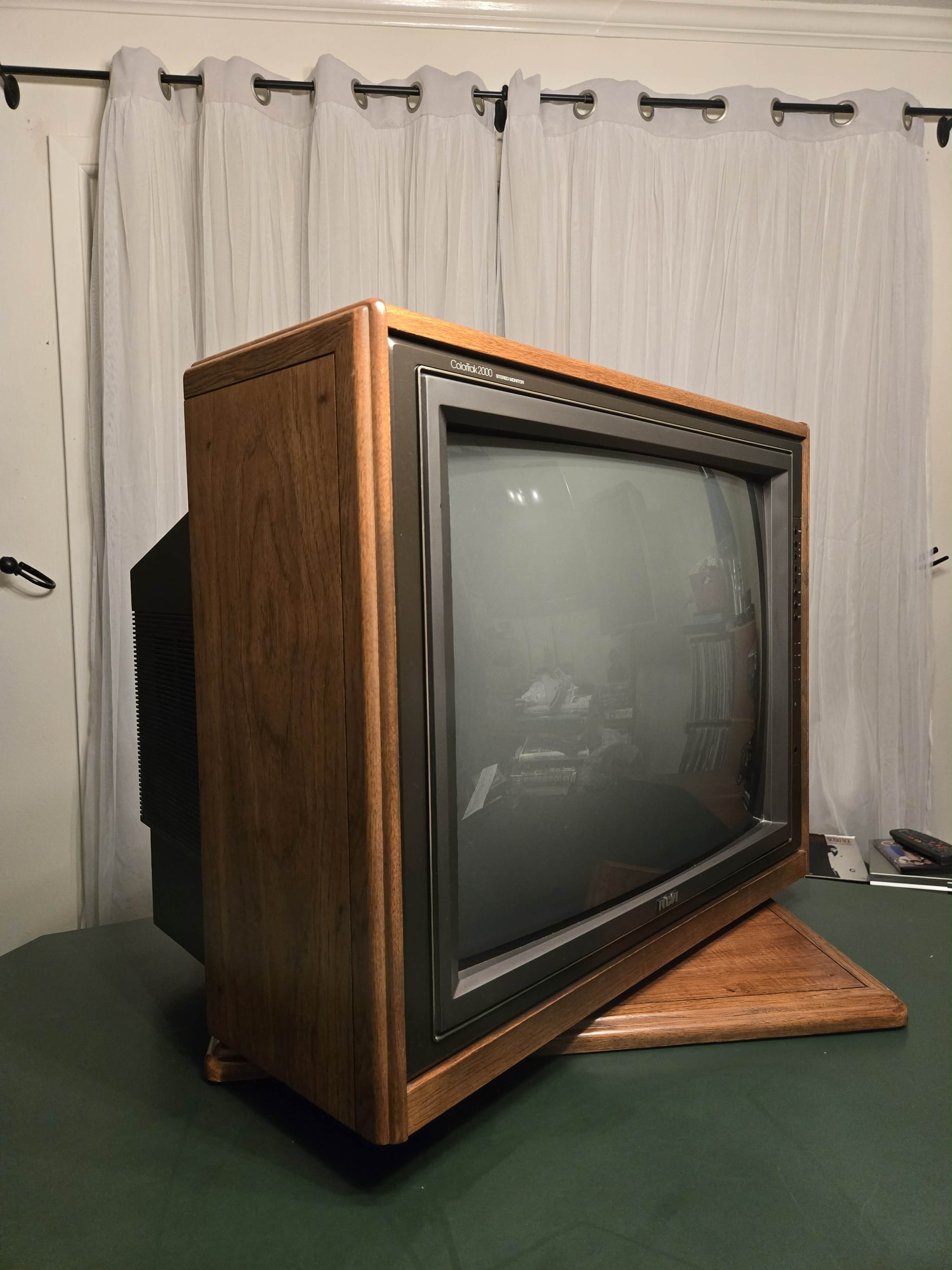

27" console TV by RCA, made in the USA in 1989. Has multiple RF, composite and s-video inputs with stereo sound, as well as speaker outputs.
(Special thanks to Jared Betnar for the pics!)
Manuals
(None at this time.)
Notes

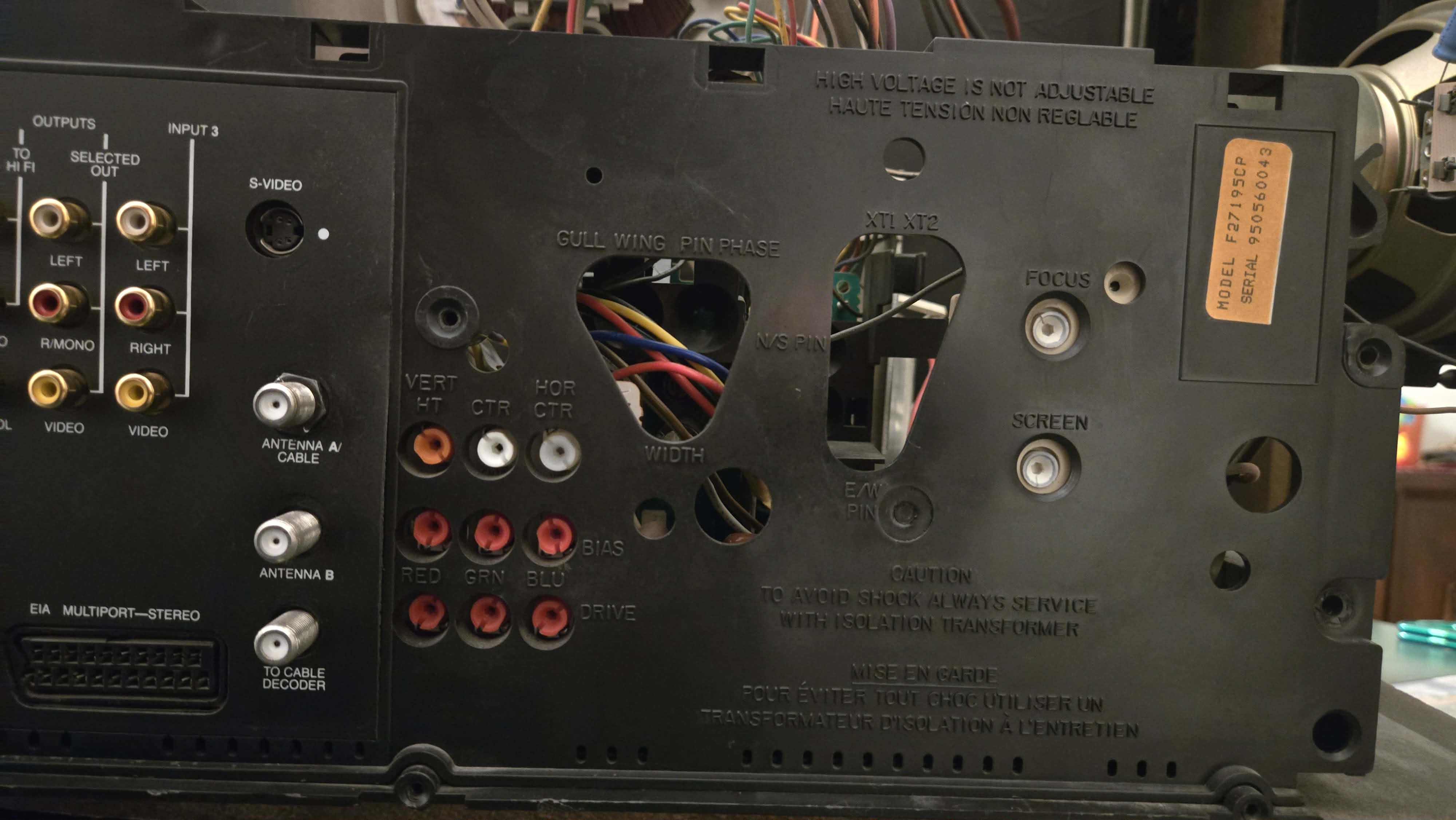

The SCART-looking connector is called MultiPort, and it supports composite and s-video, not RGB.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | RCA |

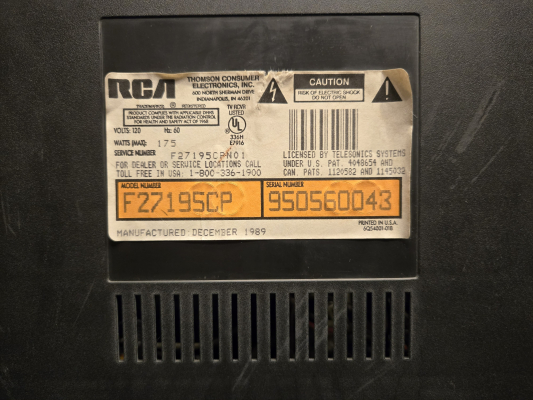

| Model: | F27195CP |
| Series: | ColorTrak 2000 |
| Viewable Size: | 27" |

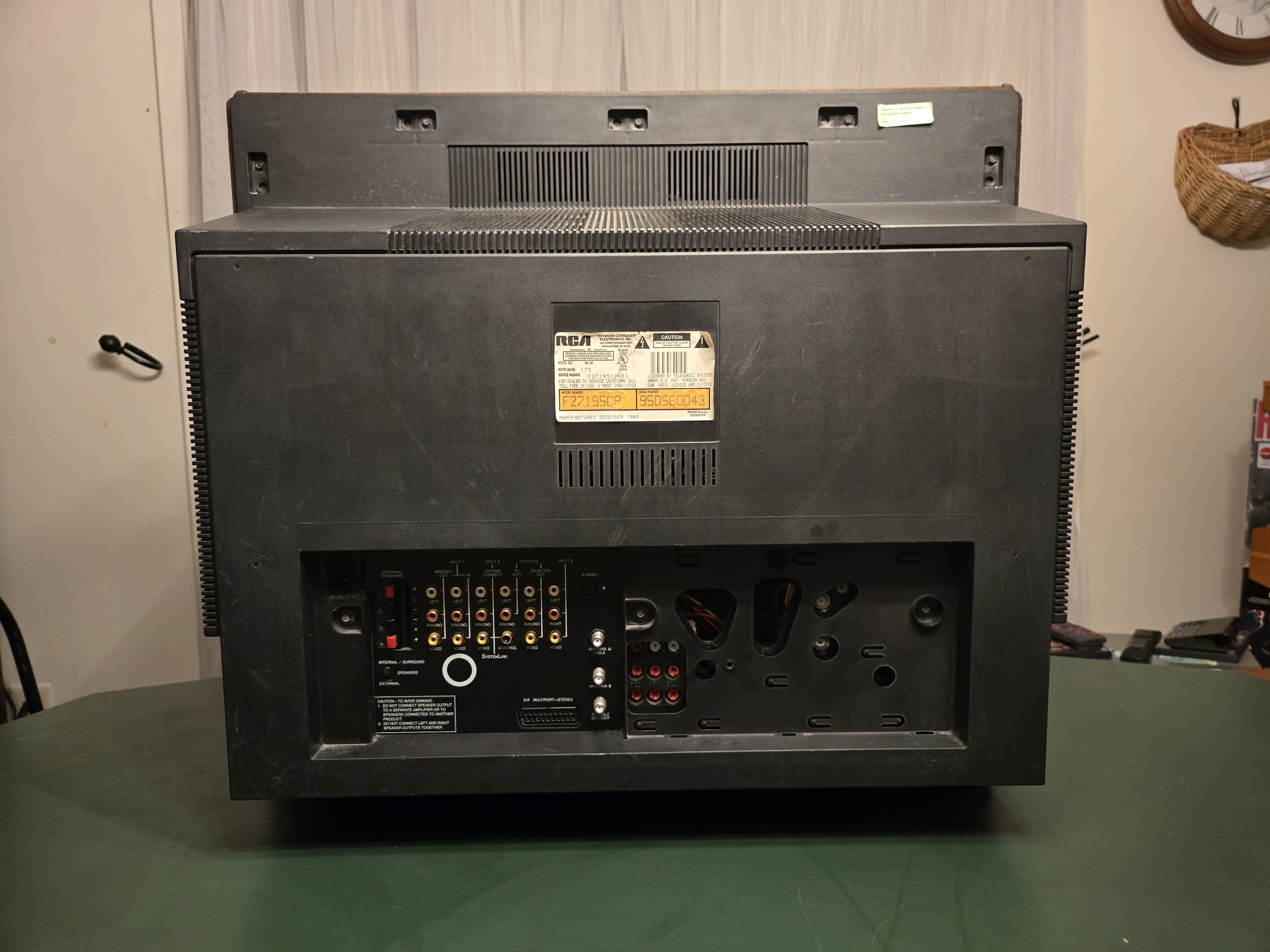

| Inputs: | Composite, S-Video, RF, MultiPort |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

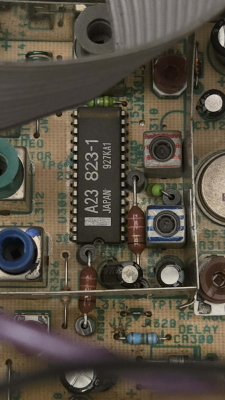

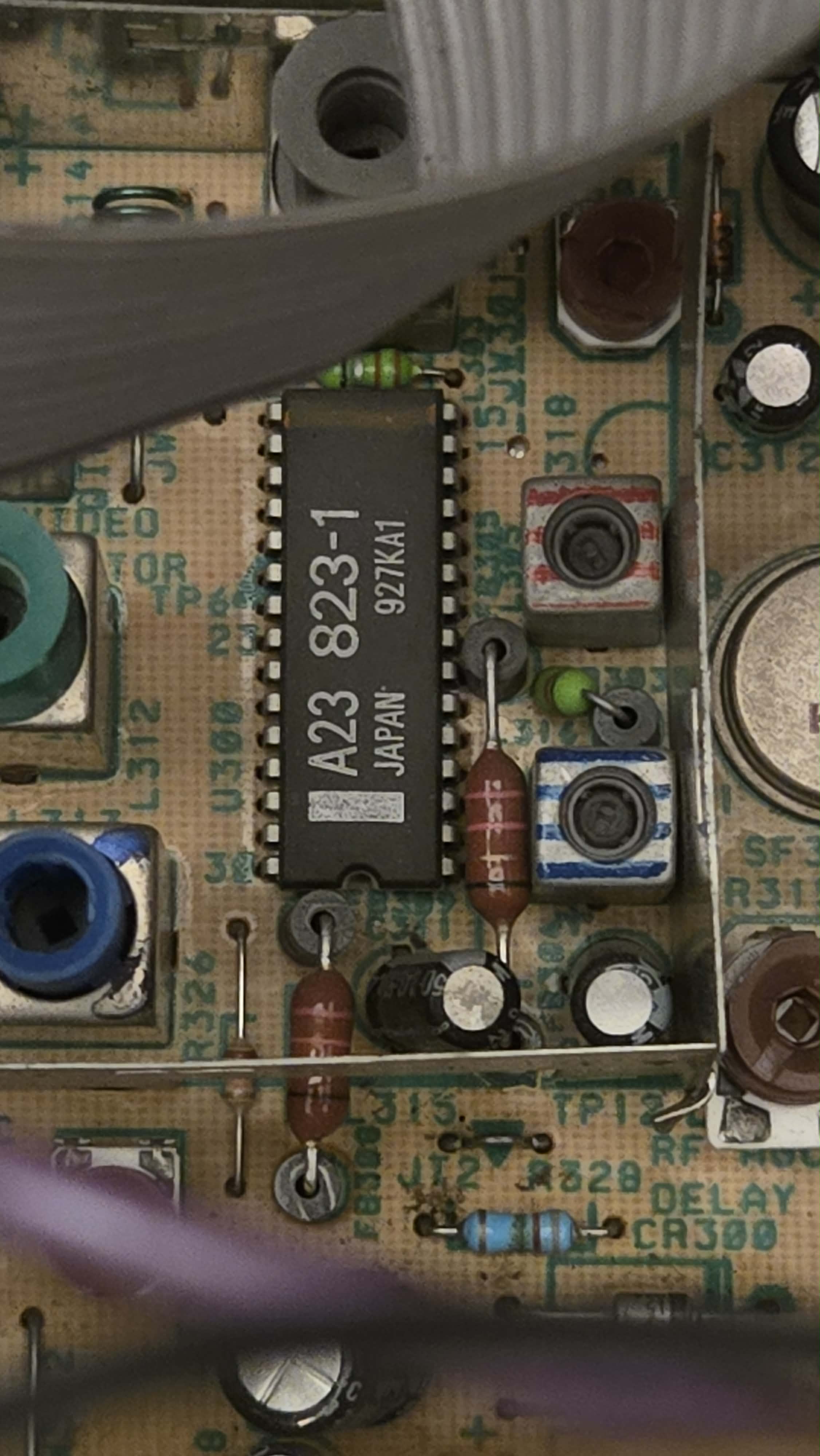

| Jungle IC: | A23-1101-01A |

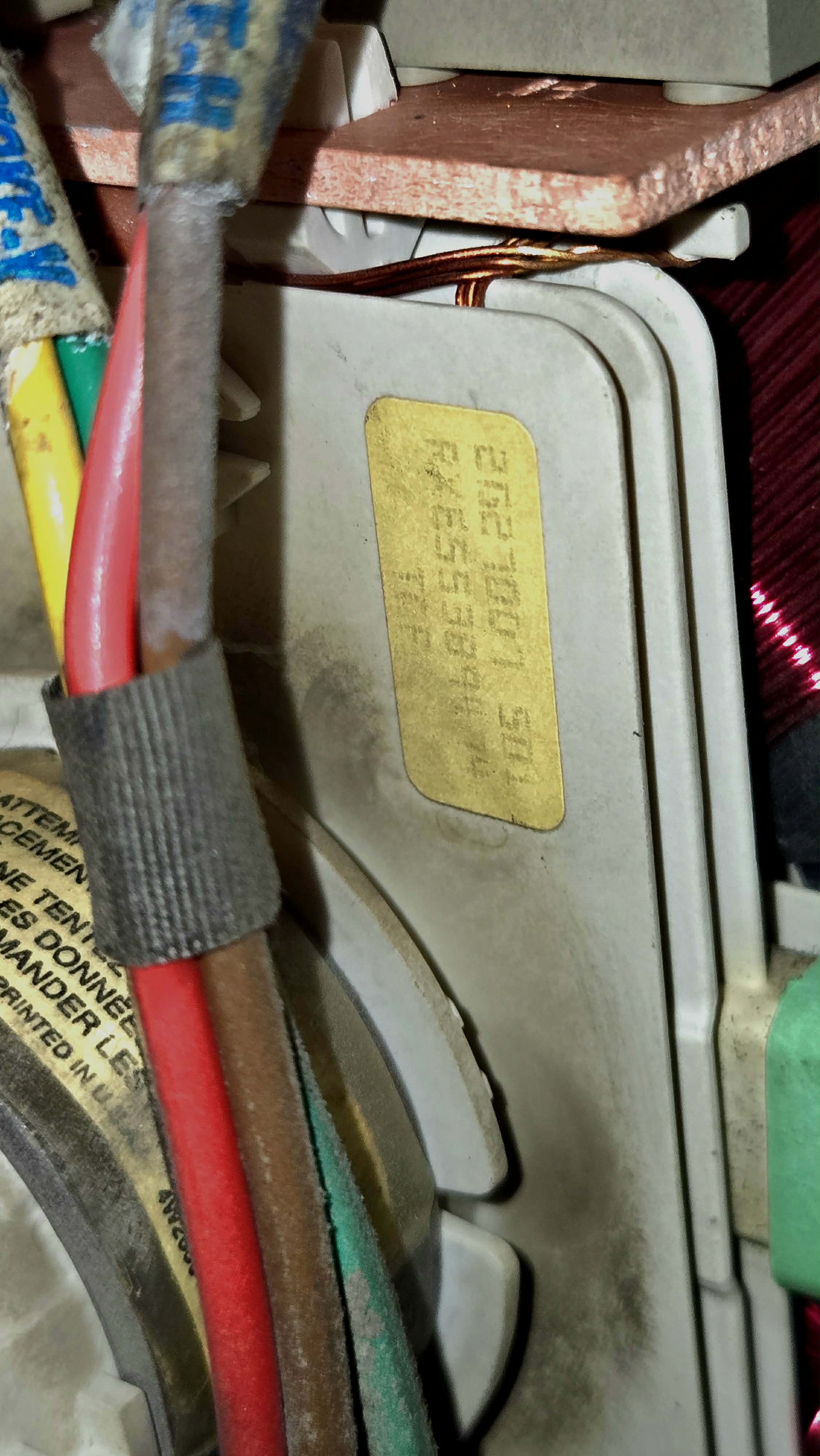

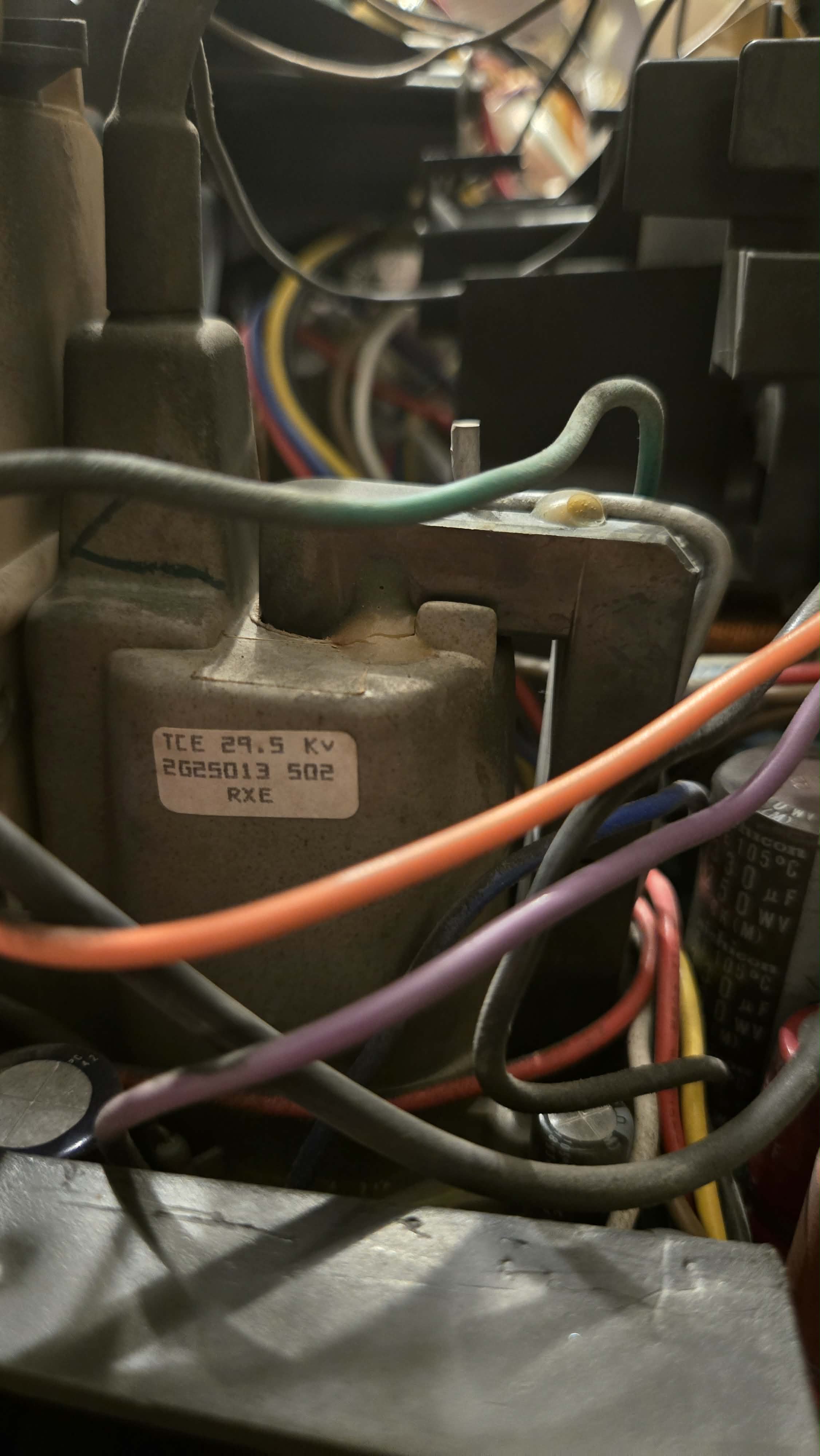

| Flyback: | 2G25013-502 |
| Focus Type: | Single |

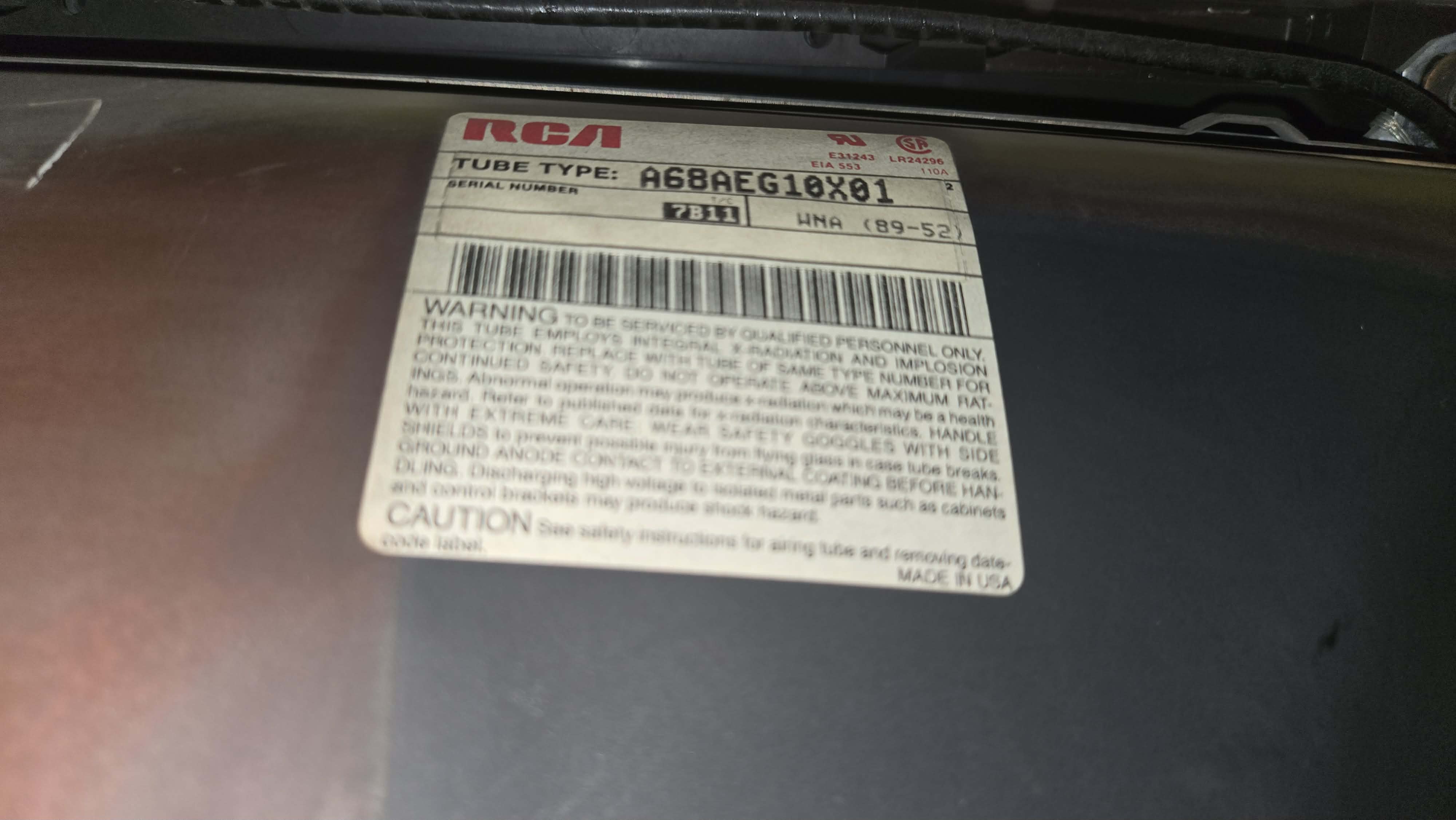

| Tube: | Thomson , RCA , A68AEG10X01 , A68AEG10X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

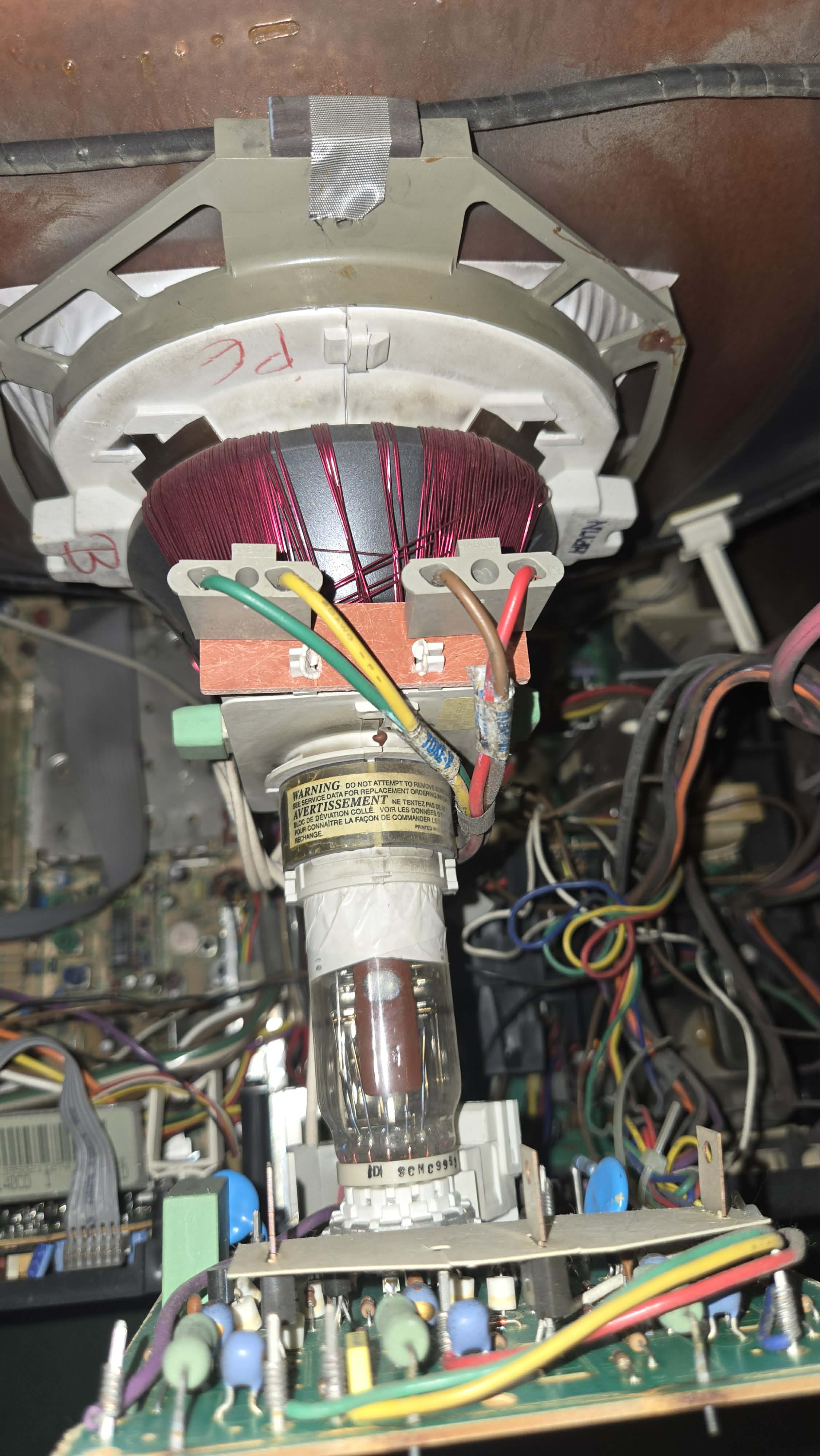

| Yoke: | 2G27007-501 |

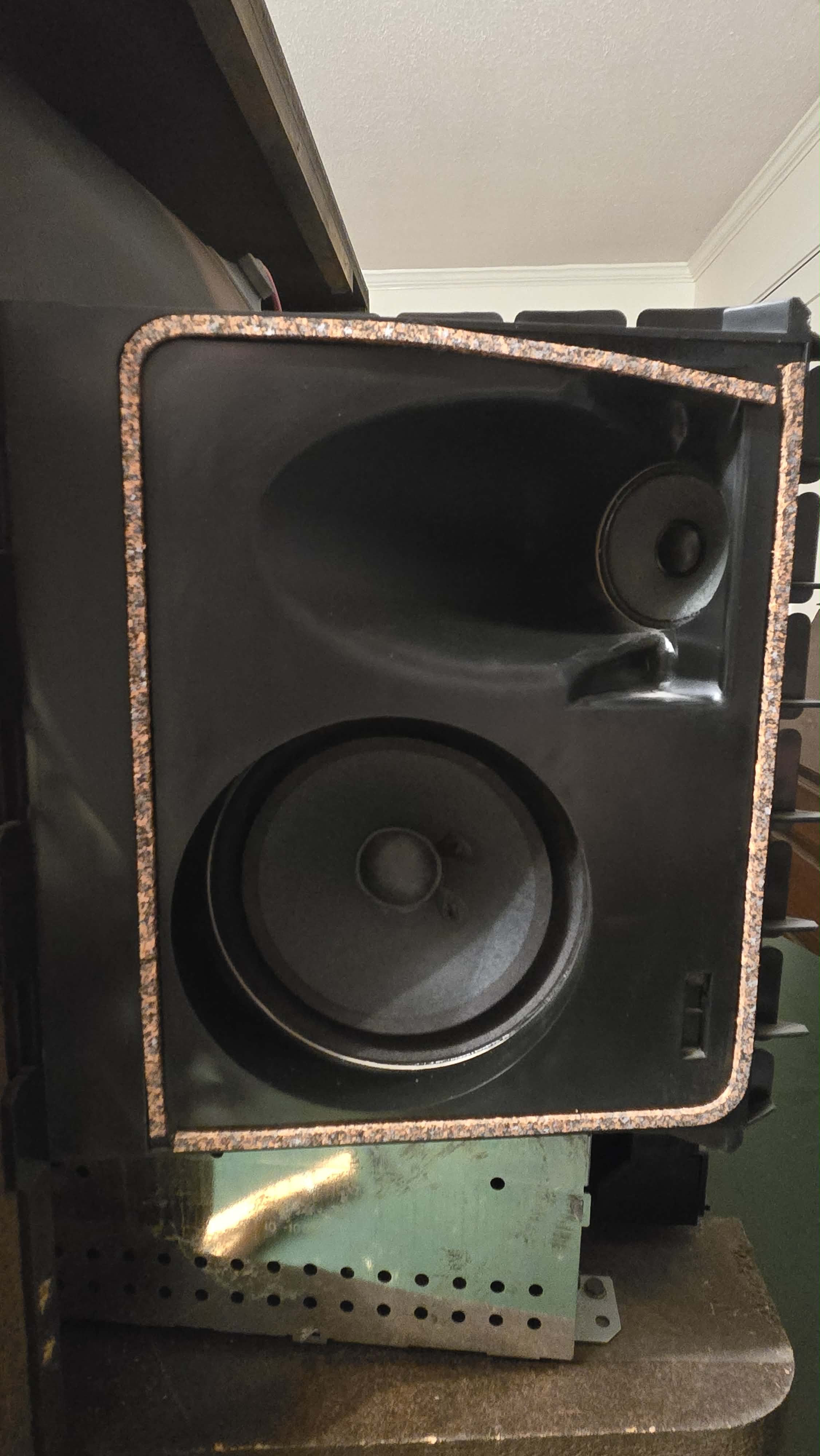

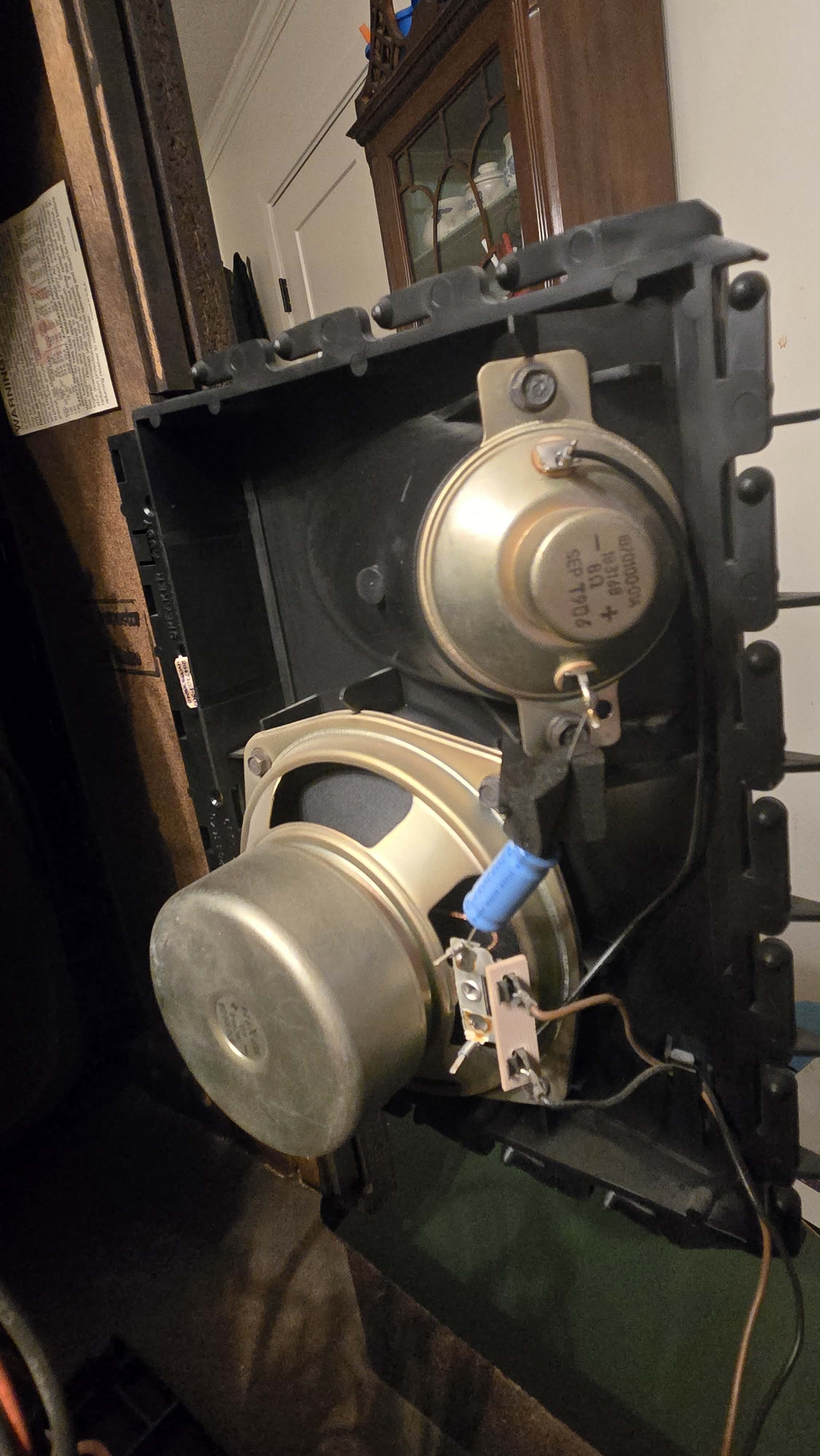

| Speakers: | Stereo |

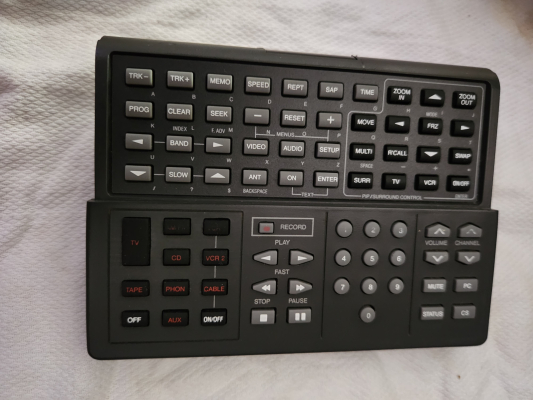

| Remote: | CRK55B |

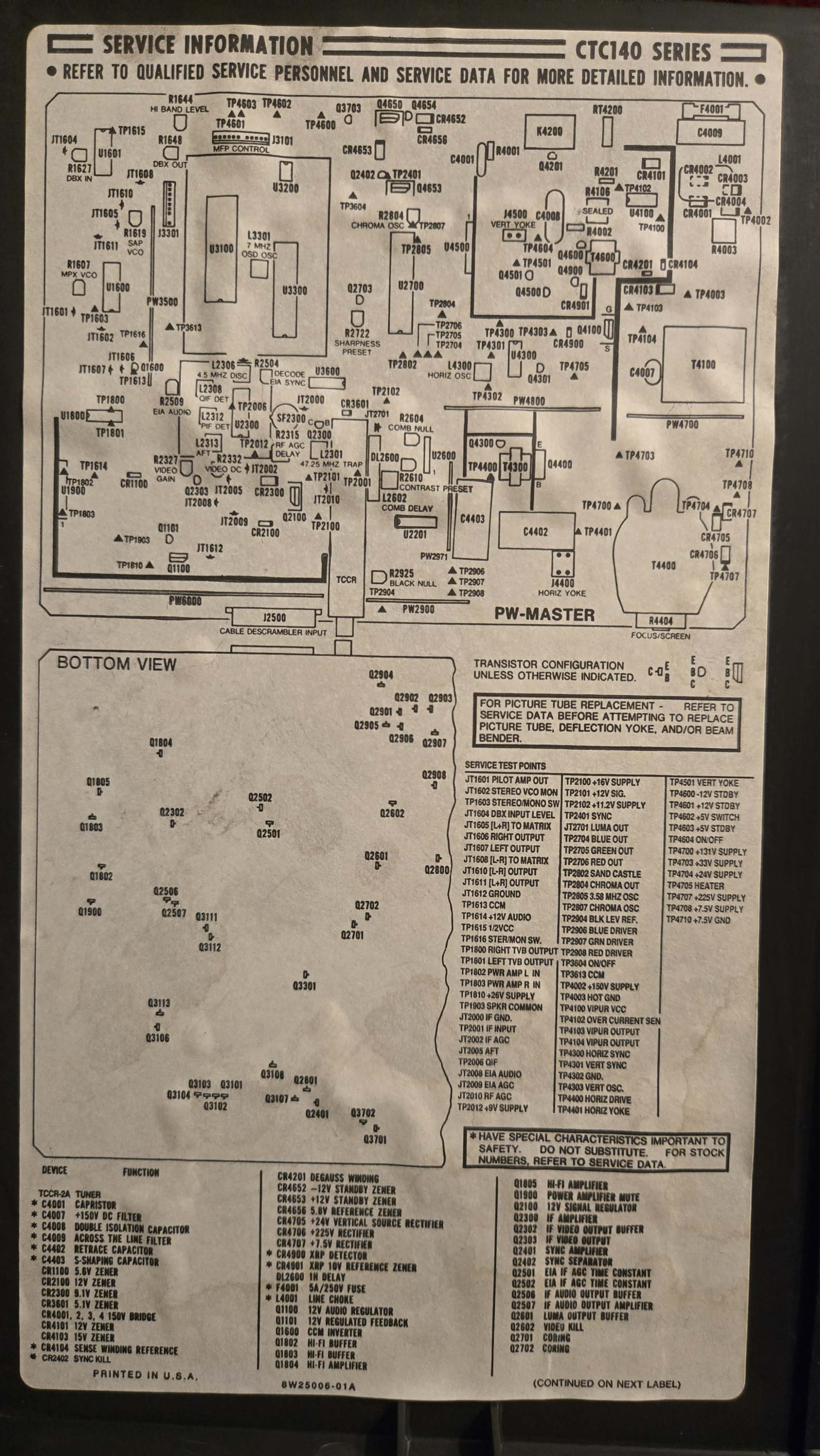

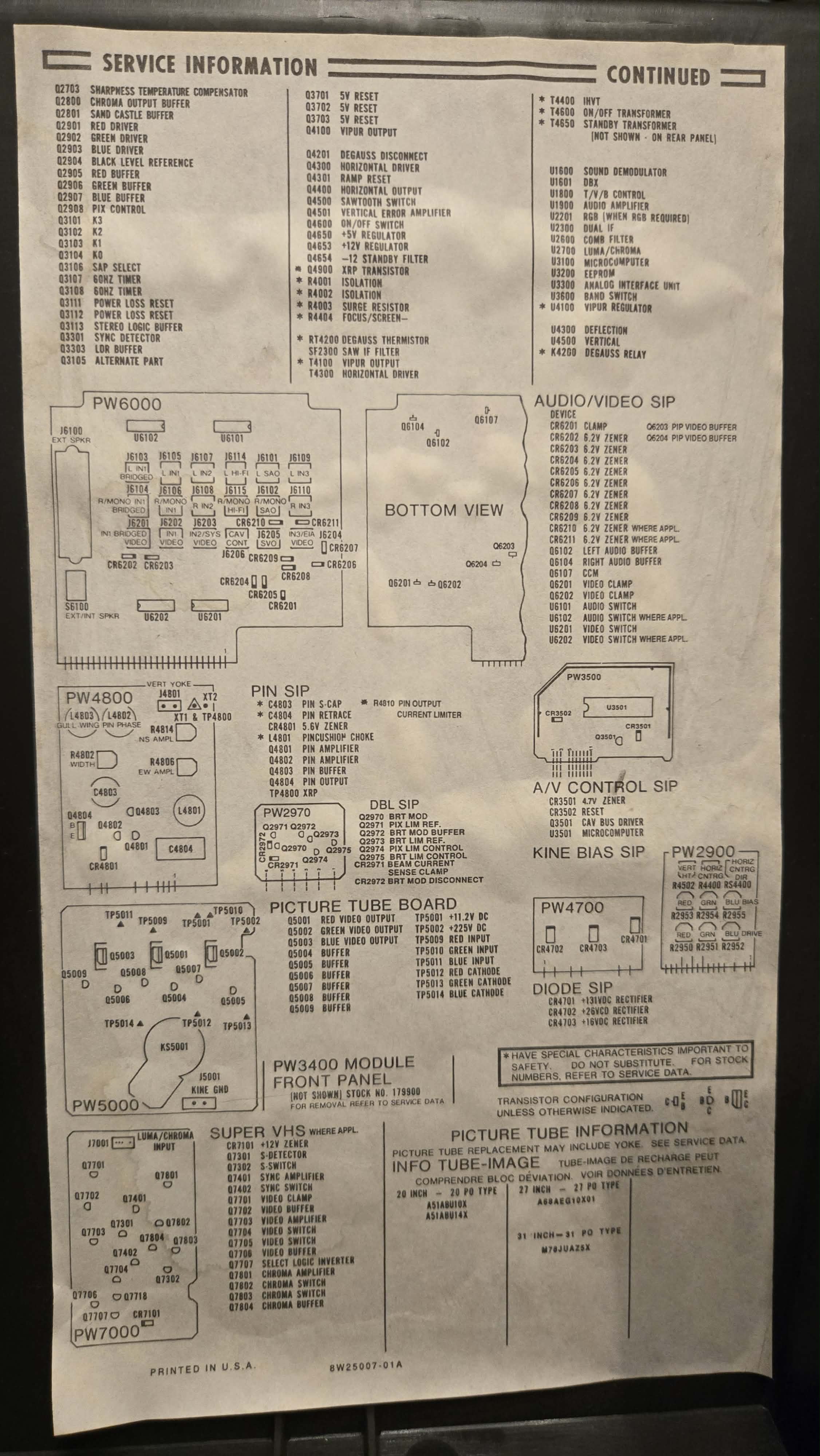

| Chassis: | CTC140 |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1989 |
| MSRP: | 900 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
