Summary

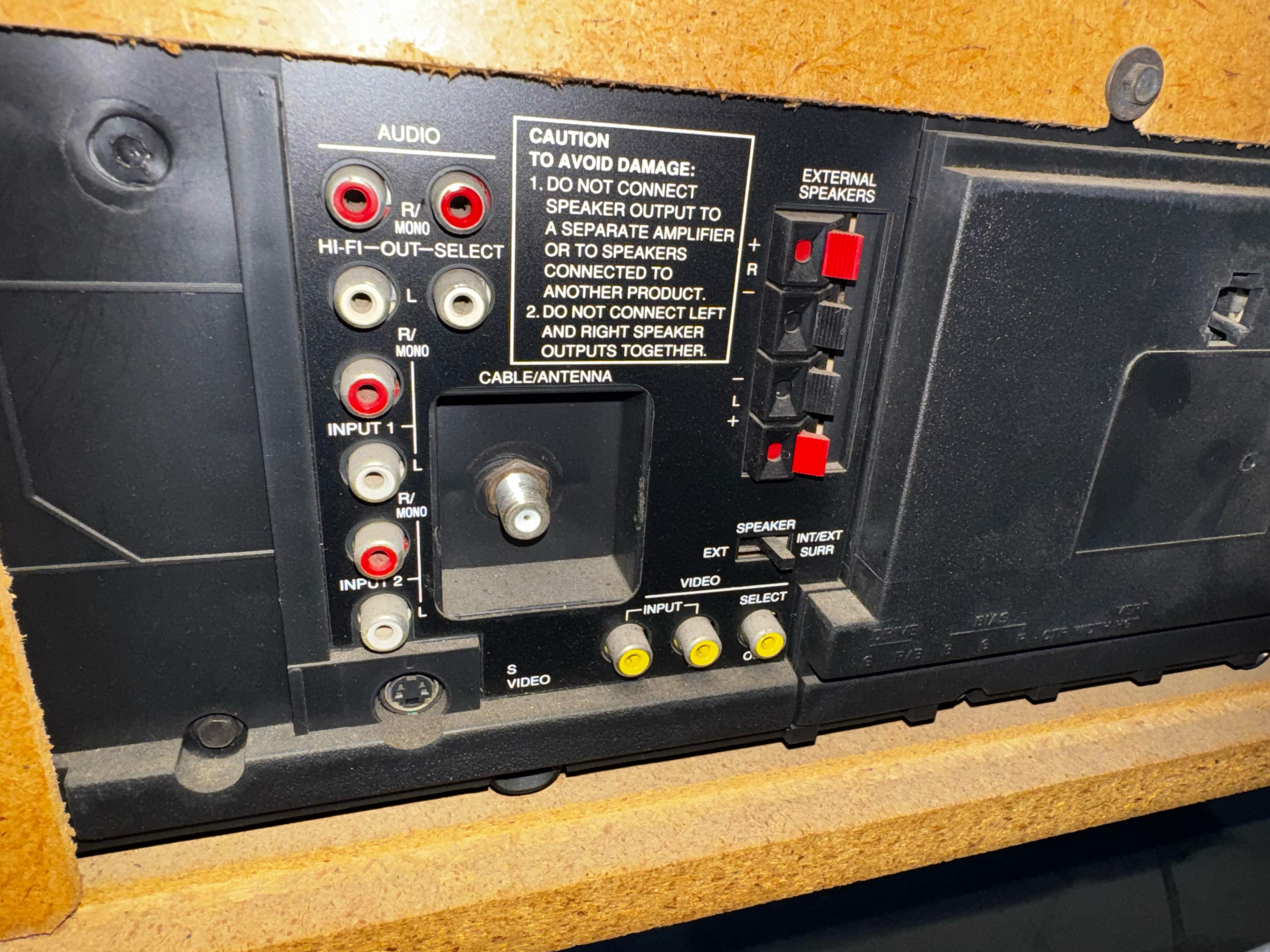

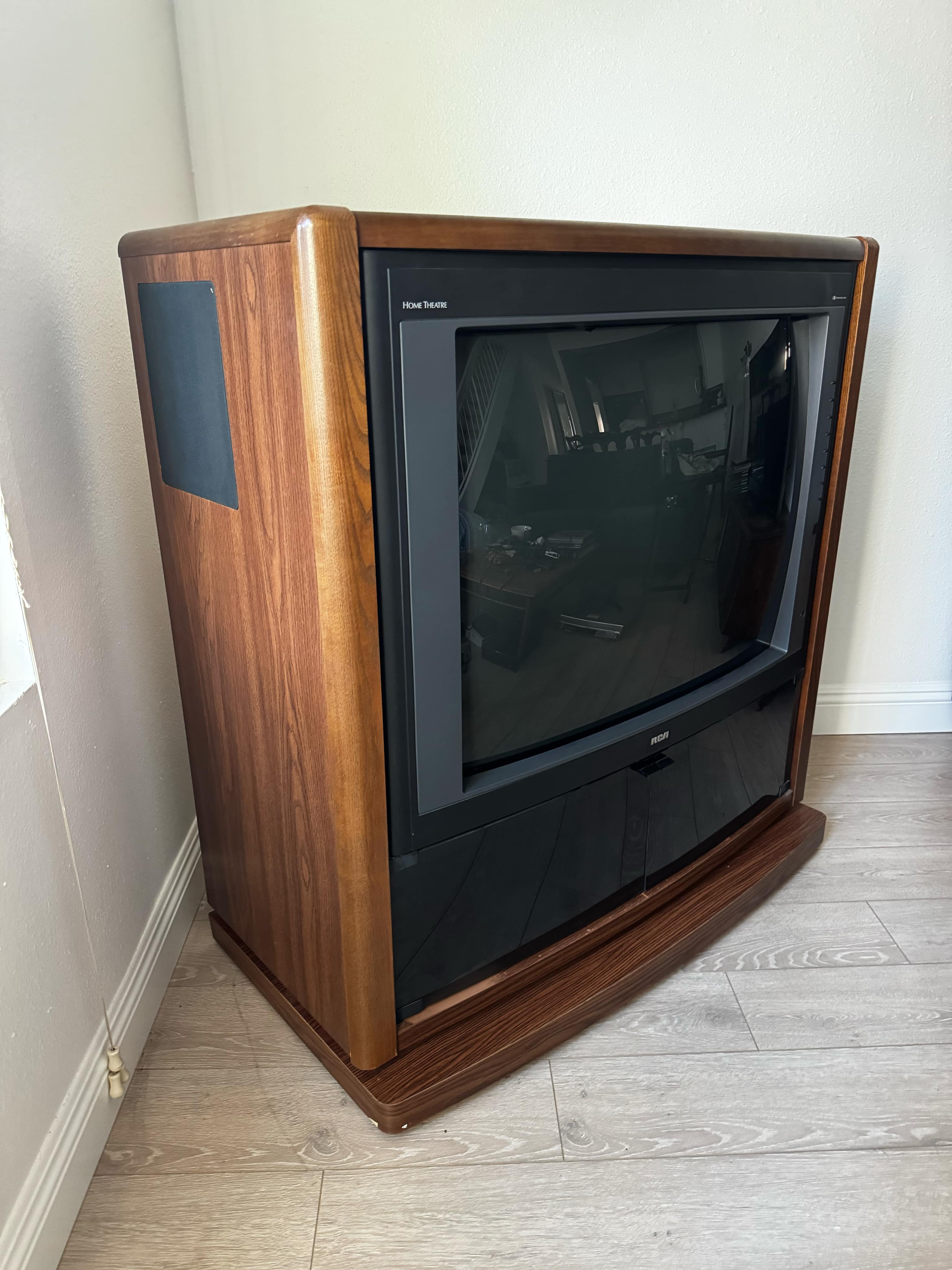

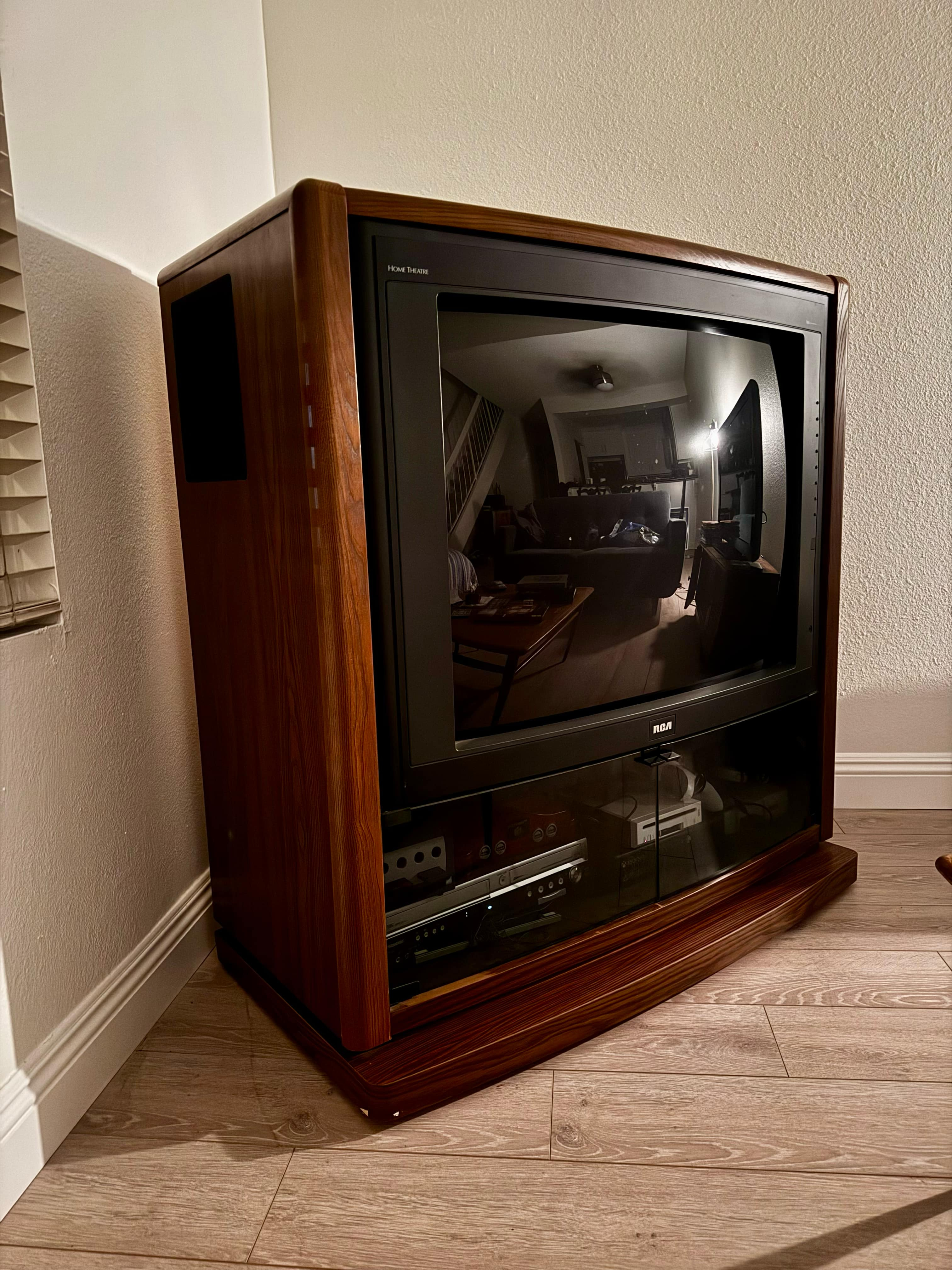

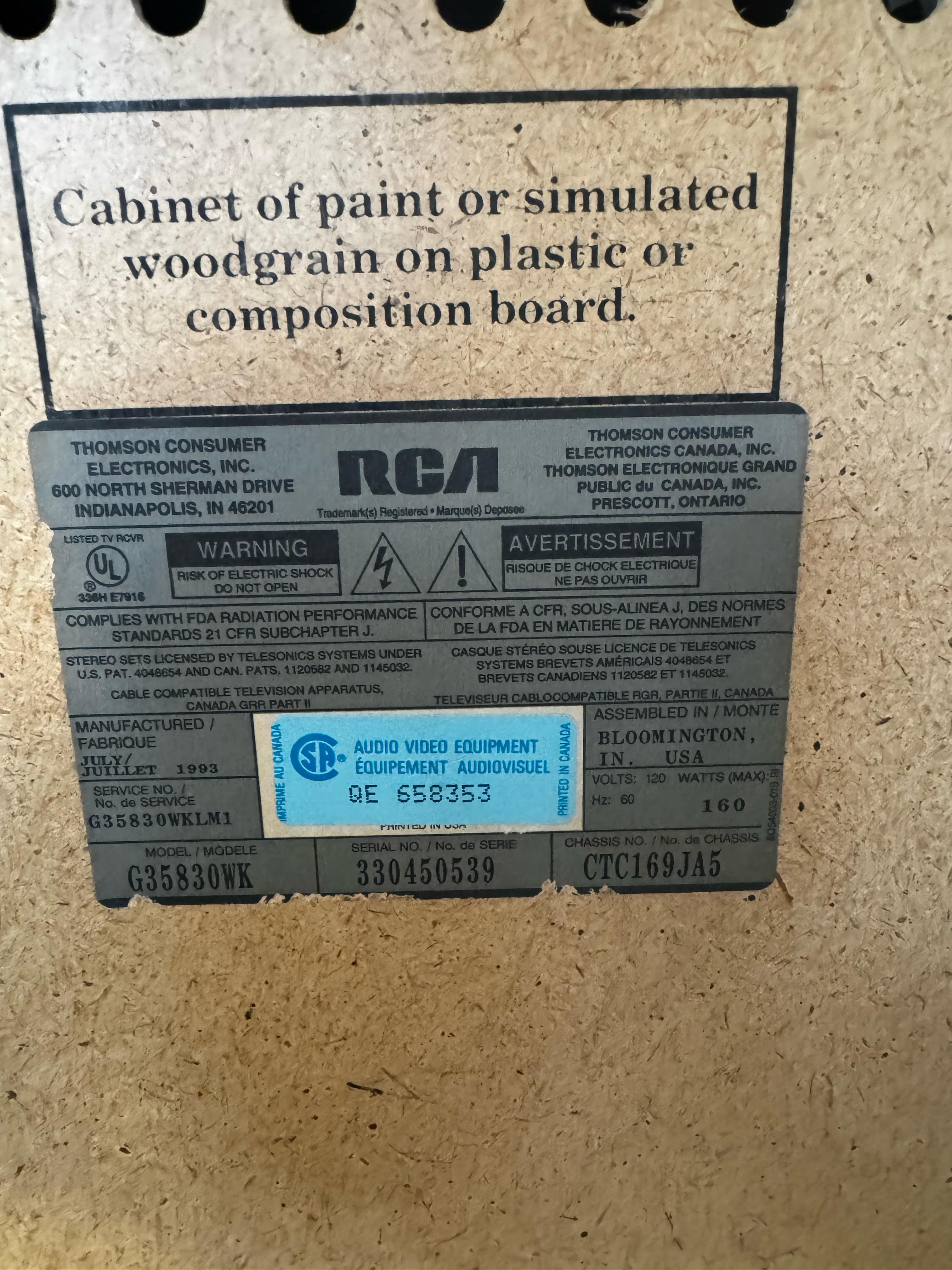

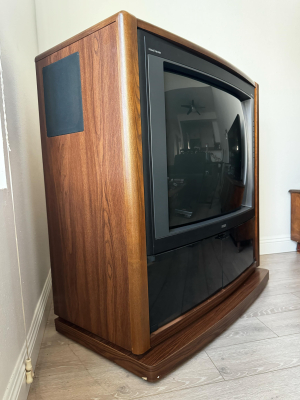

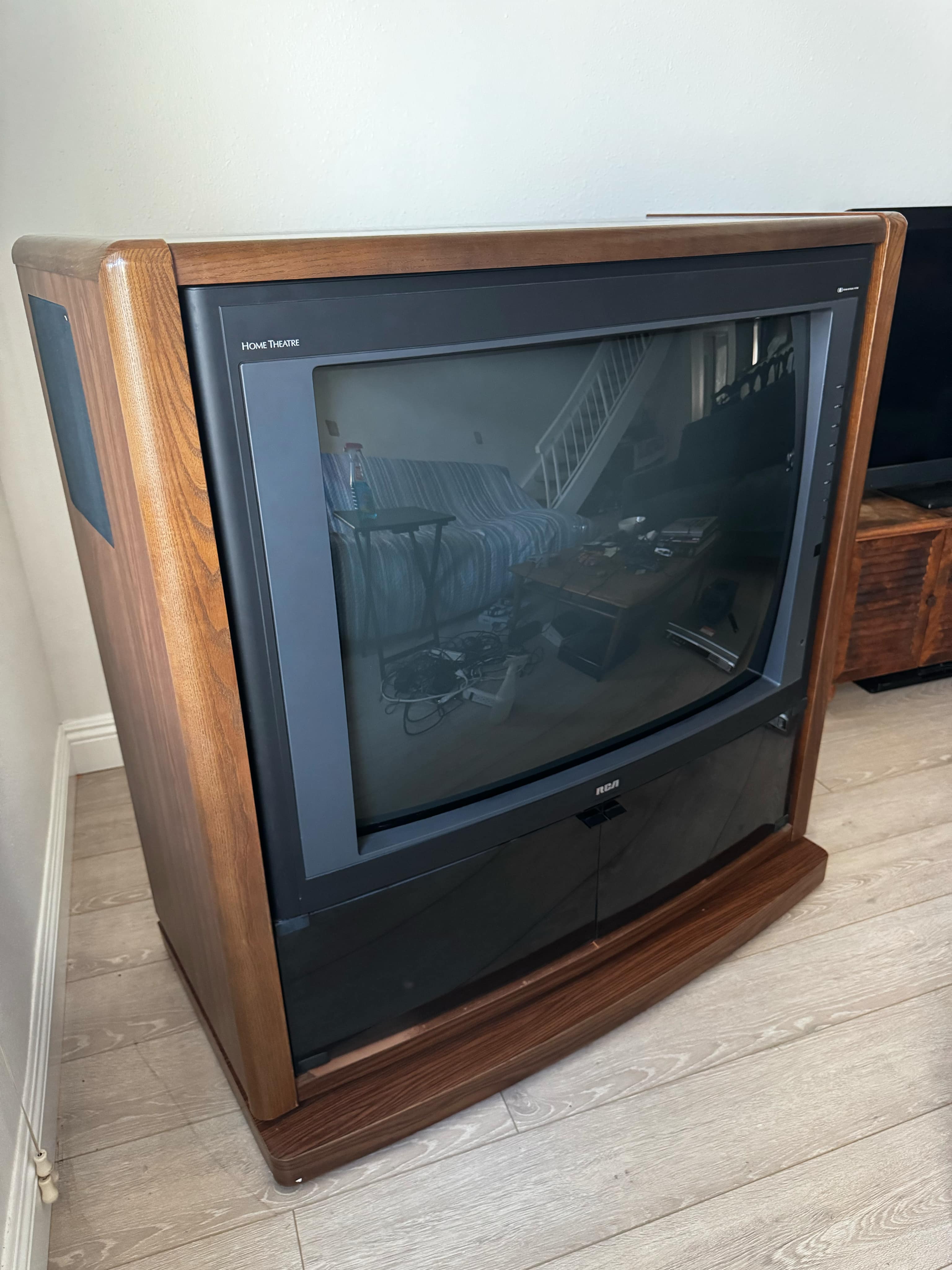

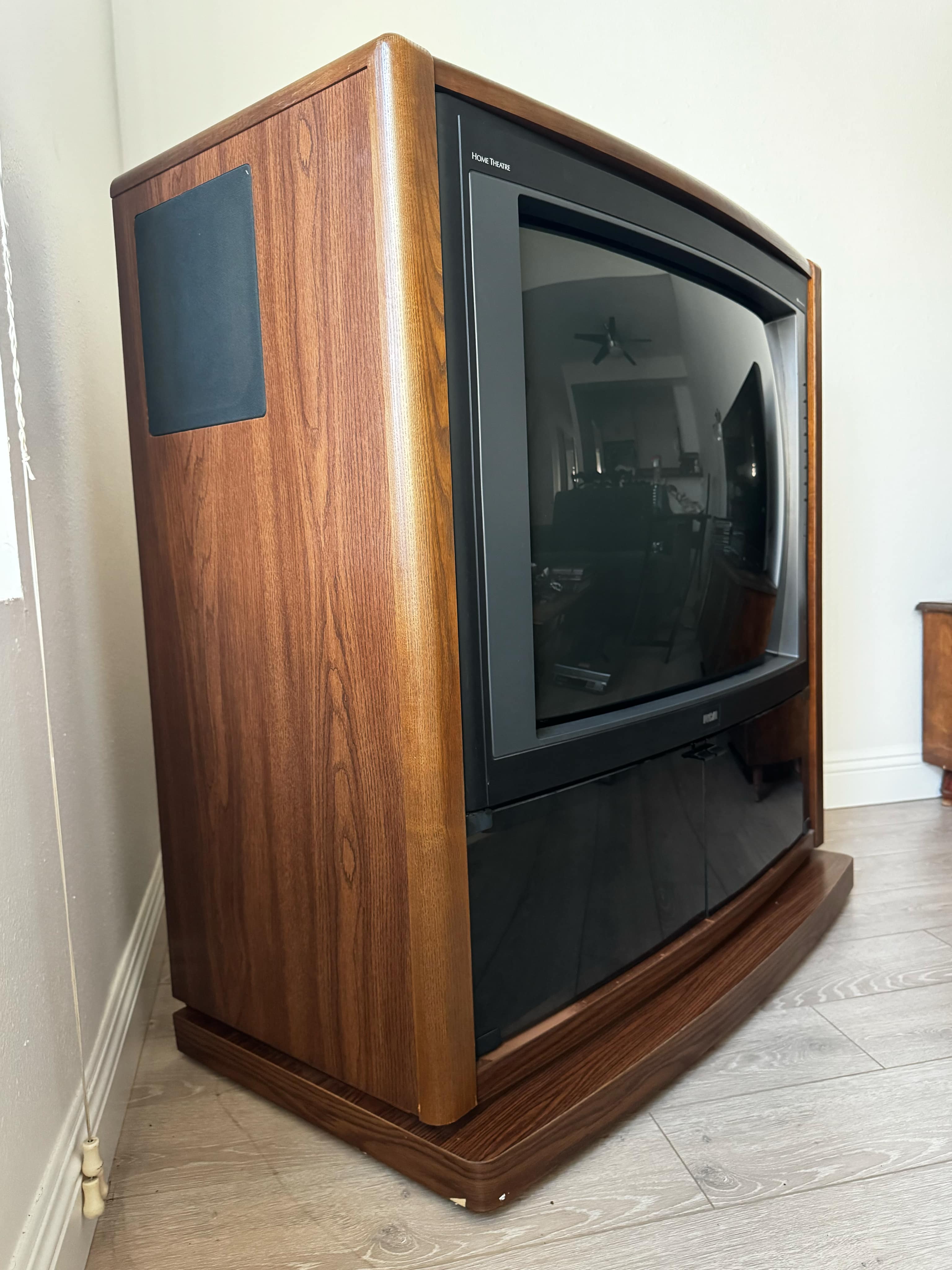

High-end 35" console TV by RCA, made at their Bloomington plant in 1993. Uses Thomson's CTC169 chassis; has RF, composite, and s-video inputs, as well as stereo audio inputs and outputs.
(Special thanks to Harrison Sutton for the pics and Atuki for scanning the owner's manual!)
Manuals

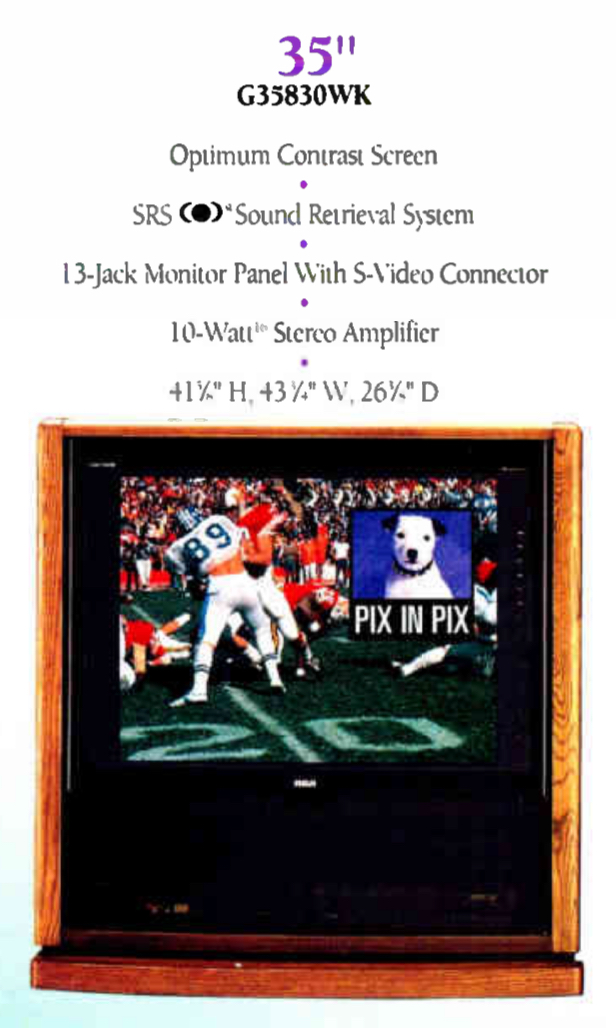

Promo Materials
Notes
Uses an "Optimum Contrast" VHP picture tube with 110-degree deflection.
Unlike the G35830CK model, this set lacks velocity modulation.

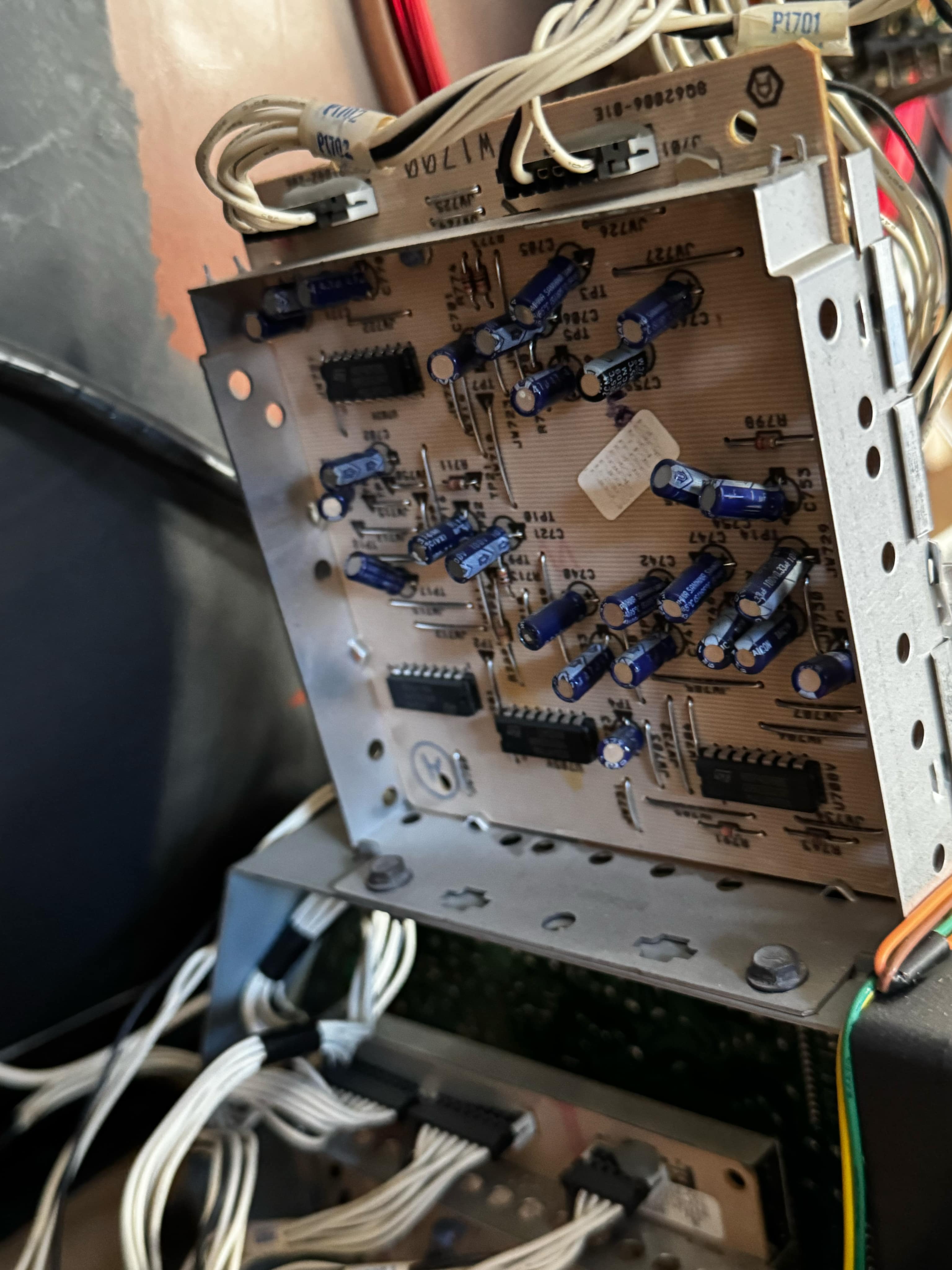

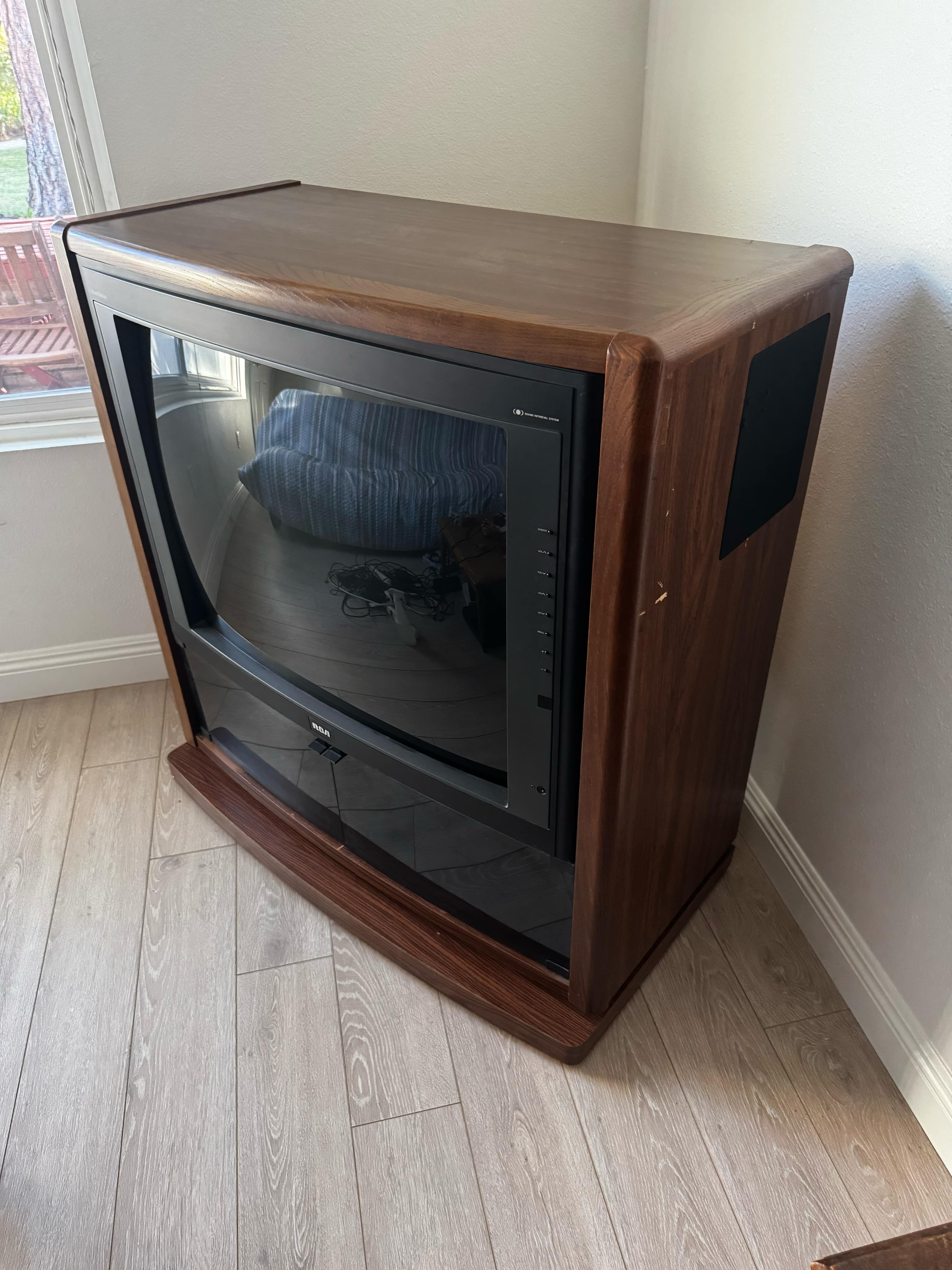

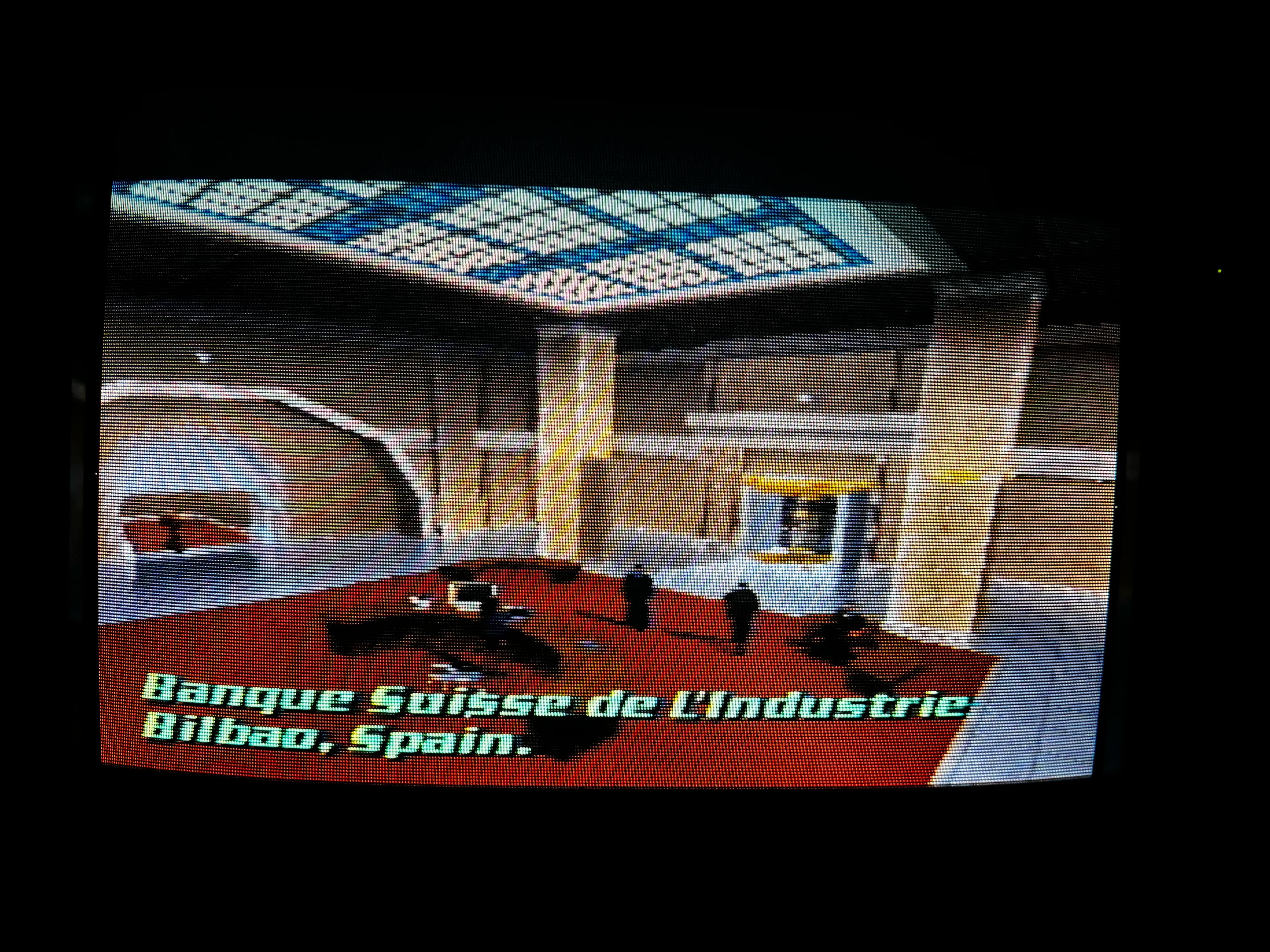

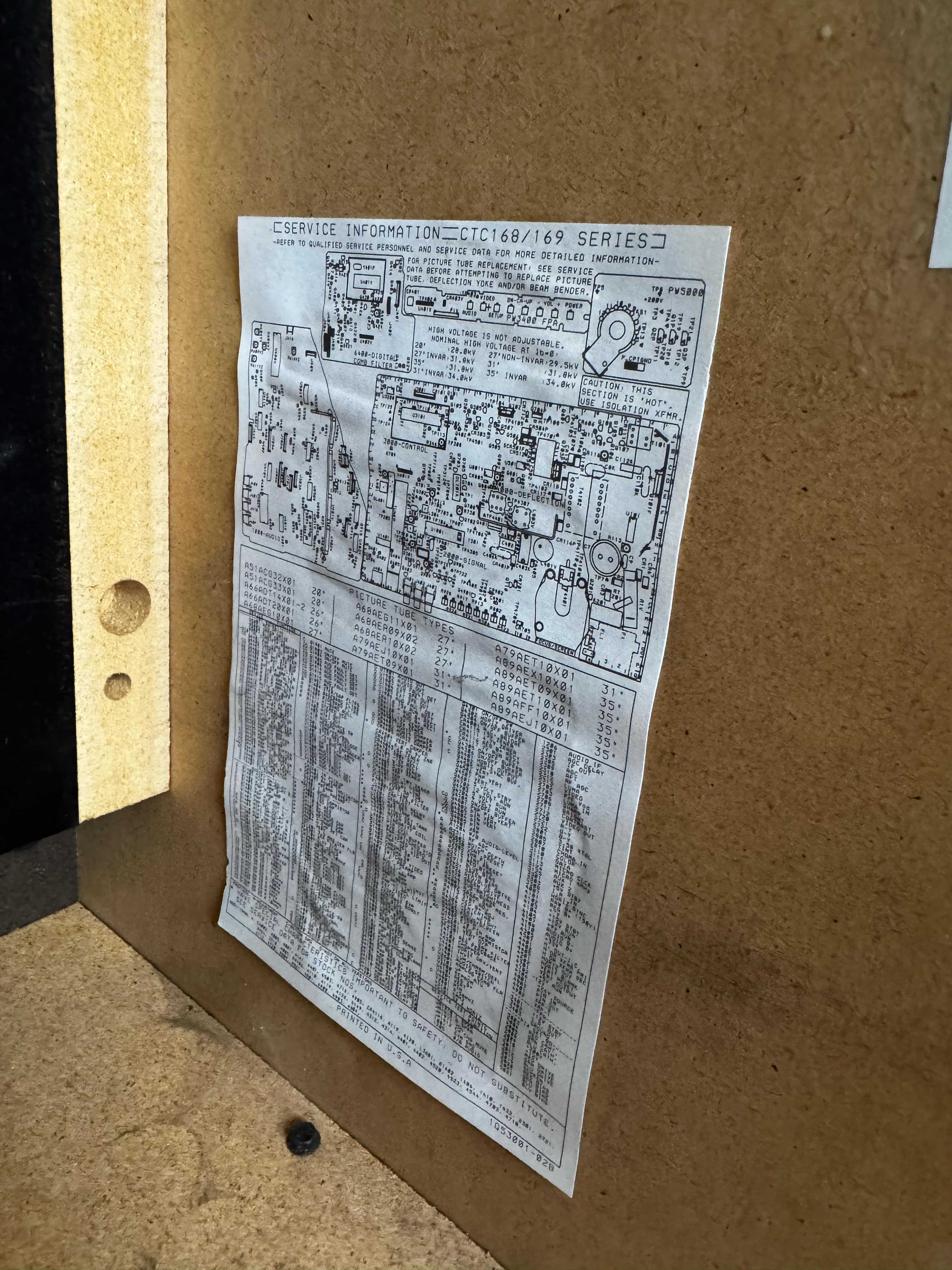

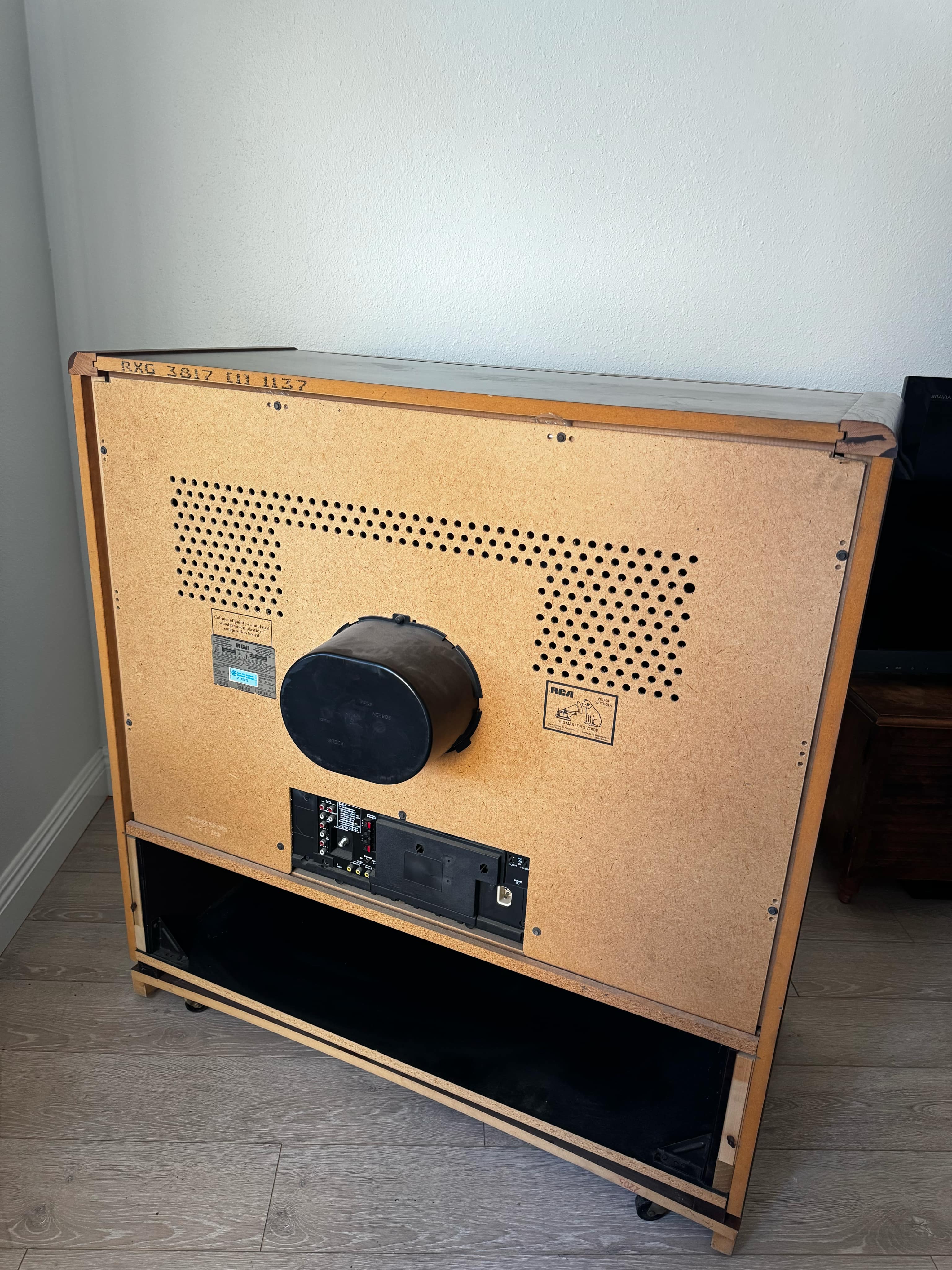

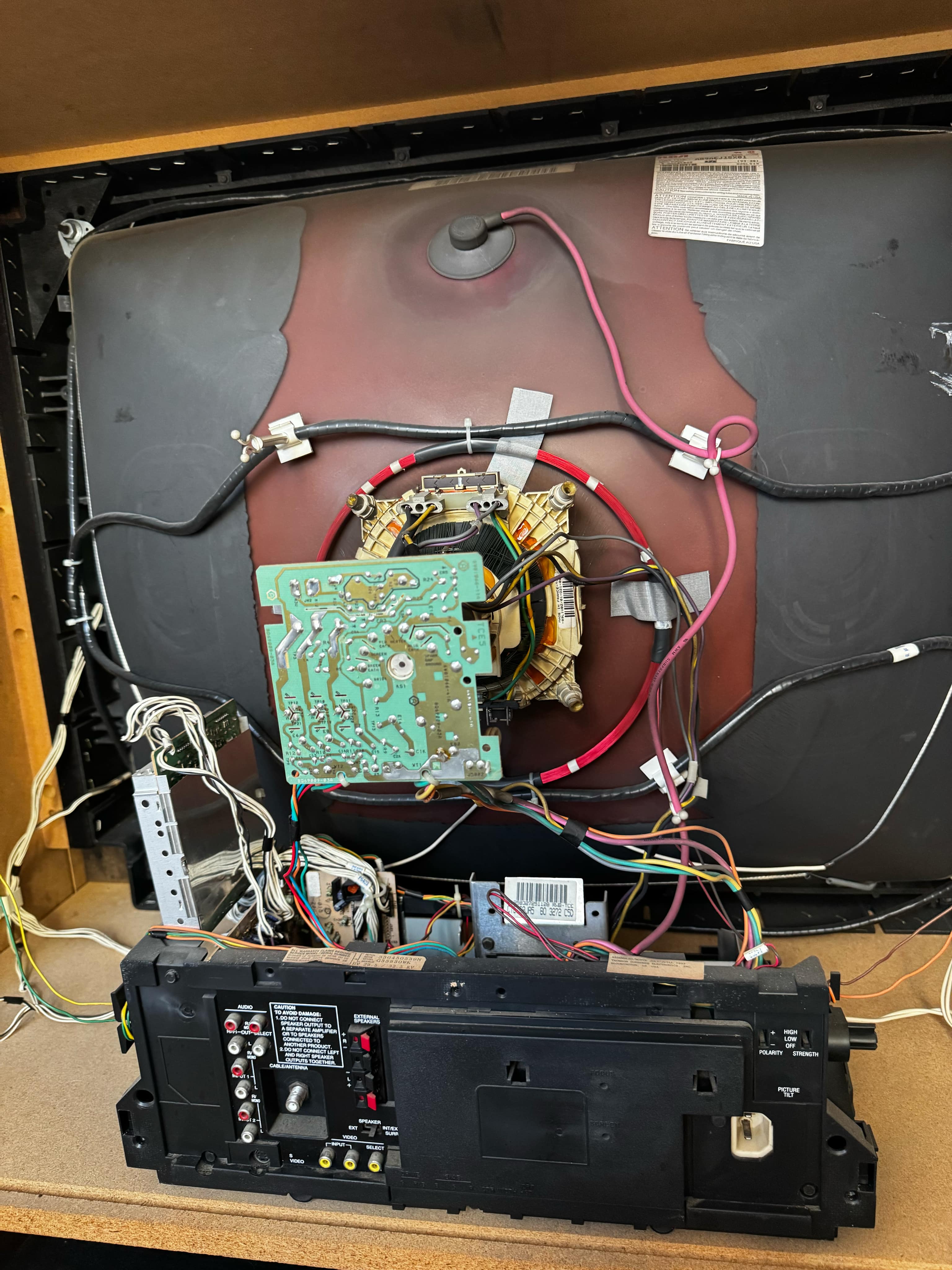

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |

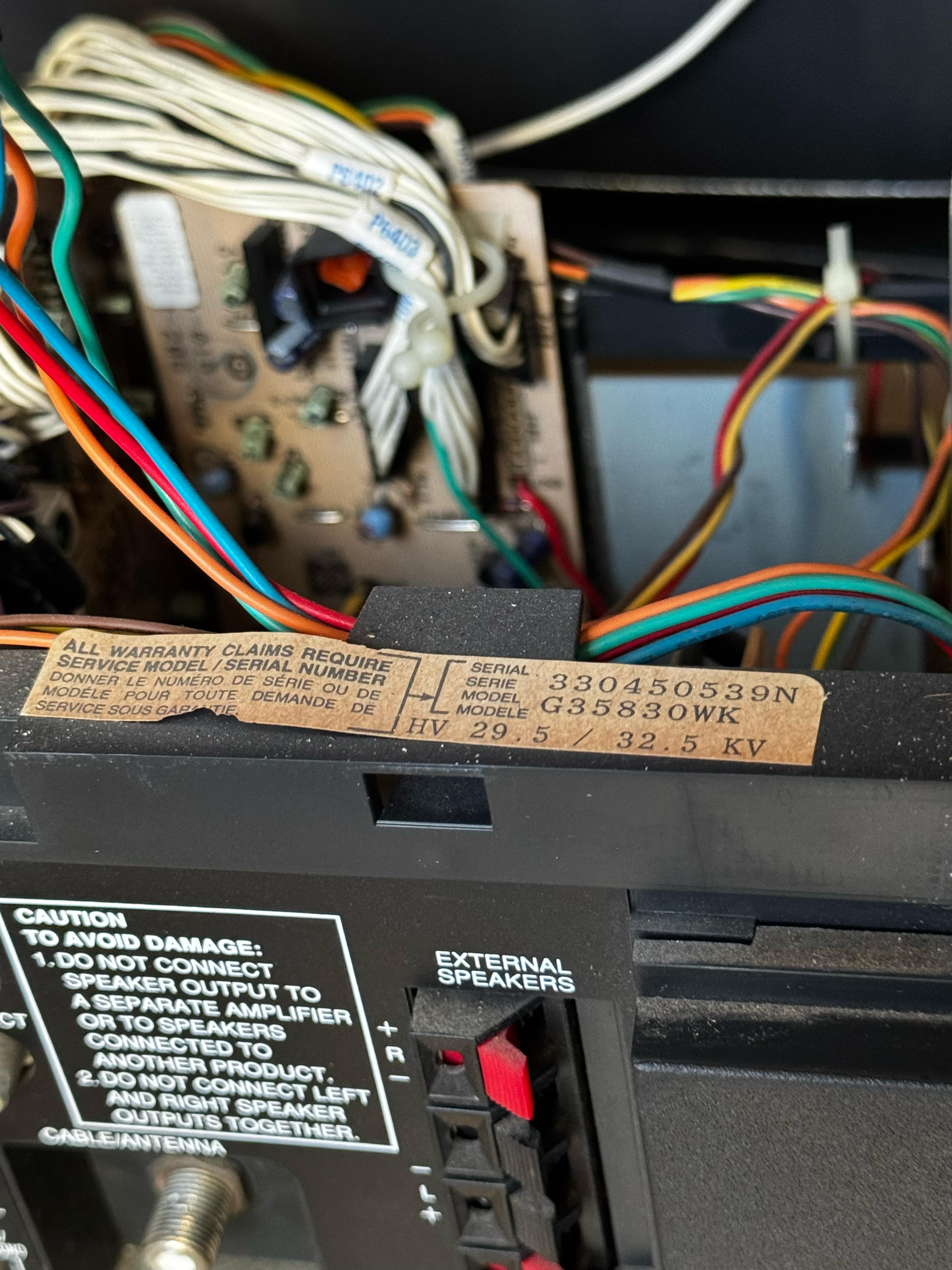

| Model: | G35830WK |
| Series: | G |
| Viewable Size: | 35" |
| Input Signals: | Composite, S-Video, RF |

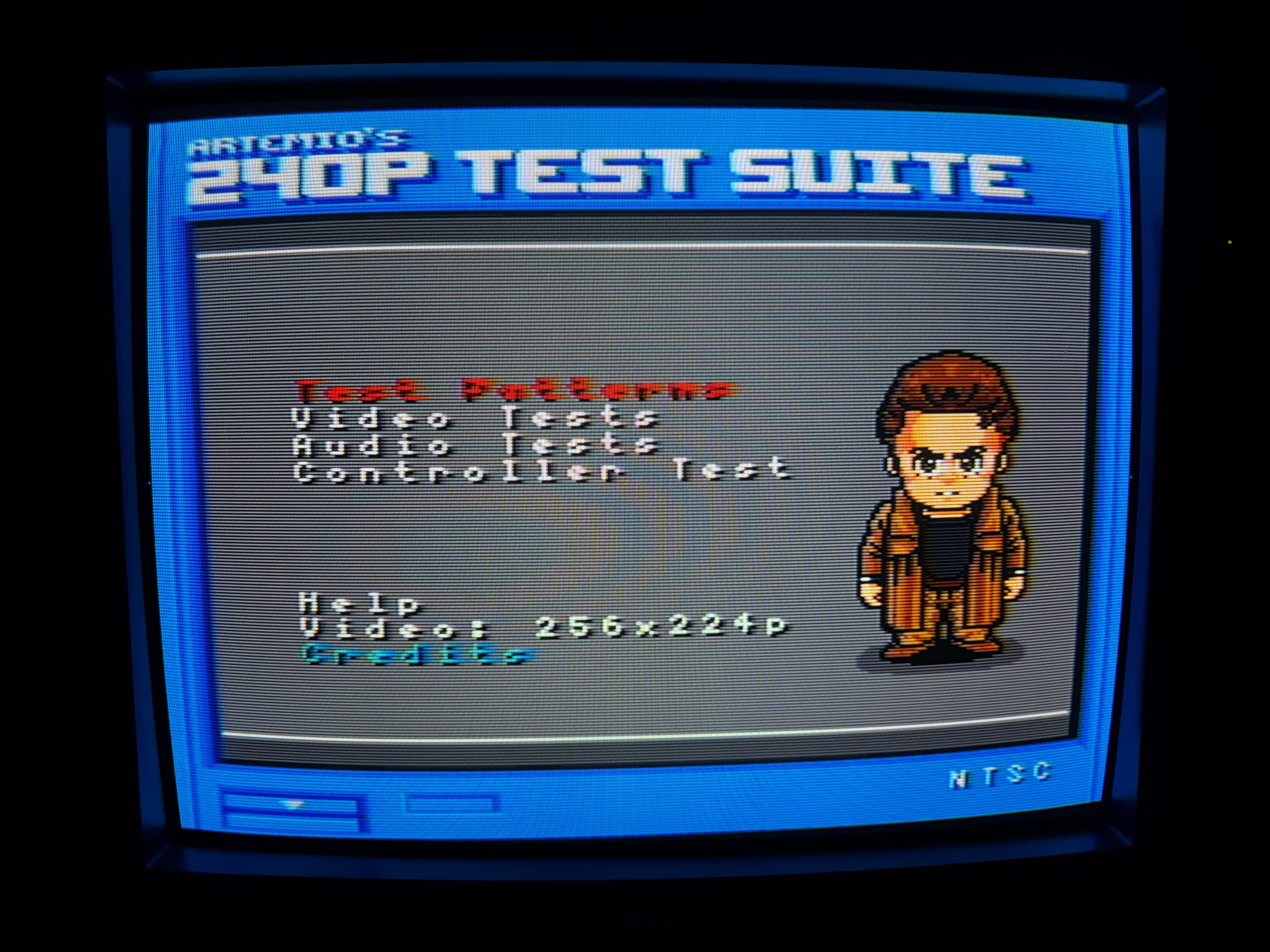

| Native Resolutions: | 240p, 480i |
| Linecount: | 500 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

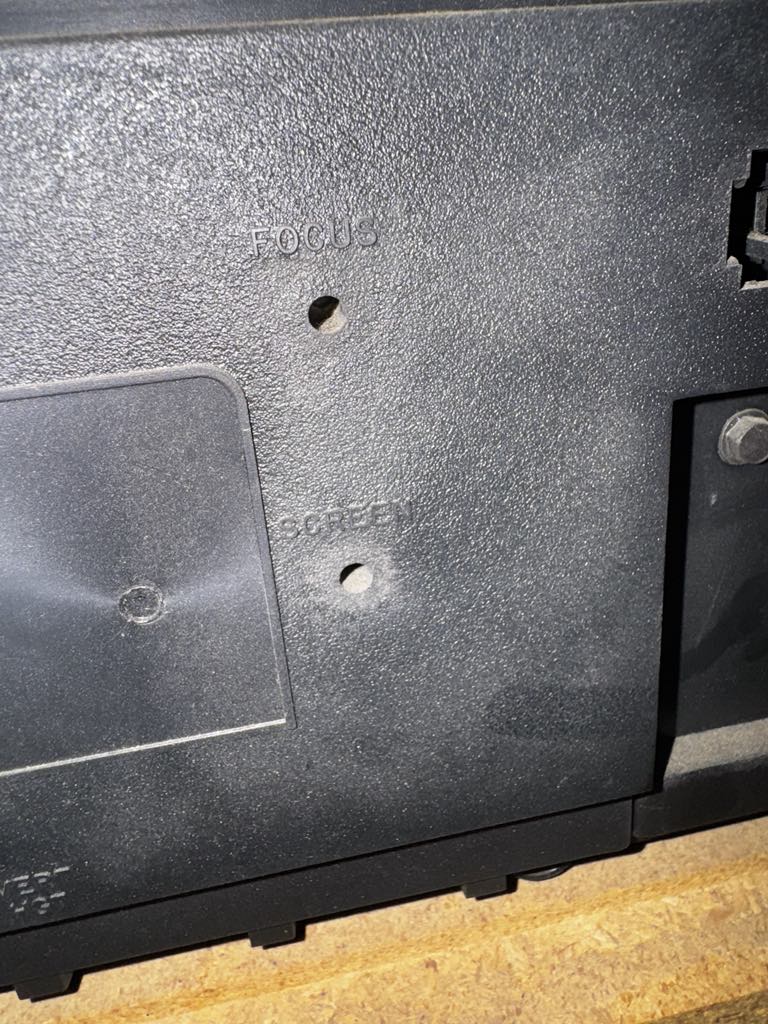

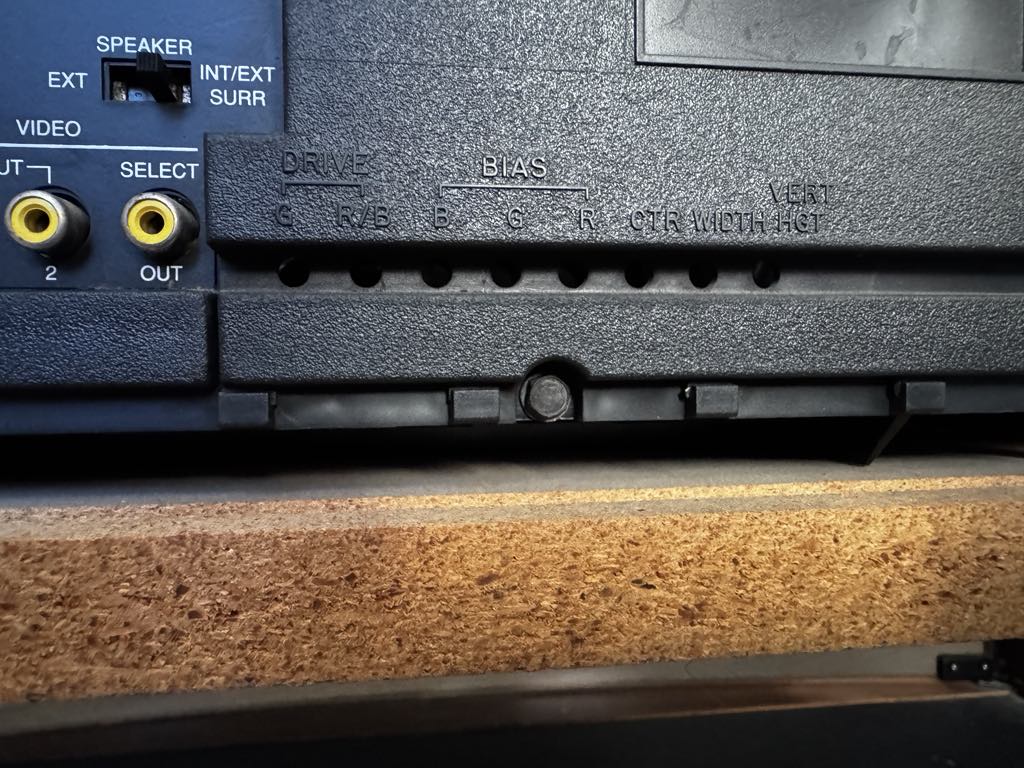

| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |

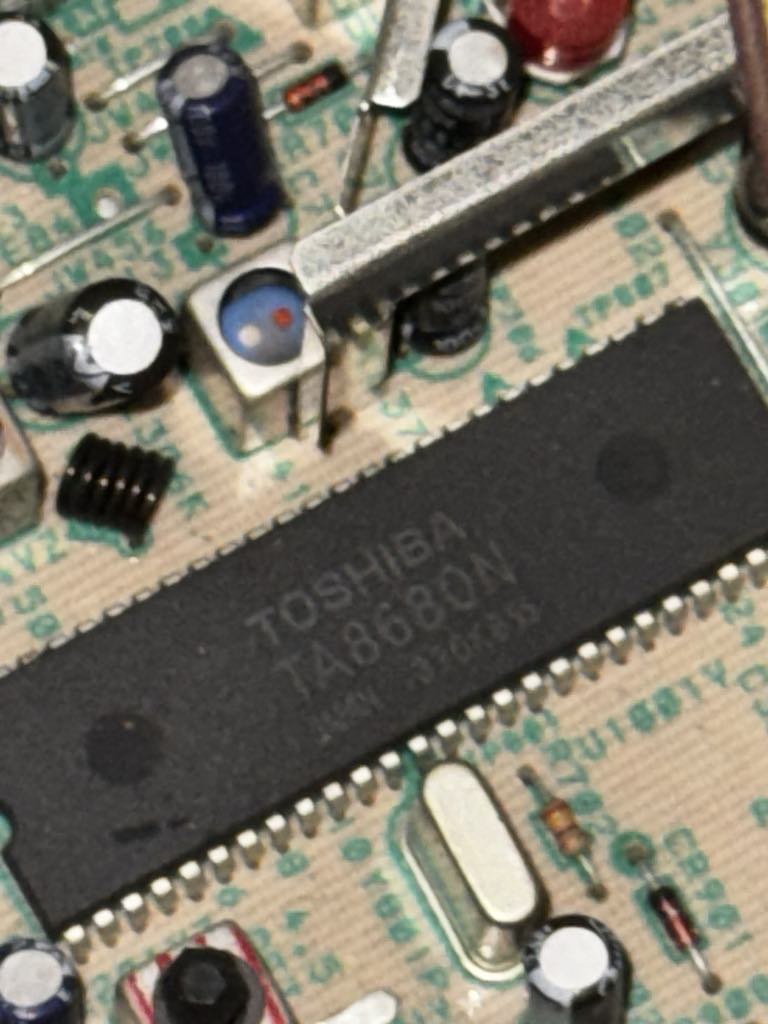

| Jungle IC: | Toshiba, TA8680N |
| Comb Filtering: | 2-Line Digital |

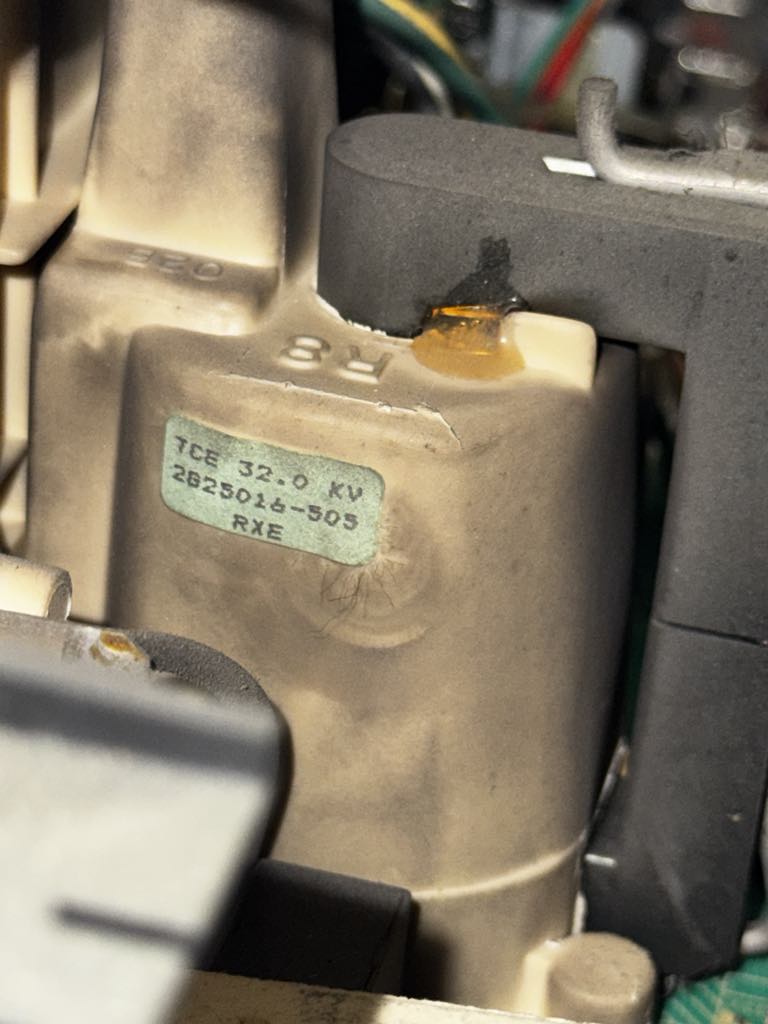

| Flyback: | 2G25016-505 |
| Focus Type: | Single |

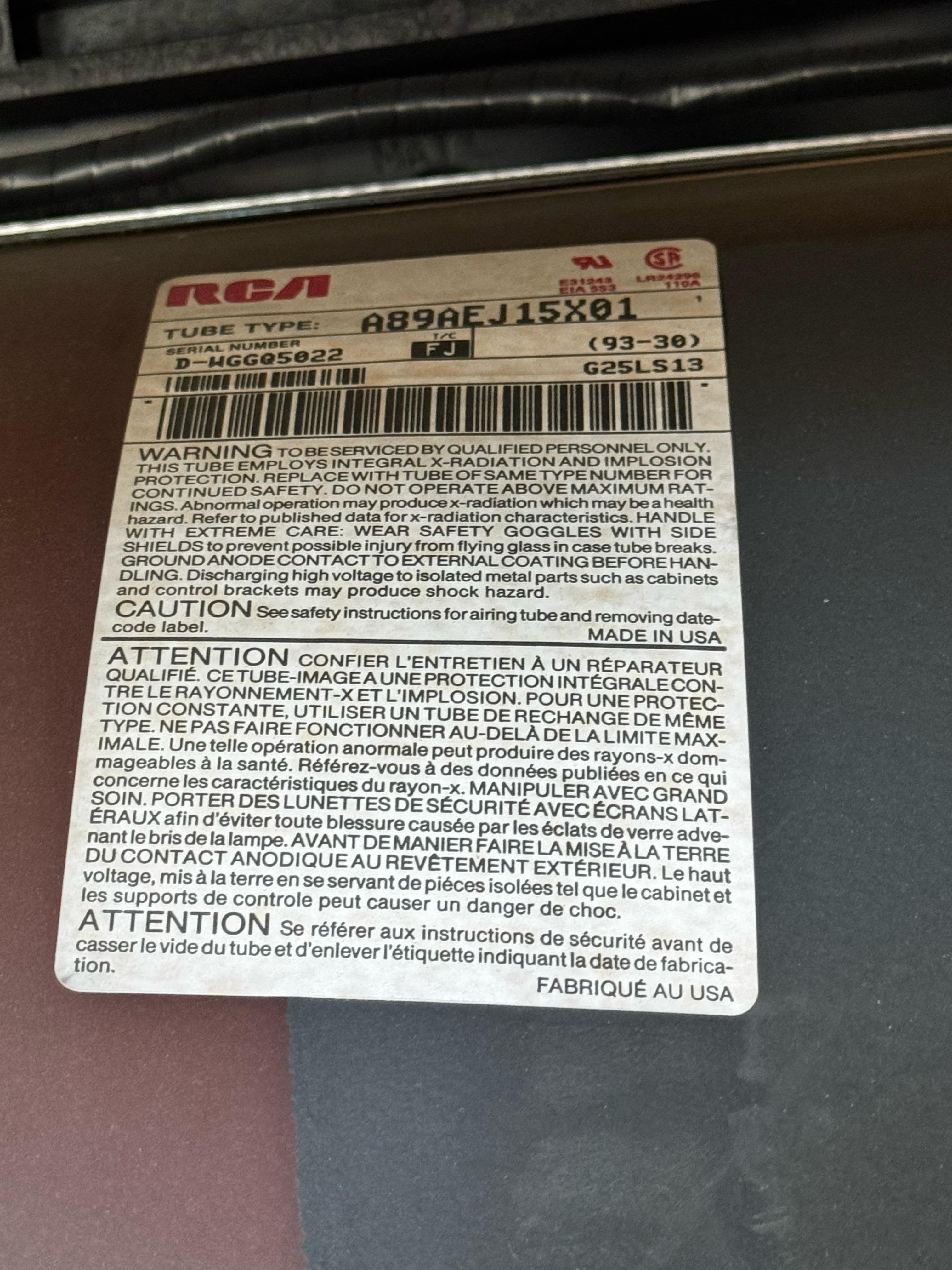

| Tube: | RCA , A89AEJ15X , A89AEJ15X01 |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

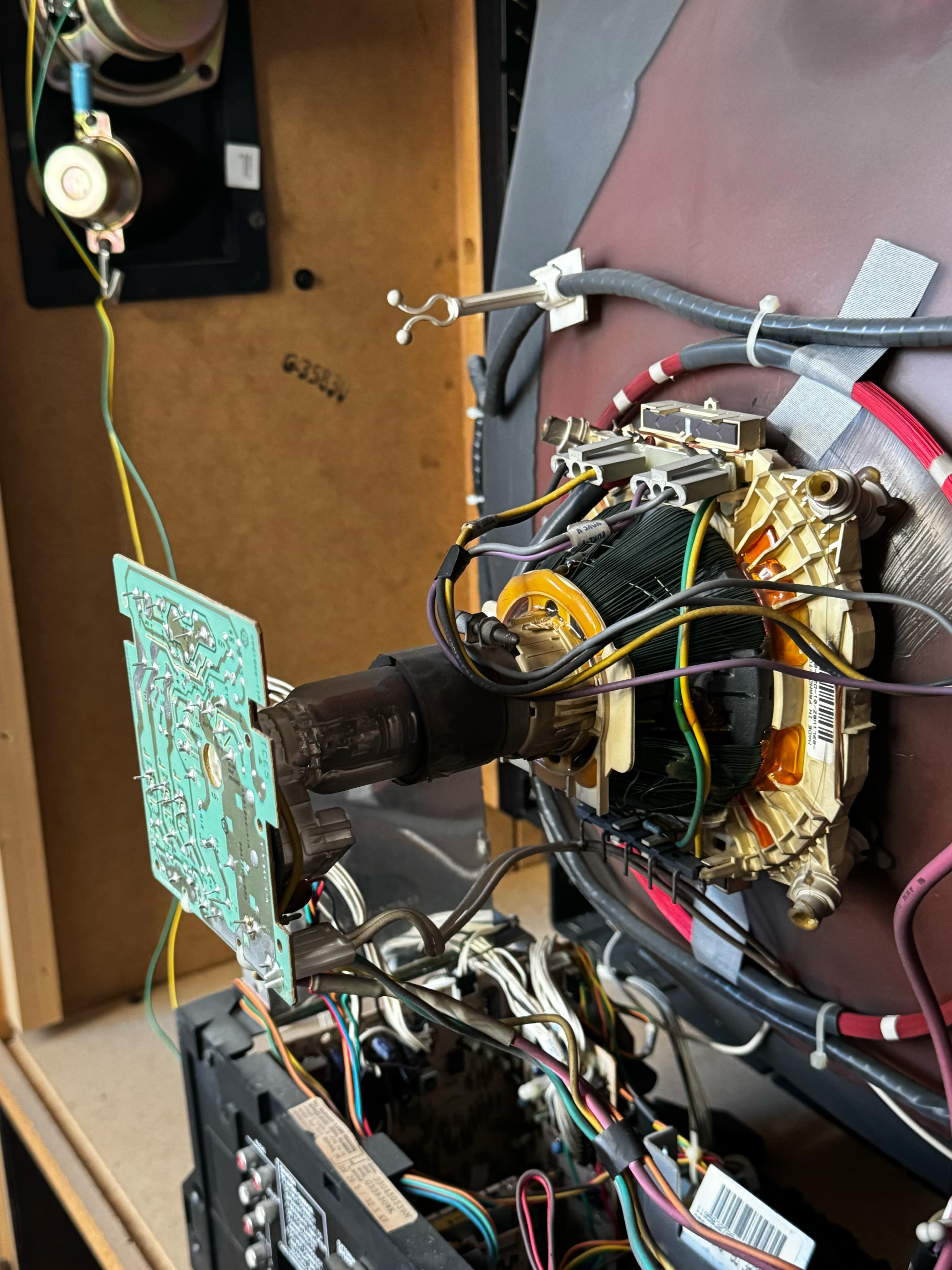

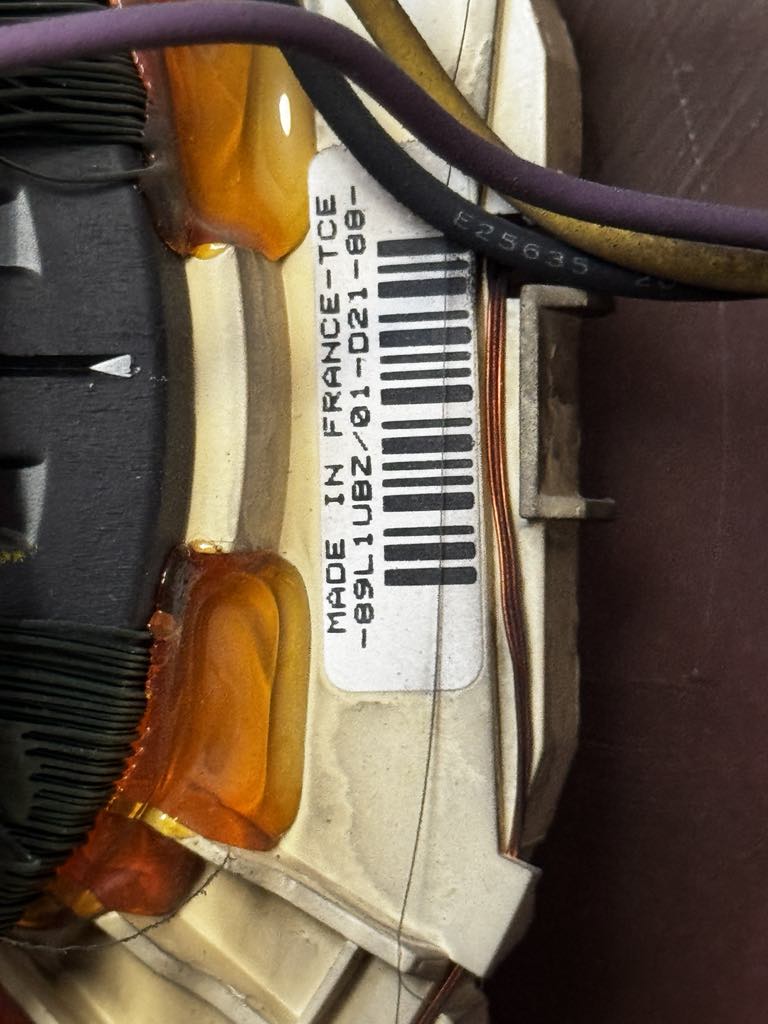

| Yoke: | TCE-89L1UBZ, 01-D21-88 |
| Speakers: | Stereo, 10W x 4 |

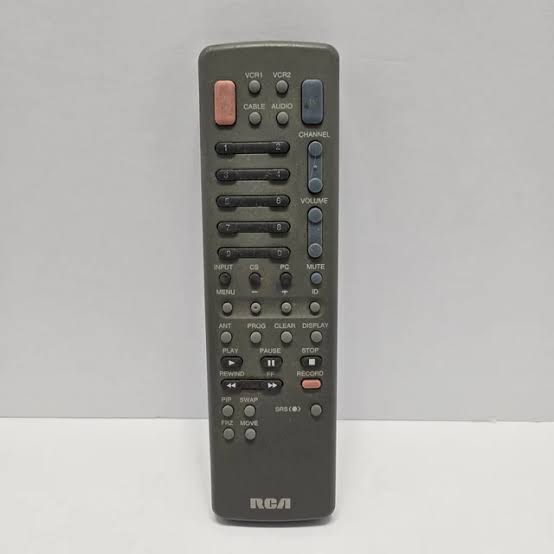

| Remote: | CRK62B3 |

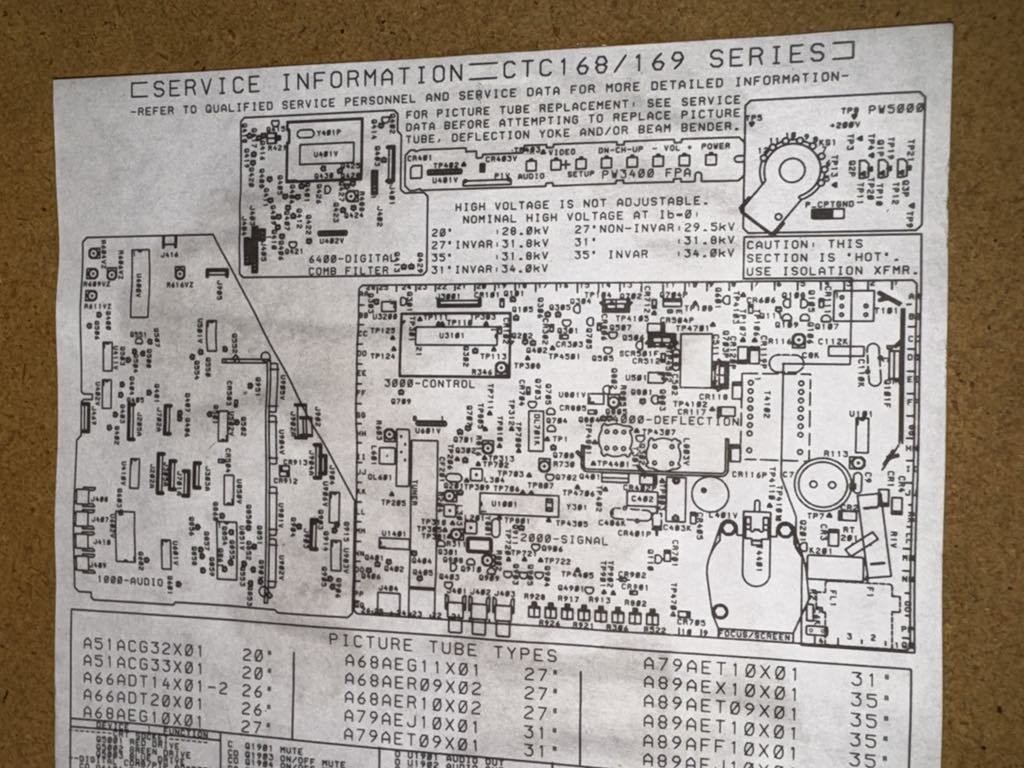

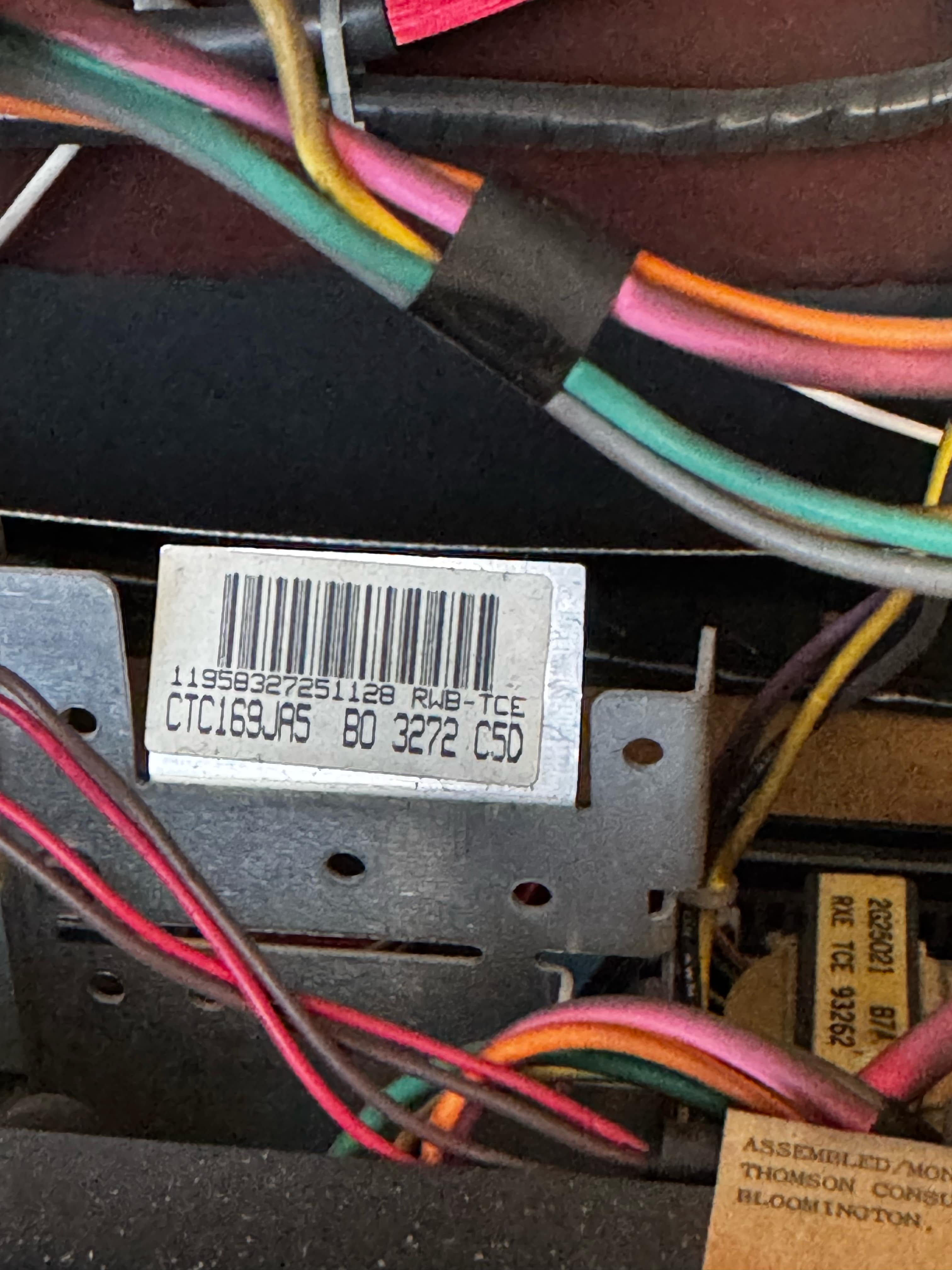

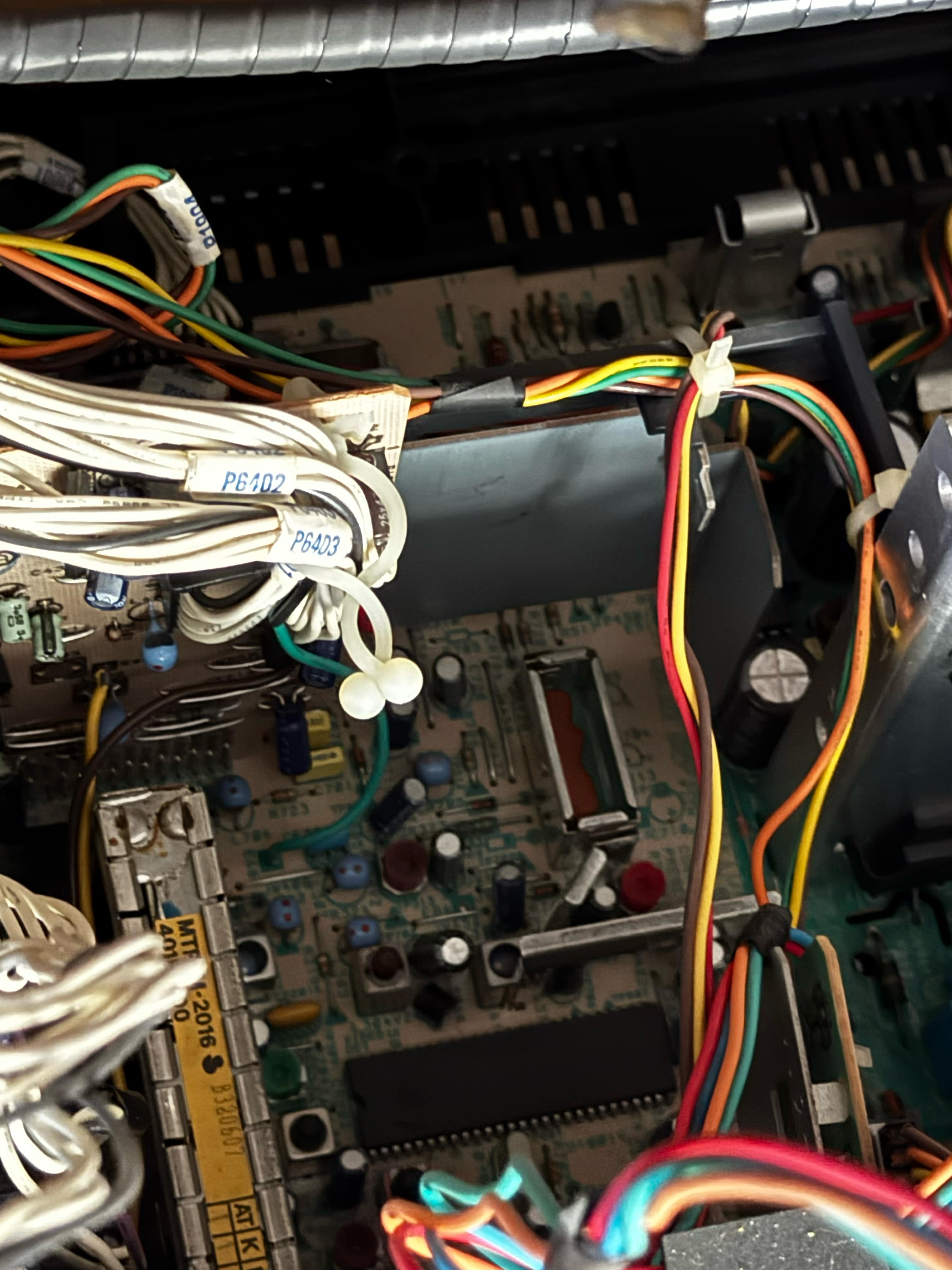

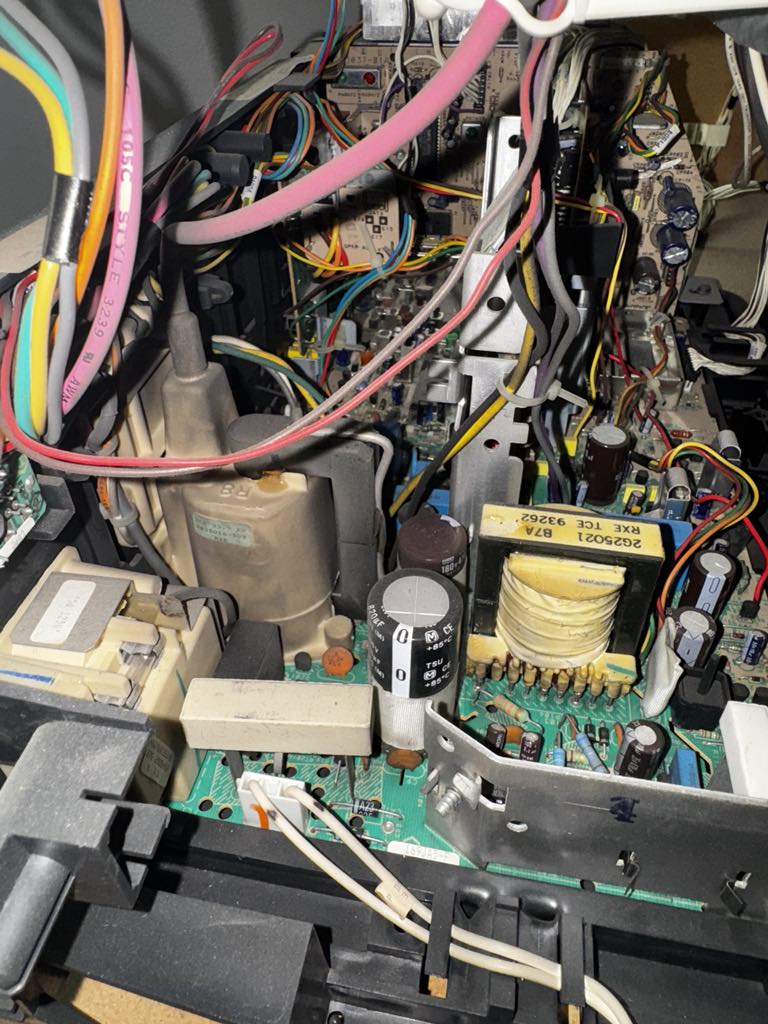

| Chassis: | CTC169, CTC169JA5 |
| Weight: | 318 lbs (144.2 kg) |
| Dimensions (W/H/D): |
670 x 1057 x 1098 mm
(26.3 x 41.5 x 43.2") |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1993 |
| MSRP: | 1999 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
