Summary

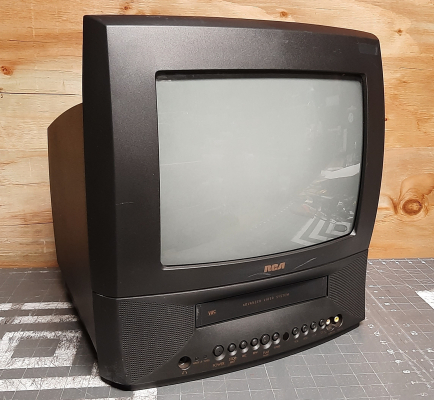

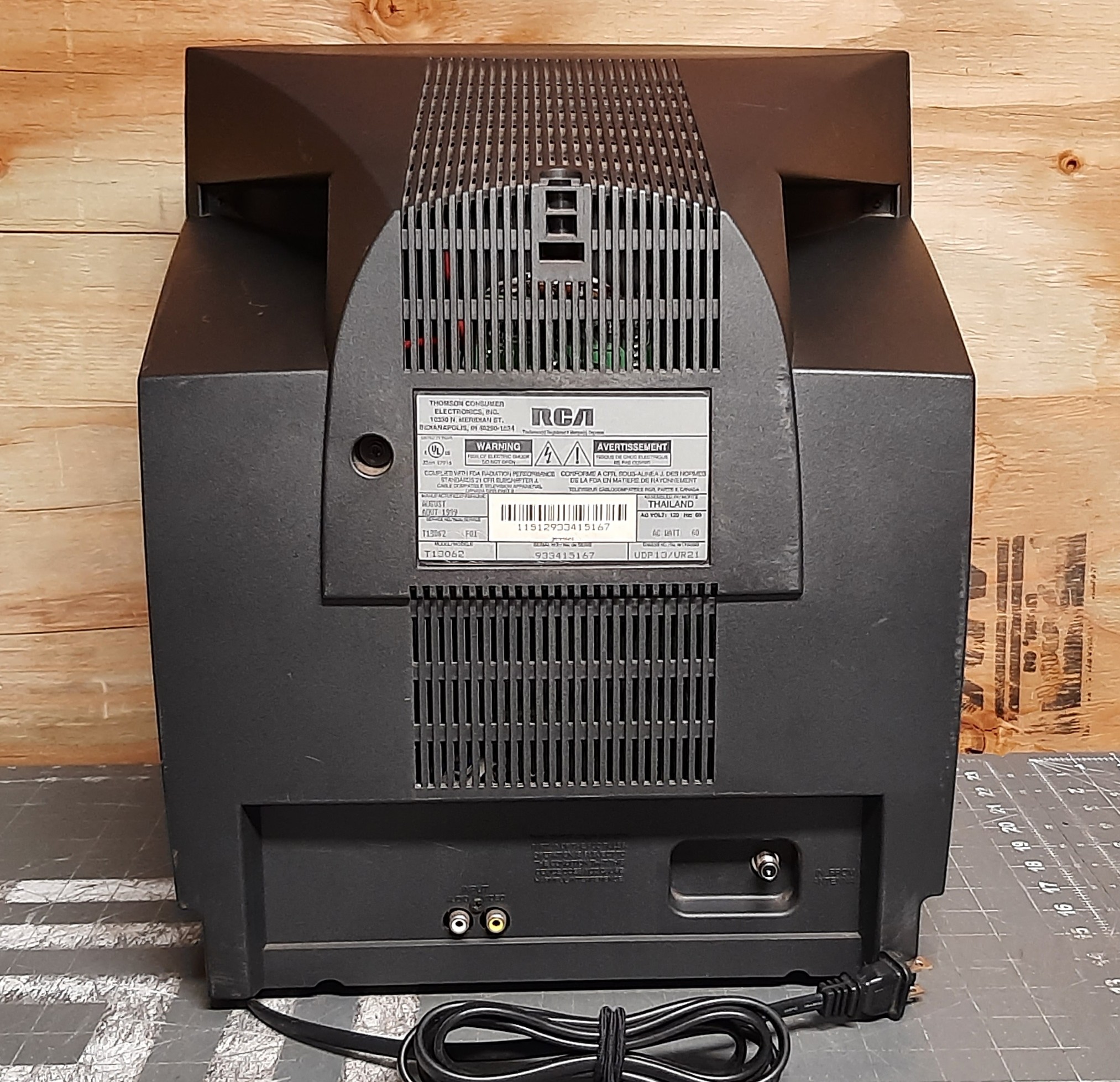

13" TV/VCR combo with late '90s "futuristic" styling. Includes front and back mono AV inputs.
Literature
Notes
Most TV/VCR combo units cannot be RGB modded, but this appears to be an exception. It uses the TA1268N jungle chip, which is compatible with the OSD mux mod. To do the mod properly, it would be necessary to find a service manual to adjust screen position and brightness.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | 14F512T |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | TA1268N |
| Tube: | A34JXV70X , Thai CRT Co. , A34JXV70X14 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Remote: | 221371 |
| Chassis: | UDP13/UR21 |
| Weight: | 29.7 lbs (13 kg) |
| Application: | Consumer |
| Launched: | 1996 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
