Summary

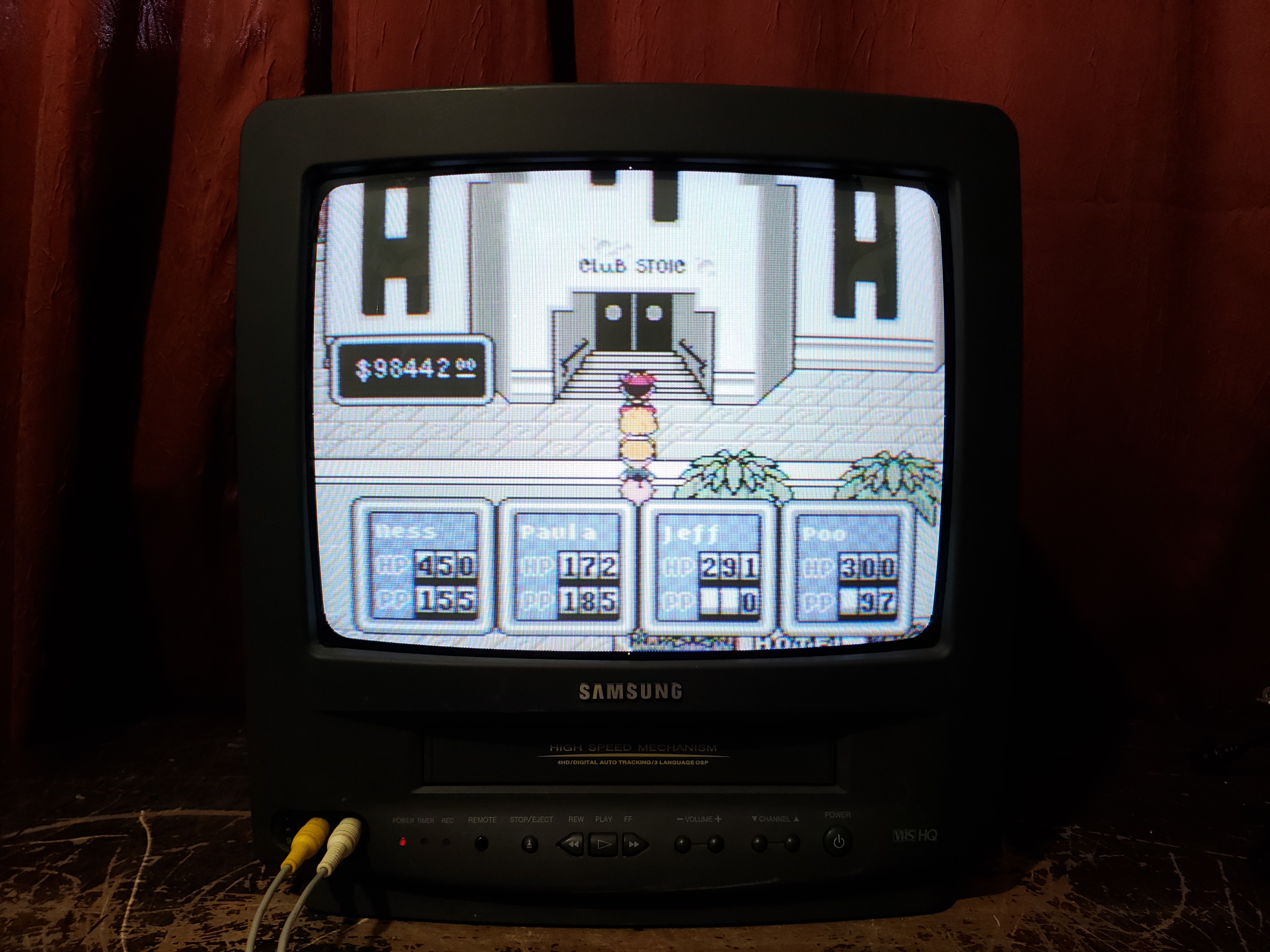

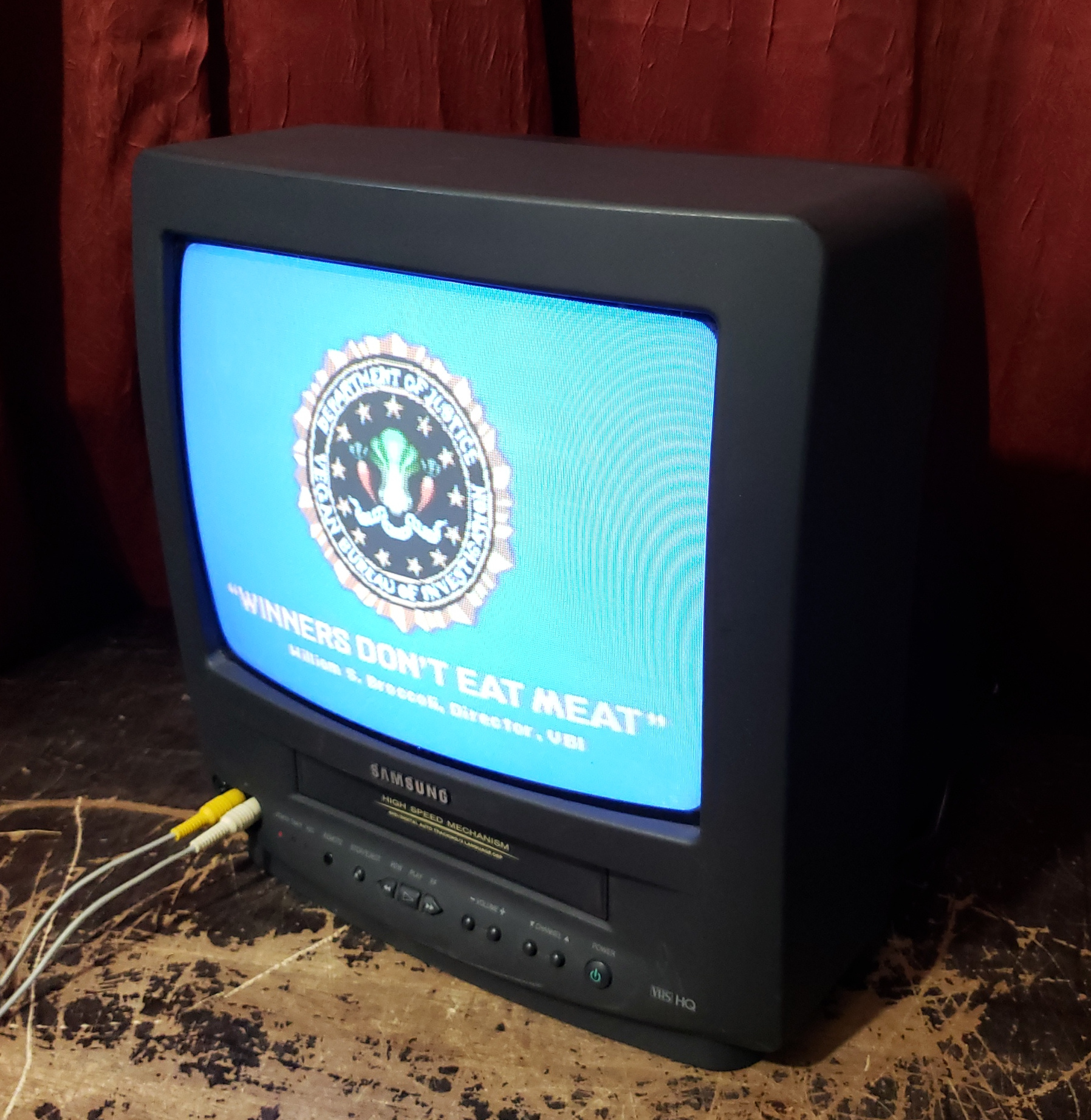

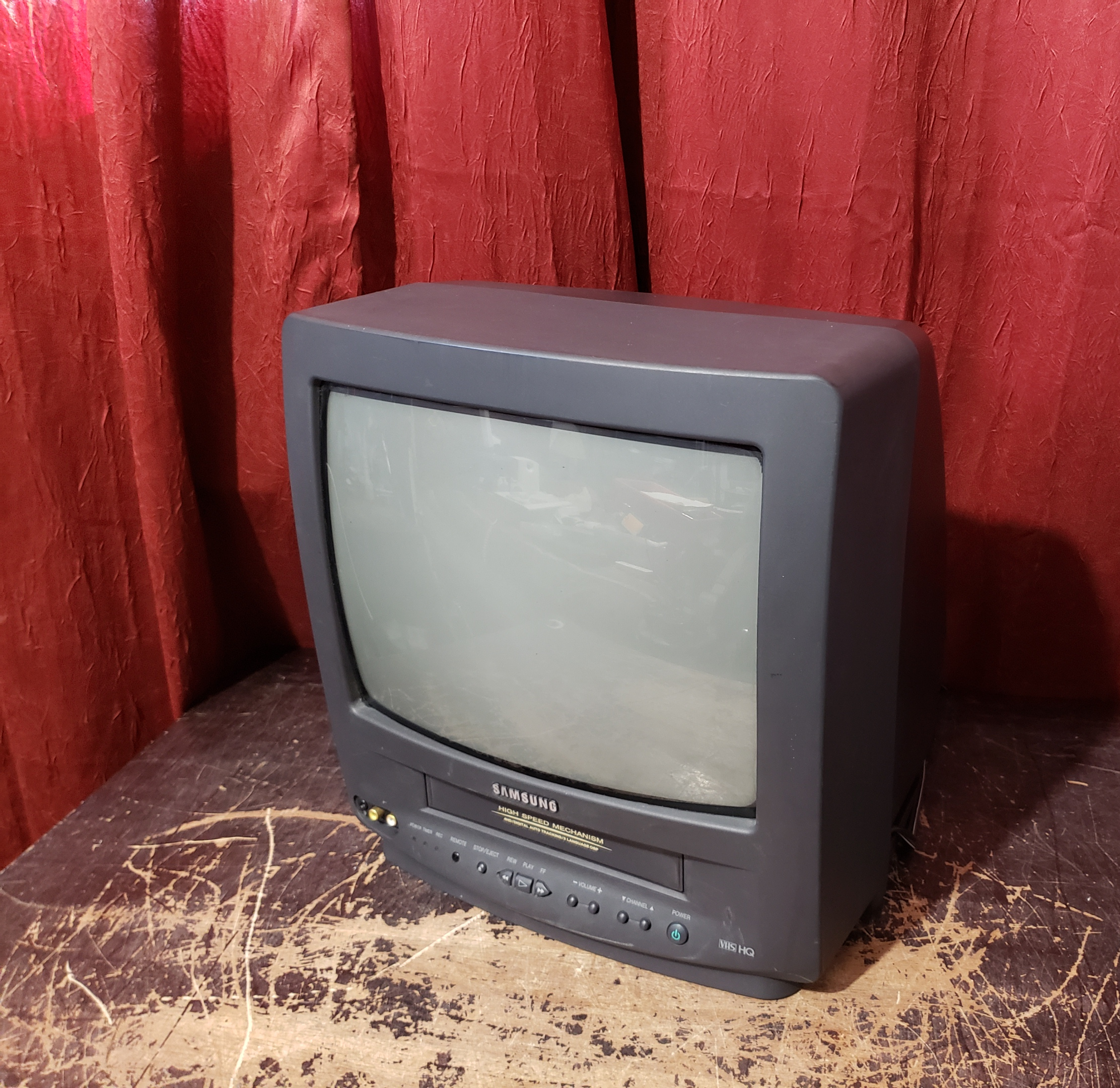

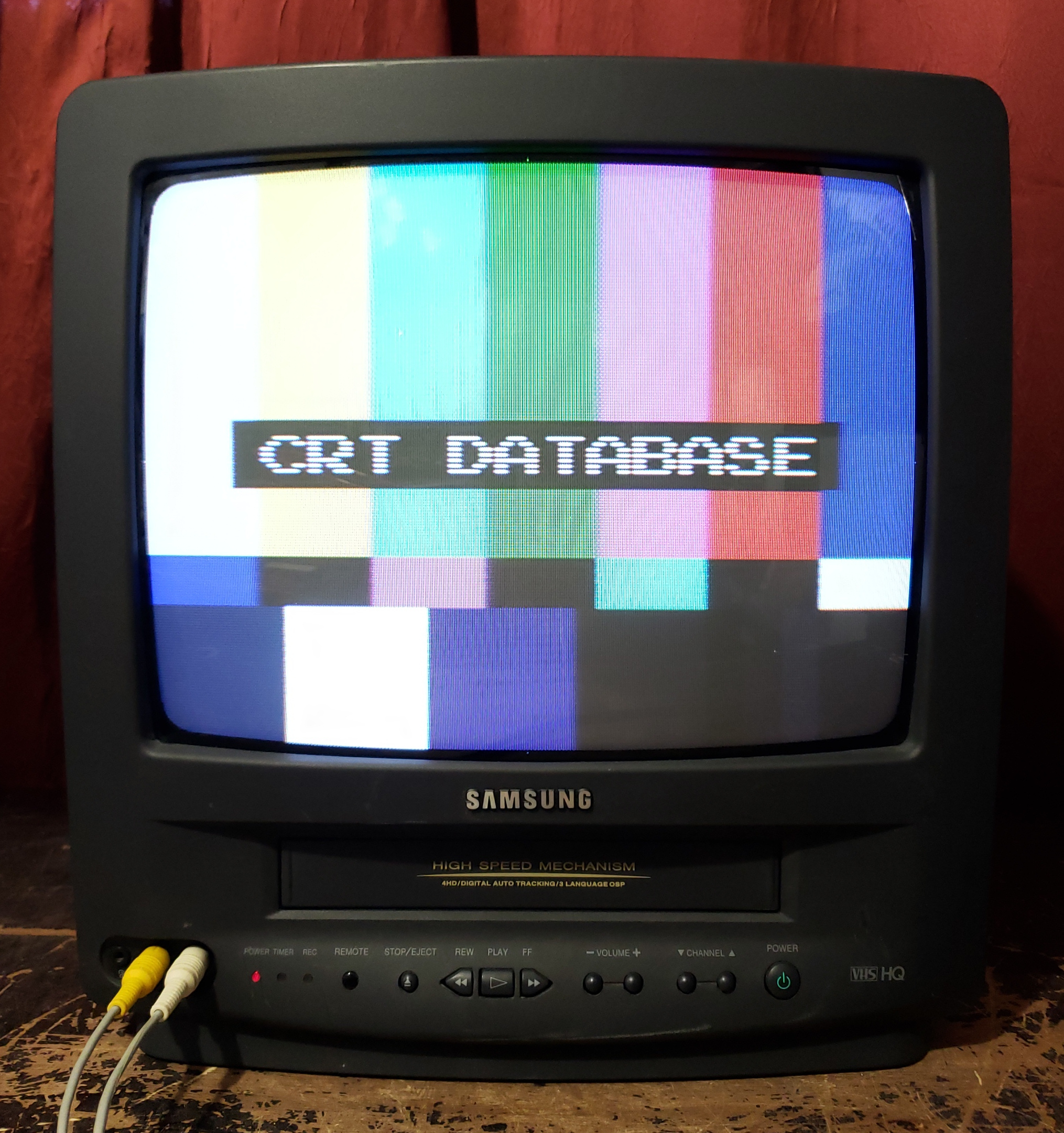

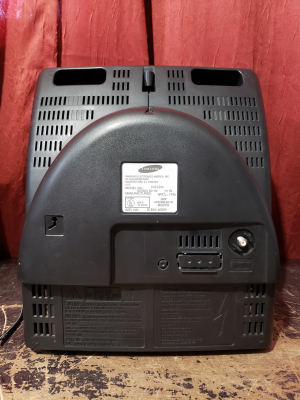

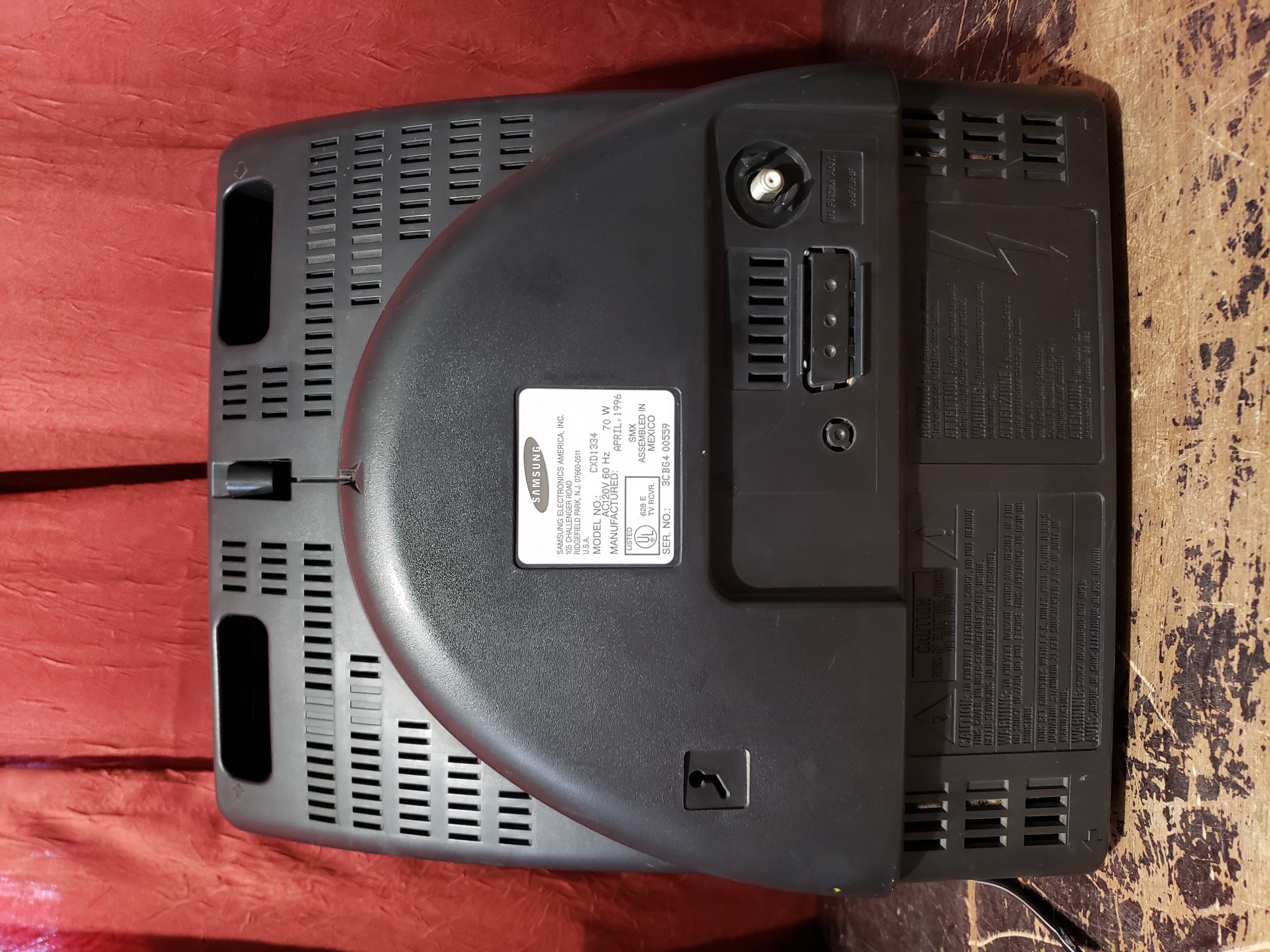

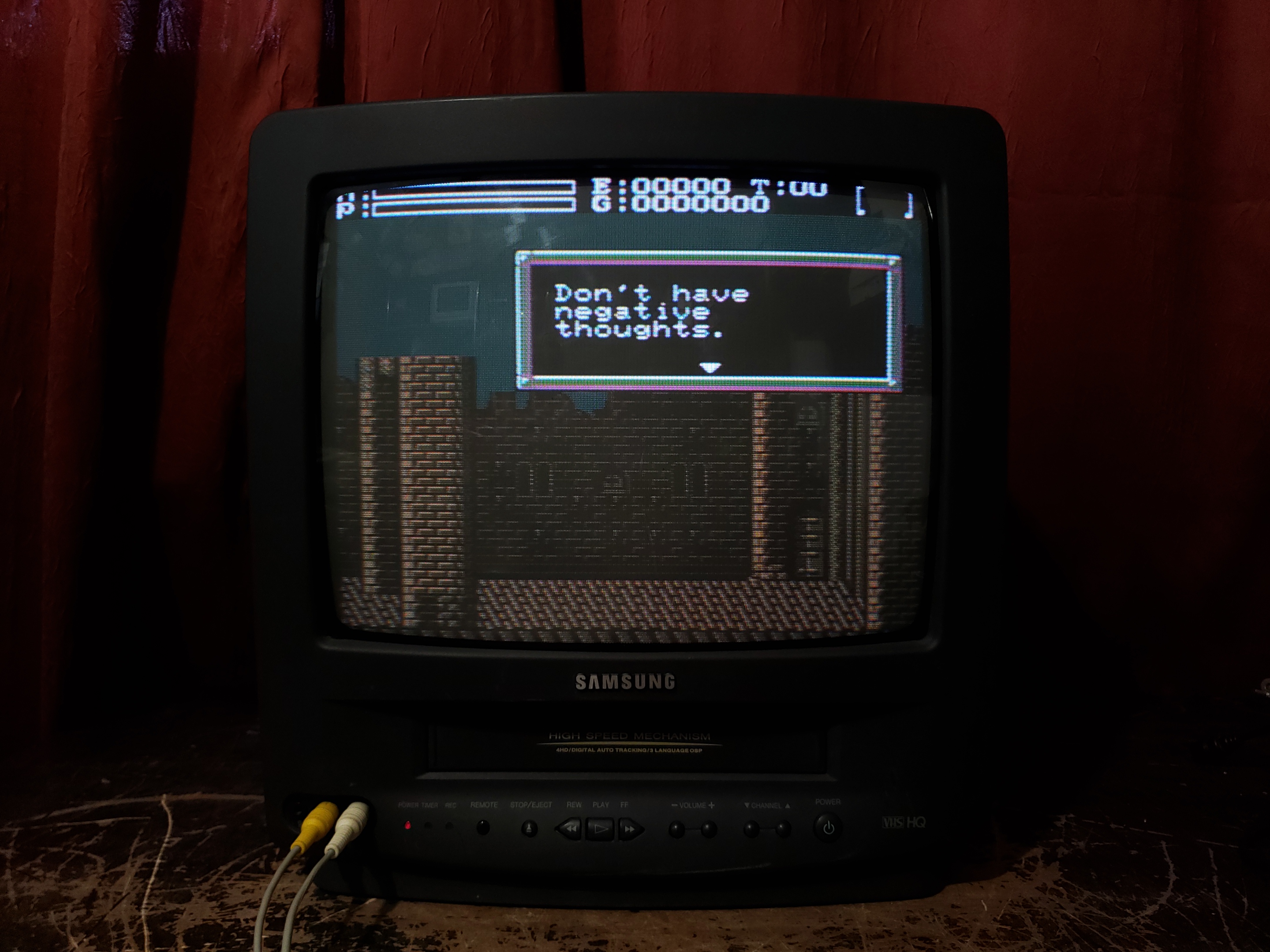

Samsung 13" Television/VCR Combination with 4-Head VCR HQ Circuitry. Front A/V input jacks.
Manuals
Notes
A remote is needed to access the user menu as well as to change inputs.
Repair Notes
Sounds was distorted due to the speaker itself. The foam surrounding the cone would make a sound like crumpling paper as the driver moved back and forth. Replacing the 8Ω speaker fixed the issue.

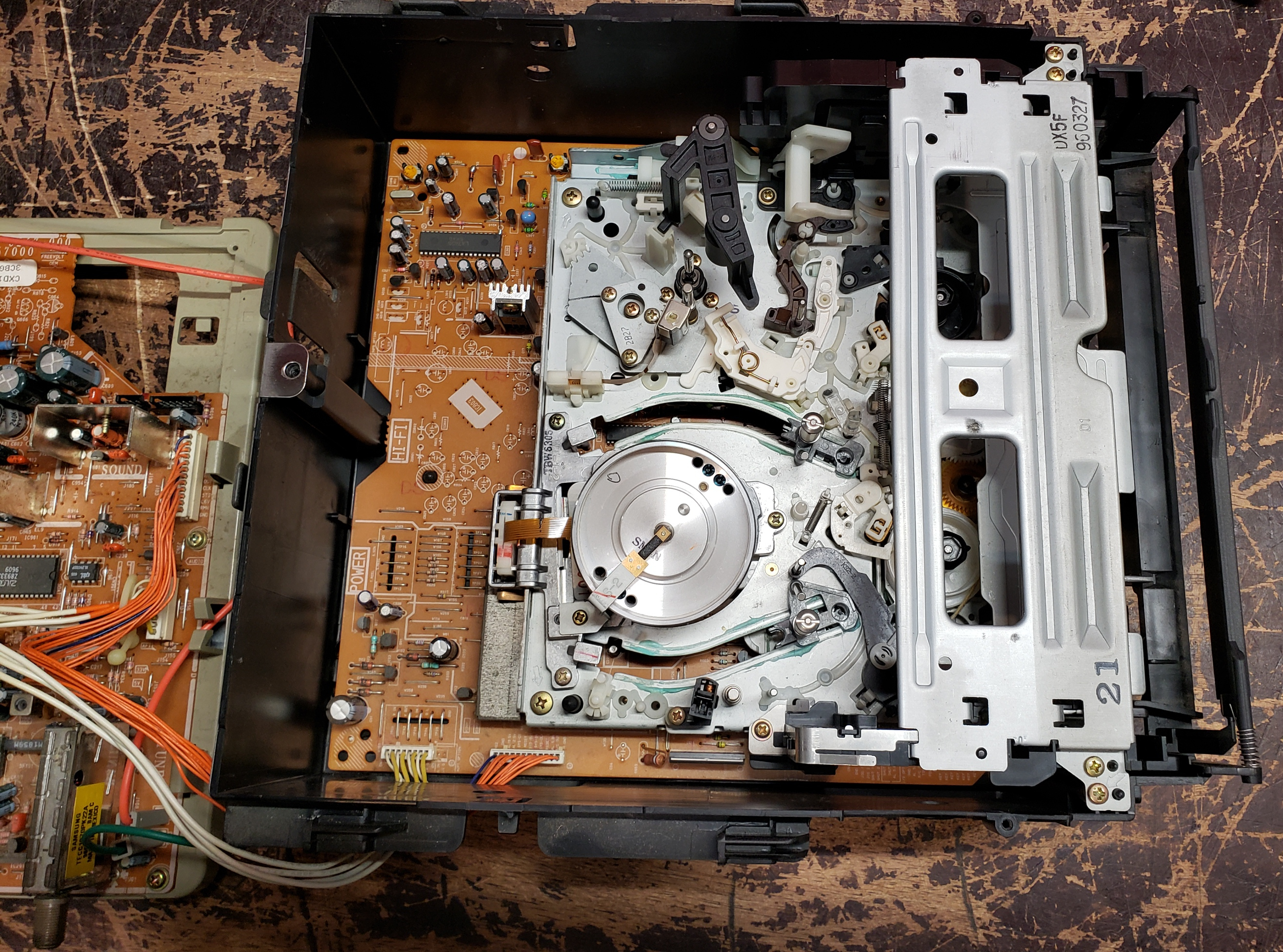

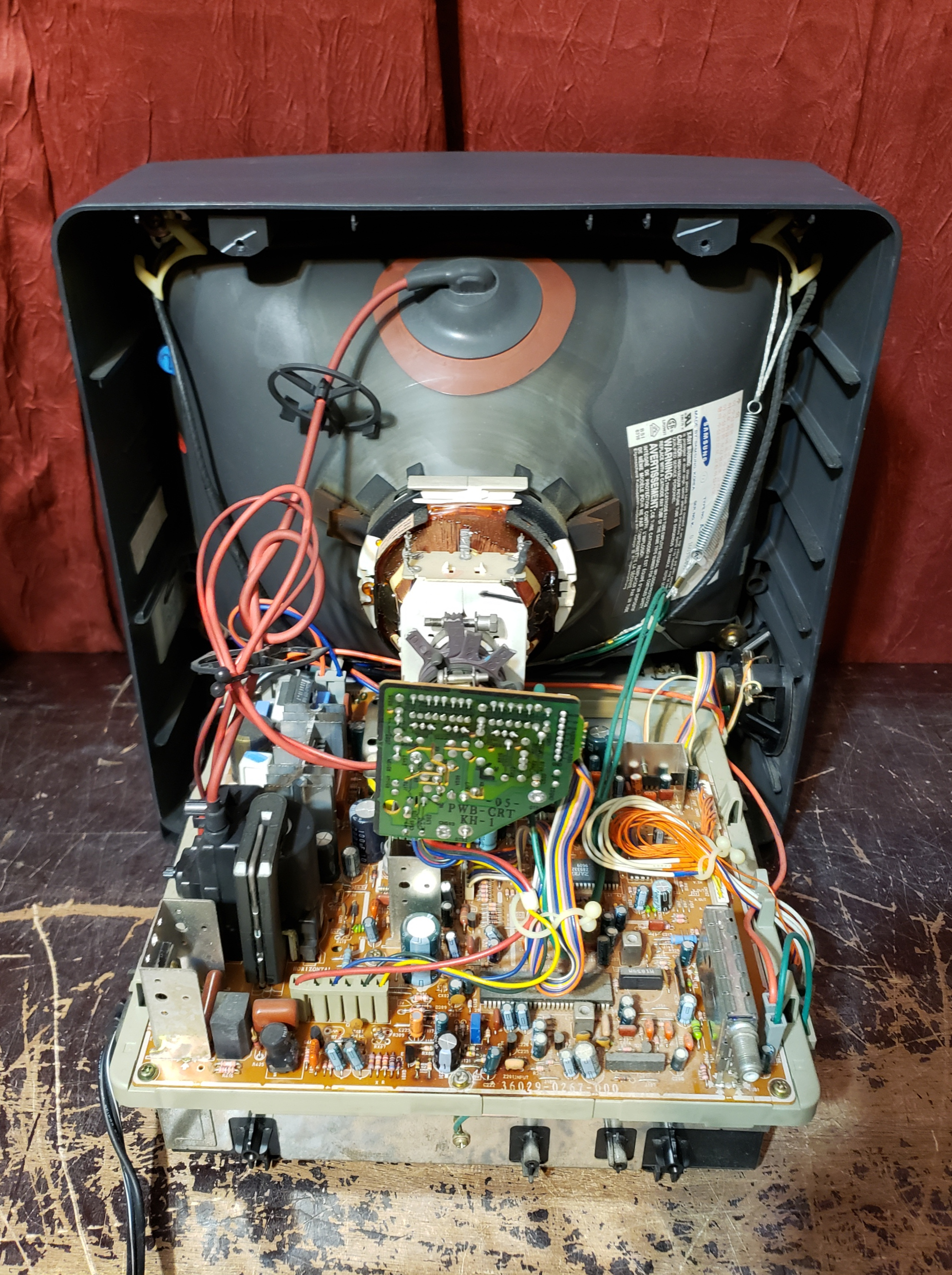

Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | CXD1334 |
| Series: | CXD |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | None |

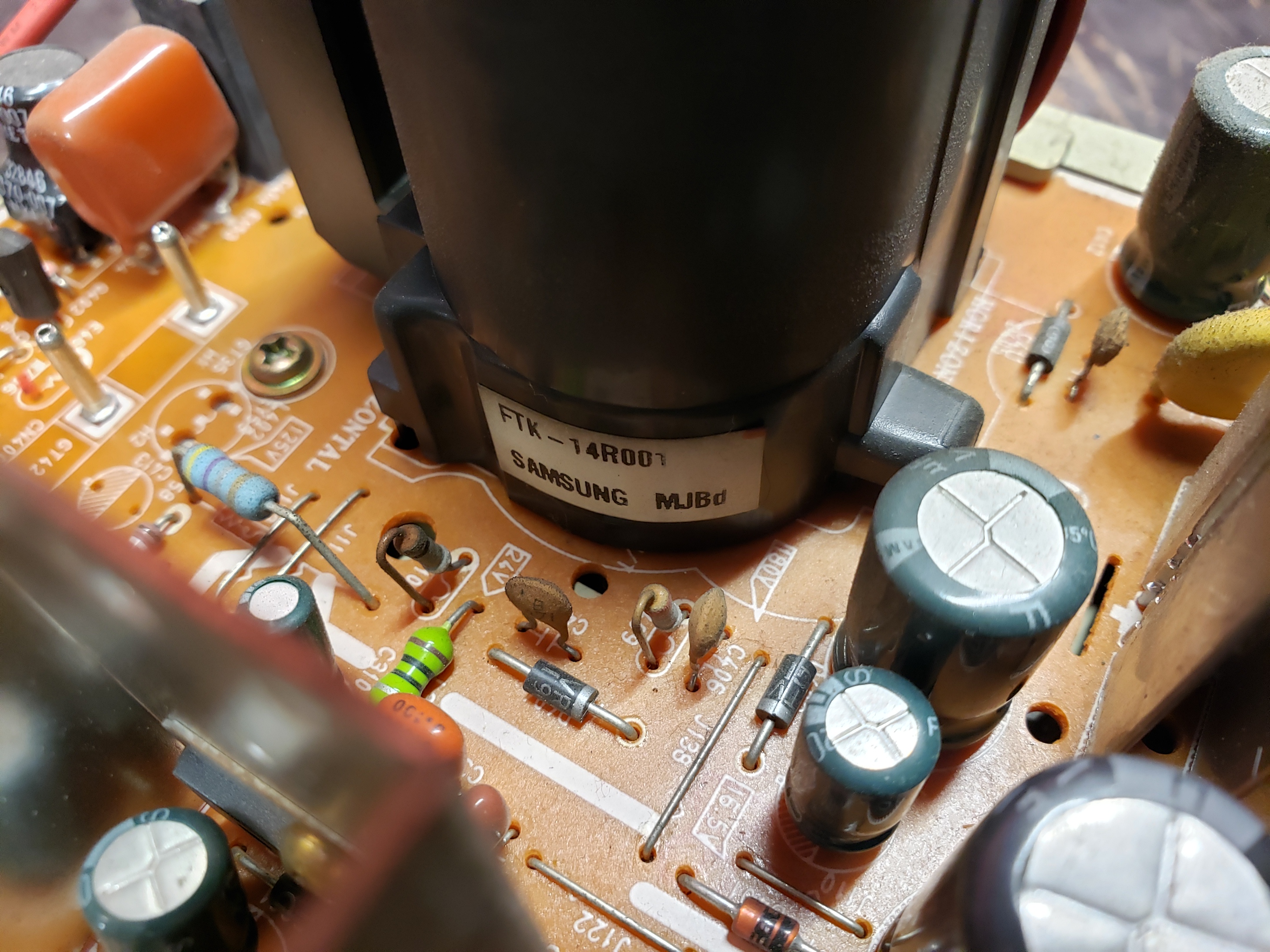

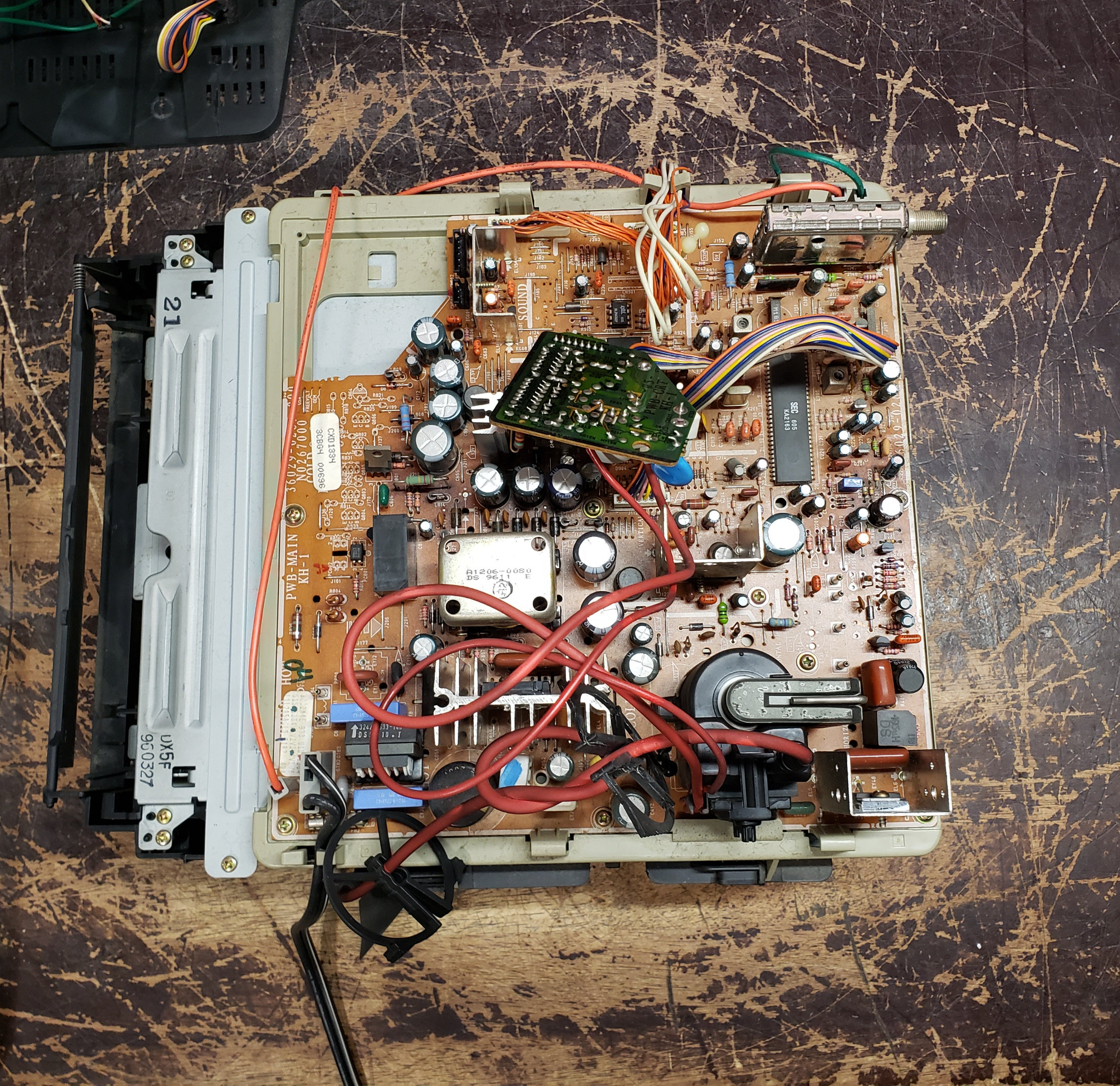

| Flyback: | FTK-14R001 |
| Focus Type: | Single |

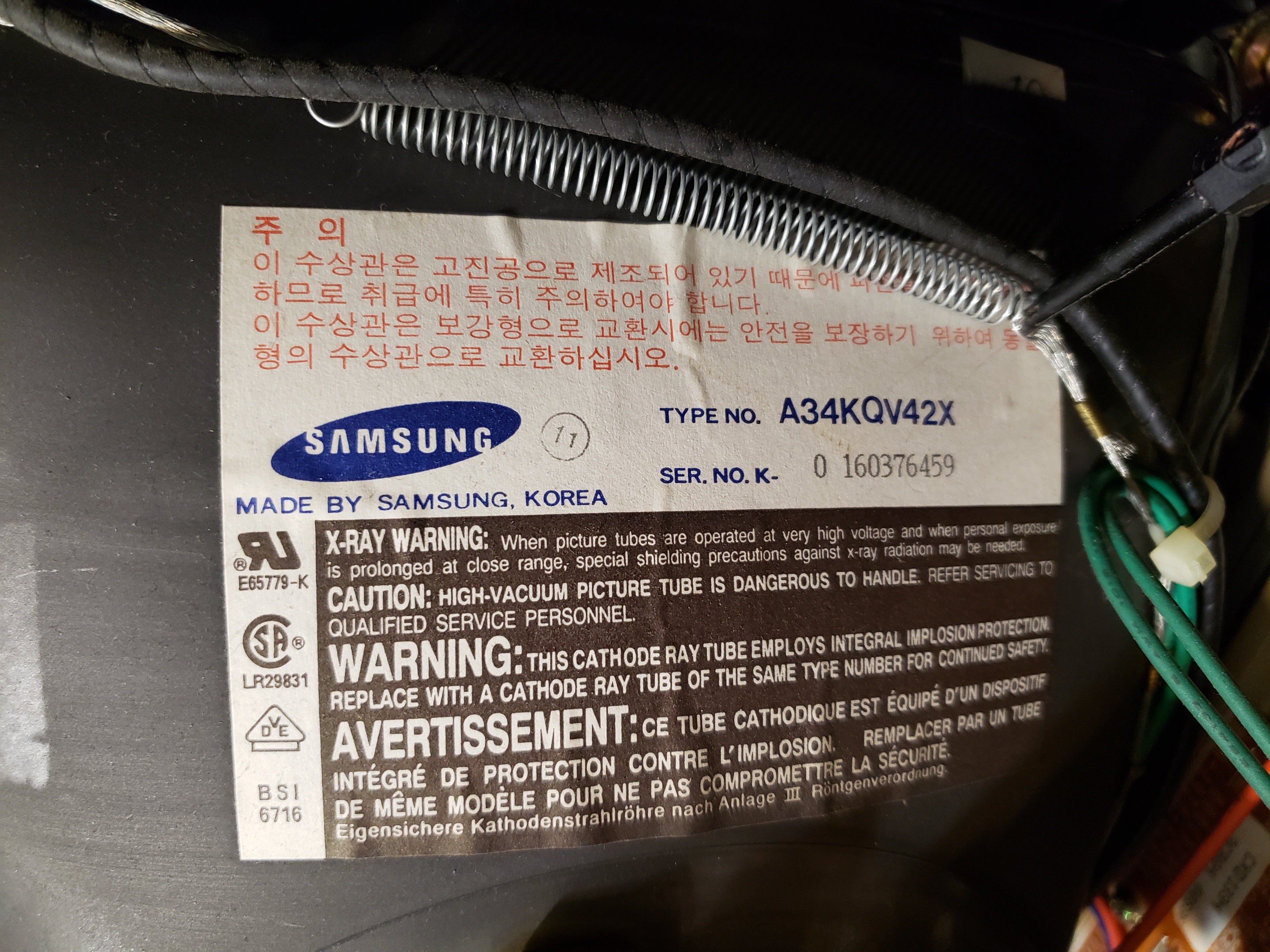

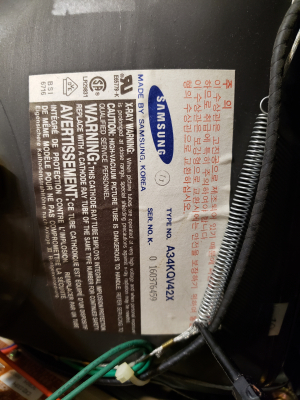

| Tube: | Samsung , A34KQV42X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

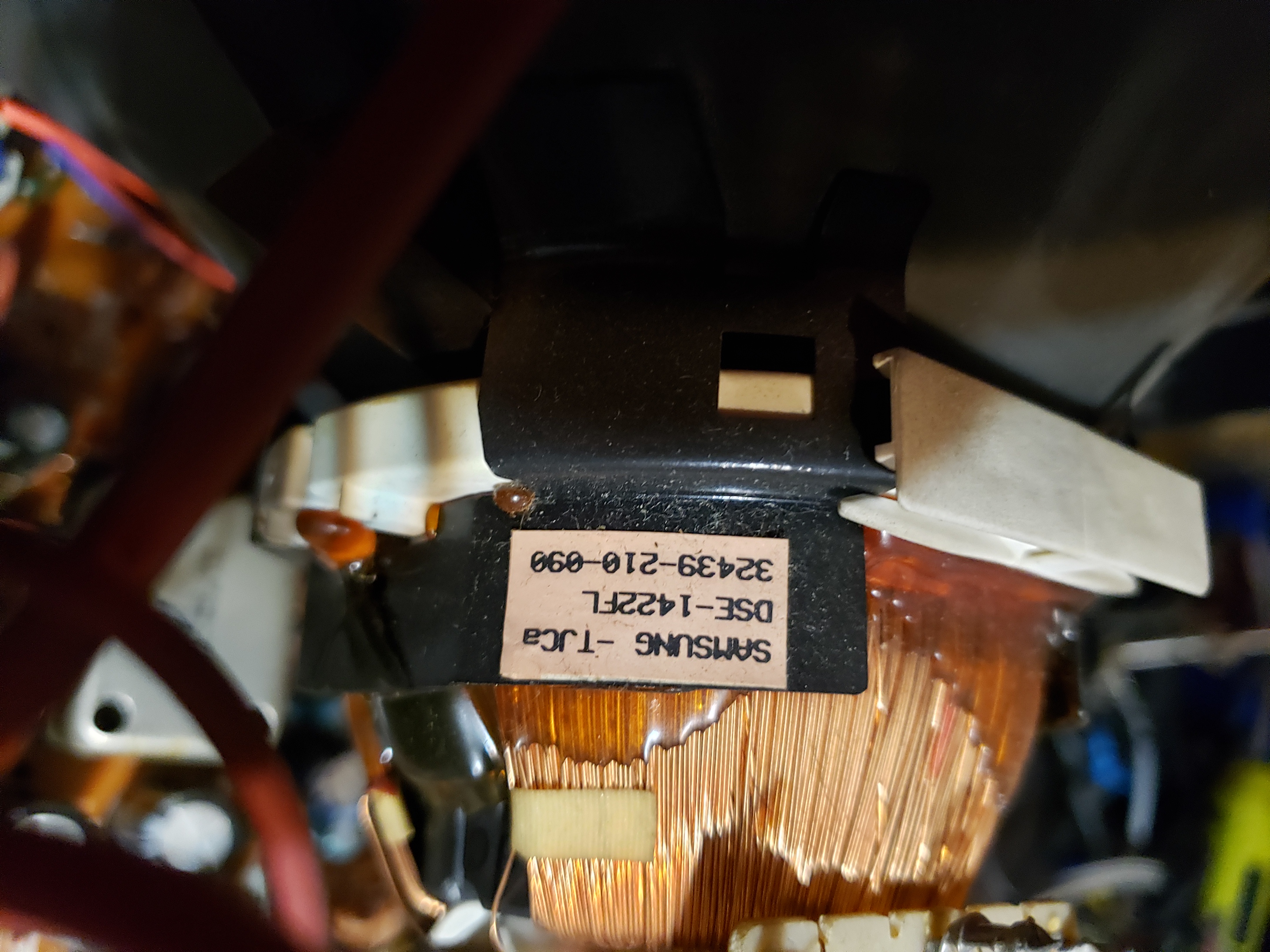

| Yoke: | DSE-1422FL |
| Yoke Horz. Inductance: | 3.213 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.80 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.1 ohm |
| Yoke Vert. Resistance: | 13.9 ohm |
| Speakers: | Mono |
| Remote: | AA59-10026 |
| Weight: | 27.56 lbs (12.5 kg) |
| Dimensions (W/H/D): |
362 x 382 x 382.5 mm
(14.2 x 15 x 15") |

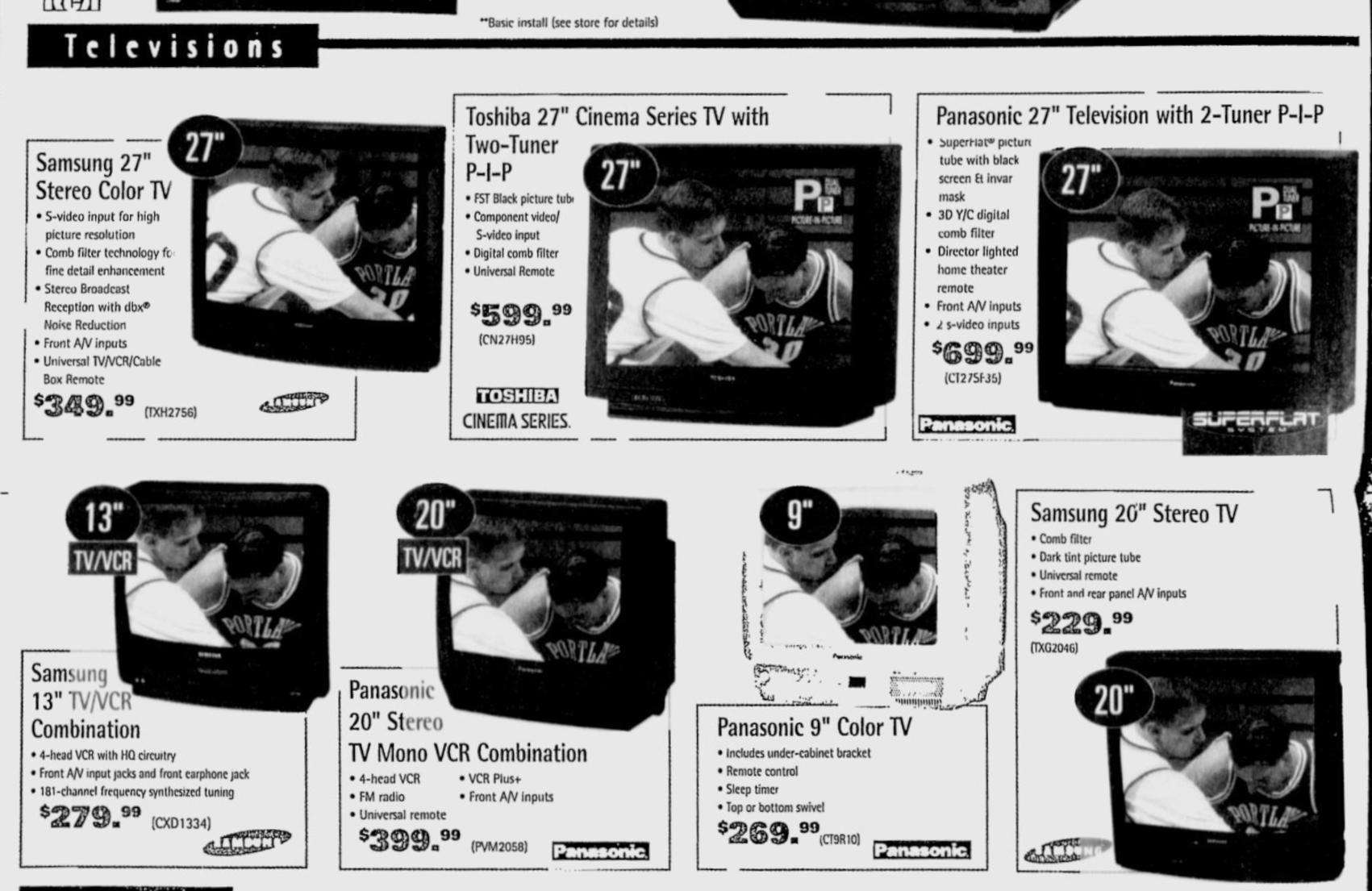

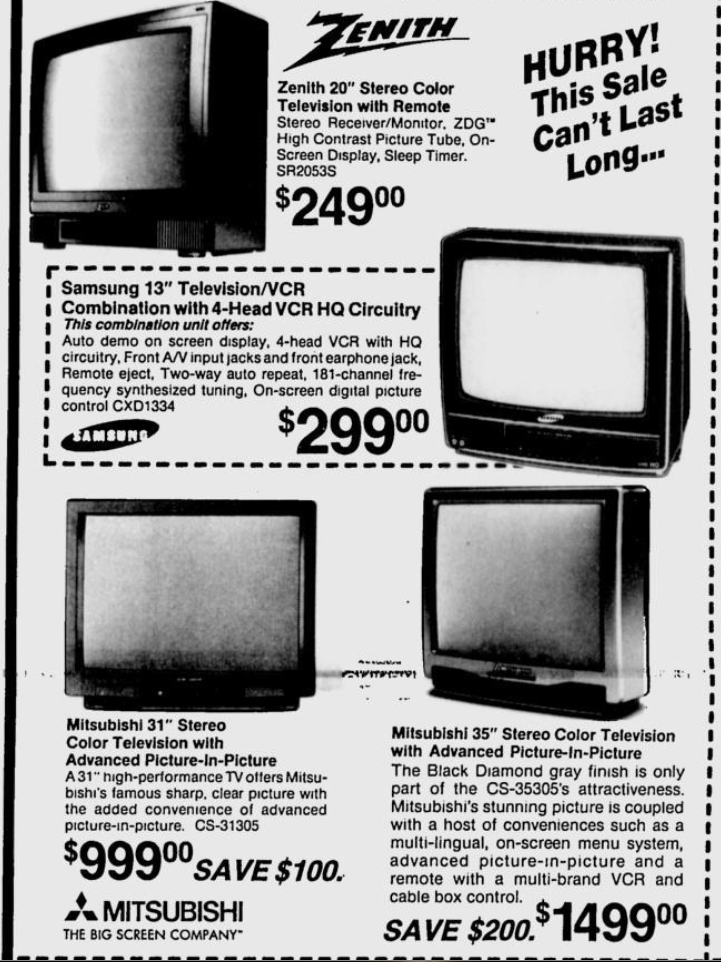

| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 329 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Repair Log |
