Samsung SyncMaster 793S

Summary

Typical specs for a 17" CRT with 70kHz horizontal and 160Hz vertical. It could be bought in a Beige or in black color.

Manuals

Notes

This CRT monitor is missing a Service manual. Drivers can be found on Samsung's website

Gallery

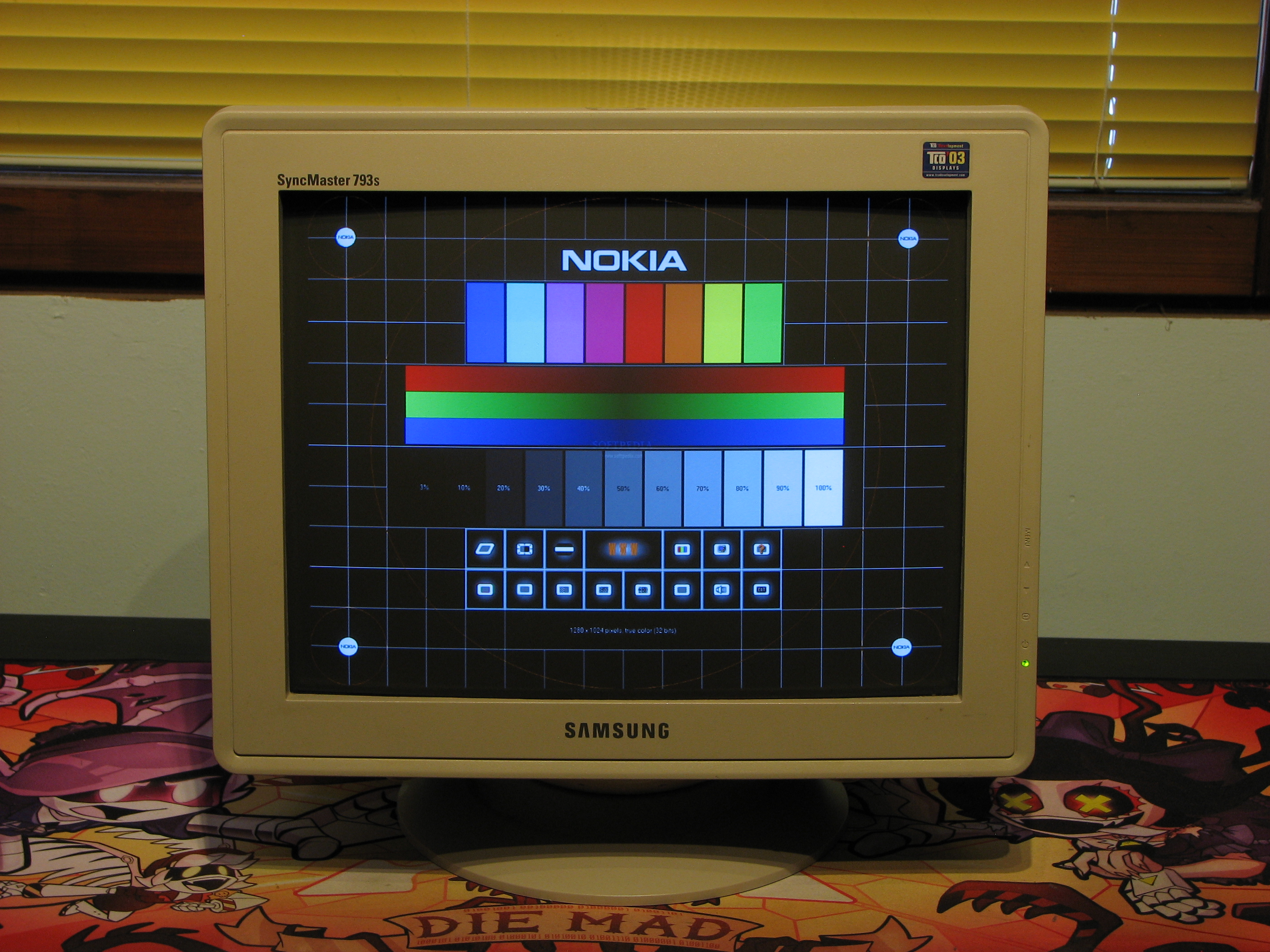

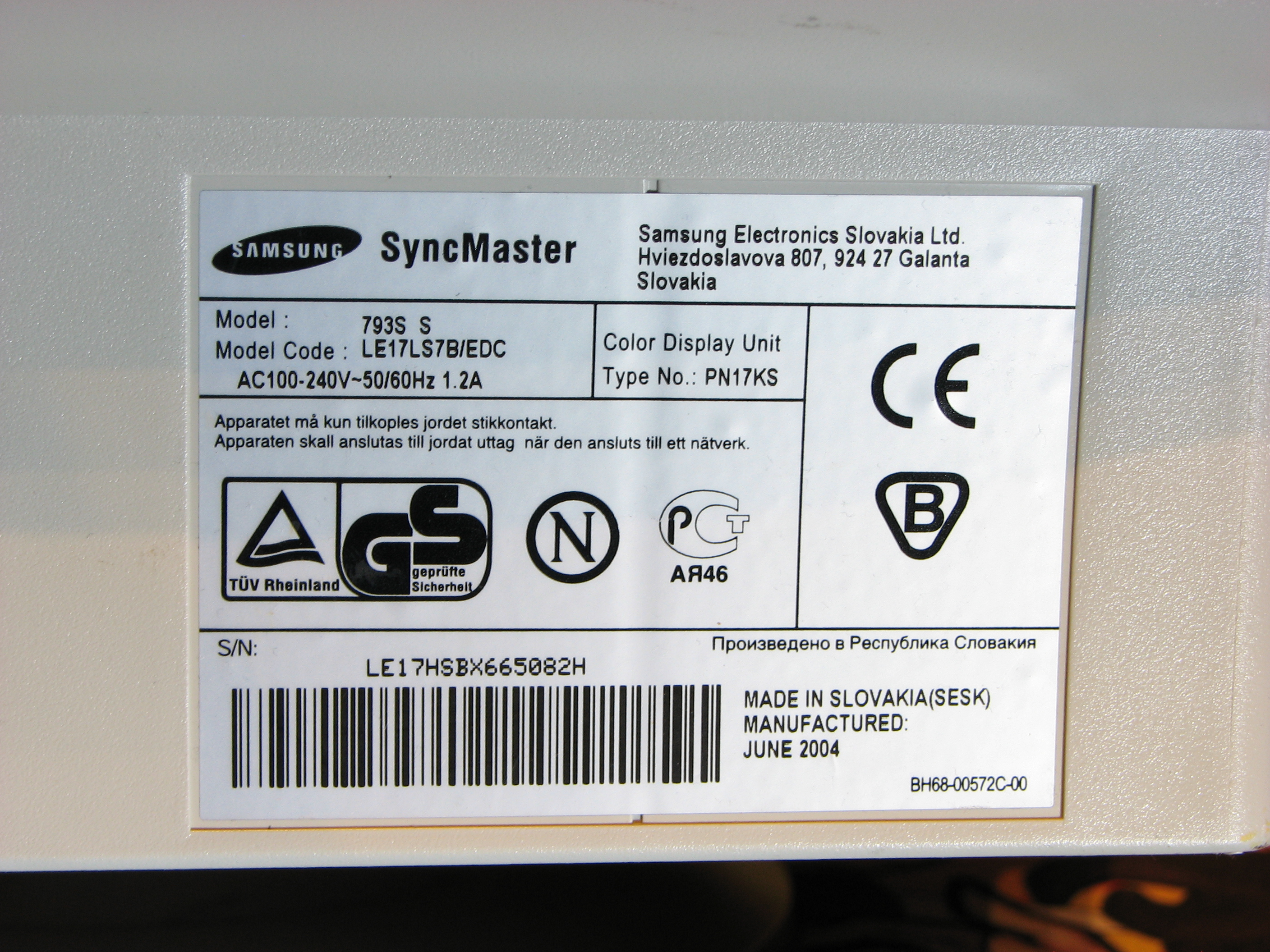

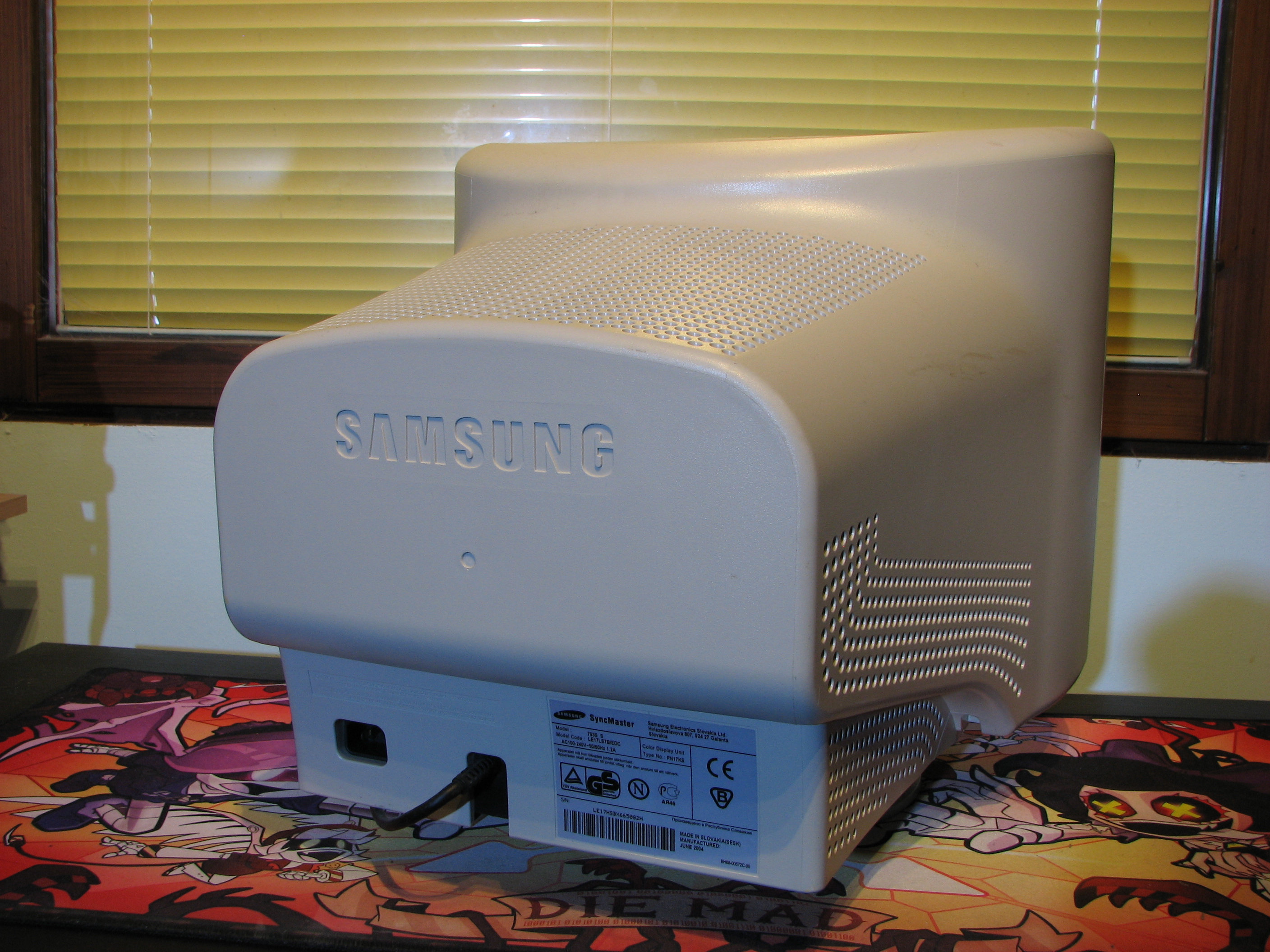

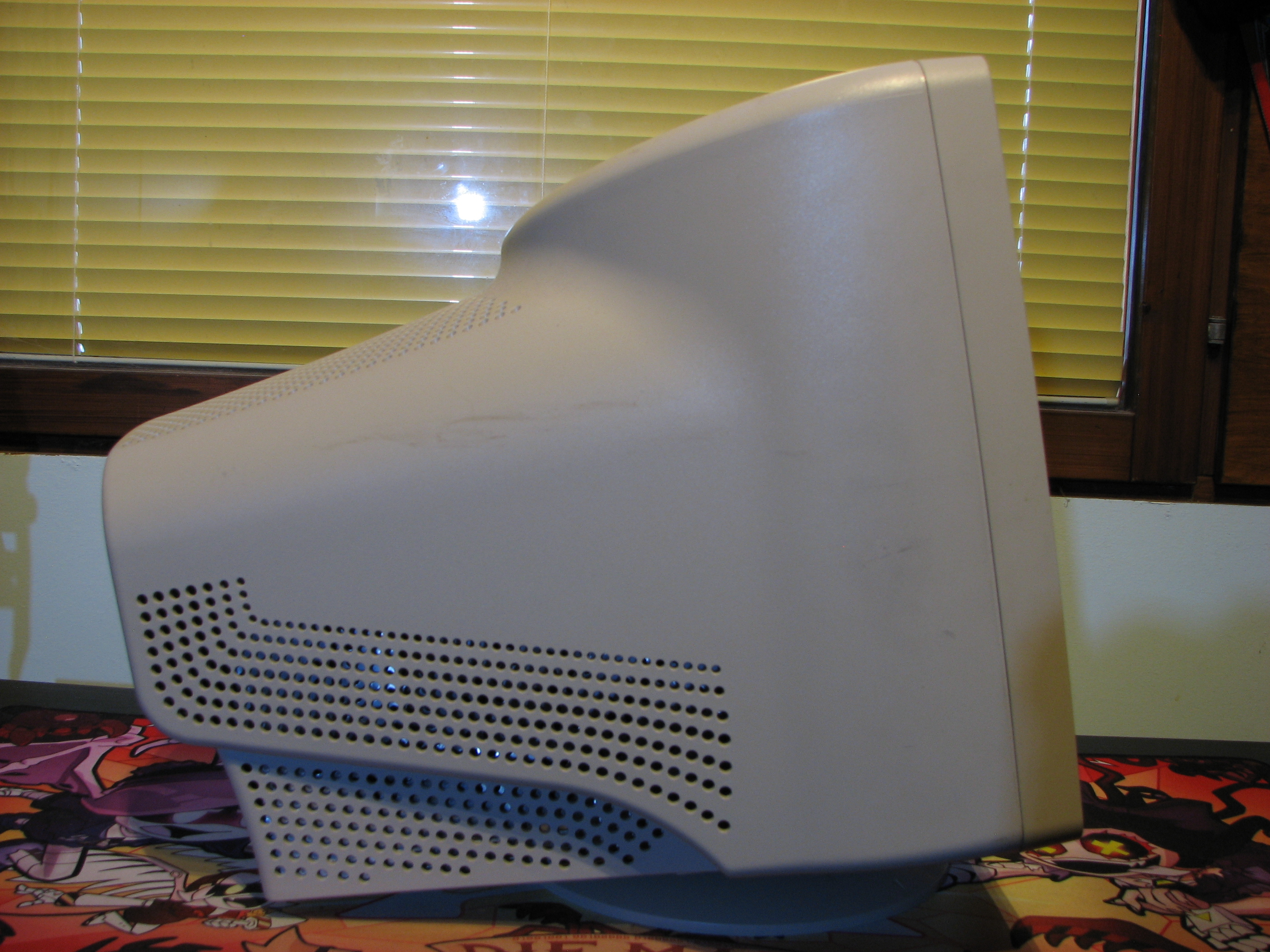

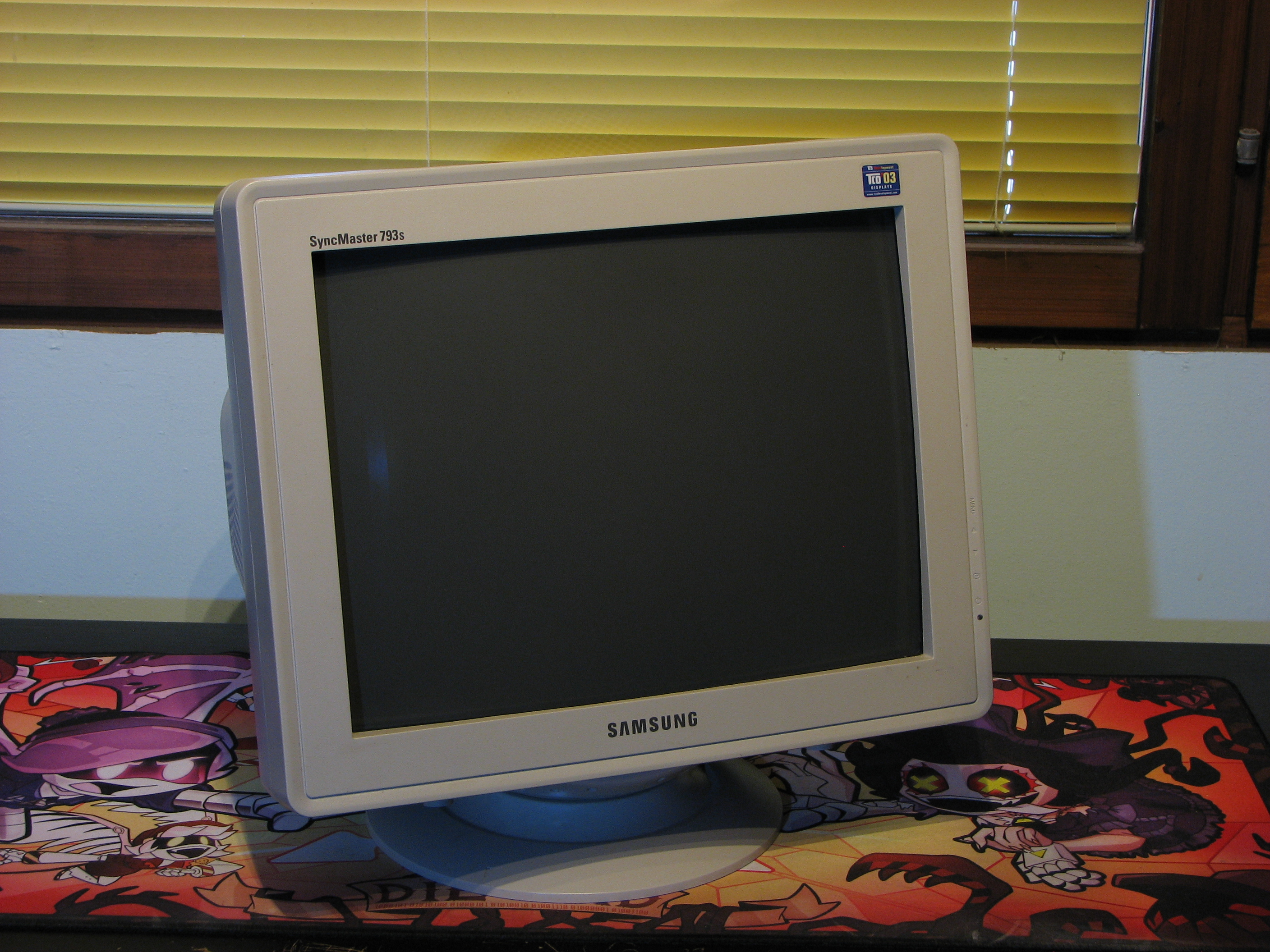

Samsung SyncMaster 793S Samsung SyncMaster 793S Samsung SyncMaster 793S Samsung SyncMaster 793S
Specifications
Brand: Samsung
Manufacturer: Samsung
Model: SyncMaster 793S
Series: SyncMaster SoHo
Viewable Size: 16"
Input Signals: VGA
Sync: HV Sync
Native Resolutions: VGA, SVGA, XGA, SXGA
Horizontal Scan Range: 30 kHz, 70 kHz
Vertical Scan Range: 50 Hz, 160 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls, Digital Convergence
Focus Type: Dual
Pitch: 23 mm
Tint: Dark
Removable Glare Film: No
Speakers: None
Remote: None
Weight: 31 lbs (14.1 kg)
Dimensions (W/H/D): 401 x 378 x 410 mm
(15.8 x 14.9 x 16.1")
Application: Computer Monitor
Cabinet Material: Plastic
Launched: 2004
Market: Europe
Power Standard: Universal
Mounting: Desk Stand
Degaussing: Automatic on Power-on, Manual
Tag: Needs Service Manual, Needs Yoke Info, Needs Tube Info, Community Submission
