Samsung TC-2770S

SegaSaturn94
July 29, 2026, 11:19 am
July 29, 2026, 3:34 pm

Summary

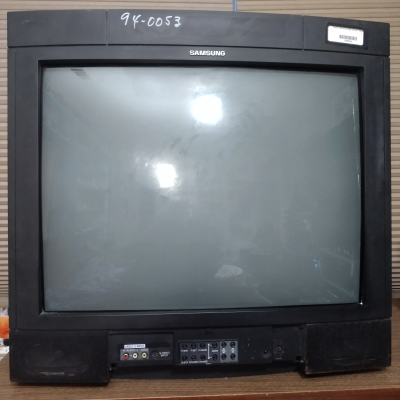

Higher-end 27" CRT by Samsung, launched in 1992. Has RF, composite, and s-video inputs with stereo sound. Originally manufactured in Mexico.

(Special thanks to Kat Backslide for some of the pics!)

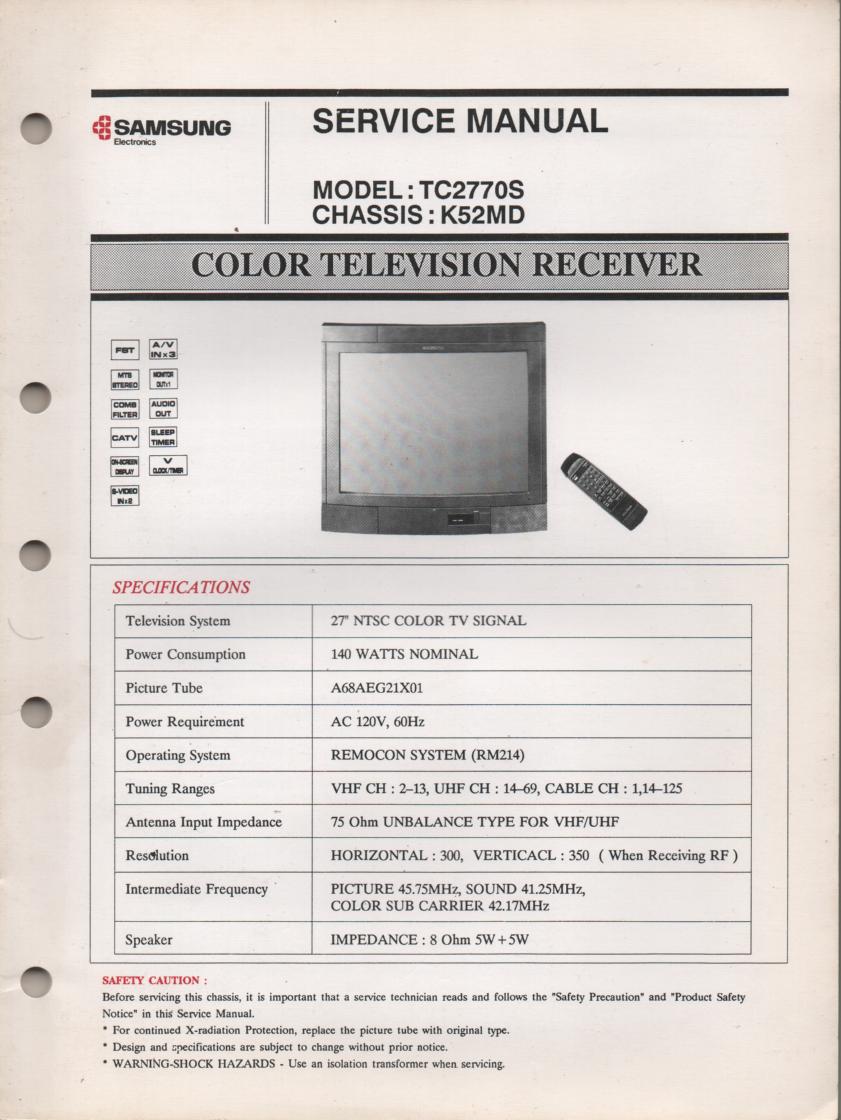

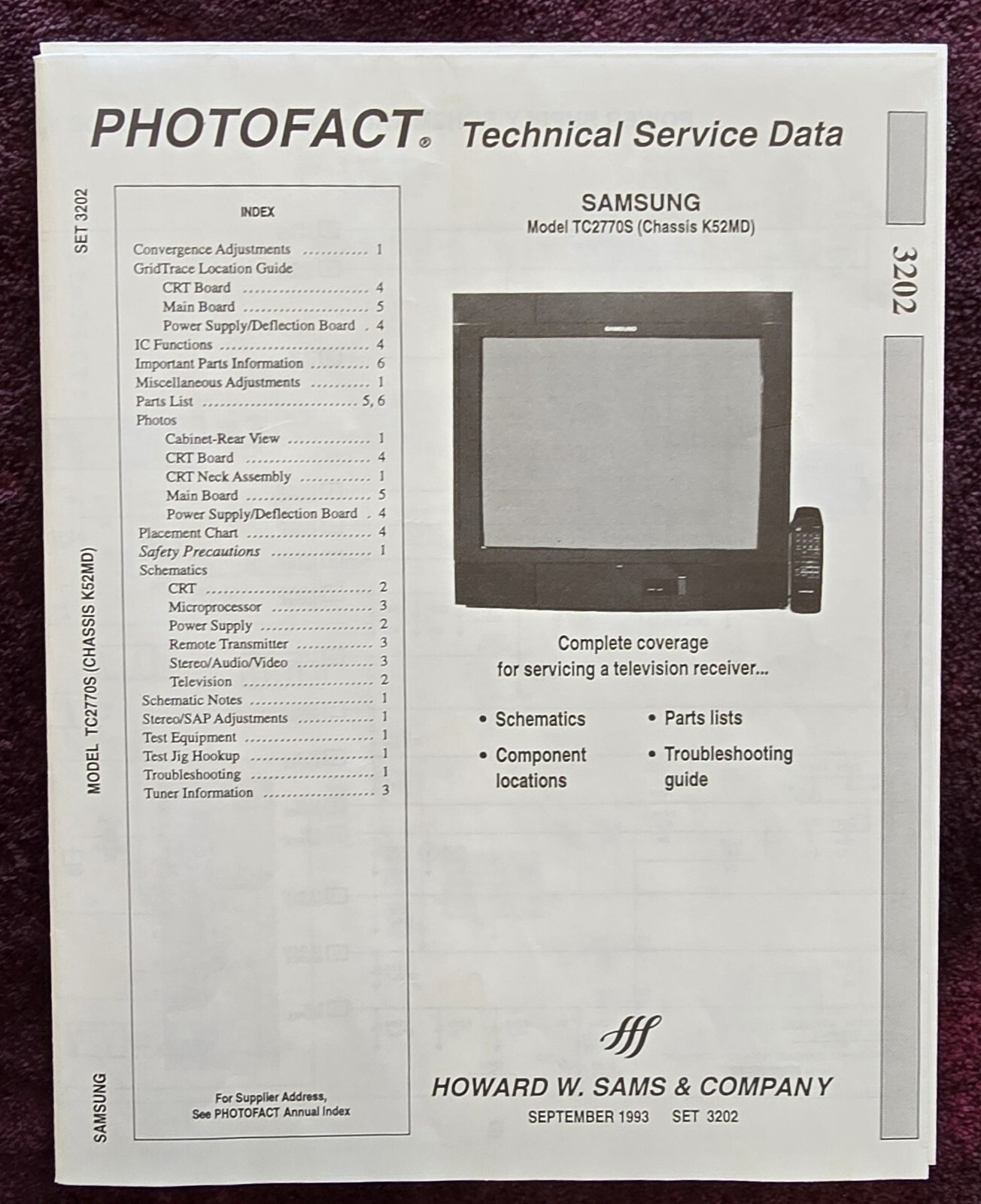

Manuals

(None at this time.)

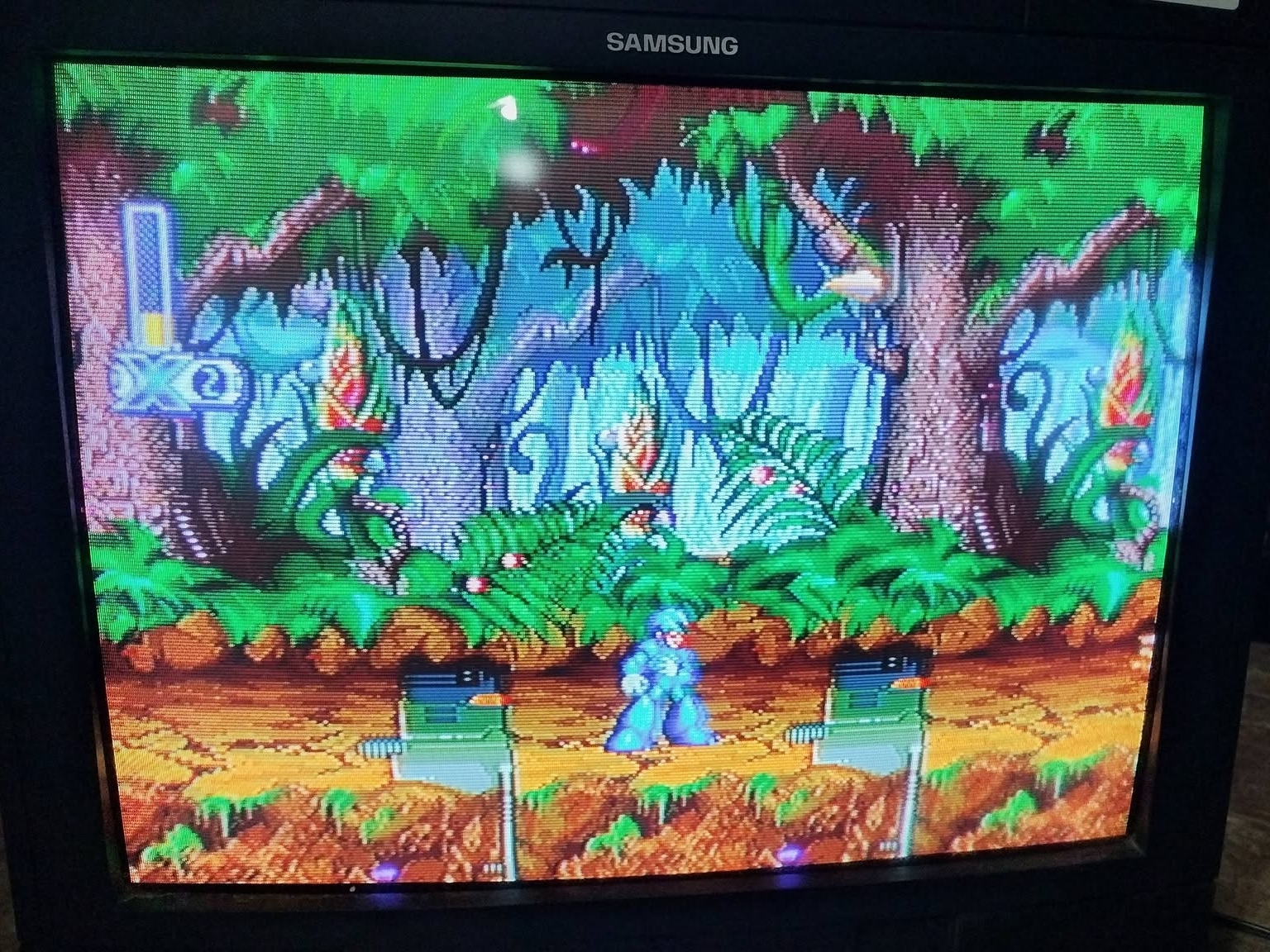

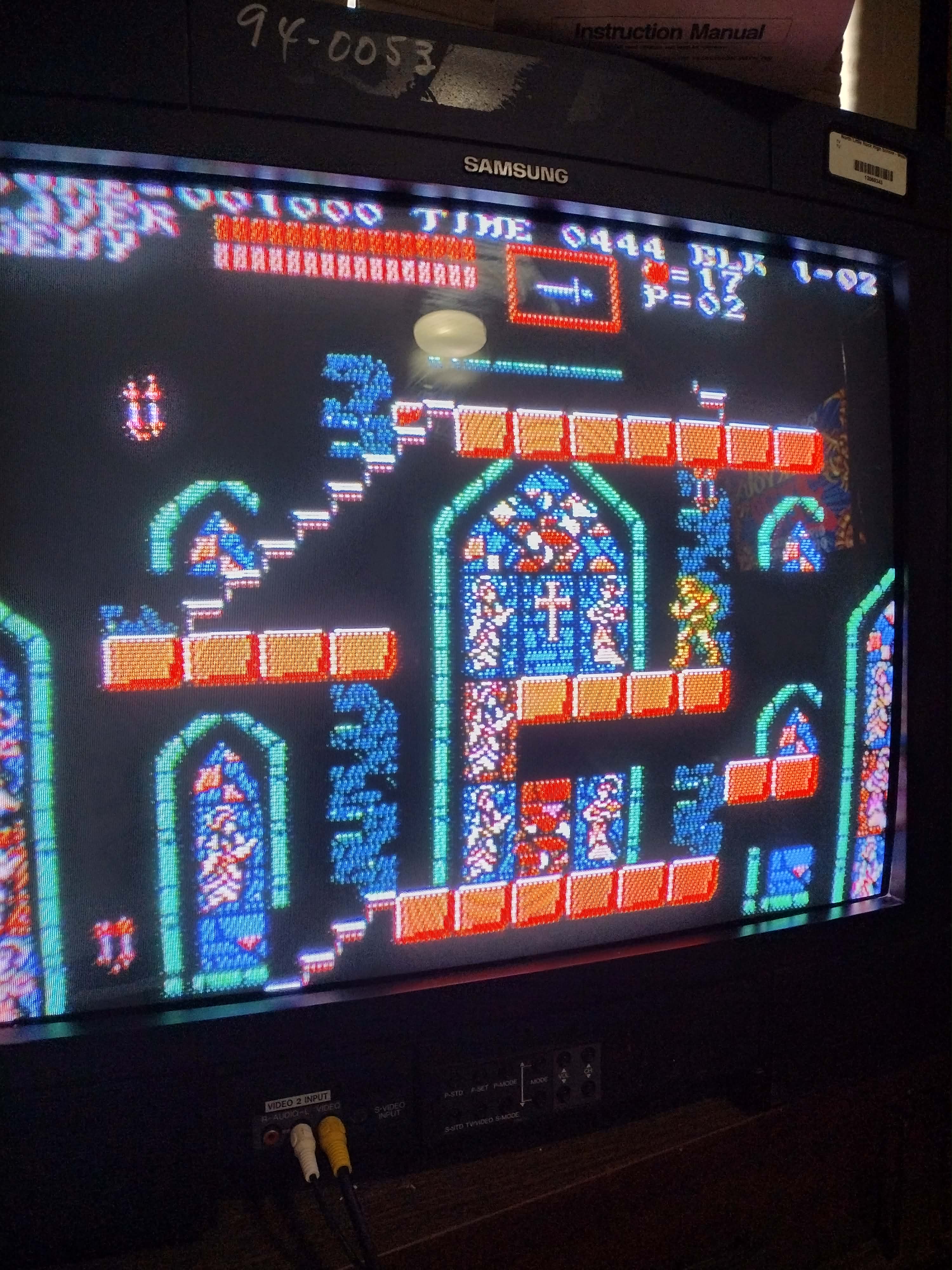

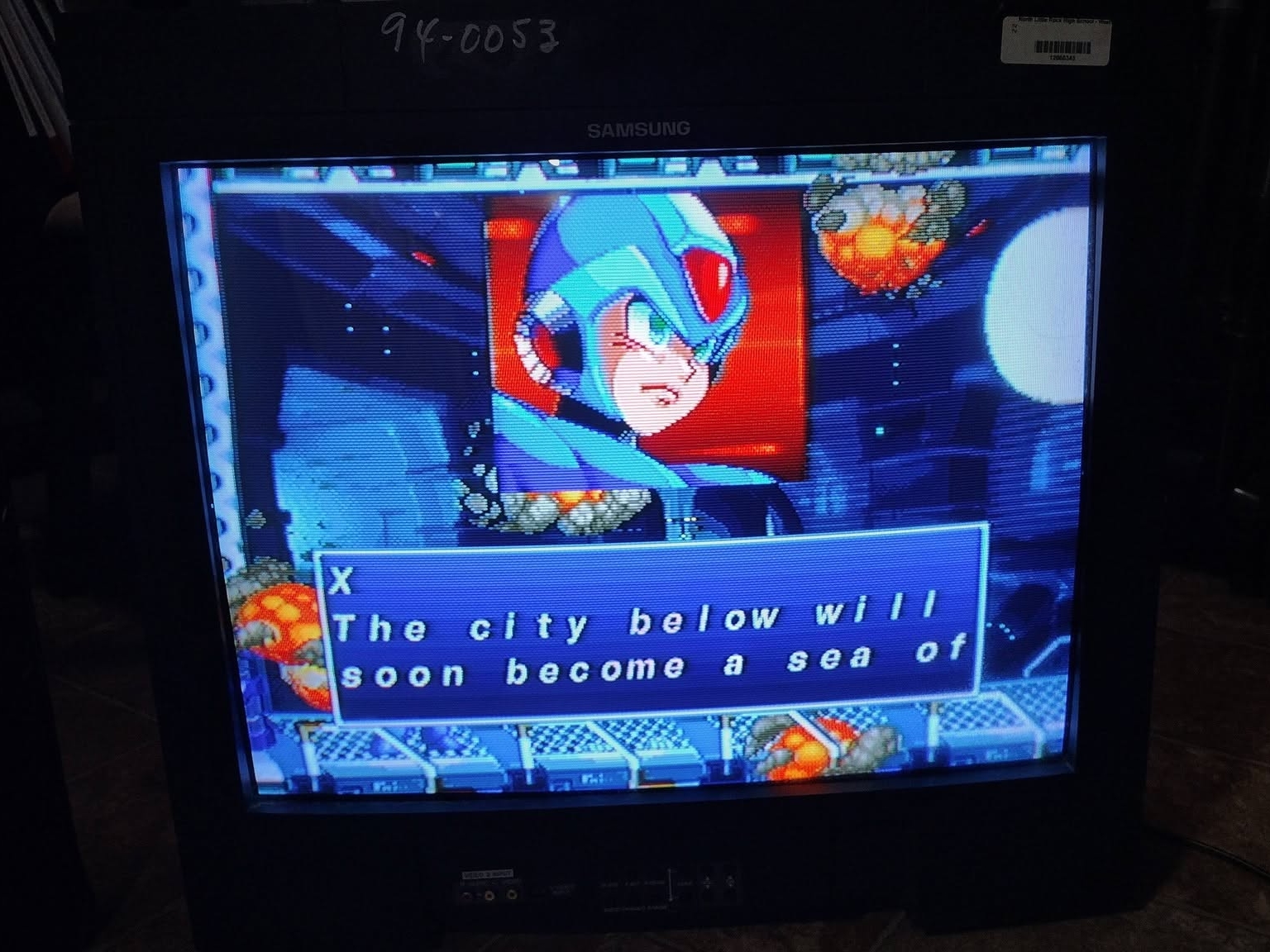

Gallery

Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S Samsung TC-2770S
Specifications
Brand: Samsung
Manufacturer: Samsung
Model: TC-2770S
Series: TC
Viewable Size: 27"

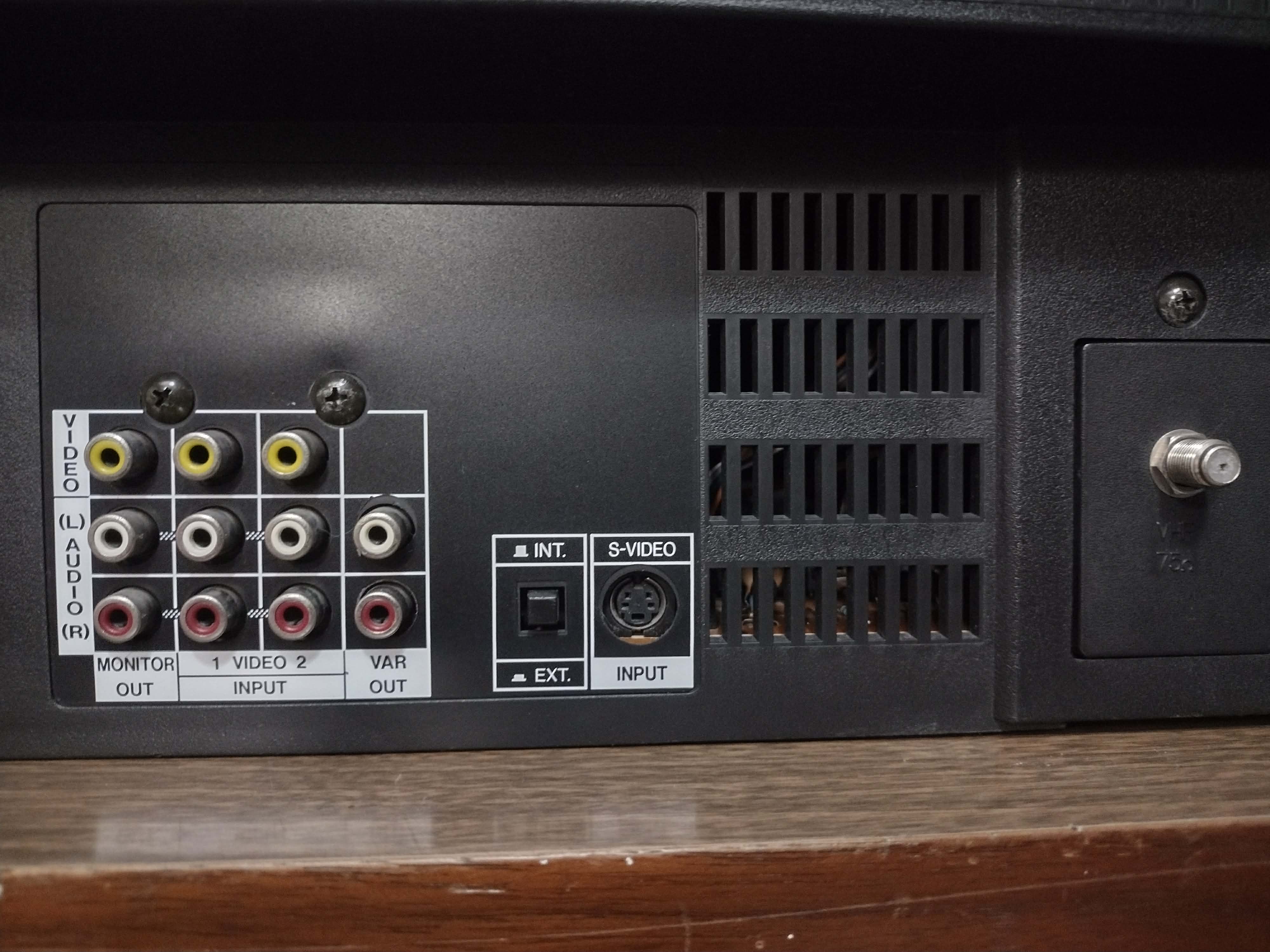

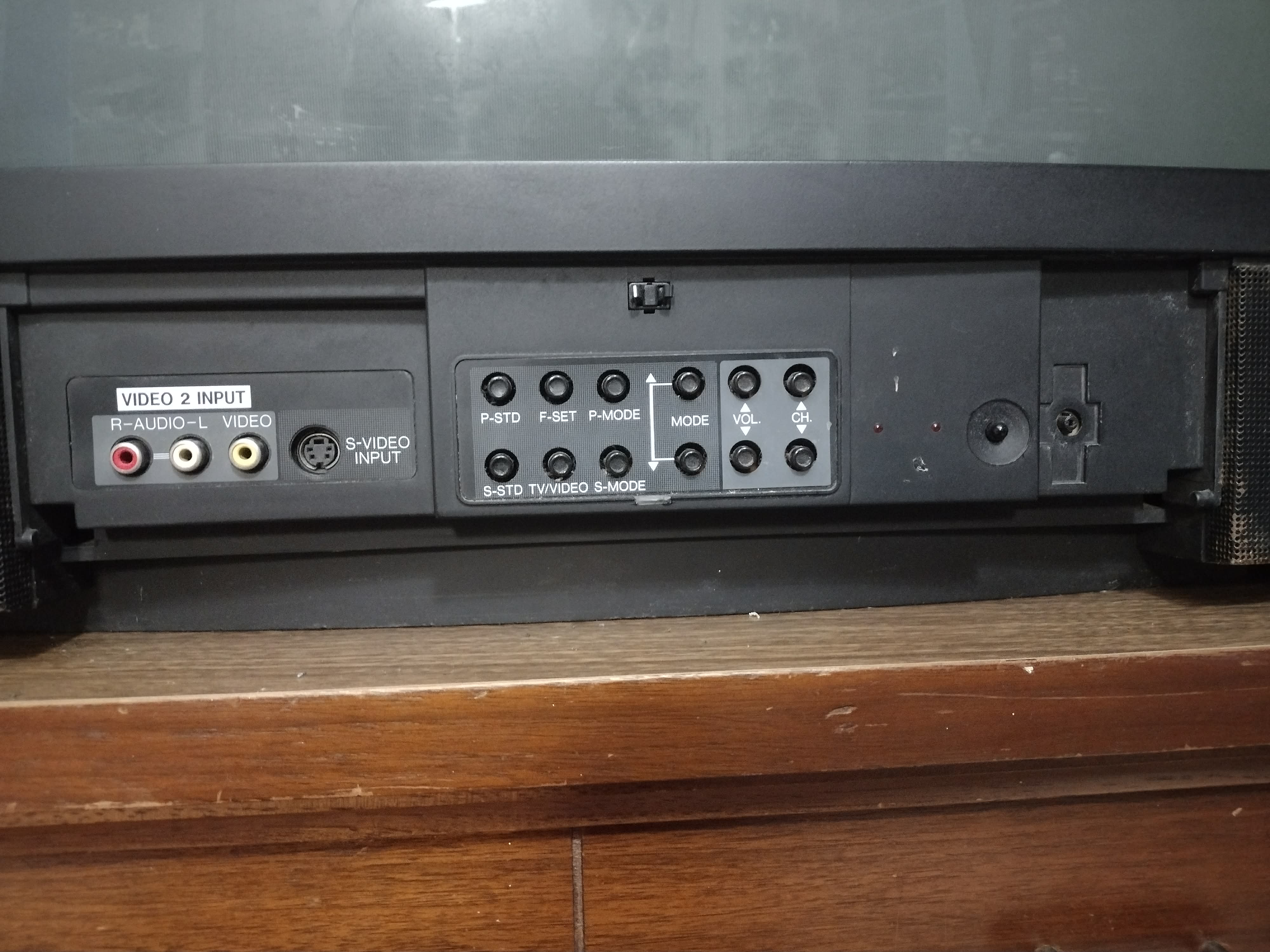

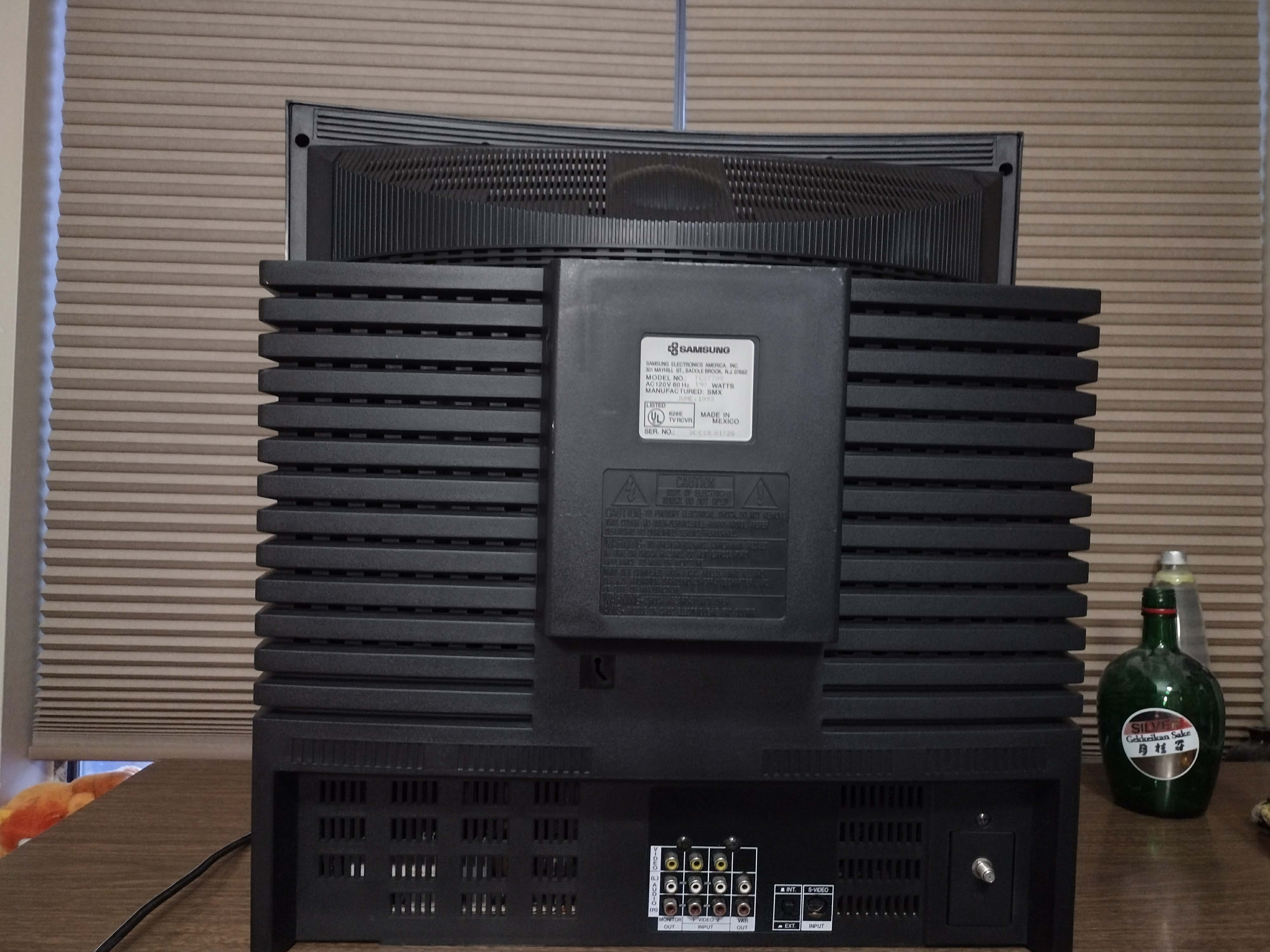

Input Signals: Composite, S-Video, RF

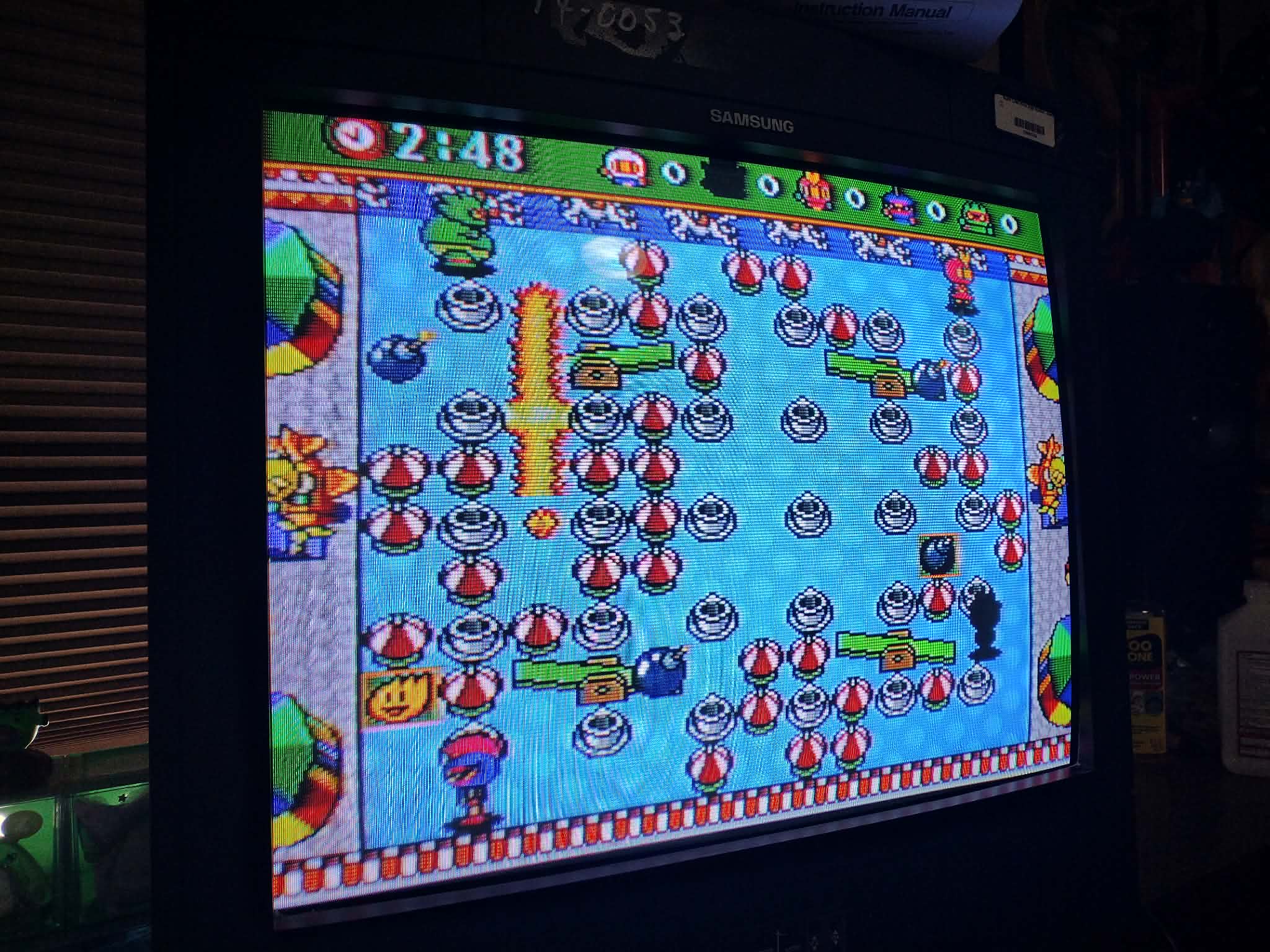

Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: Internal Potentiometers, OSD Customer Controls

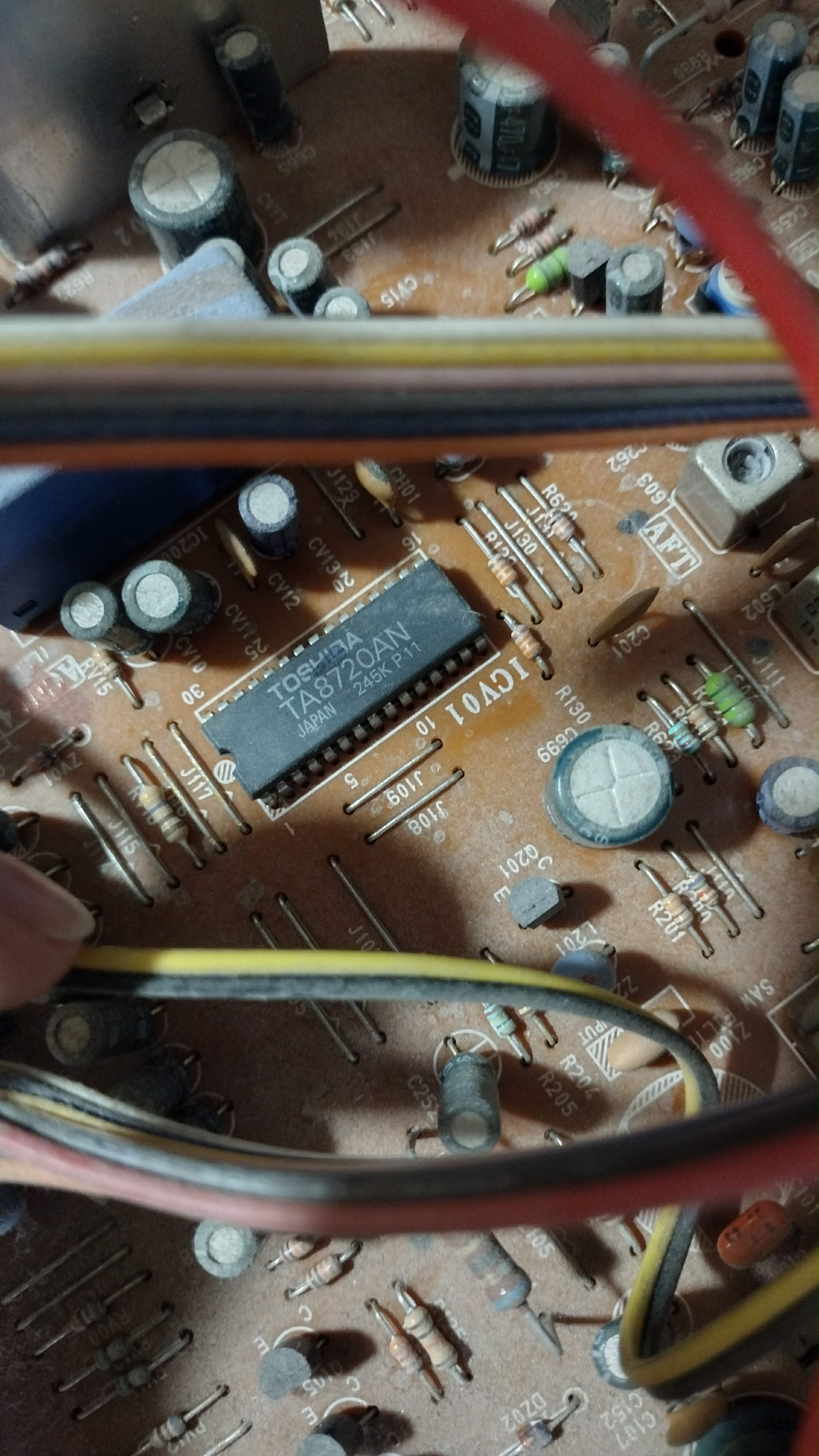

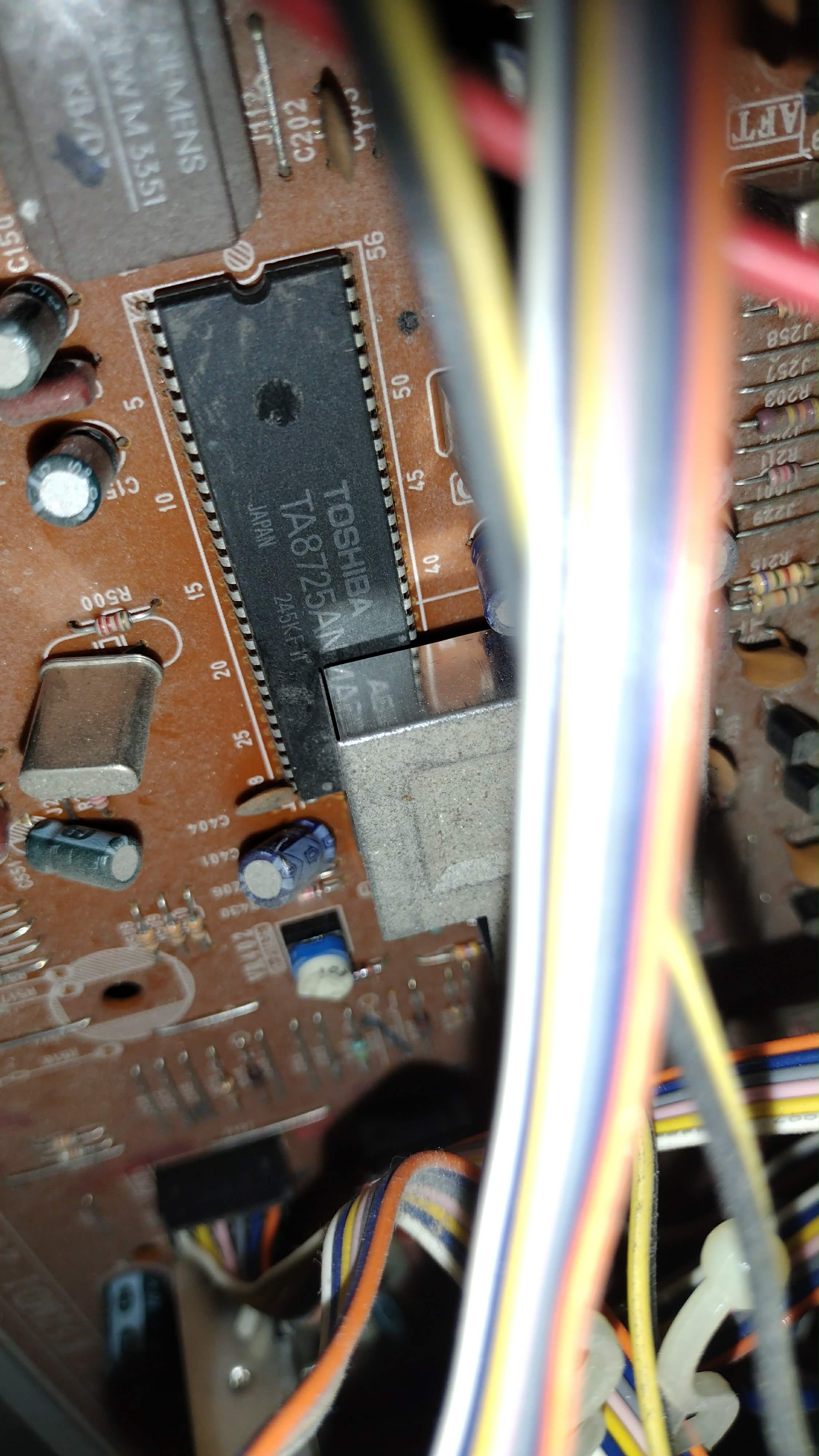

Jungle IC: Toshiba, TA8725AN, TA8725
Comb Filtering: 2-Line Digital

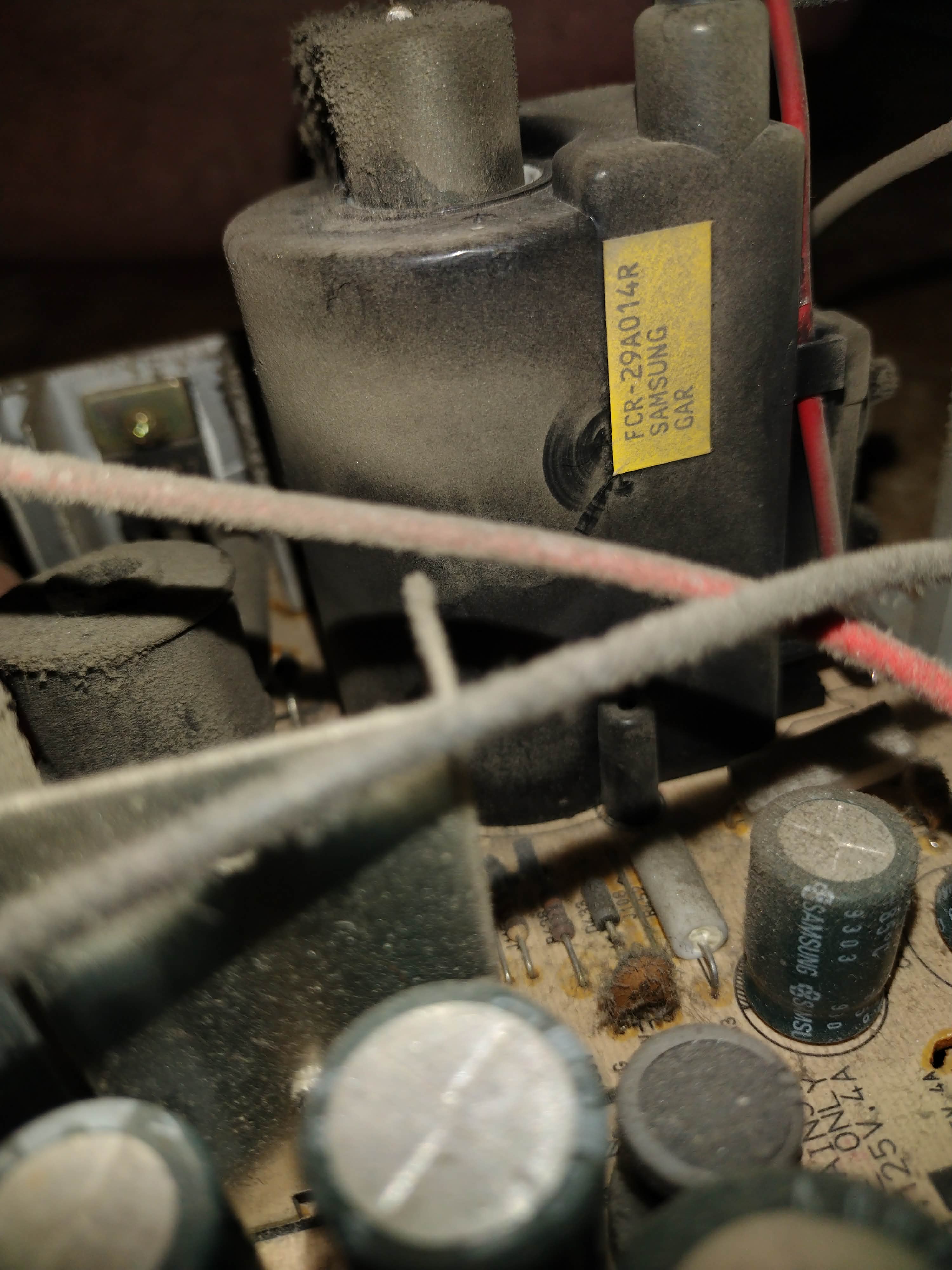

Flyback: FCR-29A014R
Focus Type: Single

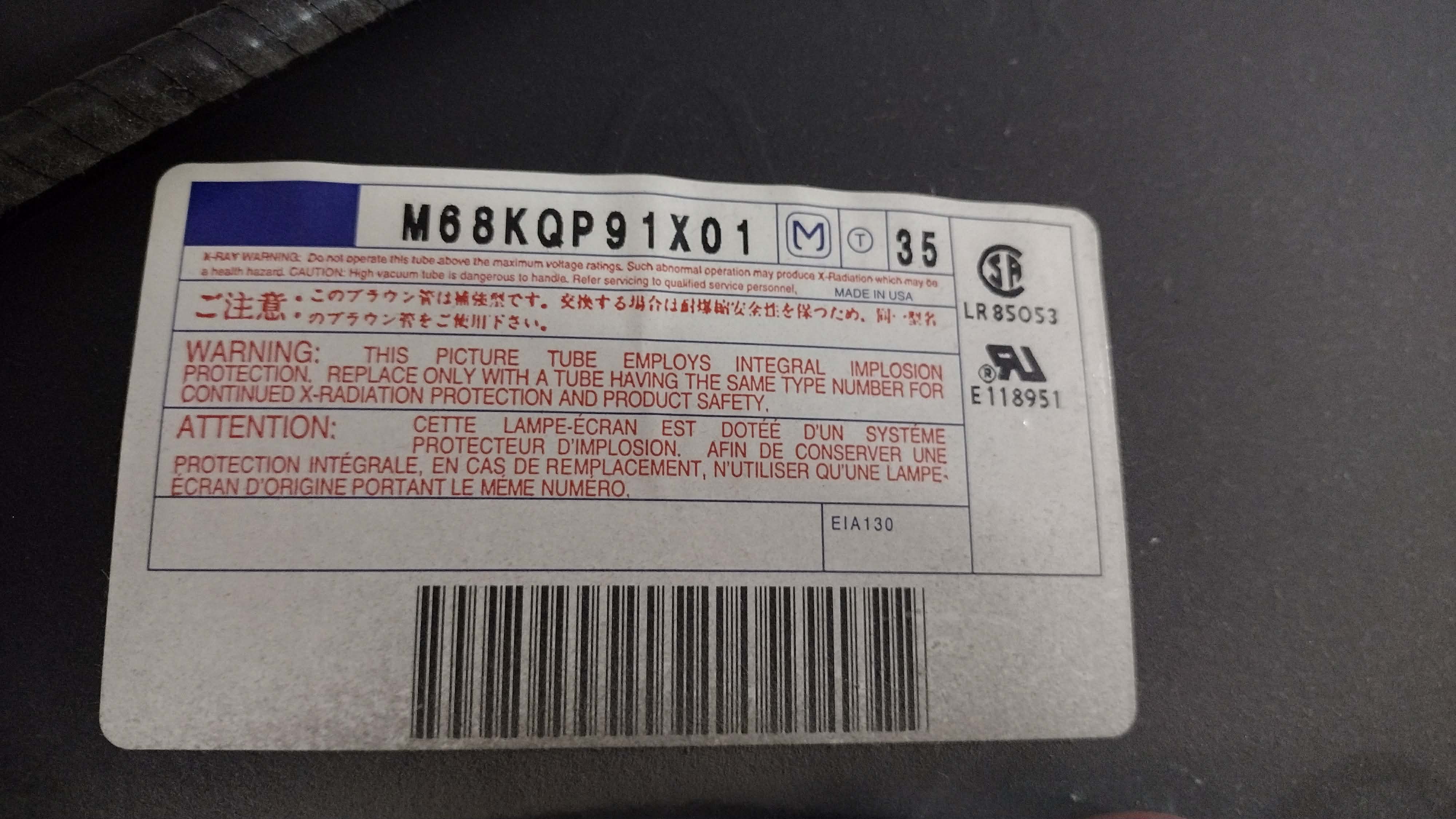

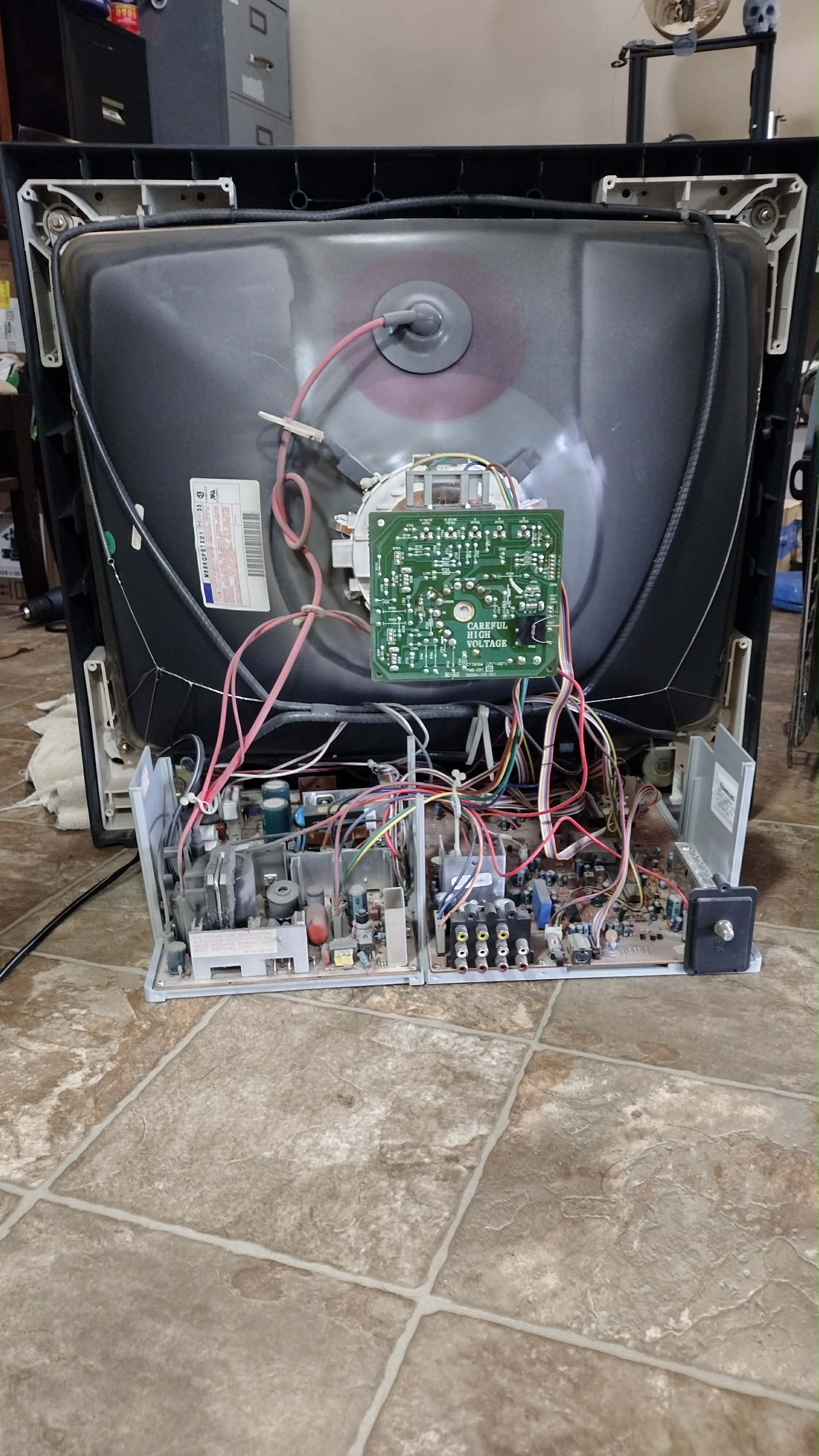

Tube: Panasonic , Thomson , RCA , M68KQP91X , M68KQP91X01 , A68AEG21X , A68AEG21X01
Heater Voltage: 6.3v
Mask: Slot
Tint: Dark
Removable Glare Film: No

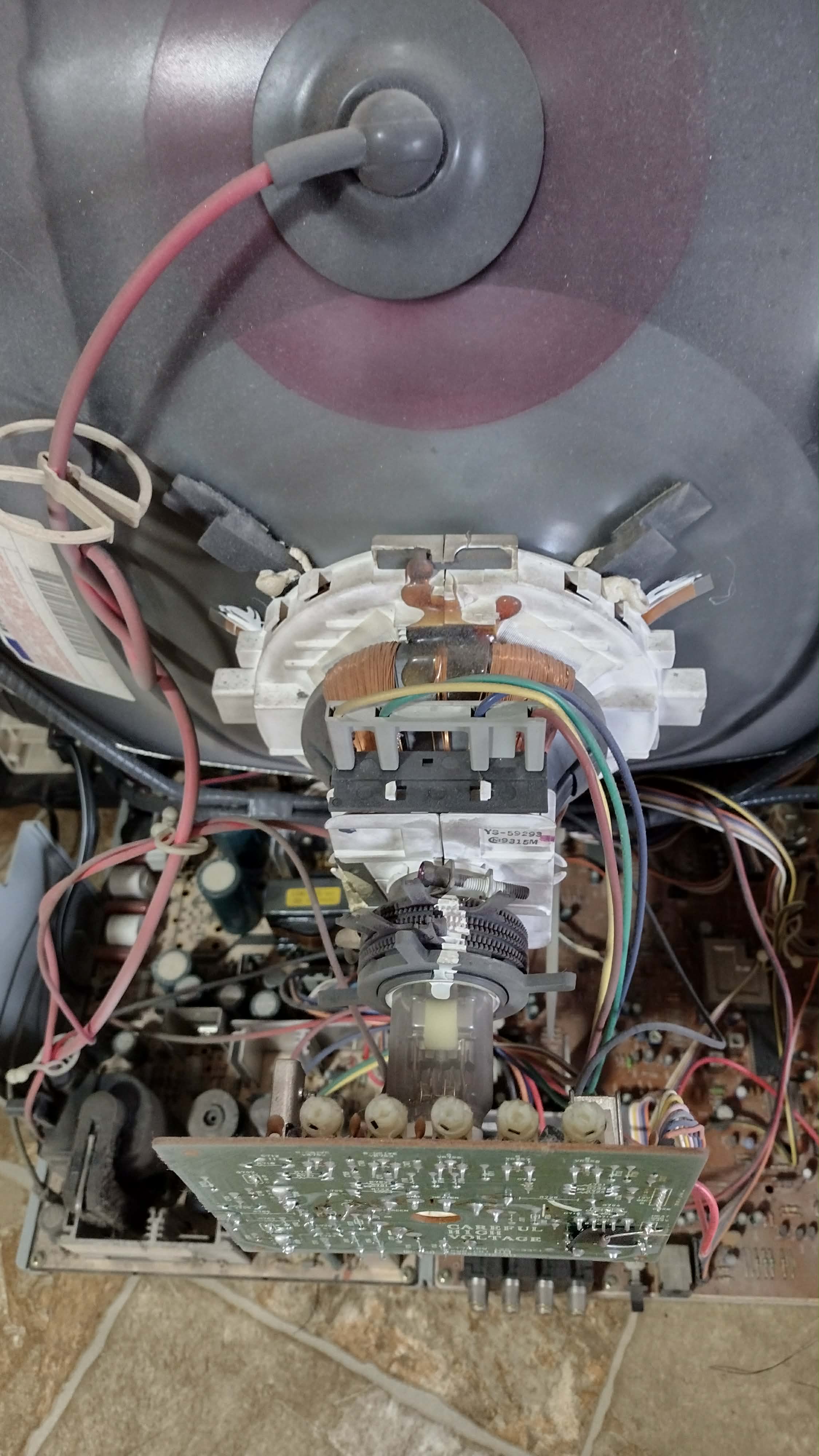

Yoke: YS-59293

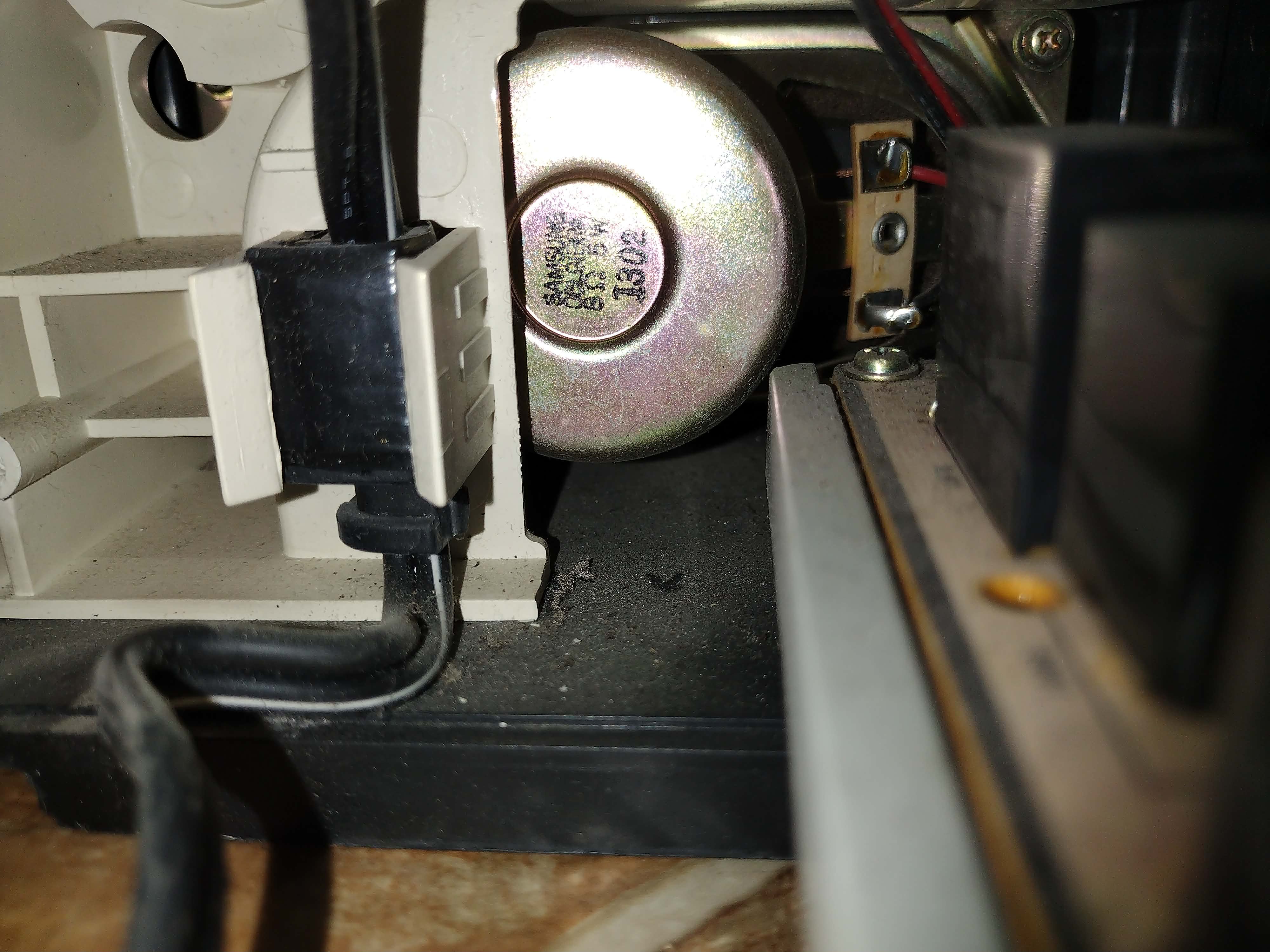

Speakers: Stereo, 5W x 2

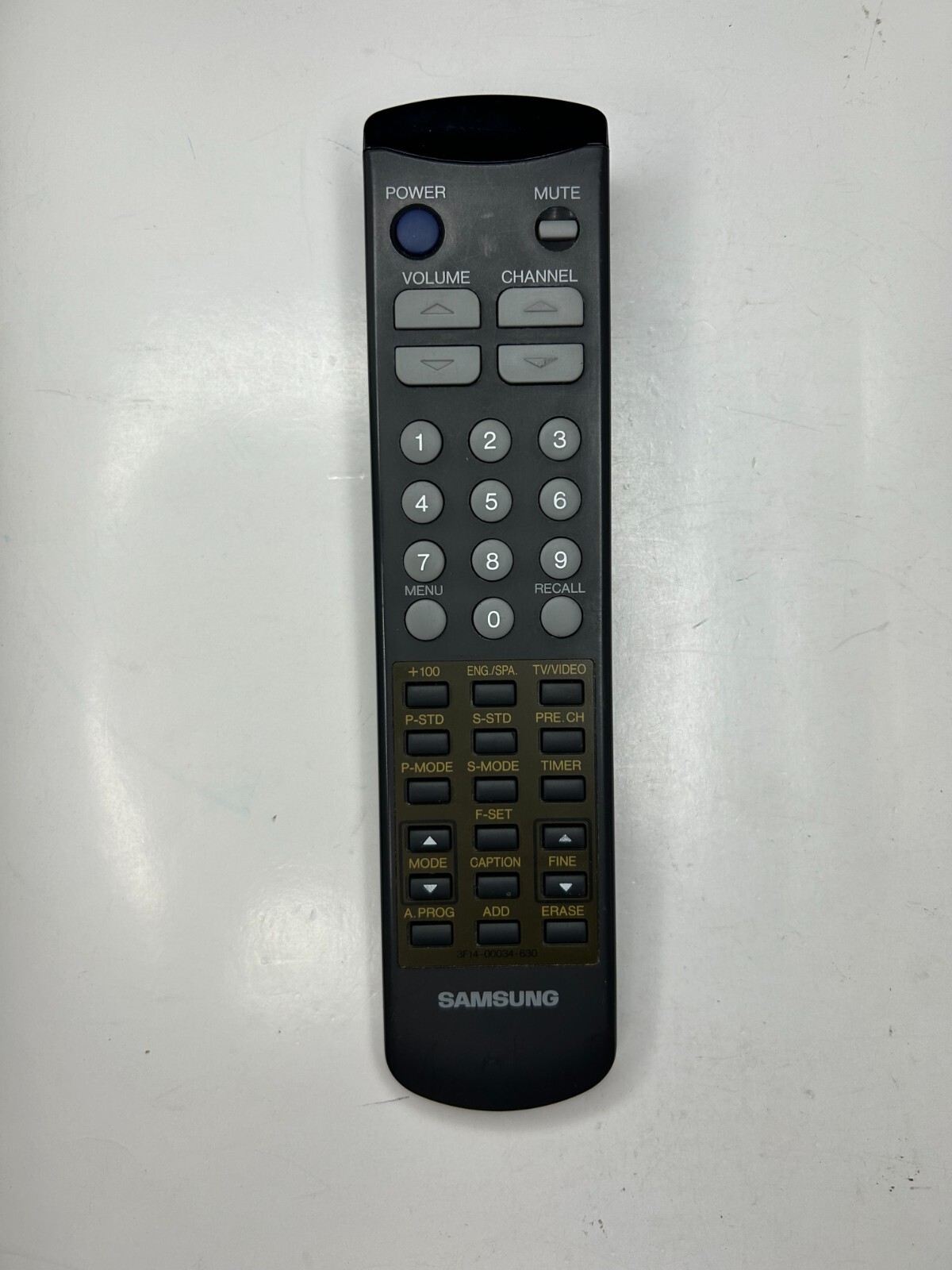

Remote: 3F14-00034-630

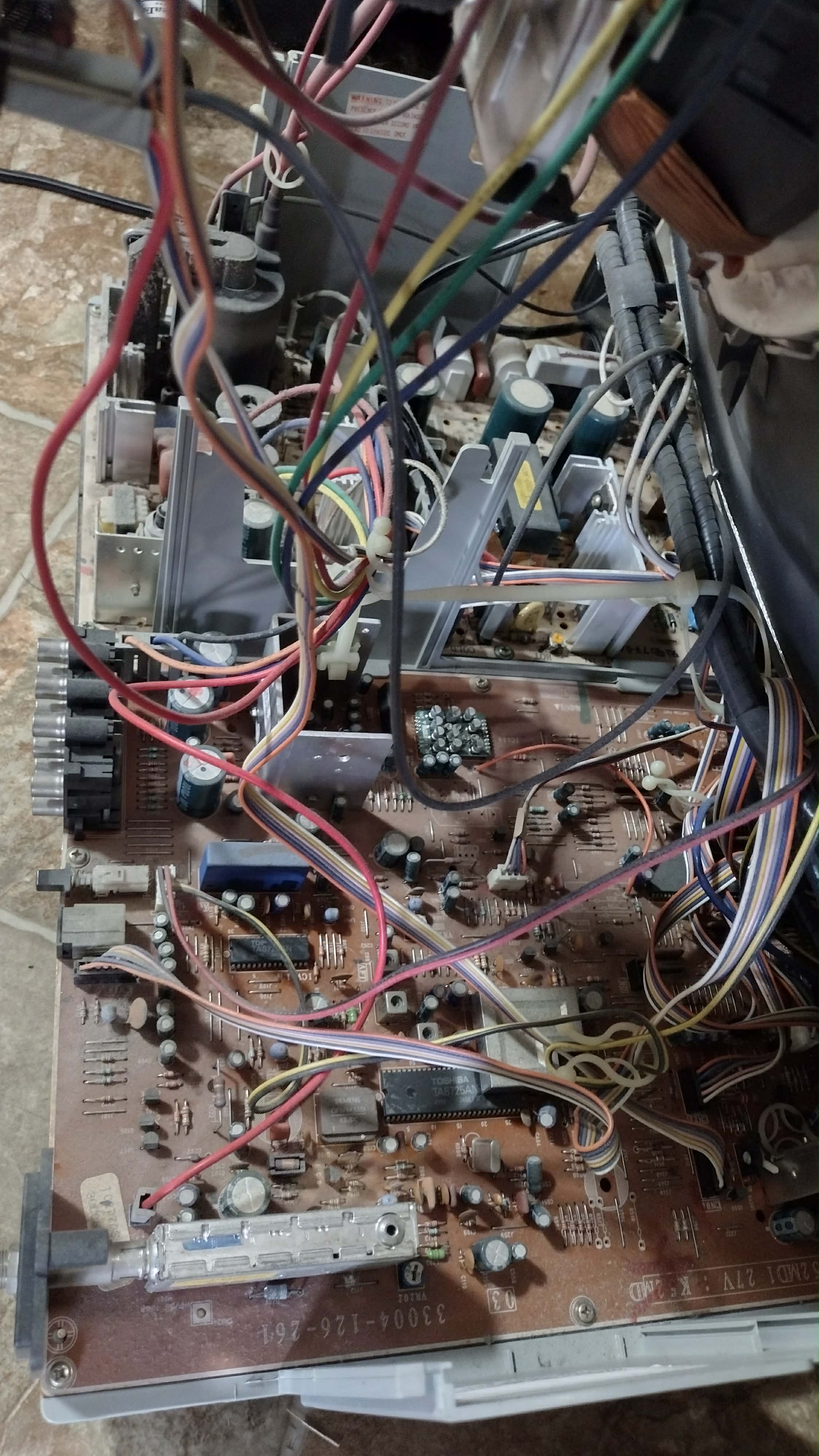

Chassis: K52MD
Application: Consumer
Cabinet Material: Plastic
Launched: 1992
MSRP: 399 USD

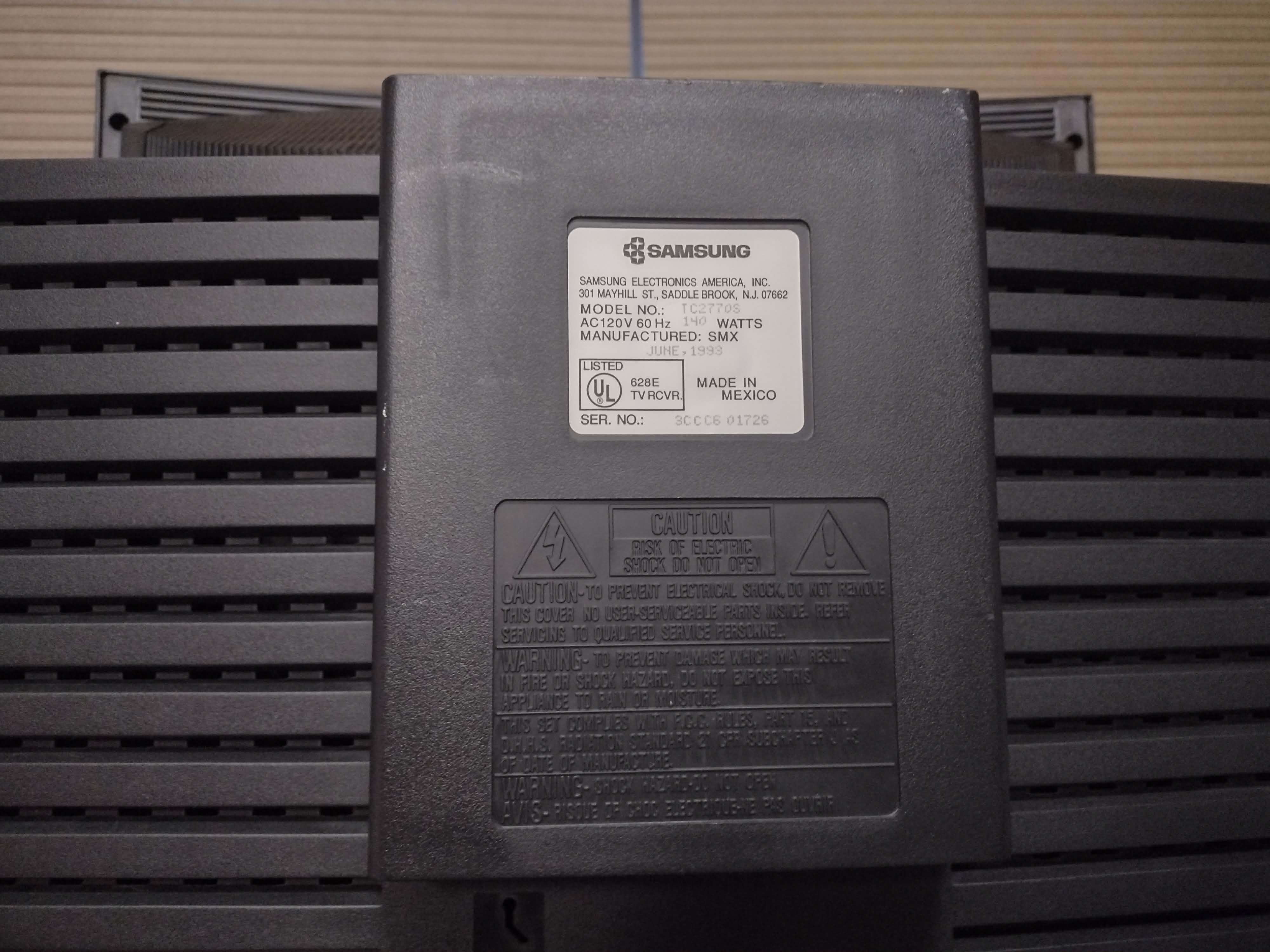

Country of Manufacture: Mexico
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements
