Summary

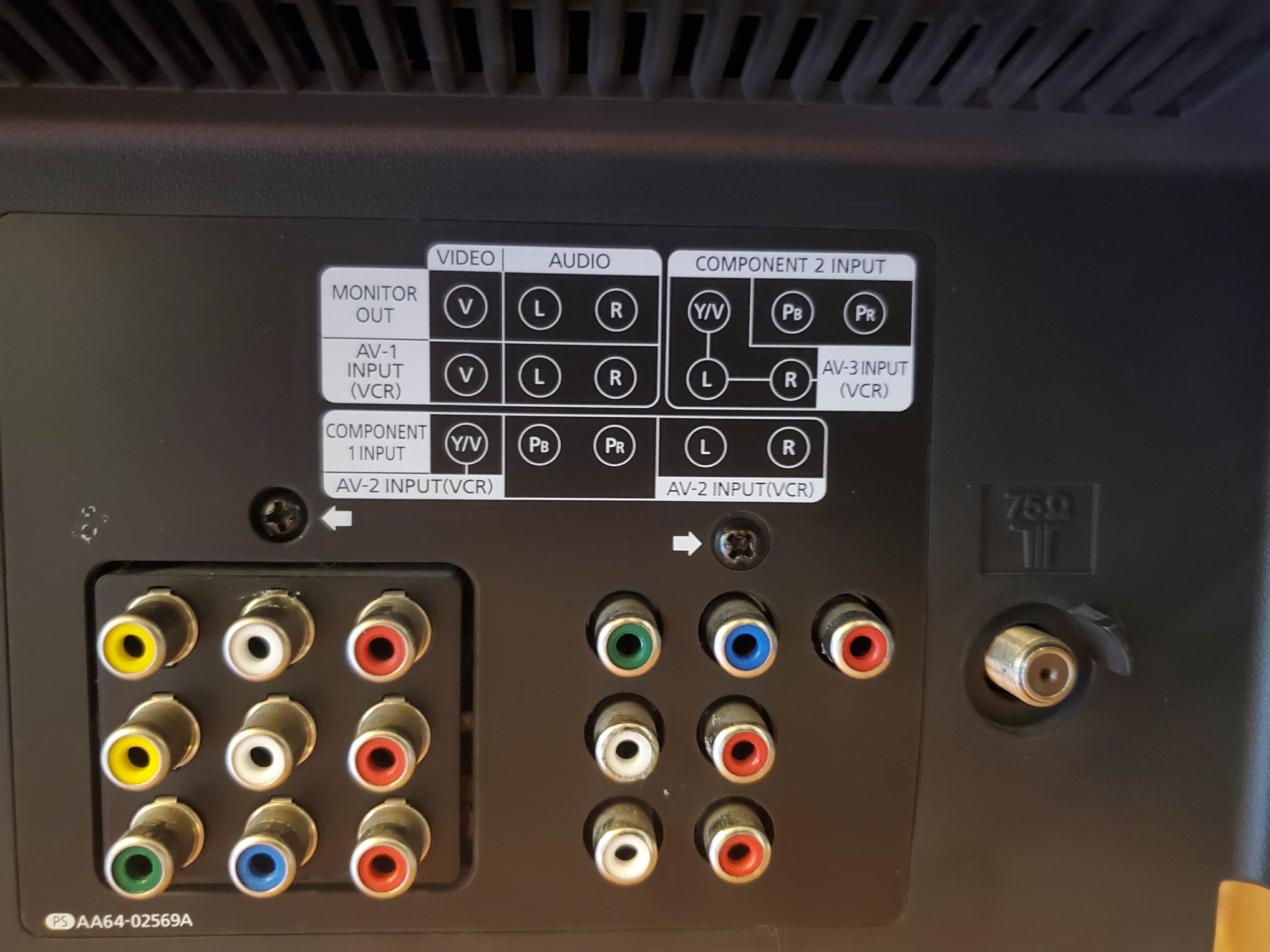

27" high-definition flatscreen CRT by Samsung, made in Mexico in 2002. Has RF, composite, s-video and component inputs with stereo sound. Supports 240p/480i as well as 480p and 1080i.
(Special thanks to Sam Hughey for the pics!)
Manuals
Notes

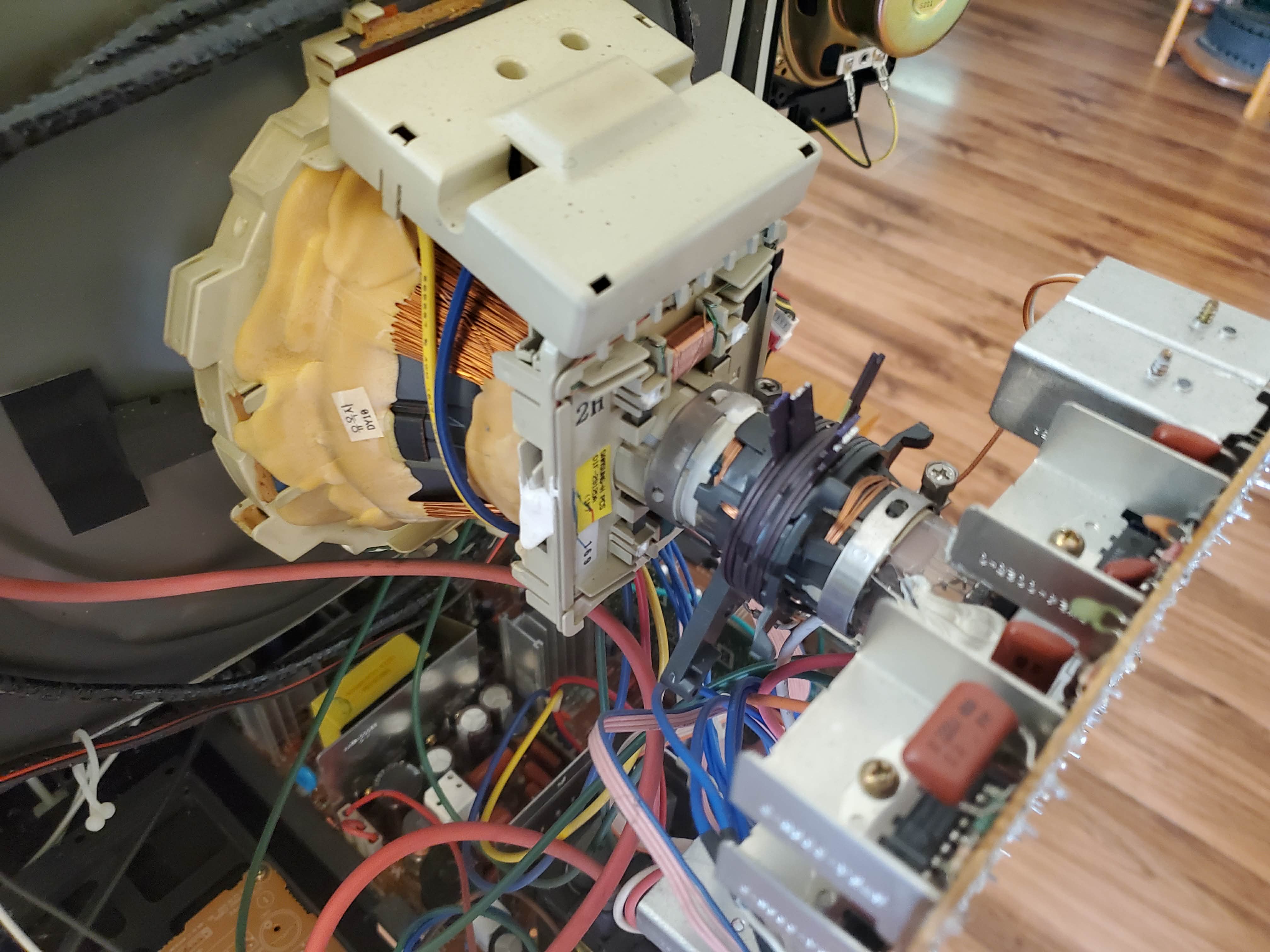

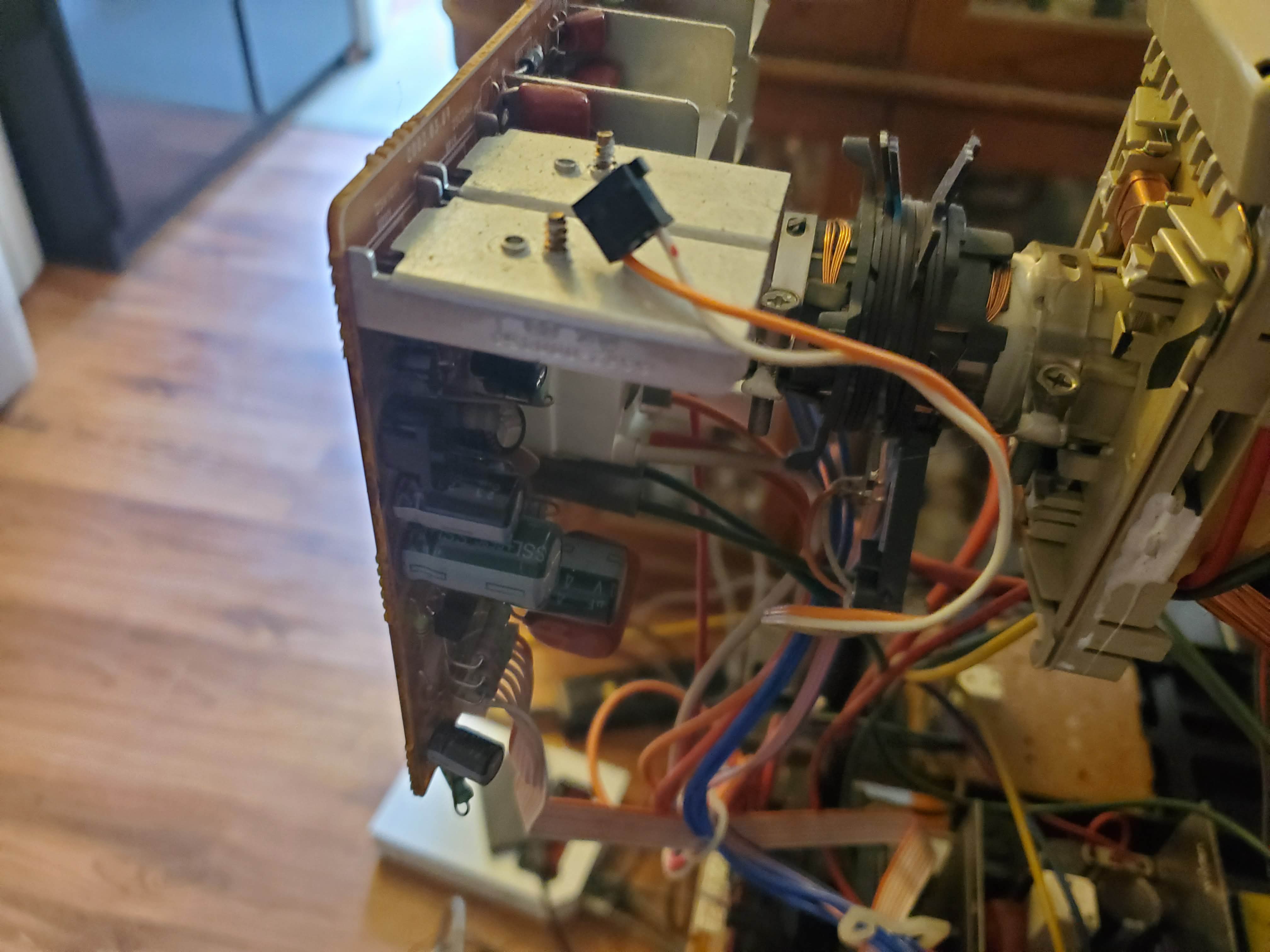

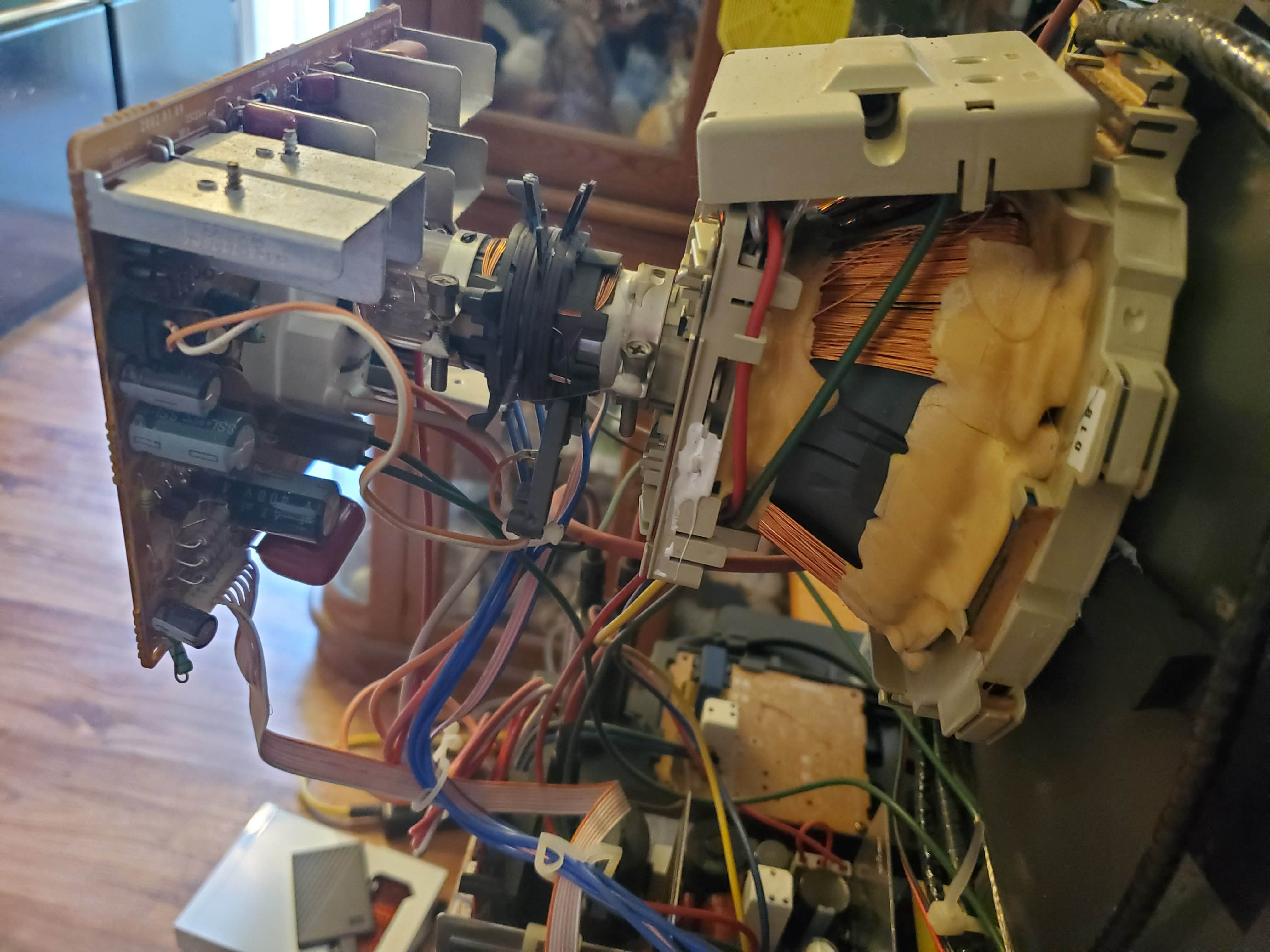

This set has Velocity Modulation. To disable it, unplug the jumper connecting the yoke to the neckboard:
Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | TX-M2796HF |
| Series: | DynaFlat HD |
| Viewable Size: | 27" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31.5 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7845 |
| Jungle IC: | Sony, CXA2165Q |
| Comb Filtering: | 3D Digital |
| Comb Filter IC: | NEC, UPD64083 |

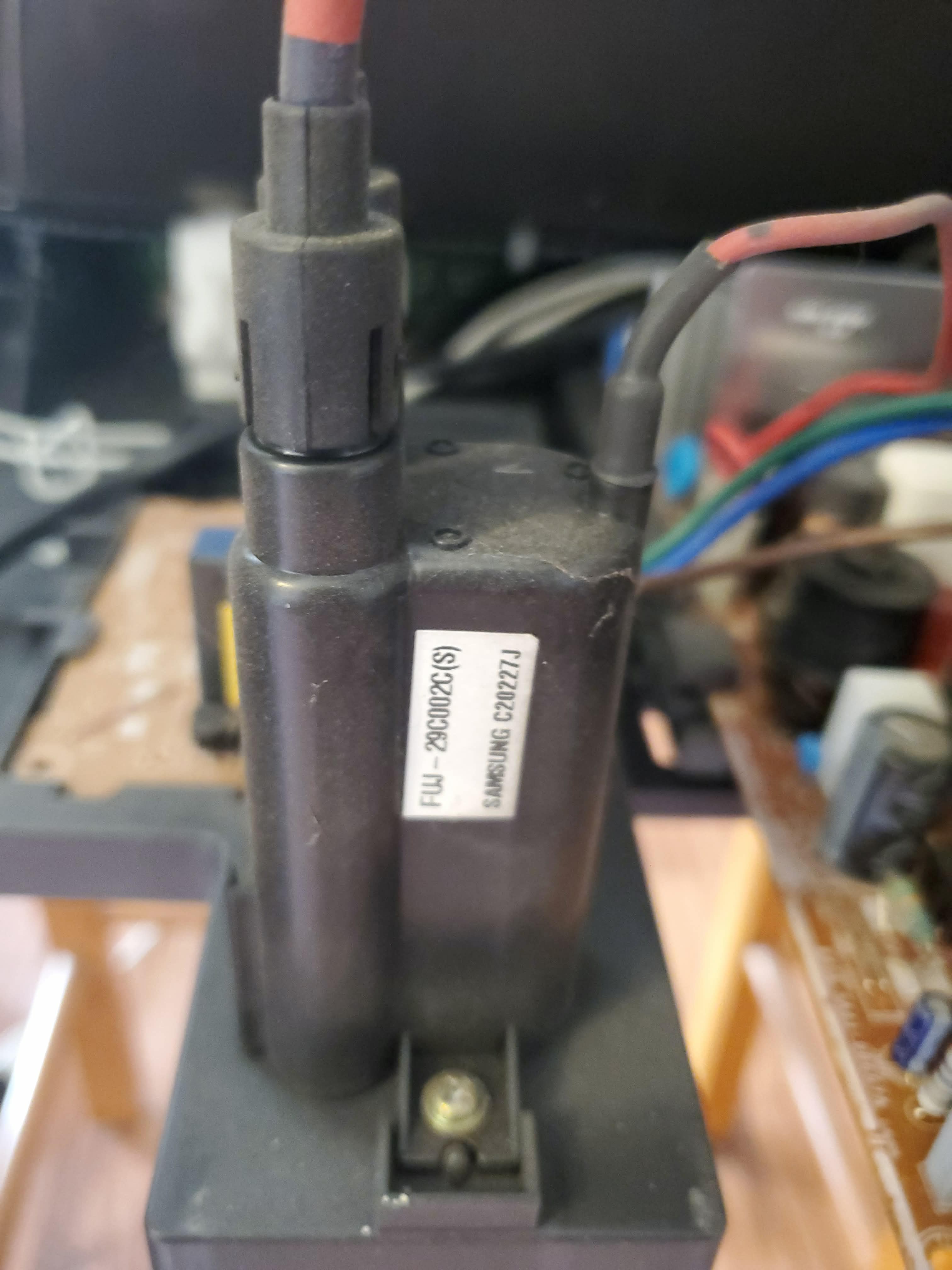

| Flyback: | FUJ-29C002C(S) |
| Focus Type: | Dual |

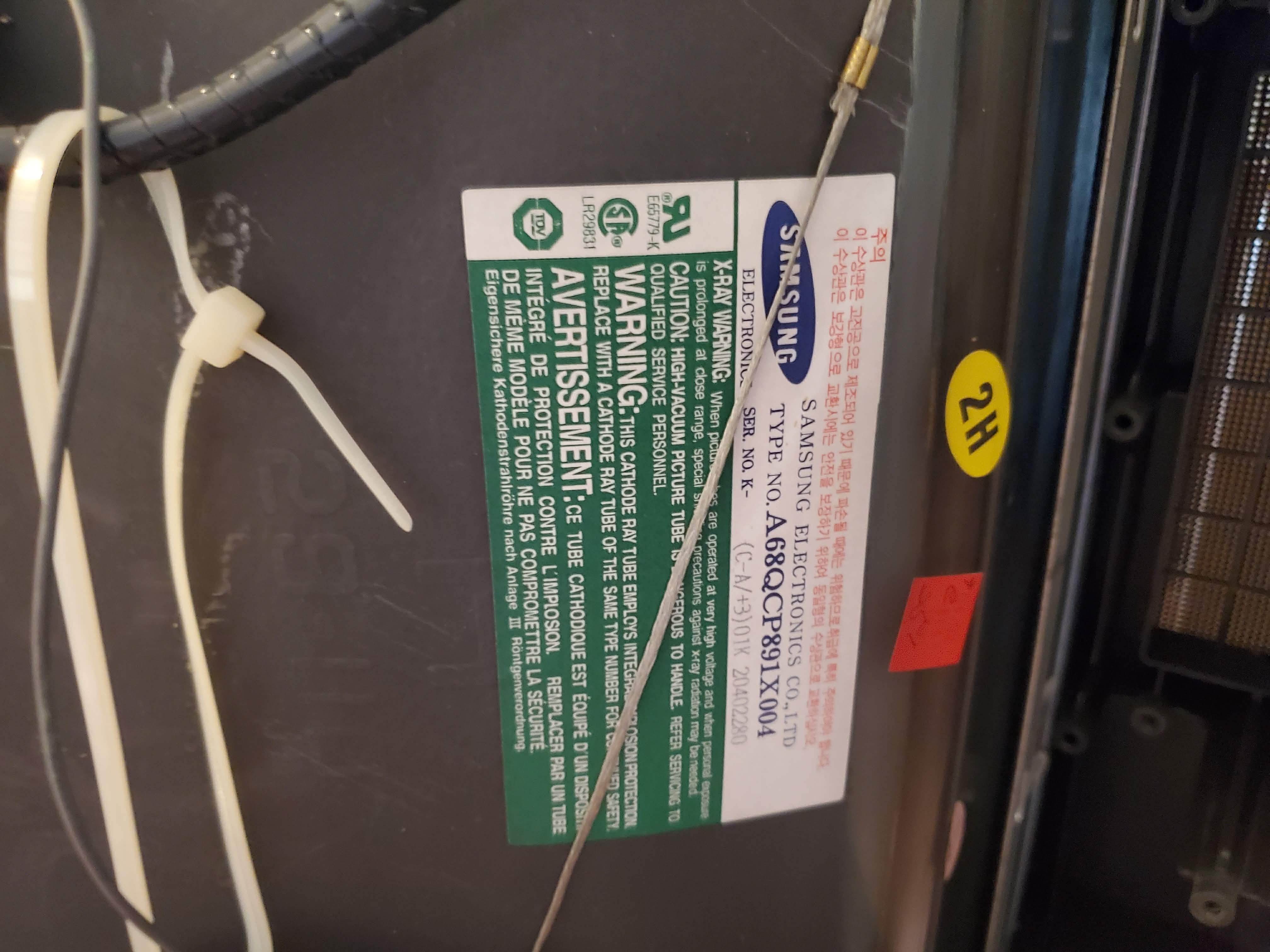

| Tube: | Samsung , A68QCP891X , A68QCP891X004 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DIF-2912DA |
| Speakers: | Stereo |
| Remote: | AA59-00254A |
| Chassis: | K55A |
| Weight: | 101.4 lbs (46 kg) |
| Dimensions (W/H/D): |
745 x 498 x 570 mm
(29.3 x 19.6 x 22.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 799 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
