Summary

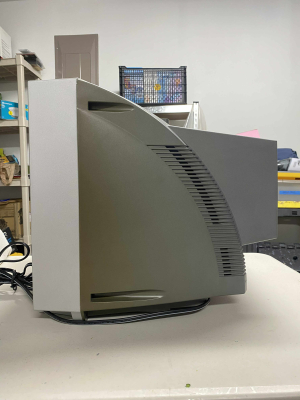

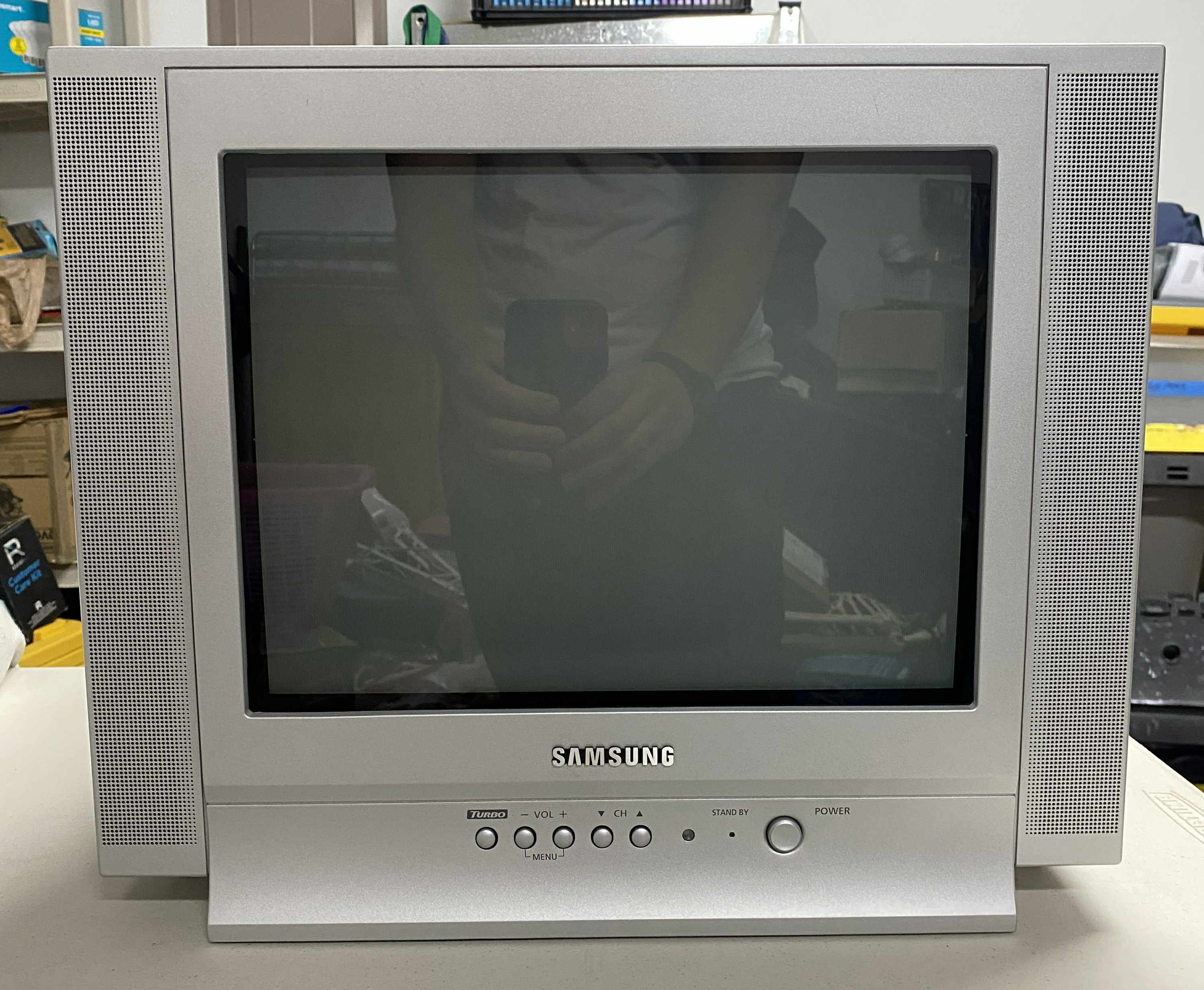

14" Samsung Dynaflat CRT, made in Mexico in 2004. Has RF, composite and component inputs with stereo sound, but lacks s-video.
(Special thanks to Kyle Mazabob for the pics!)
Manuals
Notes
The Philips jungle chip allows for 50hz and other oddball resolutions and refresh rates within a 15khz range. However, only over component will they be in color.
Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | TX-P1430 |
| Series: | DynaFlat |
| Viewable Size: | 14" |

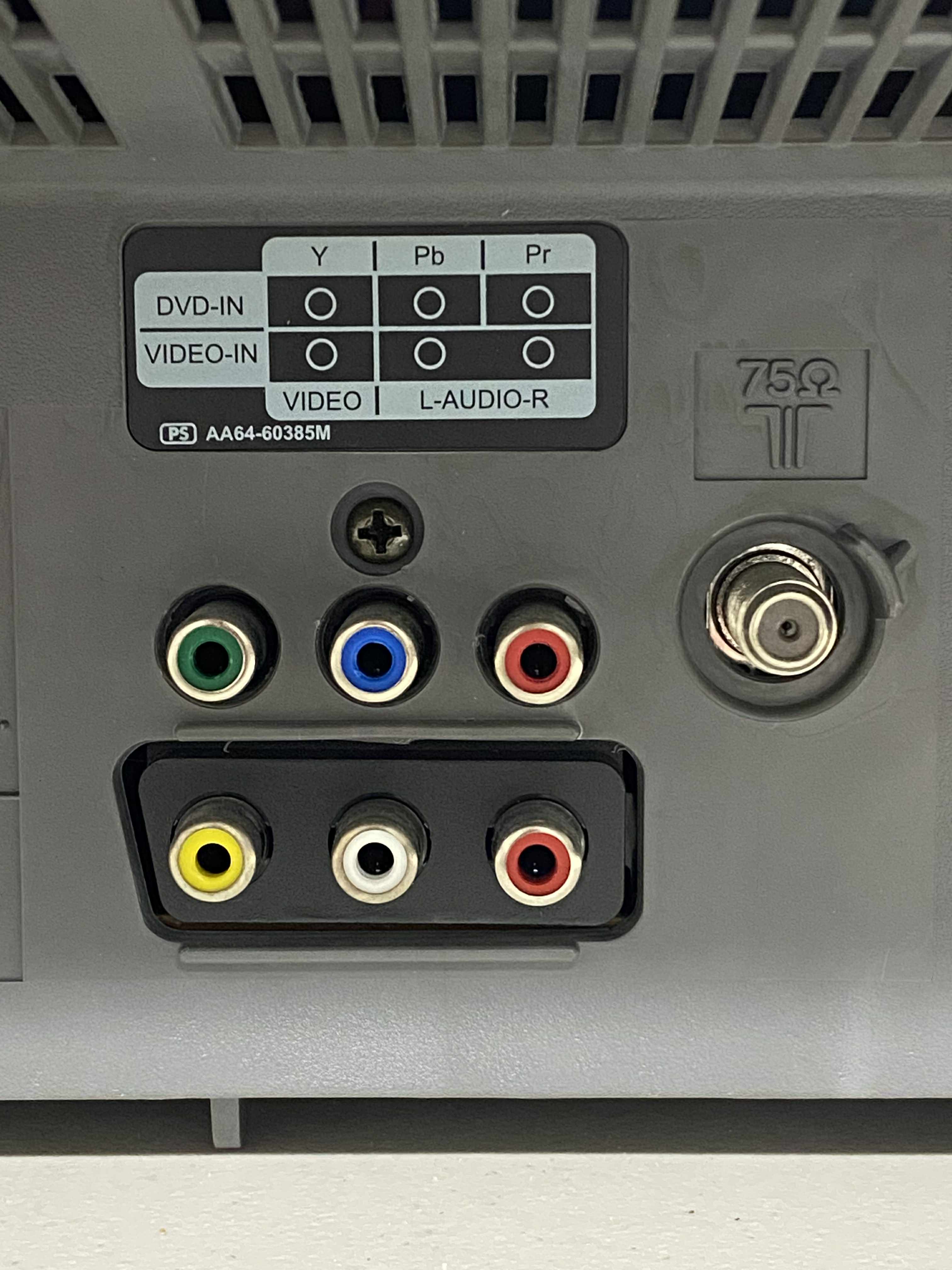

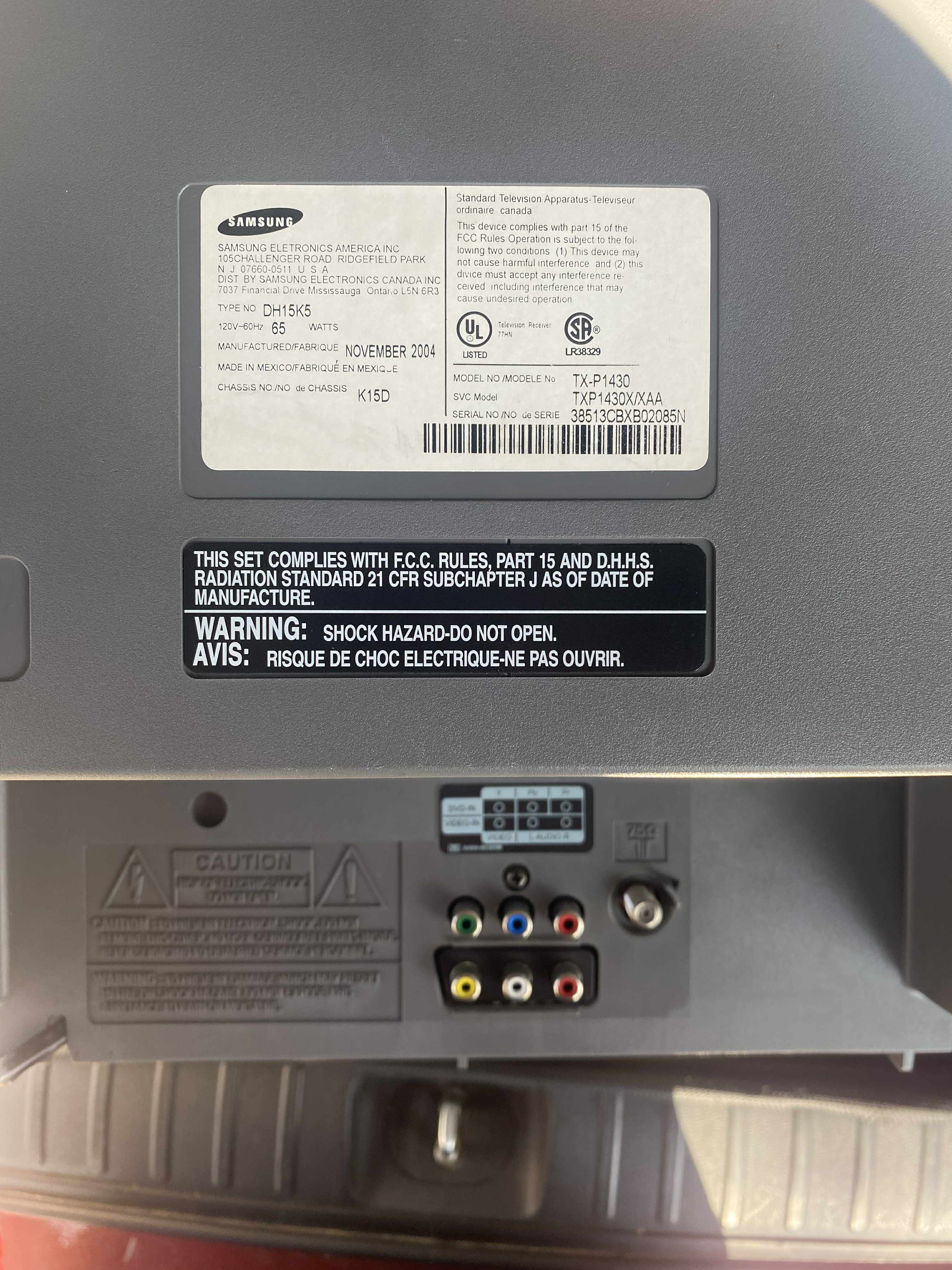

| Inputs: | Composite, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

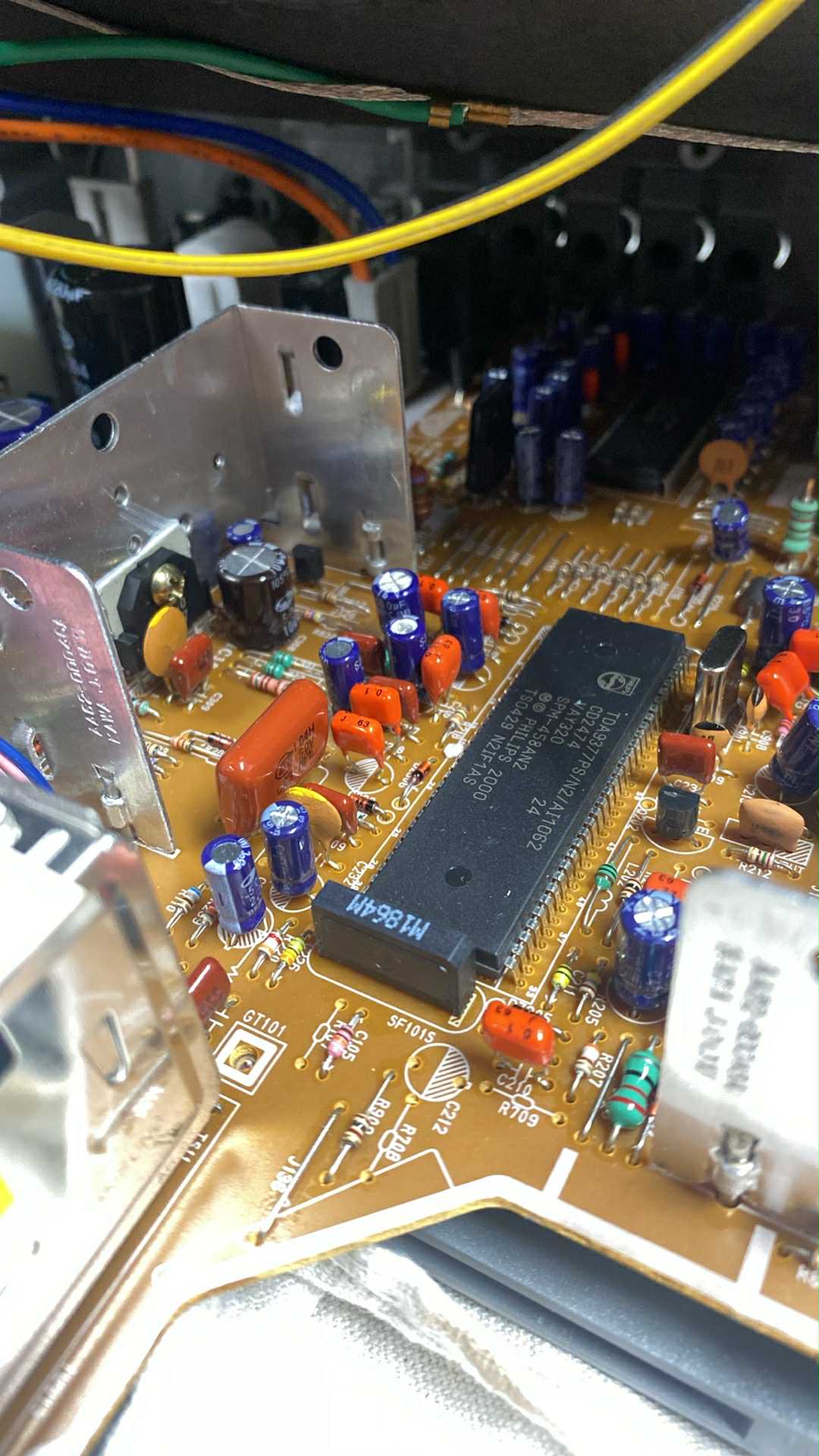

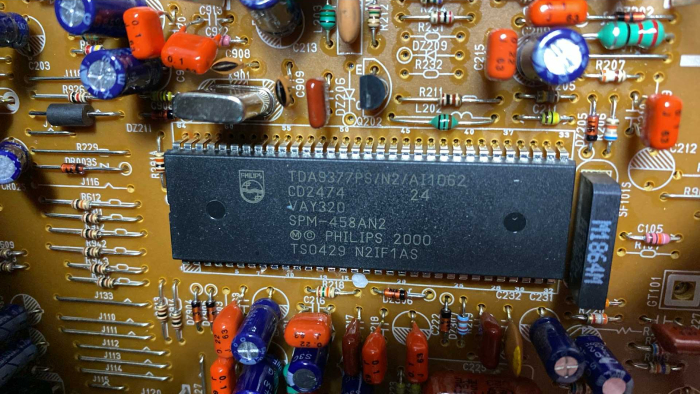

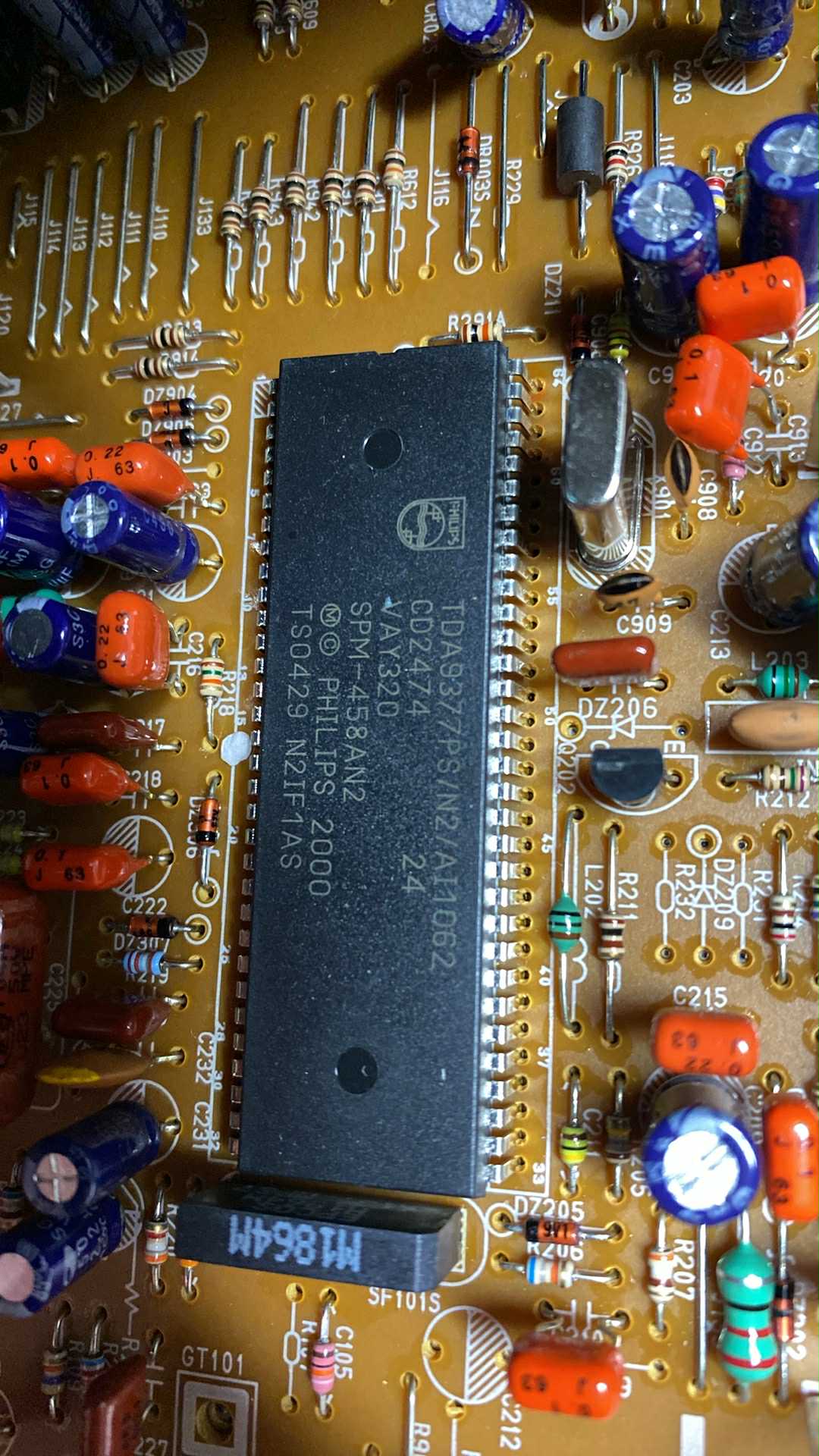

| Jungle IC: | Philips, TDA9377, TDA9377PS |

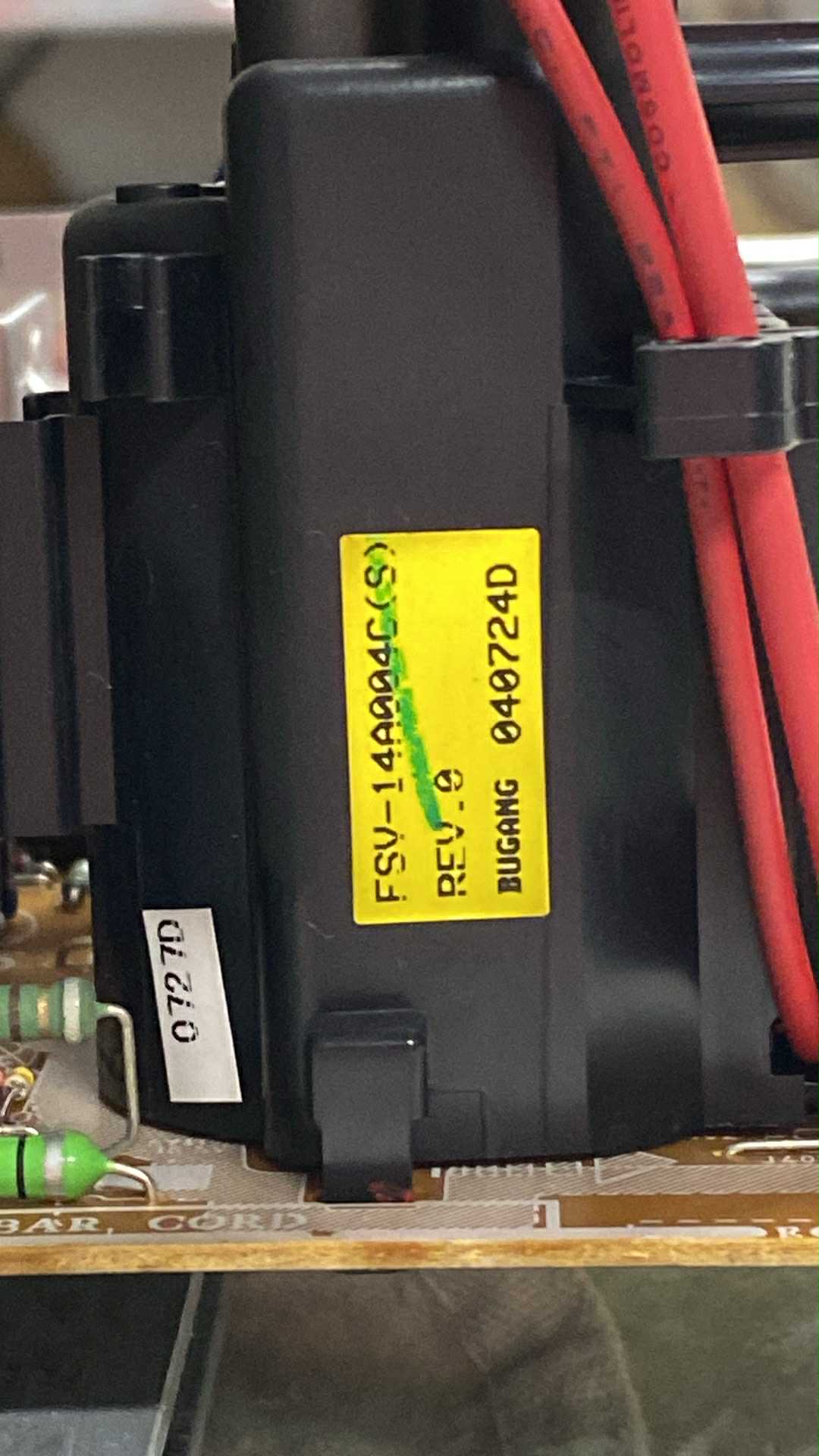

| Flyback: | FSV-14A004C |
| Focus Type: | Single |

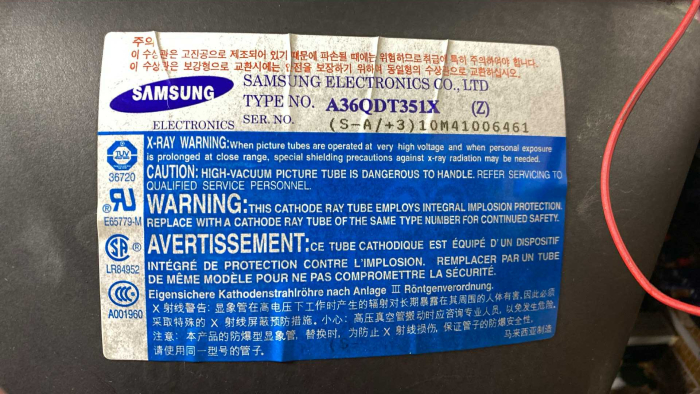

| Tube: | Samsung , A36QDT351X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

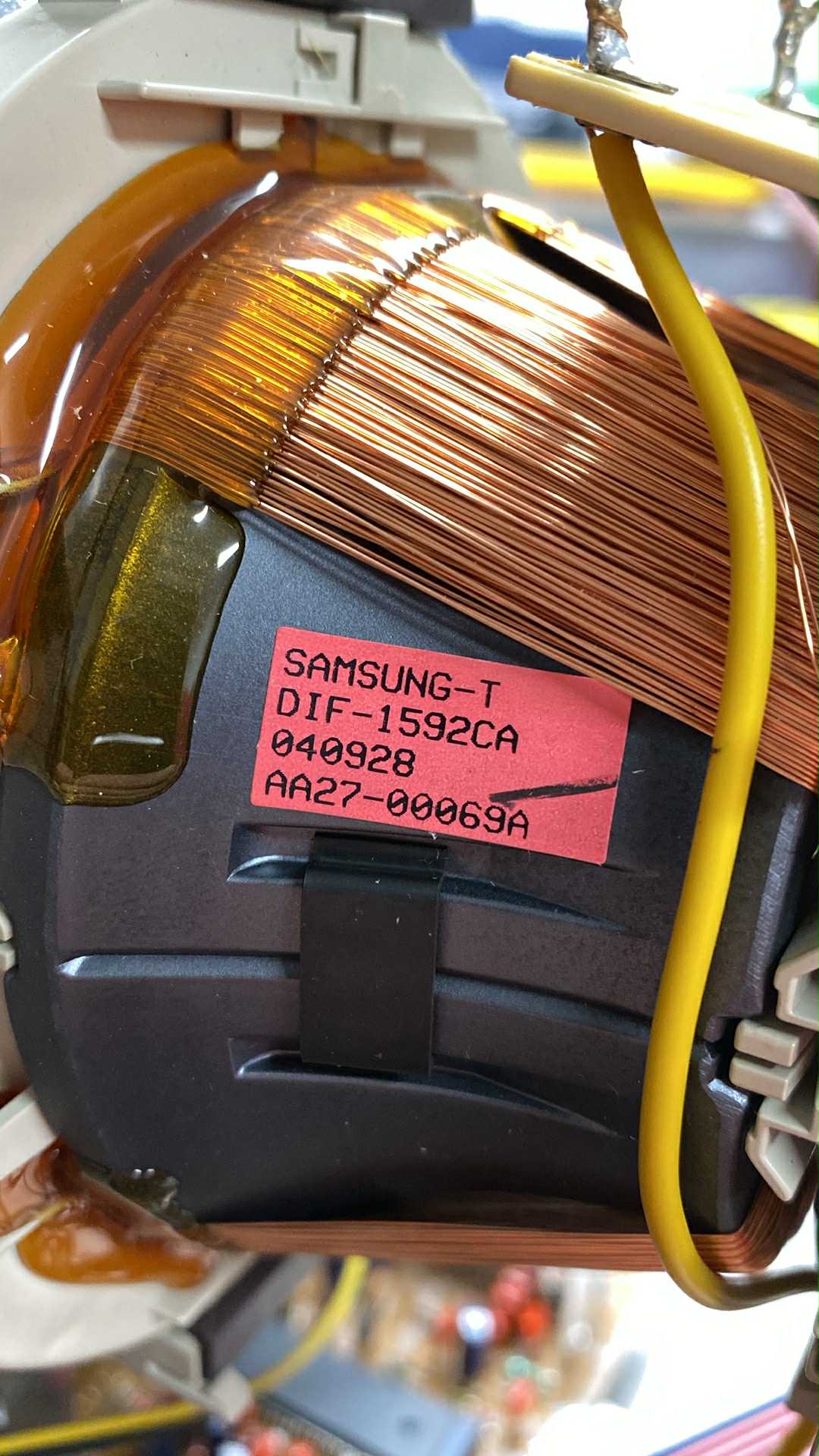

| Yoke: | DIF-1592CA |

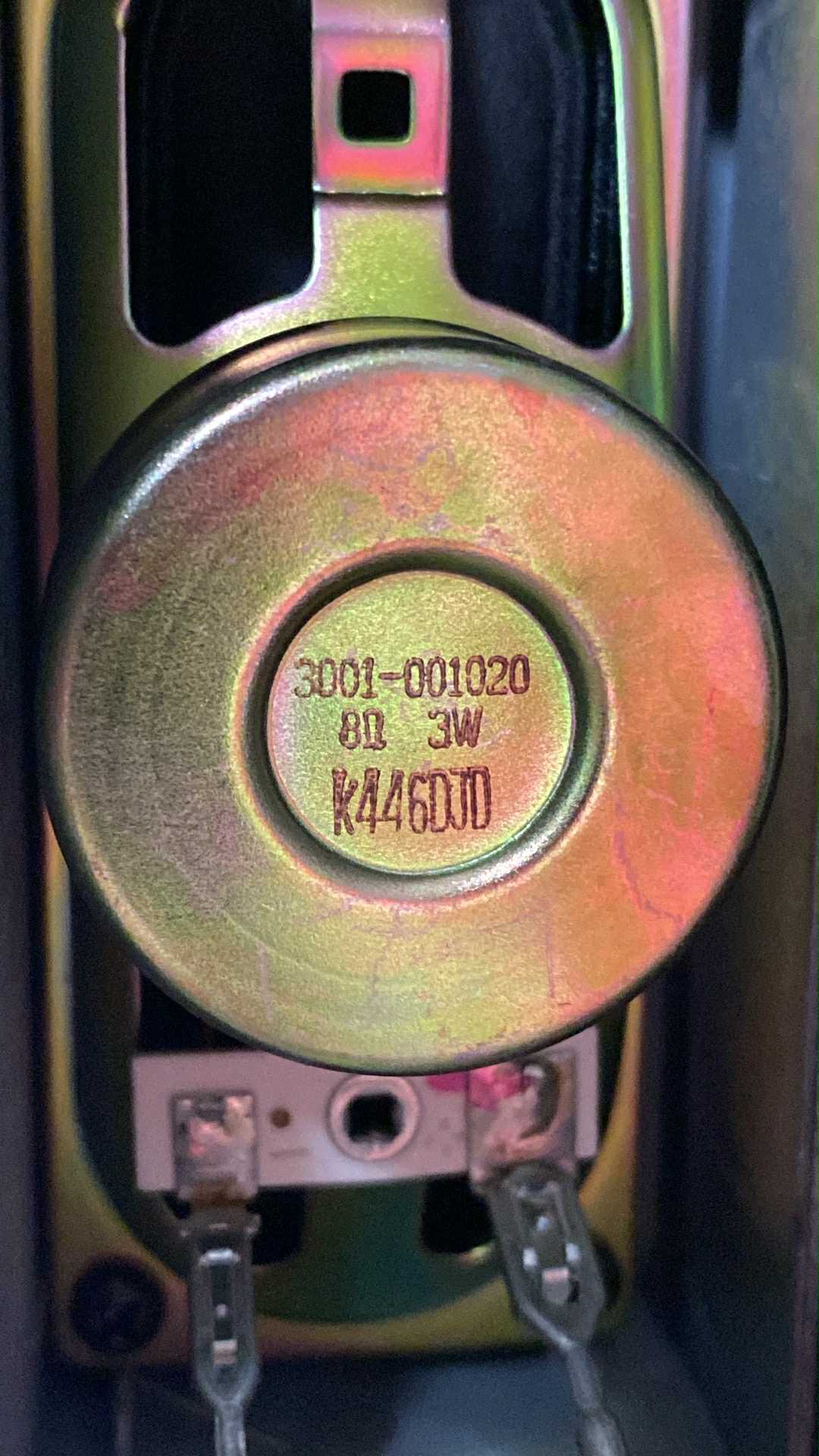

| Speakers: | Stereo, 3W x 2 |
| Remote: | AA59-00316D |
| Chassis: | K15D |
| Weight: | 26.5 lbs (12 kg) |
| Dimensions (W/H/D): |
432 x 363 x 403 mm
(17 x 14.3 x 15.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 139 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
