Samsung TXB2012
Trixter192, Atomist
January 31, 2025, 12:01 pm
January 31, 2025, 11:29 pm
January 31, 2025, 12:01 pm
January 31, 2025, 11:29 pm
Summary
Community submission of an intact unused Samsung television. Very little information available online.
Manuals
- Electrical schematic
- Service manual closest available
Notes
Like most Sansung televisons, you can access the service manual using any compatible remote - turn the TV off (standby mode), then Press "MUTE 1 8 2 POWER".

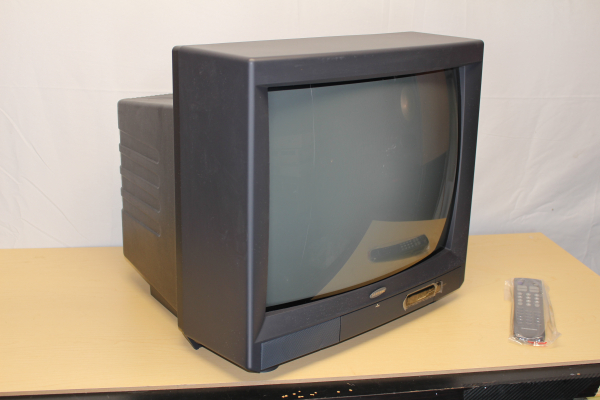

Gallery
| Specifications | |
|---|---|
| Brand: | Samsung |
| Manufacturer: | Samsung |
| Model: | TXB2012 |
| Series: | TXB |
| Viewable Size: | 21" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | LA7625 |
| Flyback: | AA26-30001R |
| Removable Glare Film: | No |
| Remote: | 3F14-00034-371 |
| Chassis: | CKA50HM |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures, Needs Tube Info, Community Submission, Needs Yoke Info |
